How to Make Double Shaft DC MOTOR

by ROBO HUB in Craft > Art

2102 Views, 2 Favorites, 0 Comments

How to Make Double Shaft DC MOTOR

dc otor.JPG

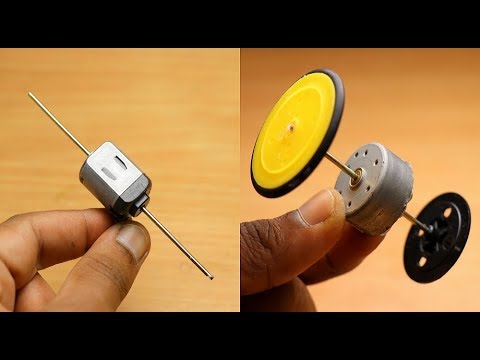

Hello Readers in this Instructable i made a double shaft dc motor which i got from my old mp3 player,Purpose of Doing so was to combine features of two DC MOTORS into One.For example in rc cars instead of 2 only one can be used which saves lots of Space and Battery power!! Cool isn't

Click Here to Watch Full Video of this tutorial https://youtu.be/eD83yzwaECs

Video for Those Who Hate Reading!

How to Make Double Shaft DC MOTOR - 2 Ways For Dual Shaft DC Motor

if your app doesn't support the video just copy and paste this Link on Your Browser https://youtu.be/eD83yzwaECs

Lets Begin...

dc motor (1).png
dc motor (2).png
dc motor (4).png
dc motor (3).png
dc motor (7).png
dc motor (8).png

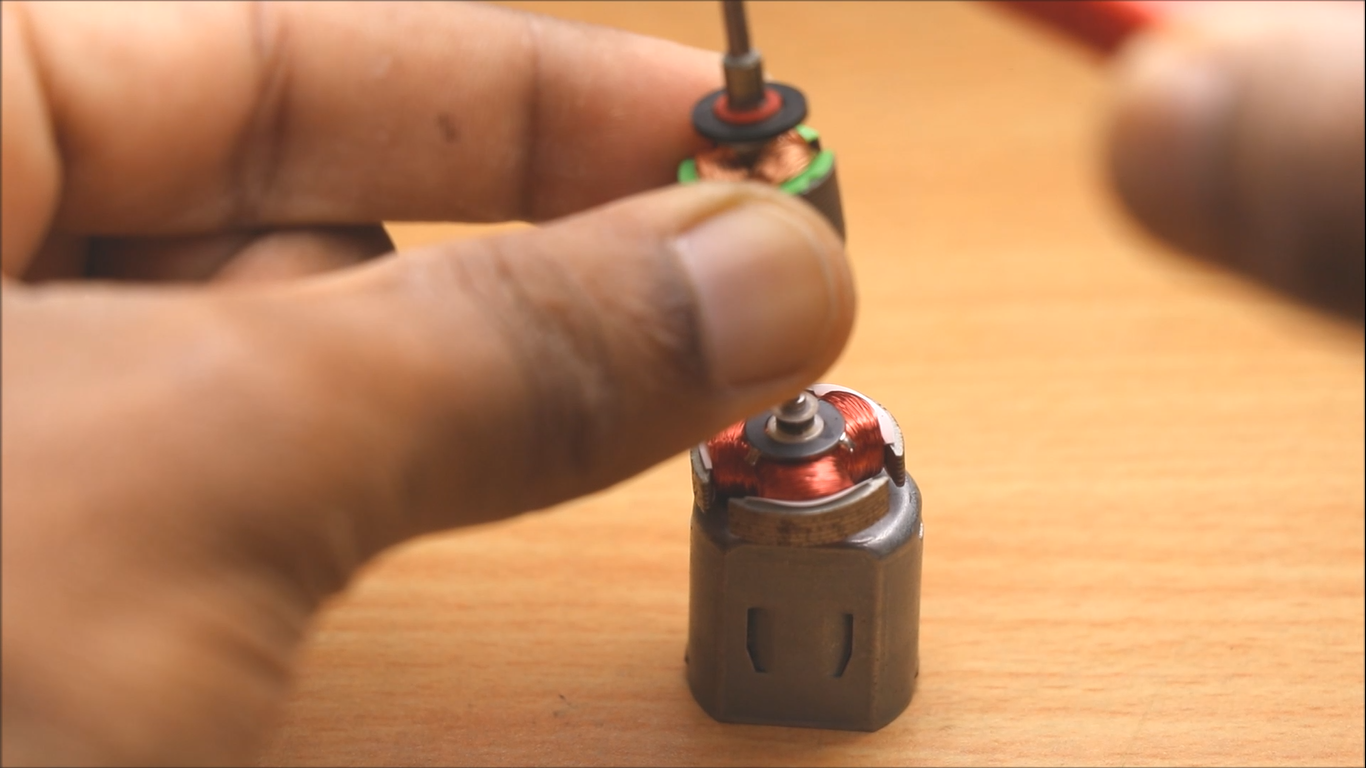

  • Have a Look at Your DC MOTOR!
  • Remove the back plate ( i faced some problems while removing this)
  • Separate the plate and DC Motor Body

Removing Old Shaft

dc motor (11).png
dc motor (12).png
dc motor (16).png
dc motor (17).png
dc motor (18).png

  • i used old DC Motor as a support to remove the shaft
  • used Mini Hammer For Ramming
  • Shaft is Taken Out

New Shaft

dc motor (19).png
dc motor (20).png
dc motor (24).png
dc motor (22).png
dc motor (25).png
dc motor (26).png
dc motor (27).png
  • Insert New Shaft
  • i got my new shaft from umbrella Spokes
  • Couple it using superglue
  • Join Everything
  • Run Your DC Motor and Build Some Cool Stuffs

ThankYou...Please Show Your Love by Shares and Comments..Have a Good Day :)
