How to Make Double LED Blinker Circuit on PCB

by Utsource123 in Circuits > LEDs

2373 Views, 2 Favorites, 0 Comments

How to Make Double LED Blinker Circuit on PCB


Hii friend,

Today I am going to make a Project circuit of Double LED Blinker.This circuit is made by Timer IC 555.

Let's get started,

Take All Components As Show Below


Components required -

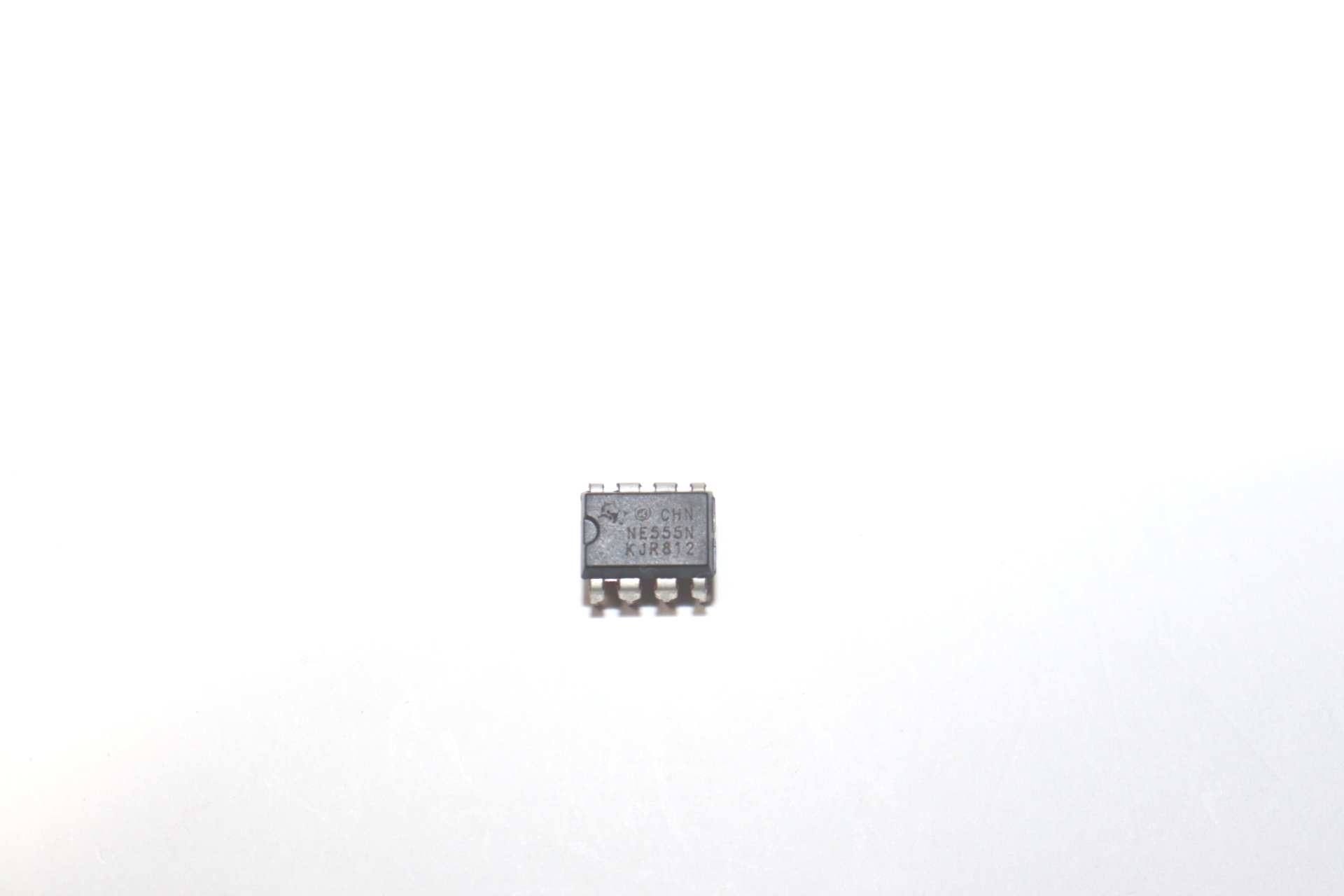

(1.) IC - 555 x1

(2.) IC Base - 8 Pin x1

(3.) Capacitor - 16V 100uf x1

(4.) Resistor - 10K x1

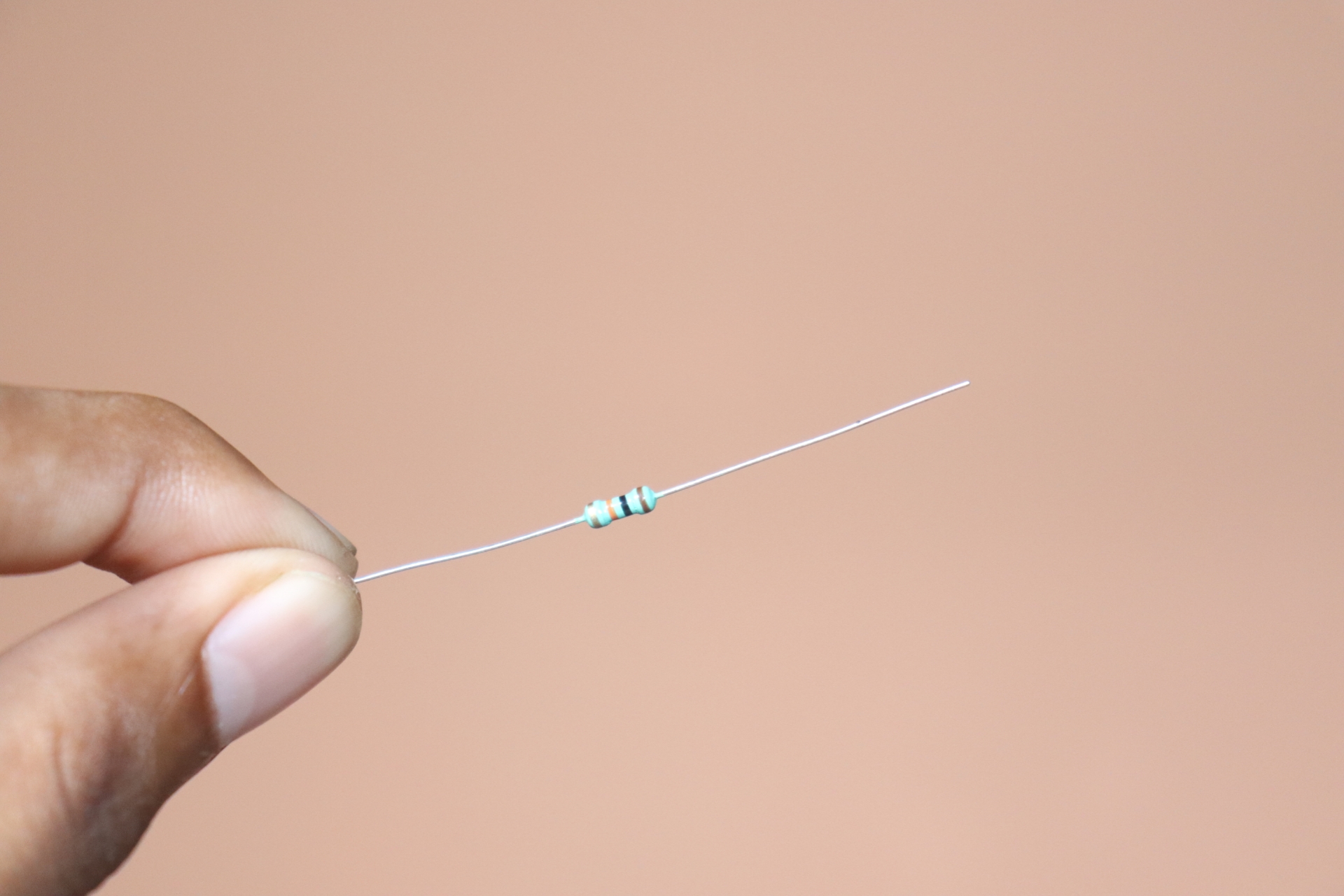

(5.) Resistor - 1K x1

(6.) Resistor - 220 ohm x1

(7.) LED - 3V x4

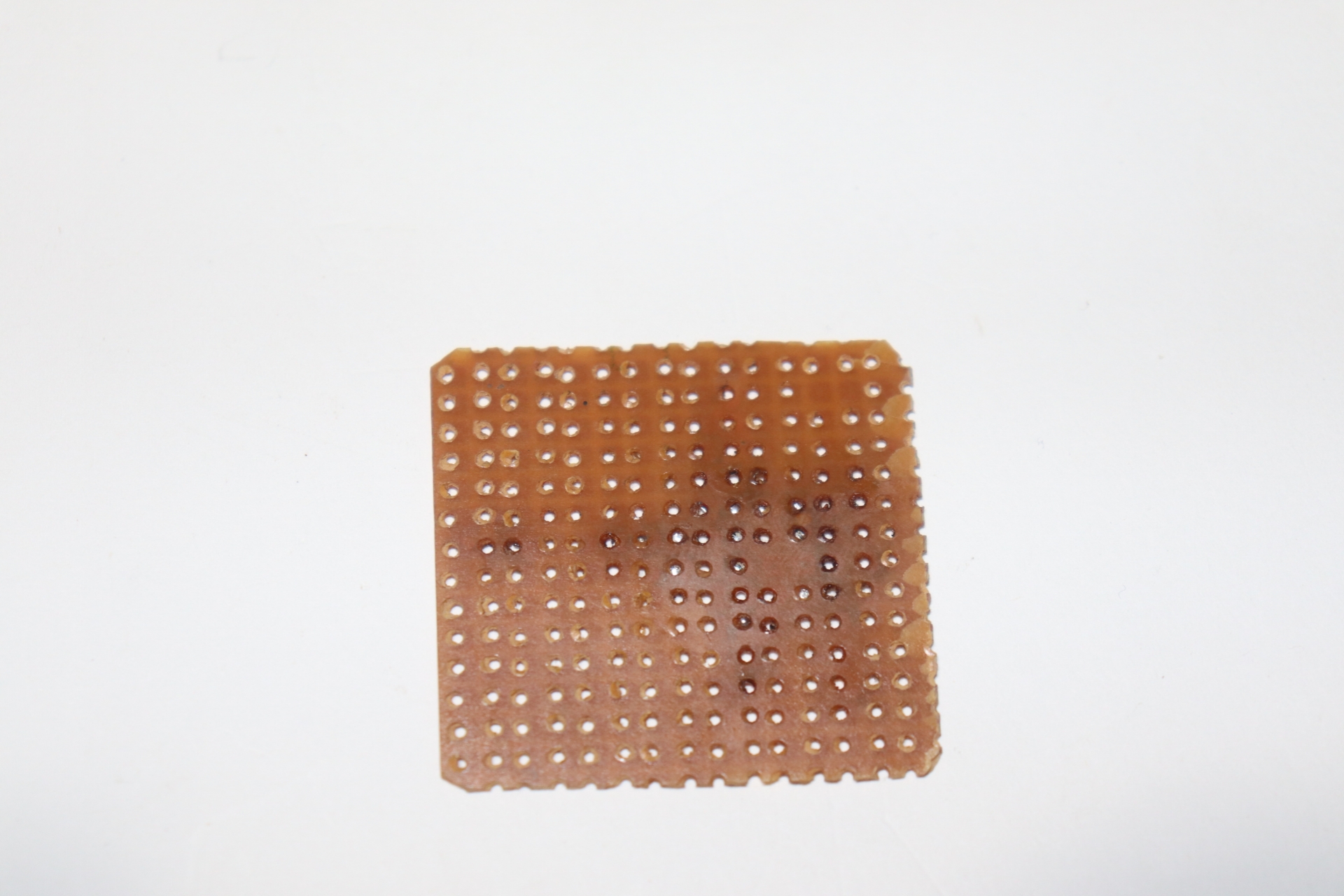

(8.) PCB

(9.) Battery - 9V x1

(10.) Battery clipper x1

Circuit Diagram


Connect all components according to the circuit diagram.

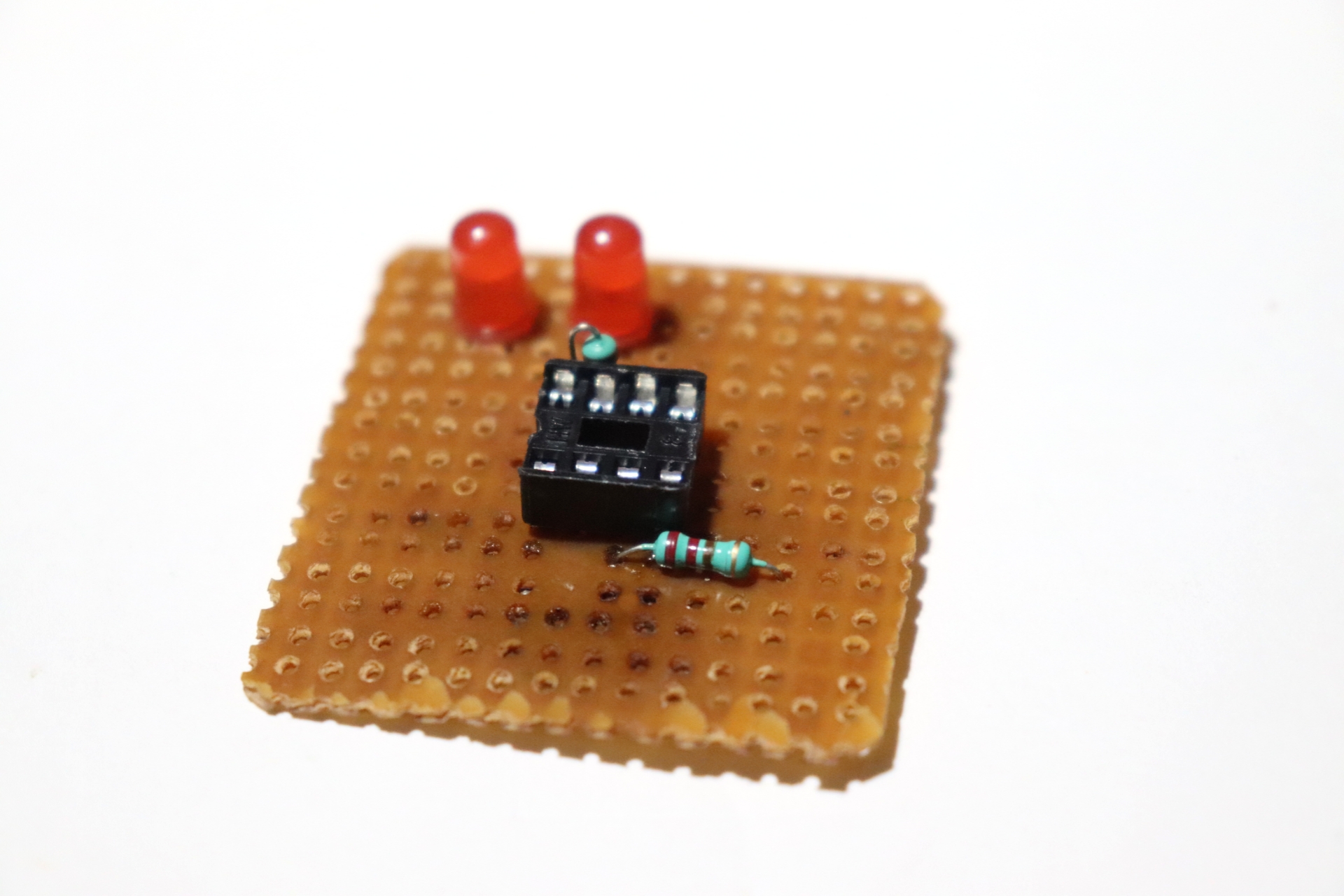

Solder IC Base on the Pcb


Solder 8-Pin IC base on the PCB board.

Connect 1K Resistor


Short pin-4 and pin-8 of the IC using jumper wire and

Next we have to connect 1K resistor to pin-7 to pin-8 of the IC as solder in the picture.

Solder LEDs in Series


Connect two LEDs in series and connect +ve of LED to Pin-8 of the IC as given in the circuit diagram.

Connect 220 Ohm Resistor


Next solder 220 ohm Resistor between pin-3 to -ve of LED as per circuit diagram.

Solder Capacitor and Remain 2-LEDs

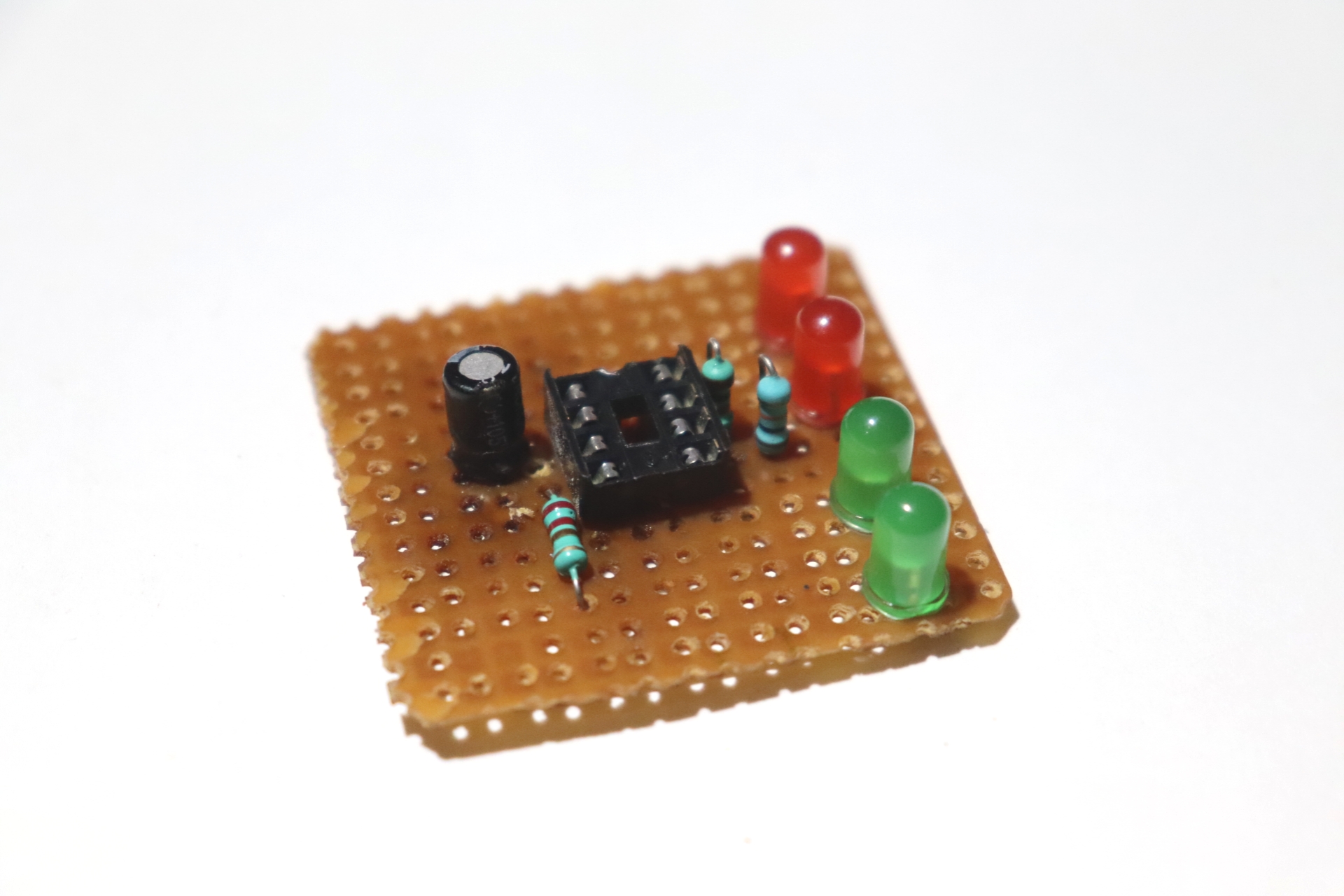

Now solder More remaining two LEDs on pcb as given in the circuit diagram and

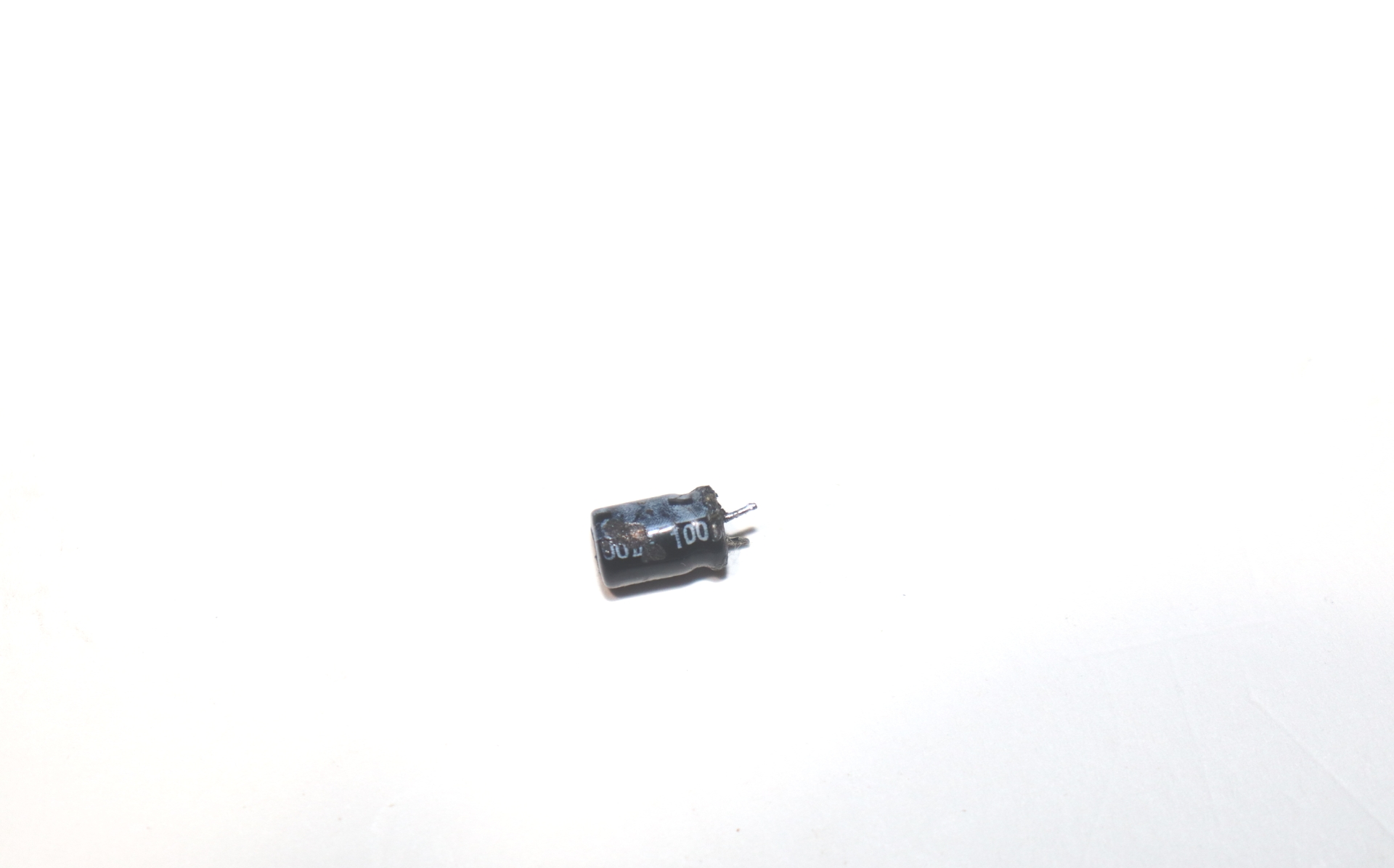

also connect 16V 100uf capacitor.

~ Solder -ve pin of capacitor to pin-1 and +ve pin of capacitor to pin-2 of the IC as circuit diagram.

~ Also Short pin-2 and pin-6.

Solder 10K Resistor


Next we have to solder 10K resistor between pin-6 to pin-7.

Connect Battery Clipper Wire


Now connect Battery clipper wire to the circuit.

Solder +ve wire of battery clipper to pin-8 of IC and

solder -ve pin of battery clipper to pin-1 of the 555 IC.

Circuit Is Completed


Now our circuit is completed so connect battery to the battery clipper and now you can see the LEDs are blinking.

Result


Result - As you can see in the picture LEDs are started blinking.

LEDs are blinking with 1/2 second timing to each other.

If you want to make more electronic projects then follow utsource123 now.

Thank you
