How to Make DIY Arduino Ultrasonic Range Finder Using HC-SR04

by Harman1796 in Circuits > Arduino

224 Views, 0 Favorites, 0 Comments

How to Make DIY Arduino Ultrasonic Range Finder Using HC-SR04

How to make DIY Arduino Ultrasonic Range Finder using HC-SR04

In this post, we will be discussing making an Ultrasonic Range Finder by using the HC-SR04 sensor very easily at home. You can use any beginner kit of Arduino to make it, as the parts required are easily available with it.

Supplies

  1. Arduino Uno R3
  2. Breadboard
  3. Jumper Wires
  4. HC-SR04 sensor
  5. Buzzer LED
  6. Resistor 220ohm

Procedure

mq2 (19).jpg

  1. The HC-SR04 Ultrasonic Module has 4 pins, Ground, VCC, Trig, and Echo.
  2. The Ground and the VCC pins of the module need to be connected to the Ground and the 5 volts pins on the Arduino Board respectively and the trig and echo pins to any Digital I/O pin on the Arduino Board.

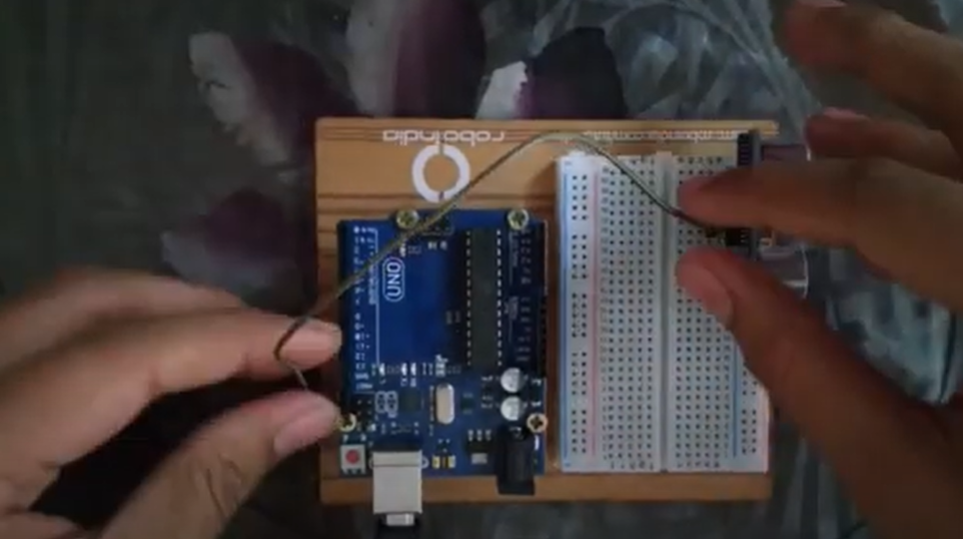

  3. The HC-SR04 sensor attaches to the Breadboard
  4. The Sensor VCC connect to the Arduino Board +5V
  5. The Sensor GND connect to the Arduino Board GND
  6. The Sensor Trig connect to the Arduino Board Digital I/O 9

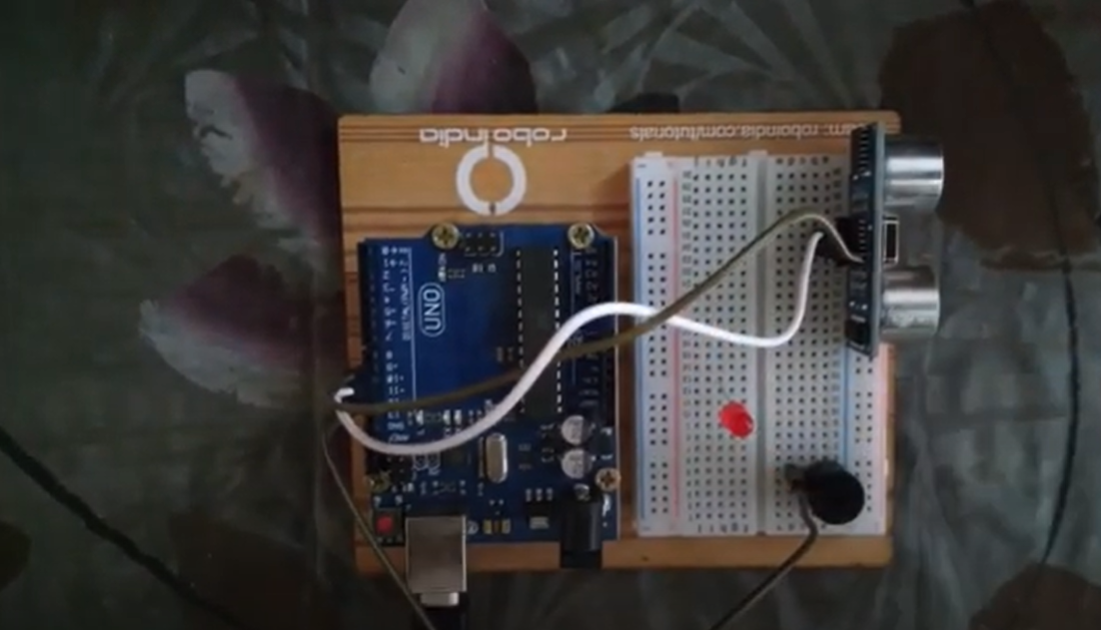

  7. The Sensor Echo connects to the Arduino Board Digital I/O 10 Buzzer and LED The Buzzer to attach to the Breadboard
  8. The Buzzer long leg (+) connects to the Arduino Board Digital 11
  9. The Buzzer short leg (-) connects to the Arduino Board GND
  10. The LED attached to the Breadboard
  11. The Resistor connect to the LED long leg (+)
  12. The Resistor another leg (from LED's long leg) connect to the Arduino Board Digital 13
  13. The LED short leg (-) connect to the Arduino Board GND

Source Code

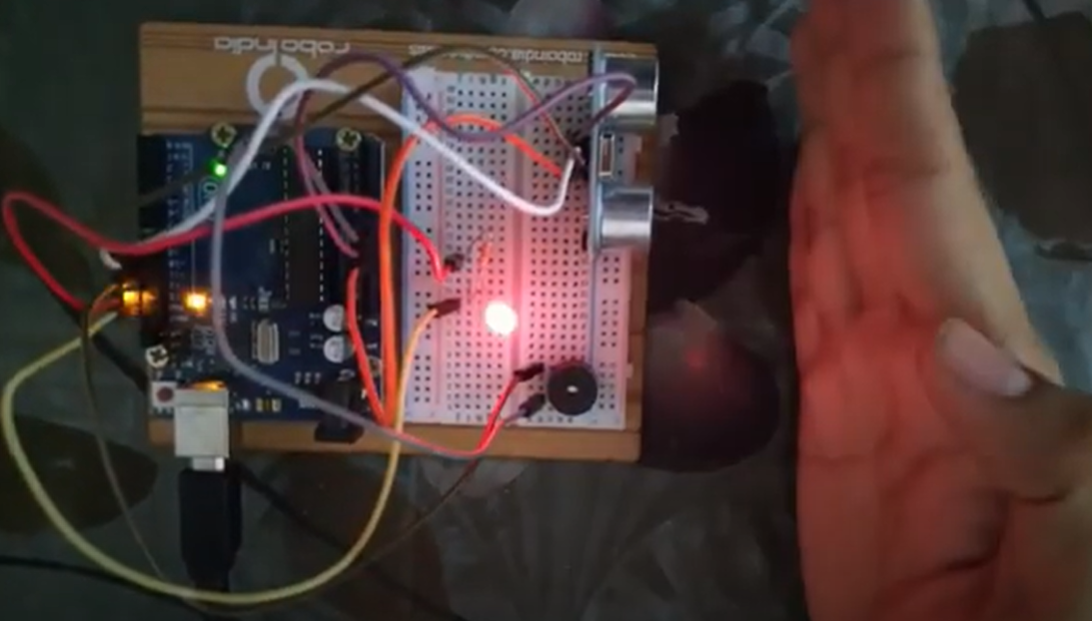

Project Done


Check This Video for Directions
