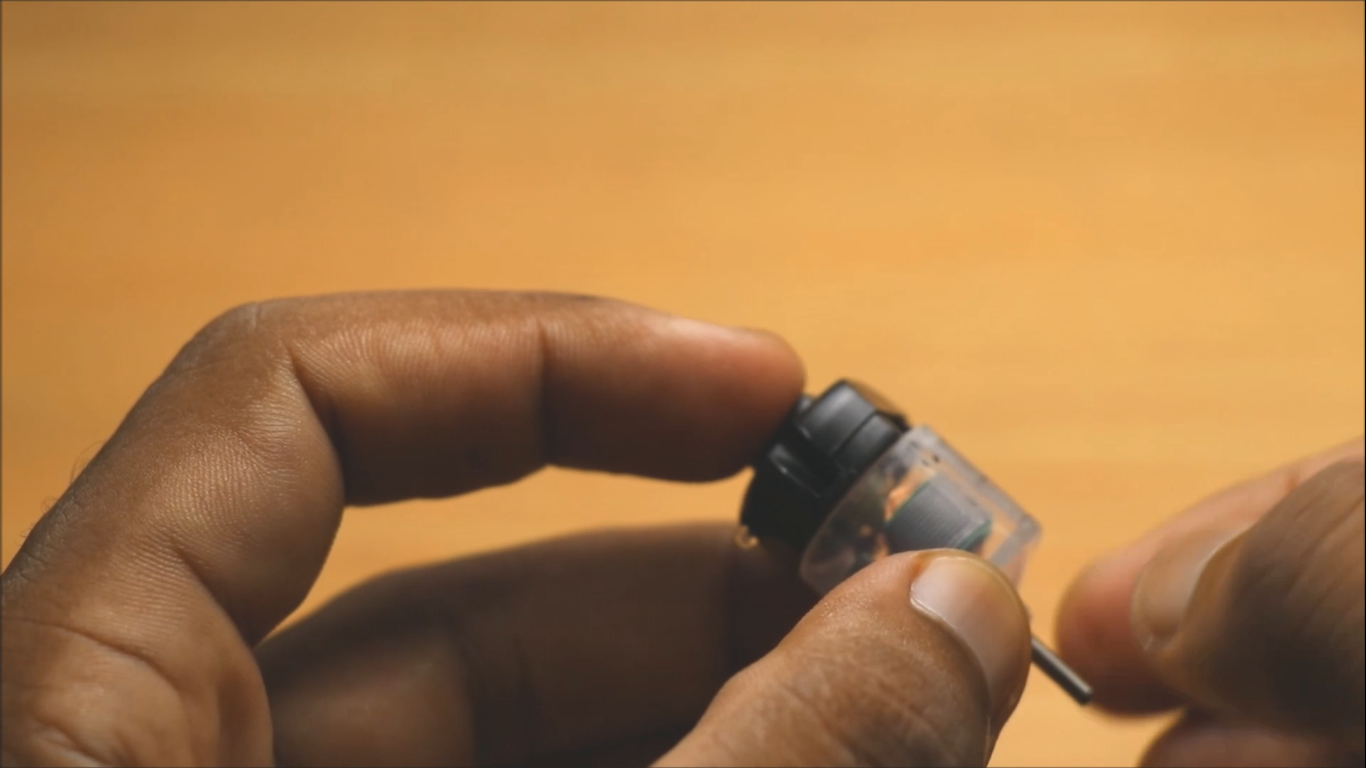

Hello Readers in this INSTRUCTABLE i have turned my good old dc motor to a transparent one..The purpose is to understand Clearly the working of dc motor

Awesome Video Showing Working of Transparent Dc Motor

How To Make Transparent DC MOTOR | DIY Unique DC MOTOR

Transparent Frame

dc motor unique (14).png
dc motor unique (13).png
dc motor unique (15).png
dc motor unique (17).png
dc motor unique (18).png
dc motor unique (19).png
dc motor unique (1).png
dc motor unique (16).png
dc motor unique (11).png
dc motor unique (10).png

  • I used Syringe(10ml) For Frame

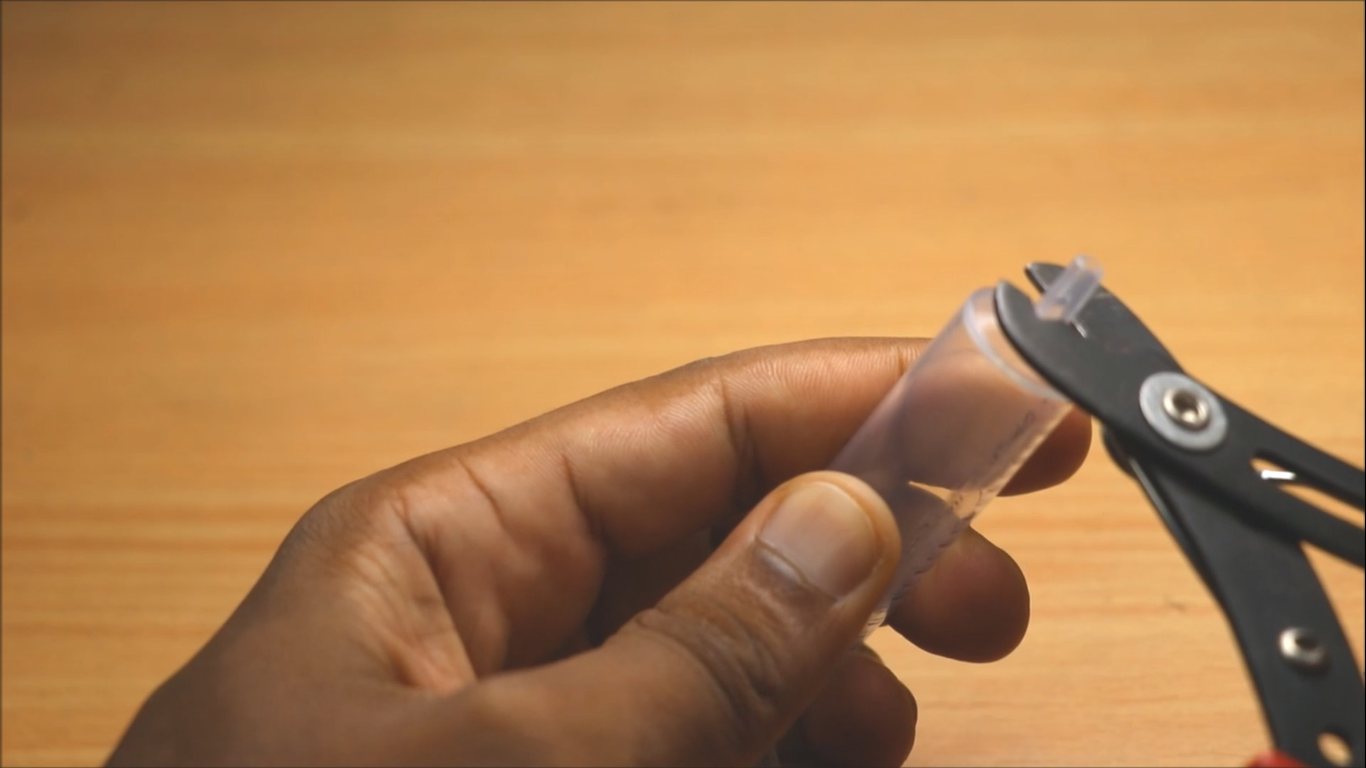

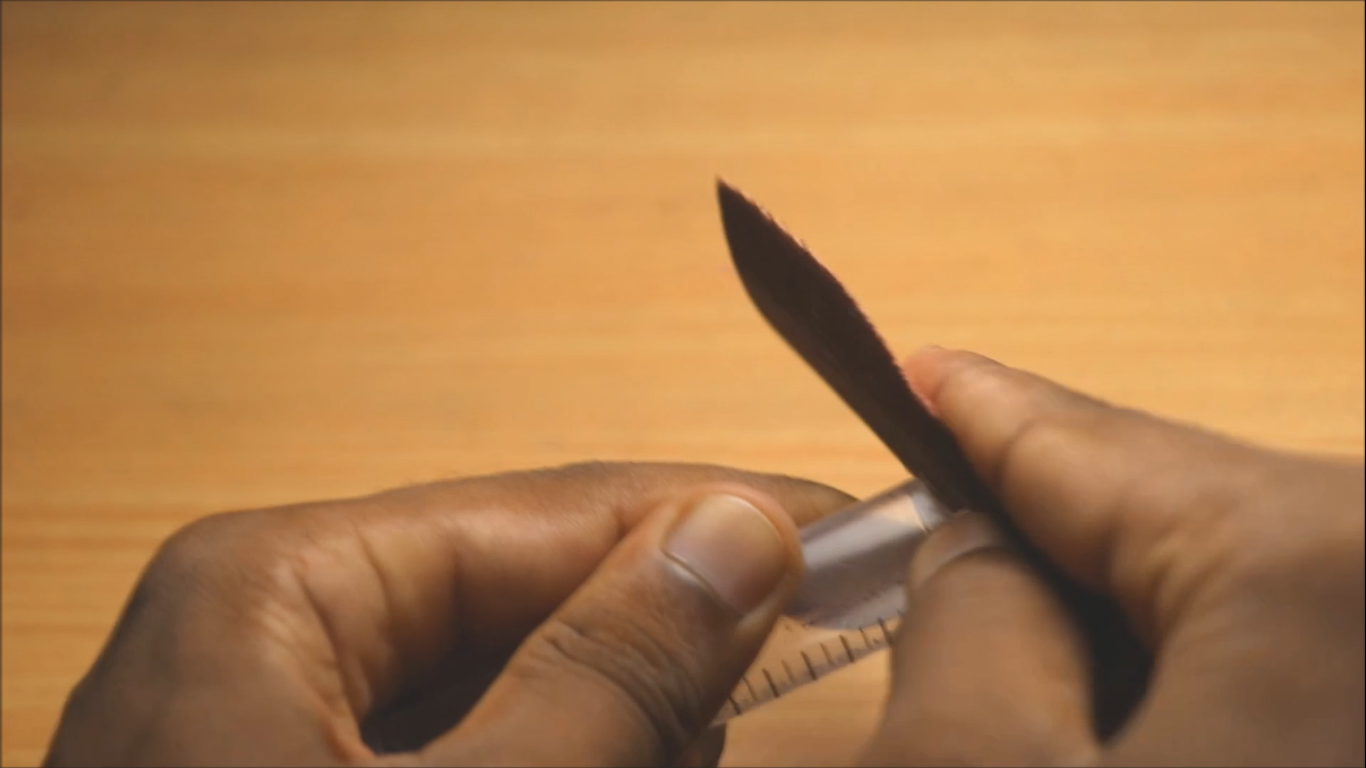

  • Cut the Tip of Syringe
  • File it with sandpaper for good finishing

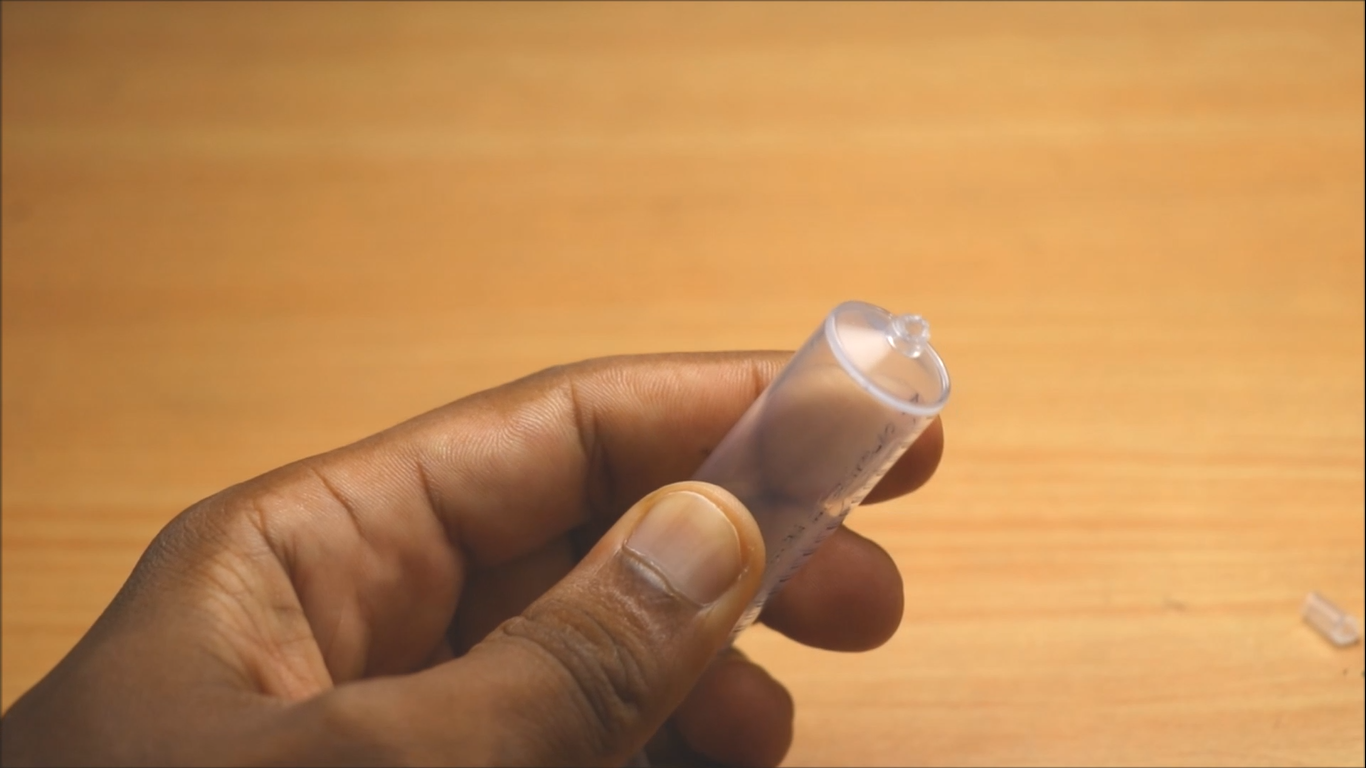

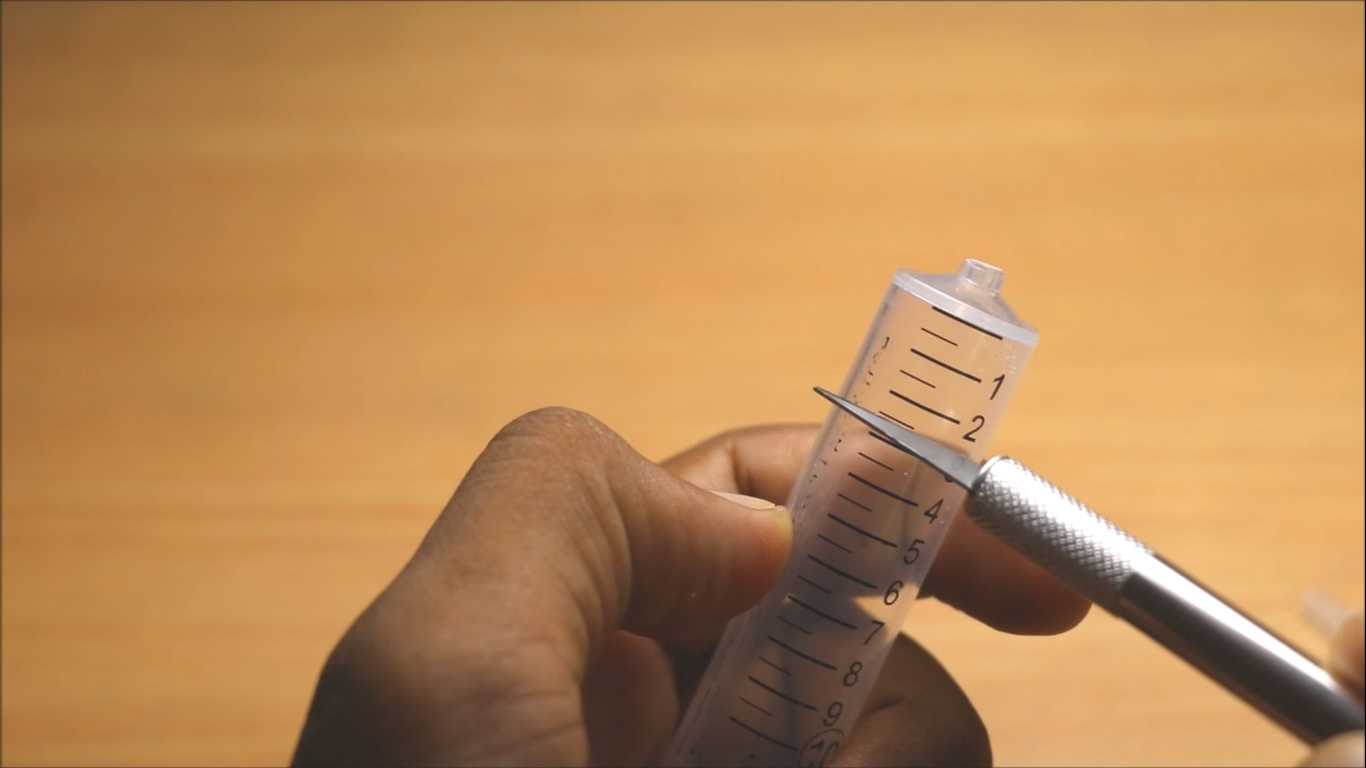

  • Now cut the syringe at 2-2.5
  • File the bottom part if necessary

Armature and Magnets

dc motor unique (20).png
dc motor unique (22).png
dc motor unique (23).png
dc motor unique (2).png
dc motor unique (3).png
dc motor unique (4).png

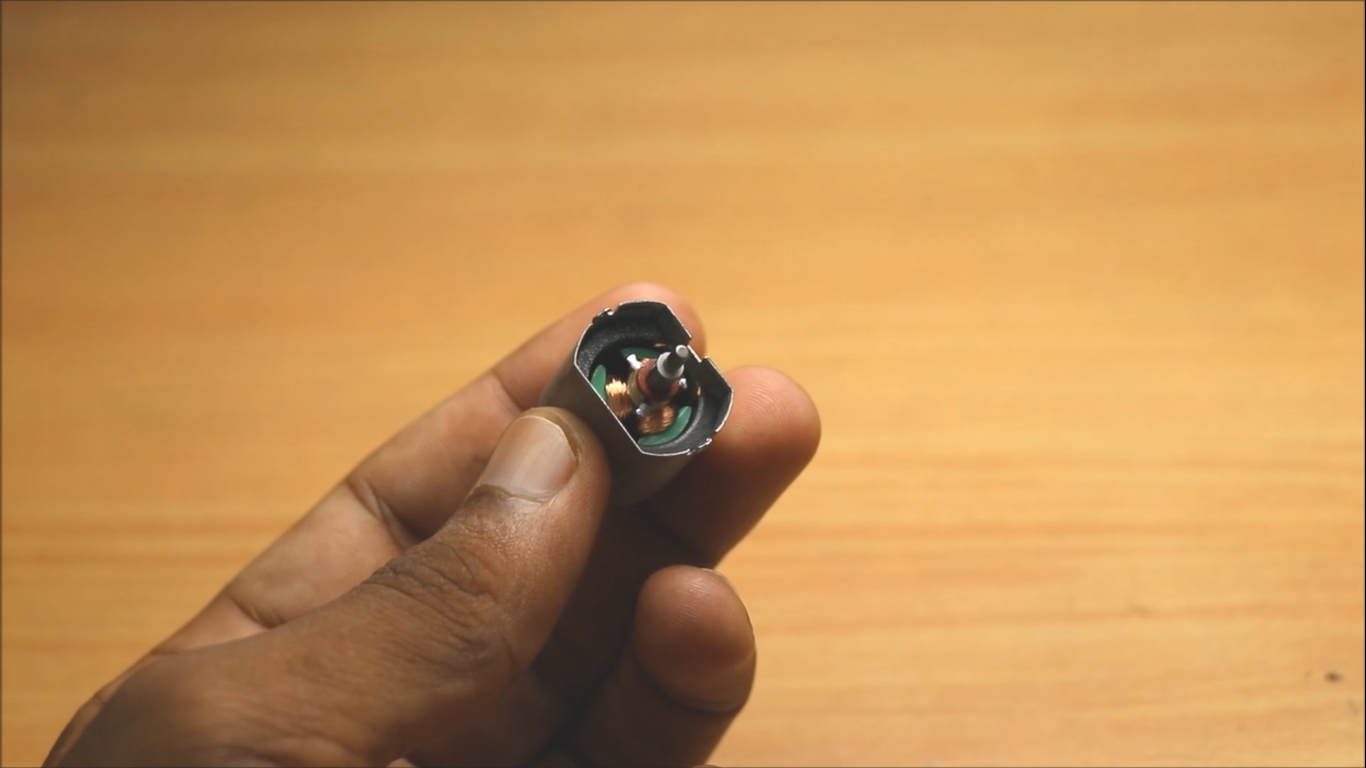

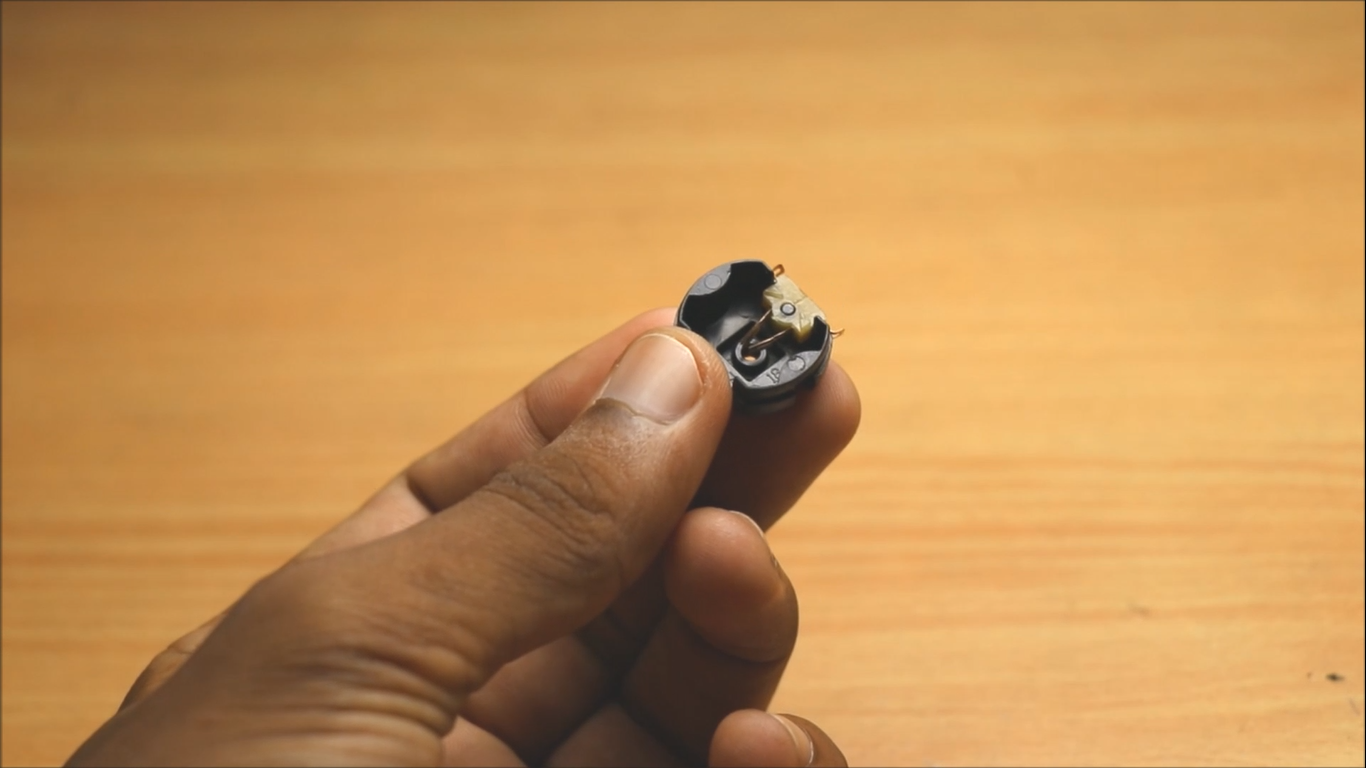

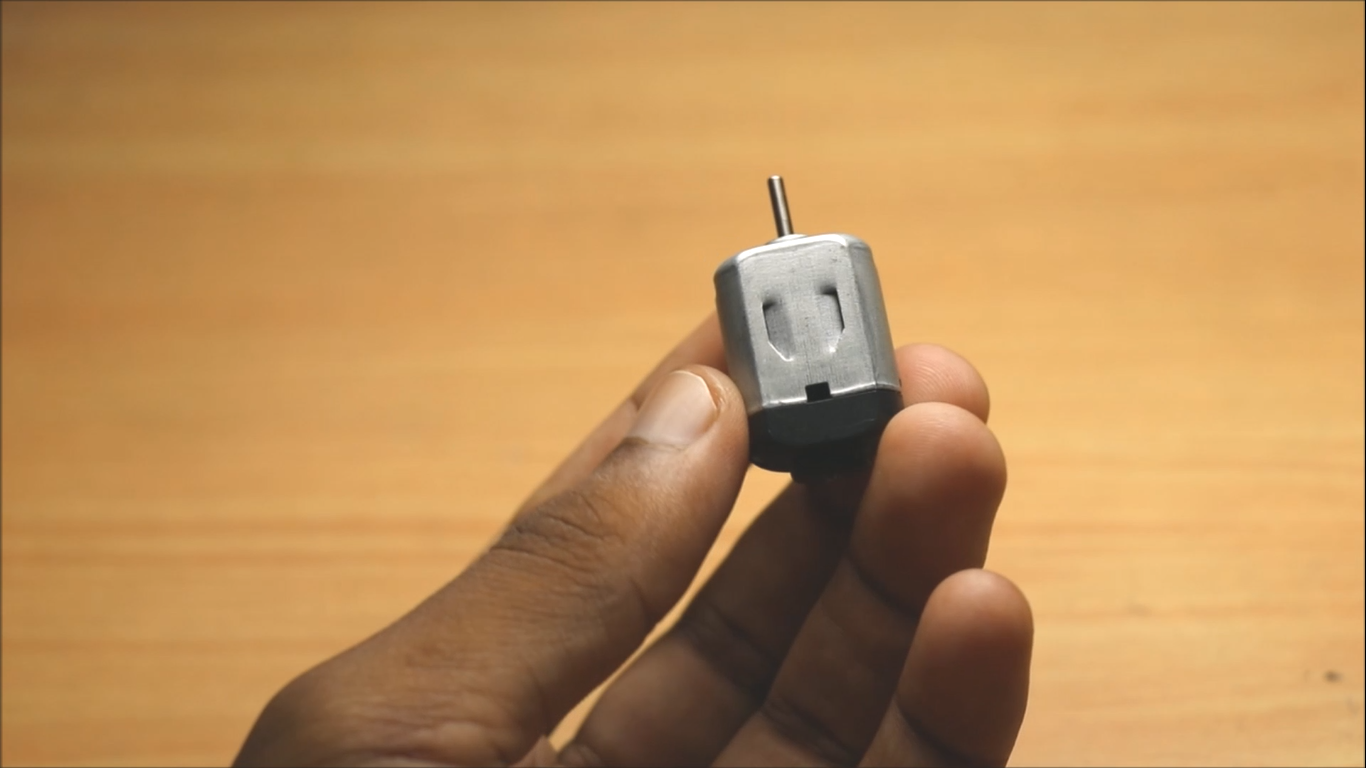

  • Remove the back casing of dc motor

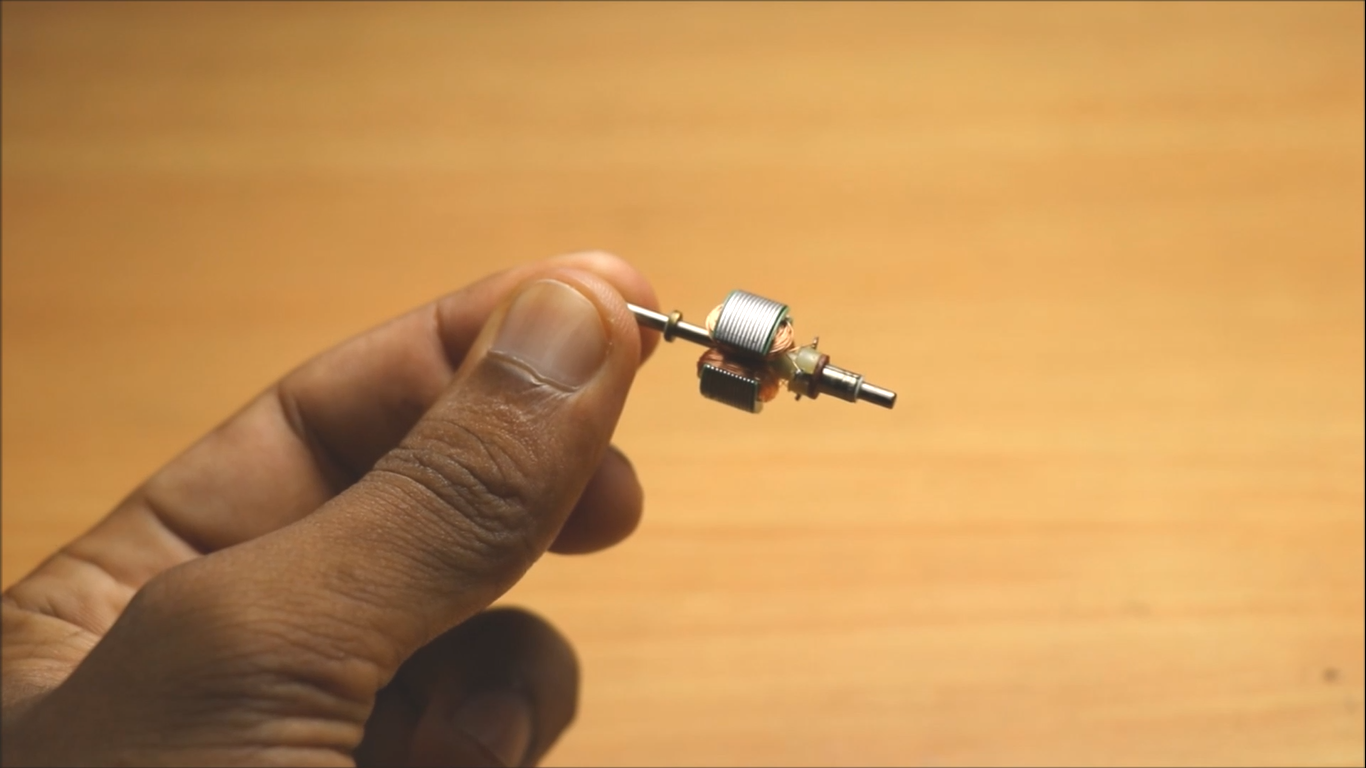

  • Open the Armature

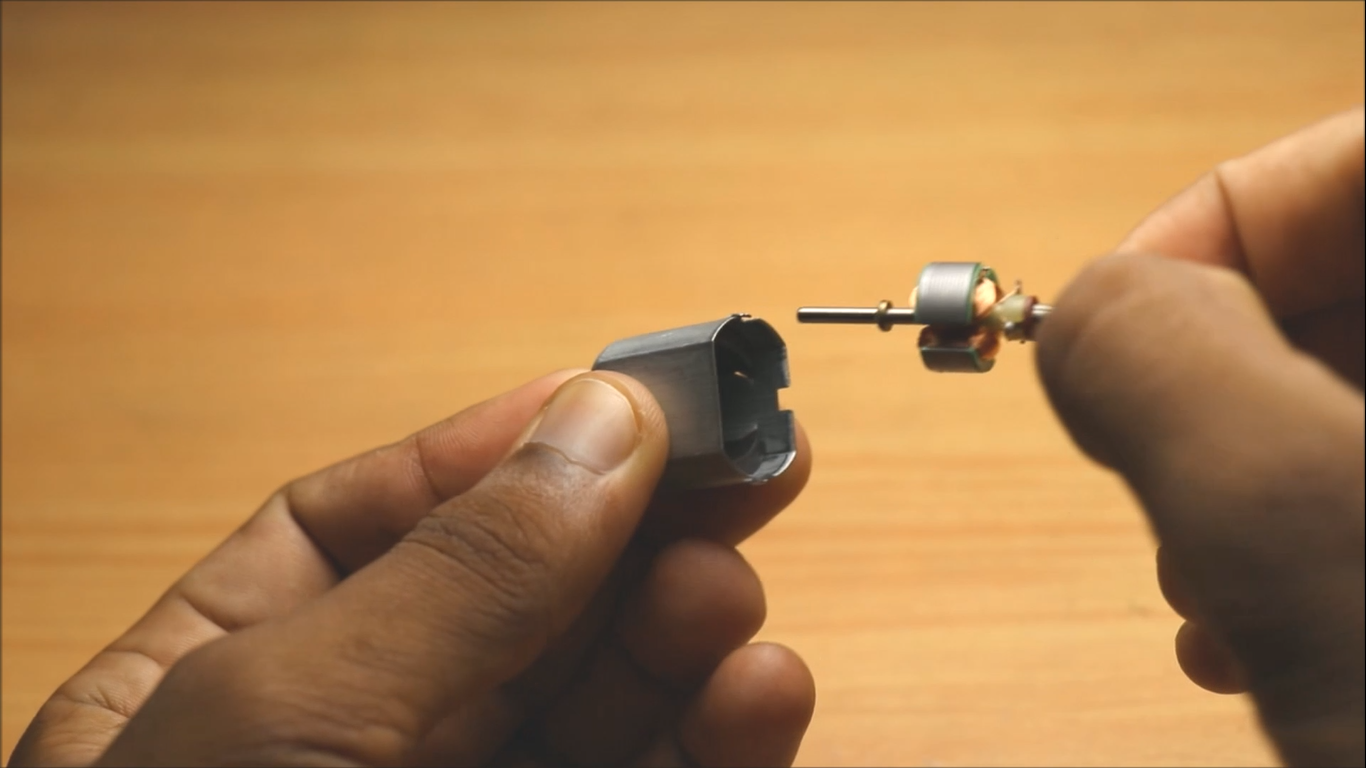

  • From the motor body take out magnets

Finishing Up

dc motor unique (7).png
dc motor unique (8).png
dc motor unique (9).png
dc motor unique (12).png

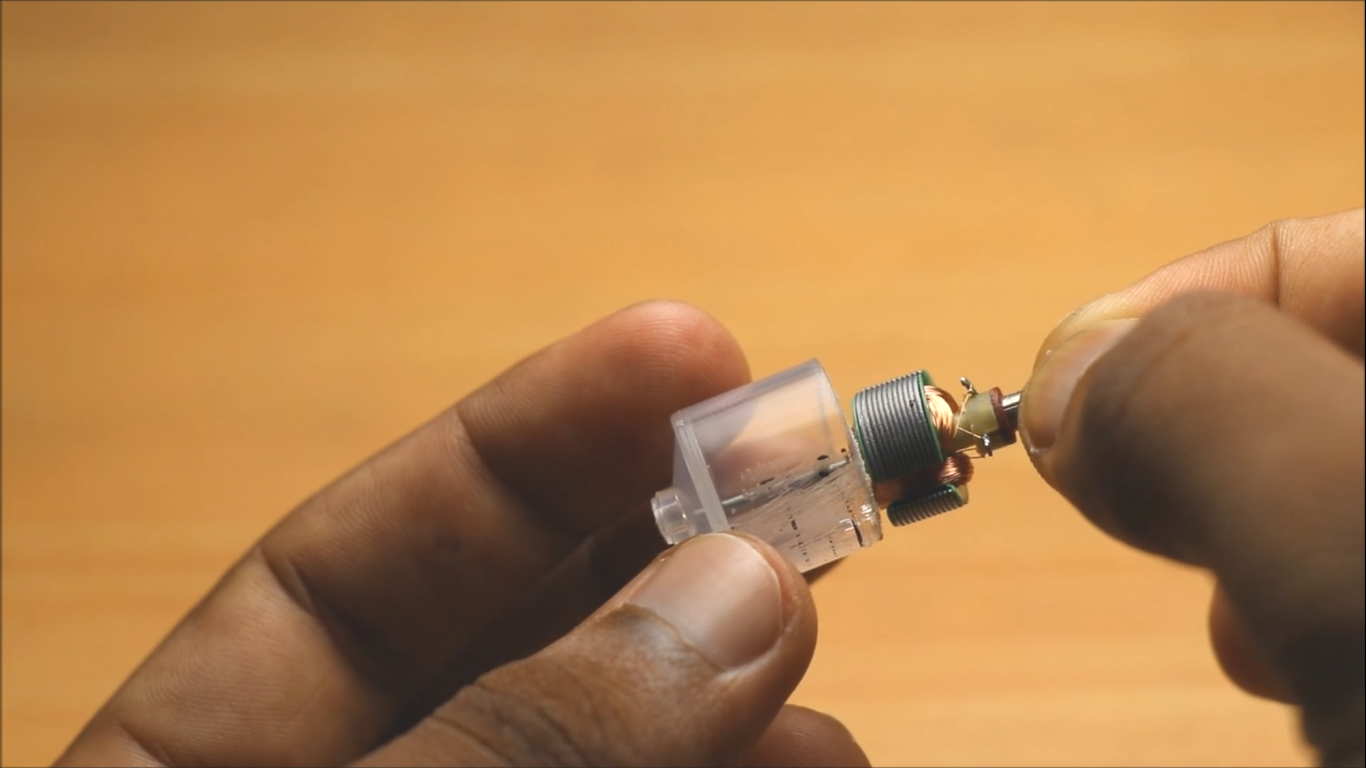

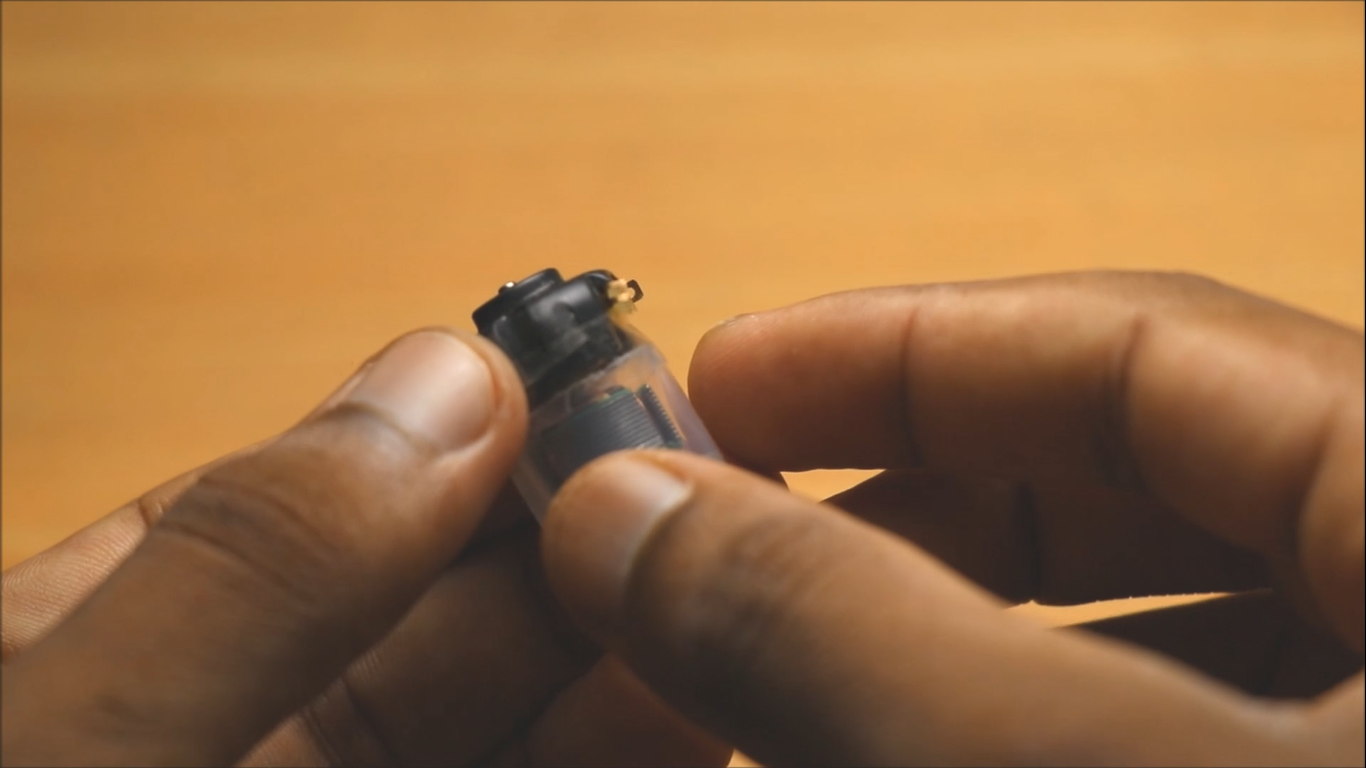

  • Insert The armature inside Transparent Frame
  • Fix the back case
  • Use super glue to ensure firm fix
  • Attach the magnets on other side

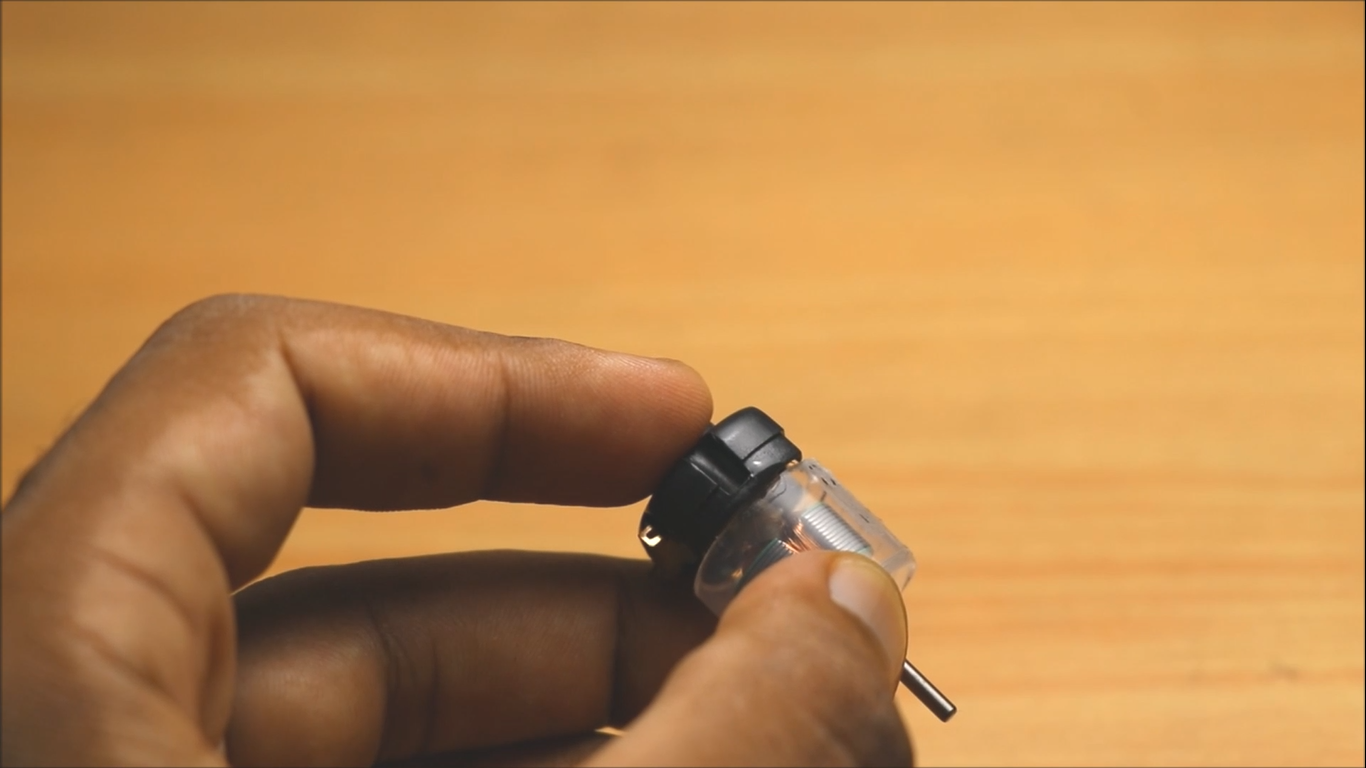

  • Power it up and watch out for its working
  • Check out for its working(step 1)

Thankyou for showing interest to read this instructable..Have a Good Day
