How to Make Custom Characters for Led Matrix

It Is So Simple To Make Our Own Custom Characters In Led Matrix For That

We Can Use A Simple App Called Pixel To Matrix

By Using This App Everyone Can Make There Own Custom Characters In Led Matrix

From There Own Imagination................ Isnt It Cool

Check This Instructable :) ;)

How To Control Led Matrix Using Arduino :--

Check This Video & Instructable If You Are Not Familier With The Connection Of Led Matrix With Arduino

https://www.instructables.com/id/Arduino-Led-Matri...

Do Not Bother About These much Steps These I Have Done To Make Everything More Clear To You

Go & Proceed With The Next Step :) ;) ..........

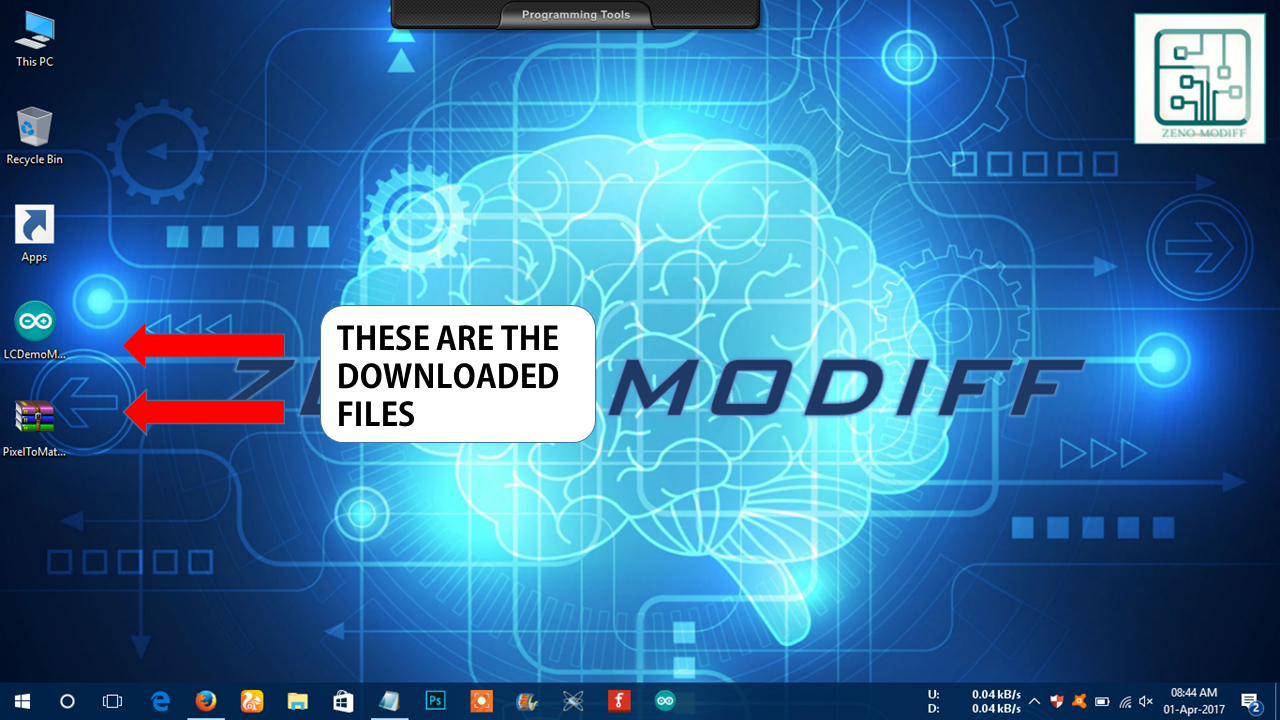

Downloaded These Files ..........

Pixel To Matrix Application :-- http://www.mediafire.com/file/61o1hbqss52ksyt/Pixe...

Code :-- http://www.mediafire.com/file/23n440p13tat3th/LCDe...

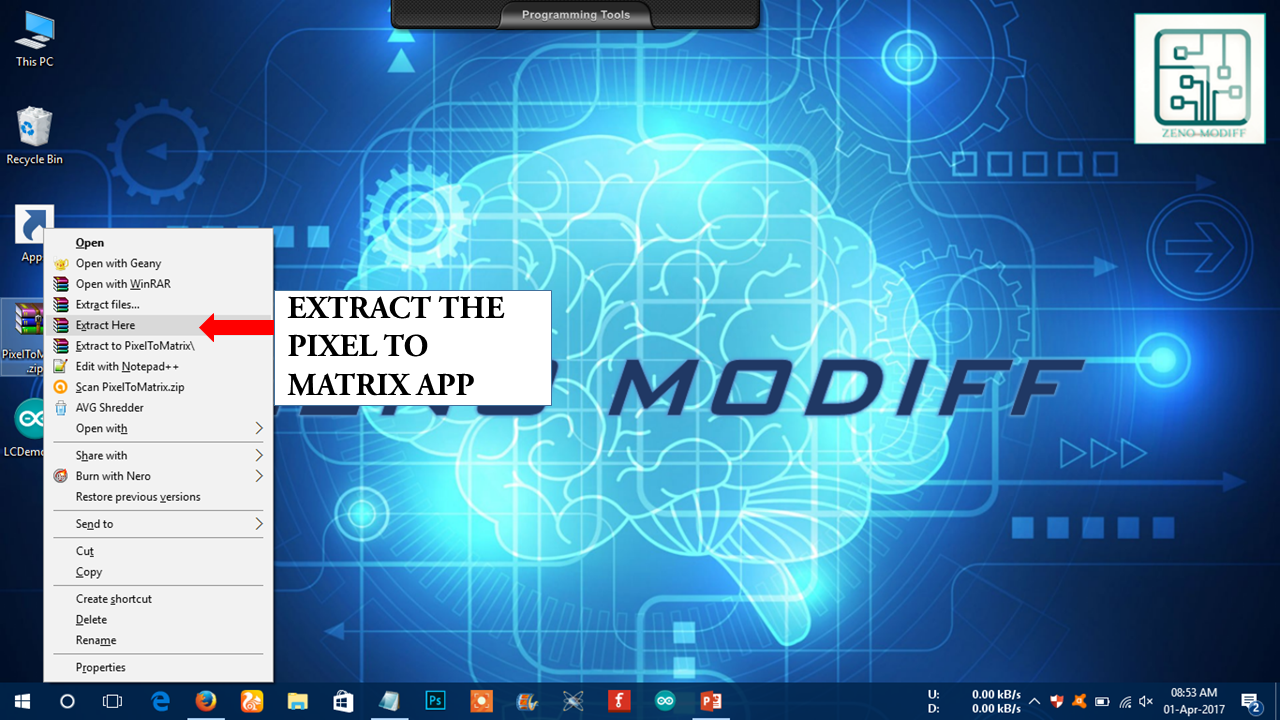

Need To Extract the Pixel To Matrix App

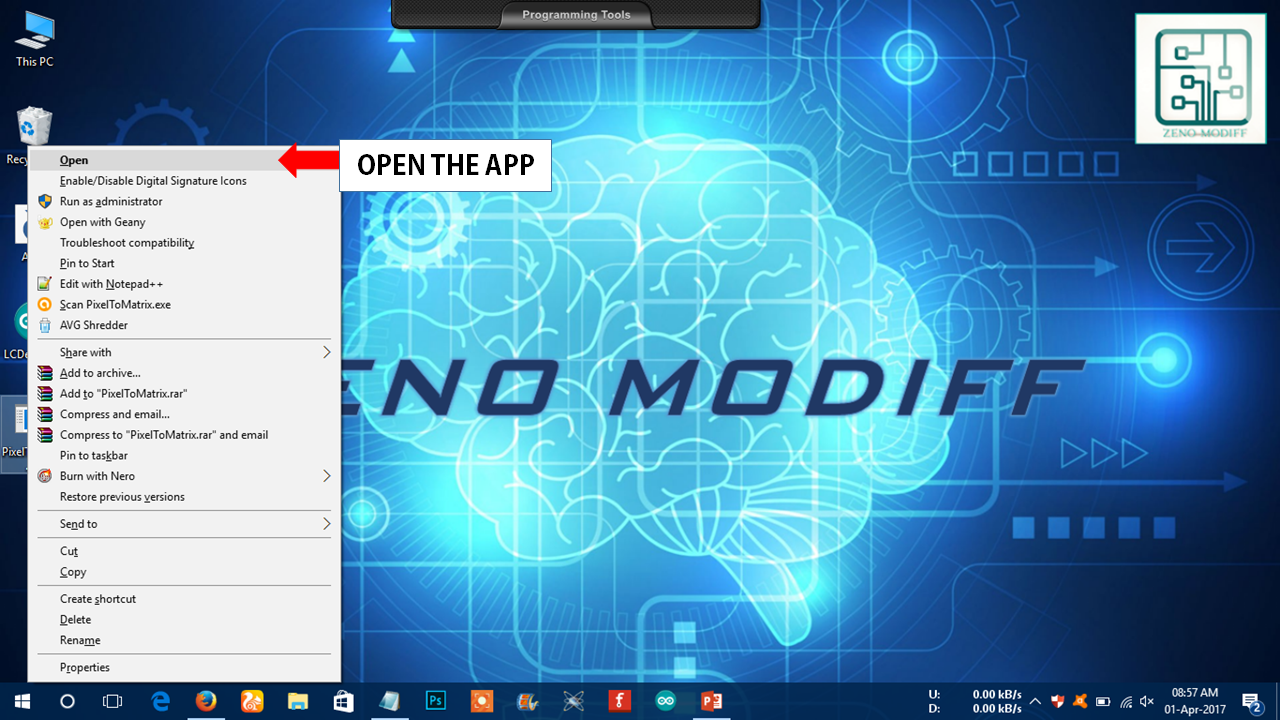

Open The Extracted File ........

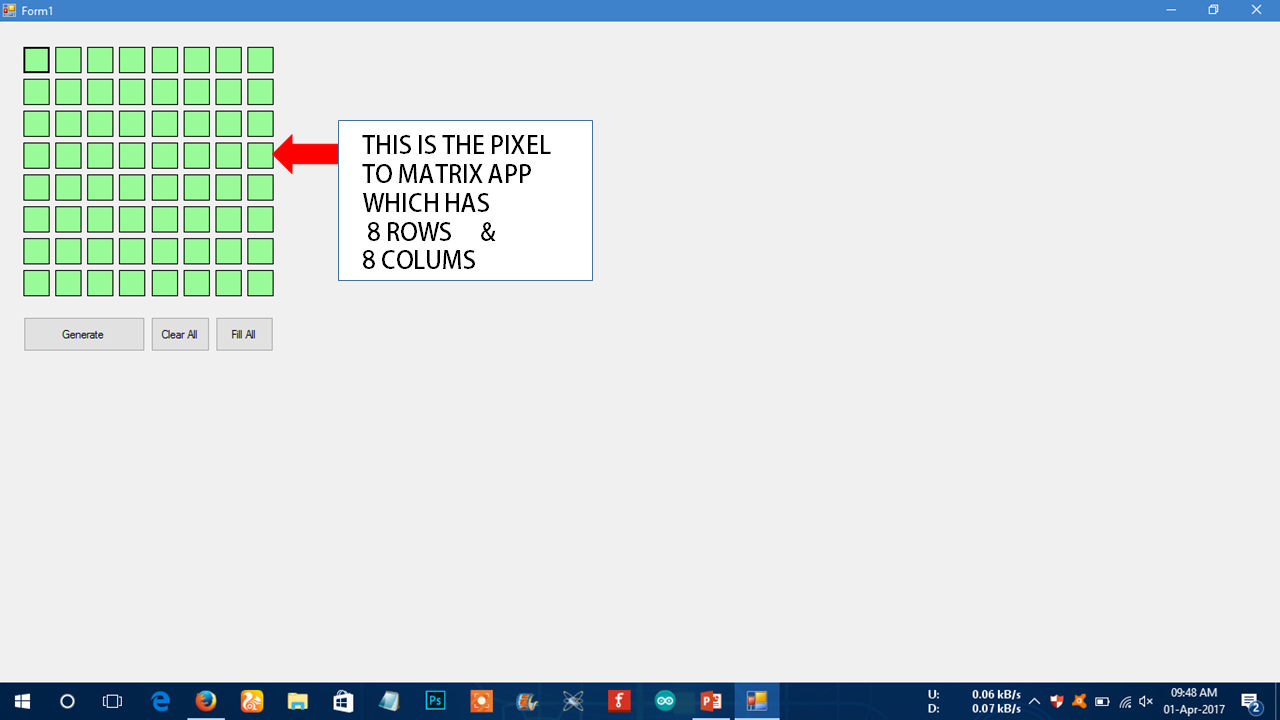

This Is The Pixel To Matrix App

The App Is Same As That Of 8*8 Led Matrix

Which Has 8 Rows & 8 Columns

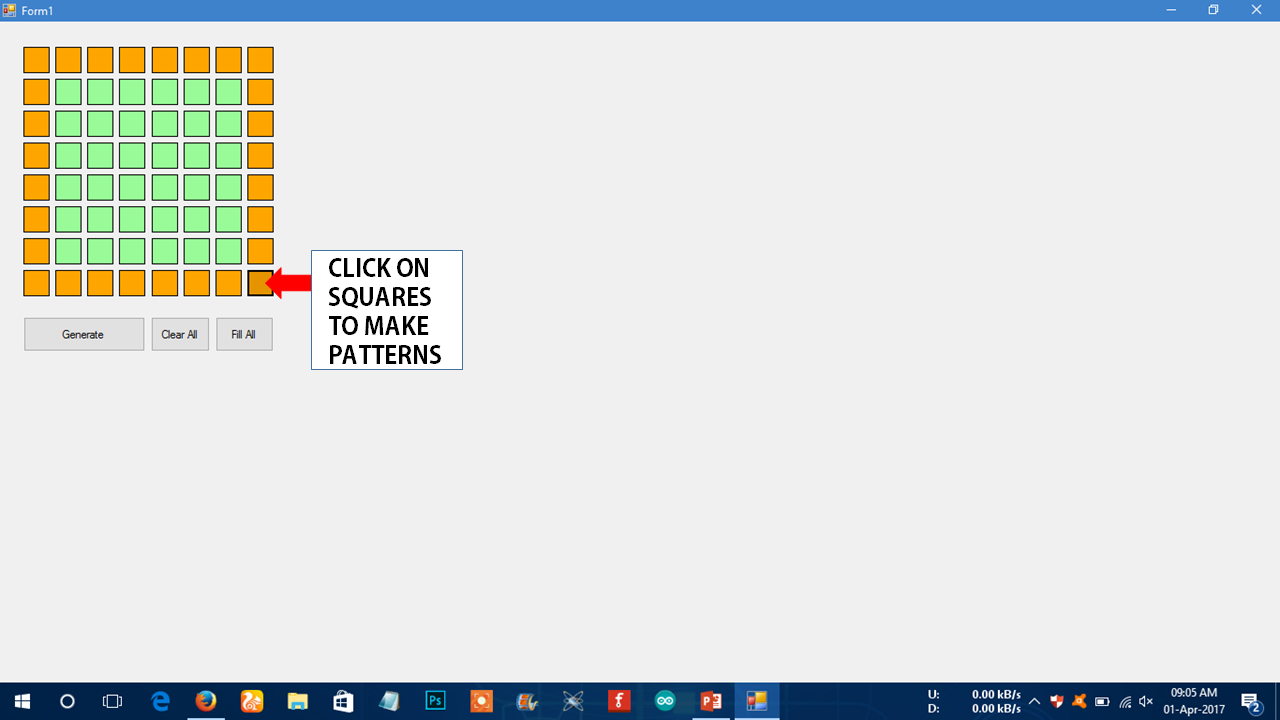

Click On The Squares To Make Patterns .....

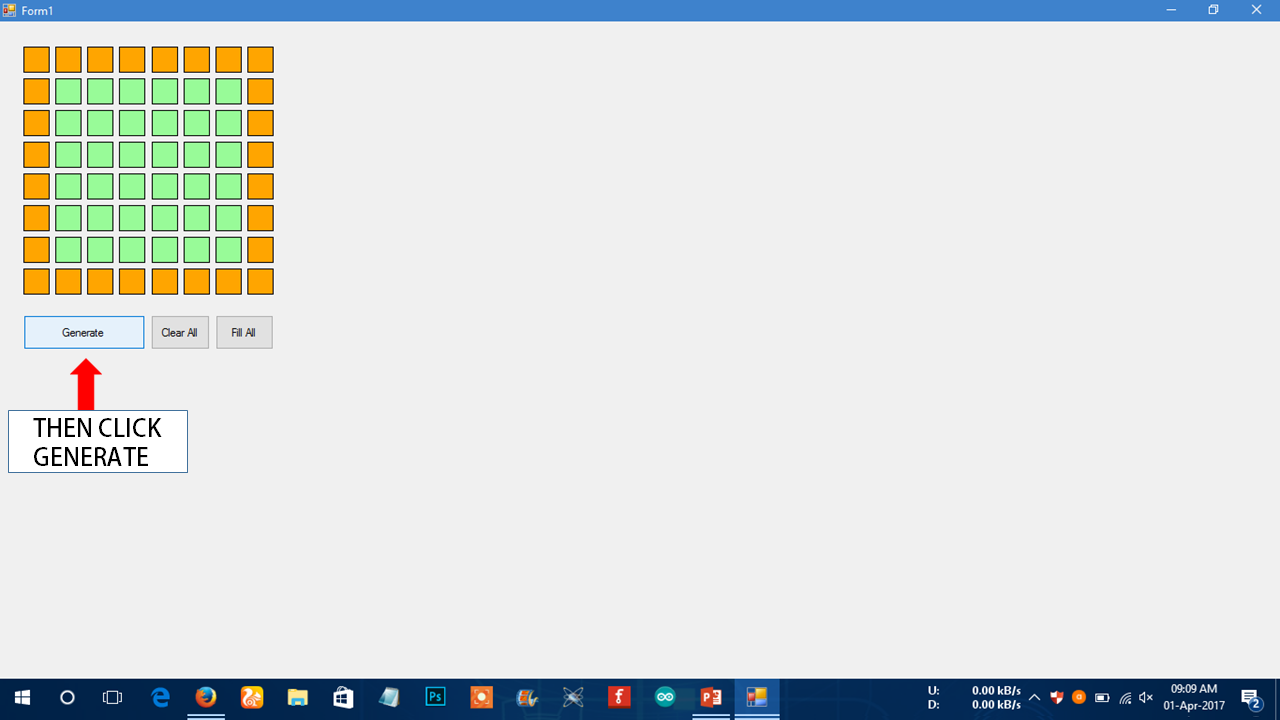

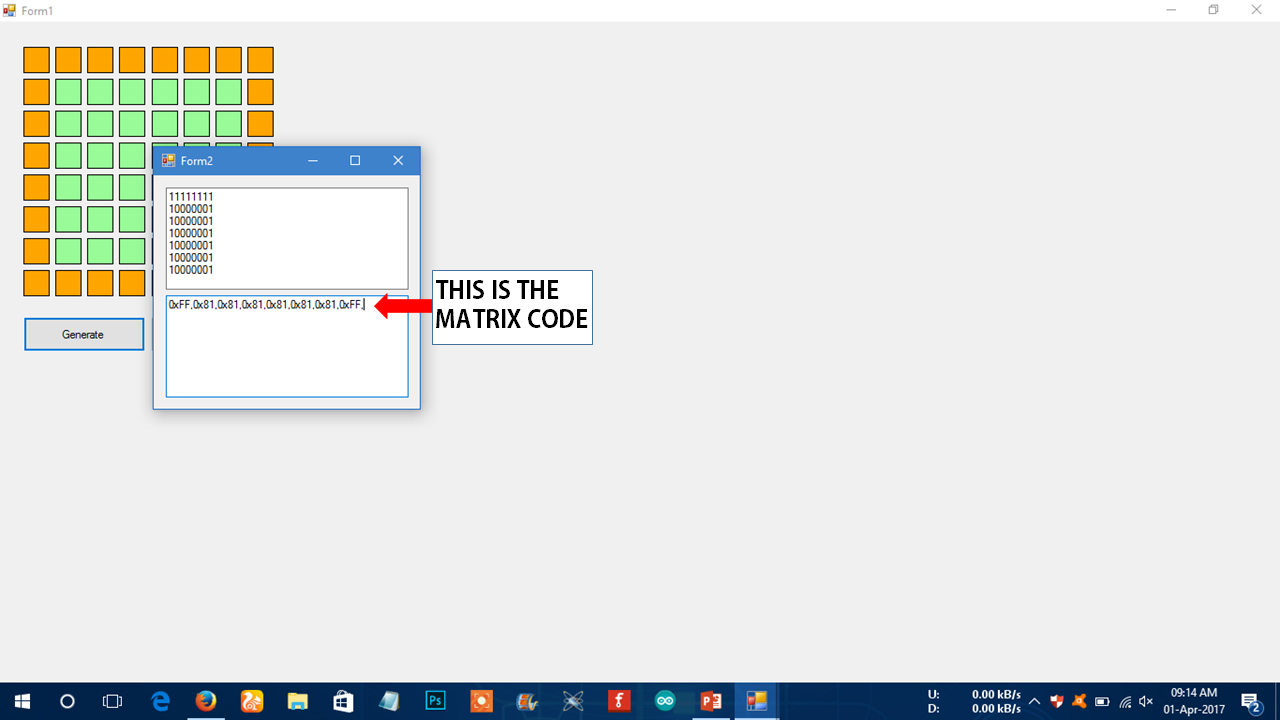

Then Click The Generate Button To Get The Code .........

This Is The Arduino Code For Led Matrix

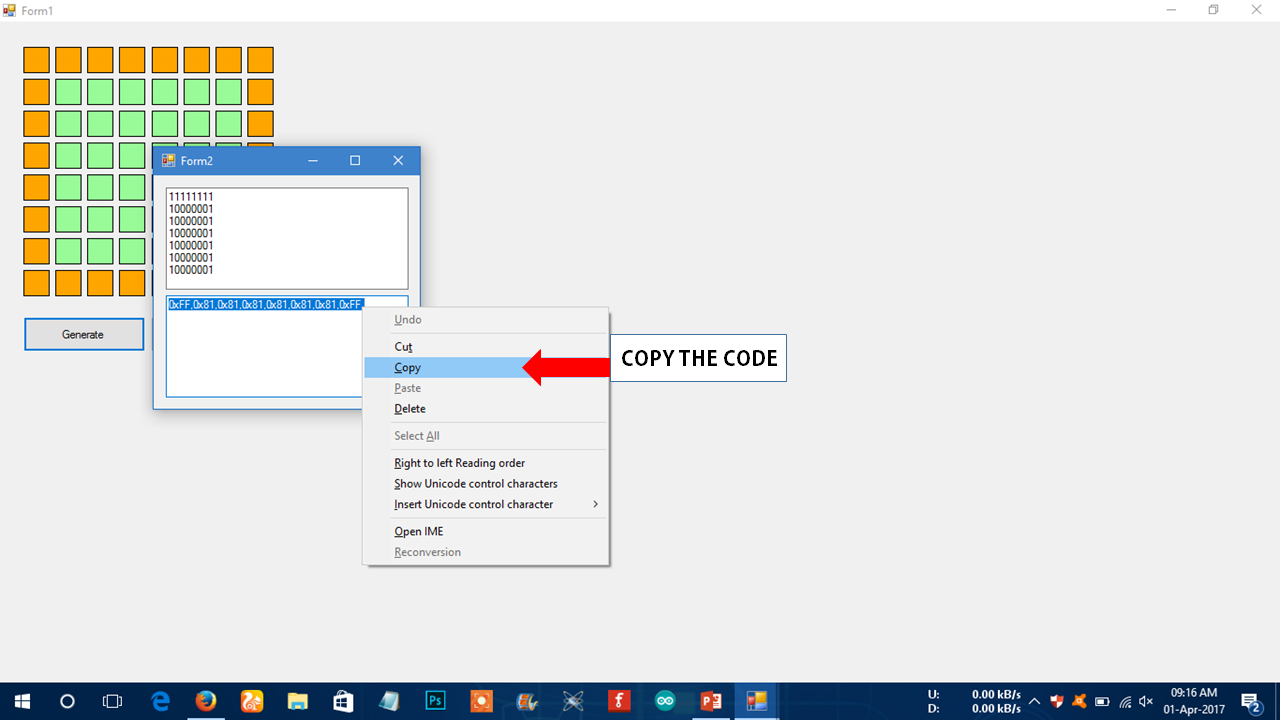

Copy The Code ........

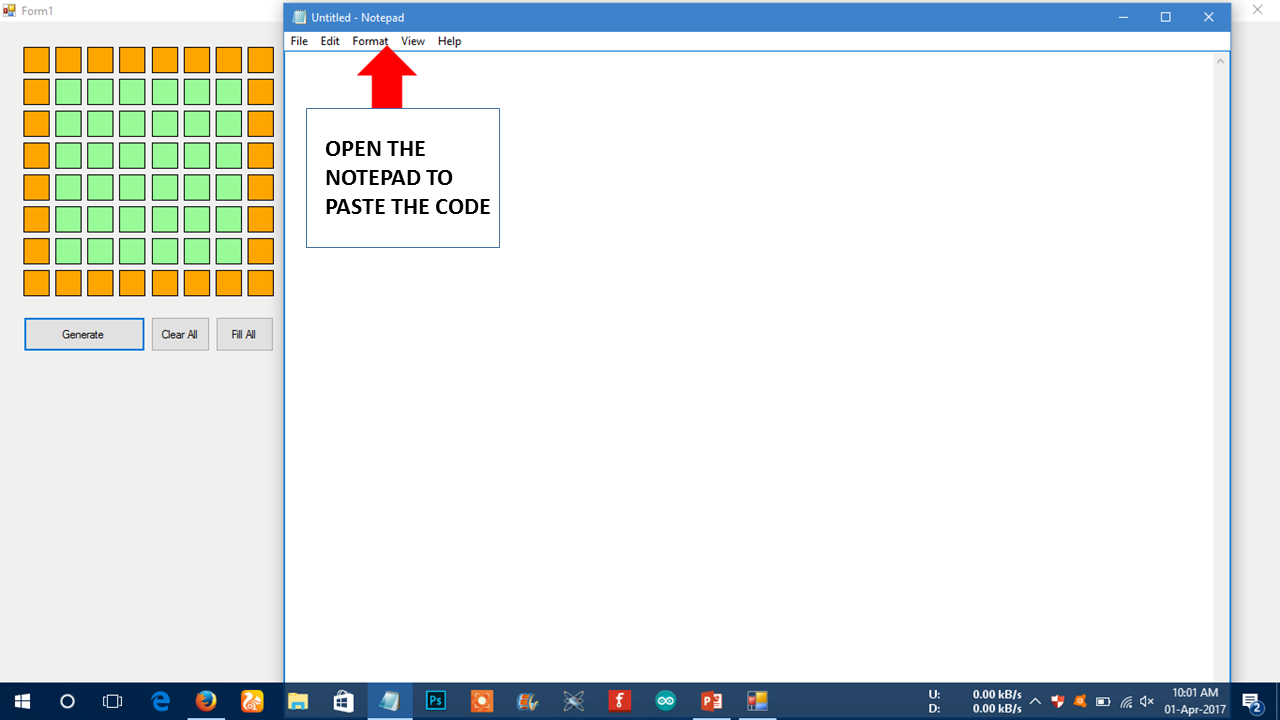

Open The Notepad To Paste The Code ....

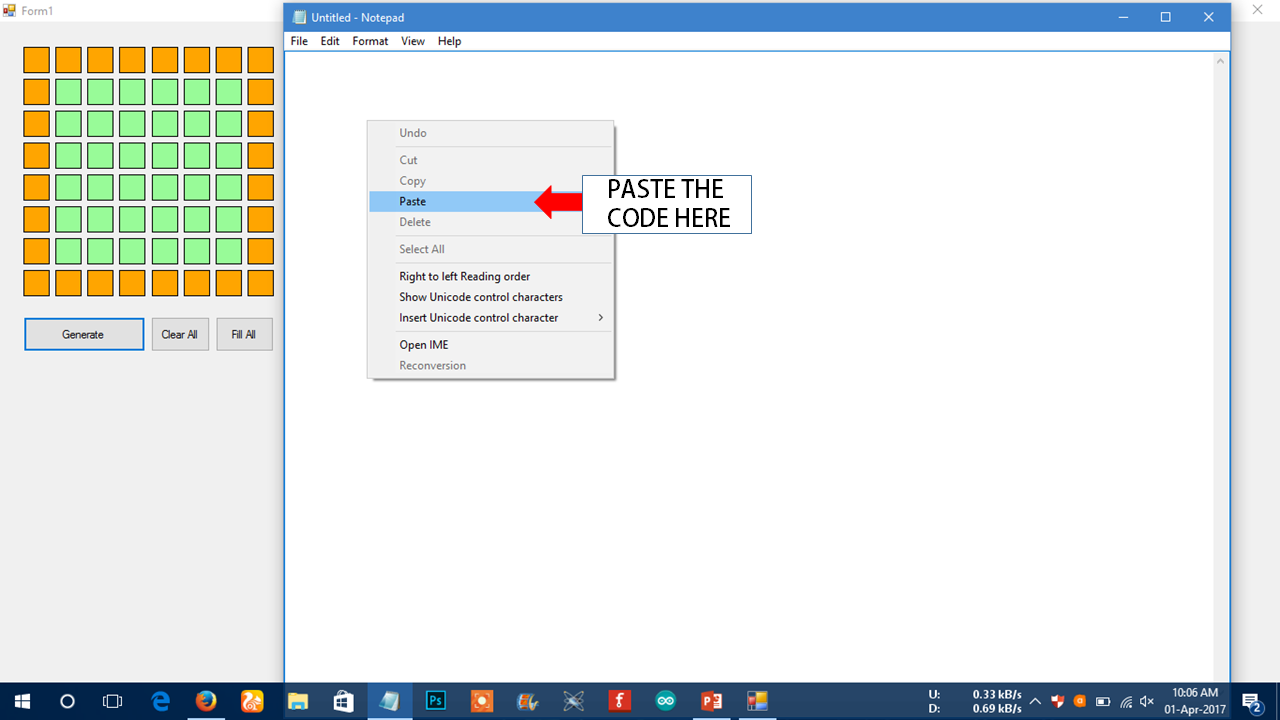

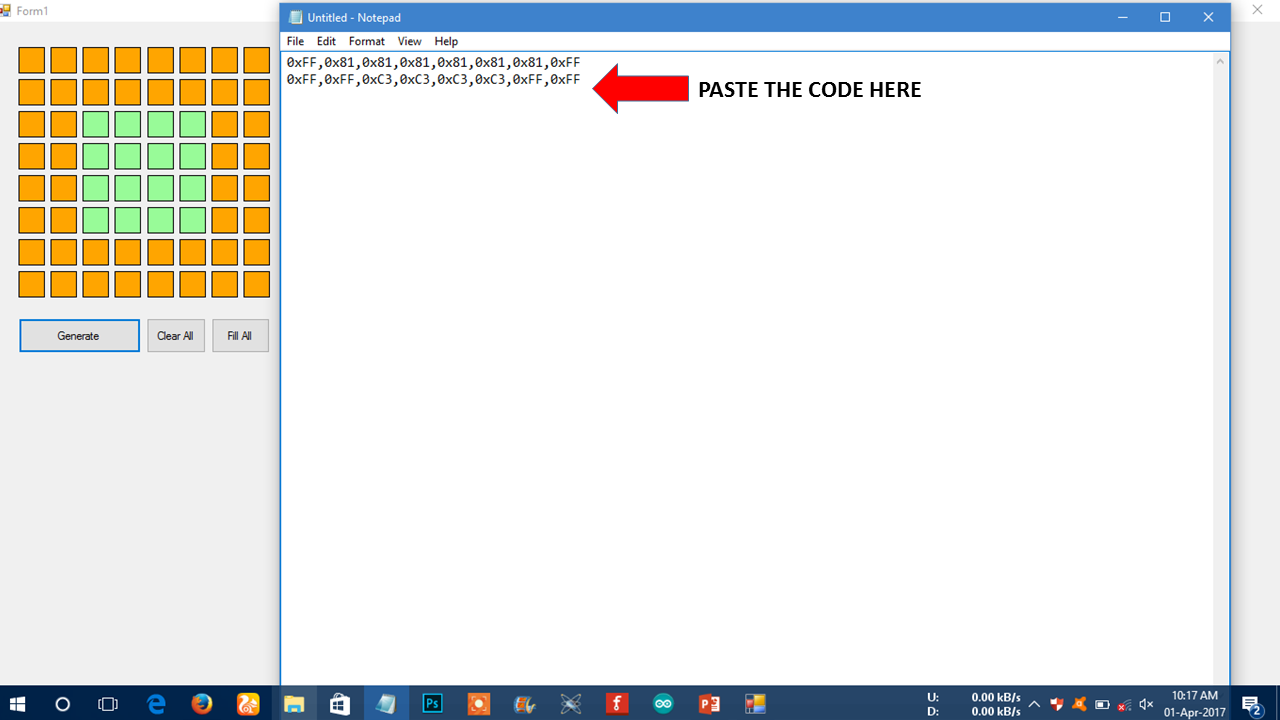

Paste The Code Here ......

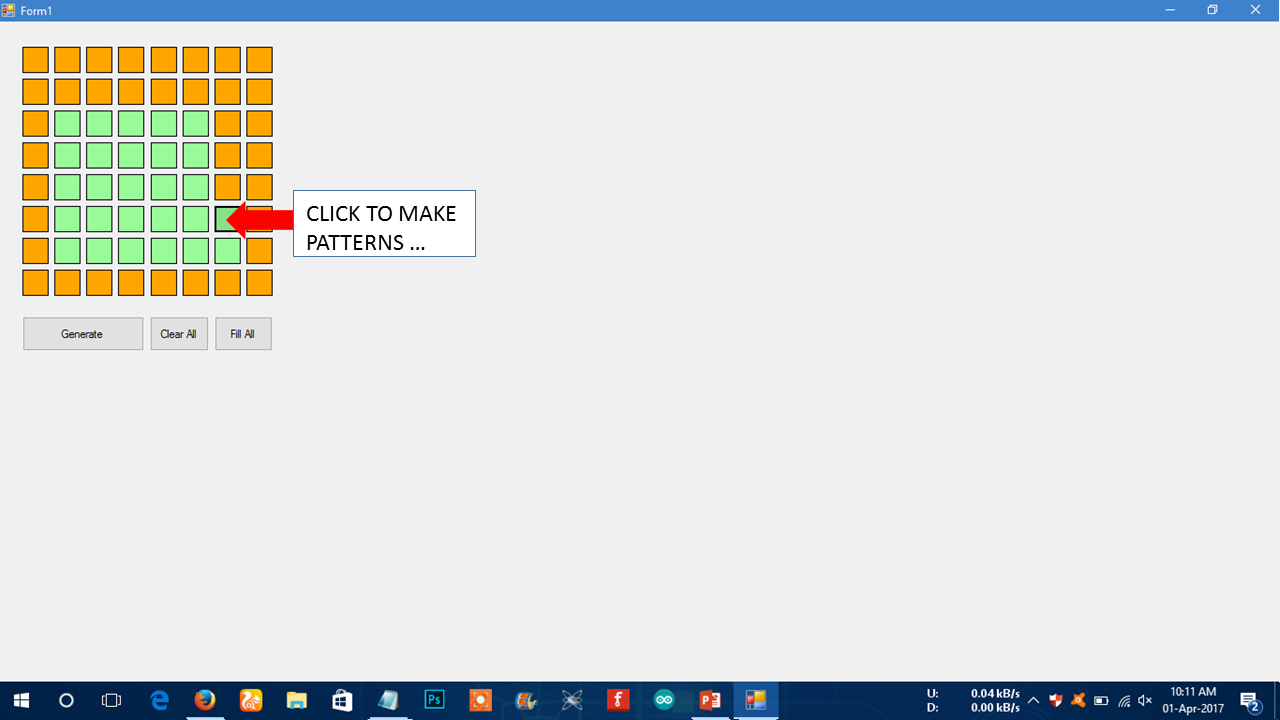

Click To Make The Patterns .......

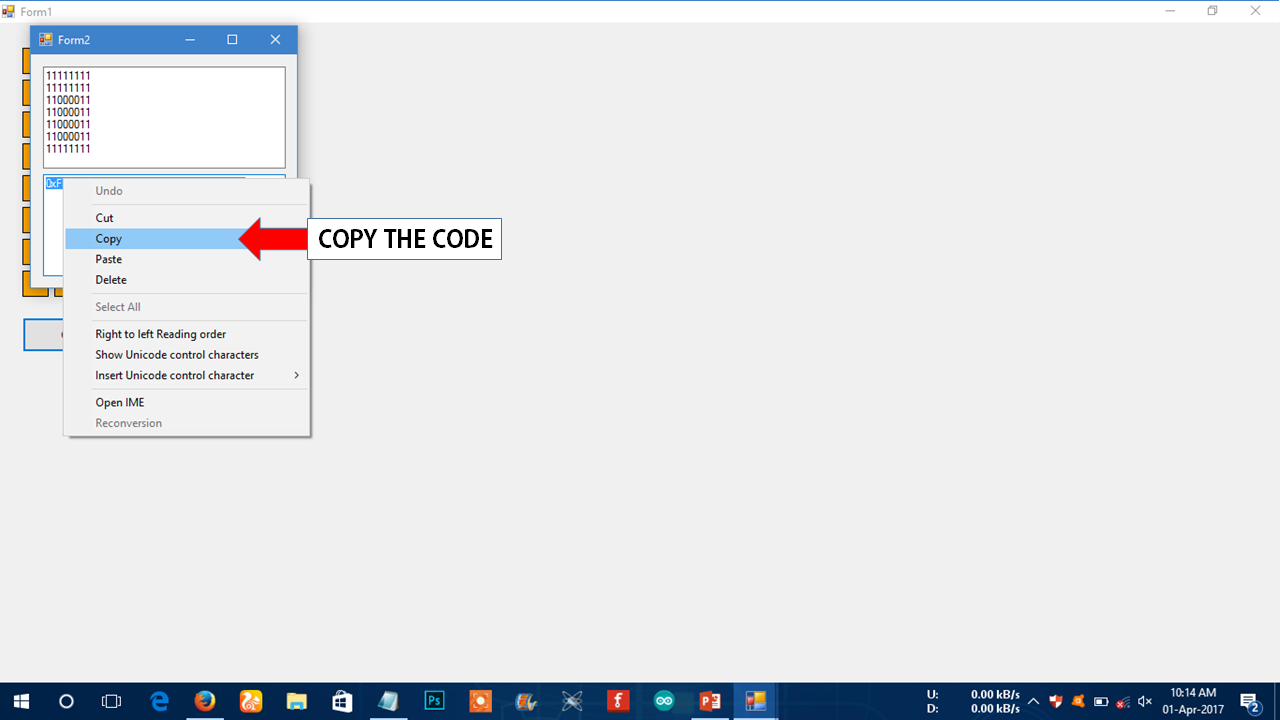

Copy The Code ...........

Again Paste The Code On The Notepad ..........

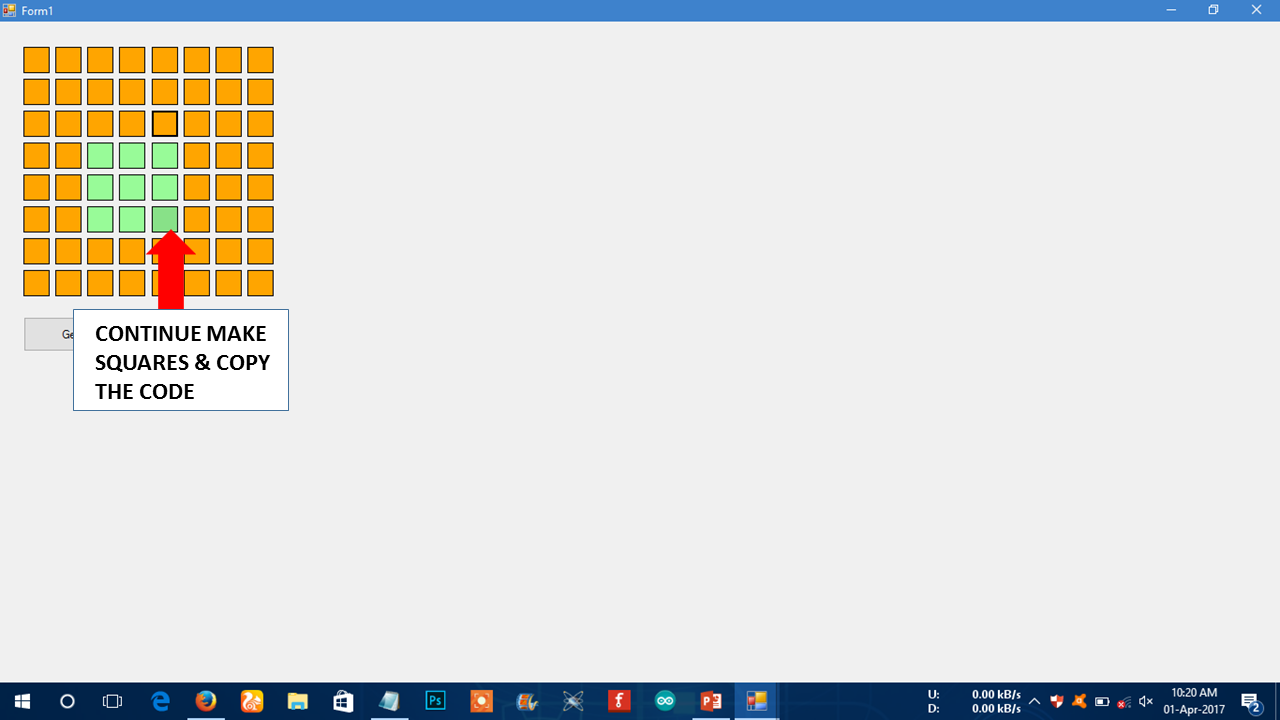

Continue Making The Patterns In The App And Copy The Code

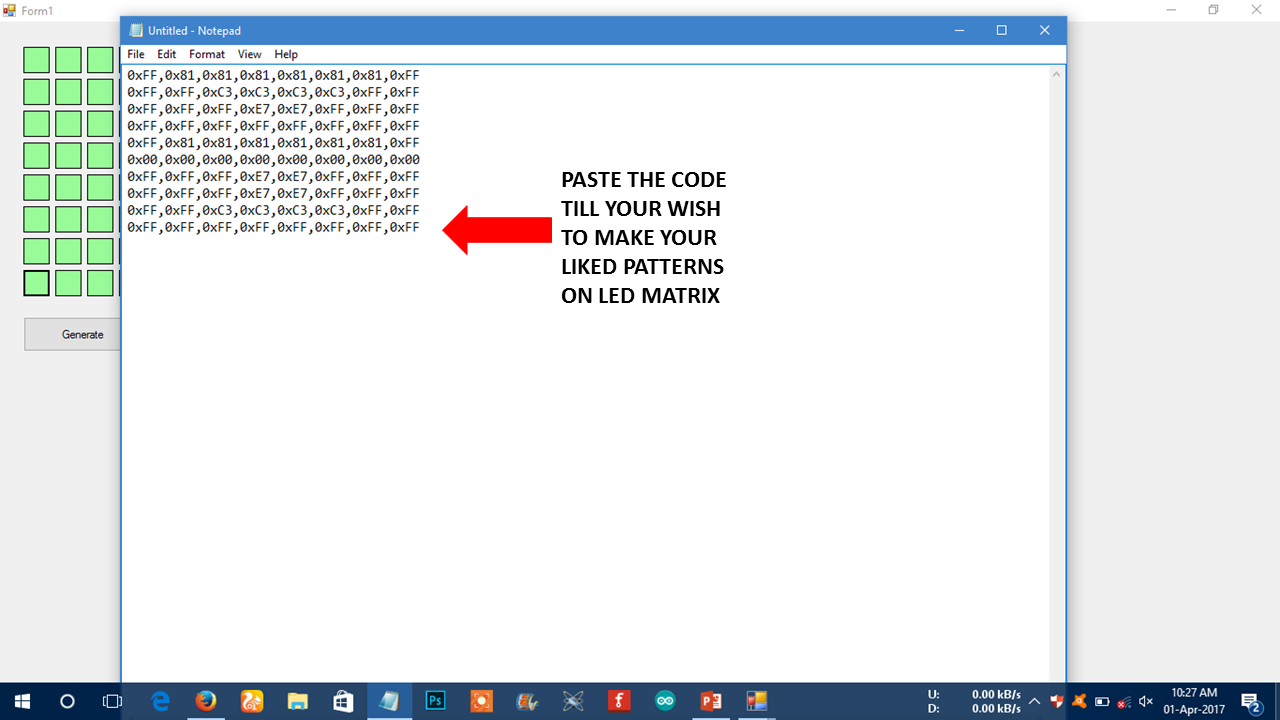

Paste The Code In Notepad Till Your Wish To Display The Patterns Which Was Made In The Pixel To Matrix App

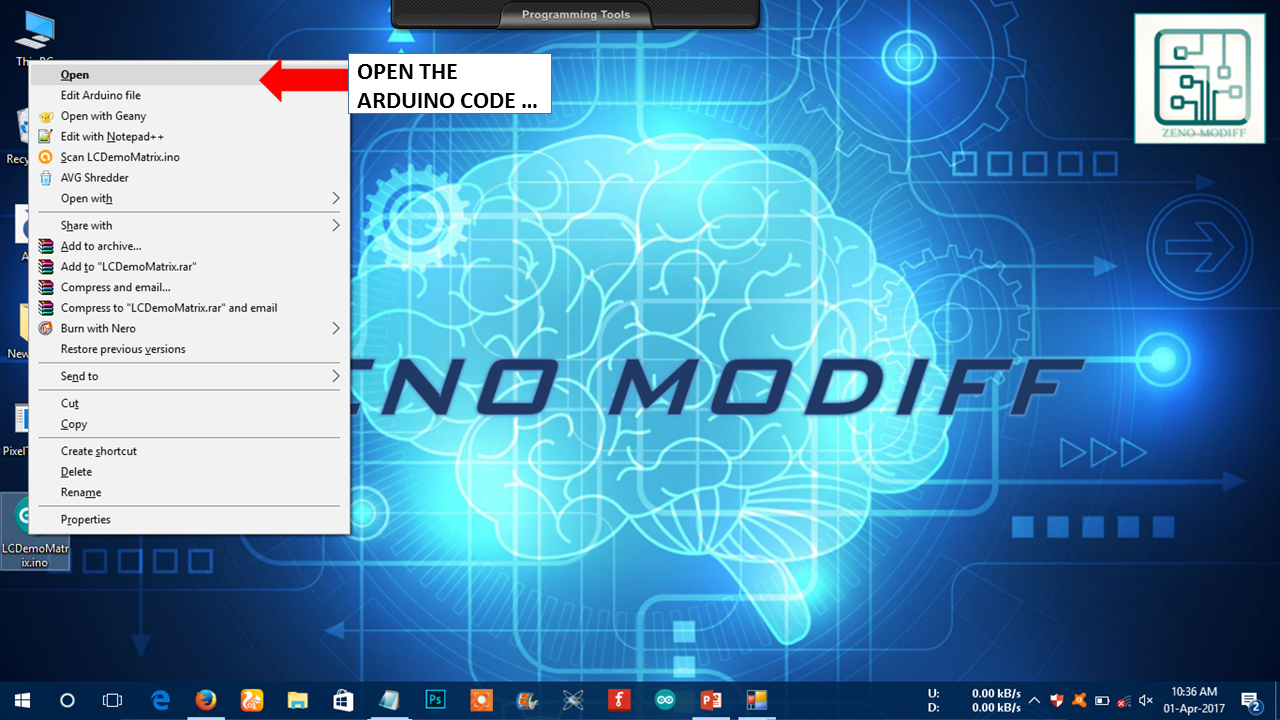

Then Open The Arduino Code ........

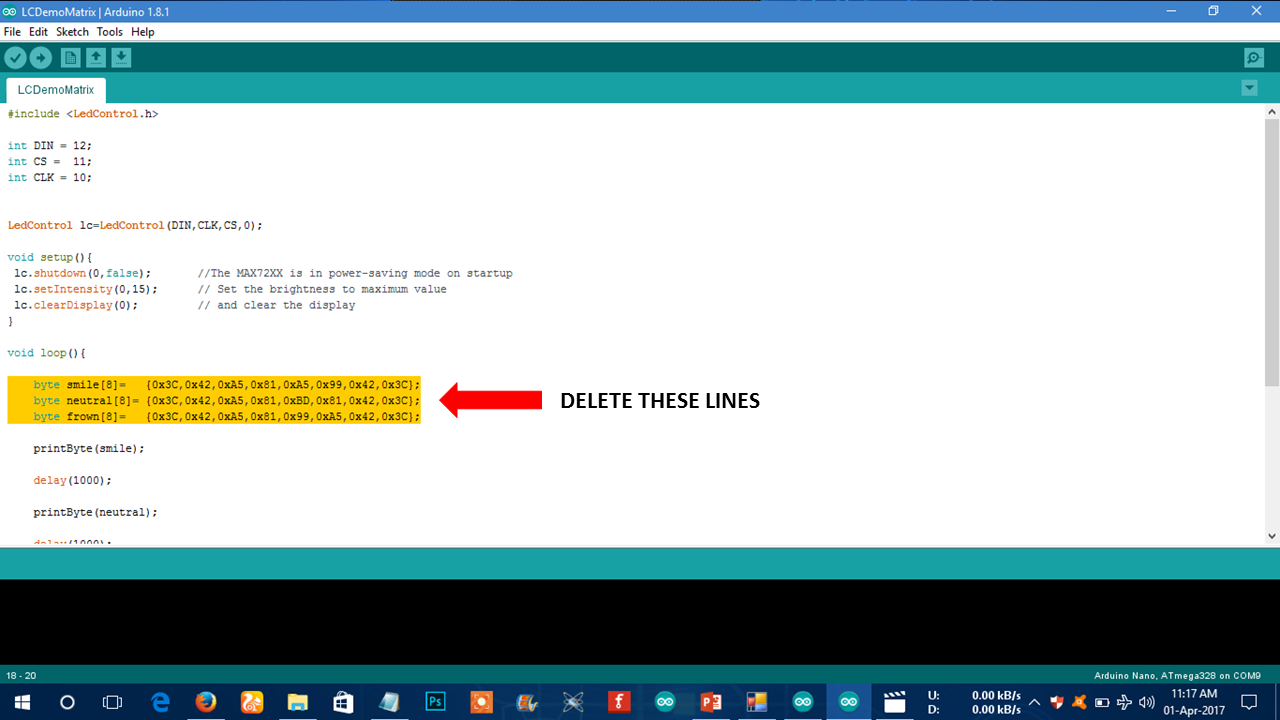

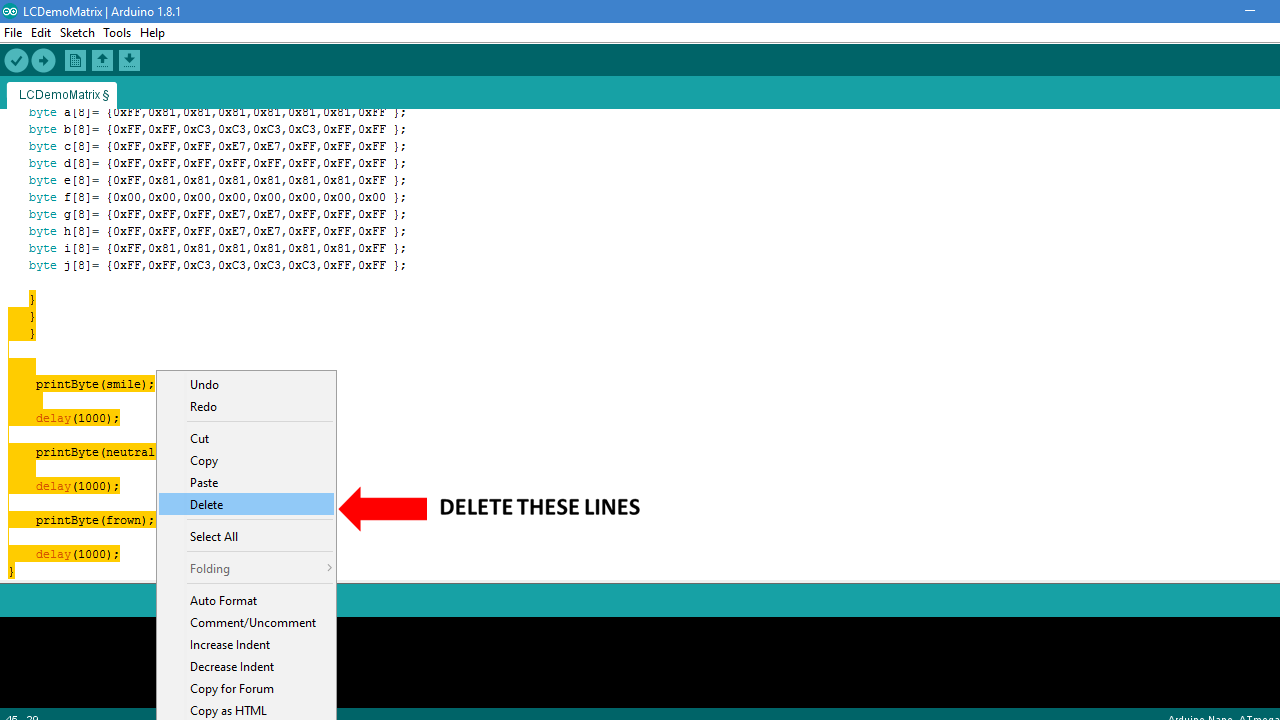

Delete These Lines ..........

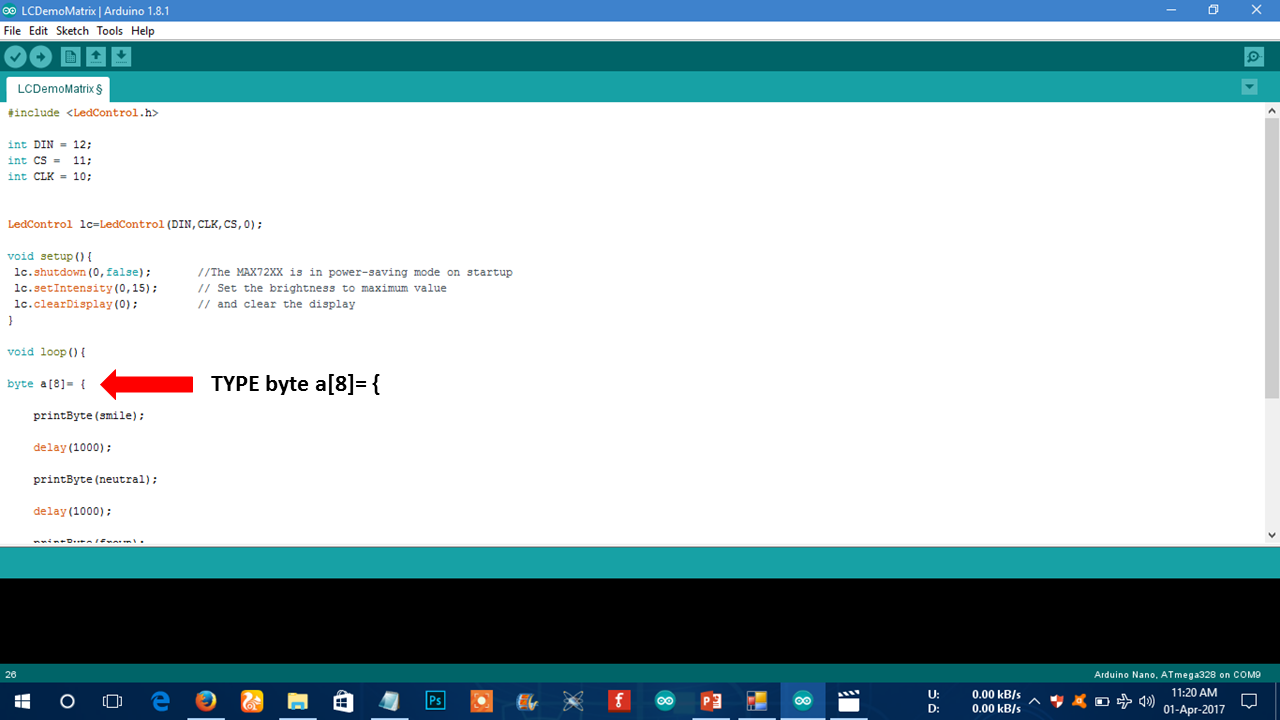

Then Type byte a[8]= {

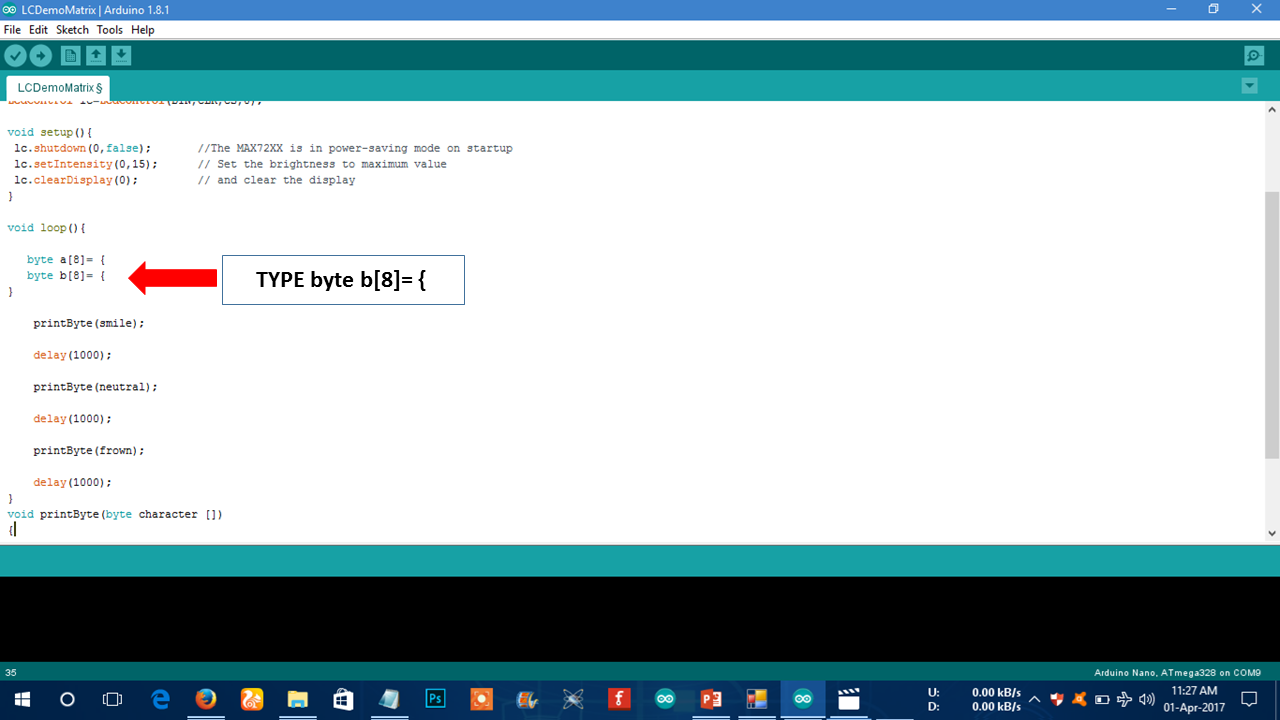

Then Type byte b[8]= {

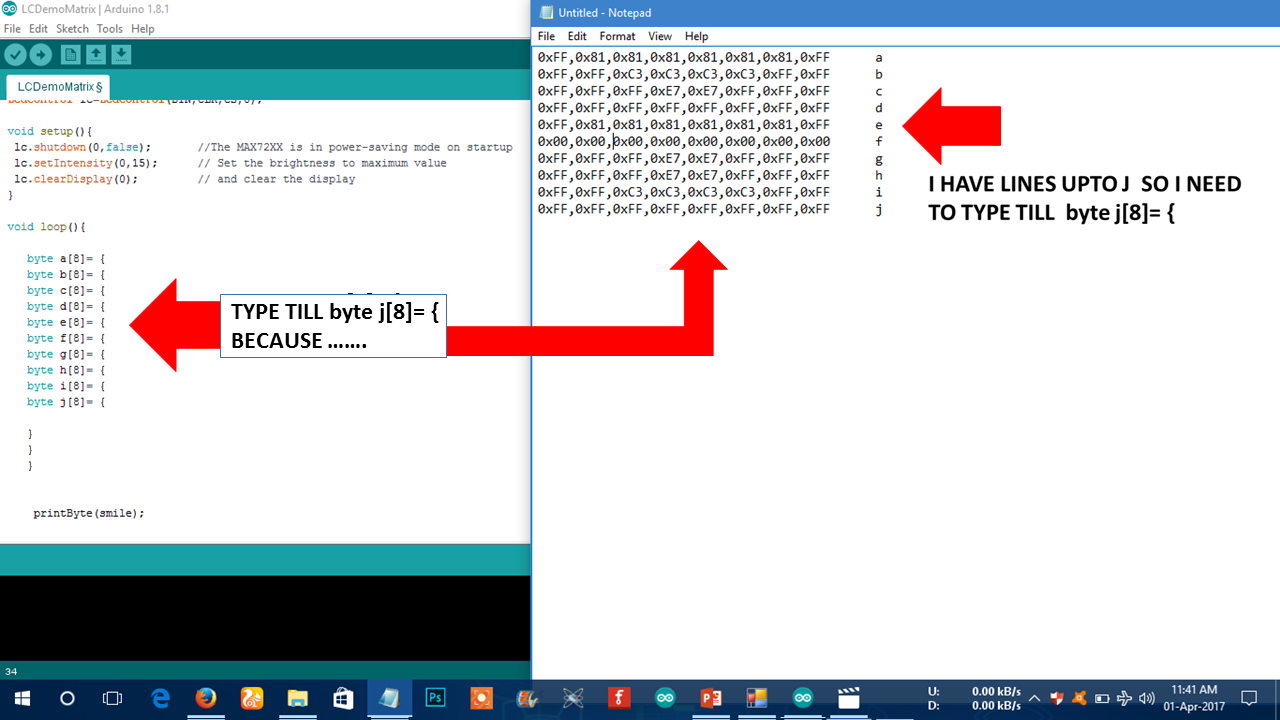

Type Till byte j[8]= {

I Have j Lines In My Notepad Code

So That I Have Made It To byte j[8]= {

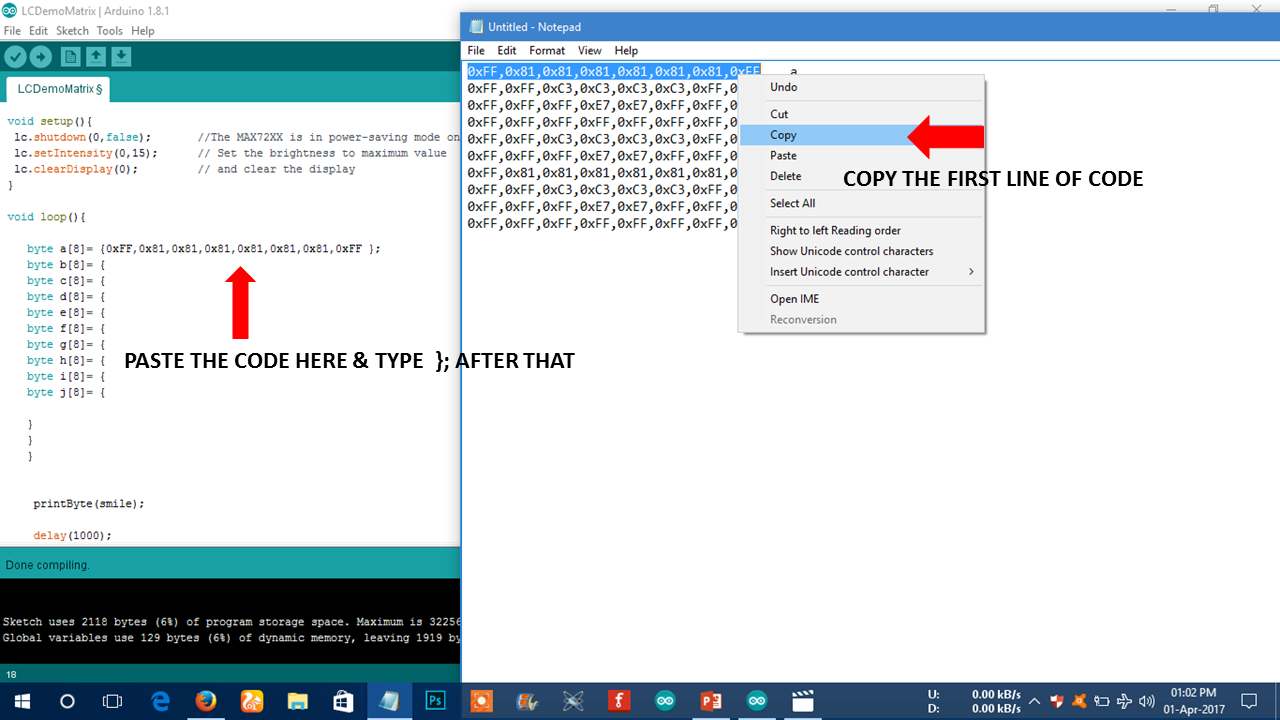

Then Open The Notepad & Copy The First Line Of Code

& Paste The Code In The Arduino Code

After Copying The Code Need To Type };

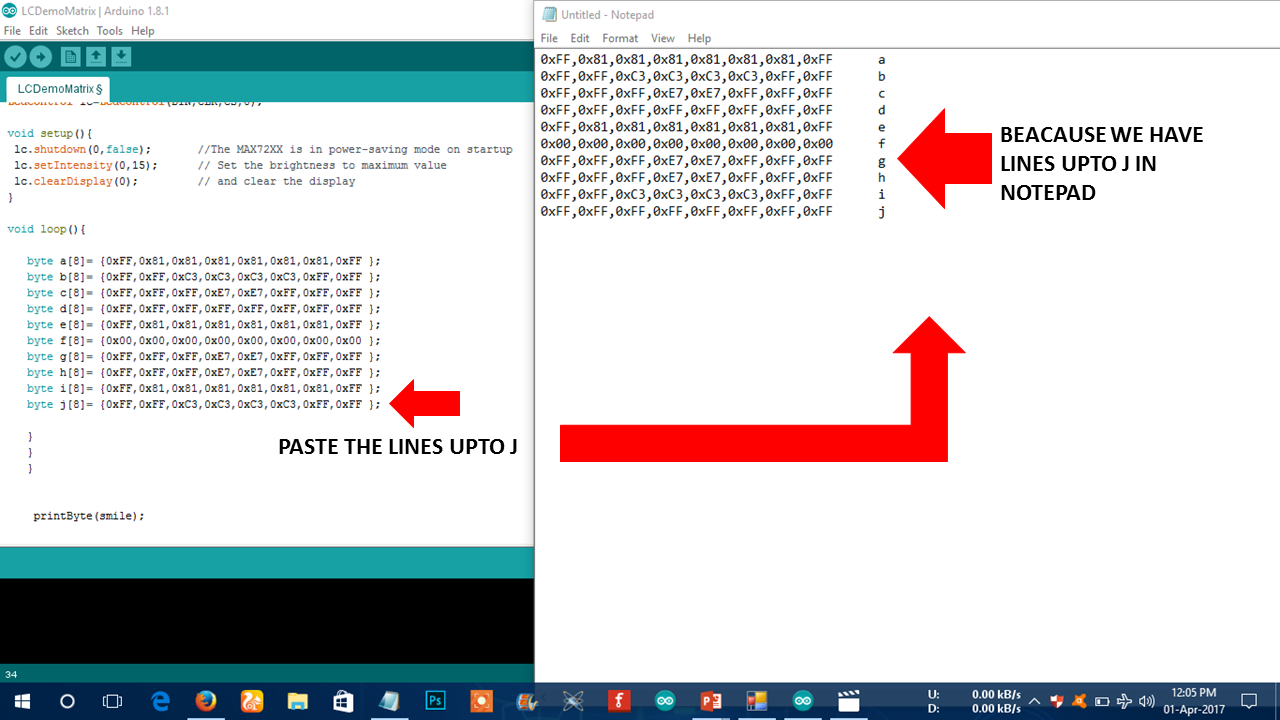

Paste The Lines Upto byte j[8]= {

From The Notepad

Delete These Lines In The Code ........

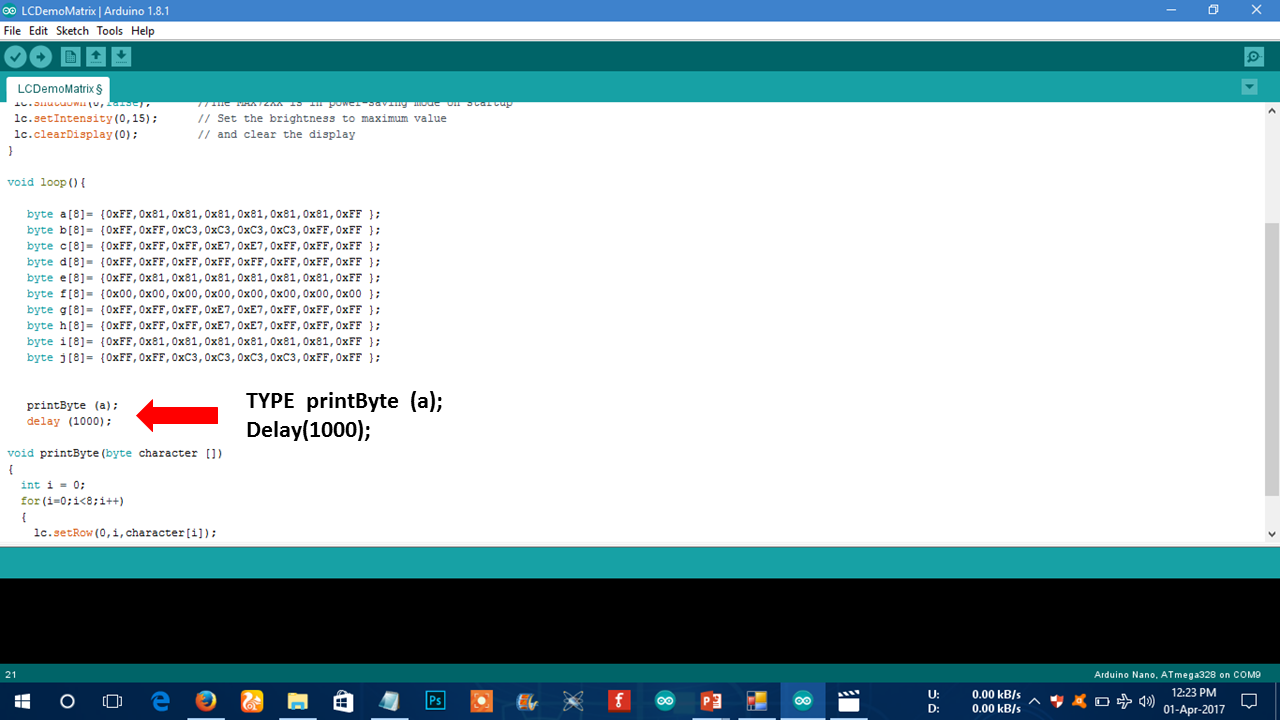

Then Type

printByte (a);

delay(1000);

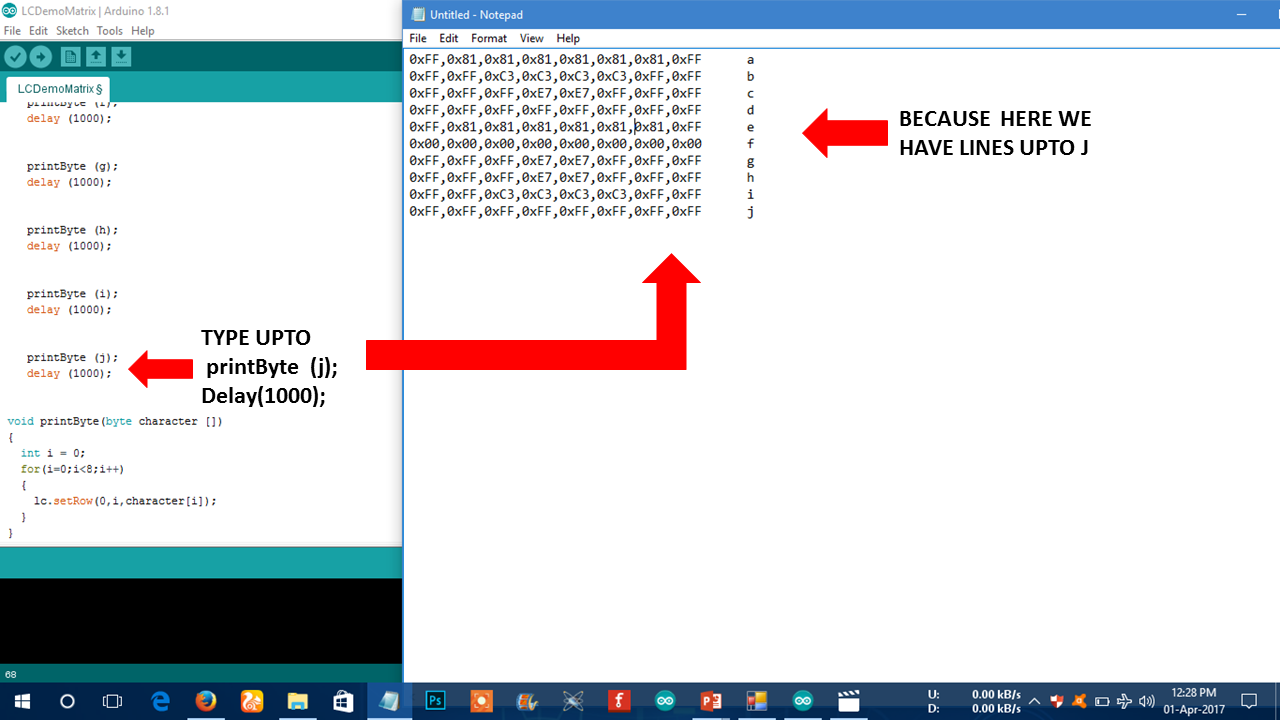

Type Lines Upto ,

printByte (j);

delay(1000);

Beacuse Iam Having J Lines In The Notepad ...........

If U Have More Than J Lines You Can Type Upto That Line Or Vice Versa .........

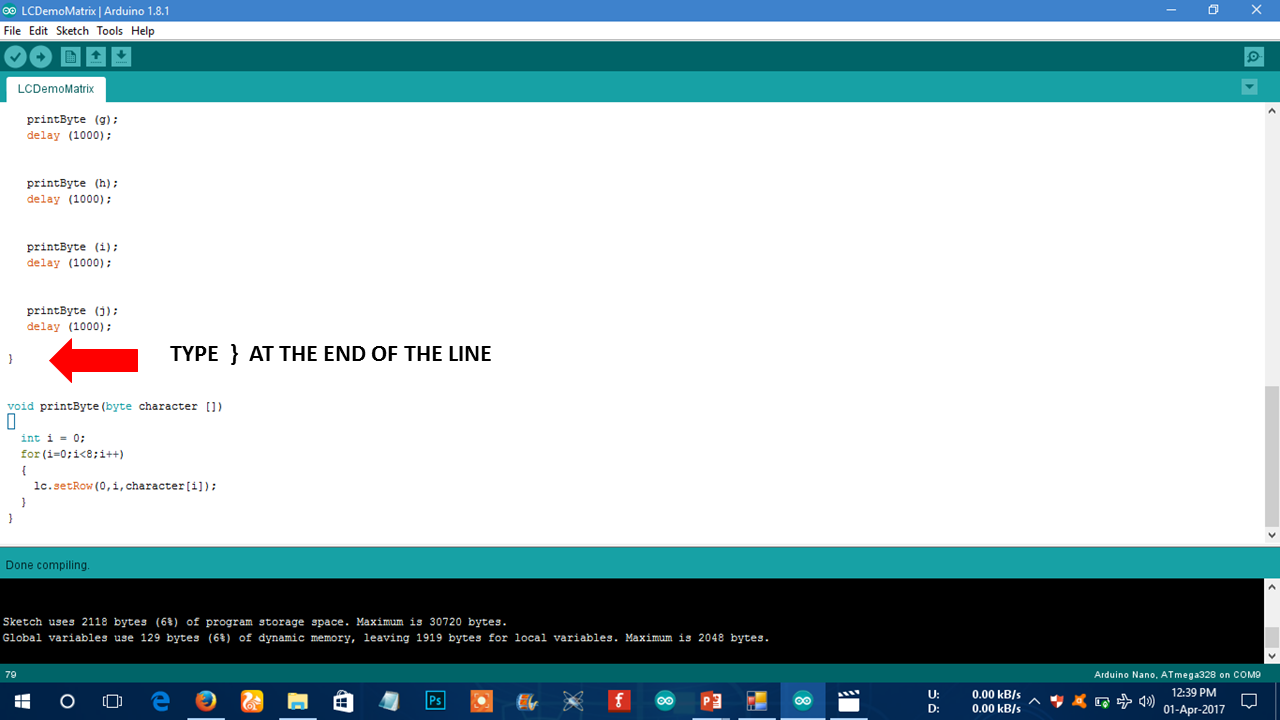

Type } At The End Of The Line ............

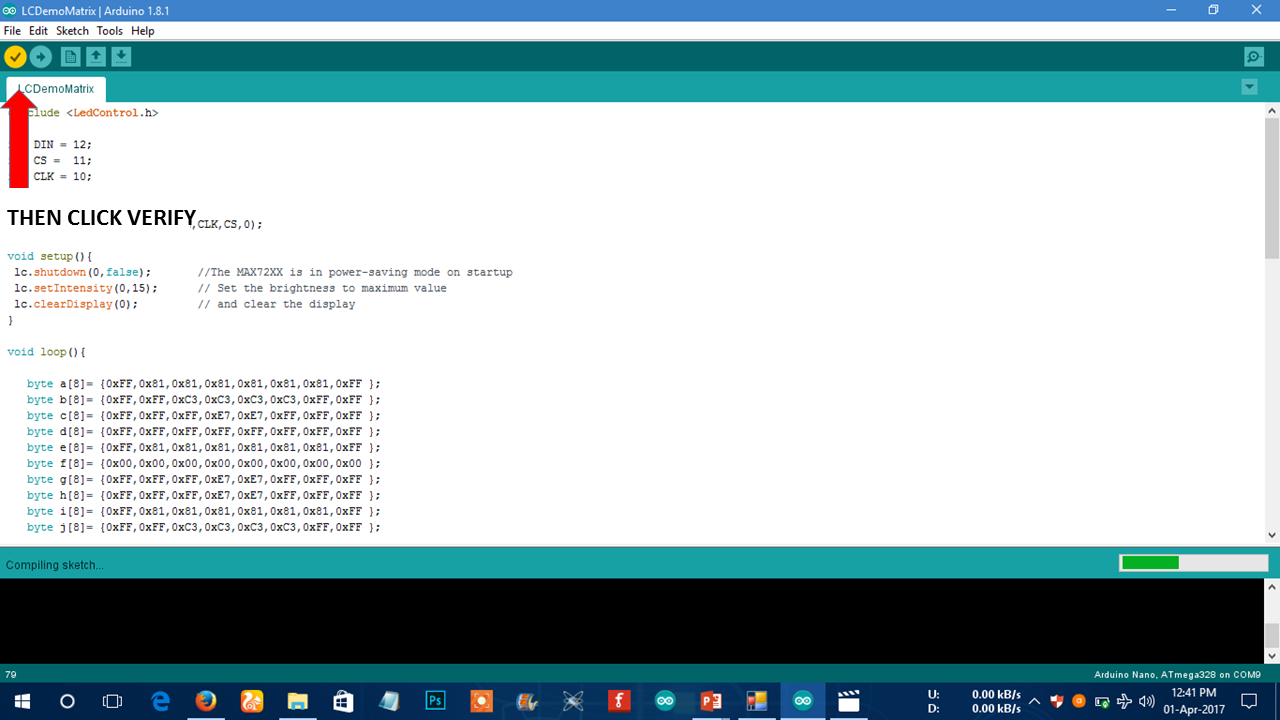

After That Click Verify ....

To Check For Any Errors Or Mistakes ......

Include This Library To Arduino Software

Library :-- https://github.com/wayoda/LedControl

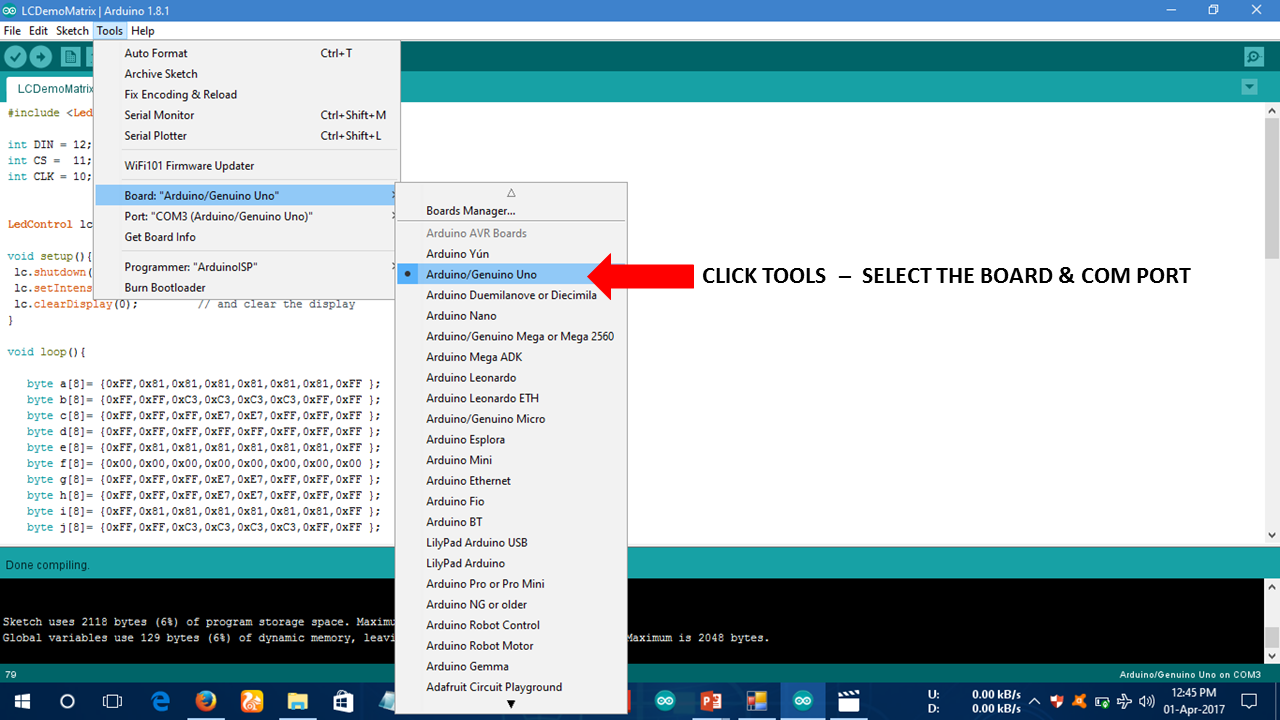

Then Click On Tools Select The Board Name & Com Port

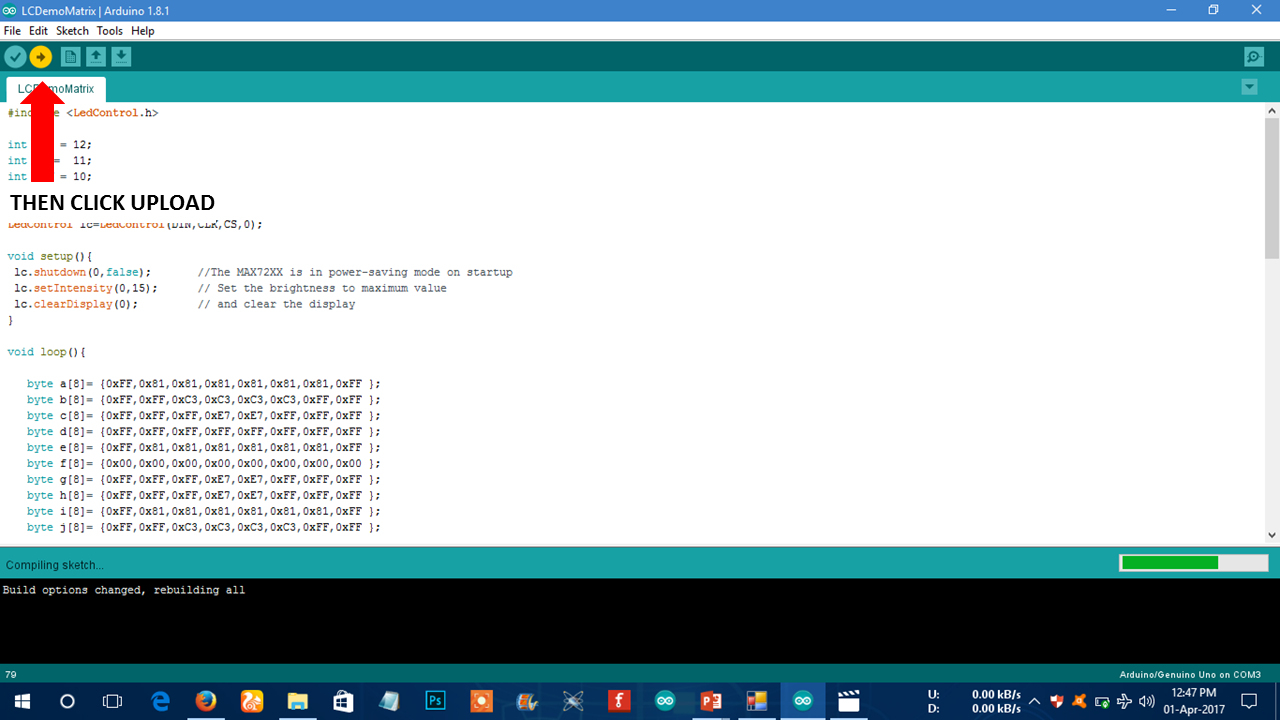

Then Upload The Code To Arduino ...........

Arduino Main Software :--
https://www.arduino.cc/en/Main/Software

--------------------------------

Pixel To Matrix Application :-- http://www.mediafire.com/file/61o1hbqss52ksyt/Pixe...

------------------------------------

Code :-- http://www.mediafire.com/file/23n440p13tat3th/LCDe...

-----------------------------------

Library :-- https://github.com/wayoda/LedControl
