How to Make Christmas Lights Flash to Music!
by Jacks how2s in Circuits > LEDs
7275 Views, 43 Favorites, 0 Comments
How to Make Christmas Lights Flash to Music!
![Flash Christmas Lights To Music!](/proxy/?url=https://content.instructables.com/FJ5/U1JL/IWH3ABDO/FJ5U1JLIWH3ABDO.jpg&filename=Flash Christmas Lights To Music!)

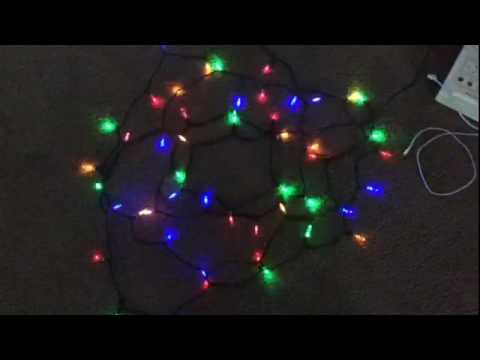

In this instructable i will show you how to make any christmas lights flash to music!
MAKE SURE YOU WATCH THE VIDEO!
https://youtu.be/QbEZX_T-mnM
What You Need-
![jack ipad 100.JPG](/proxy/?url=https://content.instructables.com/F65/FXBT/IWH3ABK6/F65FXBTIWH3ABK6.jpg&filename=jack ipad 100.JPG)
For This Music You Will Need-
tip31c NPN Transistor
Christmas Lights (DC Power Or Battery Not 110VAC 220VAC 240VAC Or Solar!)
Male To Male Jumper Wires
Breadboard
Male 3.5mm AUX Cord
Female 3.5mm AUX Plug
Solder Soldering Iron
Protoboard
Setting Up the Audio Jack
![jack ipad 102.JPG](/proxy/?url=https://content.instructables.com/F5R/54V0/IWH3ABOQ/F5R54V0IWH3ABOQ.jpg&filename=jack ipad 102.JPG)
![jack ipad 105.JPG](/proxy/?url=https://content.instructables.com/FIN/IQ6W/IWH3ABUW/FINIQ6WIWH3ABUW.jpg&filename=jack ipad 105.JPG)
![jack ipad 106.JPG](/proxy/?url=https://content.instructables.com/FEK/C3F9/IWH3ABV3/FEKC3F9IWH3ABV3.jpg&filename=jack ipad 106.JPG)
![jack ipad 107.JPG](/proxy/?url=https://content.instructables.com/FHG/7PER/IWH3ABV6/FHG7PERIWH3ABV6.jpg&filename=jack ipad 107.JPG)
![jack ipad 108.JPG](/proxy/?url=https://content.instructables.com/FSI/Y71Z/IWH3ABV7/FSIY71ZIWH3ABV7.jpg&filename=jack ipad 108.JPG)
![jack ipad 110.JPG](/proxy/?url=https://content.instructables.com/FJI/912S/IWH3ABVJ/FJI912SIWH3ABVJ.jpg&filename=jack ipad 110.JPG)
First get L R and GND.
Then connect a jumper wire to L and GND,
Next connect 3 wires to L R and GND,
Lastly solder everything together.
Connecting the Audio Jack to the Female Audio Jack
![jack ipad 111.JPG](/proxy/?url=https://content.instructables.com/F1B/MGG6/IWH3ABVQ/F1BMGG6IWH3ABVQ.jpg&filename=jack ipad 111.JPG)
First connect the ground wire to the bottom.
Next connect the R wire to the second,
Lastly connect the L wire to the top one.
Test
![jack ipad 113.JPG](/proxy/?url=https://content.instructables.com/FM4/E8KP/IWH3ABW4/FM4E8KPIWH3ABW4.jpg&filename=jack ipad 113.JPG)
![jack ipad 112.JPG](/proxy/?url=https://content.instructables.com/FOK/DWJ0/IWH3ABVX/FOKDWJ0IWH3ABVX.jpg&filename=jack ipad 112.JPG)
![jack ipad 114.JPG](/proxy/?url=https://content.instructables.com/FIS/WC3Y/IWH3ABW6/FISWC3YIWH3ABW6.jpg&filename=jack ipad 114.JPG)
![jack ipad 115.JPG](/proxy/?url=https://content.instructables.com/FA6/KHQ7/IWH3ABZA/FA6KHQ7IWH3ABZA.jpg&filename=jack ipad 115.JPG)
![jack ipad 117.JPG](/proxy/?url=https://content.instructables.com/FHA/PEQV/IWH3AC6U/FHAPEQVIWH3AC6U.jpg&filename=jack ipad 117.JPG)
FIRST DISCONNECT ANY POWER! 33volts DC can hurt you if it gets into your blood stream!
Second cut the wire and find the positive and negative wires and connect the positive together leaving the negative apart.
Now test the the power by touching the wires together,
Breadboard
![unnamed.jpg](/proxy/?url=https://content.instructables.com/FDR/QTKP/IWH3AD7K/FDRQTKPIWH3AD7K.jpg&filename=unnamed.jpg)
![jack ipad 119.JPG](/proxy/?url=https://content.instructables.com/F1O/EHN4/IWH3ACA1/F1OEHN4IWH3ACA1.jpg&filename=jack ipad 119.JPG)
![jack ipad 120.JPG](/proxy/?url=https://content.instructables.com/FJ6/3DBQ/IWH3ACBK/FJ63DBQIWH3ACBK.jpg&filename=jack ipad 120.JPG)
![jack ipad 122.JPG](/proxy/?url=https://content.instructables.com/FLD/BDCC/IWH3ACER/FLDBDCCIWH3ACER.jpg&filename=jack ipad 122.JPG)
![jack ipad 123.JPG](/proxy/?url=https://content.instructables.com/FUS/XWFE/IWH3ACEX/FUSXWFEIWH3ACEX.jpg&filename=jack ipad 123.JPG)
![jack ipad 126.JPG](/proxy/?url=https://content.instructables.com/F1I/KM14/IWH3ACIF/F1IKM14IWH3ACIF.jpg&filename=jack ipad 126.JPG)
Connect the GND wire from the audio jack to the right leg of the transistor,
Now connect the L of the audio jack to the left leg of the transistor,
Connect the GND from the power to the right leg of the power supply,
Lastly Connect the GND of the lights to the middle leg of the transistor.
Test
![jack ipad 127.JPG](/proxy/?url=https://content.instructables.com/FVS/Z3A9/IWH3ACIL/FVSZ3A9IWH3ACIL.jpg&filename=jack ipad 127.JPG)
![jack ipad 128.JPG](/proxy/?url=https://content.instructables.com/FED/MBNO/IWH3ACIP/FEDMBNOIWH3ACIP.jpg&filename=jack ipad 128.JPG)
![Flash Christmas Lights To Music!](/proxy/?url=https://content.instructables.com/FMF/QAXD/IWH3AFJH/FMFQAXDIWH3AFJH.jpg&filename=Flash Christmas Lights To Music!)
Turn the power on and plug the Jack into the phone and volume it all the way up!
if everything was done right it should flash to the music like in the video below!
Please vote and share,
thanks,
Watch The Video https://youtu.be/QbEZX_T-mnM
