How to Make Air Cooler

how to make air cooler with cpu fan

Making air cooler is easy and simple project with basic tools this small air cooler can lower the temperature upto 3 to 4 degrees ,if you like this tutorial please like share and vote and if you don't understand something please watch the video.

Things Needed


Thermocol Sheet

2 piece of 10'' x 11''

2 piece of 9'' x 11''

2 piece of 9'' x 7''

Plastic tub

Aluminium Piece 4'' x 10 ''

12v supply

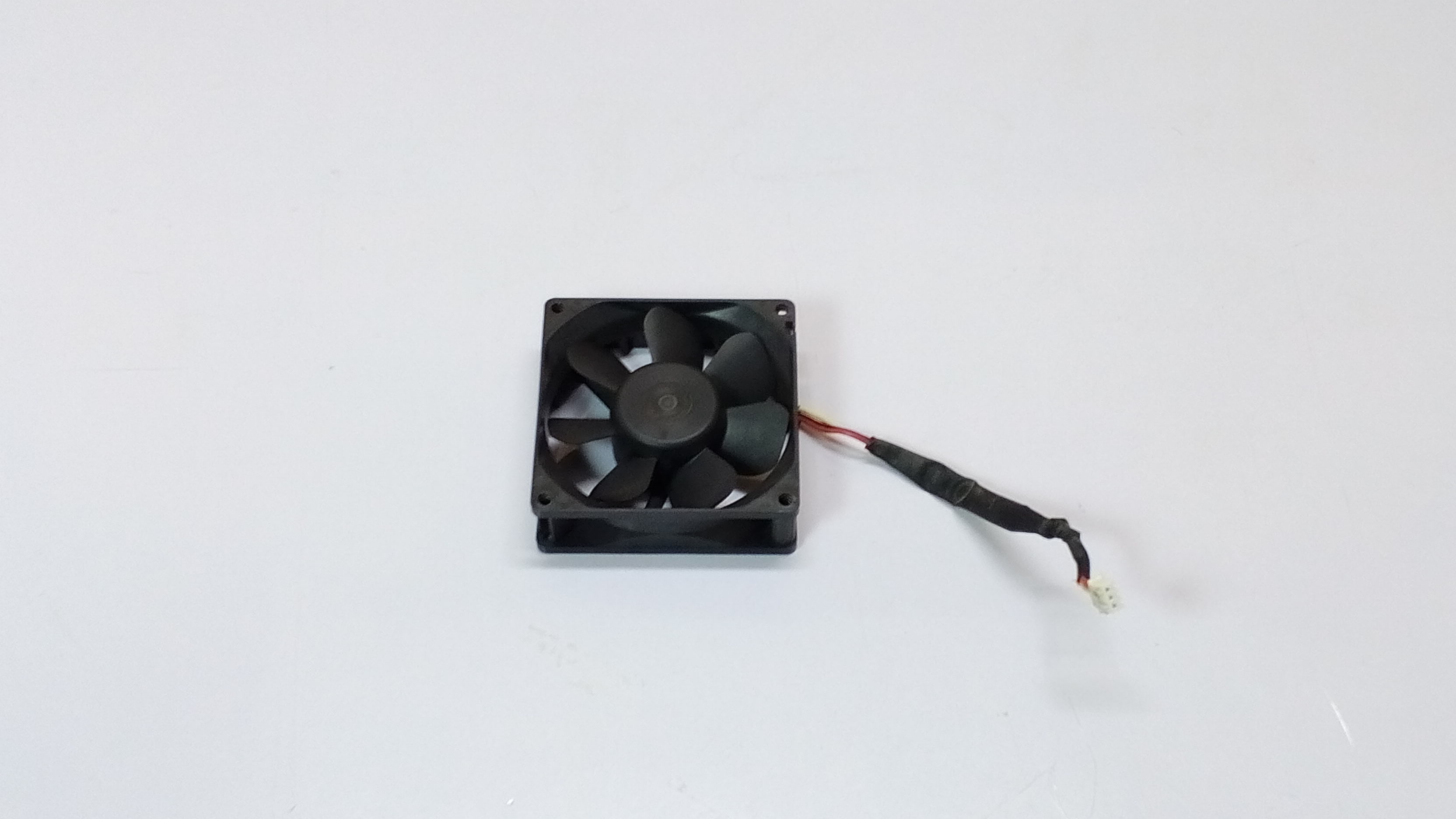

12v cpu fan

Switch

(3) (0;00;24;26).jpg
(3) (0;01;02;29).jpg
(3) (0;00;11;16).jpg

Make a square box from the thermocol sheet by putting the bowl in center with hot glue

Cover the bottom with 10'' x 11'' piece

(3) (0;00;13;17).jpg
(3) (0;00;11;01).jpg
(3) (0;00;08;11).jpg
(3) (0;00;16;26).jpg
(3) (0;00;20;28).jpg

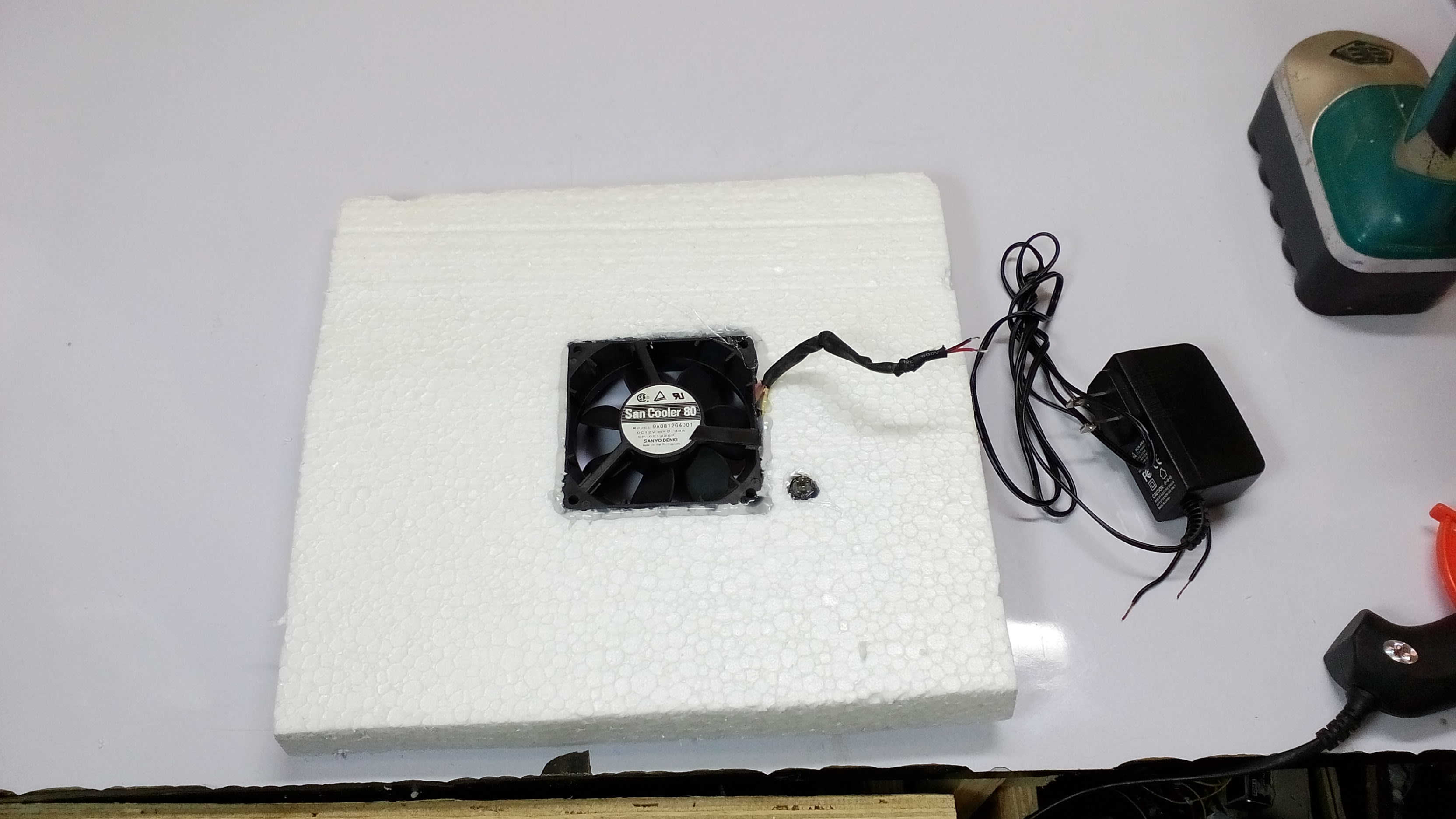

Mark the fan size on 10'' x 11'' piece and cut it out

place the fan in the hole and put hot glue around it

joint the wire with switch by 12v supply

Hot glue the connection

(3) (0;00;00;15).jpg
(3) (0;00;11;24).jpg
(3) (0;00;20;01).jpg
(3) (0;00;17;07).jpg
(3) (0;00;31;14).jpg
(3) (0;00;02;01).jpg

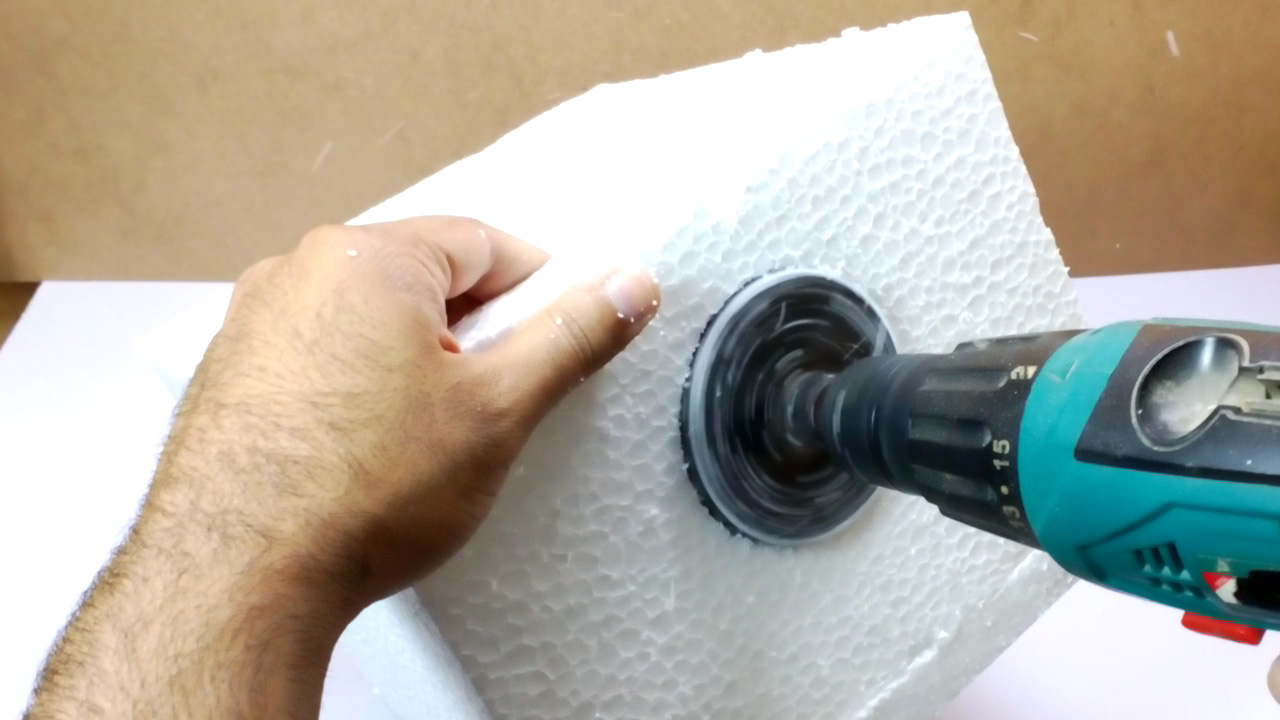

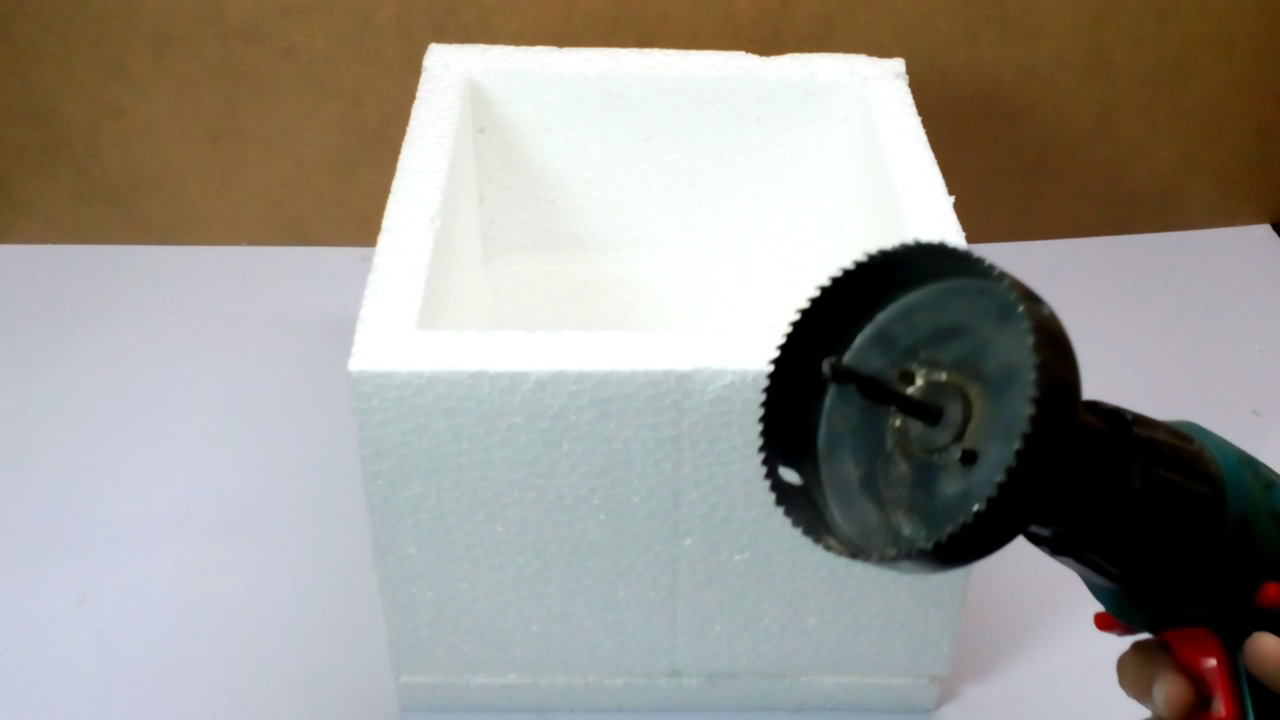

Make a hole with 5 inches round cutter

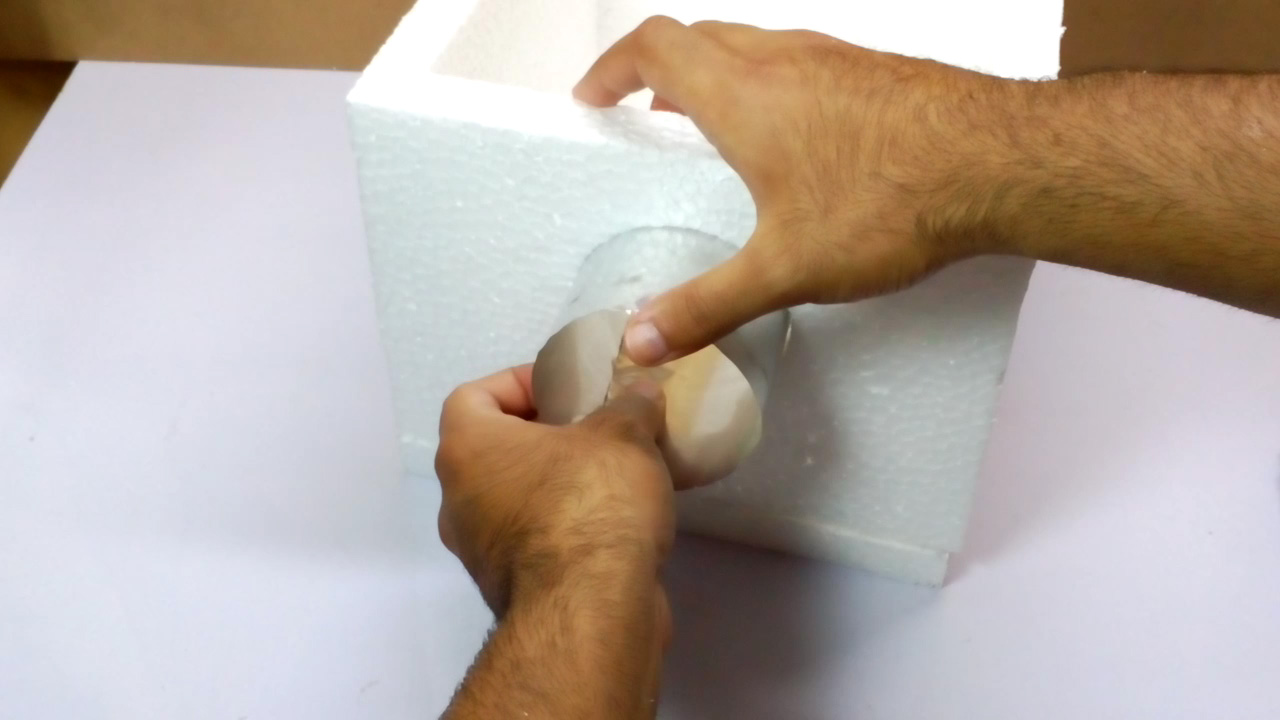

place aluminum piece making a circle and joint it with hot glue

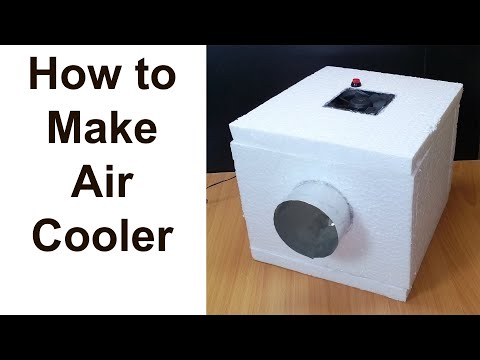

Our air cooler is ready don't forget to vote and watch the video :)
