How to Make 3D Numbers With Basic Tools

My nephew recently turned 13

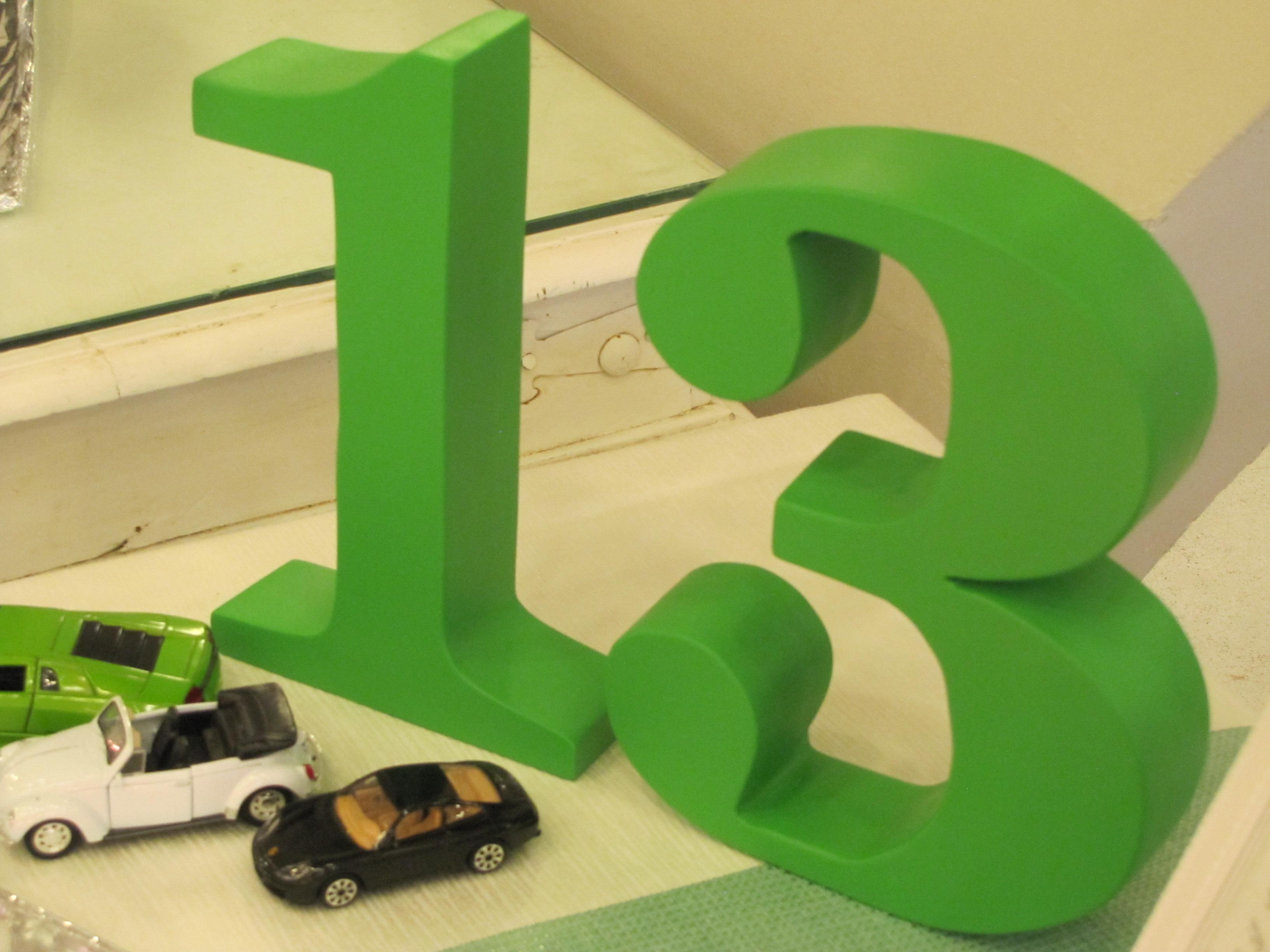

My sister asked if I could make three dimensional 13 number for the party.

The numbers will serve as a table decoration at the Bar Mitzvah party!

Challenge accepted !!

Congratulations ! Mazal Tov !

--------------------------------------------------------

You're invited to subscribe to my YouTube channel and follow all of my projects:
https://www.youtube.com/channel/UCkNrUodcQbCM8FDG...

Facebook: https://www.facebook.com/kultakaladesign/

Your support is much appreciated!

New projects coming soon!

We chose a font that we liked, edited the numbers in graphics software before printing.

This is because the number three cannot stand steady, the action I performed is to Increase the number three, slightly more than the size of the font, and I lowered the number three slightly below the imaginary gerund line on which the number is placed so that at the top they will be the same height and at the bottom of number will be flat, also drew a line that is clear where to cut.

I found three old MDF closet shelves.
I checked that the numbers matched the size of the material.

*What is MDF ?!

See Wikipedia: https://en.wikipedia.org/wiki/Medium-density_fibr...

Glued them together and hold them together with clamps for 24 hours.

Using spray adhesive, I glued the paper to the MDF surface.

After the glue dried up, I went through with a knife all over the
contour of the numbers, so that the rough cut of the Jig saw would not tear up the paper.

Cut the ground line.

I replaced the blade with a long blade that can pass the thickness of the material.

I sawed out the numbers when the blade almost touches the outer line of
the numbers so that it can be corrected with a grinder later on.

In the inner areas I also drilled holes that helped me get in with the saw in the middle.

important to know:
when sawing with jig saw, it tends to "fold" sideways mainly at the end of the blade, so it is best to work slowly with minimal pressure.

It is important to use the breather for protection from the dust !

Using an angle grinder I began to sand the surface.

In the inner areas that cannot be reached with the angle grinder I used several types of a files, as well as sanding papers.

Fine sanding with orbital sander.

After all the sanding, I cleaned all the dust with air pressure.

First stage:
water-based base color (primer).

2 layers to hide the connection lines of the MDF surfaces.

Stage two:
water-based color in a chosen shade:

2 layers. waiting time between layers usually written in the color can.

Materials:

Glue

Sanding paper

Water base primer

Water base color

Long jig-saw blade

Spray adhesive

Tools:

Jig saw

Angle grinder

Orbital sander

Clamps

Knife
