How to Interface With Active Buzzer Sensor Module

by mybotic in Circuits > Sensors

8490 Views, 8 Favorites, 0 Comments

How to Interface With Active Buzzer Sensor Module

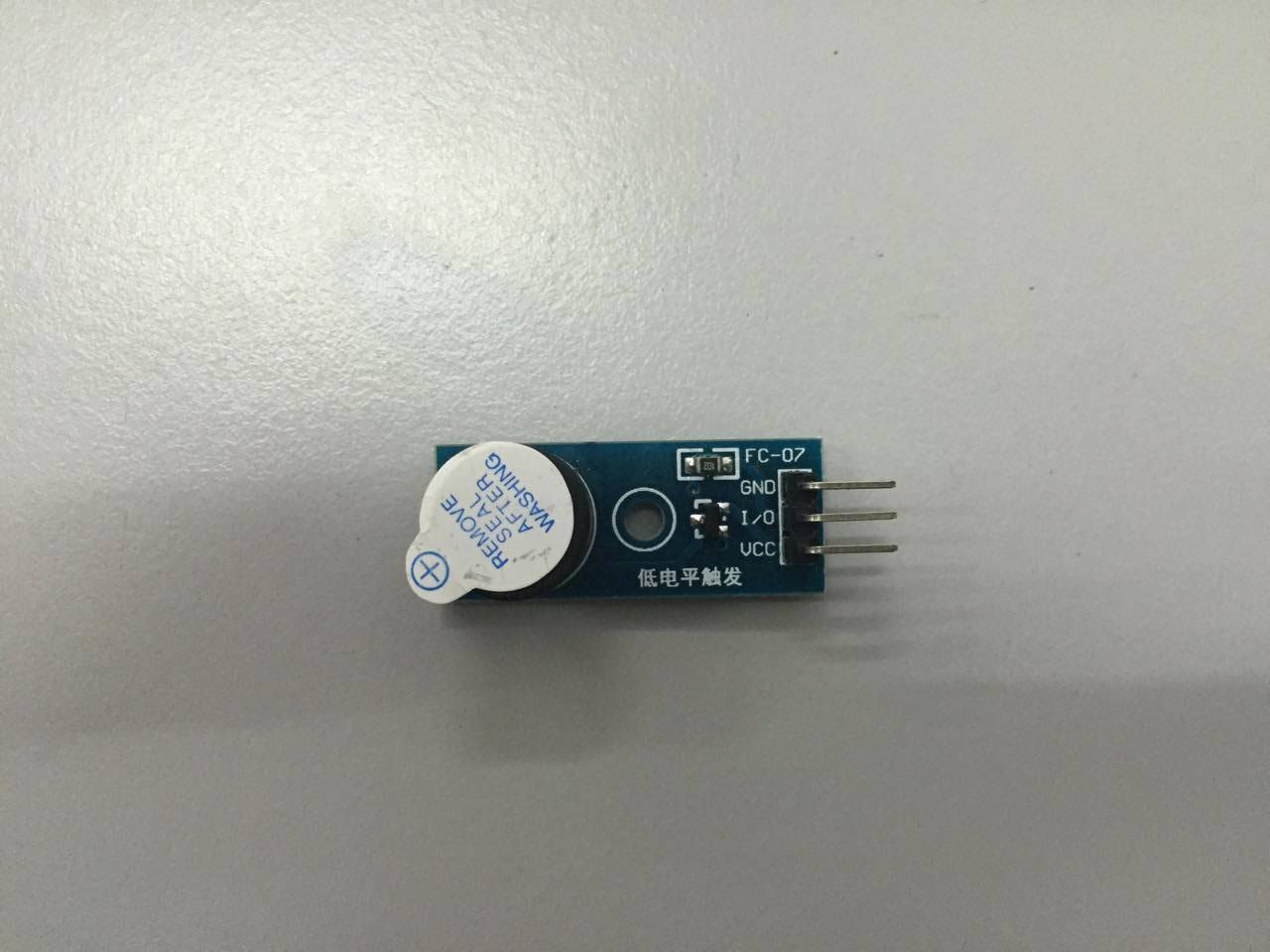

buzzer sensor module.jpg

This tutorial is going to teach you some basics on using Active Buzzer Sensor Module.

Introduction

Description:

An active buzzer sensor module has a built-in oscillation circuit, thus the sound frequency is fixed. It is able to generate the sound itself. So, you can simply turn it on and off with an Arduino pin, just like the way of turning on and off a Led which is connected to Arduino board. Besides, this sensor starts beeping when it is being supplied with DC power supply.

Specifications:

  • Operating voltage: 3.3V to 5V
  • Active low sensor module
  • Driver transistor: S8550
  • Size: 3.2cm x 1.3cm

Pin Definition

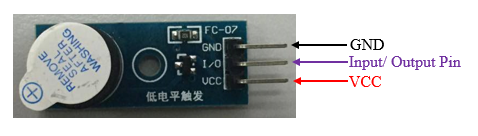

pin definition.PNG

Sample Hardware Installation

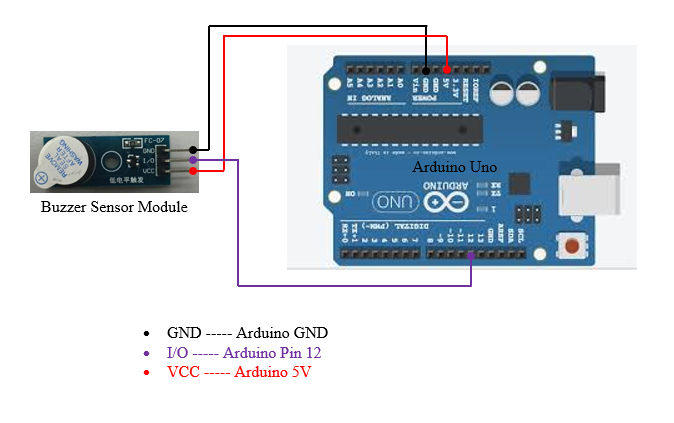

sample hardware installation.PNG

Sample Source Code

To get the result, please download the sample source code attached below and upload it into Arduino.

After uploading, listen to the sound that is produced by Buzzer. Have Fun!
