How to Install an Engine Oil Cooler

by MikeF246 in Workshop > Cars

5246 Views, 3 Favorites, 0 Comments

How to Install an Engine Oil Cooler

Screen Shot 2021-12-22 at 11.21.17 PM.png

Nitrous V8 Swapped Ranger gets an oil cooler to stop it from melting down! | Oil Cooler Installation

Freddy from PoorManMods shows you how to install an engine oil cooler using this Nitrous V8 Swapped Ford Ranger.

Oil cooler used in the video: https://amzn.to/3mv3RpR

Supplies

Screen Shot 2021-12-22 at 11.25.33 PM.png

Screen Shot 2021-12-22 at 11.27.26 PM.png

Oil cooler kit: https://amzn.to/3mv3RpR

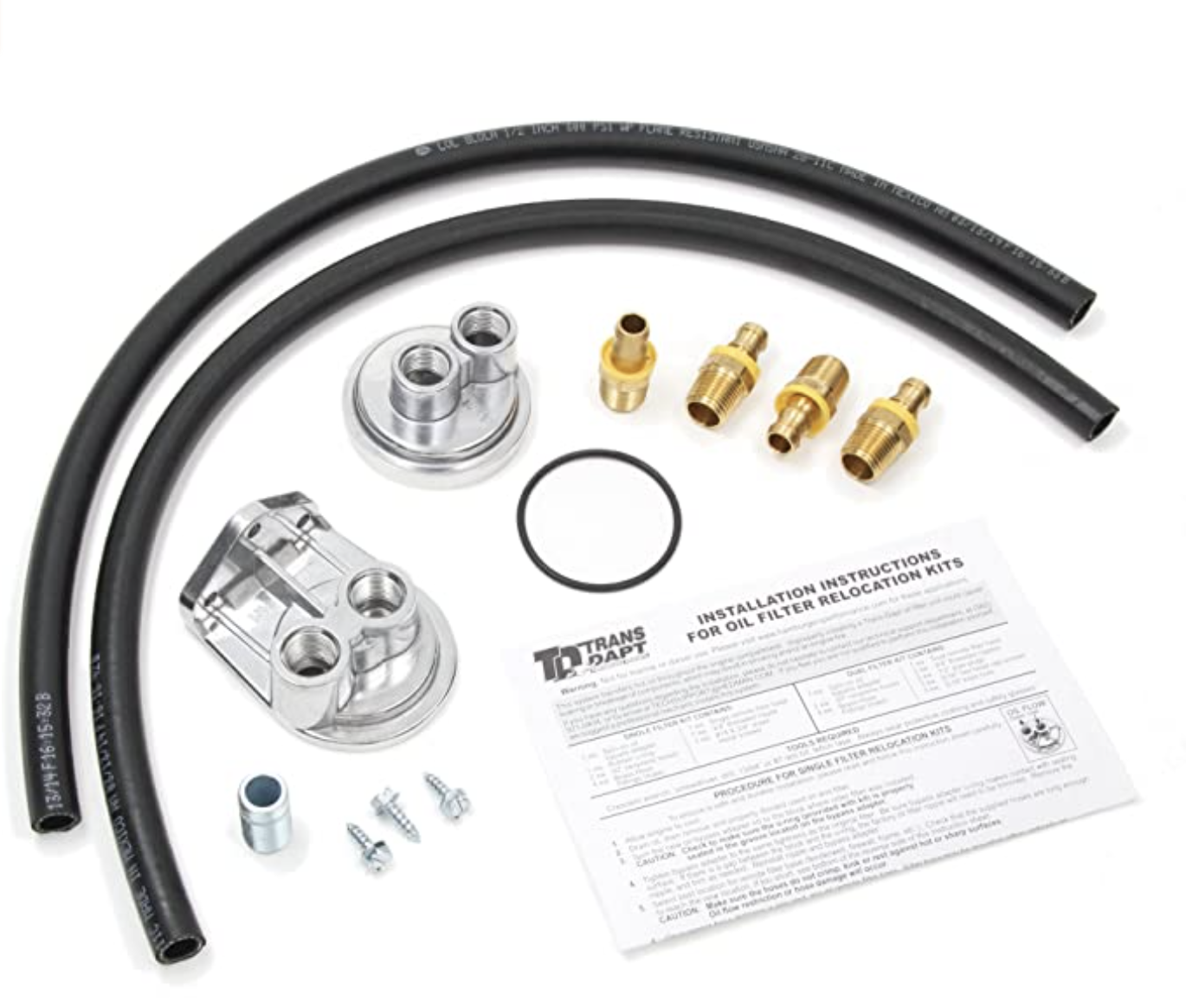

Optional oil filter relocation kit: https://amzn.to/3qlVePr

Install Oil Cooler Sandwich Plate

Screen Shot 2021-12-22 at 11.17.03 PM.png

Screen Shot 2021-12-22 at 11.16.23 PM.png

Screen Shot 2021-12-22 at 11.16.16 PM.png

Screen Shot 2021-12-22 at 11.16.07 PM.png

Screen Shot 2021-12-22 at 11.15.47 PM.png

Screen Shot 2021-12-22 at 11.15.34 PM.png

Locate and remove you oil filter
Assemble your oil filter sandwich plate
Install oil filter sandwich plate where you oil filter was

Install Oil Lines

Screen Shot 2021-12-22 at 11.18.07 PM.png

Screen Shot 2021-12-22 at 11.17.59 PM.png

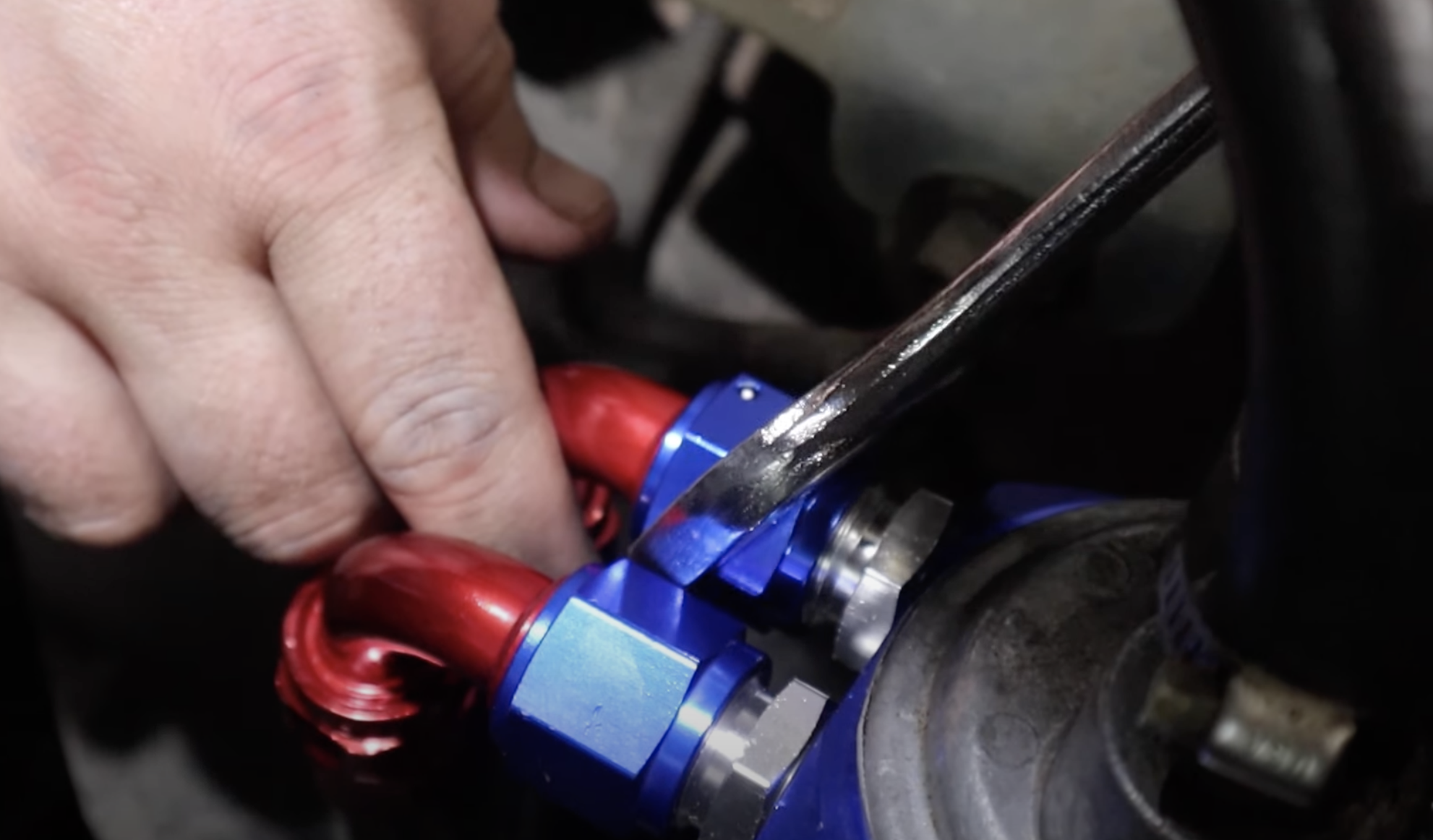

Attach oil lines to the oil filter sandwich plate fittings

Mock Up Then Mount Cooler

Screen Shot 2021-12-22 at 11.19.11 PM.png

Screen Shot 2021-12-22 at 11.18.39 PM.png

Screen Shot 2021-12-22 at 11.18.23 PM.png

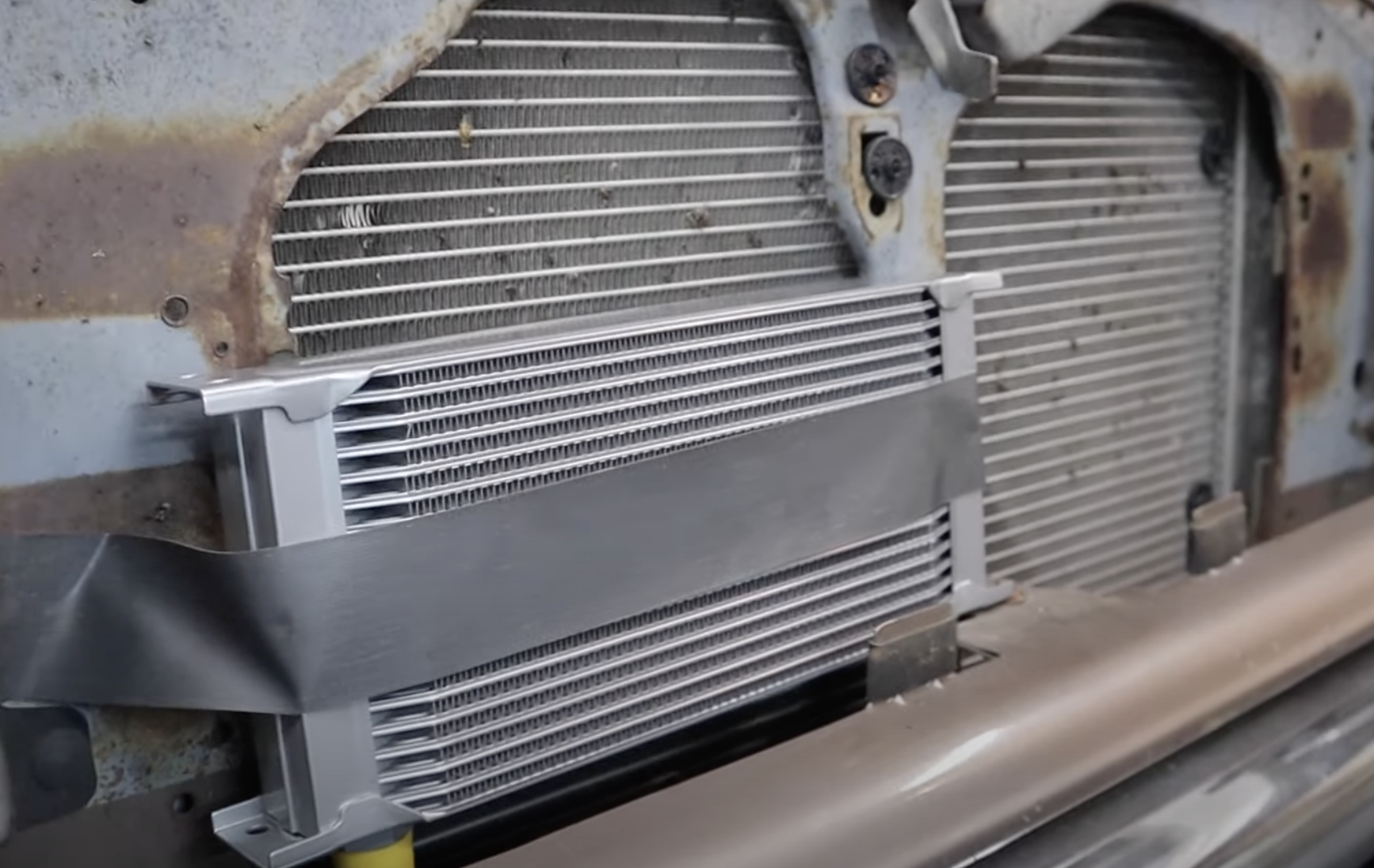

Mock up the oil cooler in the location of your choice and make sure there is proper clearance for it behind the grill or bumper. Once safely mocked up, make/install brackets to properly secure the cooler

Screen Shot 2021-12-22 at 11.19.27 PM.png

Once the final location for the cooler is found, attach the oil lines to the cooler and re-secure the cooler

Install Oil Filter

Screen Shot 2021-12-22 at 11.20.35 PM.png

Install the new/old oil filter

Done!

Add half a quart of oil to your engine and you're done!
