How to Install an Aftermarket Radio (Android Auto / CarPlay / DVD) to a Ford Transit

Ford Transit Radio Upgrade Pioneer AVH-W4500NEX Dash Kit (1920px).jpeg

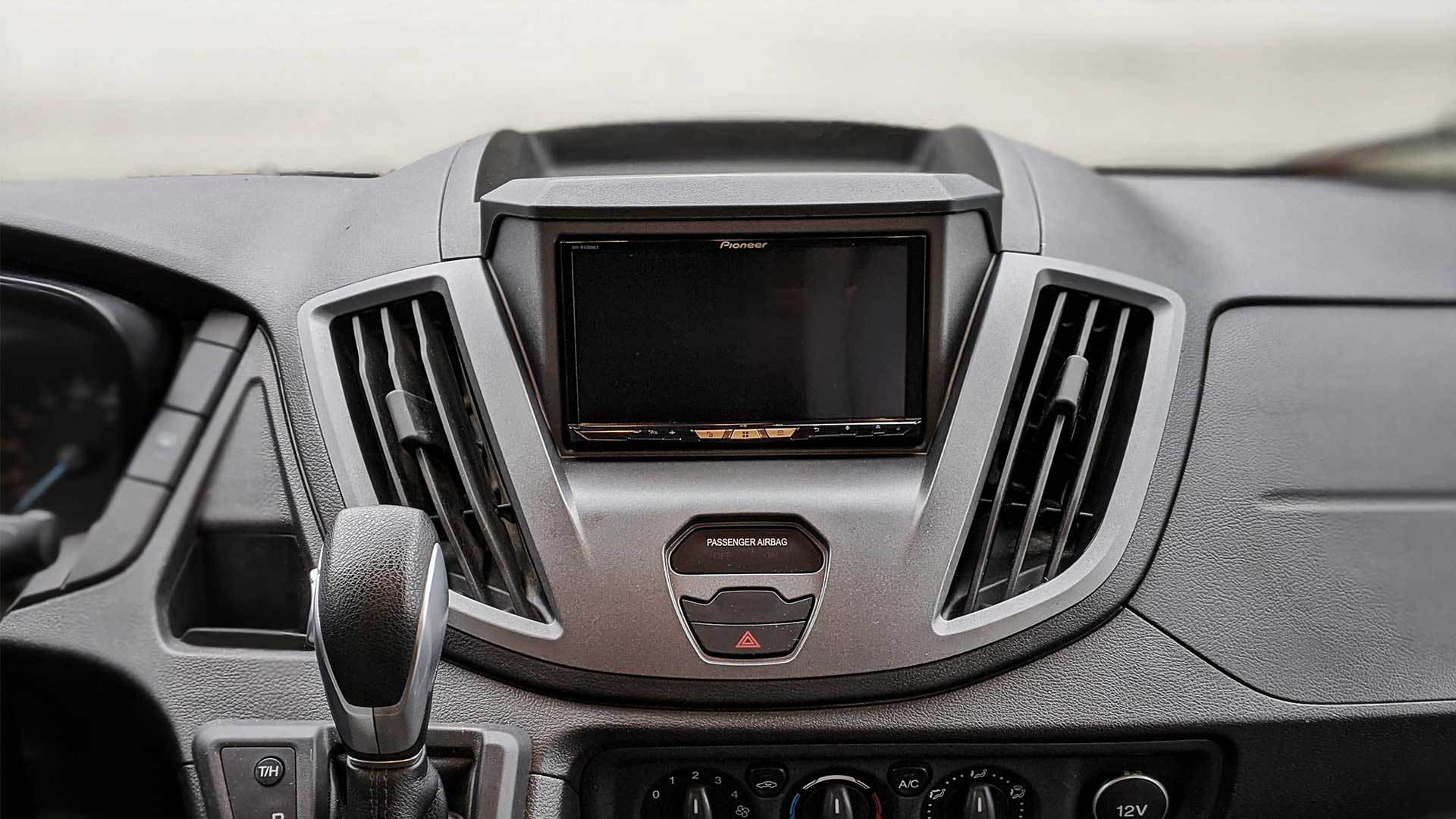

The Ford Transit can be upgraded with an aftermarket radio and we’ll show you how in this instructables. We went from the basic Ford factory AM/FM radio to the Pioneer AVH-W4500NEX 6.94″ TouchScreen Multimedia Receiver: it has Android Auto & Apple CarPlay (wireless or USB), backup camera ready, DVD receiver, Bluetooth, SiriuxXM, etc. Sweet upgrade. Let’s get to work and get done with the installation!

Supplies

Supplies (link to products), lessons learned and more can be found here: faroutride.com/radio-upgrade

Unclip the TOP Dash Panel

Ford Transit Radio Upgrade DDIN Joying Android (2).jpg

Ford Transit Radio Upgrade DDIN Joying Android (3).jpg

There are no screws; just use a plastic scraper to pull UP.

Remove These Two Torks Screws

Ford Transit Radio Upgrade DDIN Joying Android (4).jpg

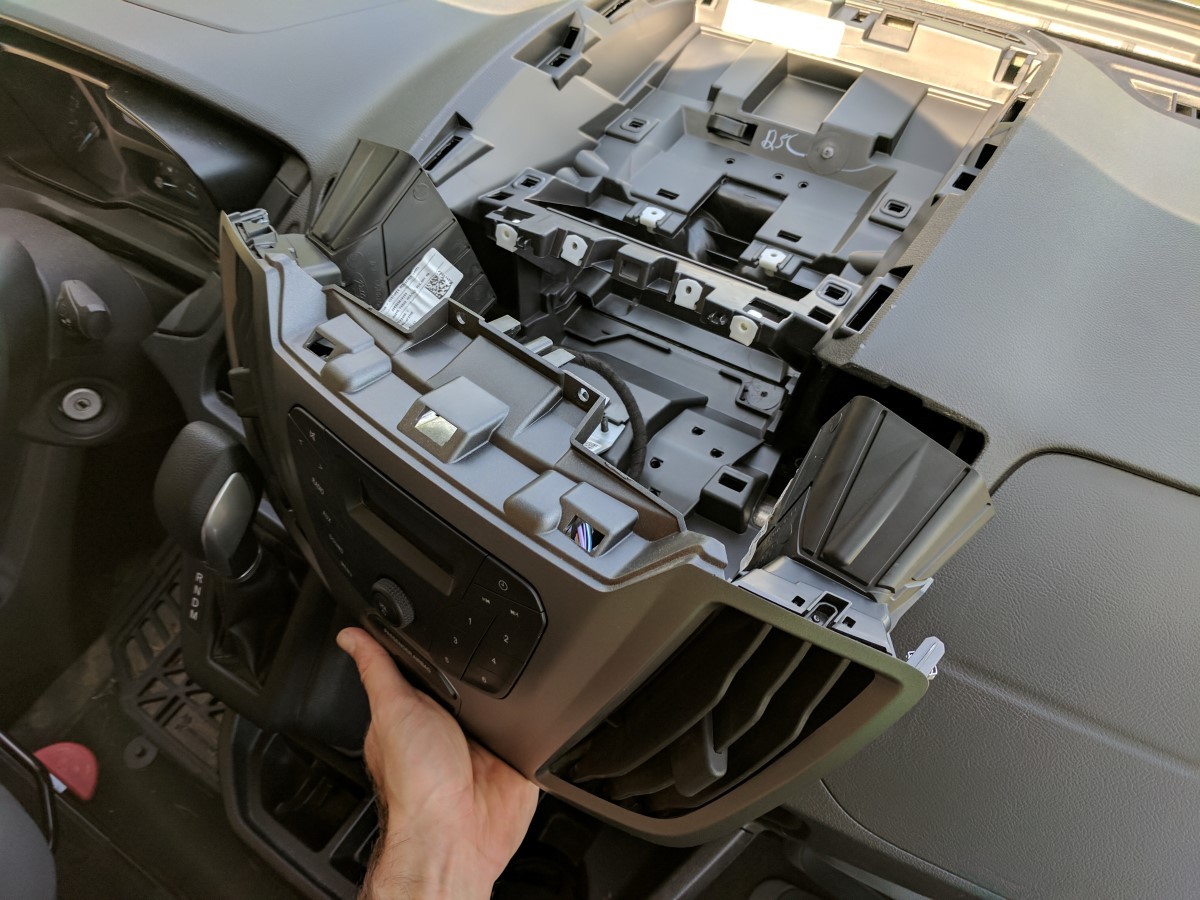

Unclip the Factory Trim Panel

Ford Transit Radio Upgrade DDIN Joying Android (5).jpg

Unplug the Airbag & Hazard Cables From the Factory Trim Panel


Unplug the Right & Left Vents From the Factory Trim Panel and Keep for Re-installation


Remove one screw per side, then unclip the left & right vents. (edit: that’s the picture of the new Metra panel, but the factory panel is pretty much the same thing…)

Unplug the Airbag & Hazard Panels and Keep for Re-installation

Ford Transit Radio Upgrade DDIN Joying Android (8).jpg

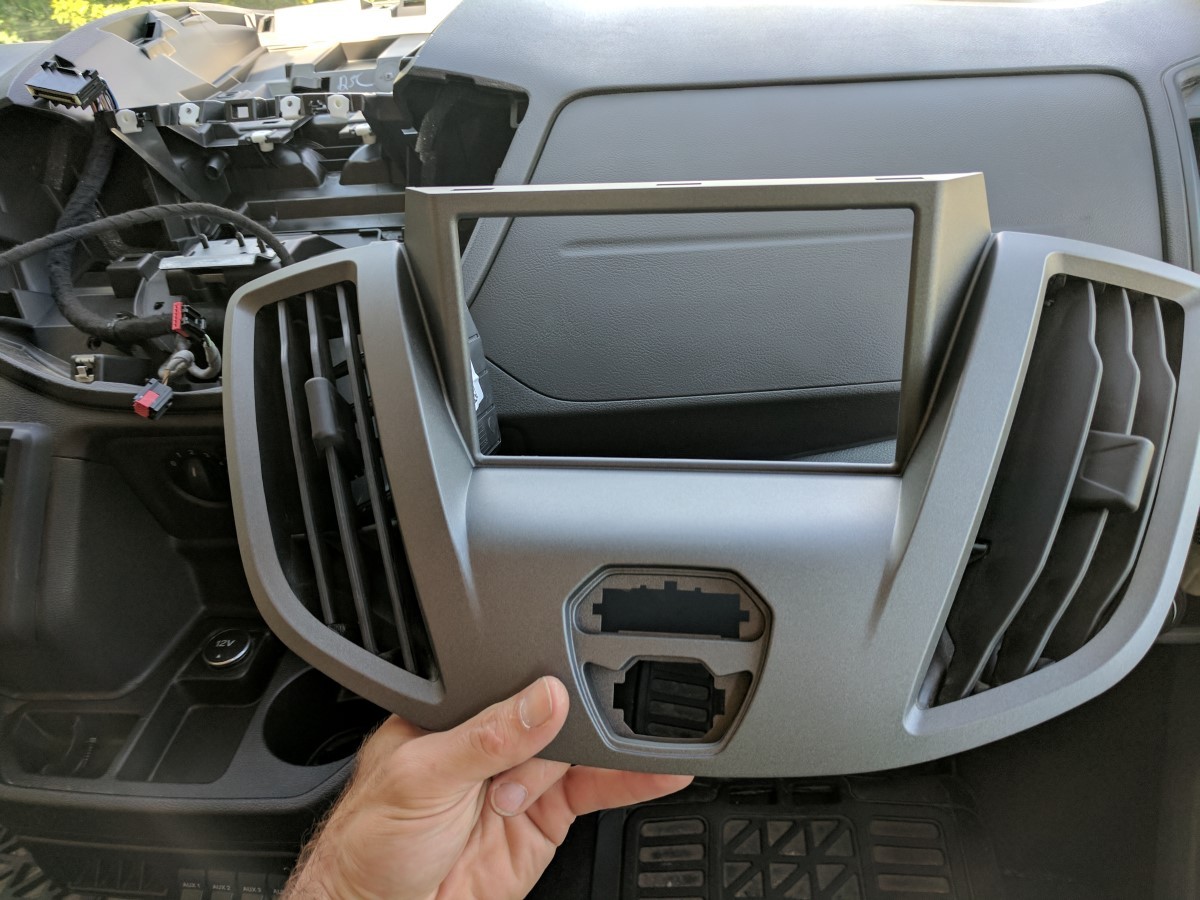

Install the Left & Right Vents to the New Metra Panel

Use the screws provided in the kit.

Snap the Airbag & Hazard Into the New Metra Panel

Ford Transit Radio Upgrade DDIN Joying Android (11).jpg

Ford Transit Radio Upgrade DDIN Joying Android (12).jpg

Install the 4 Plastic Panel Clips (included in the Kit) to the New Metra Dash Panel


That's the white thingy in the picture below.

Install the 12 Metal Panel Clips to the Top Metra Dash Panel

Ford Transit Radio Upgrade DDIN Joying Android (14).jpg

There are different types, follow the Metra instructions!

Now, Trim the Plastic Brackets Below

Ford Transit Radio Upgrade DDIN Joying Android (21).jpg

A carpenter knife works well.

Install the Left & Right Radio Brackets to the Head Unit:



This step is iterative... Install the bracket where you think make sense, then install the front dash panel to see if the head unit fit nicely into the cutout. Probably not, so make small adjustment to the bracket and check again. Repeat this until you're satisfied with the location of the radio!

The Radio Is Secured With 4 Screws

Install the Metra Dash Panels in Place


There are no screws, it just snaps there.

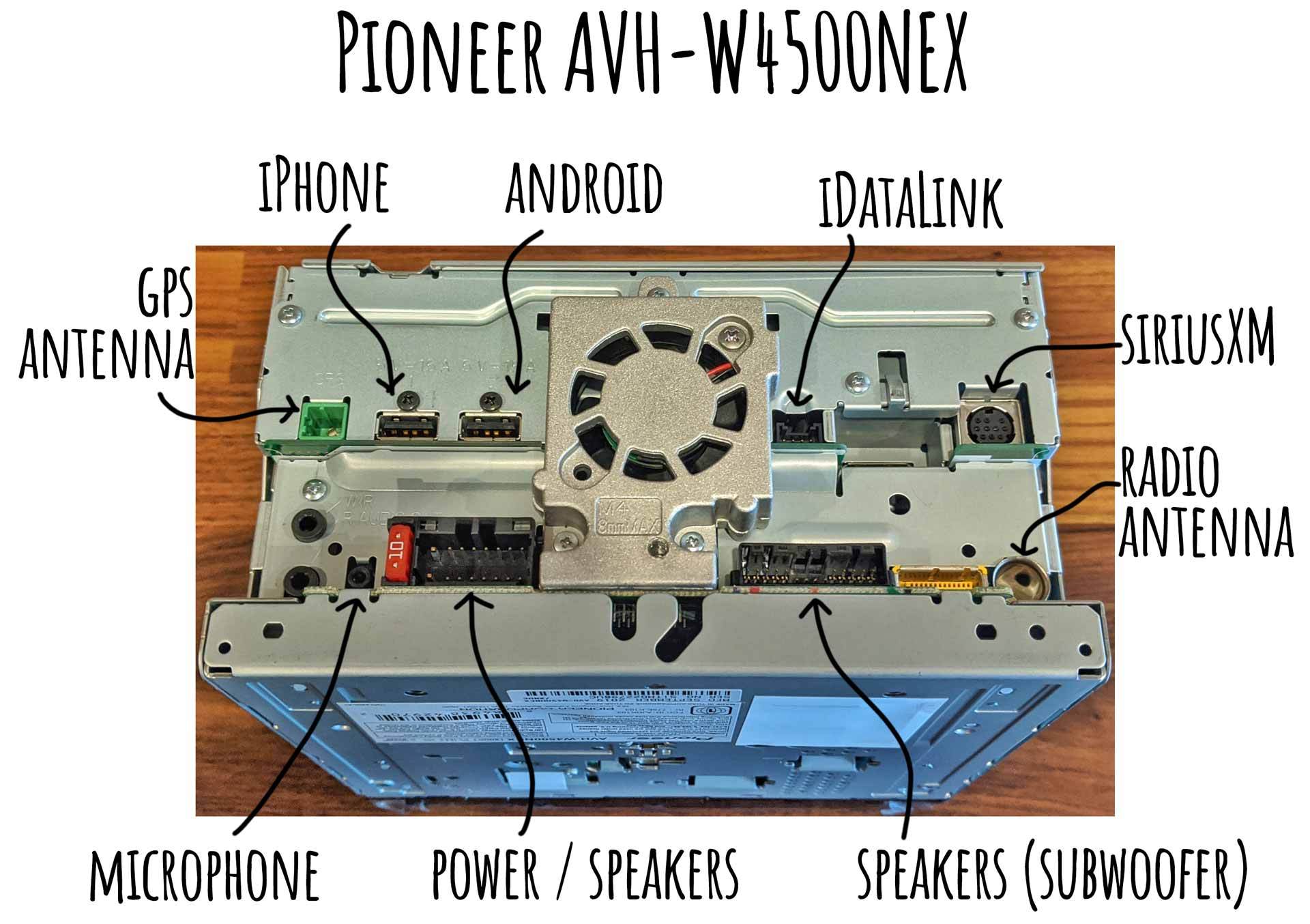

Electrical Wiring & USB Flush Mount Installation

USB Flush Mount Installation Ford Transit (3).jpg

Good work, we're almost there!! The electrical wiring and USB Flush Mount Installation is continued here: faroutride.com/radio-upgrade

Hope that helps!
