The Webasto AirTop 2000 ST/STC is fueled from the main vehicle tank. Fuel consumption is low (0.03 to 0.06 gal/h), electricity consumption is low as well (1.25A to 2.45A on average, more during startup) and there is no humidity added in the van resulting from the combustion as opposed to propane heaters such as the popular Mr. Heater Big Buddy.

We installed the Webasto under the passenger seat.

We listed all the steps in this Instructable, but head over here for all the material list (with links to products), tools, lessons learned, issues we had with the Webasto, models comparison (STC vs ST) and more:

http://faroutride.com/air-heater-installation/.

This is not rocket science, but it's not that easy either; there are a lot of does and don't (such as pipe length restriction, maximum radius turn, etc, etc). MAKE SURE TO READ THE MANUAL! Or have it installed by a professional to make sure the warranty will be honored.

We hope this helps, don't hesitate to ask questions if you feel like it! Cheers!

Material Needed for This Project

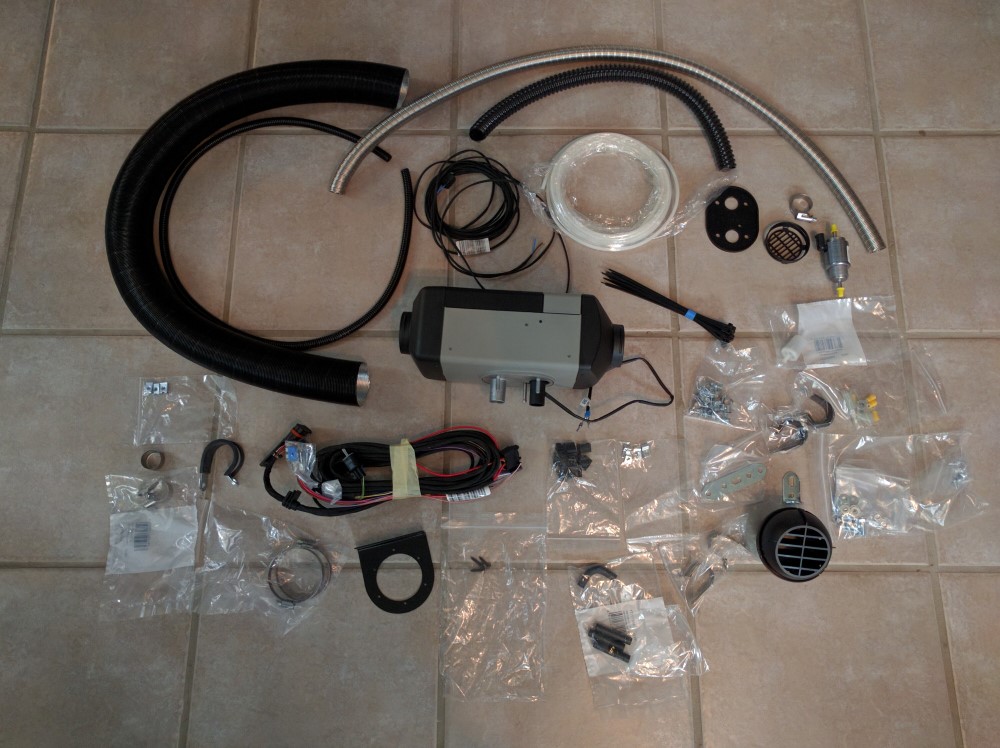

  • Webasto Air Top 2000 with installation kit & MultiControl
  • 1x Aluminum sheet 0.062″ thick (to make a flat surface)
  • PlusNut 1/4-20 (optional to avoid drilling new holes in the van structure)
  • 2x Bolt M8x1.25 30mm length (to use existing tapped hole in the van structure
  • 1x Ford Gasoline Auxiliary Fuel Port Kit (to tap into the fuel tank using the auxiliary port)
  • 3/8″ I.D. Fuel Line 8′-10′ length (check your installation for adequate length)
  • 5/16″ I.D. Fuel Line 1′ length (connect from Auxiliary Fuel Port to 1/4″ fuel line)
  • 1x Heat Shield Sleeve 1″ diameter (¾” diameter would probably work) 36″ length
  • Primer
  • Kleen-Flo RustProof
  • Intake Silencer (optional)
  • Exhaust Silencer (optional)

All the links for the products above are here: http://faroutride.com/air-heater-installation/

Remove the Passenger Seat

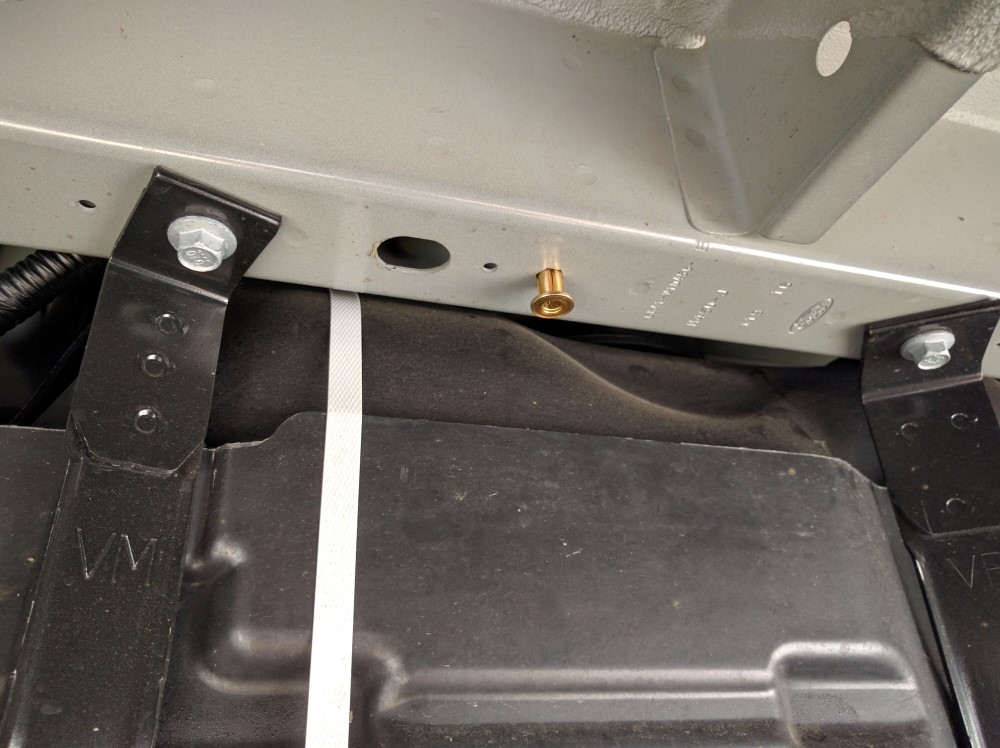

The Ford Transit has 4 screws to remove

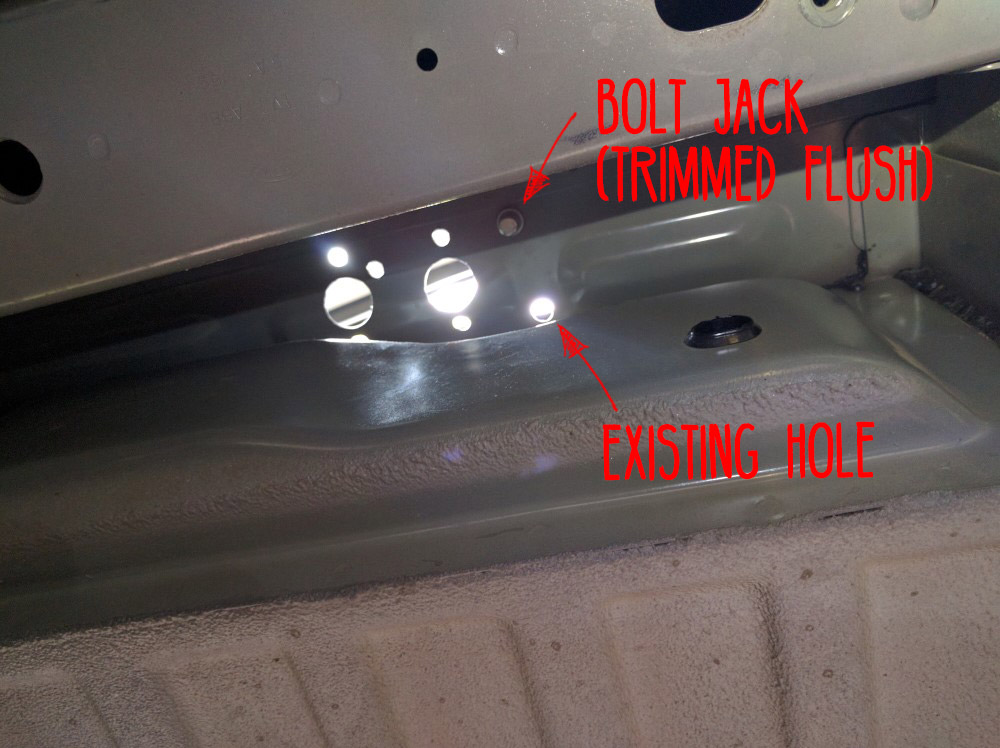

Trim the Jack Bolt to Make Some Space for the Heater Unit


Fabricate an Aluminum Plate to Provide a Flat Surface for the Heater Unit (for the Ford Transit at Least)


The unit MUST lie on a flat surface for the gasket to be effective!

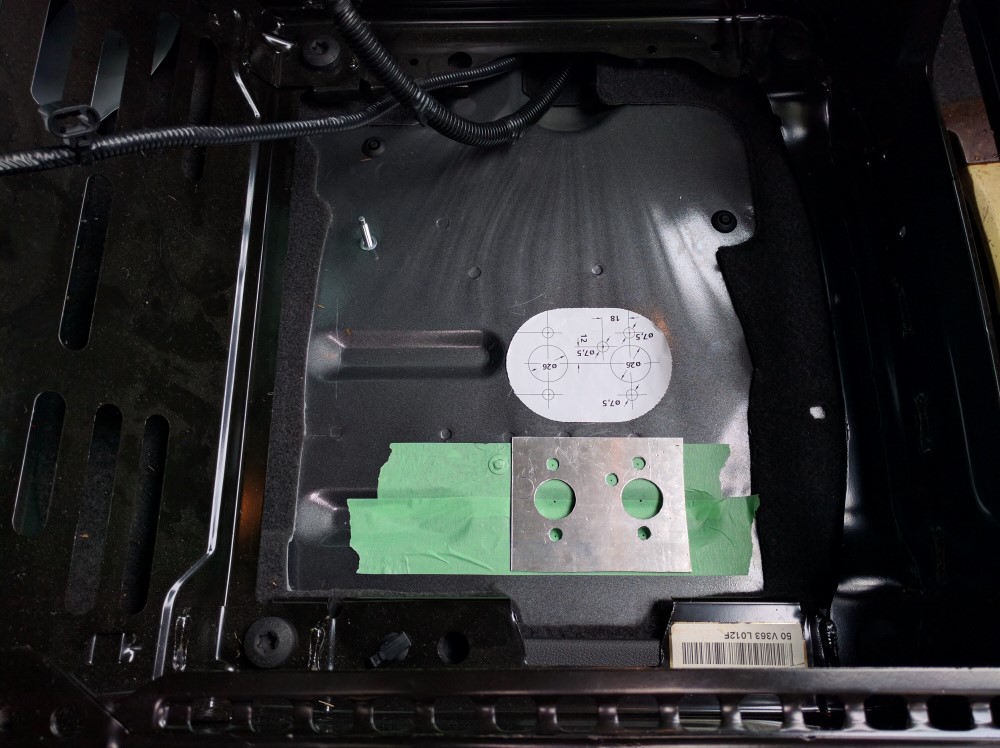

Using the Template Provided in the User Manual, Drill All the Required Holes


First, make sure the heater unit will not clash with the seat base. TRIPLE-CHECK before drilling any hole!

Route the Air Combustion Intake and Exhaust Under the Vehicle

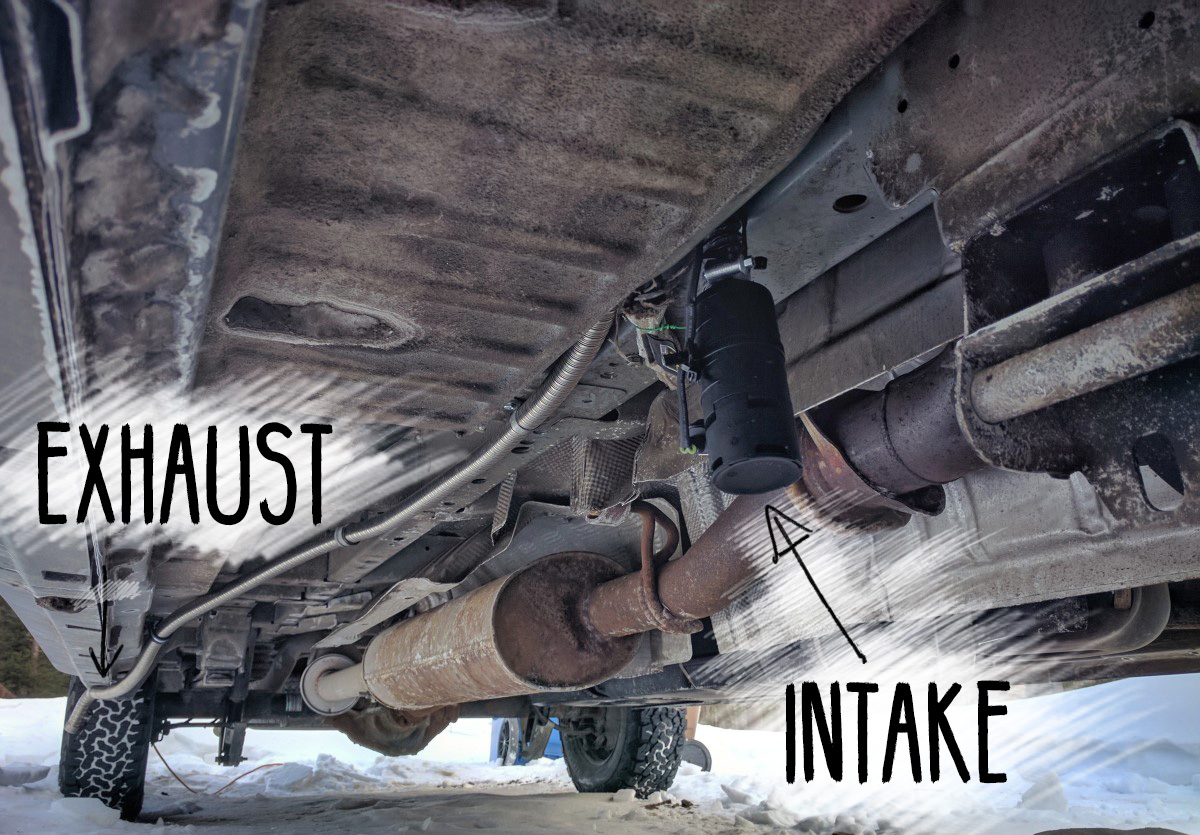

The exhaust is routed so the gas are dumped OUTSIDE the van edge. This is to avoid carbon monoxide from pooling under the van AND to ensure the exhaust gas does not get sucked back into the intake! We install a silencer at the intake, this will act as a dust filter so that the combustion chamber does not block.

Plan the Routing of the Fuel Line and the Fuel Pump Electrical Wire


We used a heat shield where the fuel line crossed above the van exhaust.

We Located the Fuel Pump Near the Fuel Tank (as Stated in the Manual). the Fuel Pump Was Attached Using a PlusNut Fitted in an Existing Hole


To gain access to the auxiliary fuel port, the tank must be lowered.
We drove the van until about 10 miles to empty (the tank is surprisingly lightweight at this point). Then we put a toolbox under the tank and removed the 6 screws holding the tank. No need to detach the fuel lines (they are flexible). We lowered the tank until we were able to detach the protective fuel cap on the auxiliary fuel port.

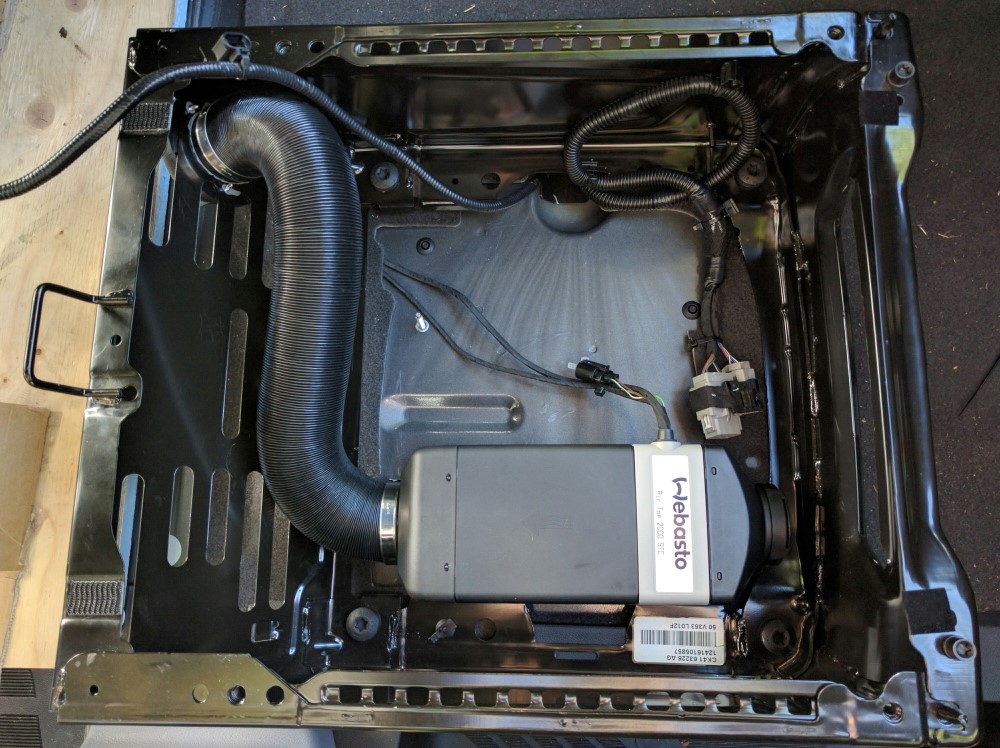

Secure the Combustion Air-exhaust, Combustion Air-intake and the Fuel Line to the Unit Using the Provided Clamps

Gear Wrench.jpg

Yes, it is possible to attach everything despite the tight space!

It is so tight that we had to use a gear wrench to complete the job, 1/8 turn at a time...

Route the Cabin Hot-air Duct and Install the Fitting


Install the provided protective screen to the cabin cold-air intake (as stated in the manual)

Connect the Electrical Harness to the Air Heater Unit


Connect the Rotary Rheostat (or Any Webasto Controller) to the Harness*


*Different controllers requires different harness! Ensure you have the appropriate one or it will not work…

Connect the Harness to the 12V Power Supply (red Wire Is Positive, Brown Is Negative)

Before Testing the Setup, the Van Fuel Tank Must Be Filled or the Air Heater Fuel Pump Will Only Pump Air…

Turn It On!

The unit requires 3-4 starts for the fuel to get pumped all the way to the unit, so we got 3 faulty starts before it actually worked. Also, when ambient air temperature is above 77F, the unit starts then shutoff immediately for self-protection…

If using the MultiControl 7 Days Timer, the device must be programmed first following these instructions:

http://faroutride.com/wp-content/uploads/2016/07/M...

That’s It! in Your Face, Winter.

Our Story Continues...


We're documenting thoroughly our van conversion! We tried to capture every details and share our experience, tips, lessons learned, etc.

This is our Build Journal: http://faroutride.com/ford-transit-camper-van/bui...

Or if you're very new to this, you might want to look here: http://faroutride.com/van-conversion-resources/

Thanks for reading!
