How to Hackintosh Your IMac G4
by TheDIYGuy999 in Circuits > Apple
38588 Views, 92 Favorites, 0 Comments
How to Hackintosh Your IMac G4


You have a nice looking iMac G4? And you just can't throw it away?
Then this instructable is the solution for you. But be warned: you need a lot of patience and good electronics knowledge...
The problem is, that this thing is about 15 years old now. Apple discontinued the PowerPC architecture about 10 years ago and there are no updates available anymore. So you can't really use it anymore. Even playing a YouTube video is beyond the capability of the PowerPC G4 CPU

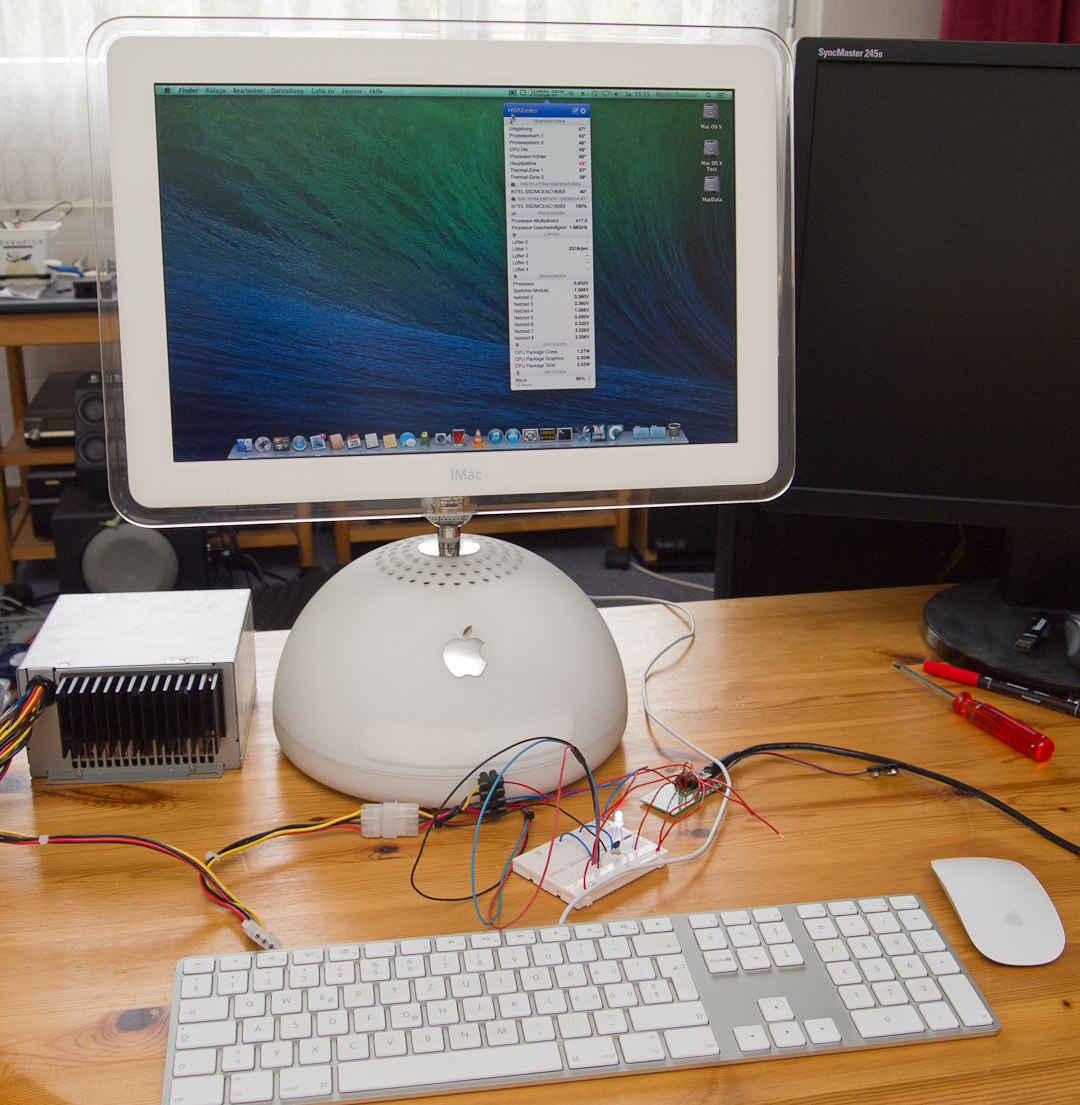

Those are the specifications of the renewed iMac:
- Original Super Drive
- Original 17" screen
- Original M6531 Pro Speakers with proprietary 2.5mm plug
- Apple Chime startup sound
- PAM8403 amplifier for speakers
- INTEL i5 NUC DC54327HYE
- Bluetooth
- WiFi
- Gigabit LAN, using the original socket
- Internal PSU (NUC PSU and Pico PSU for 12V, 5V, 3.3V)
- Picaxe controlled PSU, Apple Chime, PWM system fan, "breathing" sleep LED
- Separate Picaxe controller for screen backlights control via touch sensors
Also have a look at my other Hackintosh videos: https://www.youtube.com/playlist?list=PLGO5EJJClJ...
Inverter Reverse Engineering and Disassembly

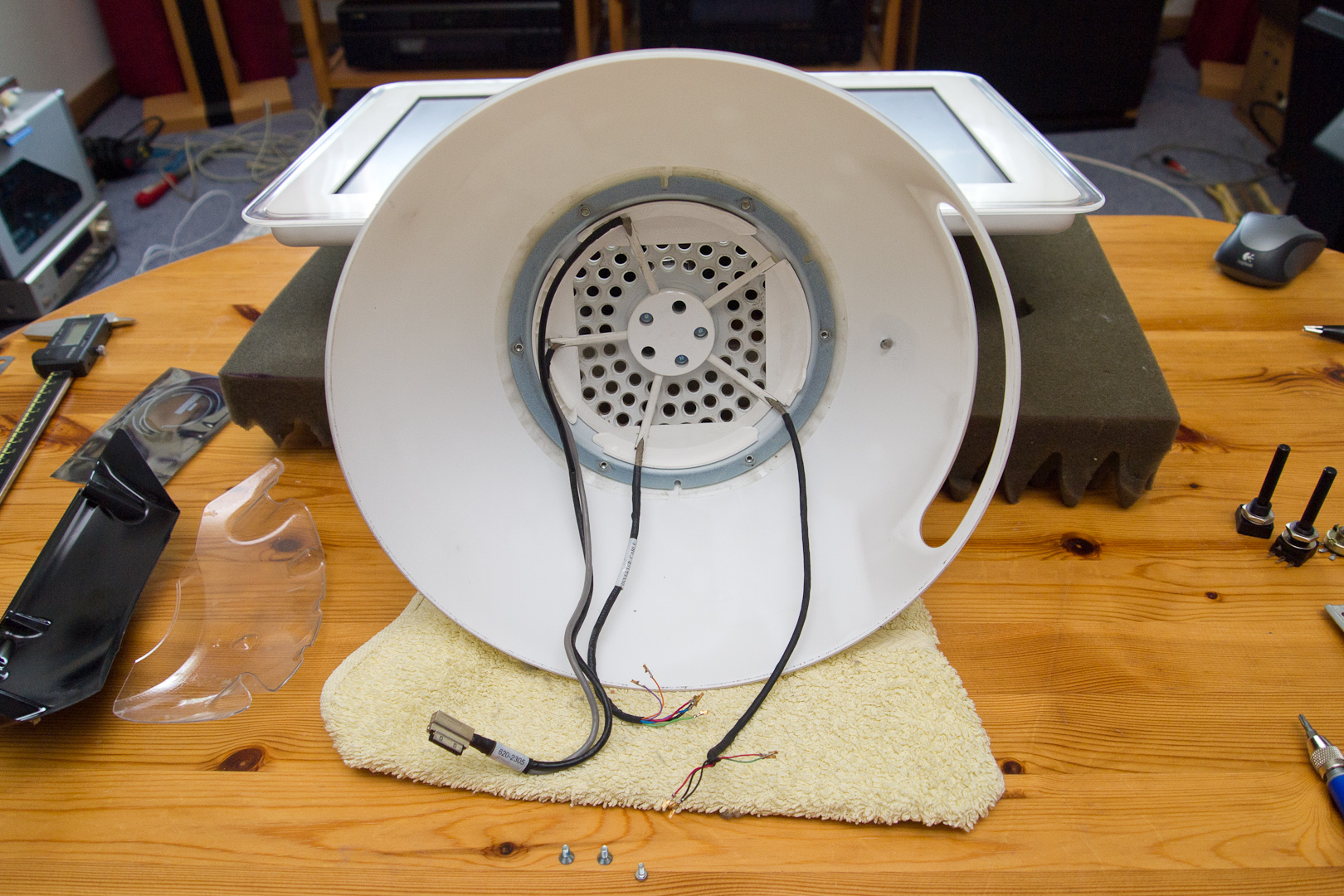

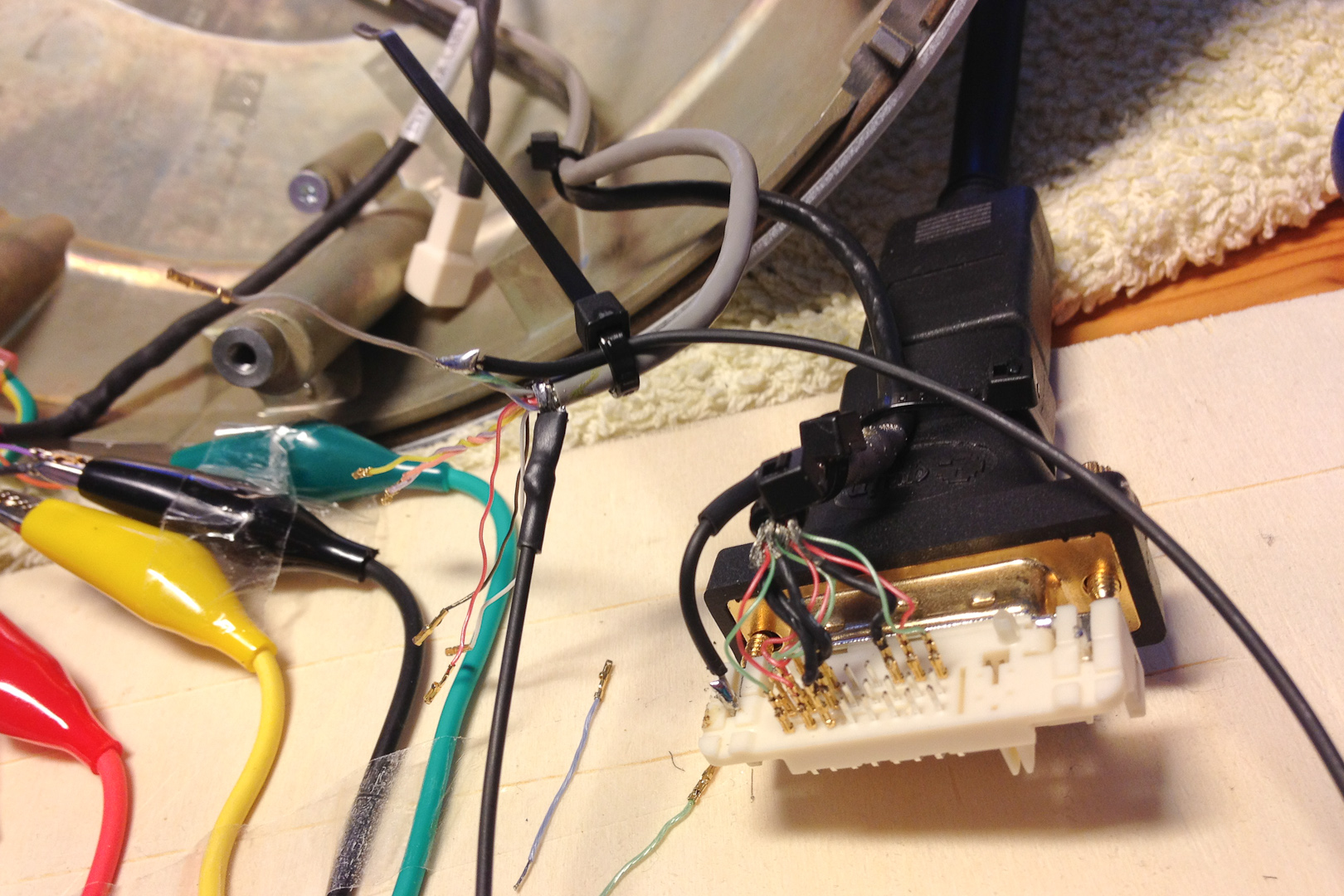

First, we need to know how the inverter pinout is. This requires to measure the signals on the living object. The next thing to do is to remove all the old innards.
Downloads
Dome Modification

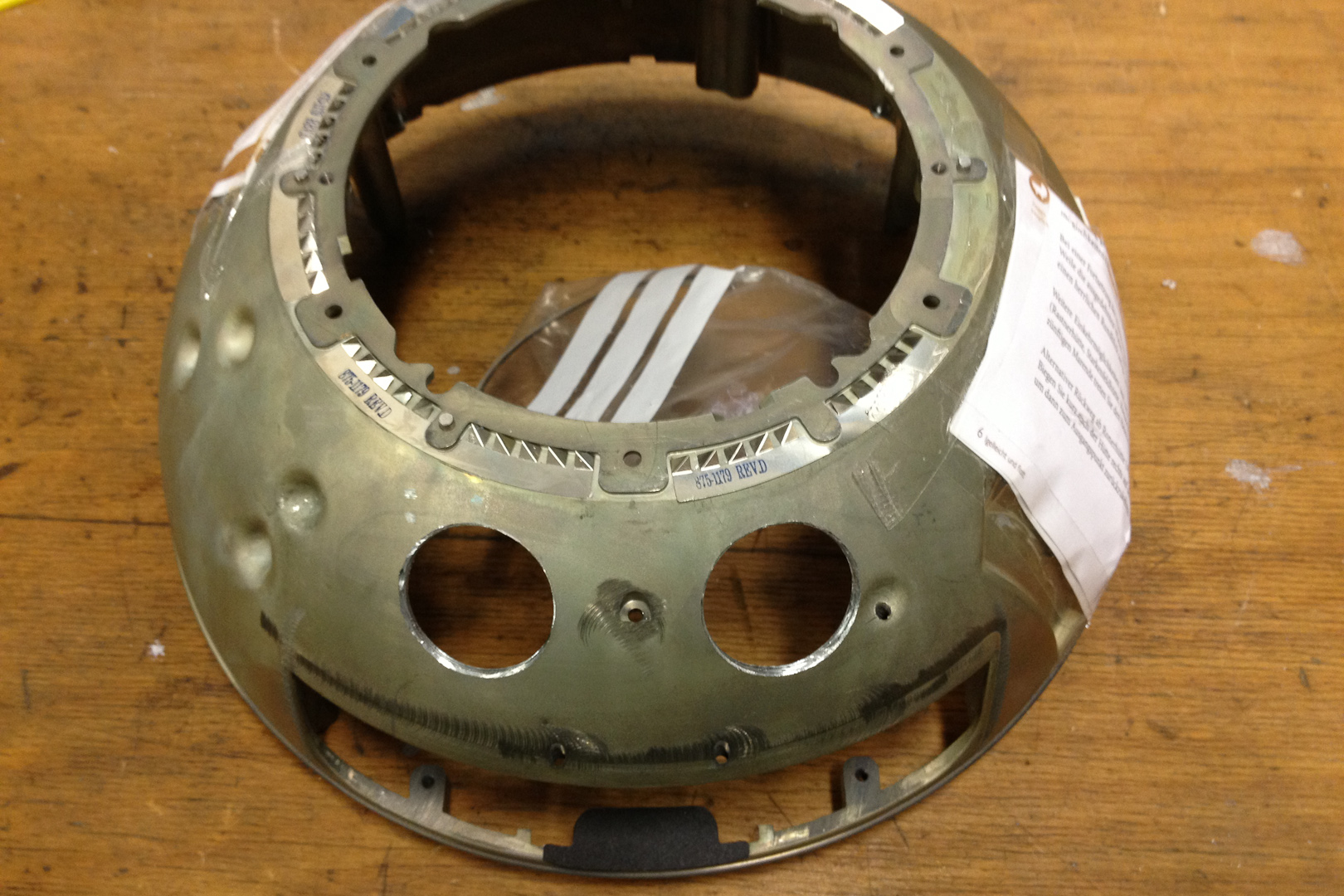

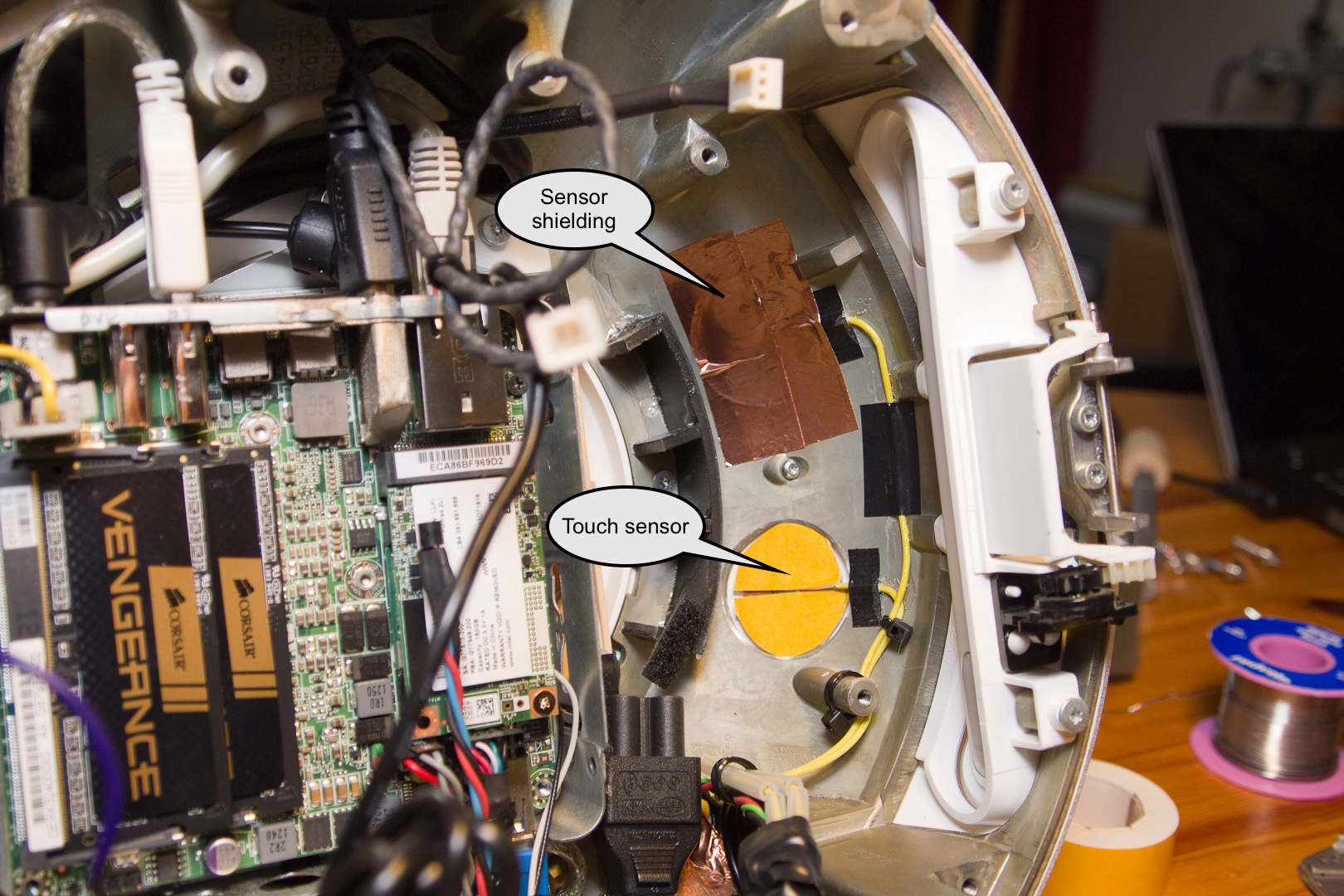

The touch sensors for the CCFL brightness adjustment require two big holes in the faraday cage.
WiFi Antenna Replacement

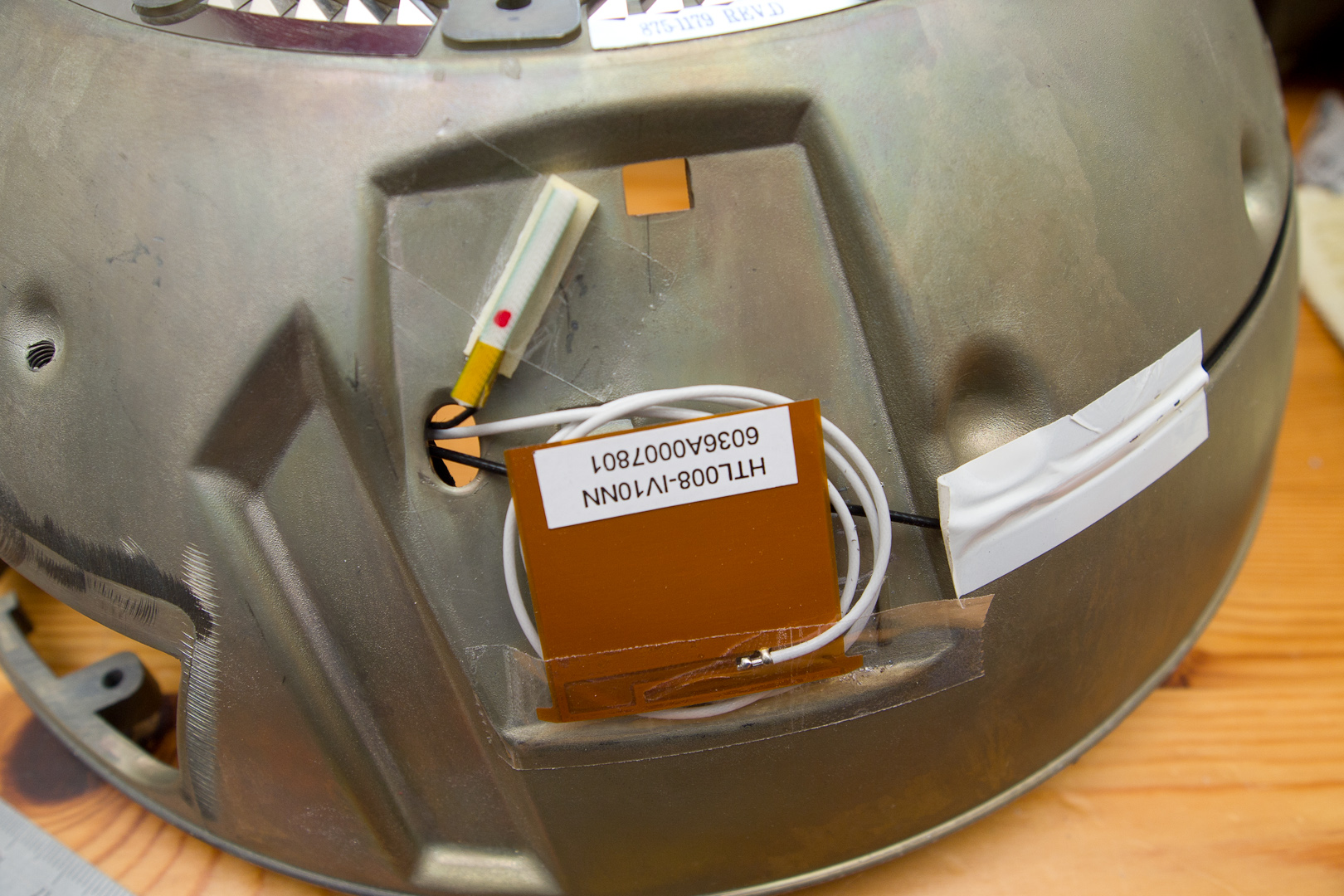

The original WiFi antenna needs to be replaced with a new one from Tyco
LCD Wiring





The custom Apple LCD connector needs to be replaced with a HDMI connector. The pinout can be found on Dremeljunkies web site: http://www.dremeljunkie.com/2011/08/guide-step-by...
Power Supply









The 19V NUC PSU powers the entire system. An additional Pico PSU converts the 19V input voltage to 12V, 5V and 3.3V for the screen, the optical drive etc. It is switched on and off, using a custom made controller.
Warning!
Working with mains voltage is dangerous can cause serious injury or even d..th! Be careful! The most important point is, that the metal part of the dome is always properly connected with the ground wire!!
CCFL Backlight Brightness Controller

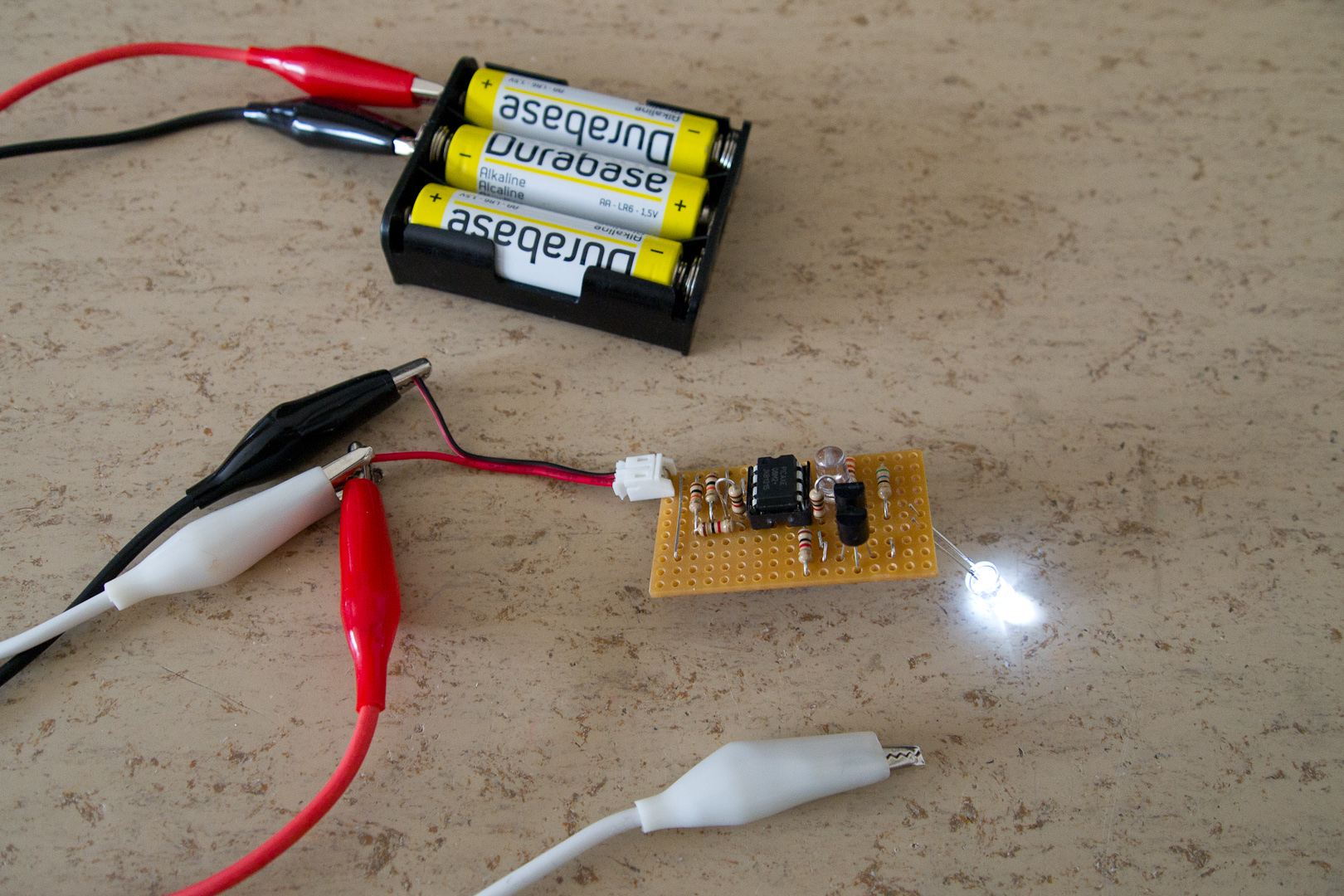

The backlights are controlled from a Picaxe microcontroller and two touch sensors. This little extra makes a brightness change very convenient.
NUC Installation

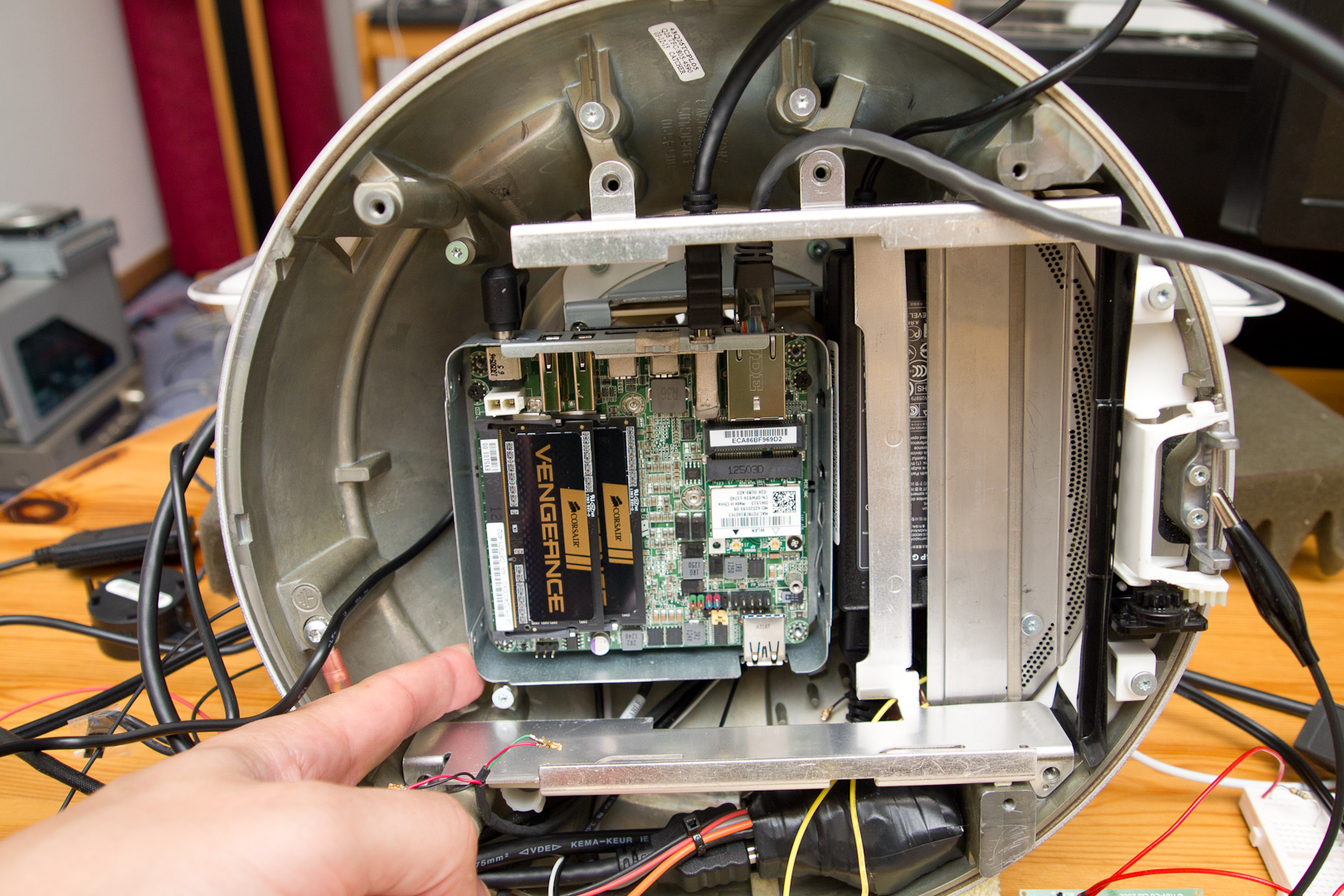

The Intel NUC is installed in the top half of the dome, below the new 80mm Noctua fan. This leaves just enough room for the original Super Drive.

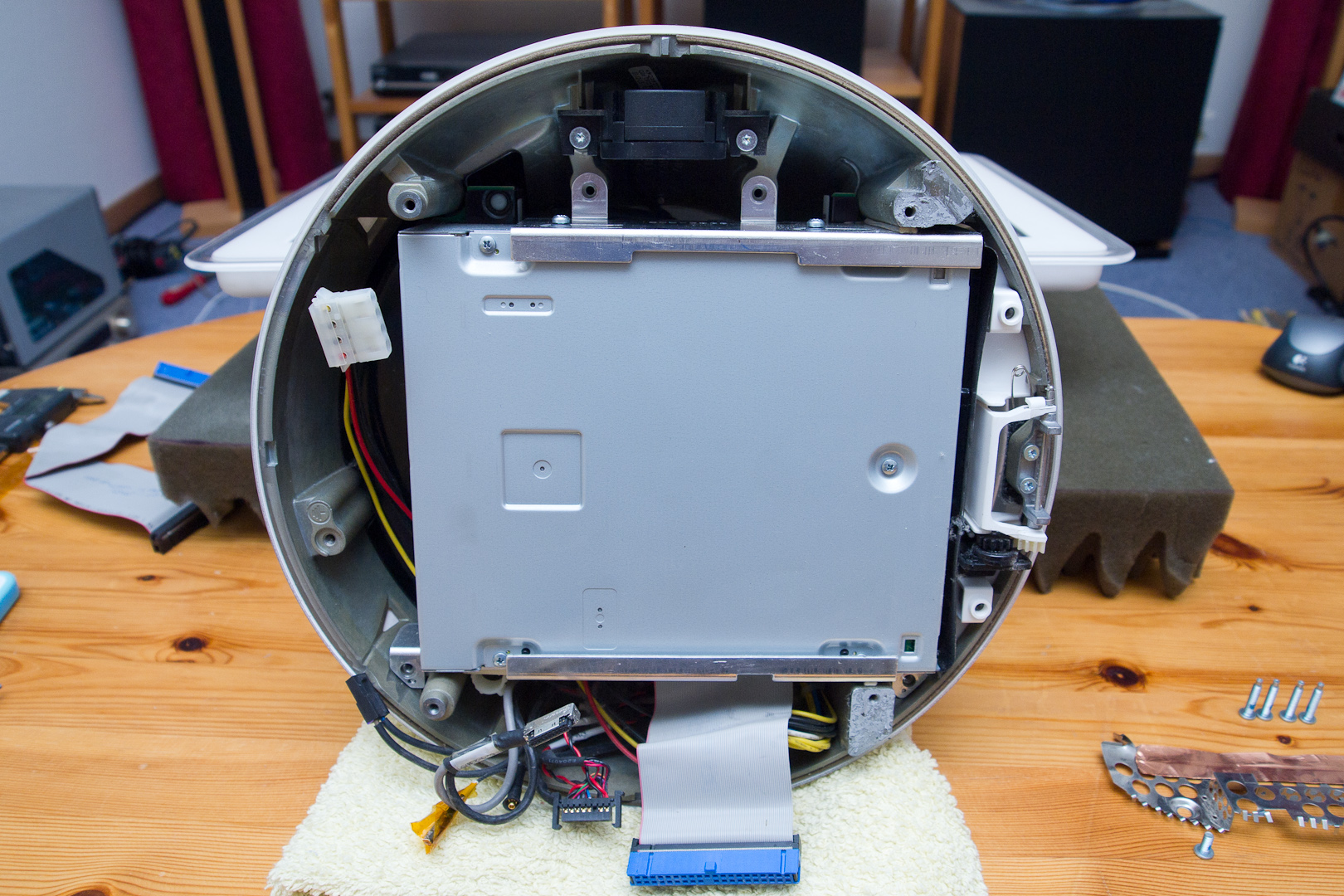

Super Drive Installation

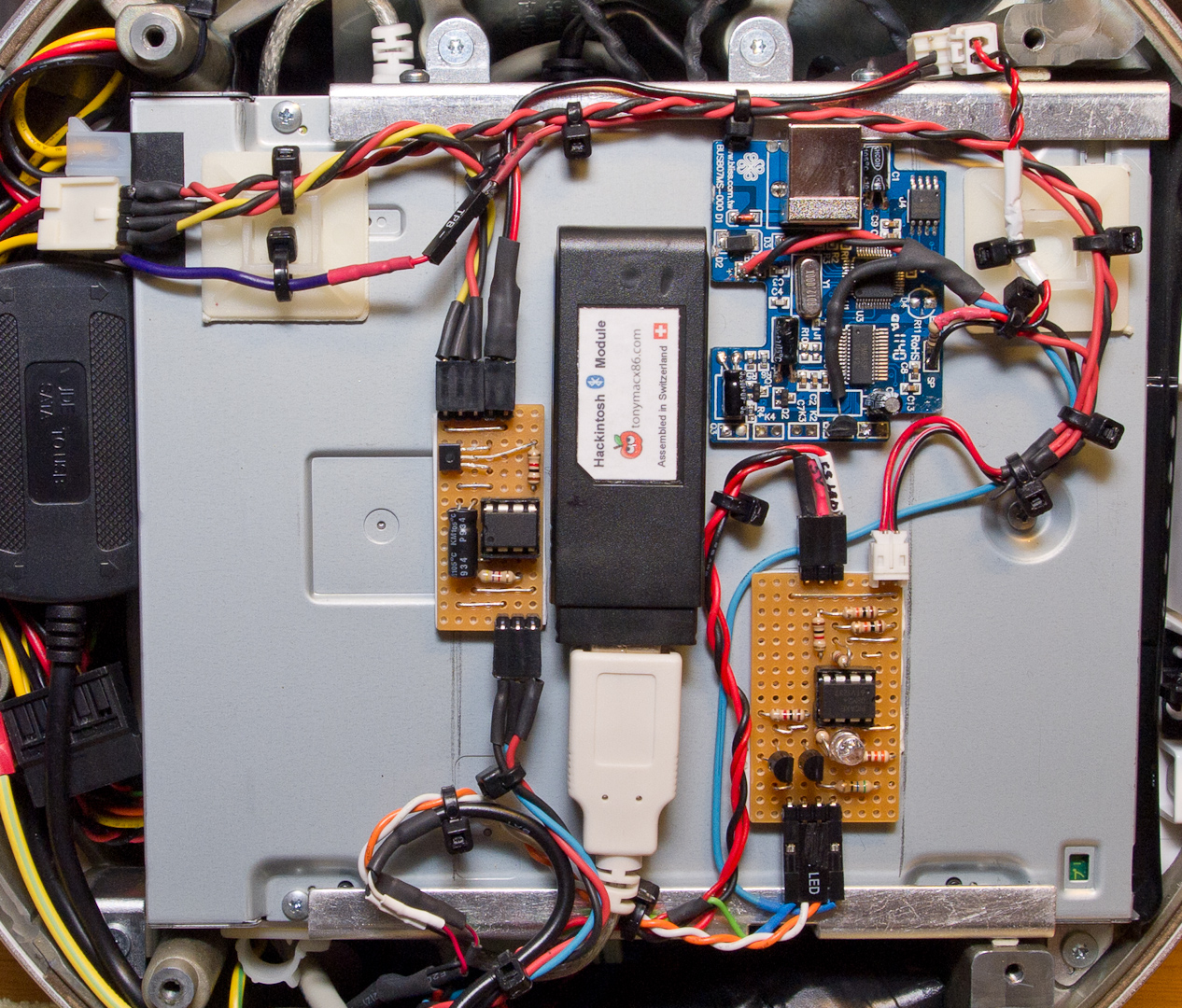

The original Super Drive is connected, using an ATA to USB adapter. A little cutout in the sheet metal housing is required in order to free some space for the internal NUC power connector. All the custom electronics and the Chime controller are mounted on the bottom side of the drive housing.

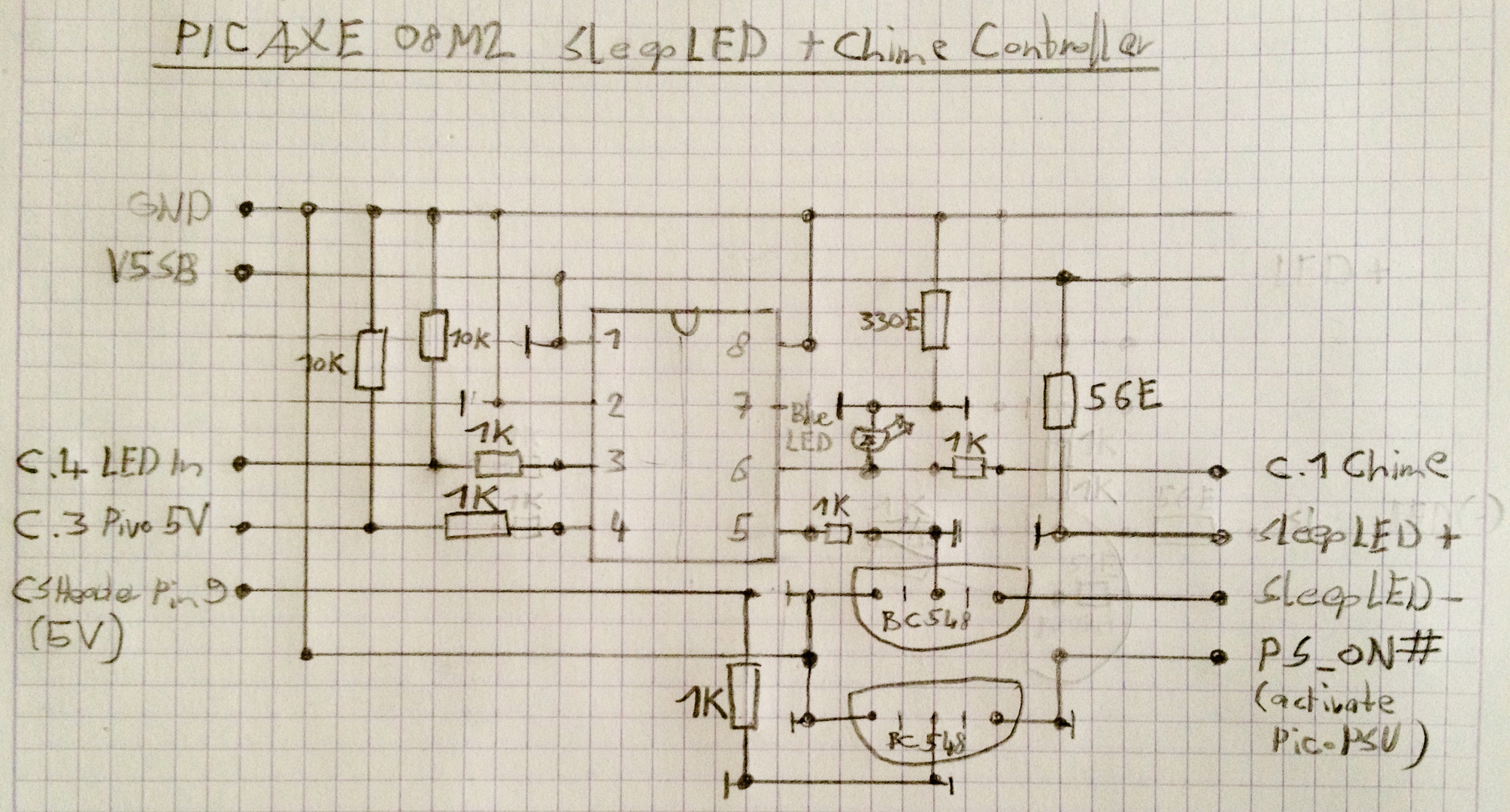

Apple Chime

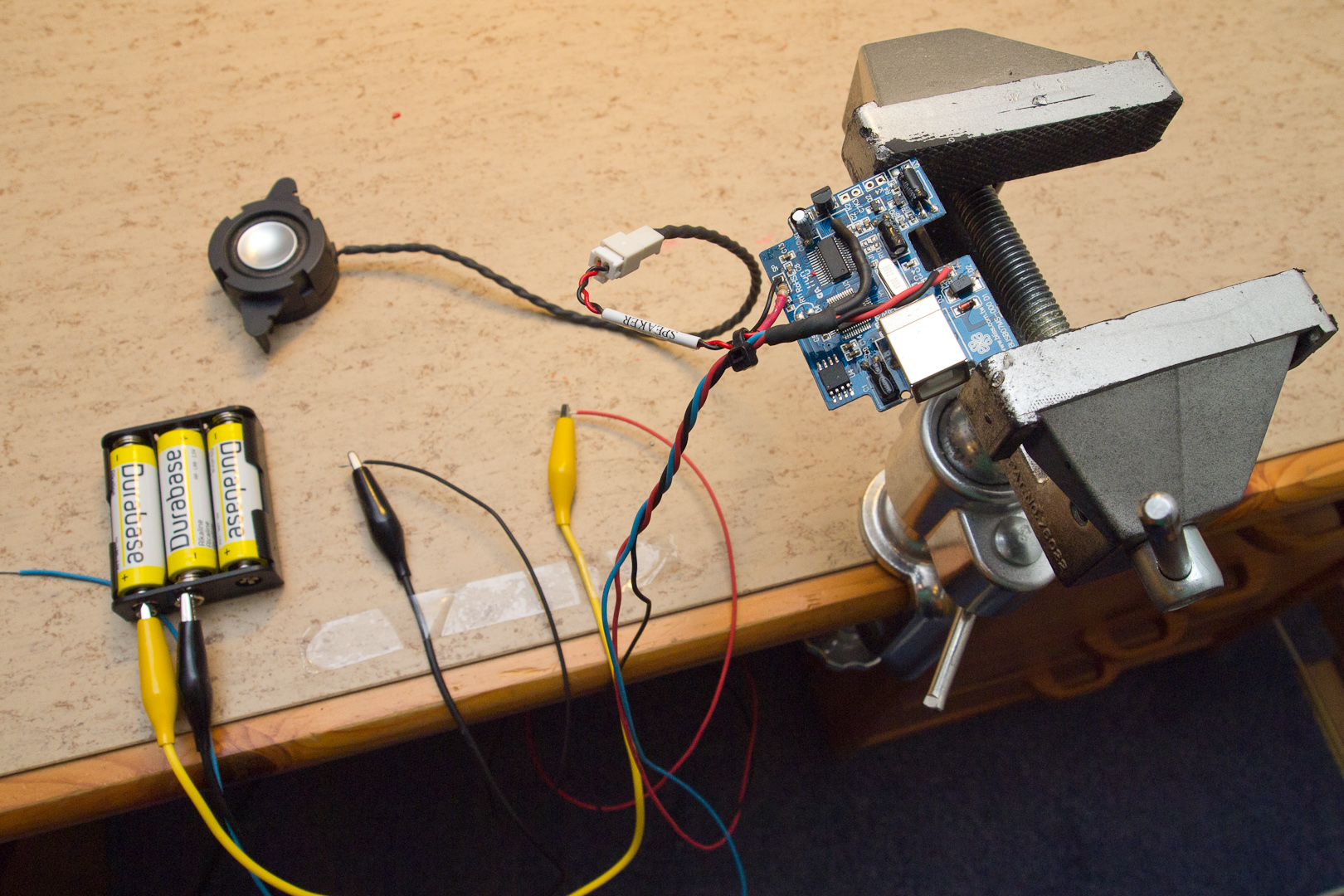

A vintage Apple computer just needs an "Apple Chime" start sound. A new sound module drives the original internal speaker and is controlled by the Picaxe controller, which is described in step 5.
Speakers

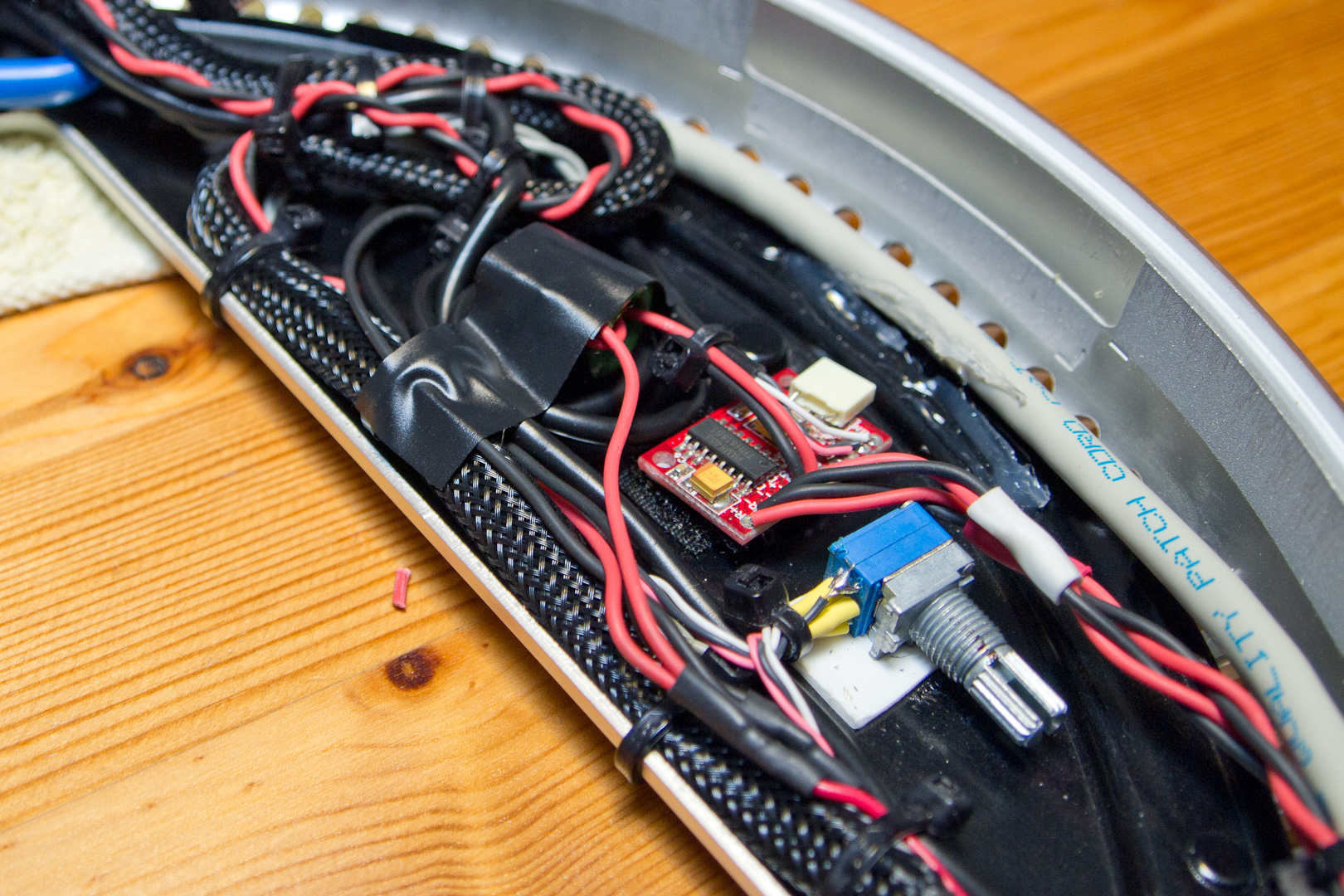

The original M6531 Pro Speakers are used in original condition, using their 2.5mm Apple connector. The signal comes from a USB sound adapter and is then amplified in a PAM8403 class D amplifier. The original 2.5mm socket on the mainboard is rewired.
Downloads
PWM Fan Controller

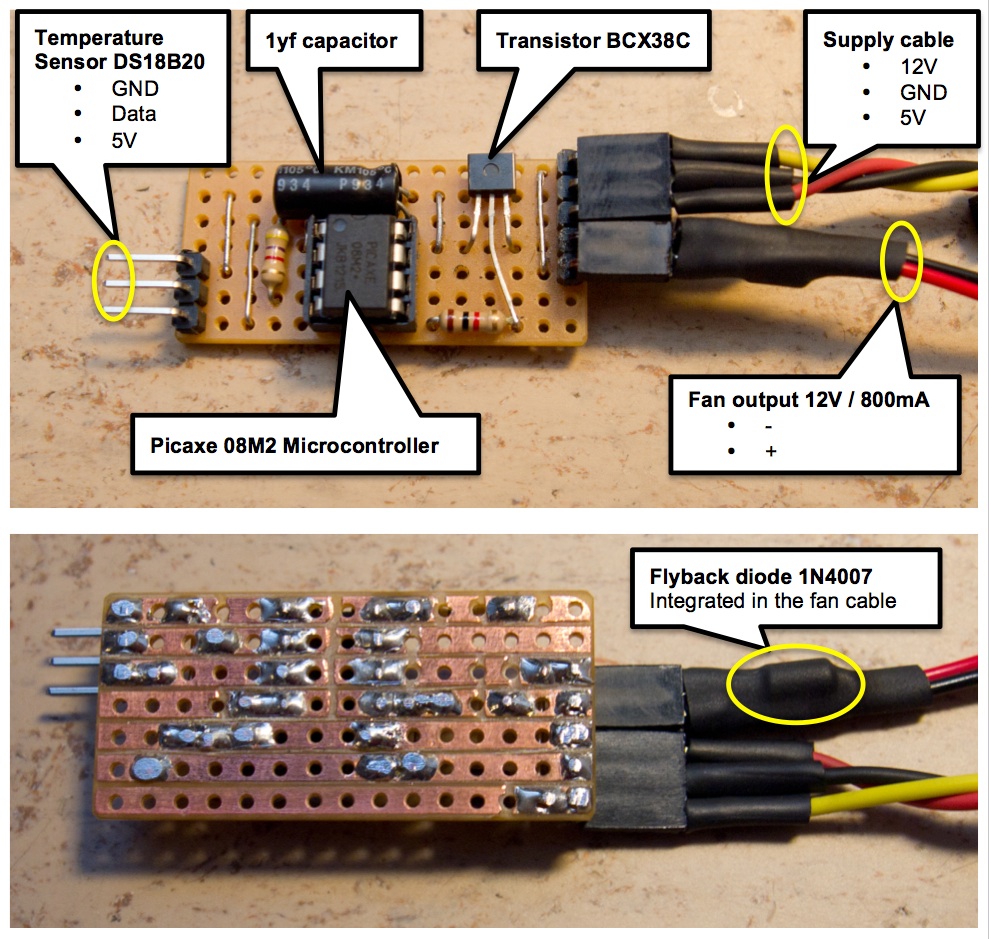

To keep the fan noise as silent as possible, a temperature controlled Picaxe fan controller is implemented in this step.
Downloads

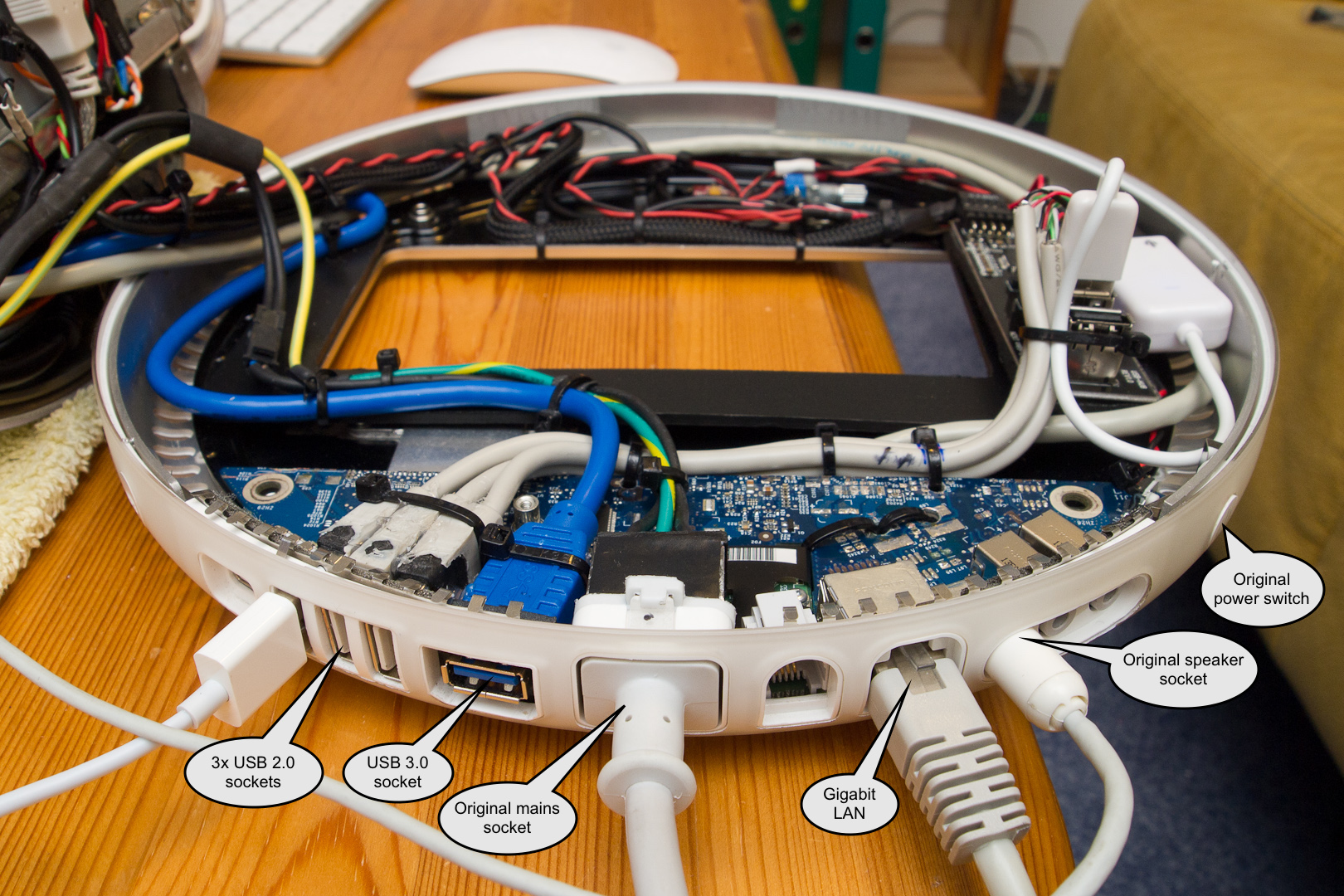

USB and Ethernet Wiring

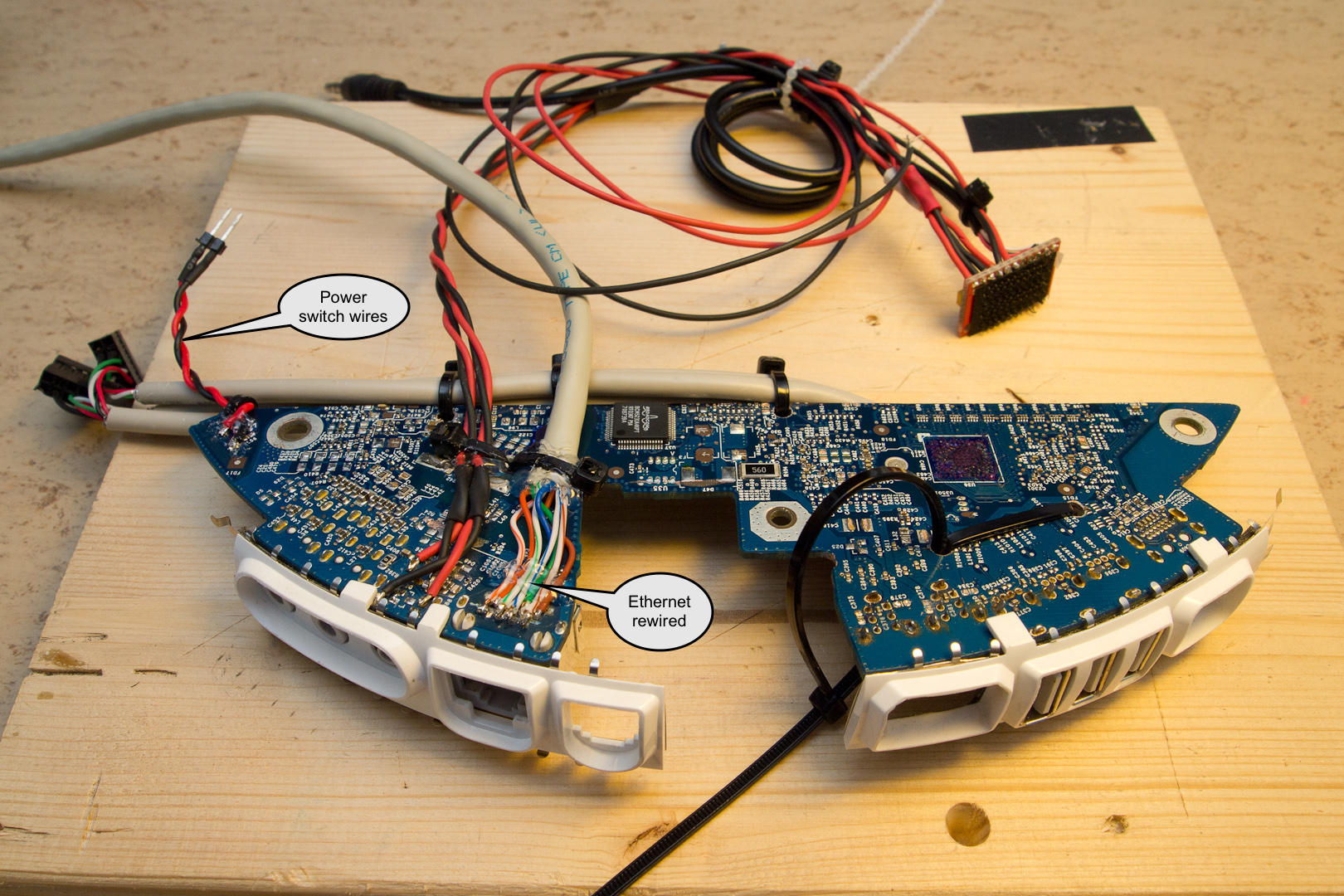

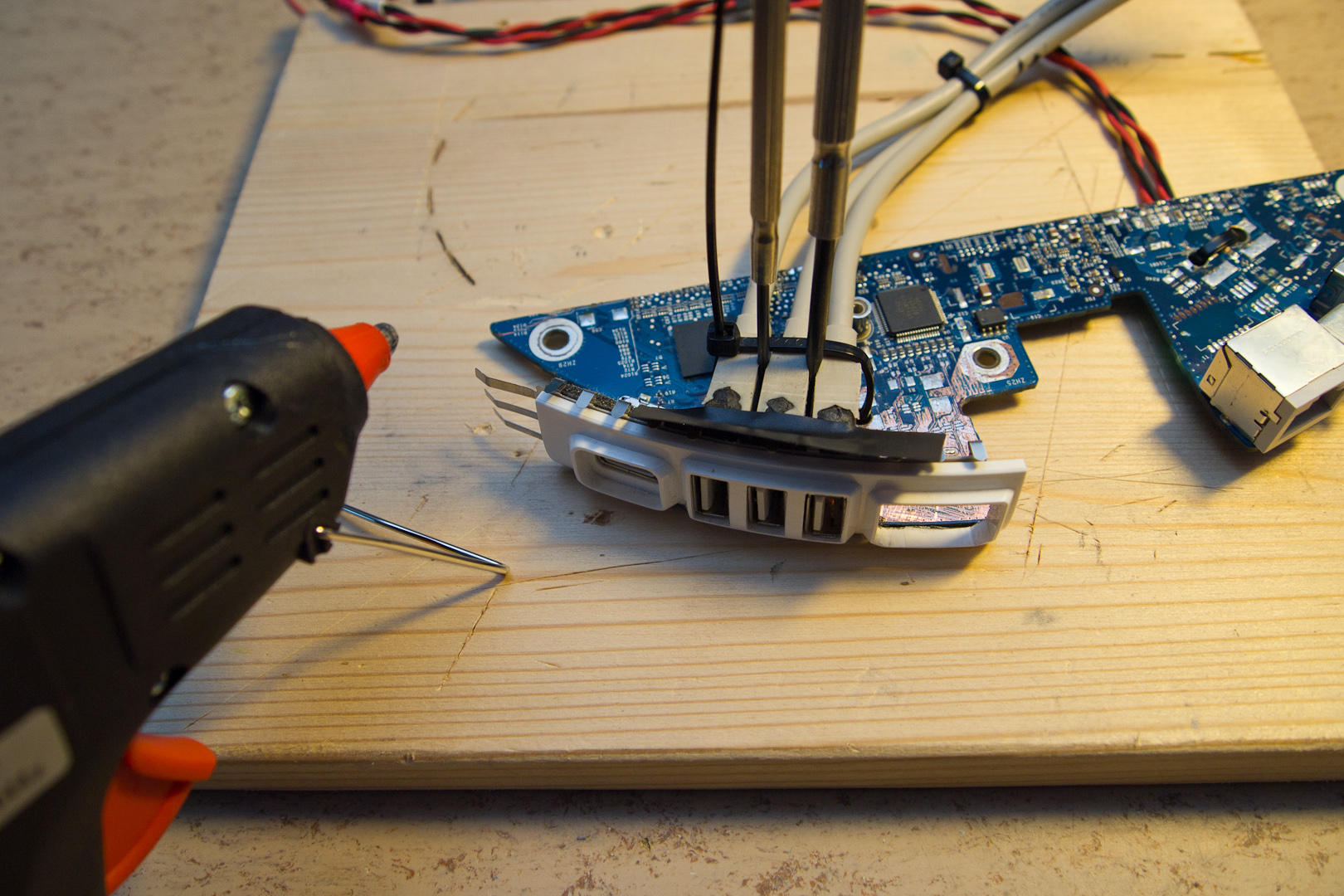

In this step, the original USB sockets are removed and replaced with new ones. The two FireWire sockets are replaced with a USB 3.0 socket. In addition, the original Ethernet socket is rewired and reused. The original power switch is also reused and rewired.
NUC CMOS Battery



The NUC CMOS battery is moved outside the NUC, in order to keep it accessible.

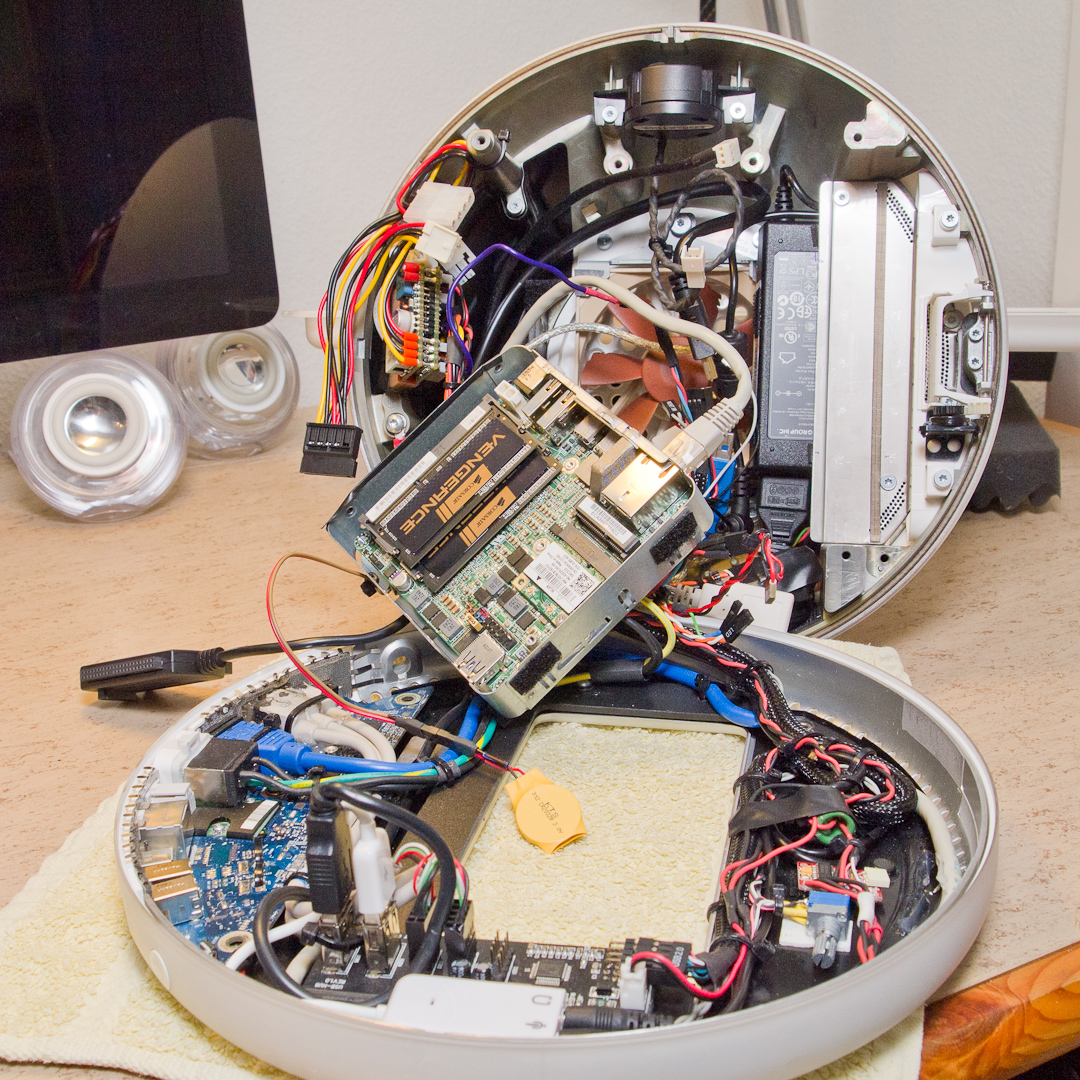

Final Assembly and Conclusion




That's it!

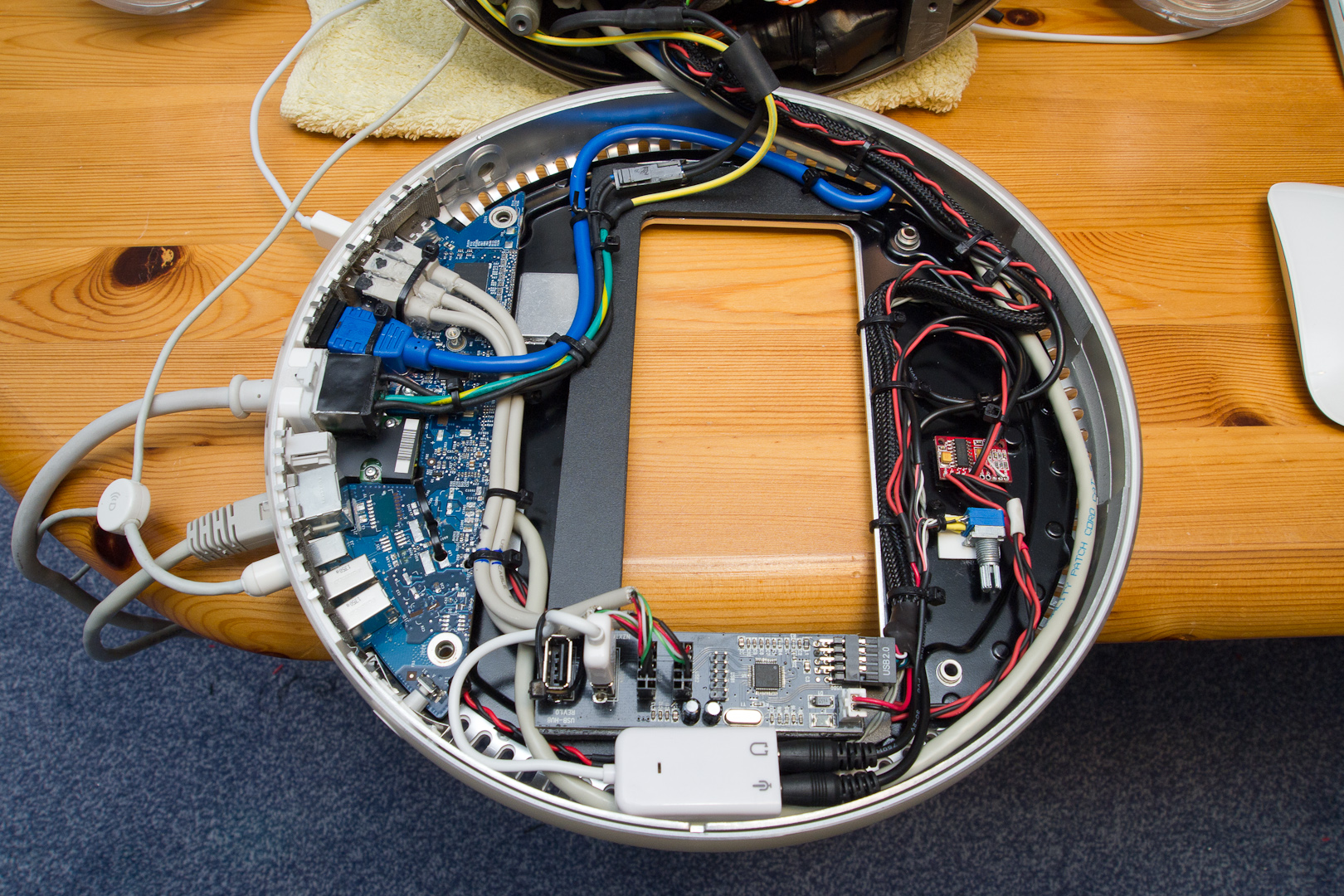

Most of the custom electronics are accessible through the original maintenance opening in the bottom
Some more details can be found here: https://www.tonymacx86.com/threads/mactester57s-h...
Conclusion: This mod turned out well and works just fine. But it was A LOT of work. Today, I would do several things different. For example, I would use an Arduino Microcontroller instead of the three! Picaxes. I already did that in my iMac G5 conversion:
If you like this Instructable, please subscribe to my YouTube channel: https://www.youtube.com/channel/UCqWO3PNCSjHmYiAC...
See you!
