How to Fix USB Port of Any Device !

Running out of batteries when you are outdoors or may be on a trip ? A power-bank can be a life savior. But unfortunately I have broke both the ports on my power-bank
So Today I will show you how to fix such a broken USB port of any device,
So Lets get Started !
Watch the Video!

If you don't want to read all the stuff you can watch my video on Youtube ! Click Here
Get Into !



To fix anything it is very obvious first we have to get inside which required a lot of force and even a screw Driver which I highly don't recommend. use any other polite way :P
Check If Broken or Poor Solder Joint

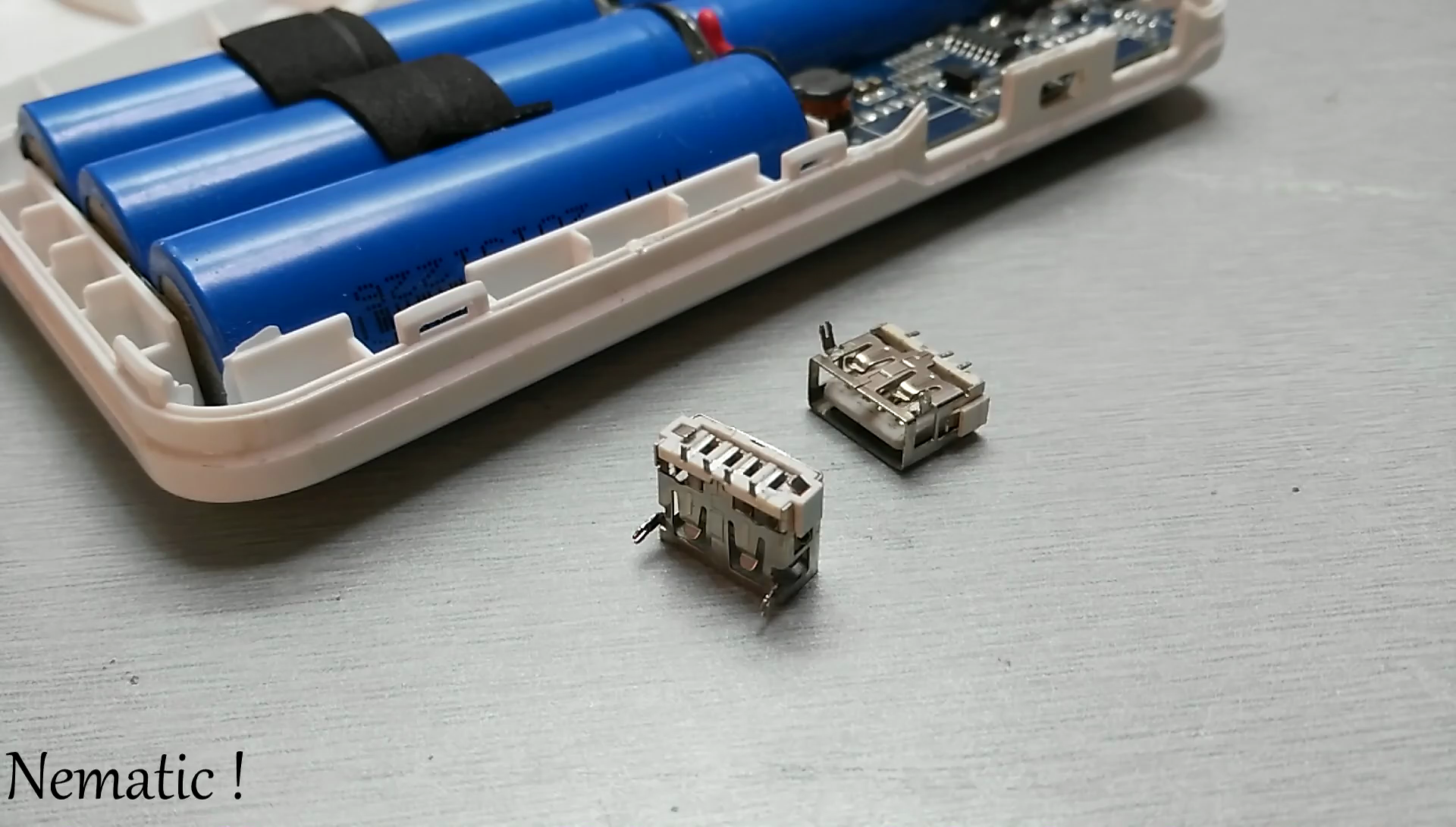

After getting into the power bank, first thing I noticed was ports were not actually broken but fallen apart because of poor/bad solder joint.
Your case might be different ! if broken You can order them from link below
http://www.gearbest.com/development-boards/pp_1333...
This is an affiliated link it helps the show.
Disassembly

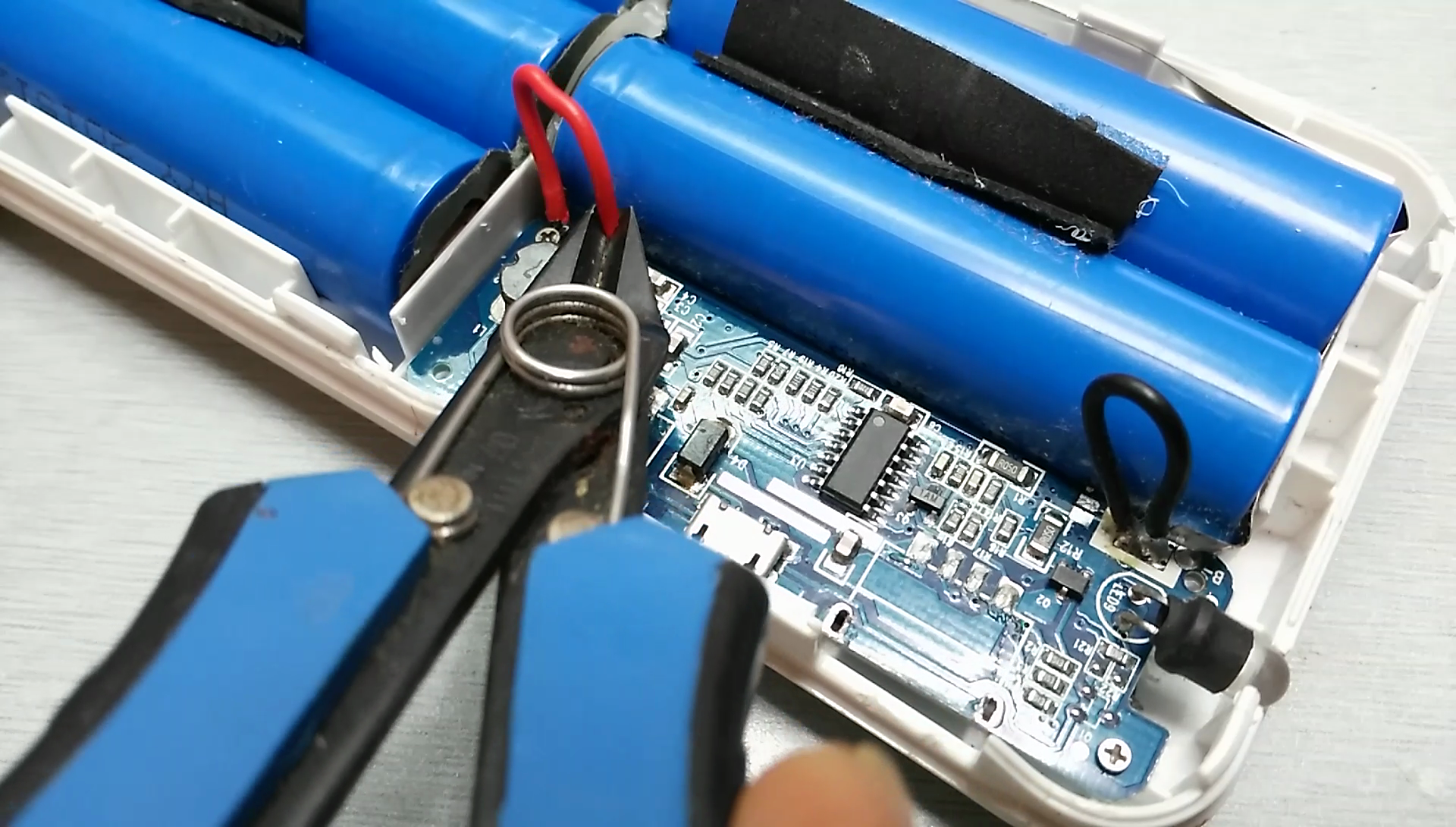

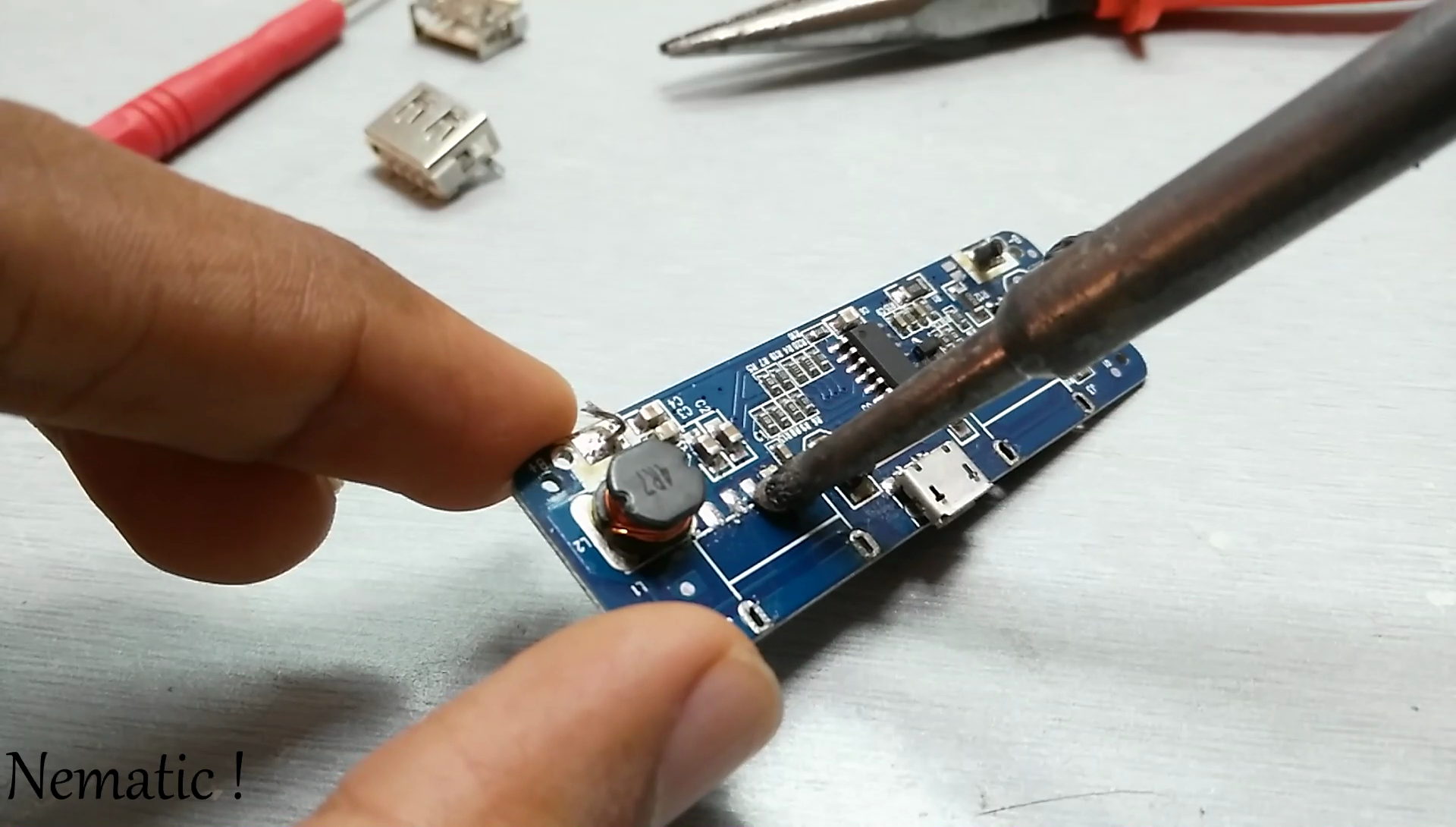

First disconnect the batteries so if anything goes wrong you will not blow up the circuit ! after which remove the PCB and remove the old Solder left on the Pads
Solder !

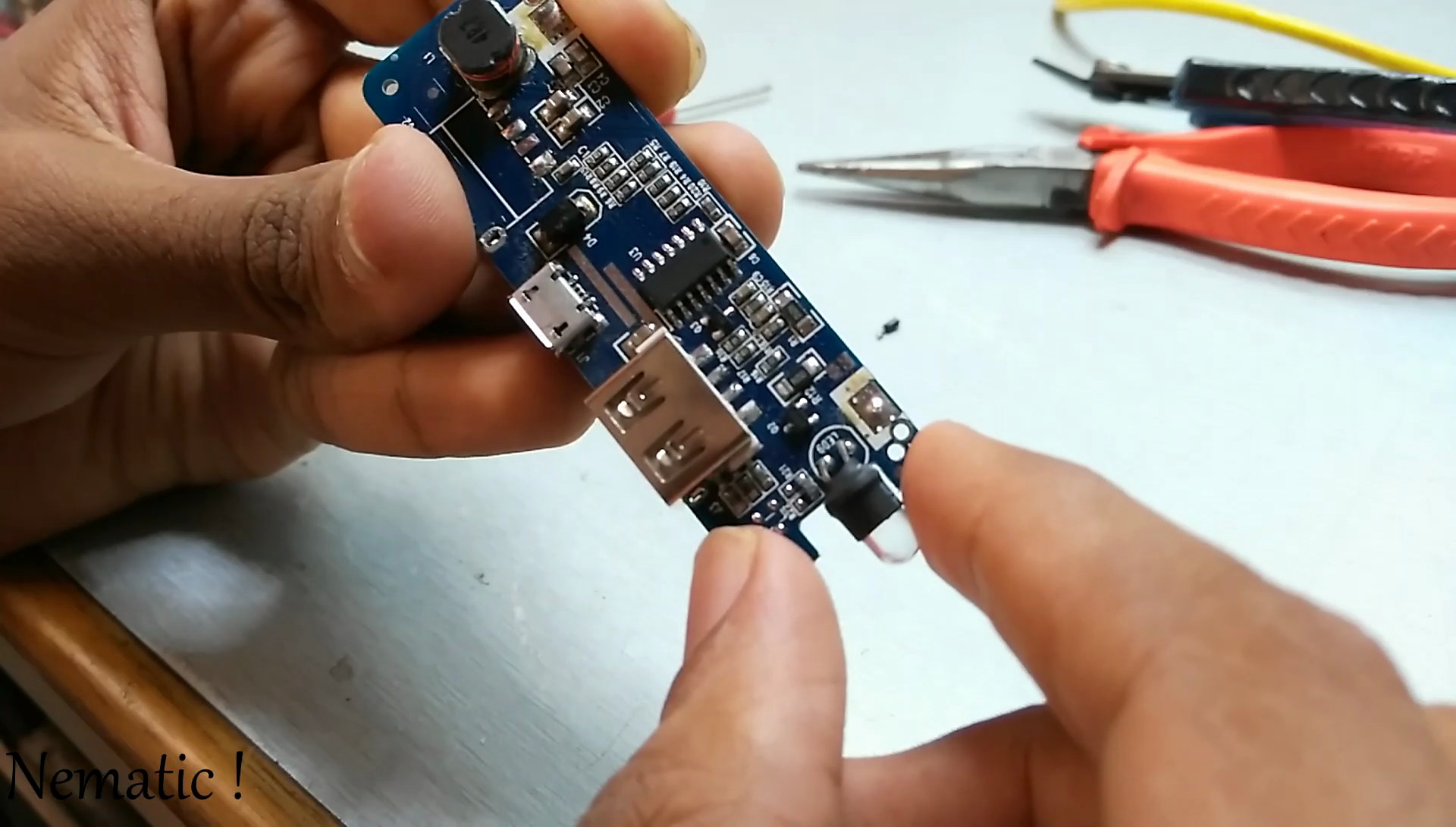

Place the ports into their respective places and start the soldering process !
If you don't know the soldering process just heat the terminals using solder iron and apply the solder metal and you are done !
Assembly




Ones soldering process is done reconnect the batteries and screw back the PCB in to its place. After which check if it works !
.
.
.
And it works !
