How to Fix Broken Headphone Jack !

Click Here to watch it

If you are lazy and don't want to read all stuff you can watch my video! And it is much easier.

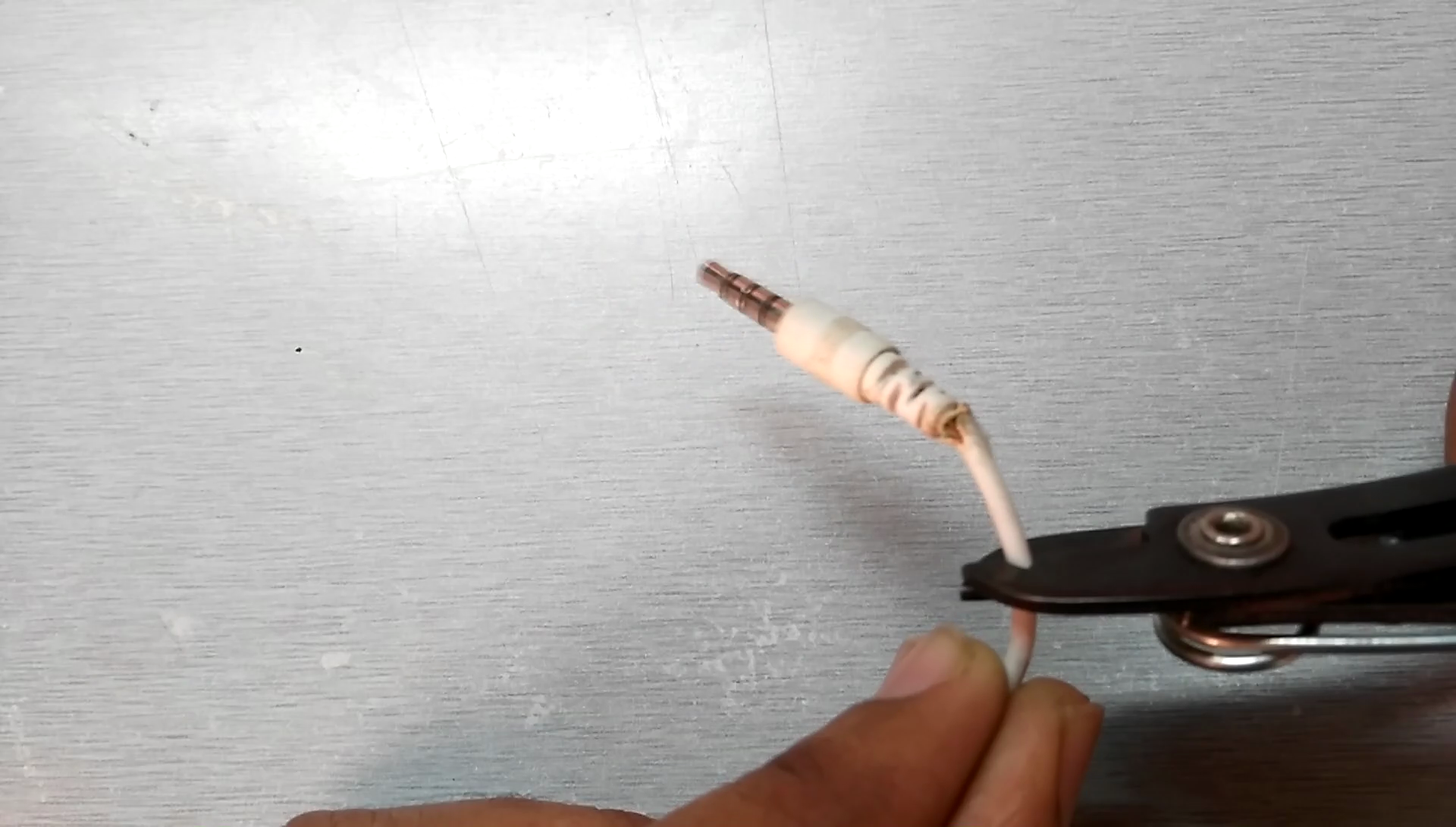

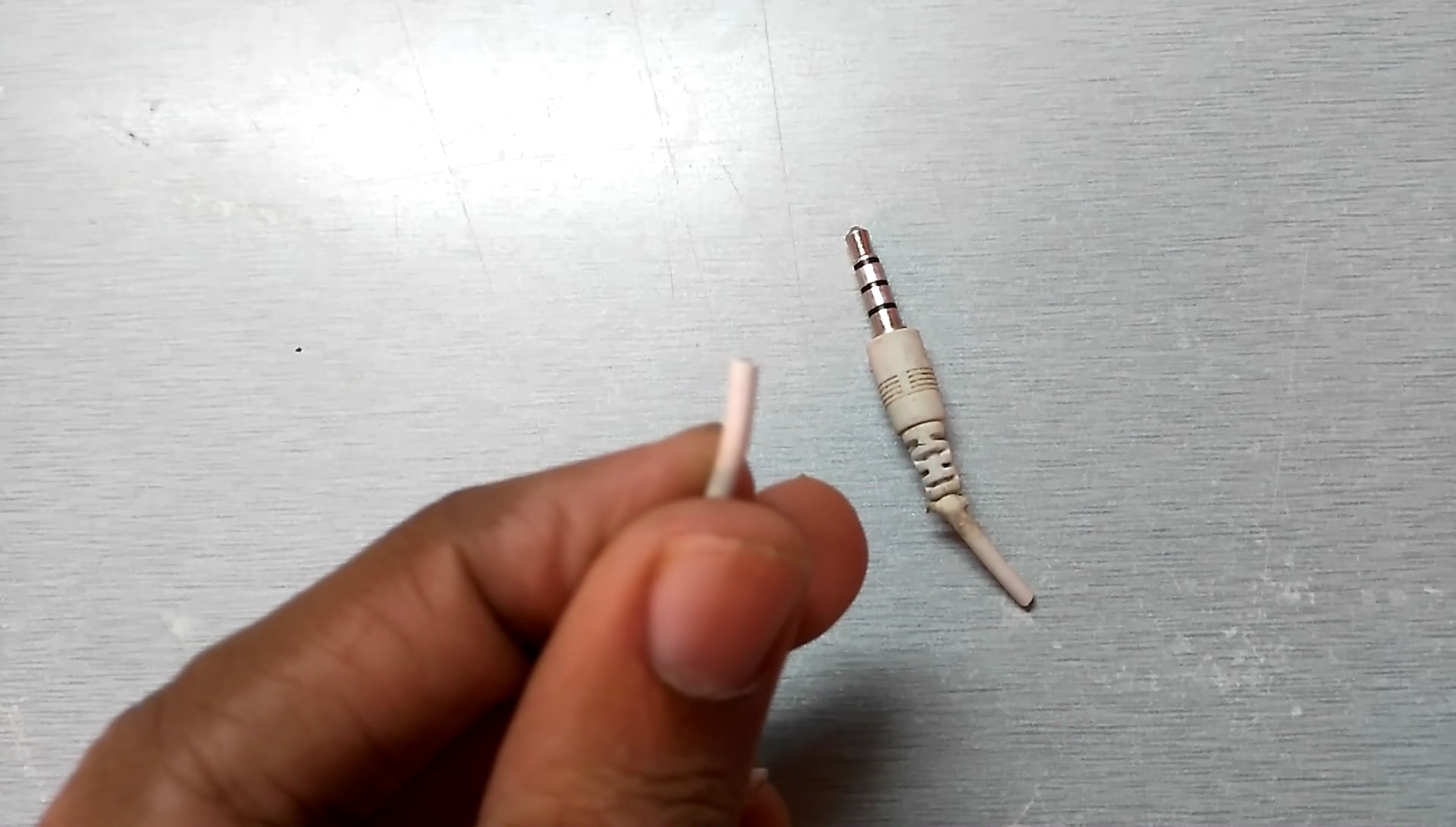

So the very first thing grab the broken pair of earphones and cut the wire just above the broken area. Then use something like a box cutter or xacto knife and remove the rubber on top of jack. After the if you have plastic on the jack remove it using pliers.

Ones you have the Jack we need to check if it is still functional we will use multimeter`s continuity function for that. Mine is still fine! If yours is not you need to order new one

1) https://www.amazon.com/Uxcell-10-Pieces-Black-Plas...

2) https://www.amazon.com/3-5mm-Repair-headphone-Sold...

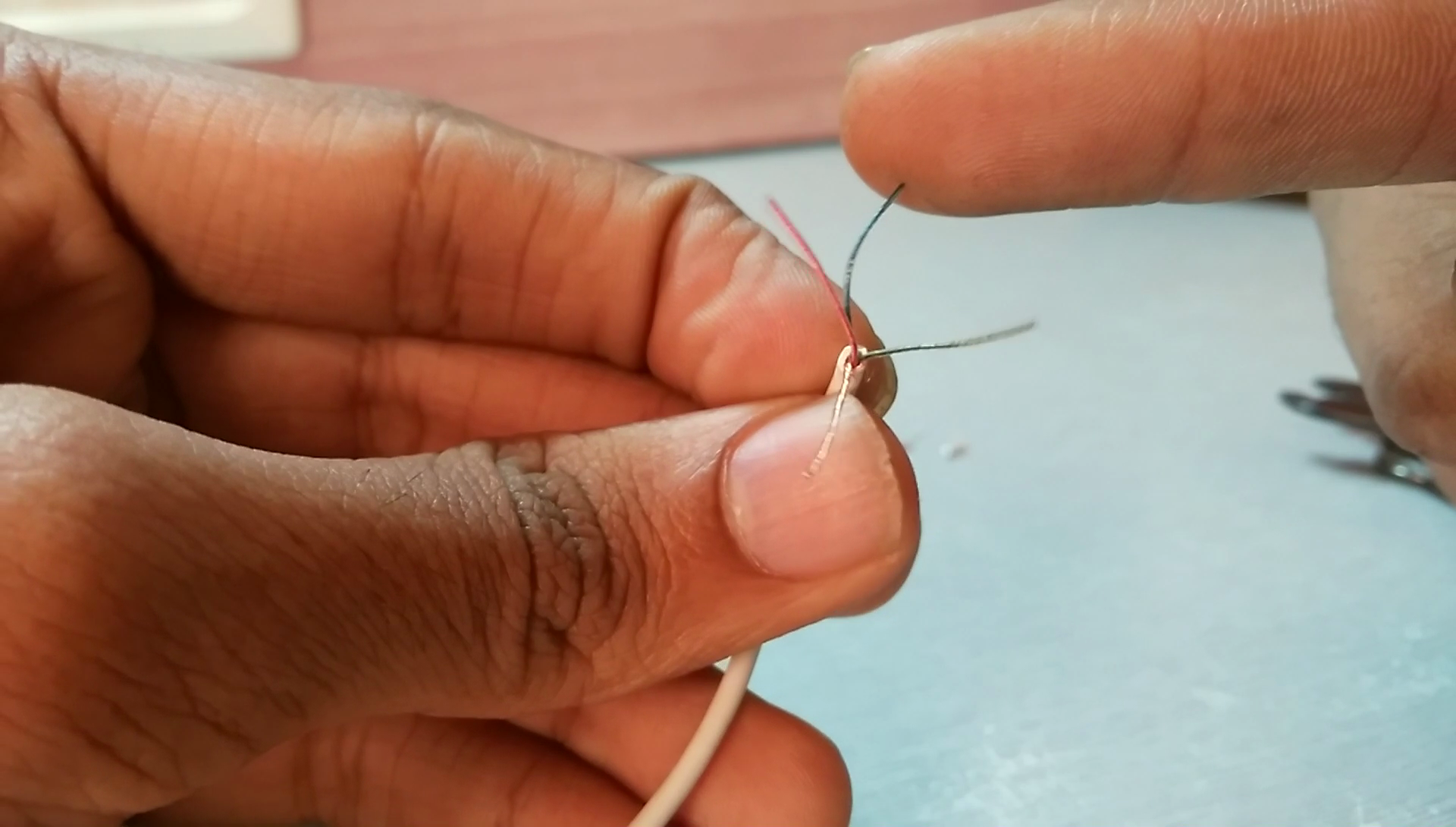

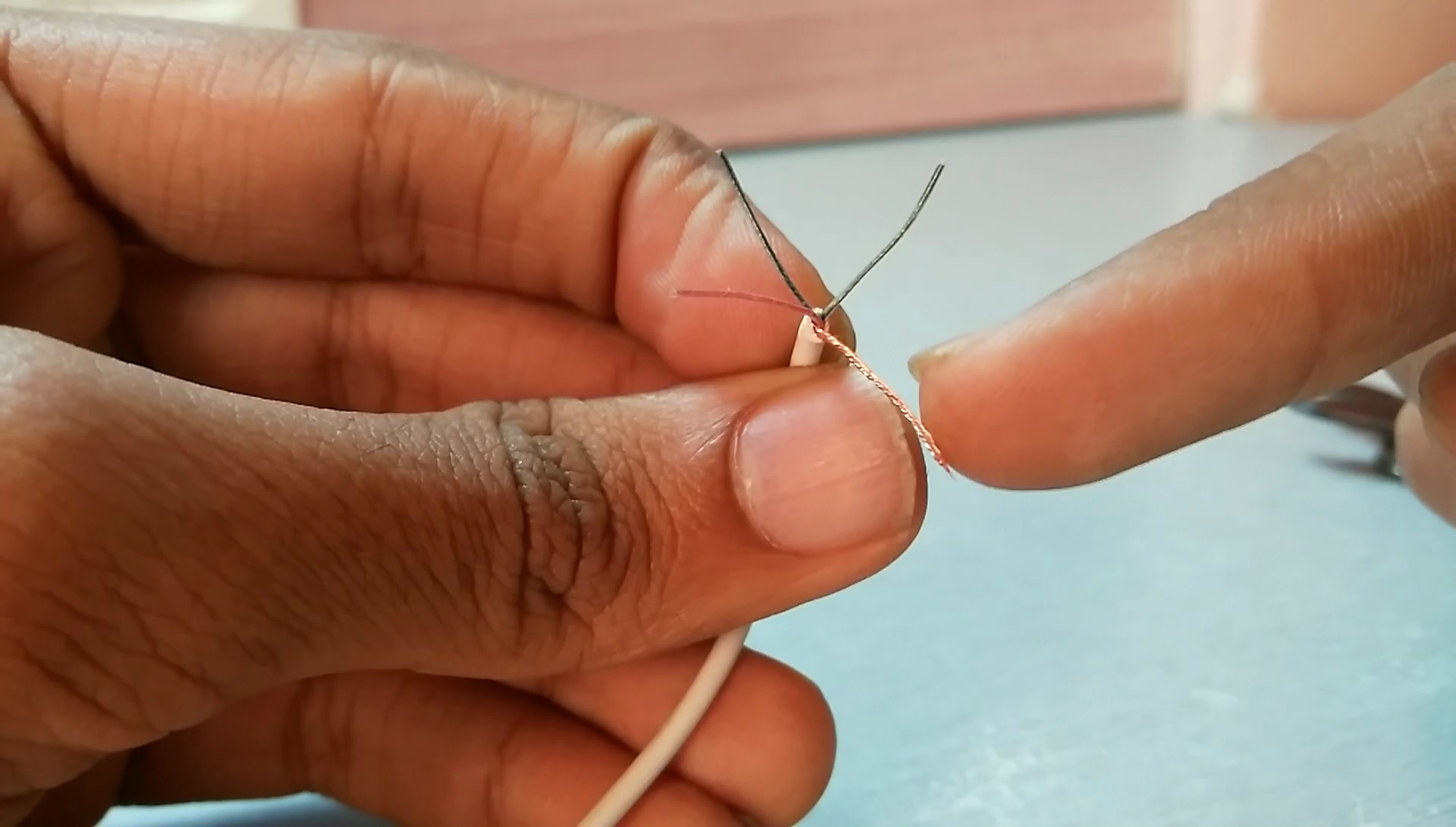

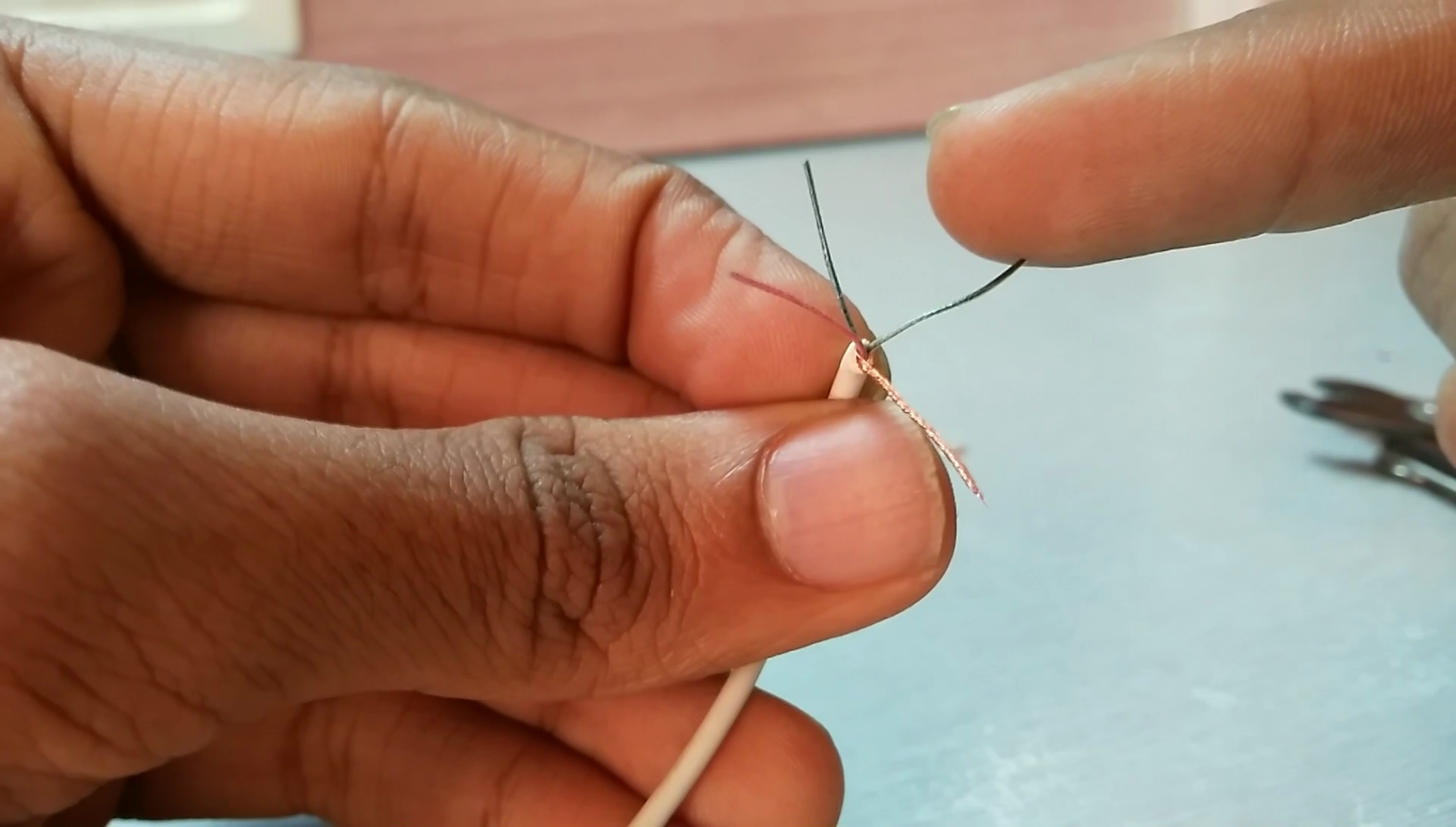

Now clean the jack and remove the wires from jack using soldering iron. Now take other end of the cable and remove the outer rubber. You will see 4 Wires

Copper is for GND

Green is for Right

Blue is for Microphone

Red is for Left.

For Soldering the wires here is the schematic solder it and you are done

Now plug the jack and check if it is working mine is working so we can proceed ahead. if yours didn't work check if soldering is done properly if not then you have to open the earbud and check if the manufacturer has changed the wiring!

So finally we have fixed it but we can't use it like that it will break in few hours so we can use heat shrinking tube to cover it!
