How to FIX a Rust Hole in a Rocker Panel (fast, Low-cost Method)

by Error Code Guy in Workshop > Repair

63019 Views, 8 Favorites, 0 Comments

How to FIX a Rust Hole in a Rocker Panel (fast, Low-cost Method)

how to FIX a rust hole in a rocker panel (fast, low-cost method)

Fixing a rust hole on the rocker panel can be expensive. I've done body work on cars for a lot of years, and have developed some techniques to make the job fast, easy and cheap. If you're trying to get a car through inspection and you want to car to look acceptable there are some shortcuts that are effective. Most rust on a car happens on the rocker panels. I use structural foam to fill the holes and then coat them with Body filler to give it some nice structure. Then I paint the bottom black so there is no finish work. The entire process takes about an hour. And it only cost about $20.

Fill the Hole

Screenshot from 2018-09-15 15-48-47.png

To fill the hole use spray foam and fill it is full.

Prep for Bondo

Screenshot from 2018-09-15 15-49-03.png
Screenshot from 2018-09-15 15-49-17.png

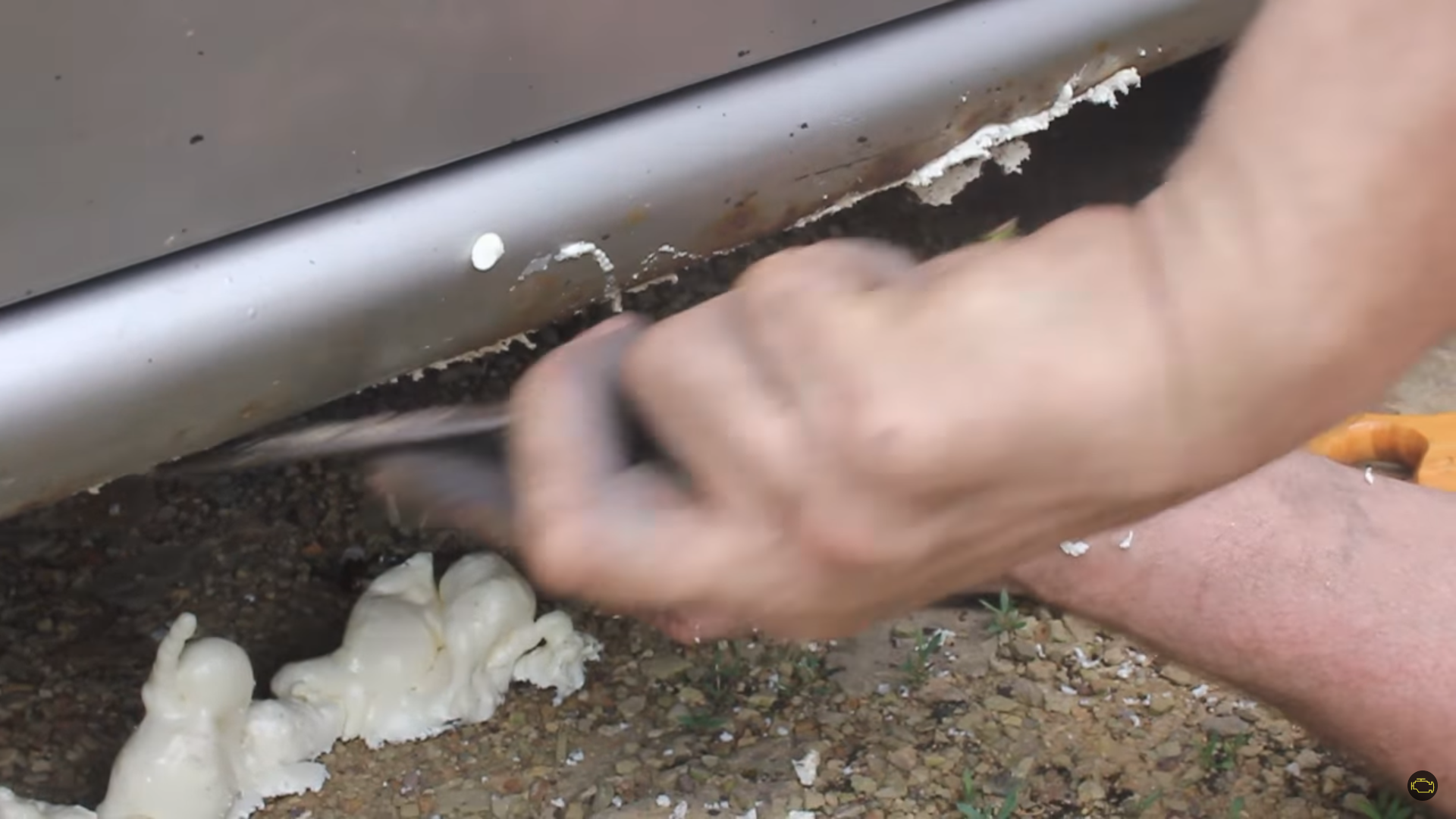

Once the foam firms up, cut if off with a saw and then sand with a rough file.

Bondo

Screenshot from 2018-09-15 15-49-27.png
Screenshot from 2018-09-15 15-50-48.png
Screenshot from 2018-09-15 15-51-07.png
Screenshot from 2018-09-15 15-51-23.png

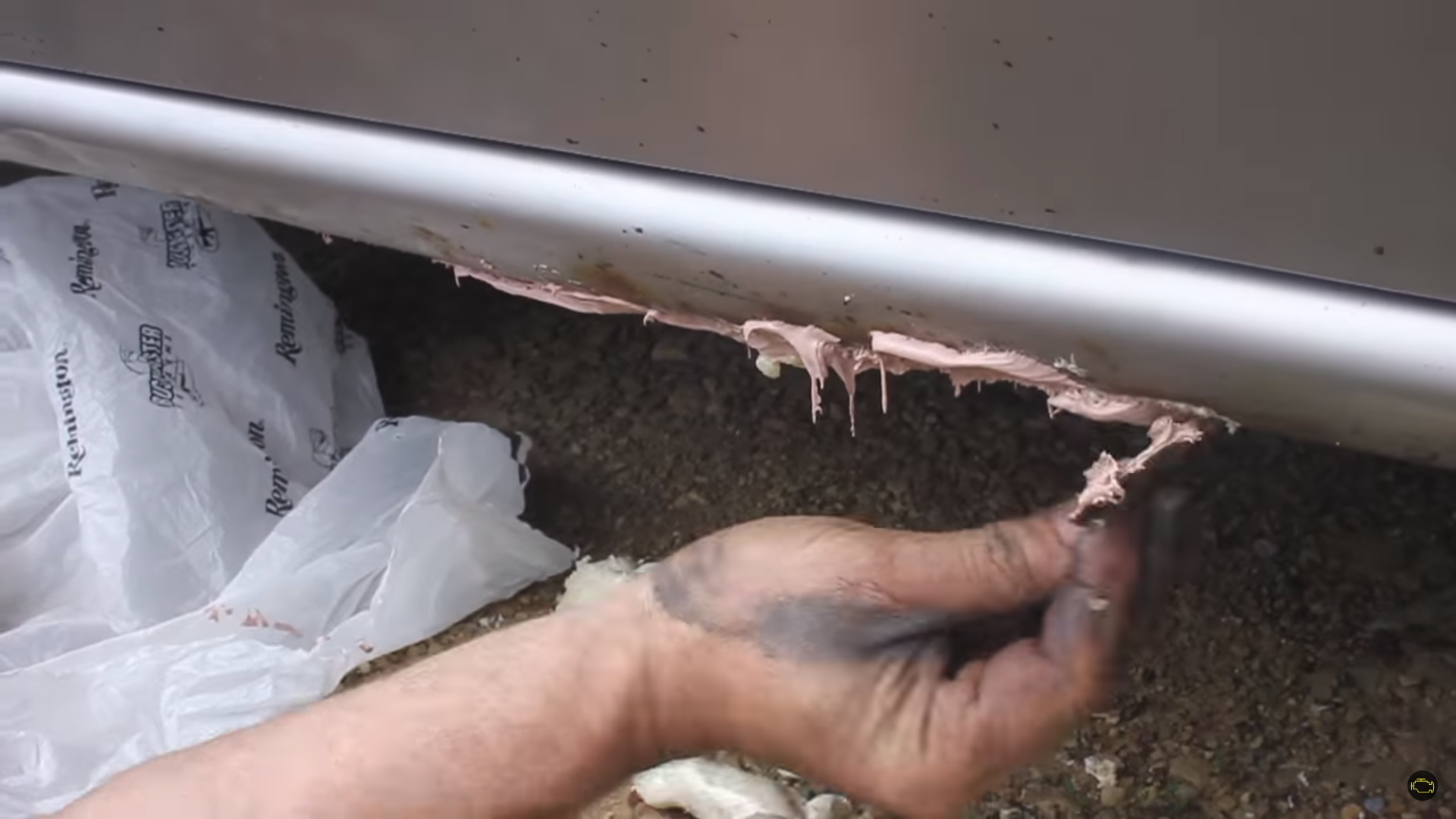

Put on the Bondo and then put a trash bag over the Bondo so you can shape it under control. When the bondo drys pull the bag right off.

Paint!! :)

Screenshot from 2018-09-15 15-51-39.png
Screenshot from 2018-09-15 16-27-44.png
Screenshot from 2018-09-15 15-52-44.png

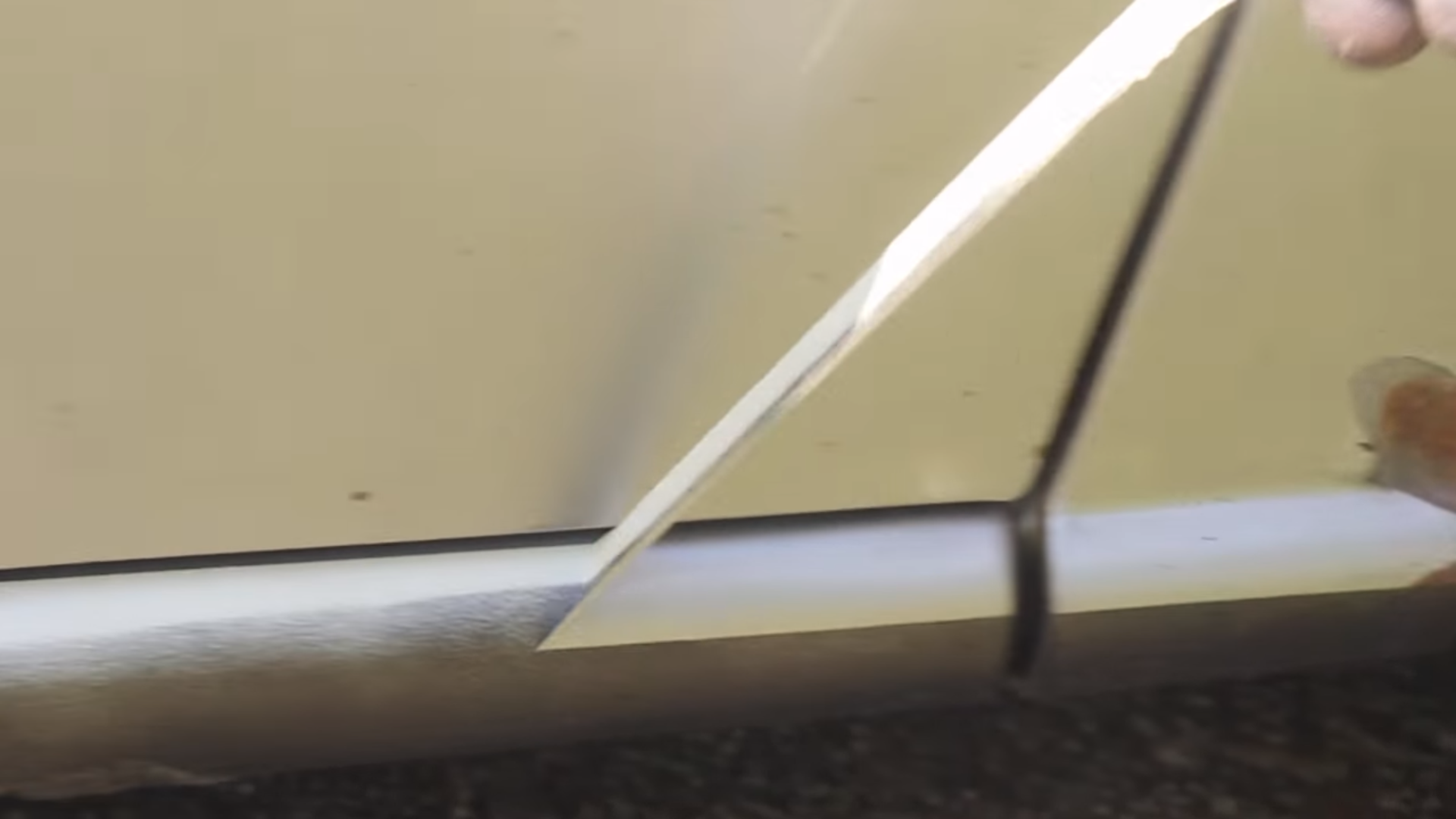

Put tape where you don't want paint, and then spray paint the panel. When the pant drys take off the tape.

Finished

Screenshot from 2018-09-15 15-53-01.png
how to FIX a rust hole in a rocker panel (fast, low-cost method)

Now take a step back and take at the work you just did. This is fix to get you though inspection in about 45 minutes! I wouldn't do this to a show car, or to a car you are trying to flip and sell to another buyer and not tell them. This is a fix to save money and get passed inspection. By doing this you are saving $500 by not spending $500 dollars on a new panel!
