How to Design With Silhouette Studio

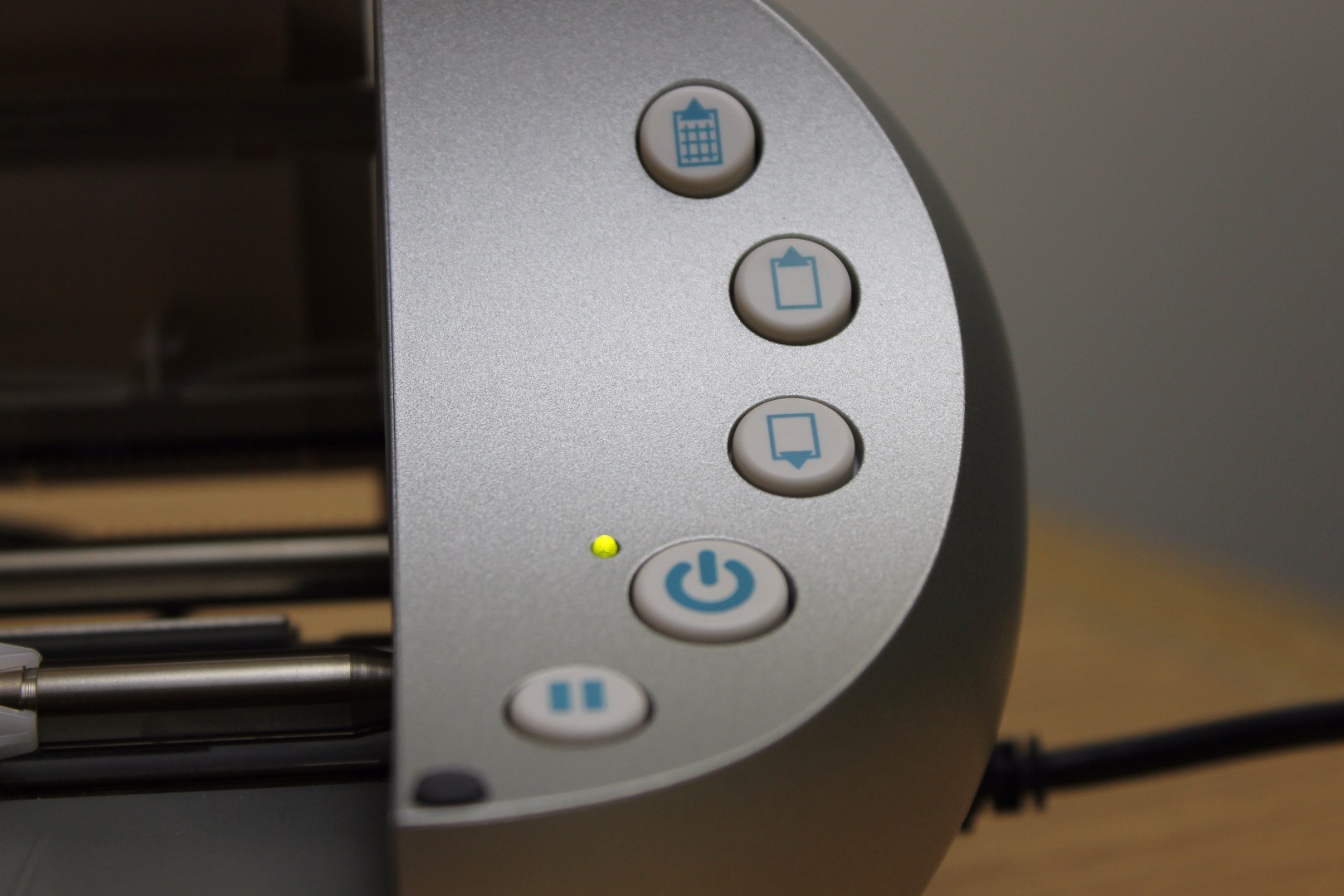

The Silhouette Portrait is a user-friendly electronic cutting machine. It can cut anything from card stock to vinyl, so you can make stickers, posters, or even 3D objects. With all this opportunity for creativity, it can be overwhelming getting started. This tutorial will take you step by step from idea to full-fledged design. Let's get started!

• A Silhouette Portrait
• Silhouette Studio (downloadable software that works with the machine)
• Material you want to cut
• An Idea!

The design I wanted to create was a tealight, so the first thing I did was sketch it out. Remember every line you draw will become a part of the cut path, so try to think in terms of drawing a line for scissors to follow.

Now that you've drawn your design, you need to get it into the Silhouette Studio software. There are two methods we've used to complete this task.

Method #1: Use the sketch you've made as a basis to completely recreate the drawing in Silhouette Studio.

Method #2: Scan your original sketch, save it as a jpeg, and create a cut path straight from the design.

We'll show steps for both options and you can choose which works best for you!

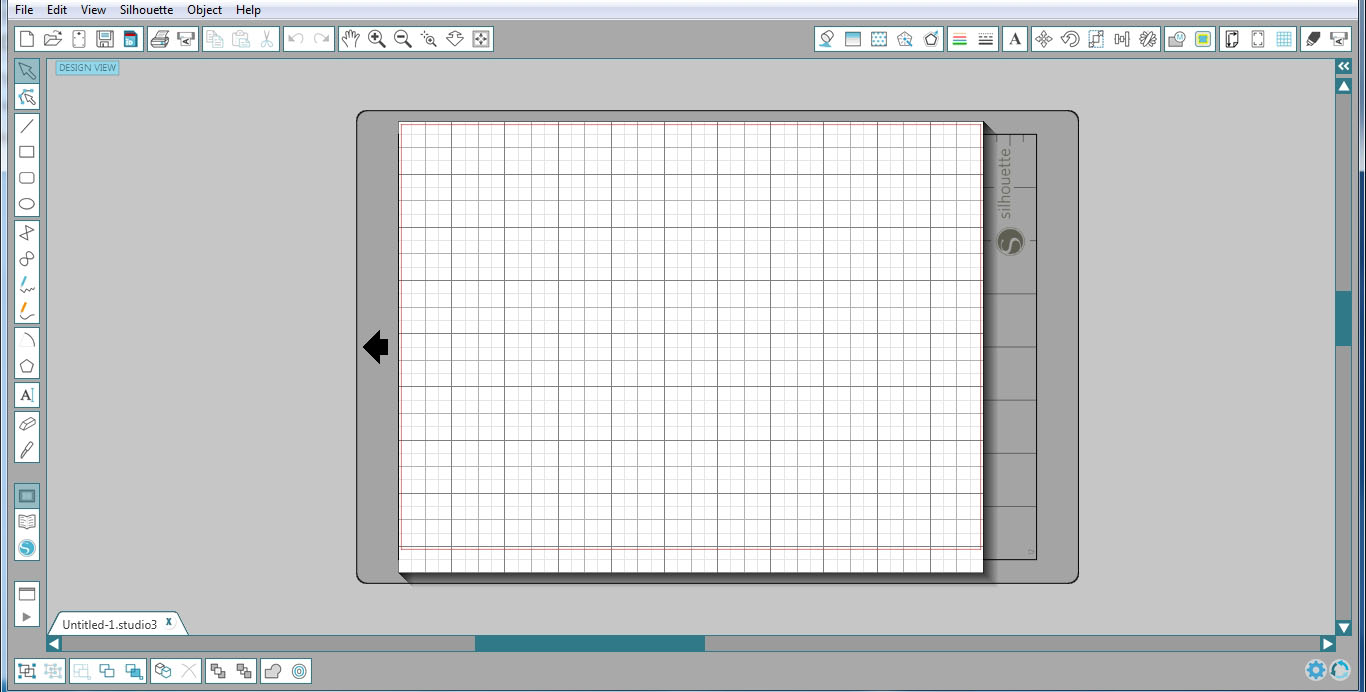

1. Open Silhouette Studio.
2. Draw your design using the tools on the left hand side. The tools work much like MS Paint. You can draw lines, rectangles, circles, add text, erase, and more. Play around with the tools until you find what you like.
3. Make sure you erase any accidental lines or bits that you don't want the blade to cut. Remember, you're creating a line for the blade to cut along.
4. If you're cutting a solid object, like the example, make sure all your lines are connected so the finished cut is clean.
5. Now that you've finished designing, go into cut settings (circled in red) to check your design.
6. The cut path will be outlined in a thicker red.
7. After connecting your computer to the Silhouette Portrait and checking that the blade depth is appropriate for the material your are cutting, hit Send to Silhouette and cut out your masterpiece!

1. Take your drawing and scan it into the computer.
2. Save your file as a jpeg and open it in the Silhouette Studio.
3. You will need to find the trace tool. It is located in the upper right hand corner of the studio. Click on the trace icon and it will open up options on the right hand side of the screen.
4. Click on "select trace area" and highlight the object.
5. Under "apply trace method" click on "trace."
6. Your object should be highlighted in red now.
7. Erase any lines or bits that you don't actually want to cut.
8. Now that you've finished tracing your design, go into cut settings to check out your design. The cut path will be outlined in a thicker red.
9. After connecting your computer to the Silhouette Portrait and checking that the blade depth is appropriate for the material your are cutting, hit Send to Silhouette and cut out your work of art!

I liked the design I made in the software much better, so that is the version I decided to cut out. Now that I've got my finalized design I can cut as many as I want, and even make a stencil. The possibilities are endless with the Silhouette Portrait, so have fun and get creative!
