How to Design and Construct an Inverter System
by Magnum Technical Academy in Circuits > Electronics
5655 Views, 4 Favorites, 0 Comments
How to Design and Construct an Inverter System

Inverter System have evolved from secondary power source,to the major power supply source.
Due to its efficiency and green house friendly, most people are switching from generator use to inverter use.
Engineers, Electronics enthusiast, hobbyist and Technologist all over the globe are working earnestly to develop one.
In this article, I will preset to you,how you can Design and construct an inverter system.
Due to its efficiency and green house friendly, most people are switching from generator use to inverter use.
Engineers, Electronics enthusiast, hobbyist and Technologist all over the globe are working earnestly to develop one.
In this article, I will preset to you,how you can Design and construct an inverter system.
List of Materials and Tools for Use


The very first thing to consider,before developing the System,is to list the materials for assembly.
Refer to Our YouTube Video

The System has been made and you can watch the step to step on YouTube via the link below.

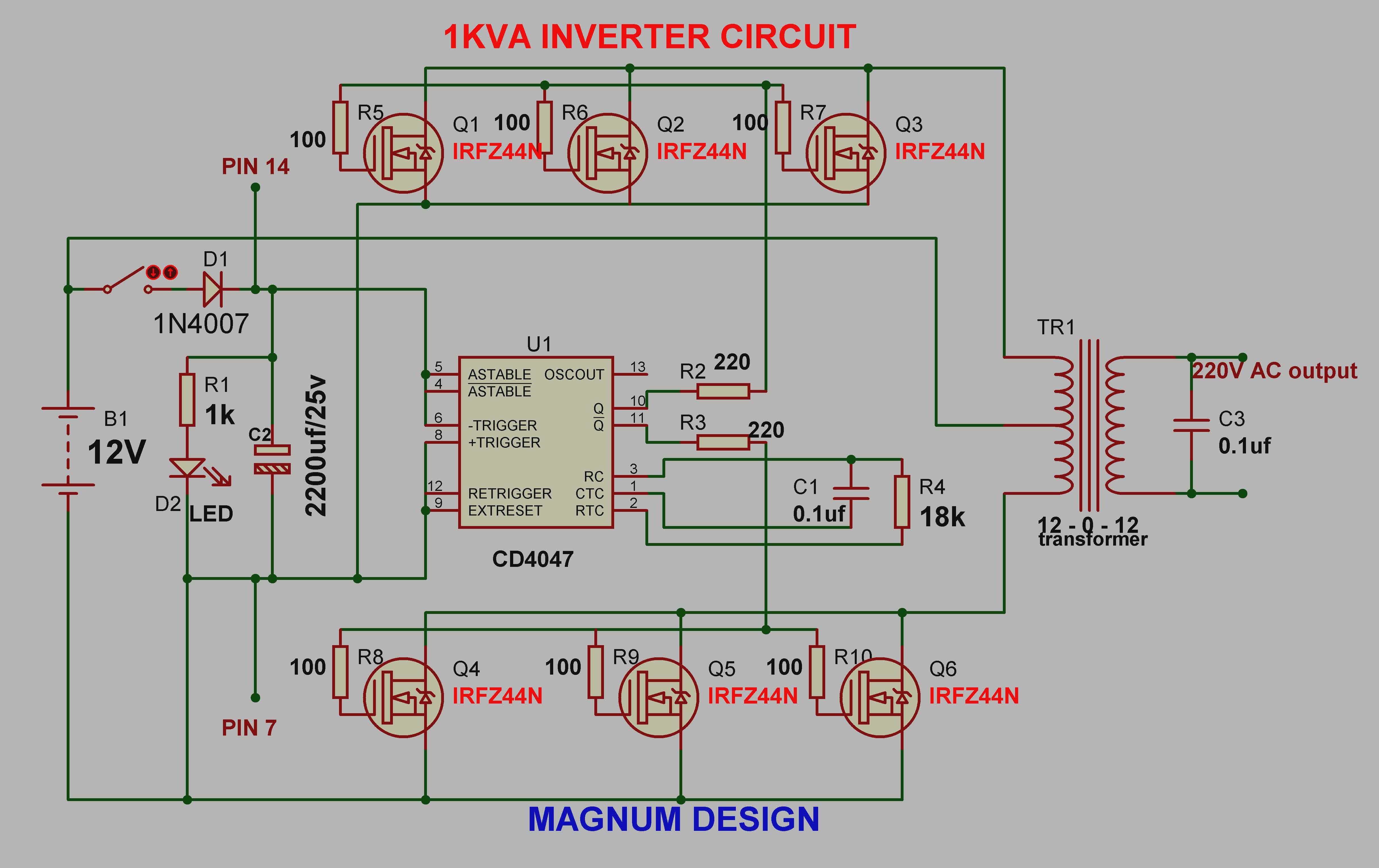

Circuit Diagram

Follow the circutory in order to implement the system
Solder the Components

Follow the circutory and solder the components
Correctly
Correctly
Cast the Signal Generated

Using a digital oscilloscope, cast the signal generated
Test the Circutory

Test the circuit, coupling the transformer to it
