How to Design a Simple Wooden Chair Design Using SelfCAD
by Julie80 in Workshop > 3D Design
24 Views, 0 Favorites, 0 Comments

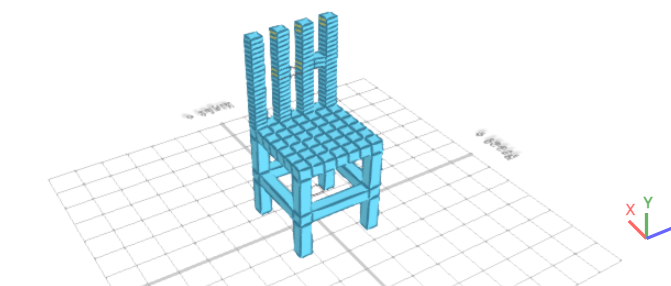

How to Design a Simple Wooden Chair Design Using SelfCAD
Learn How to Design a Simple Wooden Chair Design using SelfCAD with the help of this tutorial
How to Design a Simple Wooden Chair Design Using SelfCAD
Designing a simple chair might seem like a straightforward task, but it involves a combination of creativity, technical skills, and understanding of ergonomics. In the digital age, software tools have revolutionized how we approach design projects. One such powerful and user-friendly tool is SelfCAD, an online 3D modeling and CAD program that caters to both beginners and professionals. This tutorial will guide you through the process of designing a simple chair using SelfCAD, highlighting its intuitive interface, versatile features, and the step-by-step workflow that will bring your chair design from concept to virtual reality. Whether you are a novice looking to explore 3D design or an experienced designer seeking a quick and efficient way to visualize your ideas, SelfCAD provides the perfect platform to create a functional and aesthetically pleasing chair.
To access the interactive tutorial to this article, visit https://www.selfcad.com/tutorials/6c1g4c1m4a631o6e646n2072r4424552252d
Once you’ve launched the editor;

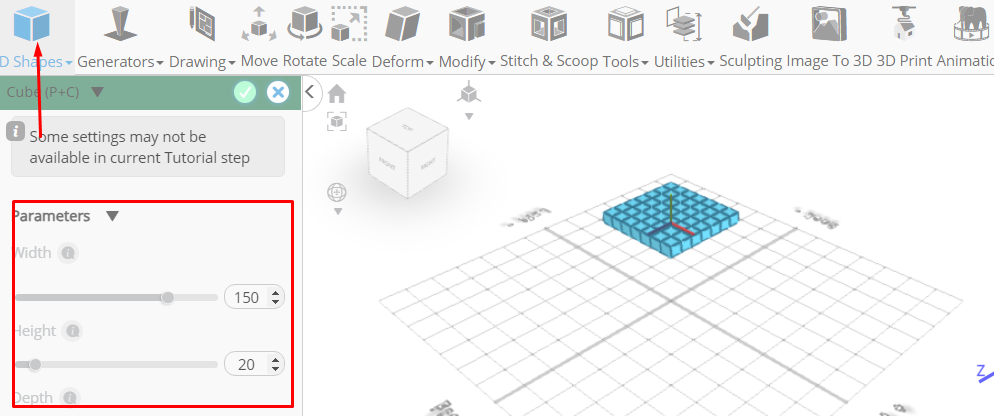

From the 3D Shapes category on the toolbar choose Cube; Set Width to 150, Height to 20, Depth to 150, Width segment to 7, Depth segment to 7, Position y to 150
Tick the checkmark to finalize cube
Click solid+wireframe button to set rendering mode

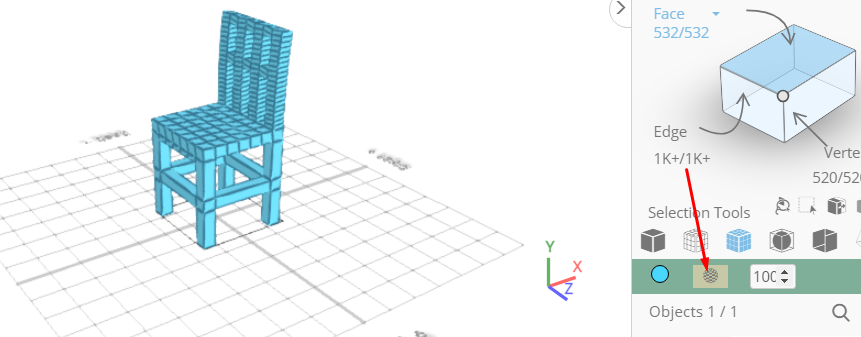

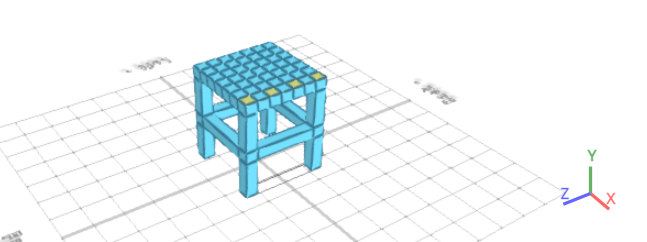

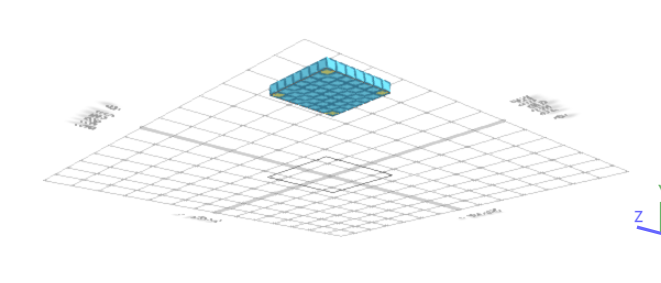

Click to activate face selection ; Click on highlighted region to select it

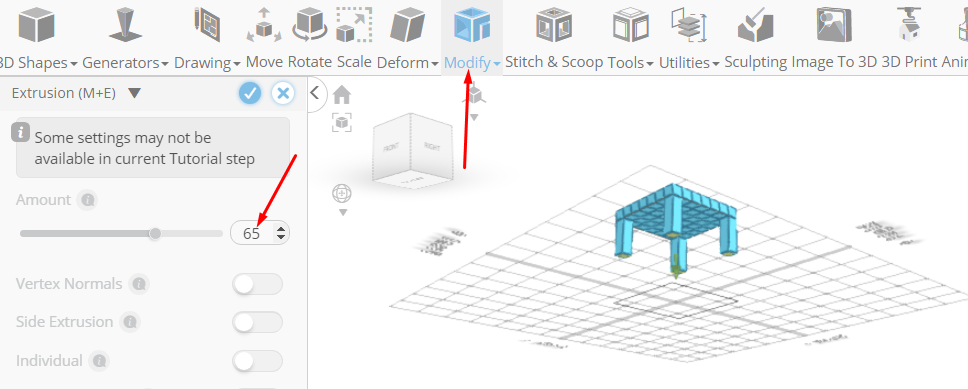

From the Modify category on the toolbar choose extrusion; Set Extrusion amount to 65

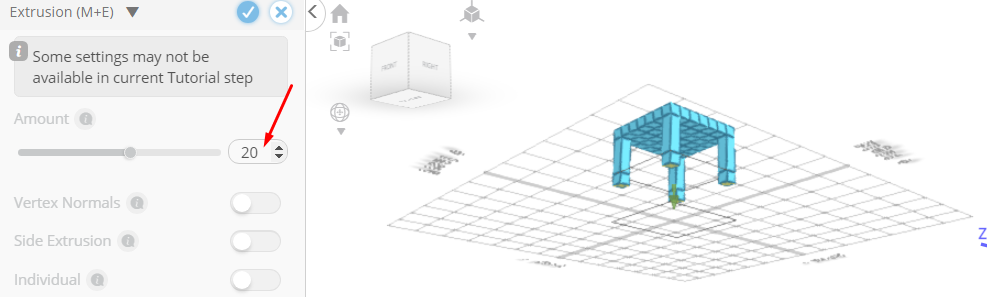

Click apply button to apply extrusion, Set extrusion amount to 20

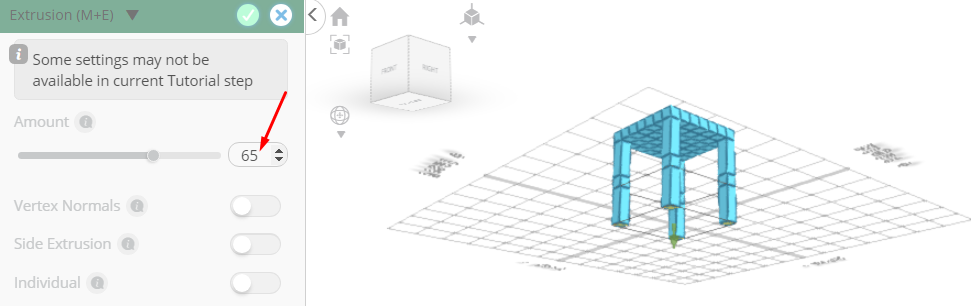

Click apply button to apply extrusion, Set Extrusion amount to 65
Tick the checkmark to finalize extrusion
Click on highlighted region to deselect it
Click on highlighted region to select it

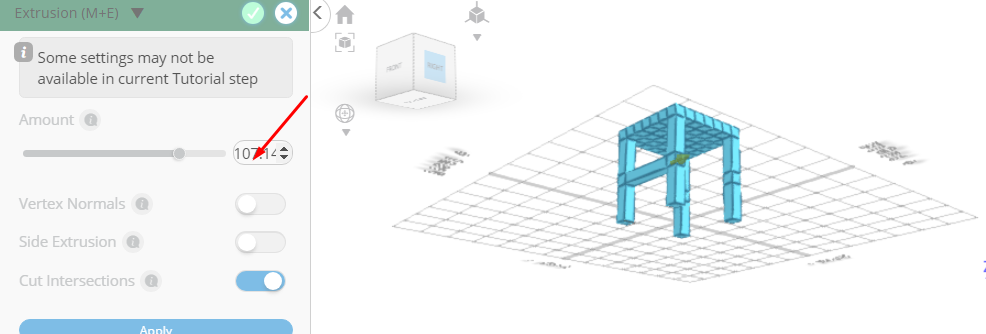

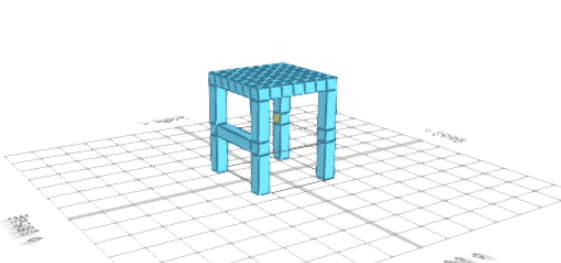

From the Modify category on the toolbar choose extrusion; Set Extrusion amount to 107.14
Tick the checkmark to finalize extrusion
Click on highlighted region to select it

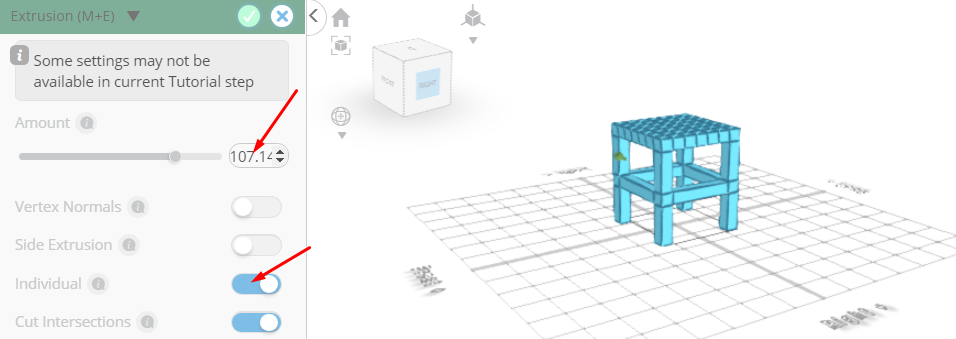

From the Modify category on the toolbar choose extrusion; Set Is individual to true, Extrusion amount to 107.14
Tick the checkmark to finalize extrusion
Click on highlighted region to select it

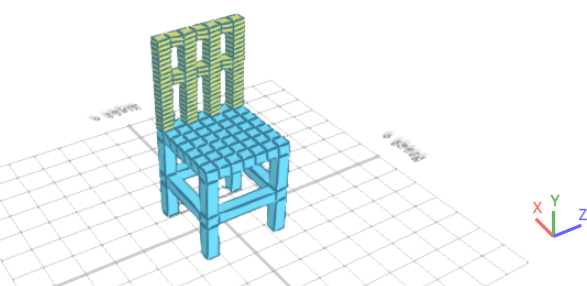

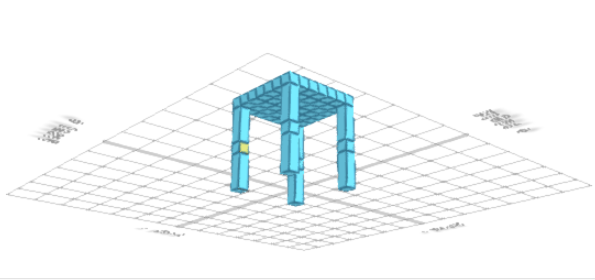

From the Modify category on the toolbar choose extrusion; Set Extrusion amount to 7.5, Set Amount of copies to 20
Tick the checkmark to finalize extrusion
Click on highlighted region to deselect it
Click on highlighted region to select it

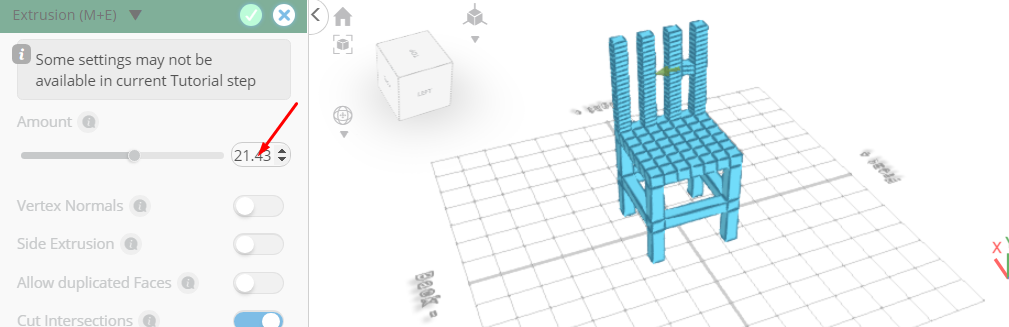

From the Modify category on the toolbar choose extrusion; Set Extrusion amount to 21.43
Tick the checkmark to finalize extrusion
Click on highlighted region to select it
Click on highlighted region to select it

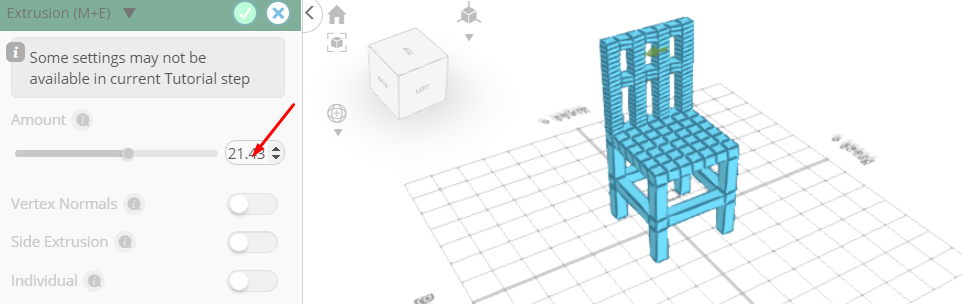

From the Modify category on the toolbar choose extrusion; Set Extrusion amount to 21.43
Tick the checkmark to finalize extrusion
Click solid+wireframe button to set rendering mode
Click on highlighted region to select it

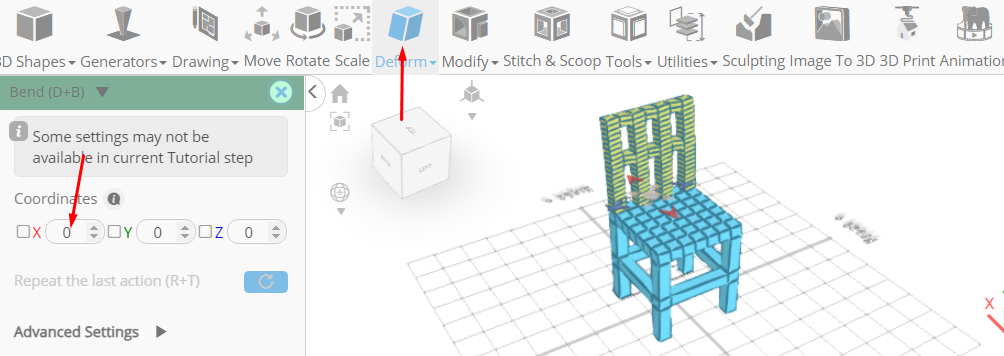

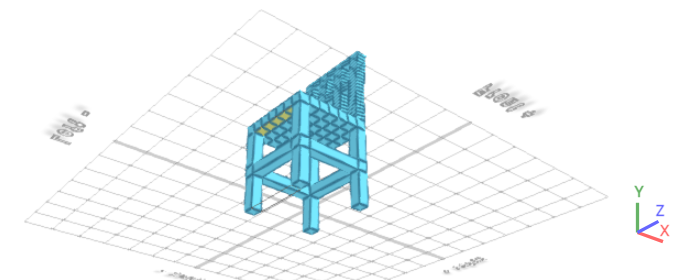

From the Deform category on the toolbar choose bend; Set x to 15
Click ‘x’ to close Transformation panel
Click on highlighted region to deselect it
Click on highlighted region to select it

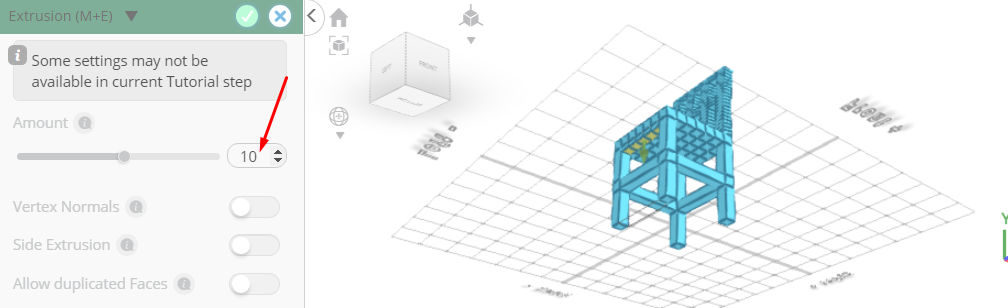

From the Modify category on the toolbar choose extrusion; Set Extrusion amount to 10
Tick the checkmark to finalize extrusion
Click on highlighted region to deselect it
From the right panel choose Materials

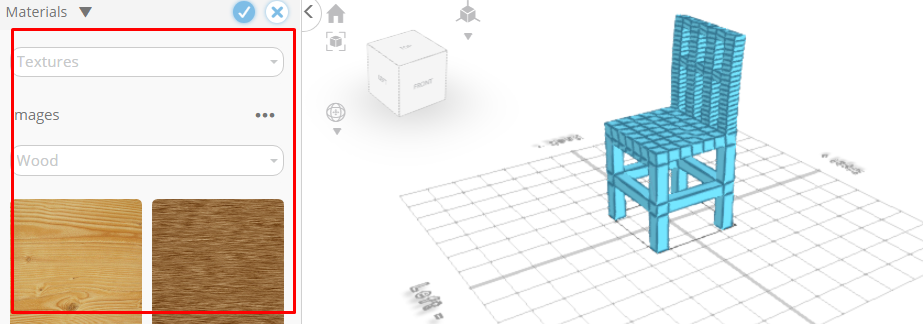

Set settings to textures, Set texture category to wood, Click wood 4 button to apply texture
Click solid button to set rendering mode
Set settings to uv, Set uv Generate Mode to unwrapping, Click Generate UV button to generate UV
Tick the checkmark to finalize materials
As you continue honing your design skills, remember that SelfCAD offers a wealth of resources to support your learning journey. To deepen your understanding and explore more advanced features, consider checking out the interactive tutorials (https://www.selfcad.com/tutorials) available on the SelfCAD website. The tutorials page provides a treasure trove of guides, tips, and tricks that cater to designers of all levels.
More structured learning experience can also be accessed at the SelfCAD Academy (https://www.selfcad.com/academy/curriculum/), https://www.youtube.com/@3dmodeling101, and 3D Modeling 101 series (https://www.youtube.com/playlist?list=PL74nFNT8yS9DcE1UlUUdiR1wFGv9DDfTB). This comprehensive resource offers in-depth courses taught by industry experts, allowing you to master the intricacies of SelfCAD at your own pace.
