How to Design a Baseball Bat Using SelfCAD

Welcome to this tutorial on crafting a baseball bat using SelfCAD. In this tutorial, we'll guide you through the process of harnessing the creative potential of SelfCAD, a versatile 3D modeling software, to design your very own custom baseball bat. If you're a budding designer with a passion for sports or a seasoned veteran looking to explore new avenues of creativity, this tutorial is tailored to suit your needs. With SelfCAD's user-friendly interface and powerful tools at your disposal, you'll learn how to conceptualize, refine, and perfect your baseball bat design from concept to completion.

From selecting the optimal dimensions and weight distribution to adding personalized details and textures, this tutorial will equip you with the skills and knowledge to bring your vision to life in stunning detail.

To access the interactive tutorial to this article, visit https://www.selfcad.com/tutorials/4cz6x214sp5m4w731q3c6y3to4y1h342t2h2

Once you’ve launched the editor;

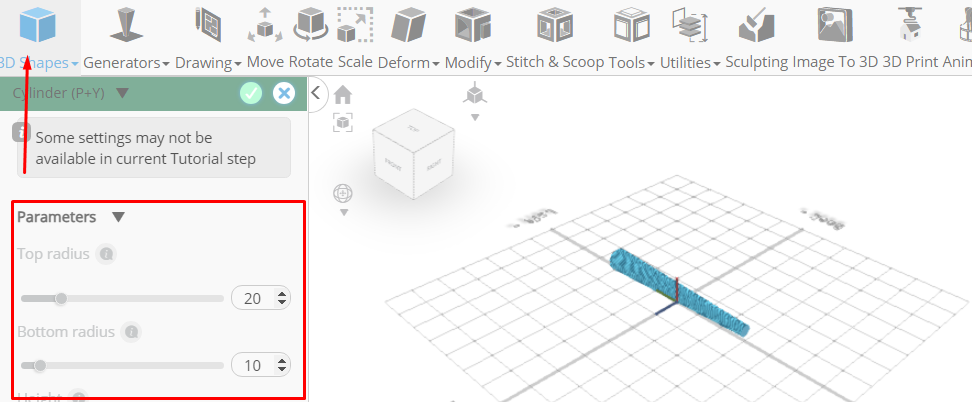

From the 3D Shapes Category on the Toolbar choose Cylinder

Set Top Radius to 20, Bottom Radius to 10, Height to 300, Vertical segments to 45, Rotation z to 90

Click to finalize Cylinder

Click to activate Polygon selection

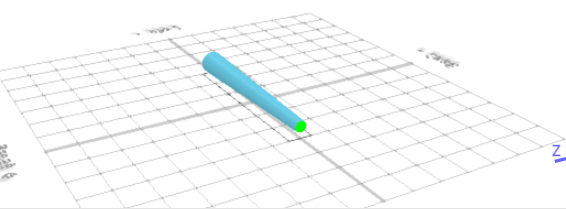

Click on highlighted region to select it

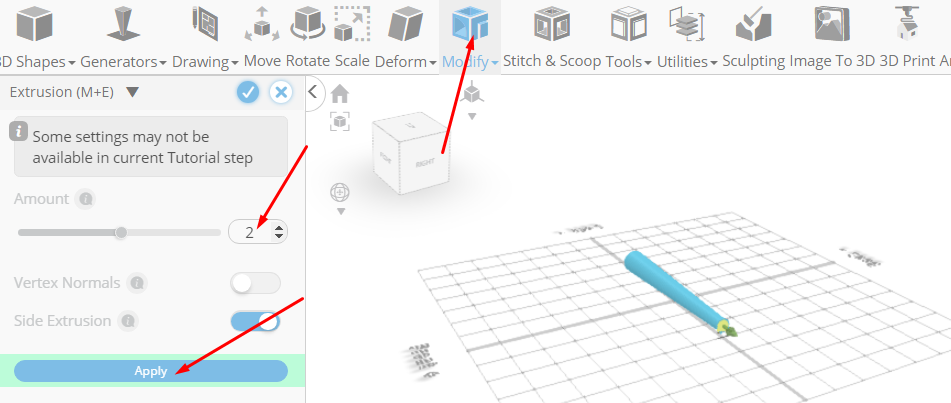

From the Modify Category choose Extrusion

Set Use Side Extrusion to true, Extrusion Amount to 2

Click Apply button

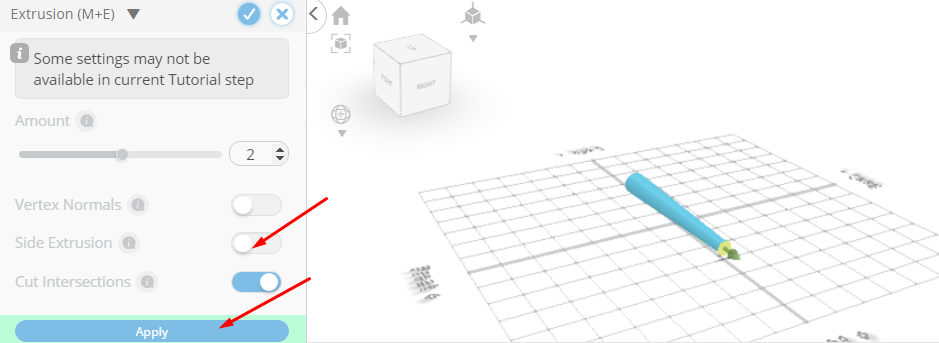

Set Use Side Extrusion to False

Click Apply button

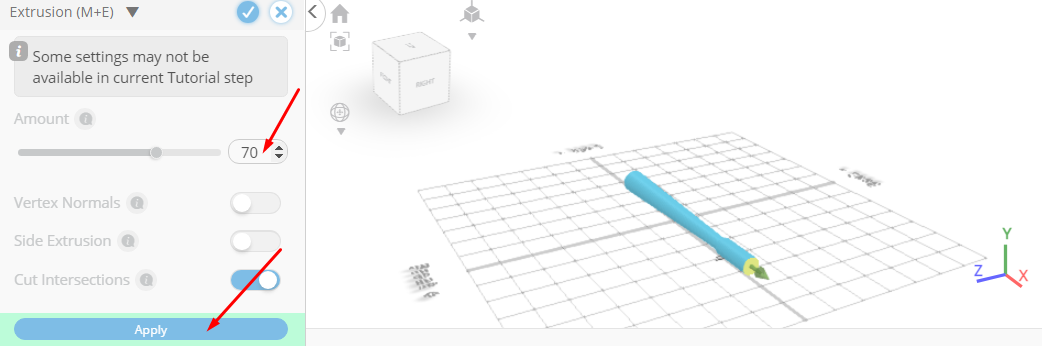

Set Extrusion Amount to 70

Click Apply button

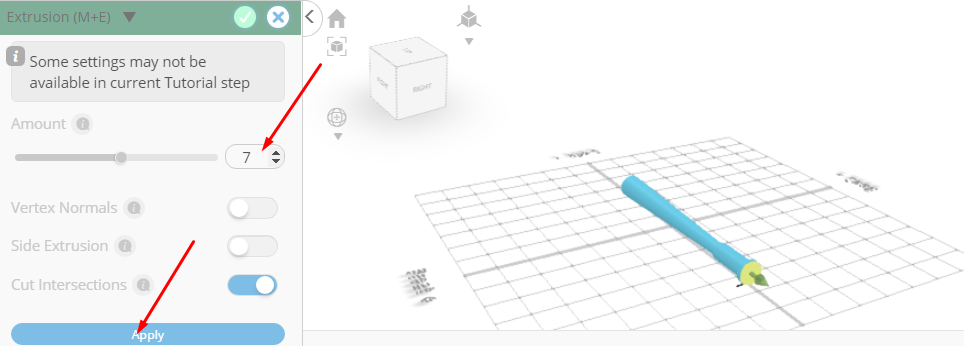

Set Use Side Extrusion to False, Extrusion Amount to 7

Click to finalize Extrusion

Click on highlighted region to deselect it

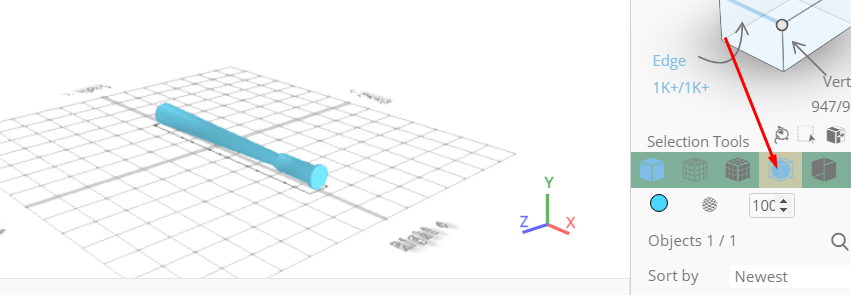

Click to activate Edge Selection

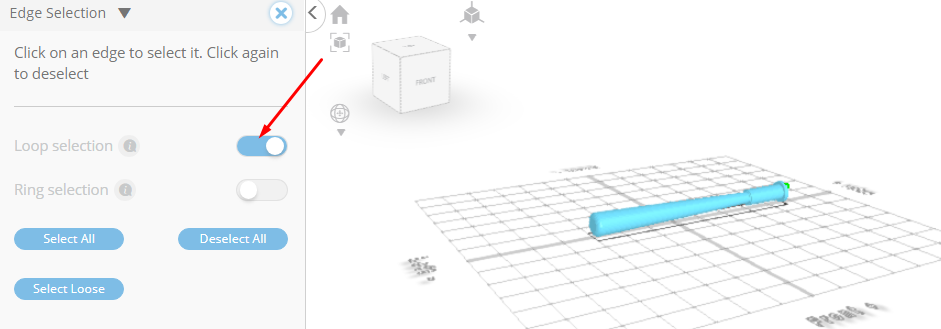

Click Selection Settings button to change selection settings. Set Loop selection to true

Click on highlighted edge to select loop from the object

Click ‘x’ to close selection settings panel

From the Modify Category choose Fillet. Set Level to 7

Click to finalize Fillet

Click Solid button to set rendering mode

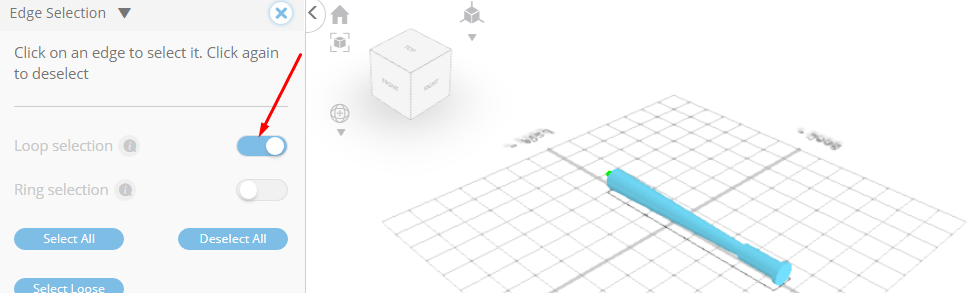

Click Selection Settings button to change selection settings. Set Loop selection to true

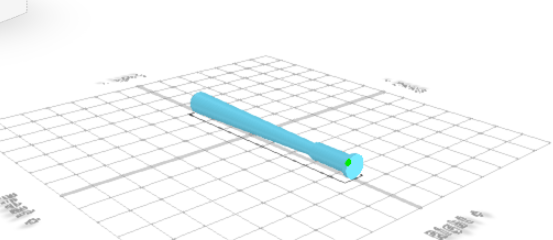

Click on highlighted edge to select loop from the object

Click ‘x’ to close selection settings panel

From the Modify Category choose Fillet. Set Intensity to 3, Level to 5

Click to finalize Fillet

Click Smooth button to enable Smooth rendering
