How to Design Penrose Stairs with SelfCAD

Welcome to this tutorial on designing Penrose stairs using SelfCAD. Penrose stairs, also known as the impossible staircase, are a fascinating optical illusion where a flight of stairs appears to loop endlessly, creating a perplexing visual effect. In this tutorial, we'll explore how to create this mind-bending structure using SelfCAD, a versatile 3D modeling software.

SelfCAD offers powerful tools and features that empower users to bring their creative visions to life, making it an excellent choice for designing complex geometries like Penrose stairs. Whether you're a seasoned designer or a curious beginner, SelfCAD provides an intuitive platform for unleashing your imagination.

To access the interactive tutorial to this article, check out https://www.selfcad.com/tutorials/5po4652n5k05v2c2i253u3e5v1x5zo5m4t52

Once you’ve launched the editor;

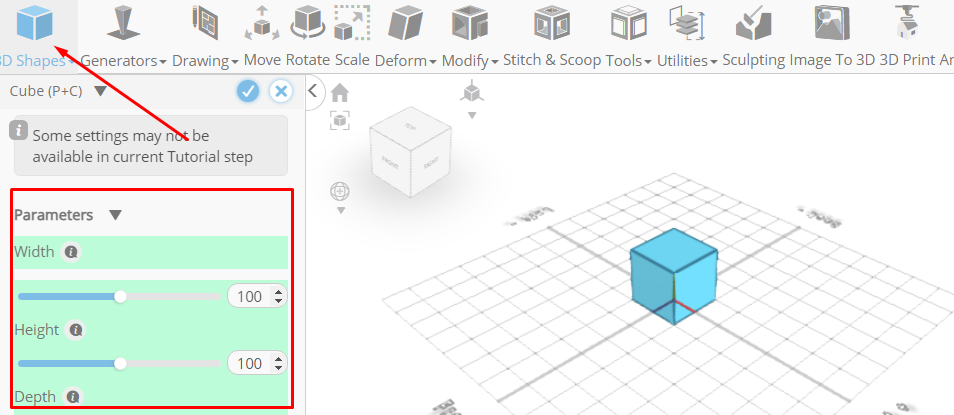

From the 3D Shapes category on the Toolbar choose Cube. Set Width to 20, Height to 40, Depth to 20

Click to finalize Cube

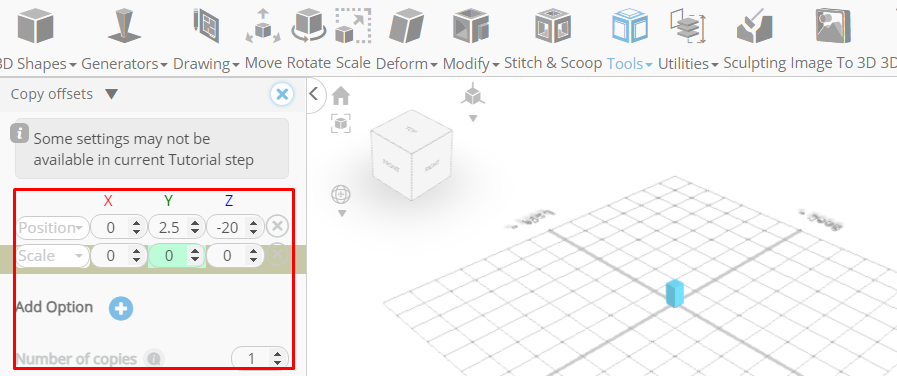

From the Tools category on the Toolbar choose Copy offsets. Set y to 2.5, z to -20

Click Add Option to add next macro step

Set Operation to scale. Set y to 5. Set Amount of copies to 4

Click Copy button to create copies

Click ‘x’ to close copy offsets panel

Click on mesh 4, mesh 4(1), mesh 4(2), mesh 4(3) to deselect it

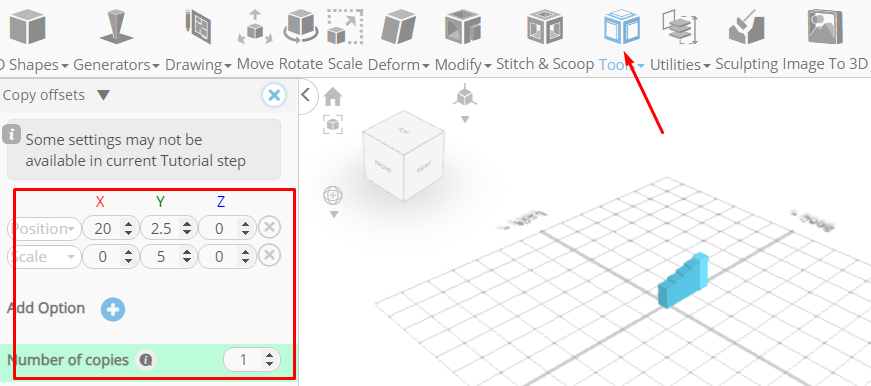

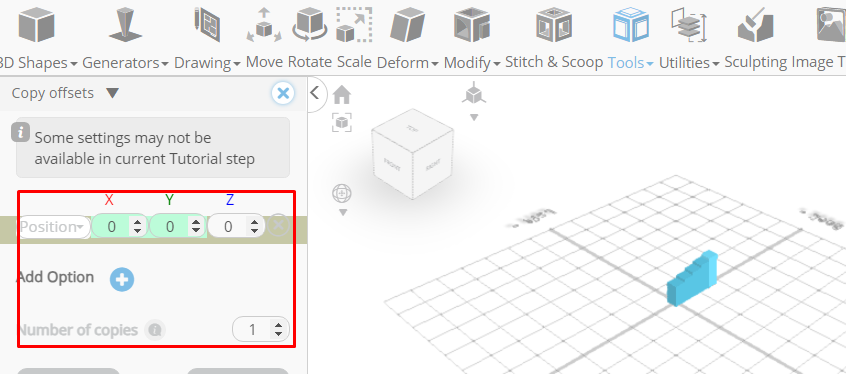

From the Tools category on the Toolbar choose Copy offsets. Set x to 20, y to 2.5

Click Add option to add next macro step

Set Operation to scale. Set y to 5. Set Amount of copies to 4

Click Copy button to create copies

Click ‘x’ to close copy offsets panel

Click on mesh 4(4), mesh 4(5),mesh 4(6),mesh 4(7) to deselect it

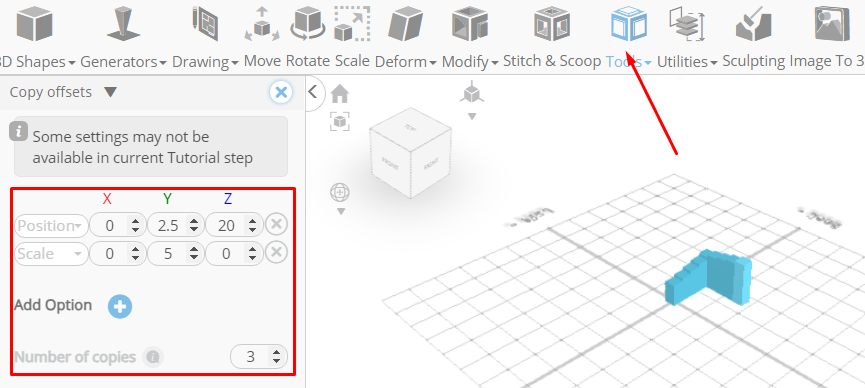

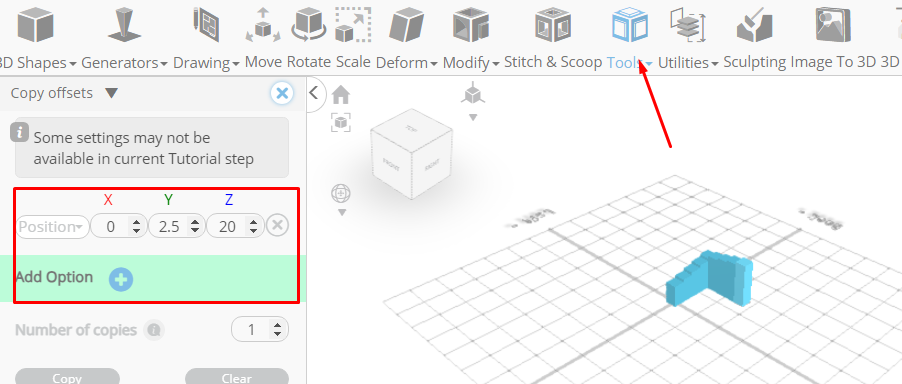

From the Tools category on the Toolbar choose Copy offsets. Set y to 2.5, z to 20

Click Add option to add next macro step

Set Operation to scale. Set y to 5. Set Amount of copies to 3

Click Copy button to create copies

Click ‘x’ to close copy offsets panel

Click on mesh 4(8), mesh 4(9), mesh 4(10) to deselect it

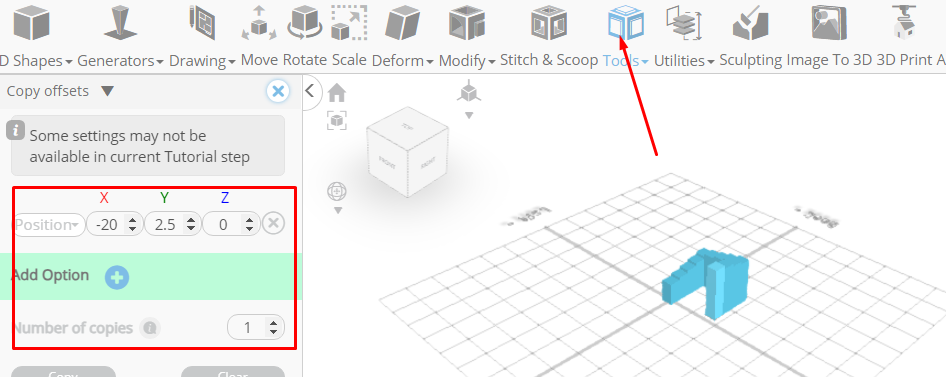

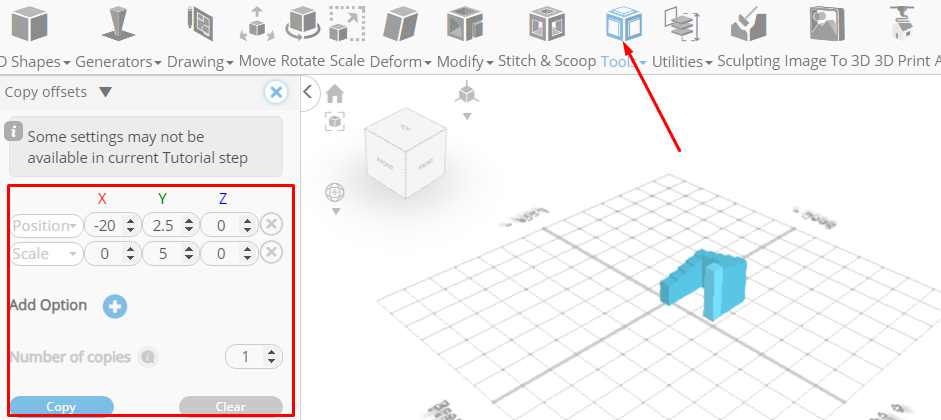

From the Tools category on the Toolbar choose Copy offsets. Set x to -20, y to 2.5

Click Add option to add next macro step

Set Operation to scale. Set y to 5. Click Copy button to create copies

Click ‘x’ to close copy offsets panel

From the Edit Menu on the Top Toolbar choose  Select All

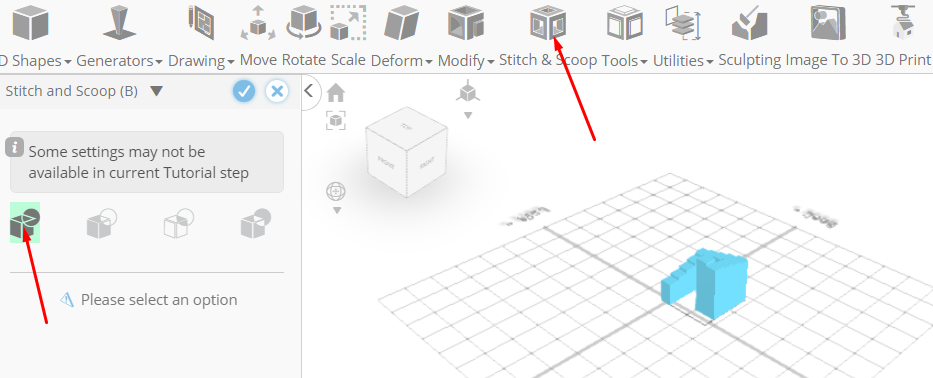

Click Stitch & Scoop on the Toolbar. From the Tool panel choose Union

Click to finalize Union

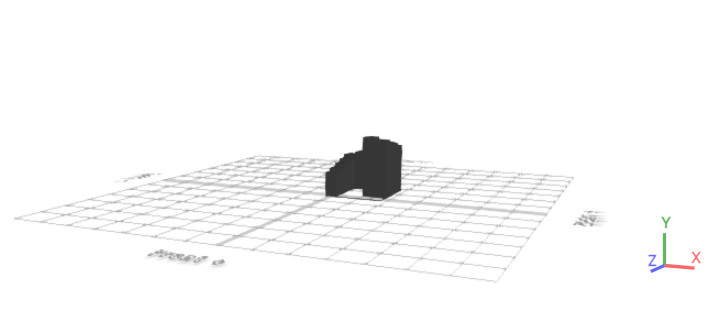

Click Color picker button to change color of selected object

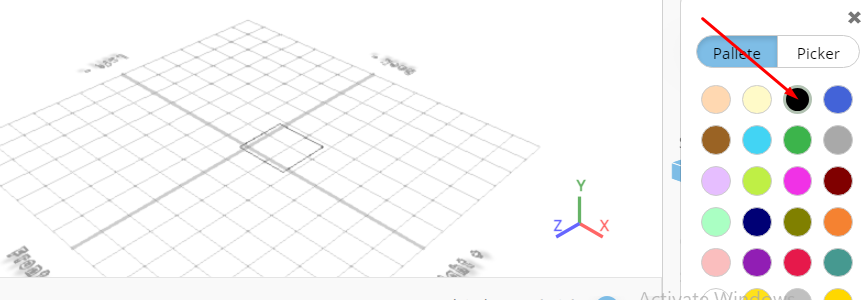

Click Black button

Click OK button to confirm color change
