How to Design Ice Cream with SelfCAD

In this tutorial, we embark on a delectable journey using SelfCAD, a powerful 3D modeling and design tool that goes beyond the conventional to make your ice cream dreams a reality. Whether you're a seasoned SelfCAD user or a curious novice, this tutorial is designed to be your guide in crafting the perfect ice cream.

Once you’ve launched the editor;

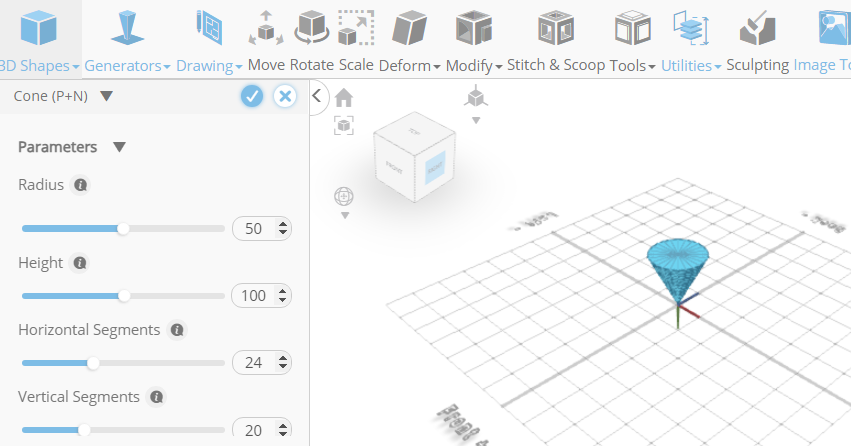

From the 3D Shapes Category on the Toolbar choose Cone. Set Vertical Segments to 20, Rotation x to 180

Click to finalize Cone

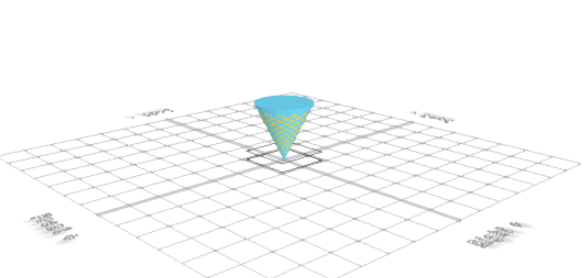

Click to activate Face Selection. Click on highlighted region to select it

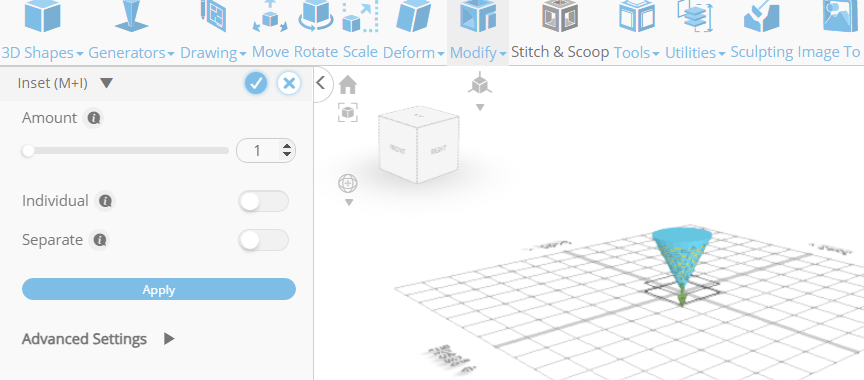

From the Modify Category on the Toolbar choose Inset

Click to finalize Inset

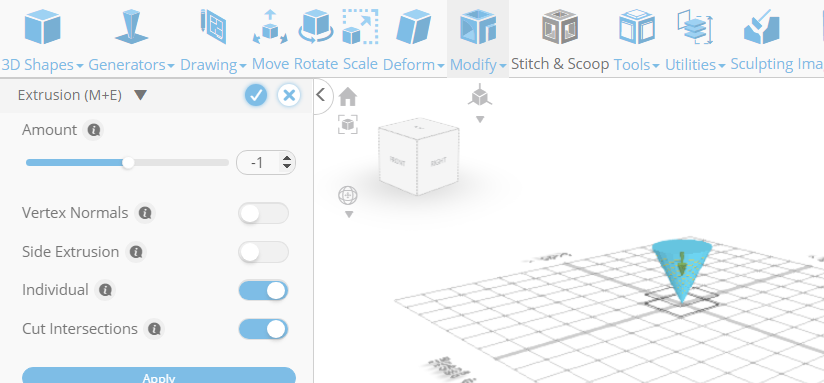

From the Modify Category on the Toolbar choose Extrusion. Set Is Individual to true, Extrusion Amount to -1

Click to finalize Extrusion

Click on highlighted region to deselect it

Click highlighted part on selection cube to turn off region selection

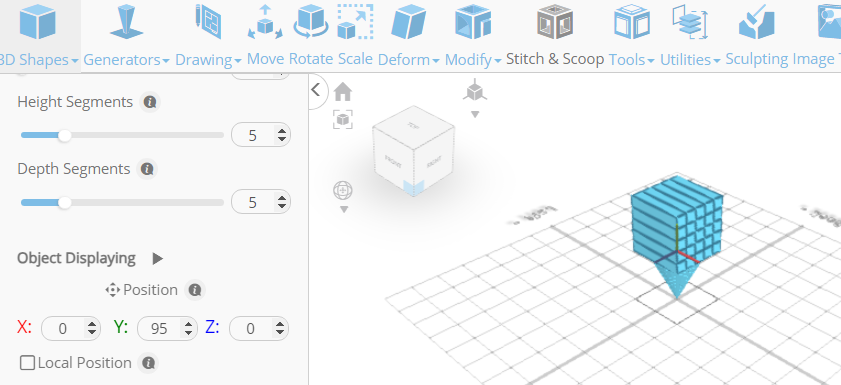

From the 3D Shapes Category on the Toolbar choose Cube. Set Height segment to 5, Depth segment to 5, Position y to 95

Click to finalize Cube

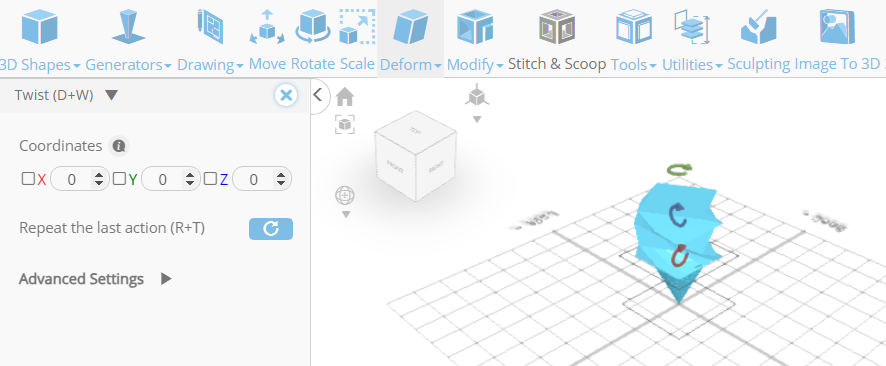

From the Deform Category on the Toolbar choose Twist. Set y to 150

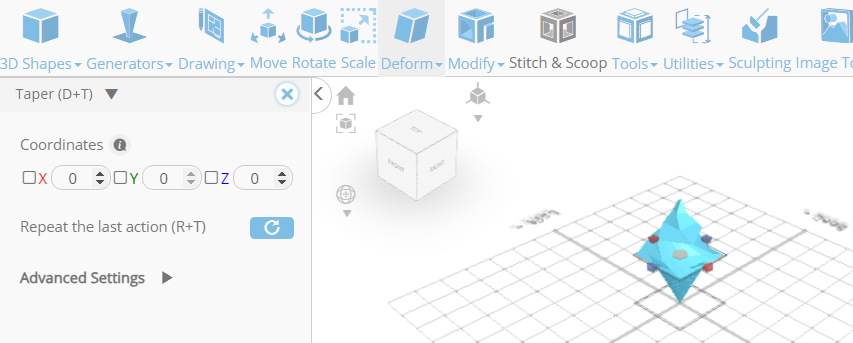

From the Deform Category on the Toolbar choose Taper. Set x to -104. Set z to -104

Click ‘x’ to close Transformation panel

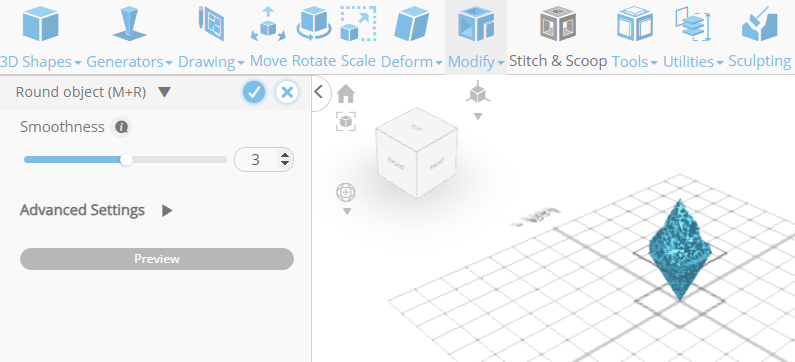

From the Modify Category on the Toolbar choose Round object. Set Smoothness to 3

Click to finalize Round object

Click on mesh-4 to select it. Click on mesh-8 to deselect it

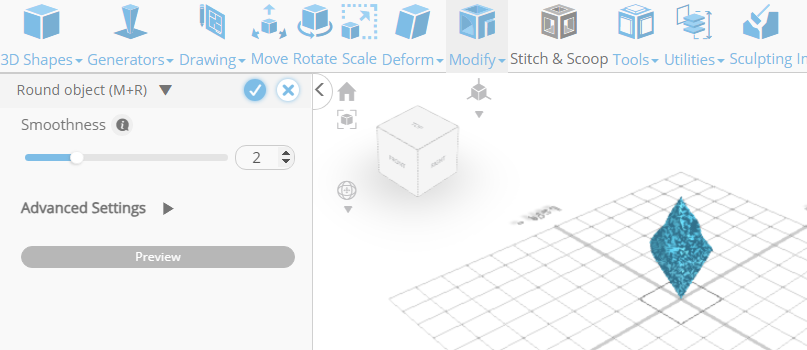

From the Modify Category on the Toolbar choose Round object. Set Smoothness to 2

Click to finalize Round object

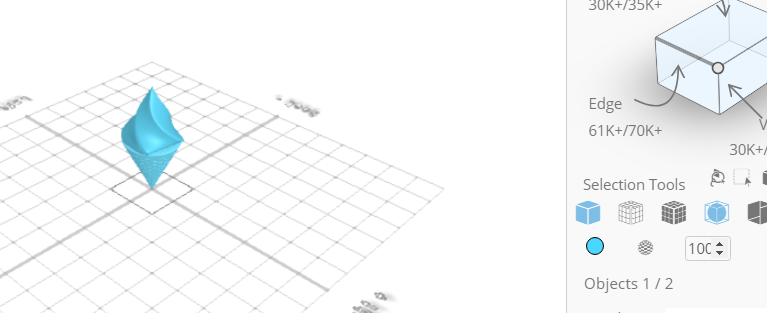

Click Smooth button to enable smooth rendering

Complete!

The interactive tutorial for this article can be accessed here;

https://www.selfcad.com/tutorials/s3q115h1h1o5l3f581b1g2s3m703z4w5i2h1
