How to DIY a Gatling Gun-Style Voice-Controlled Wi-Fi Speaker

Hey guys, we launched a project to Kickstarter days ago - ReSpeaker. And this project is based on ReSpeaker.

There are many instructables/tutorials showing how to DIY a speaker, but none of them have shown how to DIY a Voice-Controlled Wi-Fi Speaker, not even to mention that it also comes with an awesome appearance. In this instructable we will be showing how to use ReSpeaker - an open modular voice-enabled development board to make your own Gatling Gun-Style smart wireless speaker.

Fastener Parts：

• M3*25 Pillars —— 6 PCS
• M3*40 Pillars —— 6 PCS
• M3*90 Pillars —— 6 PCS
• M2*10 Pillars —— 3 PCS
• M3*8 Screws —— 12 PCS
• M3*6 Screws —— 2 PCS
• M3* 8 Tapping Screws —— 5 PCS
• M2*6 Screws —— 6 PCS
• M3 Nuts —— 2 PCS

Material：

• Acrylic panels
• Acrylic tube
• Mesh Iron sheet

Hardware：

• Audio amplifier board Power
• Adapter Audio cable
• Respeaker

Tool:

• Screw Driver

Use 2 M3*6 screws and 2 M3 nuts Fixed the Audio amplifier board, Note that there may be many holes on the amplifier board, but we only need two of them.

1. Installation M3 screws and M3 × 25 pillars in the base plate
2. Installation mesh iron sheets

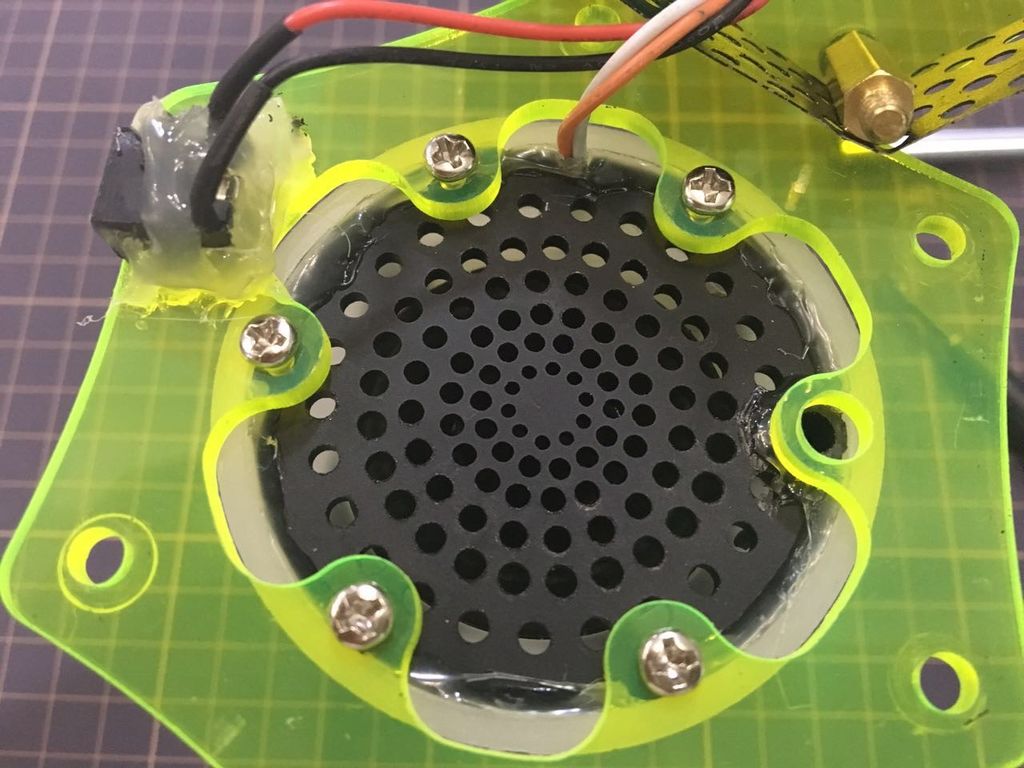

Use M3* 8 Tapping Screws fixed the sound chamber and Acrylic panels.

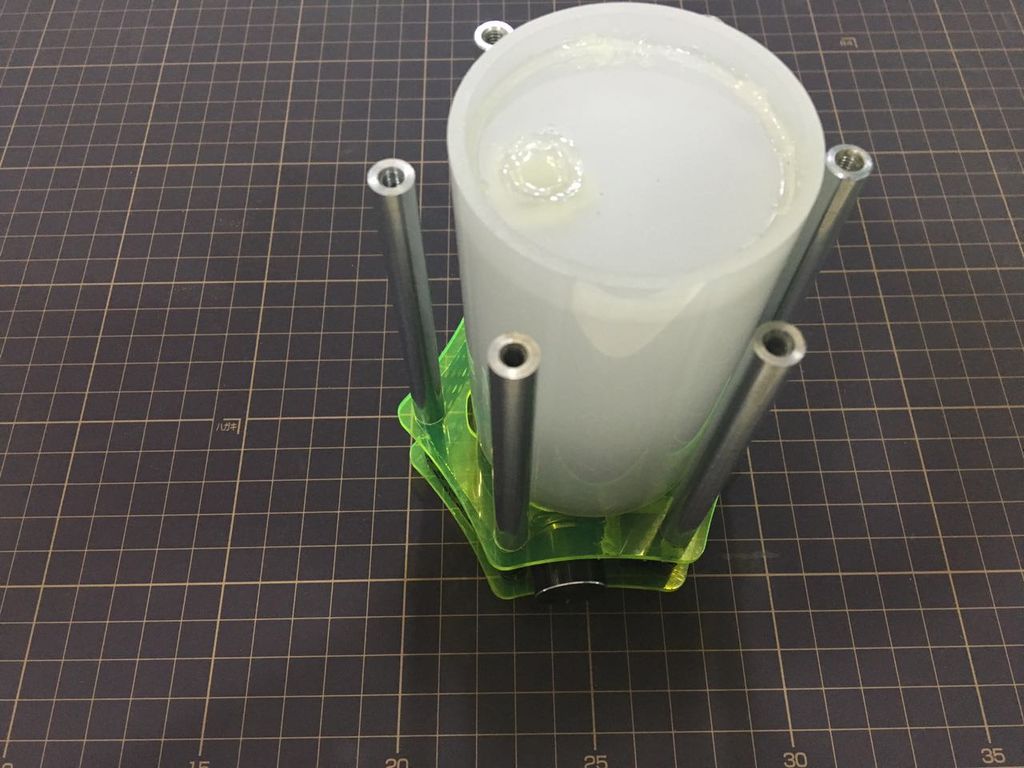

Fixed M3*90 pillars, then install the acrylic plate, and then fixed the M3*40 pillars.

Use M2*10 pillars and M2 screw fix respeaker to acrylic panel

Put respeaker to the top

Put the mesh iorn sheet around the pillars, and use M3 screw fixed the acrylic panel.

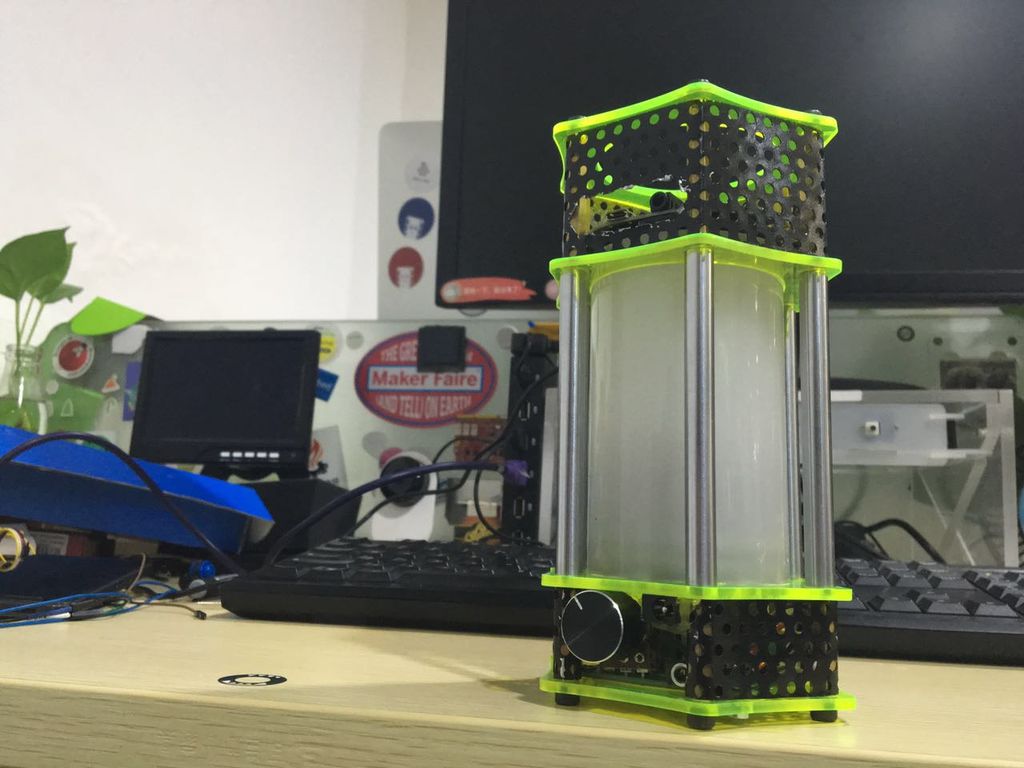

Gatling gun sideways put really like ah ~ ~

But honestly, the sound quality to be improved ~~~
