How to Control Level With Oled Display and Arduino

by cristinepotu7171 in Circuits > Arduino

932 Views, 3 Favorites, 0 Comments

How to Control Level With Oled Display and Arduino

Arduino Simple Project!
In this tutorial we see how control 3 level outpus with Arduino, Oled dispaly scale and push buttons.


Supplies

download (8).jpg
download (5).jpg
  1. Arduino Nano board
  2. 3xLED
  3. 5X1K resistors
  4. Oled Display 64x128
  5. 2x push buttons

Schematic Diagram

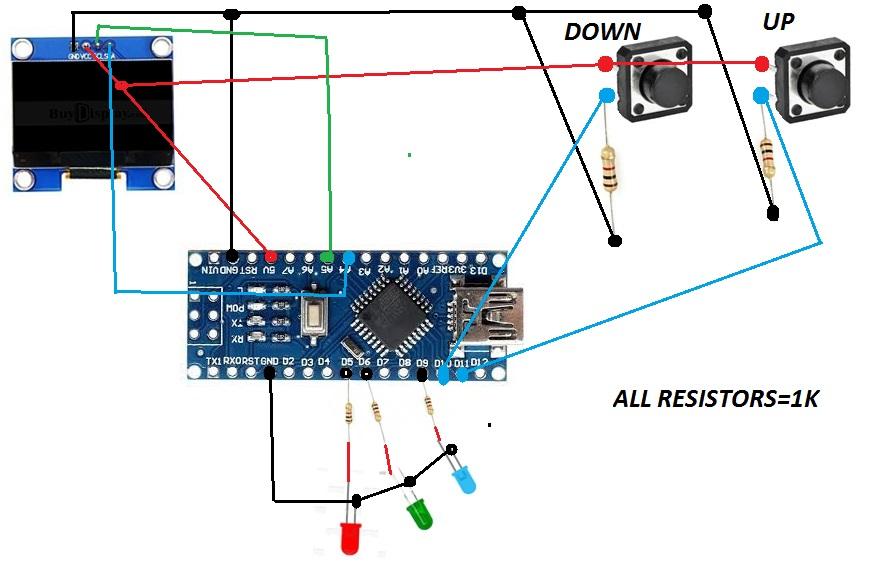

Make the connections of the components according to the diagram below


Wiring and Construction

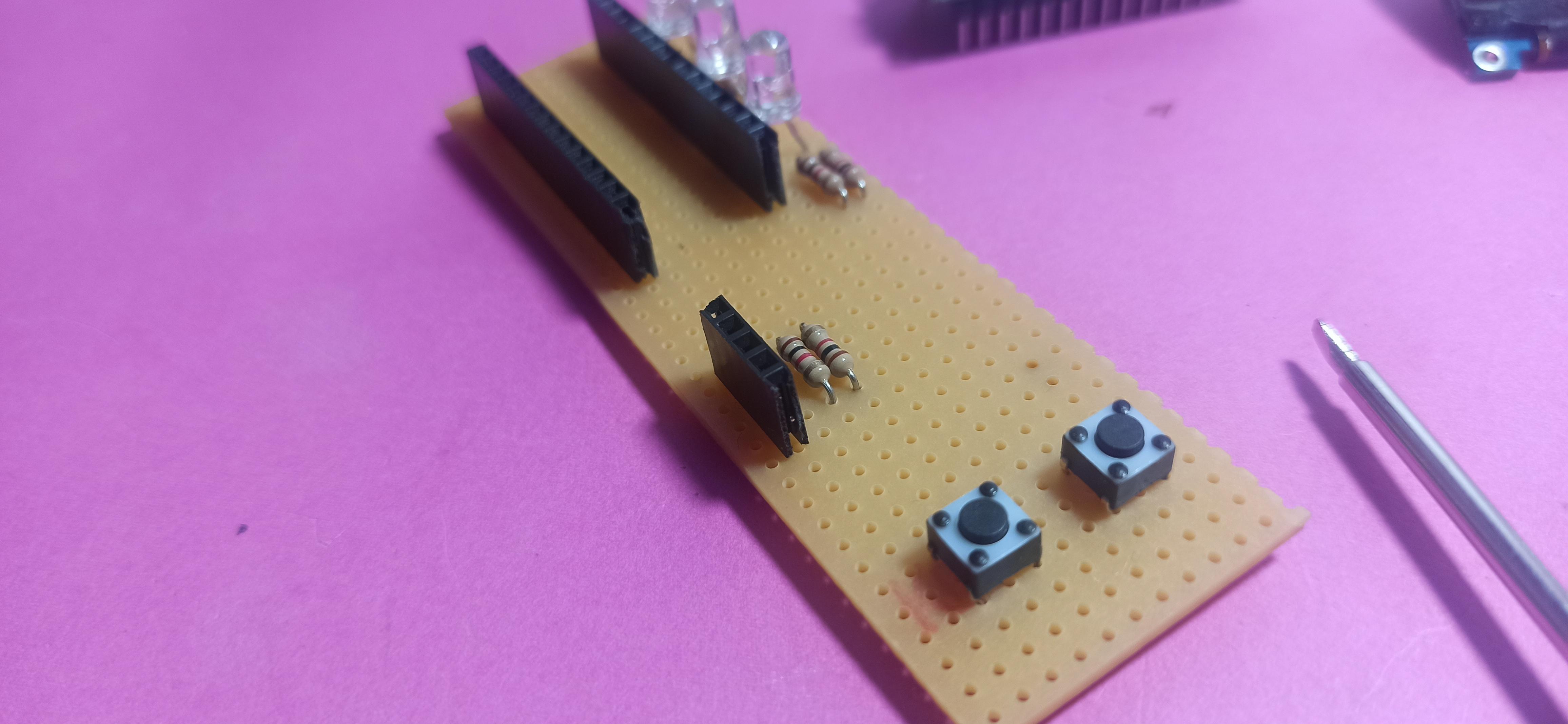

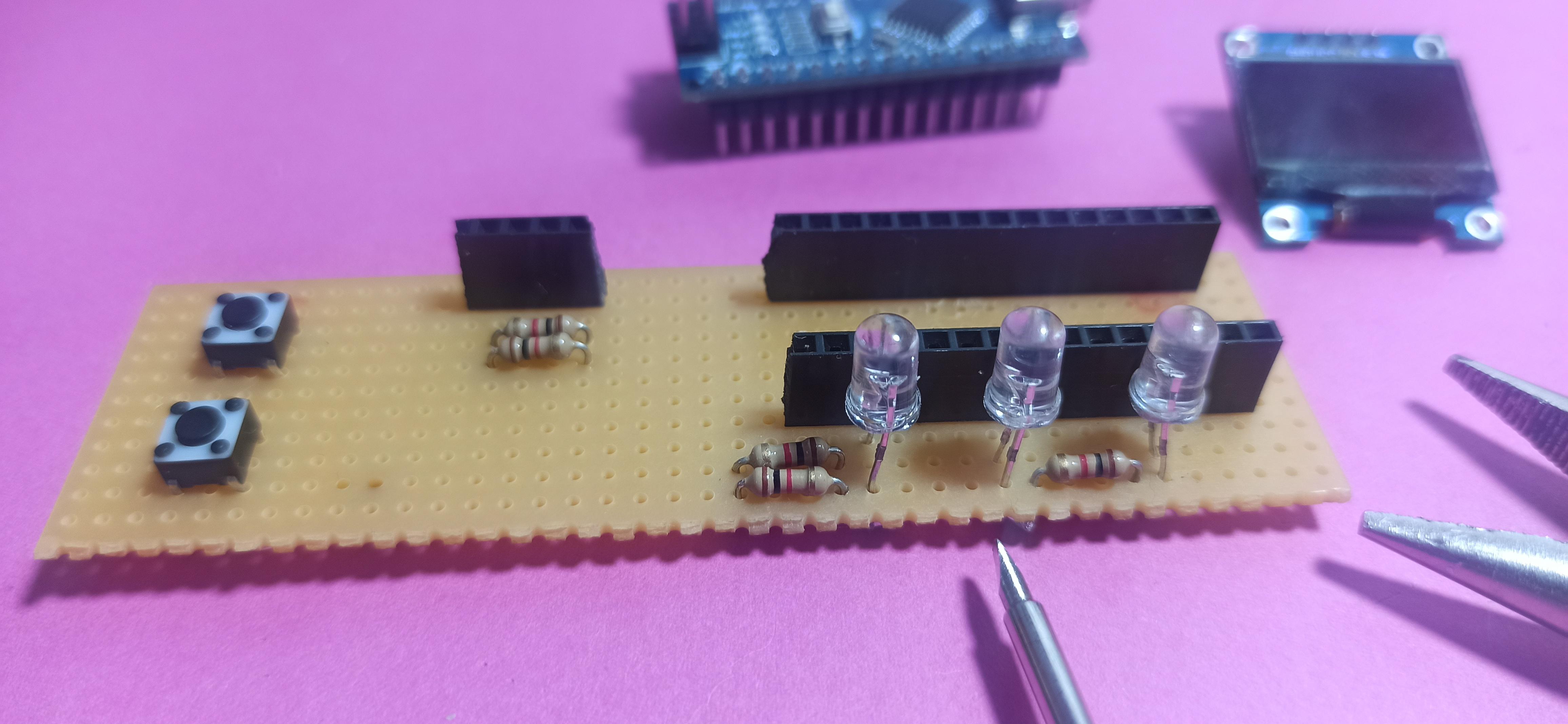

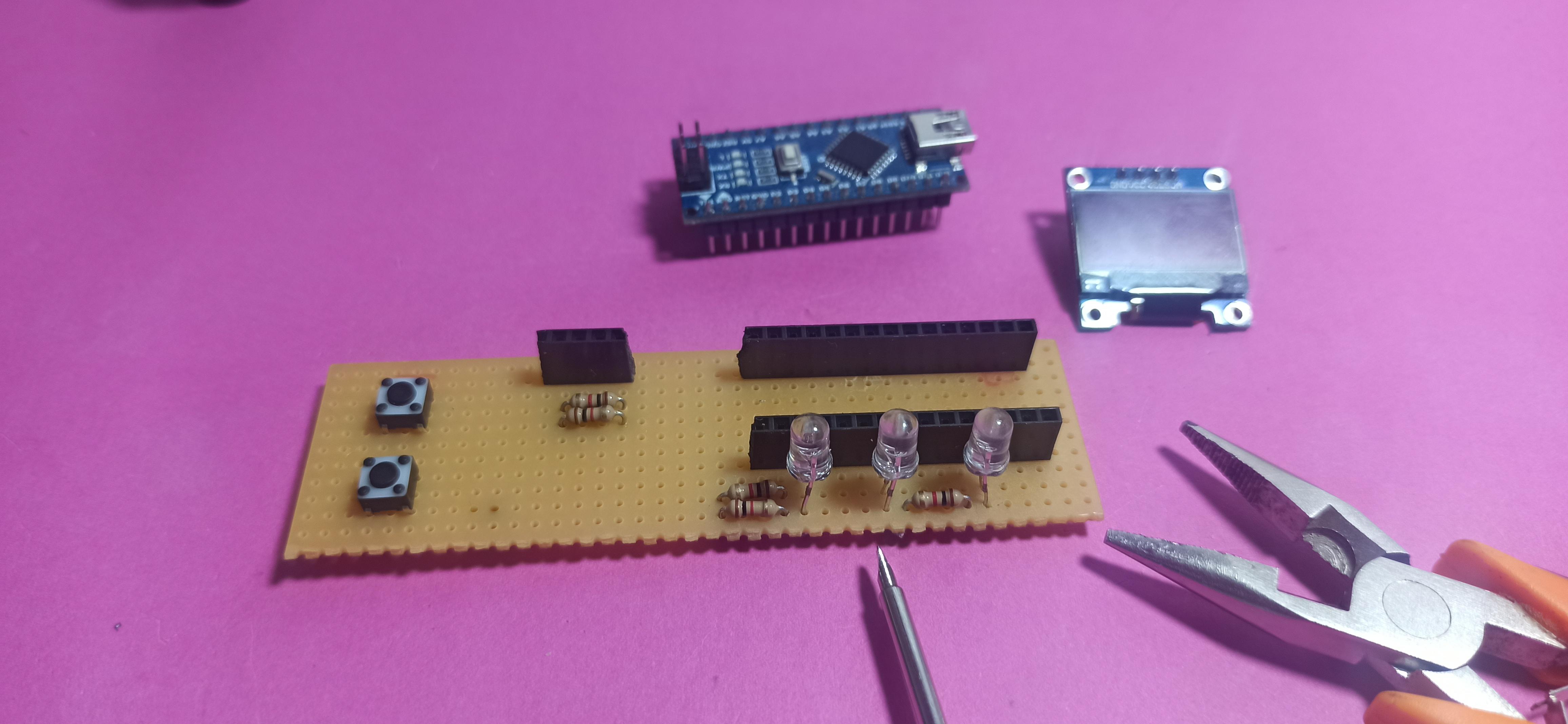

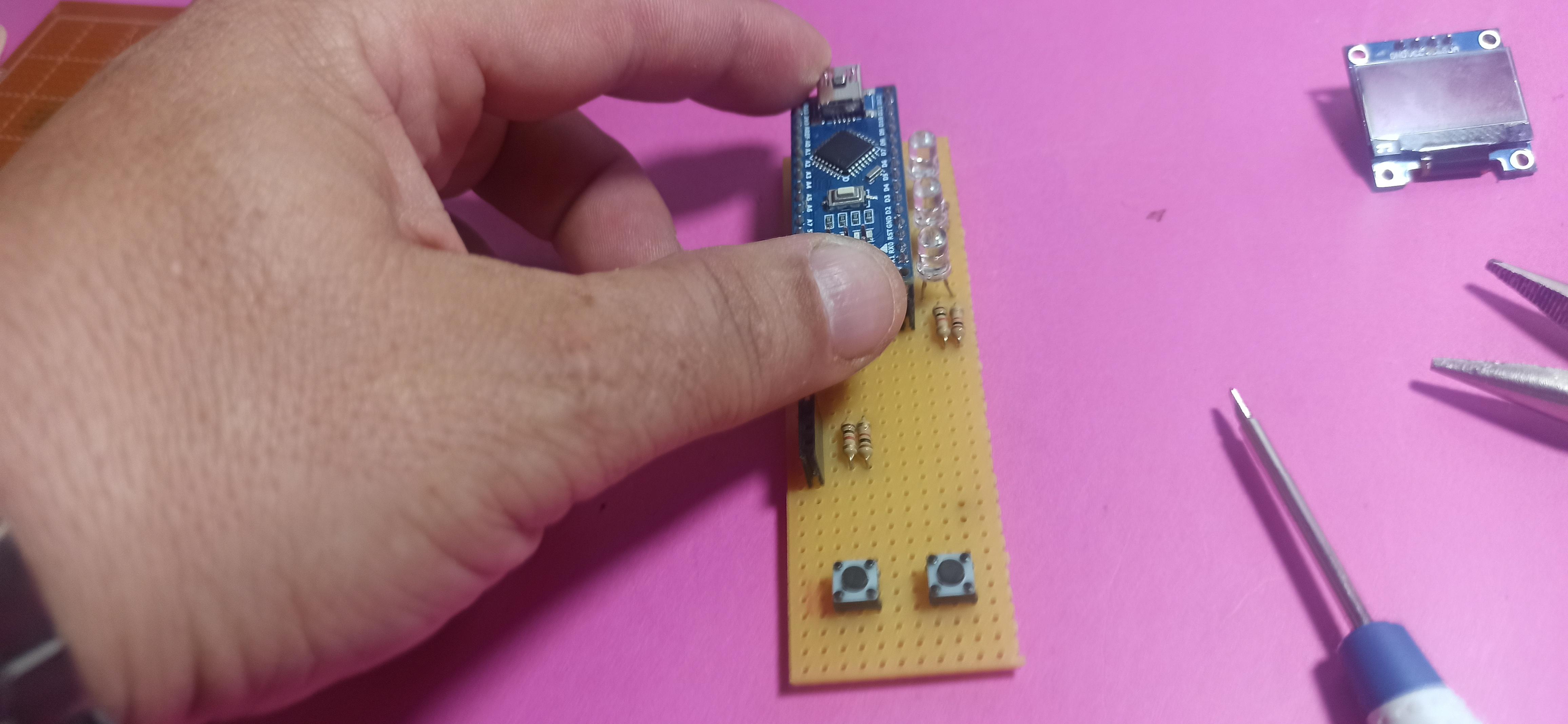

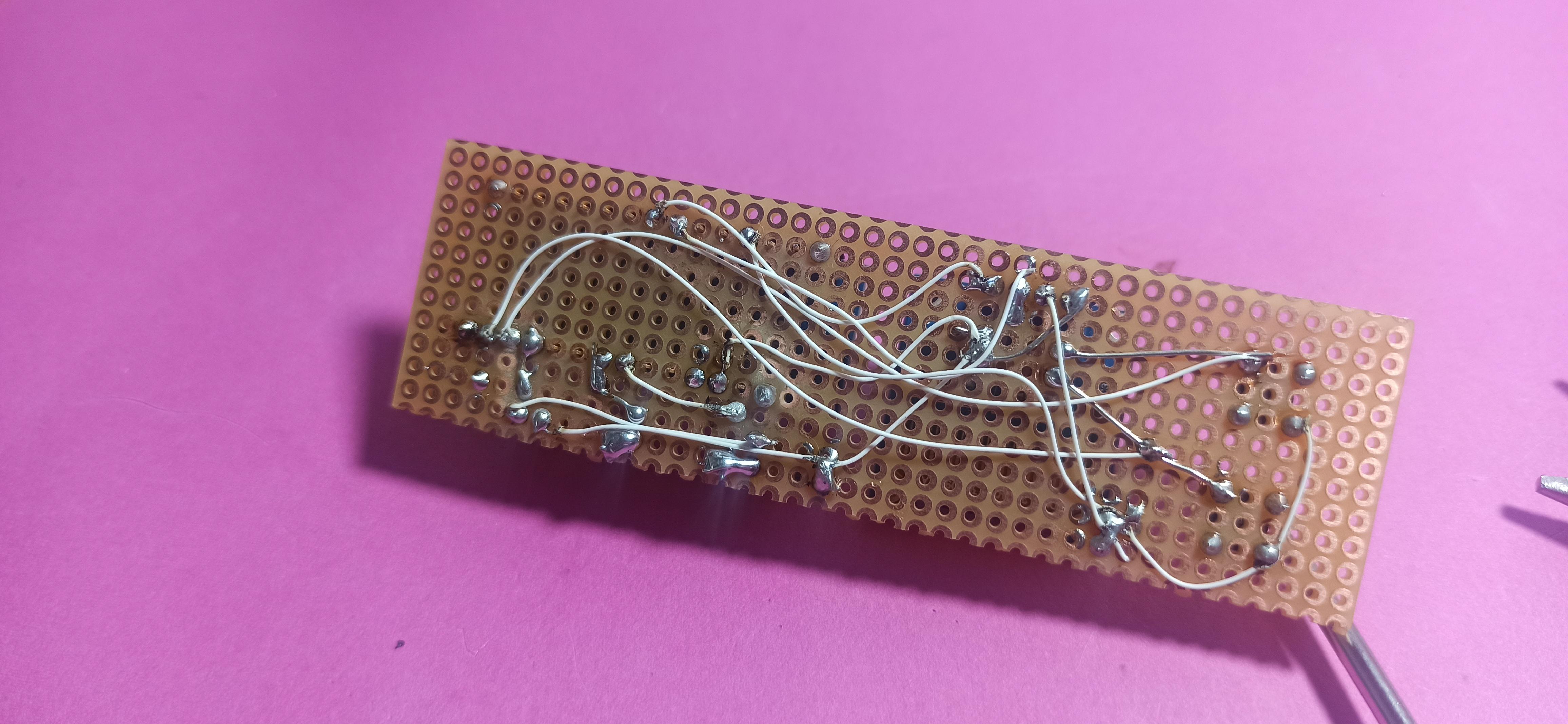

In this step we make the connections on the wiring, assemble the components and check the correctness of the connections.


Upload Software in Arduino

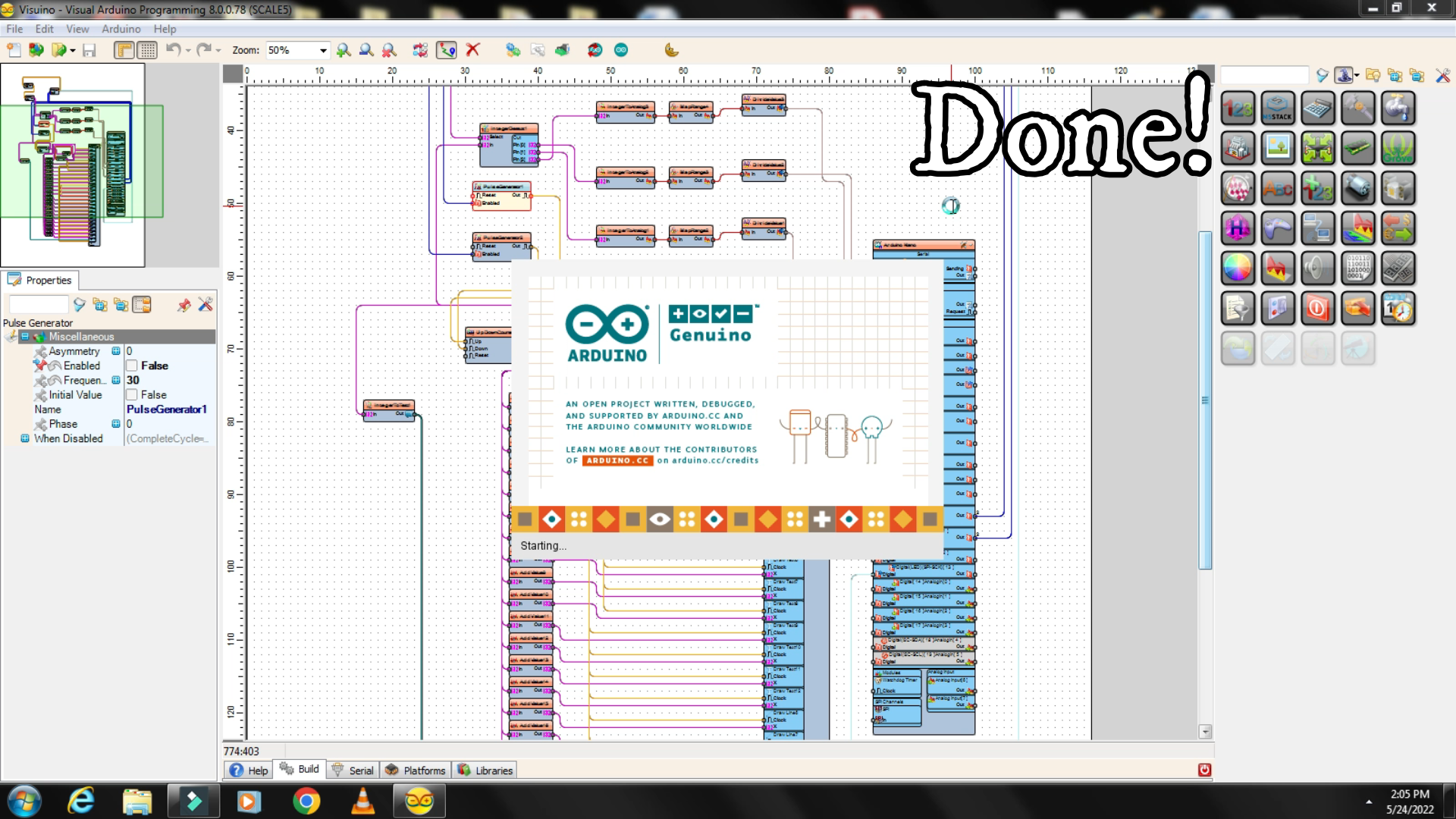

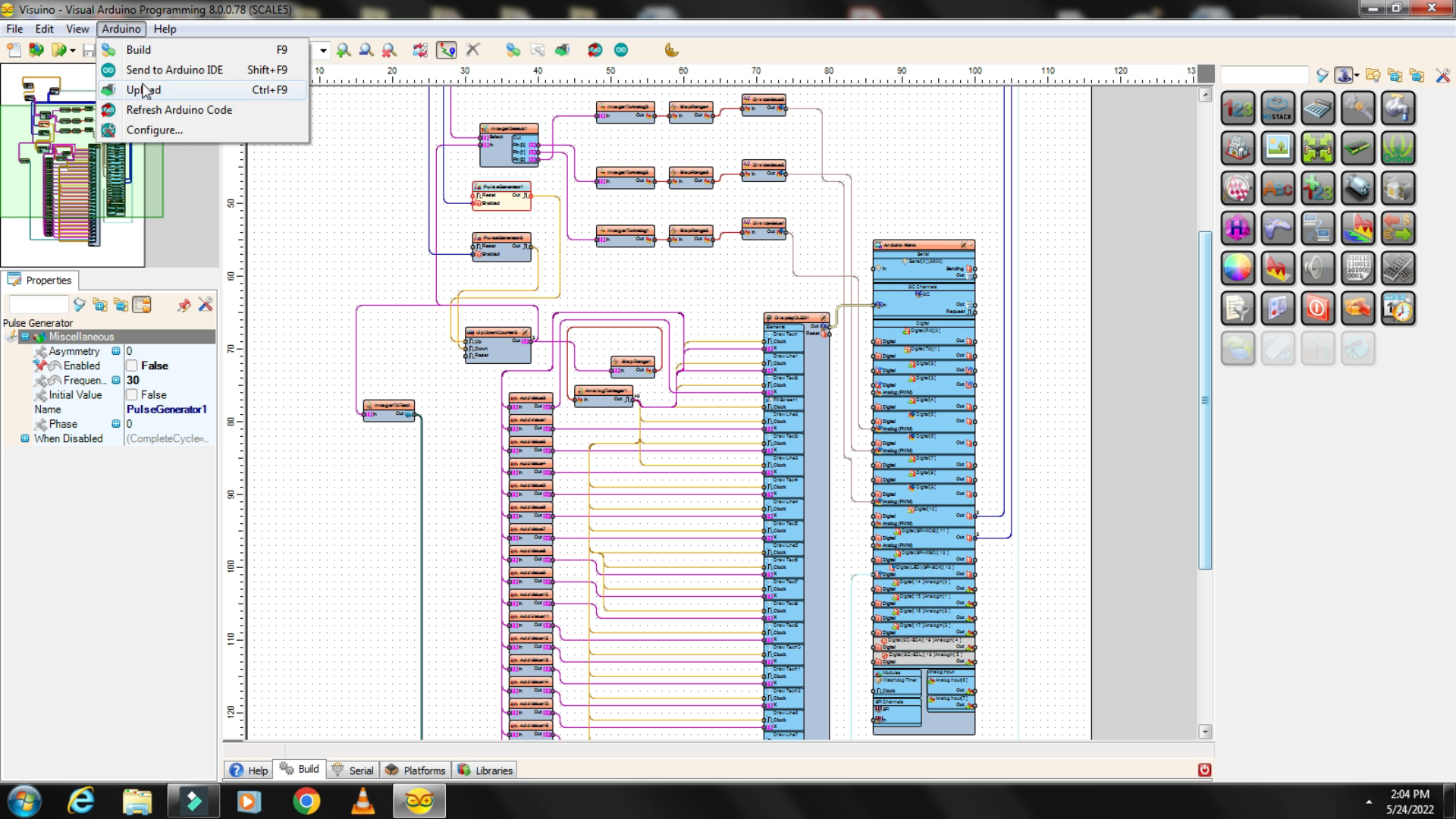

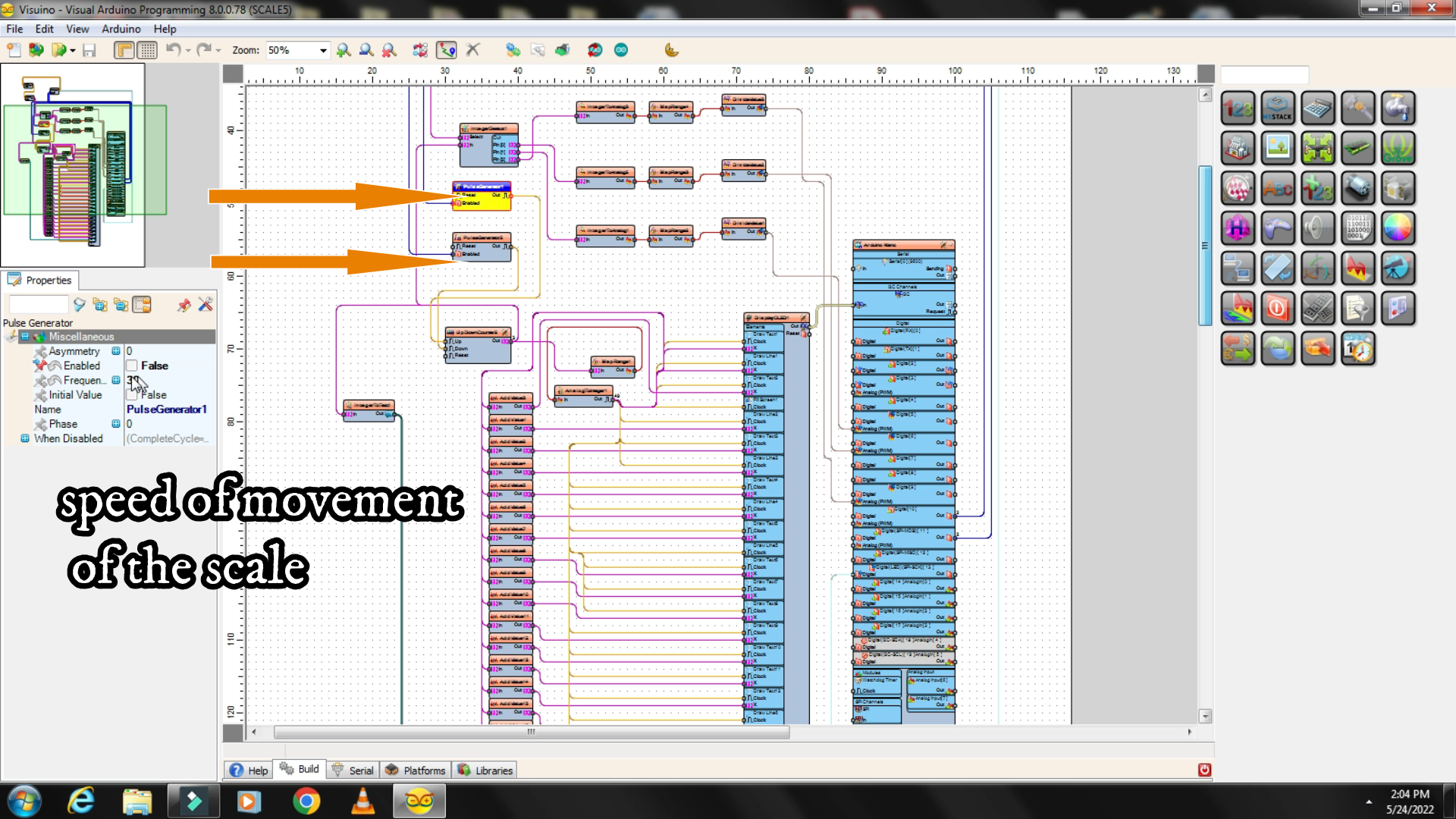

In this step, upload the code in Arduino board using Visuino. Visuino download : https://www.visuino.com/download
Code in atachament, Visuino and INO(sketch) format.

Downloads

SCALE5.visuino
Generated.ino

Start the Device

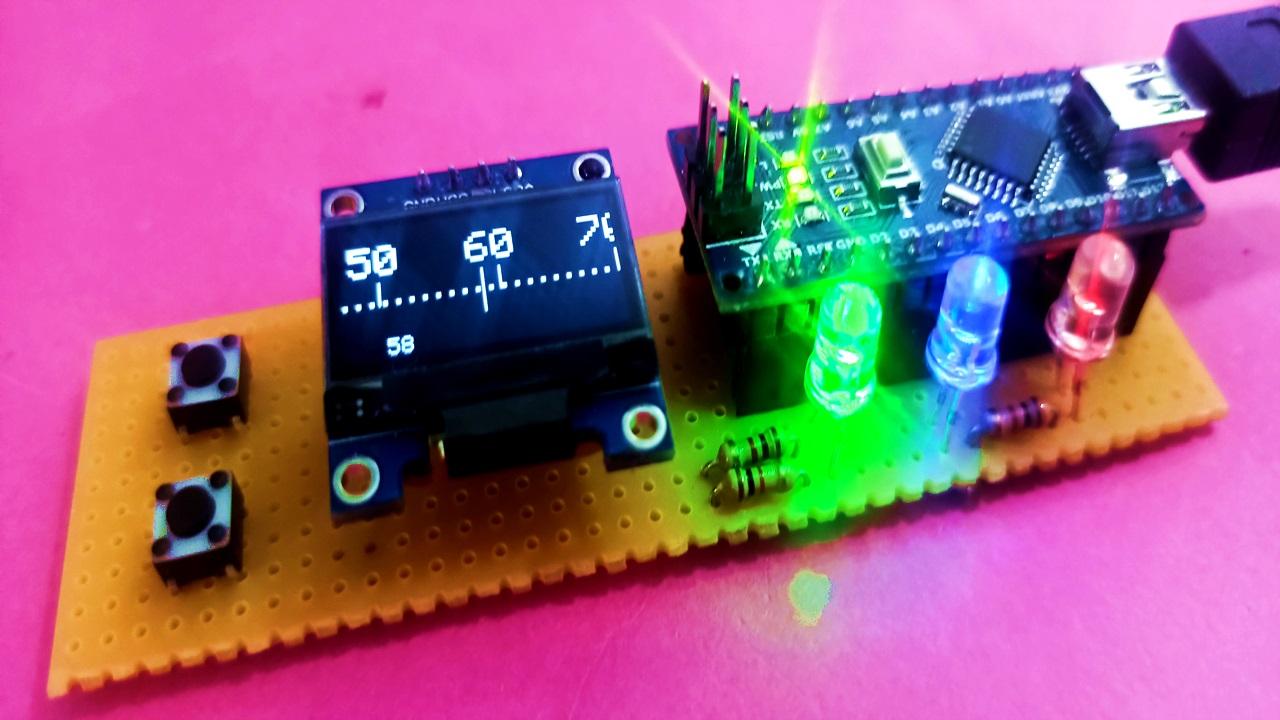

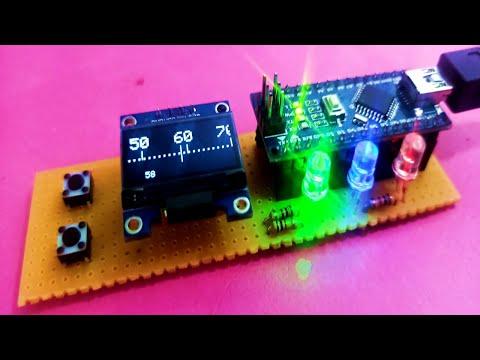

Finally we power the device. We press the "up" button and the display comes into operation displaying the scale. We move the scale from the 2 buttons in descending or ascending direction. Pressing both buttons, we move the output  to another pin.I hope you like my project, there will be other interesting ones. Good luck!
