How to Control Bulb by Using Arduino UNO and Single Channel 5V Solid State Relay Module

Description:

Compares with the traditional mechanical relay, the Solid State Relay (SSR) has many advantages: it has a longer life, with a much higher turn on/off speed and no noise. Besides, it also has better resistance to vibration and mechanical shock, and better moisture proof performance.

Specification:

• Control Voltage:5V
• Static Current:0mA
• Working Current:13.8mA
• Size: 25mm x 34mm x 25mm (Length*Width*Height)
• Input voltage: 5V DC
• Maximum Output Current: 2A
• Maximum Output Voltage: 240V AC
• Input Voltage of Control Signal: 0-2.5V (low level state), the relay will be on; 3-5V (high level state), the relay will be off.
• Triggered at low level

The photo above shows item needed in this tutorial:

1. Bulb.

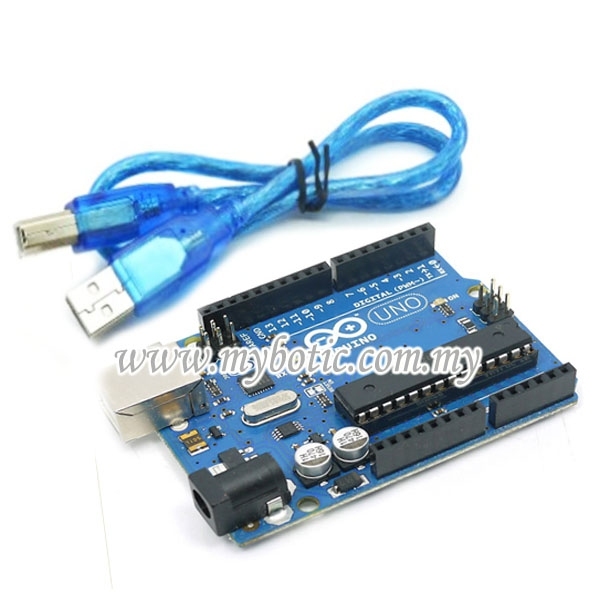

2. Arduino UNO.
3. Bongkah.
4. Single Channel 5V Solid State Relay Module.
5. Jumper Wire
