How to Connect Wireless Charger for Any Smartphones

wireless charger samsung.jpg

Wireless Charging
has had a hit a missing relationship with the mobile industry, dipping in and out of product ranges and flitting between spec sheet feature and accessory status. 2015 saw technologies mature and a major merger between A4WP and PMA, which leaves the wireless charging industry in an interesting place going forward.

As is stands, there are currently only two major groups that have shipped mobile devices containing their wireless charging technology – the Wireless Power Consortium and the AirFuel Alliance (formerly A4WP and PMA). However, there are a number of other smaller groups and businesses looking to promote their own more unique technologies as well.

Wireless Charger


Hellow dear friends today i will show how easy is to convert any phone into a wireless charging phone

with the help of some cheap components that you can find on Amazon,eBay and online site like www.gearbest.com.

Inductive charging (also known as wireless charging) uses an electromagnetic field to transfer energy between two objects through electromagnetic induction. This is usually done with a charging station. Energy is sent through an inductive coupling to an electrical device, which can then use that energy to charge batteries or run the device.
Induction chargers use an induction coil to create an alternating electromagnetic field from within a charging base, and a second induction coil in the portable device takes power from the electromagnetic field and converts it back into electric current to charge the battery. The two induction coils in proximity combine to form an electrical transformer. Greater distances between sender and receiver coils can be achieved when the inductive charging system uses resonant inductive coupling

Components Needed


Ok friends so let's start with components needed:

The Ampere app from

https://play.google.com/store/apps/details?id=com....

For iPhone 6/6s and below:
Wireless transmitter +receiver kit http://www.gearbest.com/power-banks/pp_513684.htm...

for Samsung Wireless transmitter http://www.gearbest.com/power-banks/pp_589758.htm... or http://www.gearbest.com/power-banks/pp_589758.htm...

Wireless receiver http://www.gearbest.com/power-banks/pp_591439.htm... or http://www.gearbest.com/power-banks/pp_591439.htm...

Now you decided on what device you will install the wireless receiver so will proceed to the mounting of the receiver

Start Assembly the Receiver


The hole wireless charger consists of two components the transmitter and the receiver

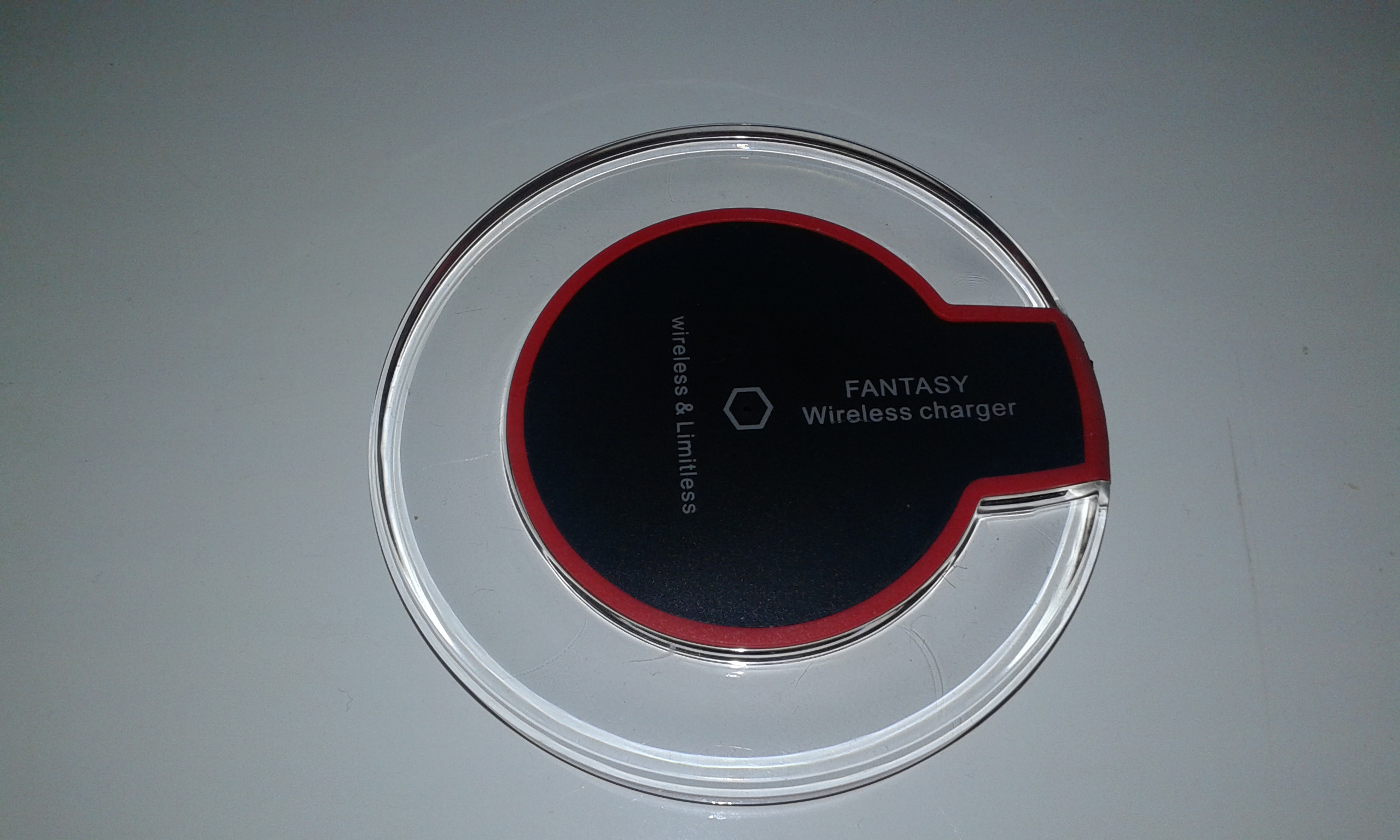

for the transmitter, which is the round transparent nice looking thing we need a USB source

it can be the phone original micro USB cable, the USB from a laptop with the micro USB connector, a power bank

and so on.The receiver is the blue and white thing with a thin micro USB connector which is going to be installed on

the smartphone case if there is enough room, or we can put in a rubber case attached to the phone

is pretty easy to install as you see in the pictures above.

Testing the Charger


After we have installed the wireless charger we will test the Ampere app with different power source

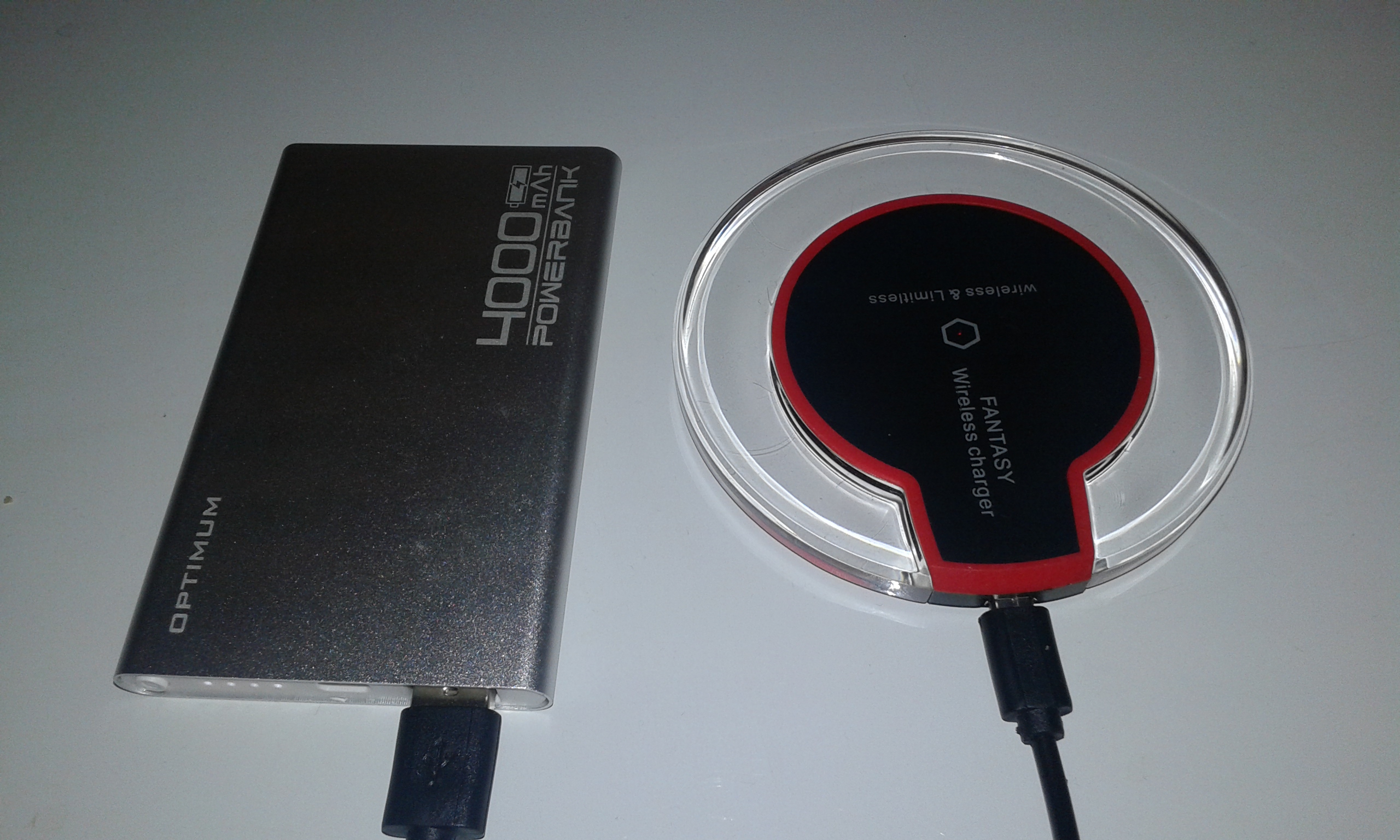

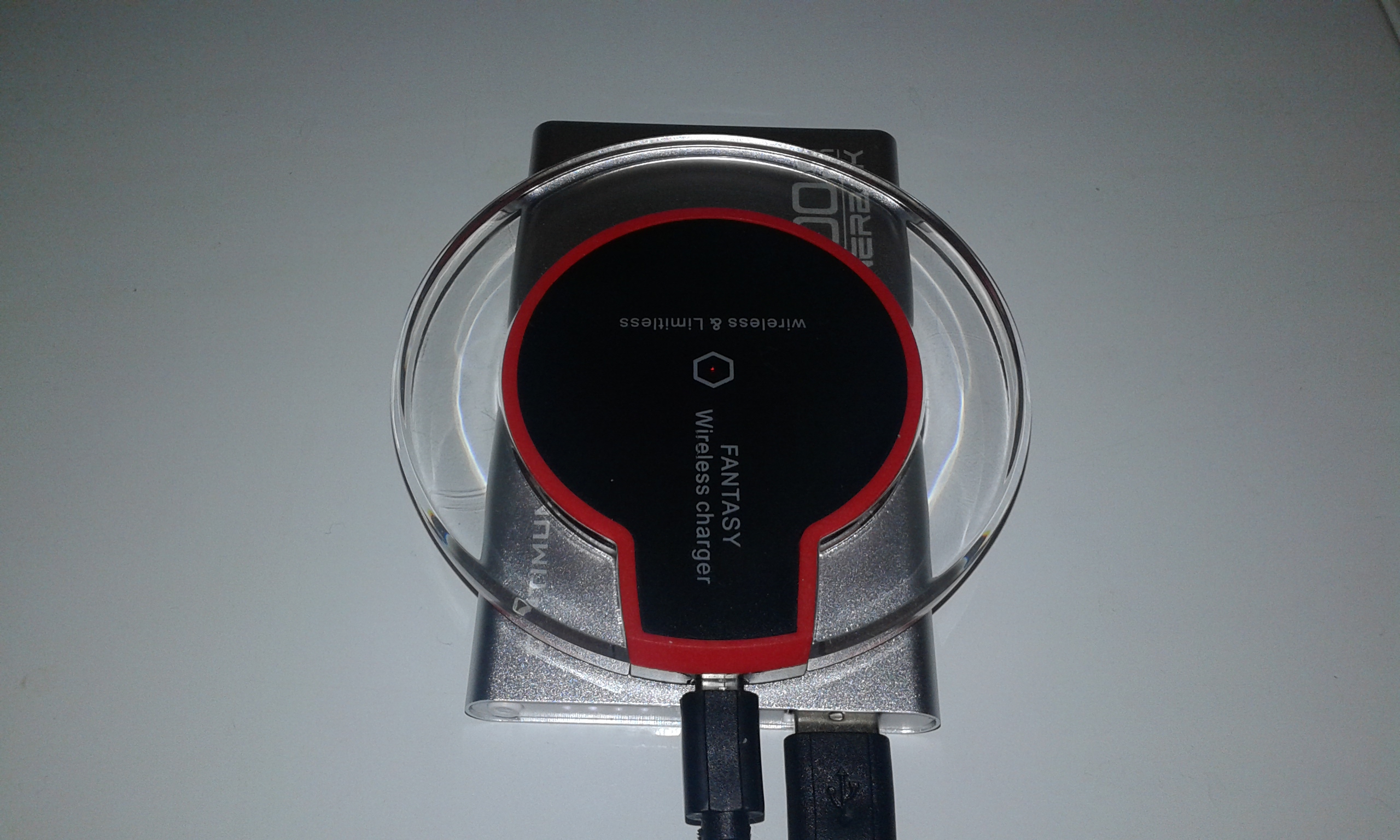

and we will choose one that is convenient for the phone in the video you can see i did test a homemade power bank, a commercial 4000mAh Powerbank, and the original charger Samsung Galaxy grand duo

and my conclusion is the homemade power bank delivered the most amp to the charger 560mAh

but maybe you will like others power supplies

Enjoy Wire-less Charger

Wireless charger samsung how to do it wright #wireless charger review

If you want to support this channel please visit:
https://www.patreon.com/user?u=5137443

If you like and find this video useful please visit the channel https://www.youtube.com/noskillsrequired

Elefull Qi Wireless Charger Receiver V8 OTG Micro USB Charging Adapter Receptor Receiver Pad For Samsung Nokia Android(Micro USB Wireless charging Receiver)

Thanks for watching No skills required is here !!!
