How to Connect BMP-280 to ESP32: Get Pressure, Temperature, and Altitude

BMP280 is a great beginner sensor for the ESP32 to start creating some cool projects. It can measure pressure and temperature accurately, note that pressure can be converted to altitude with the right calibration. This sensor can be used on drones, weather stations, and various other applications in real life due to its accuracy. It is also incredibly cheap and can be bought pre-soldered and ready to be plugged in here.

In this tutorial, we quickly show you how to set it up with the ESP32 which is a popular microcontroller. This will take only a few minutes.

-----

Before we delve into the topic, we invite you to support our ongoing efforts and explore our various platforms dedicated to enhancing your IoT projects:

• Subscribe to our YouTube Channel: Stay updated with our latest tutorials and project insights by subscribing to our channel at YouTube - Shilleh.
• Support Us: Your support is invaluable. Consider buying me a coffee at Buy Me A Coffee to help us continue creating quality content.
• Hire Expert IoT Services: For personalized assistance with your IoT projects, hire me on UpWork.

Explore our Stores for Premium Products:

• ShillehTek Store: Access exclusive discounts on Arduino, Raspberry Pi sensors, and pre-soldered components at our ShillehTek Website.

Shop on Amazon:

• ShillehTek Amazon Store - US
• ShillehTek Amazon Store - Canada
• ShillehTek Amazon Store - Japan

BMP280 PreSoldered

ESP32

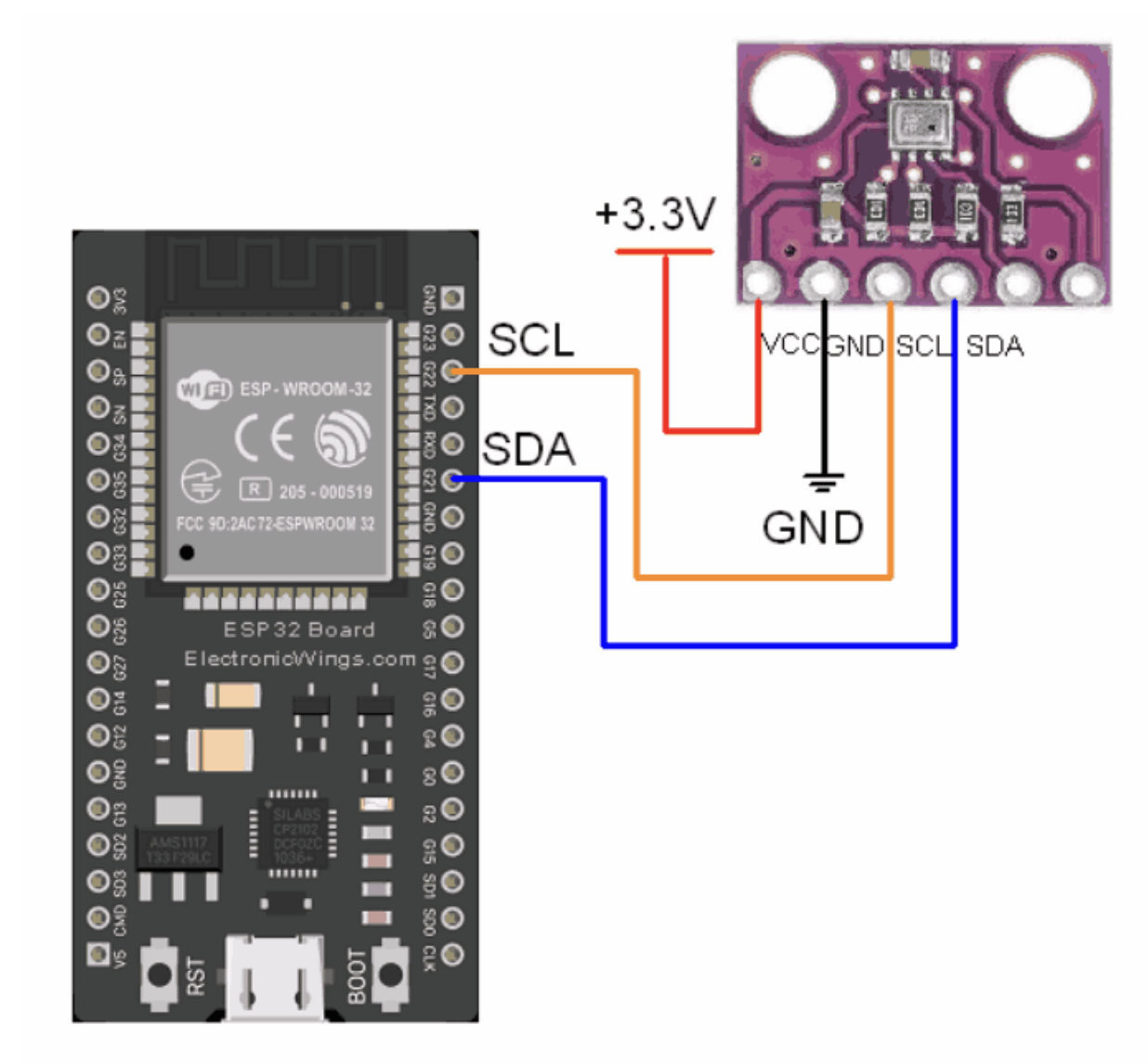

Setup your jumper wires as shown in the diagram, you only need 4.

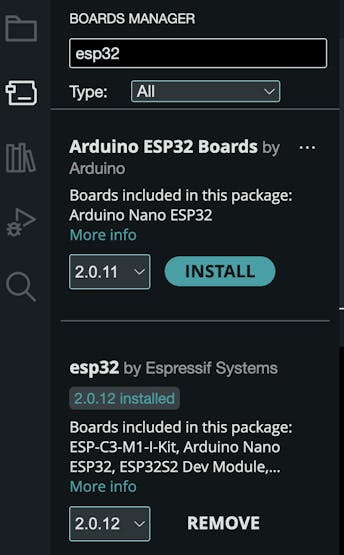

In the boards manager in Arduino IDE, download the esp32 boards by Espressif Systems.

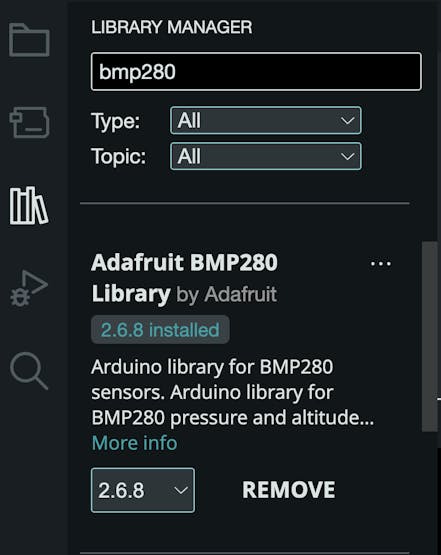

Followed by downloading the BMP280 library by Adafruit:

You should then connect to the board on your serial port and ESP32 Dev Module in the Tools > Board.

Adafruit libraries come with amazing example code. To view the code in this tutorial go to File > Examples > Adafruit BMP280 Library > bmp280test

Here is the code for your reference.

/***************************************************************************
  This is a library for the BMP280 humidity, temperature & pressure sensor

  Designed specifically to work with the Adafruit BMP280 Breakout
  ----> http://www.adafruit.com/products/2651

  These sensors use I2C or SPI to communicate, 2 or 4 pins are required
  to interface.

  Adafruit invests time and resources providing this open source code,
  please support Adafruit andopen-source hardware by purchasing products
  from Adafruit!

  Written by Limor Fried & Kevin Townsend for Adafruit Industries.
  BSD license, all text above must be included in any redistribution
 ***************************************************************************/

#include <Wire.h>
#include <SPI.h>
#include <Adafruit_BMP280.h>

#define BMP_SCK  (13)
#define BMP_MISO (12)
#define BMP_MOSI (11)
#define BMP_CS   (10)

Adafruit_BMP280 bmp; // I2C
//Adafruit_BMP280 bmp(BMP_CS); // hardware SPI
//Adafruit_BMP280 bmp(BMP_CS, BMP_MOSI, BMP_MISO,  BMP_SCK);

void setup() {
  Serial.begin(9600);
  while ( !Serial ) delay(100);   // wait for native usb
  Serial.println(F("BMP280 test"));
  unsigned status;
  //status = bmp.begin(BMP280_ADDRESS_ALT, BMP280_CHIPID);
  status = bmp.begin(0x76);
  if (!status) {
    Serial.println(F("Could not find a valid BMP280 sensor, check wiring or "
                      "try a different address!"));
    Serial.print("SensorID was: 0x"); Serial.println(bmp.sensorID(),16);
    Serial.print("        ID of 0xFF probably means a bad address, a BMP 180 or BMP 085\n");
    Serial.print("   ID of 0x56-0x58 represents a BMP 280,\n");
    Serial.print("        ID of 0x60 represents a BME 280.\n");
    Serial.print("        ID of 0x61 represents a BME 680.\n");
    while (1) delay(10);
  }

  /* Default settings from datasheet. */
  bmp.setSampling(Adafruit_BMP280::MODE_NORMAL,     /* Operating Mode. */
                  Adafruit_BMP280::SAMPLING_X2,     /* Temp. oversampling */
                  Adafruit_BMP280::SAMPLING_X16,    /* Pressure oversampling */
                  Adafruit_BMP280::FILTER_X16,      /* Filtering. */
                  Adafruit_BMP280::STANDBY_MS_500); /* Standby time. */
}

void loop() {
    Serial.print(F("Temperature = "));
    Serial.print(bmp.readTemperature());
    Serial.println(" *C");

    Serial.print(F("Pressure = "));
    Serial.print(bmp.readPressure());
    Serial.println(" Pa");

    Serial.print(F("Approx altitude = "));
    Serial.print(bmp.readAltitude(1011.9)); /* Adjusted to local forecast! */
    Serial.println(" m");

    Serial.println();
    delay(2000);
}

This will give you a test code to start getting values. Simply upload this to the board, but before you do make sure to add 0x76 for the I2C address.

status = bmp.begin(0x76);

Or else you will get a device not found error.

If you want to get accurate representations of altitude you need to google the sea level pressure in your area. My location is in Austin, TX I can get it from the following website https://w1.weather.gov/data/obhistory/KAUS.html

There should be similar websites in major cities.

Upload the code to your device and open the serial monitor with the correct baud rate to start seeing values.

Conclusion:

If you have the proper physical connection and modified the code with the correct I2C address you should start seeing values in your serial monitor. You can adjust the example code accordingly! If you enjoy beginner tutorials and more advanced content please be sure to subscribe to the channel! Let me know if you have any questions, and stay tuned!
