How to Clean Up Laser Burnt Wood

by JON-A-TRON in Workshop > Laser Cutting

87779 Views, 142 Favorites, 0 Comments

How to Clean Up Laser Burnt Wood


The one thing we all hate about the laser cutter: burnt edges. You mitigate this by masking the material with wide painter's tape before cutting, but even with that you still get soot coated edges. Here's an instructable on how to quickly and easily get rid of laser burn.

Tools & Materials


All you need is a little pumice liquid soap and a brush. A toothbrush would probably work best, but this fabric brush did the job for me. You can easily get the burn marks off the face of the wood with sandpaper, but it's practically impossible to get into tiny crevices with sandpaper.

The pumice granules act like sandpaper and the brush bristles allow you to reach tight spaces (just like the toothbrush companies promise in their ads) and scrape off the ashes.

Scrub Off the Soot

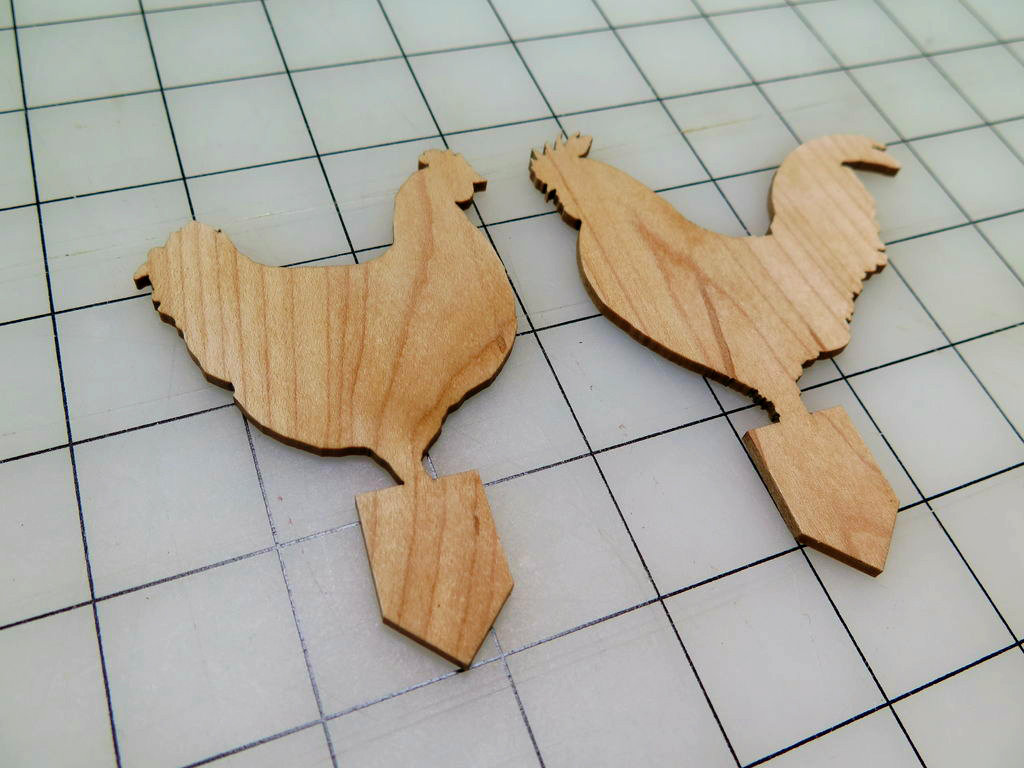

After about 2 or 3 minutes of scrubbing, the soot on the surface is completely gone, and the edges (though a bit caramelized from the heat) are no longer black- the ash layer has been scraped off. An added bonus- IT DOESN'T SMELL LIKE LASER-BURNT WOOD ANYMORE!

The pieces shown here are solid wood so there's no danger of de-lamination that might occur if you get plywood too wet, but since the only water used is the small amount in the soap itself, I doubt this would be a problem anyway.
