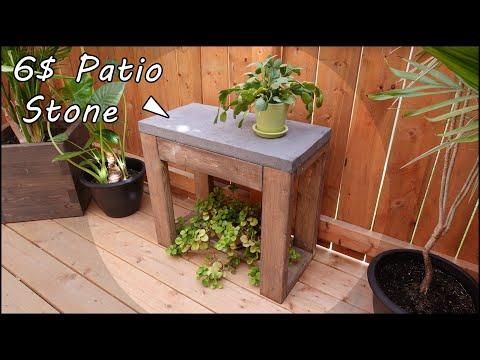

How to Build an Outdoor Wooden Side Table Out of 2x4's

How to build an outdoor wooden side table - DIY Patio Furniture

Hey Guys!

So I wanted to add another piece of furniture for my outdoor furniture set. So this time I'm building an outdoor side table out of 2x4's and a 6$ patio stone.

Supplies

- [1x] Patio Stone ( 12x24 ) Buy this at the big box store.

- [2x] 2x4x8

- Construction Adhesive

Cutting the Wood

how to build an outdoor wooden side table out of 2x4s diy woodworking project100.jpg

I'm using my miter saw to cut all the 2x4s to the right length. ( You could also use a circular saw ). Here's the cut list.

Assembling the Frame ( PART 1 )

how to build an outdoor wooden side table out of 2x4s diy woodworking project101.jpg
how to build an outdoor wooden side table out of 2x4s diy woodworking project102.jpg
how to build an outdoor wooden side table out of 2x4s diy woodworking project103.jpg
how to build an outdoor wooden side table out of 2x4s diy woodworking project104.jpg

First step is to assemble the front and the back of your table frame. To do so, I put some glue on both end of the 16.5" pieces, then I clamp them to two 20" pieces. I don't use any pocket holes for this build, but because I still want to use some screws, the glue will help me for the next step.

And the next step is to drill two 2½ GRK screw on both end of the 16.5" 2x4's at a 45° angle. The GRK trim head help give a clean finish look, with a minimal effort. I highly recommend those screw, but otherwise you could also use regular deck screw, but the head won't give a nice finish like the GRK ones.

Assembling the Frame ( PART 2 )

how to build an outdoor wooden side table out of 2x4s diy woodworking project105.jpg
how to build an outdoor wooden side table out of 2x4s diy woodworking project106.jpg
how to build an outdoor wooden side table out of 2x4s diy woodworking project107.jpg
how to build an outdoor wooden side table out of 2x4s diy woodworking project108.jpg

Now we assemble both parts we just made in the last step. So to connect the frond and the back of our frame, i will add four 8"¾ long pieces using some wood glue and GRK screws at a 45° angle.

Assembling the Frame ( PART 3 )

how to build an outdoor wooden side table out of 2x4s diy woodworking project109.jpg
how to build an outdoor wooden side table out of 2x4s diy woodworking project110.jpg

Last step is optional but. I add a center piece to make sure the legs will stay straight and won't warp over time. Again, I use the same process with the last 16.5" 2x4, glue + GRK trim screw at a 45° angle.

Sanding

how to build an outdoor wooden side table out of 2x4s diy woodworking project111.jpg

Sanding using #80 grit sandpaper, I remove all the prints and the imperfections. Then, I use a #120 grit sandpaper to smooth the surface before I apply the stain.

Wood Stain

how to build an outdoor wooden side table out of 2x4s diy woodworking project112.jpg
how to build an outdoor wooden side table out of 2x4s diy woodworking project113.jpg
how to build an outdoor wooden side table out of 2x4s diy woodworking project115.jpg

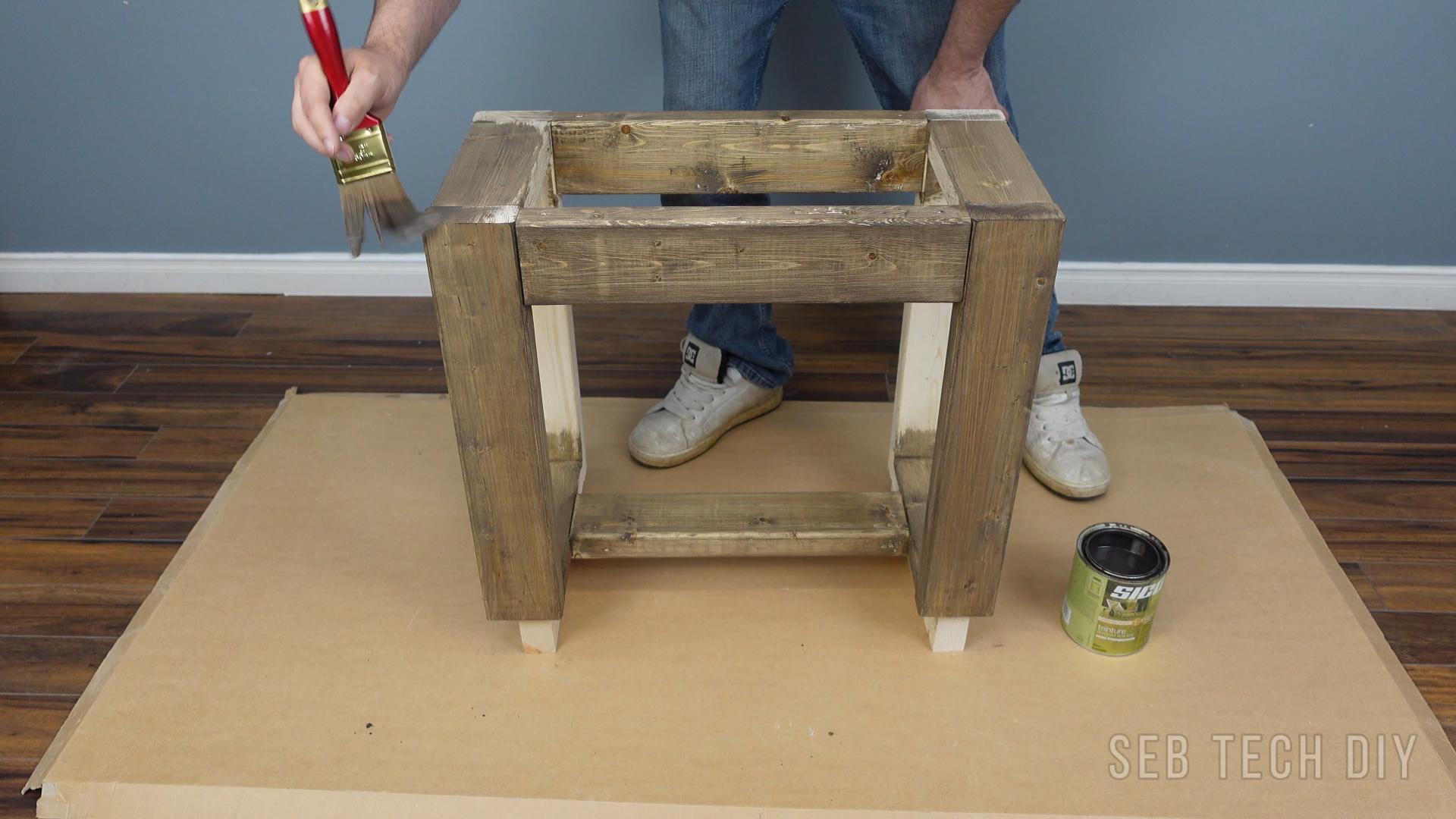

To protect my project, I apply some exterior semi-transparent wood stain. The color is called boat house. I only applied one coat and it seams enough, but anyway I have a roof over my patio so it won't rain on it. Protect your table according to your needs, location etc.

Adding the Concrete Table Top

how to build an outdoor wooden side table out of 2x4s diy woodworking project116.jpg
how to build an outdoor wooden side table out of 2x4s diy woodworking project117.jpg
how to build an outdoor wooden side table out of 2x4s diy woodworking project118.jpg

Now, it's time to add the table top. I know it's a DIY project and a lot of persons will make their own slab, so if you want to, you can, but I decided to make this project as easy as possible, so buying a patio stone from a big box store is saving me all the problems of pouring my own concrete, plus the cost. The patio stone is the same price as a concrete bag, but if I was going to pour my own concrete, I would need to add some cost for the moulding frame, maybe rebar, and it's time consuming. So finally, a 6$ patio stone was a better option for a small project like that.

It's a 12x24 patio stone, but real dimension is 11¾ x 23½

I put a bead of PL premium around the perimeter and I put the patio stone on it. No need to add some weight on the stone. the weight of the stone itself ( 33lbs ) is enough.

Wait 24 hours for the adhesive to dry, and enjoy your new side table! :)

Thanks for Watching! :-)

how to build an outdoor wooden side table out of 2x4s diy woodworking project a.jpg
how to build an outdoor wooden side table out of 2x4s diy woodworking project b.jpg
how to build an outdoor wooden side table out of 2x4s diy woodworking project c.jpg
