How to Build an Arduino Compatible Circuit

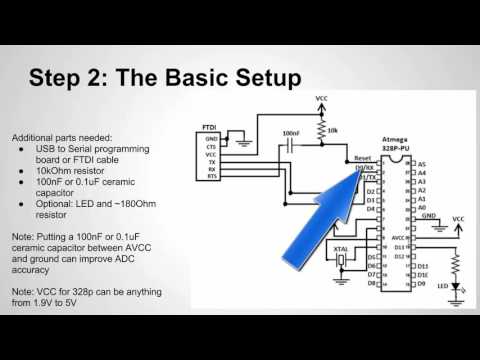

Building a Simple Arduino Compatible Circuit
File Oct 04, 10 27 04 AM.jpeg

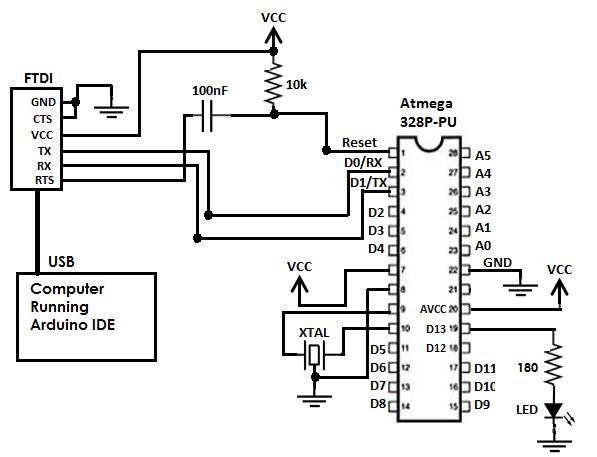

Arduino Uno Compatible Basics.png

Ever want to remove the microcontroller off the Arduino board to better integrate it into your project or design. In this Instructable we do just that with Atmel ATmega 328P MCU found on the Arduino Uno. We will look at the minimum circuit setup needed to run the 328P as well as how to still program it with the Arduino IDE. All the parts shown in this video can be purchased from forcetronics.com.
