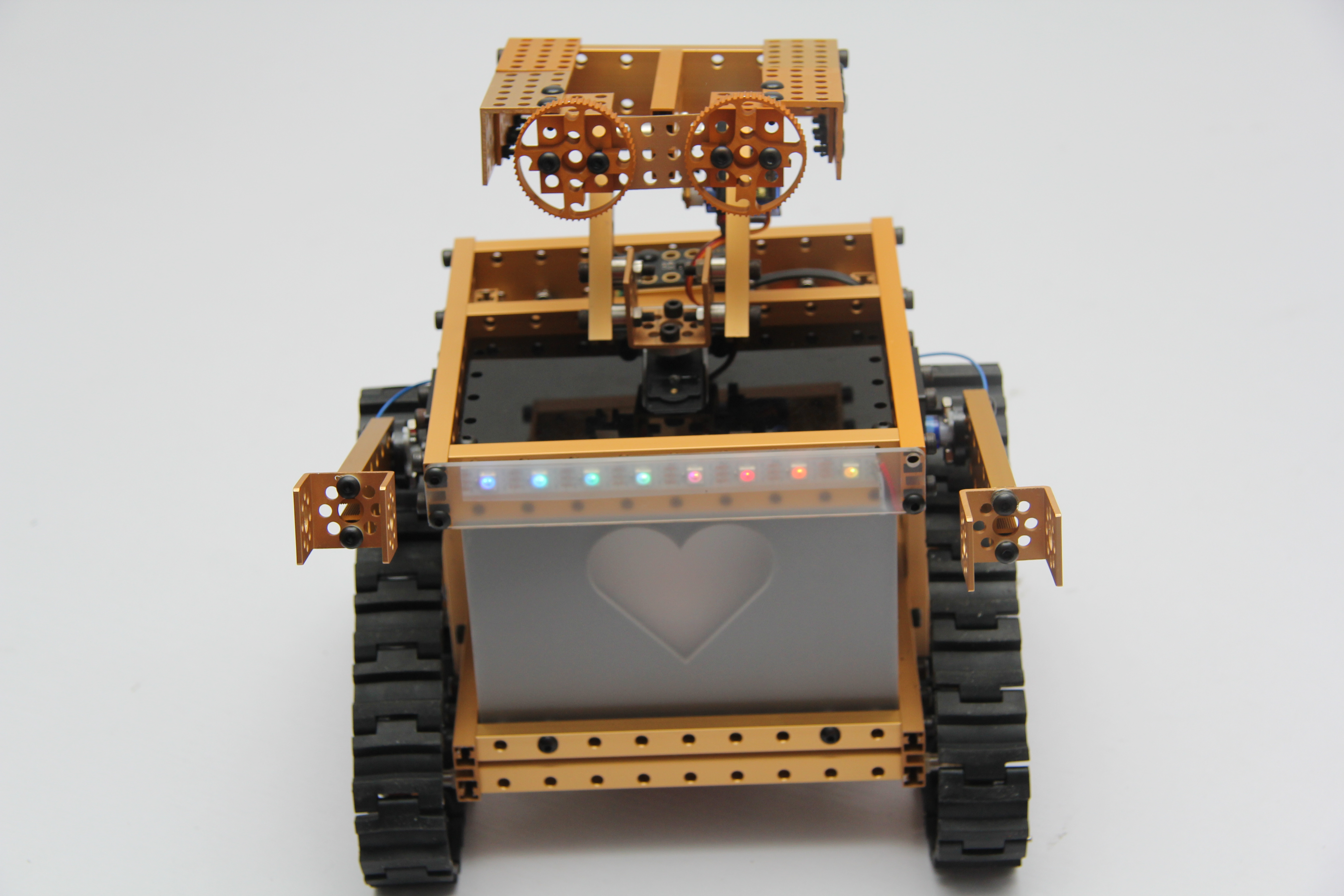

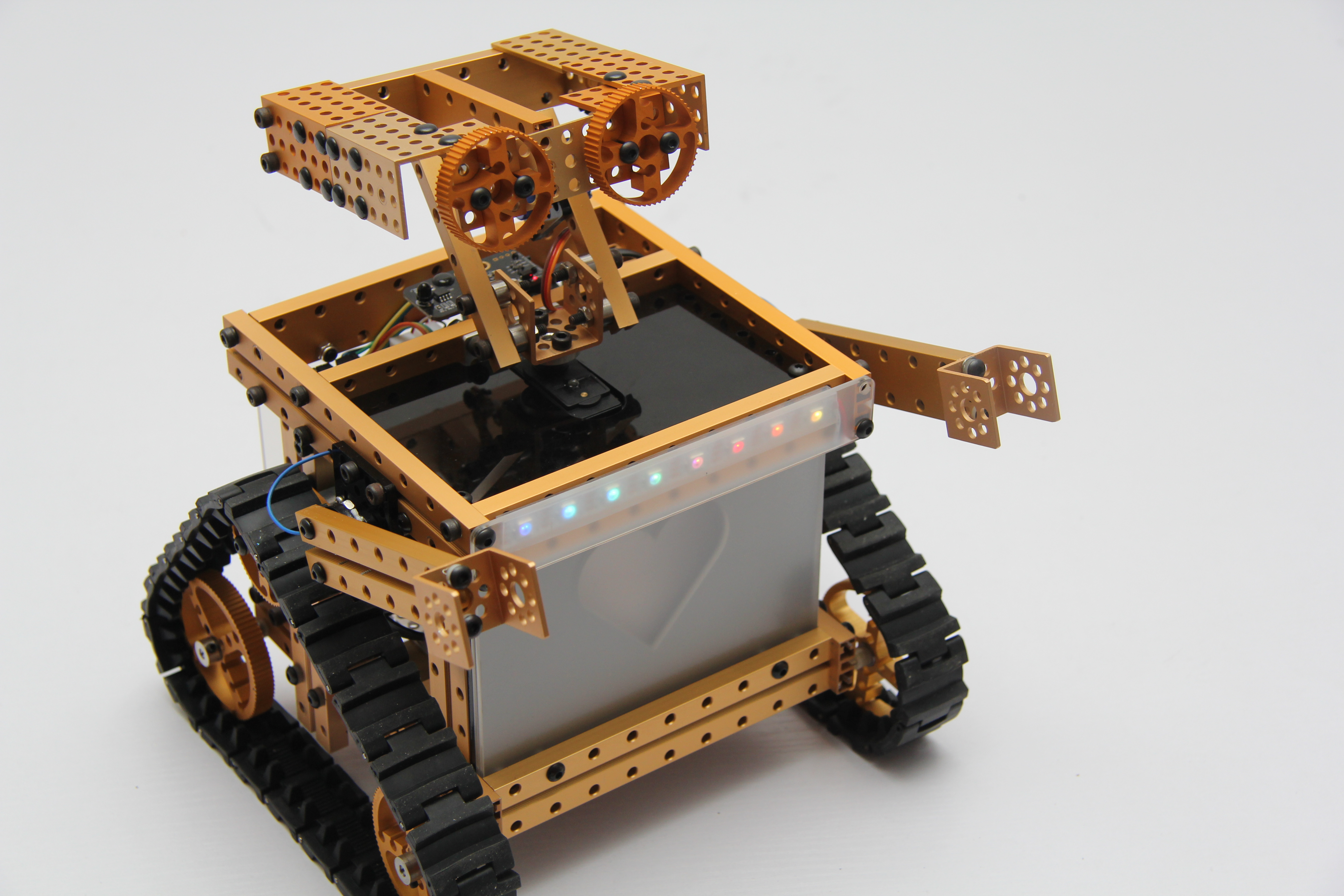

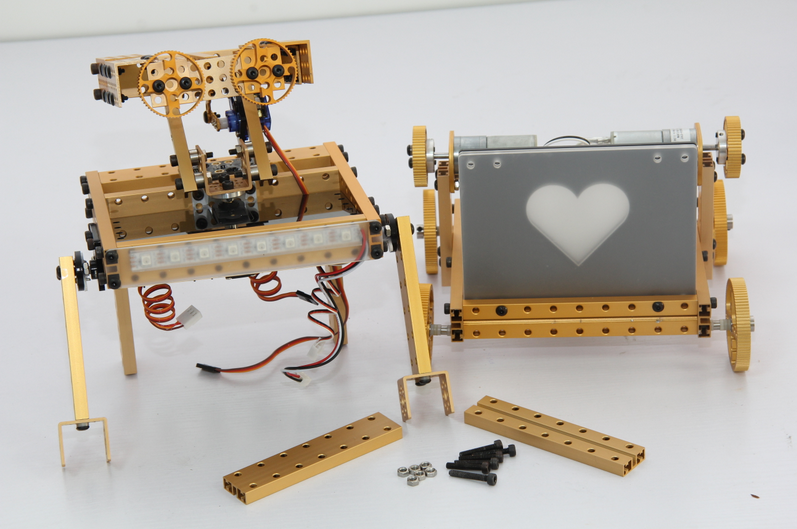

How to Build a Vibrant Walle ?

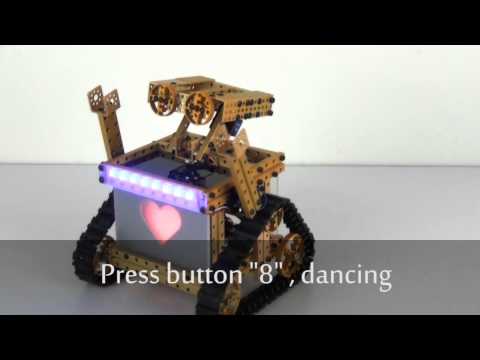

The Makeblock Walle uses Arduino, and other Makeblock modules. It can automatically nod,shack head,wave,and dance ,controlled by IR .

For more information, please visit Makeblock website listed below: www.makeblock.com Getting Started This instructable, Makeblock Walle, will show you the step-by-step instructions on how to build a vibrant Wallet by Makeblock.

Now let’s enjoy it!

• Mechinery list
  1. Beam0824-80
  2. Beam 0824-112
  3. Beam 0824-128
  4. Beam 0824-144
  5. Beam 0824-160
  6. Beam 0808-080
  7. Bracket 3x3
  8. Bracket 3x6
  9. Plate 3x6
  10. Bracket U1
  11. DC Motor-25 6V/185RPM
  12. 9g Micro Servo
  13. Pack Shaft Connector-4mm
  14. MG995 Servo Hub
  15. MG995 Servo Hub
  16. MG995 Servo Bracket
  17. Timing Pulley 62T
  18. Timing Pulley 90T
  19. Track
  20. Track Axle
  21. Threaded Shaft 4x39mm
  22. Shaft Collar 4mm
  23. Flange Bearing 4x8x3mm
  24. Socket Cap Screw M4x8-Button Head
  25. Socket Cap Screw M4x14-Button Head
  26. Socket Cap Screw M4x22-Button Head
  27. Nut M4 Countersunk Screw M3x8
  28. Headless Set Screw M3x5
  29. Brass Stud M4*16
  30. Plastic Rivet R4060
  31. Plastic Rivet R4120
  32. Plastic Ring 4x7x2mm
• Electronic mudule lis

  1. Me BaseboardMe

  2. IR ReceiverNew Me

  3. IR Remote Controller

  4. Me RGB LED

  5. LED RGB Strip-Addressable, Sealed(0.5M)

  6. Me RJ25 Adapter

  7. Base Bracket B
