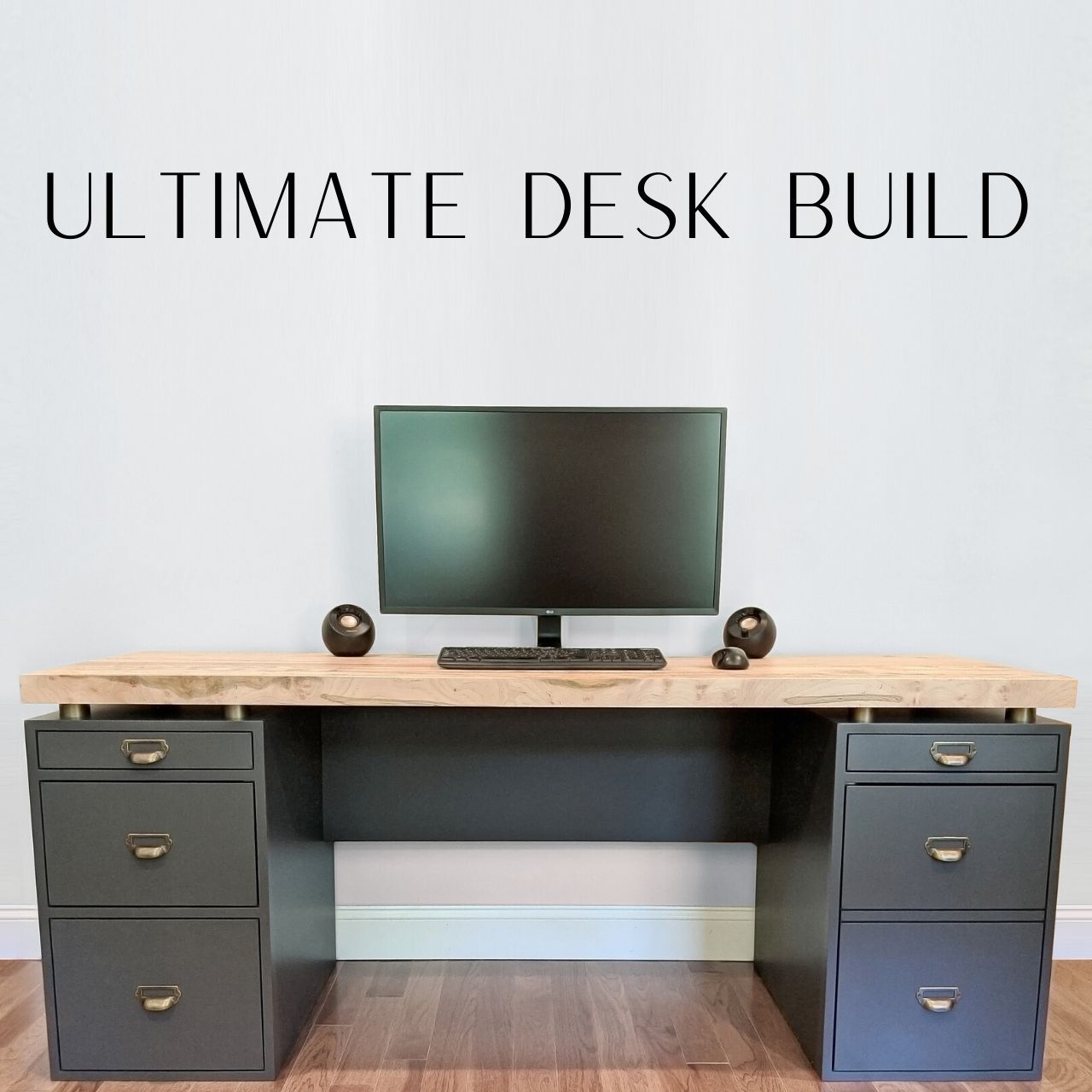

How to Build a Modern Industrial Desk

Want to make the ultimate desk that blends the best of modern industrial design with functionality? Check out how to build this desk that packs a ton of customizable storage into a stylish workspace.

I've teamed up with my friends at Kreg to sponsor this project and bring you the FREE PLANS!!!

To keep up with all of our latest projects and sneak peeks of what's coming up, make sure to follow us on Instagram, YouTube, and Facebook! Also, if you'd like to help support future projects and tutorials, you can sign up to be one of our Patrons!

Save money on these tools I used for this project:

ISOtunes Pro (code: WSM10 to save $10)
Grizzly Jointer (code WSMIKE10 to save 10%)
Grizzly Planer (code WSMIKE10 to save 10%)
Grizzly Bandsaw (code WSMIKE10 to save 10%)
Grizzly Air Filter (code WSMIKE10 to save 10%)
Grizzly Dust Collector (code WSMIKE10 to save 10%)
SurfPrep Sander 5" ROS (code WOODSHOPMIKE10 to save 10% )
SurfPrep Sander 3x4 (code WOODSHOPMIKE10 to save 10% )

Materials
3/4" Plywood, 4'x8'
1/2" Plywood, 4'x8'
1/4" Plywood, 4'x8'
Hardwood for top
2" steel pipe
Glue
Drawer slides 22"
Drawer pulls
Pocket hole screws 1-1/4"
Pocket hole screws 1"
Screws #10 x 3-1/2"
Screws #6 x 1"
General Finishes Milk Paint
General Finishes HPTC Flat
Rust-Oleum Antique Brass

Tools

RZ mask M2
Table saw (new version)
Miter saw
Kreg ACS (track saw)
Shop Vac
Drill (new version)
Impact driver
Drill press
2" forstner bit
Kreg Foreman
Woodpeckers Paolini 6" pocket rule
Woodpeckers carpenters square
Freud glue line rip blade
Freud ultimate plywood & melamine blade
Freud cermet blade
Dead blow hammer
Freud crosscut blade
K Body REVO parallel bar clamp
Trigger clamp
Bahco glue scraper

Affiliate links are used on this page.

To start things off, I first cut all of the 3/4" plywood parts to frame out the base cabinets using my ACS and table saw.

Between the top of these cabinets and the desktop, I'm using steel tube as spacers. These locate in some 2" diameter holes that are 1/8" deep. I make these holes using a forstner bit in the drill press.

I then add pocket holes to all of the parts as noted in the plans and assemble the cabinet frames using parallel clamps and pocket hole screws.

I customized these cabinets to fit specific things I use in my office such as my CPU, Drobo (external RAID), drawing tablet, printer, hanging file storage, and more! This step may not be a perfect fit for everyone, but I hope it inspires you to think about ways you can customize the desk!

In the right side cabinet, I have a larger door that opens up a space for my CPU and computer accessories. I used 1/2" plywood to build some cubbies and dividers in the extra space.

To cut the steel tube into spacers, I used a cermet blade in my miter saw. Since my saw doesn't have a great clamp for holding round stock, I used some heavy duty clamps and blocks to make sure the stock was held securely before cutting.

Once all of the pieces were cut and any burs were filed off, I painted them with Rust-Oleum paint to match the hardware.

To build the desktop, I ran the lumber through several machines starting with the jointer. This establishes one flat surface and an edge that is perpendicular to the first surface that is flattened.

I then cut the opposite side of the boards parallel to the jointed edge on the table saw. At this point, I glue up the top in two sections. After the glue has cured, I run each panel through the planer until they are to their final thickness. Now I'm ready to glue up the two desktop halves.

After the glue has cured, I glue on the front and side pieces that bring the thickness of the desktop to a full 2". The video illustrates this process well!

For this project, I used soft close undermount drawer slides, which require the drawer boxes to be built from 1/2" material. I cut all of the components to size per my plans, drill pocket holes, and then assemble each drawer box using a pair of parallel clamps.

In the build video, I did this a little out of sequence because I was wanting to start painting as soon as possible. Ideally, I like to drill for the Euro hinges, test fit the door, and install the drawer slides all before finishing. I prefer this route so that if there is any rework that needs to happen, I can do it before dealing with a "finished" project.

The undermount drawer slides are very easy to install in this cabinet. They simply rest against the stretchers, bottom, or shelf where needed and are set back 7/8" from the front of each cabinet. Two screws are all that is needed to hold each one in place!

I used milk paint and a high performance top coat by General Finishes for this build. While it can be applied with a foam brush, I prefer using my Apollo Power 4VS to do the job. (You can catch an unboxing video on that here!)

As you see, I've taped off the inside of the cabinet as I want to leave that unfinished for this project.

To wrap up this desk, I start the assembly process by pressing the steel spacers into the top of each cabinet base.

I then secure the cabinet bases to one another with a stretcher toward the back of each cabinet using pocket hole screws.

With the desk's base complete, I secure the top to the base with screws through each of the spacers as shown below!

The last thing to do is center the drawer front and secure it to the drawer box with #6x1" screws.

This project is built with plywood and rough lumber from plans I have available. Grab these to take out the dimensional guess work and get your project done quick!

As always, if you have any questions, leave them in the comments. And until next time, have fun making something!
