How to Build a Barbecue Chimney
by CrazySurvivalSt in Workshop > Home Improvement
3259 Views, 2 Favorites, 0 Comments
How to Build a Barbecue Chimney
![How to build a barbecue chimney 🍖🛠️](/proxy/?url=https://content.instructables.com/FZT/J0S6/KAJNDB9H/FZTJ0S6KAJNDB9H.jpg&filename=How to build a barbecue chimney 🍖🛠️)
In this video I'm going to show the construction build process for a metal chimney for the barbecue. For that we will use titanium plates, steel platens, steel angles, weld, stainless steel rivets.
This chimney is stainless, and very durable.
Supplies
3m2 Stainless steel plate........... 200€
4m Steel angle 30x3.6mm ........ 15€
16m Steel platen 25x3mm...........44€
250x INOX steel rivets 4x12mm...30€
2xHigh temperature silicone......16€
Screws..............................................5€
Welding rods&cutting disks........20€
Take Measure From the Barbecue Hole
![Anotación 2020-05-24 100718.png](/proxy/?url=https://content.instructables.com/FW5/WBXF/KAJNDDXB/FW5WBXFKAJNDDXB.png&filename=Anotación 2020-05-24 100718.png)
Take measure from the barbecue hole
Adapt the Design to Your Measures
![design.png](/proxy/?url=https://content.instructables.com/FAE/56ZC/KAJNDDUK/FAE56ZCKAJNDDUK.png&filename=design.png)
Adapt the design to your measures, here are the measure I used.
Cut With a Circular Saw Steel Platen
![Anotación 2020-05-24 100918.png](/proxy/?url=https://content.instructables.com/FEN/2XSL/KAJNDE2S/FEN2XSLKAJNDE2S.png&filename=Anotación 2020-05-24 100918.png)

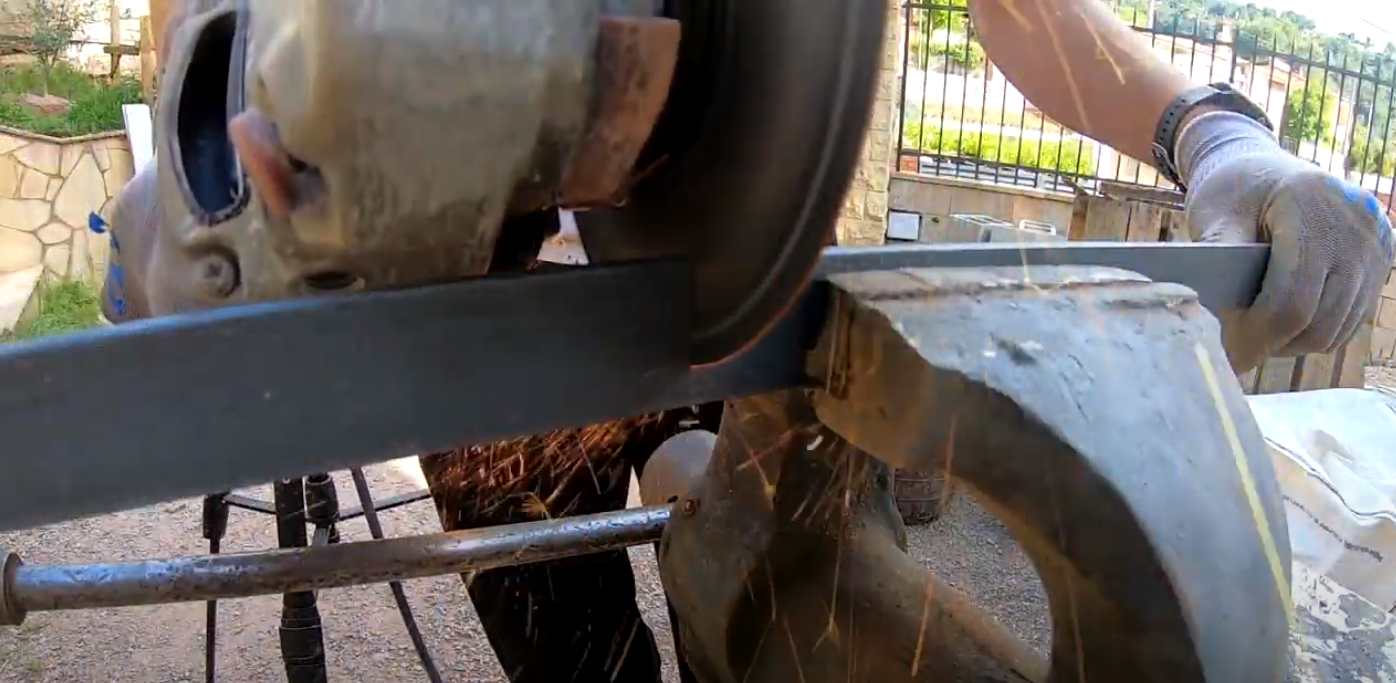

Cut with a circular saw steel platen
Weld Steel Platen an Angles to Mount the Skeleton

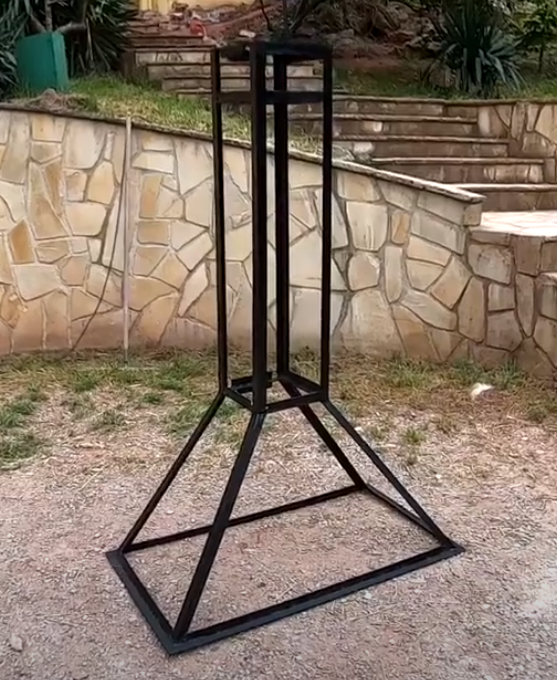

![Anotación 2020-05-24 101038.png](/proxy/?url=https://content.instructables.com/FW7/6JG6/KAJNDEBN/FW76JG6KAJNDEBN.png&filename=Anotación 2020-05-24 101038.png)
![Anotación 2020-05-24 101303.png](/proxy/?url=https://content.instructables.com/FMX/SOQM/KAJNDF2A/FMXSOQMKAJNDF2A.png&filename=Anotación 2020-05-24 101303.png)
Paint the Skeleton With High Temperature Resistant Paint
![Anotación 2020-05-24 101231.png](/proxy/?url=https://content.instructables.com/FED/GXAK/KAJNDF29/FEDGXAKKAJNDF29.png&filename=Anotación 2020-05-24 101231.png)

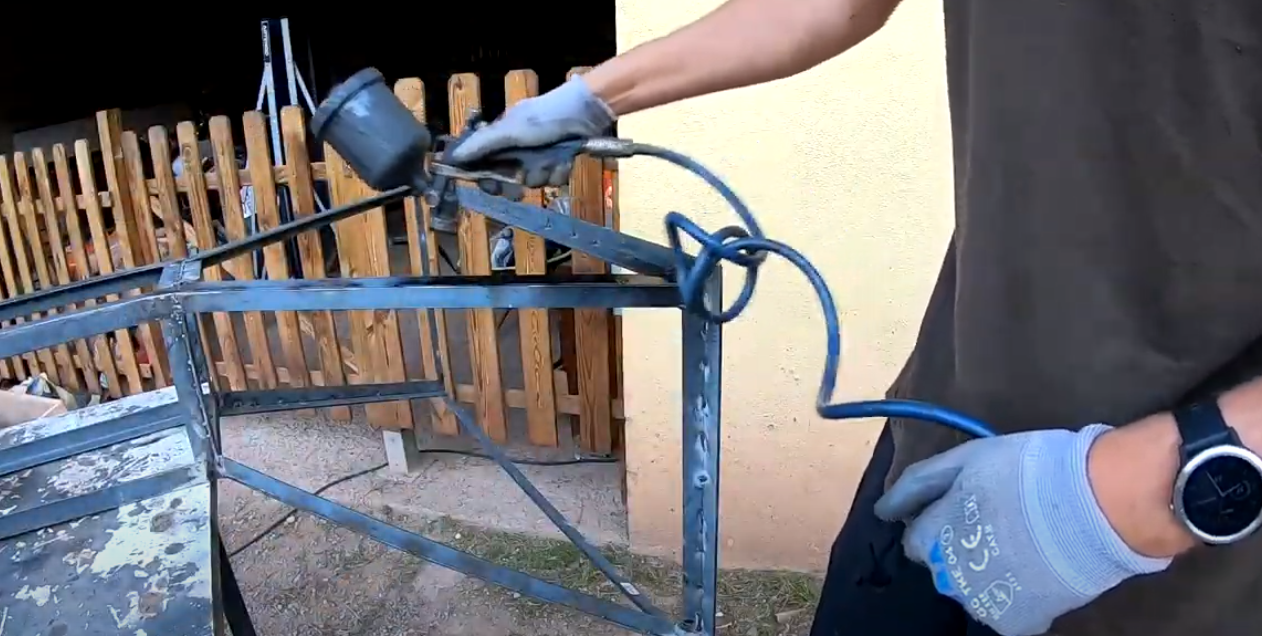

Paint the skeleton with high temperature resistant paint
Cut the Stainless Steel Sheets
![Anotación 2020-05-24 101435.png](/proxy/?url=https://content.instructables.com/FYS/UDVR/KAJNDG0I/FYSUDVRKAJNDG0I.png&filename=Anotación 2020-05-24 101435.png)
Cut the stainless steel sheets, draw them in the plate with a pen and cut with the circular saw
Drill the Holes
![Anotación 2020-05-24 101451.png](/proxy/?url=https://content.instructables.com/FST/7VUT/KAJNDG0K/FST7VUTKAJNDG0K.png&filename=Anotación 2020-05-24 101451.png)

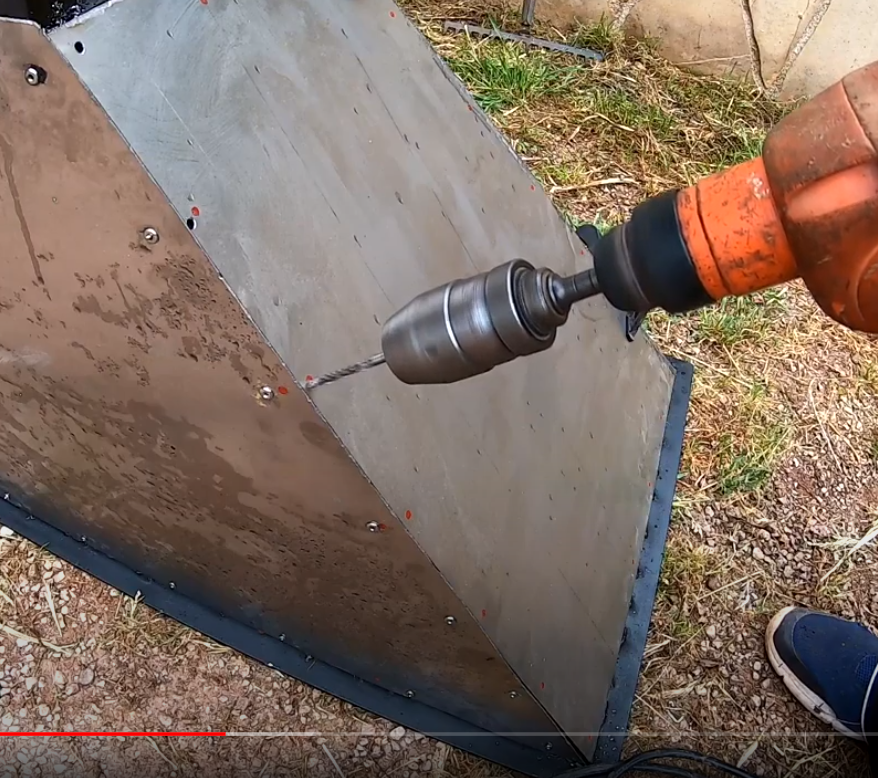

Drill the holes in to the sheets and the skeleton
Apply the Fire Proof Silicone
![Anotación 2020-05-24 101519.png](/proxy/?url=https://content.instructables.com/FM8/28AU/KAJNDG0M/FM828AUKAJNDG0M.png&filename=Anotación 2020-05-24 101519.png)

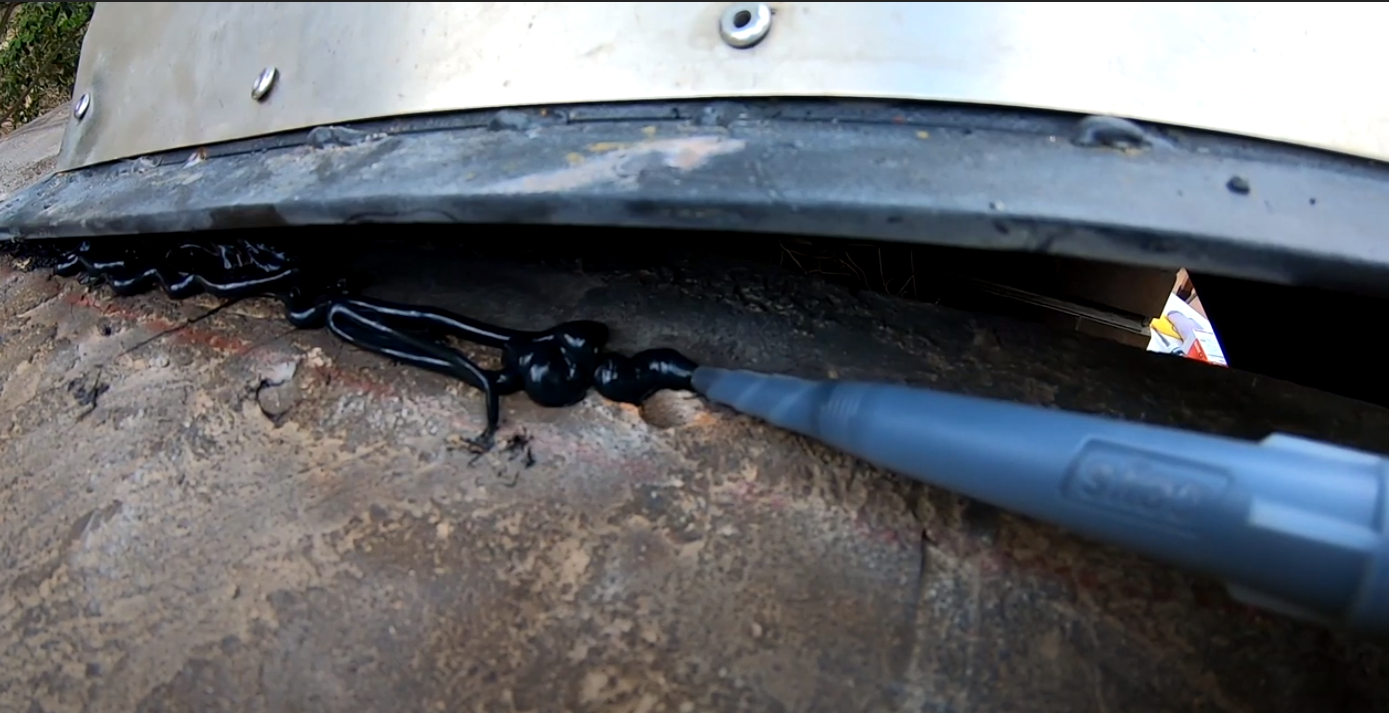

Apply the fire proof silicone in between the skeleton and the sheets
Use the Rivets
![Anotación 2020-05-24 101537.png](/proxy/?url=https://content.instructables.com/FRI/B9CB/KAJNDG21/FRIB9CBKAJNDG21.png&filename=Anotación 2020-05-24 101537.png)
Place rivet to hold the sheets to the skeleton
Put the Chimney on the Bbq
![Anotación 2020-05-24 101603.png](/proxy/?url=https://content.instructables.com/FLT/8LS2/KAJNDG3I/FLT8LS2KAJNDG3I.png&filename=Anotación 2020-05-24 101603.png)
Put the chimney on the bbq and make holes to the basement
Apply Fire Proof Silicone
![Anotación 2020-05-24 101619.png](/proxy/?url=https://content.instructables.com/FYC/QWIM/KAJNDG56/FYCQWIMKAJNDG56.png&filename=Anotación 2020-05-24 101619.png)
Apply fire proof silicone between the chimney and the bbq
Put the Screws
![Anotación 2020-05-24 101638.png](/proxy/?url=https://content.instructables.com/F1O/8QOK/KAJNDG6M/F1O8QOKKAJNDG6M.png&filename=Anotación 2020-05-24 101638.png)
Put the screws
Clean the Chimney
![Anotación 2020-05-24 101703.png](/proxy/?url=https://content.instructables.com/FR2/543W/KAJNDG6Y/FR2543WKAJNDG6Y.png&filename=Anotación 2020-05-24 101703.png)
Clean the chimney use vinegar
