How to Build Benchtop Router Table

A benchtop router table is a must if you are a DIYer, working on a job site, or off of a truck. I love my full-size router table, but they can get costly. With the benchtop router, you can connect it to the top of the bench or to the side of a worktable. In this post, I’ll show you how easy it is to build one on your own. Keep in mind this is built for a cordless trim router, but it could be used for a 1/4 trim router or even a full-size router. This is a compact router table that is lightweight and stable.

Check out the plans here!

(1/2) Sheet of plywood 3/4in X 48in X 48in
(10) 1 1/2in wood screw (assembly)

(4) 1in brackets

(8) 3/4in wood screws (for the brackets)

(2) 2in 1/4-20 screw (for router fence)

(2) 1/4-20 wing nuts

Optional: 4 (1 1/4in) machines screws for the router base

Wood glue

Furniture finishing wax

Tools Used

Table Saw (optional)

Circular saw

Router

Drill

Speed square

Clamps

3/8’’ Forstner Drill bits

1 -3/4’’ Hole saw

• Countersink the holes and install the screws securing the bottom to the sides. Be sure to apply wood glue and use two to three screws in this location. Repeat this step twice.
• Apply wood glue to the legs and line them up to the back. Then clamp the parts.

• With the back clamped to the legs, mark the location for the screws.
• Countersink the holes deep enough to plug after the screw has been installed.

• Plug the hole using a dowel rod that’s appropriate to fit the holes drilled.
• Use a flush-cut saw to cut the dowel off.

Adding the bit holder is optional, but I felt it’s pretty convenient for your most used router bits.

• Cut a small piece of wood with a 45-degree miter on both ends.
• Space the router bits apart to your liking, drilling a hole straight down while holding the bit holder at an angle.
• Apply wood glue to the top side of the bit holder and the sides.
• Fit the bit holder within the opening and let the glue dry.

• Remove the base plate from the router, then use it to mark the hole for the tabletop’s router base.
• You can use a Forstner bit or a paddle bit to drill out the center hole.
• Mark the mounting holes for the router base, then countersink the holes.
• I did this in two stages. I drew the larger hole first, so the head of the screw sits below the surface of the table. Then I drilled a smaller hole. Chances are your existing screw in your router may be too short to go through the plywood and into the router base. So you will more than likely need to replace these screws.

This benchtop router table will have a fence to go along with it. I figured you could go about this one of two ways.

• Option 1 build a fence and clamp it to the top of the router table.
• Option 2 route in a slot, use a screwing a nut and keep the table and the fence as a self-contained setup.
• To do this, you need to route in two places, one on each end towards the back of the router table. To route the slots, it depends on the screw you choose to use. I used a 1/4 -20 (2) inch screw in this case paired with wing nuts. On the first pass, I used a 1/4 router bit of or one that’s the size of the screw. This went all the way through. Then I made a second pass making a larger slot for the head of the screw. Once routing is done, the screw should sit lower than the surface of the plywood. Keep in mind these holes are routed from the bottom of the router tabletop. These screws need to face up.

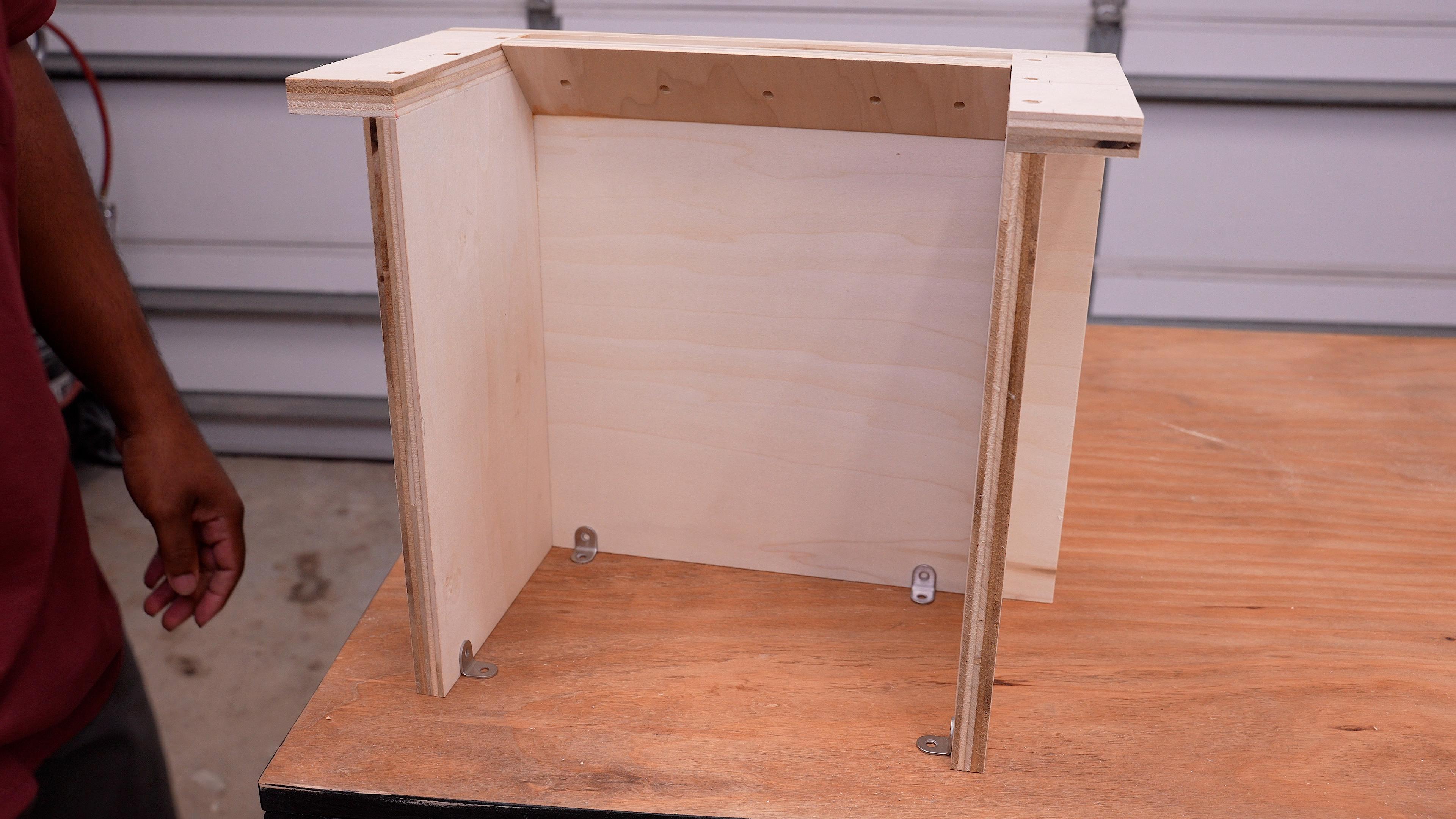

• Use one-inch brackets to secure the top to bottom.
• Keep in mind; you can glue these parts as well.

Building the router fence is quite simple.

• Cut two pieces of wood the length of the tabletop—one for the back of the fence. The taller one for the front of the fence. I cut off the corners on the face of the fence for aesthetics and glued the parts together, as shown above.

Yep, it’s best to cut this out before gluing the parts. Initially, I was not going to address the dust collection, and then I added it after gluing the pieces.

• Glue a couple of plywood pieces together and drill a hole in it to fit the vacuum attachment.
• Glue to the back of the router fence.
• Under the face of their art offense, route a chamber to avoid a collection of dust between defense and a tabletop.

• Finally, set the entire router table down and apply whatever finish you like. I kept it simple and used finishing wax on the top and the fence.

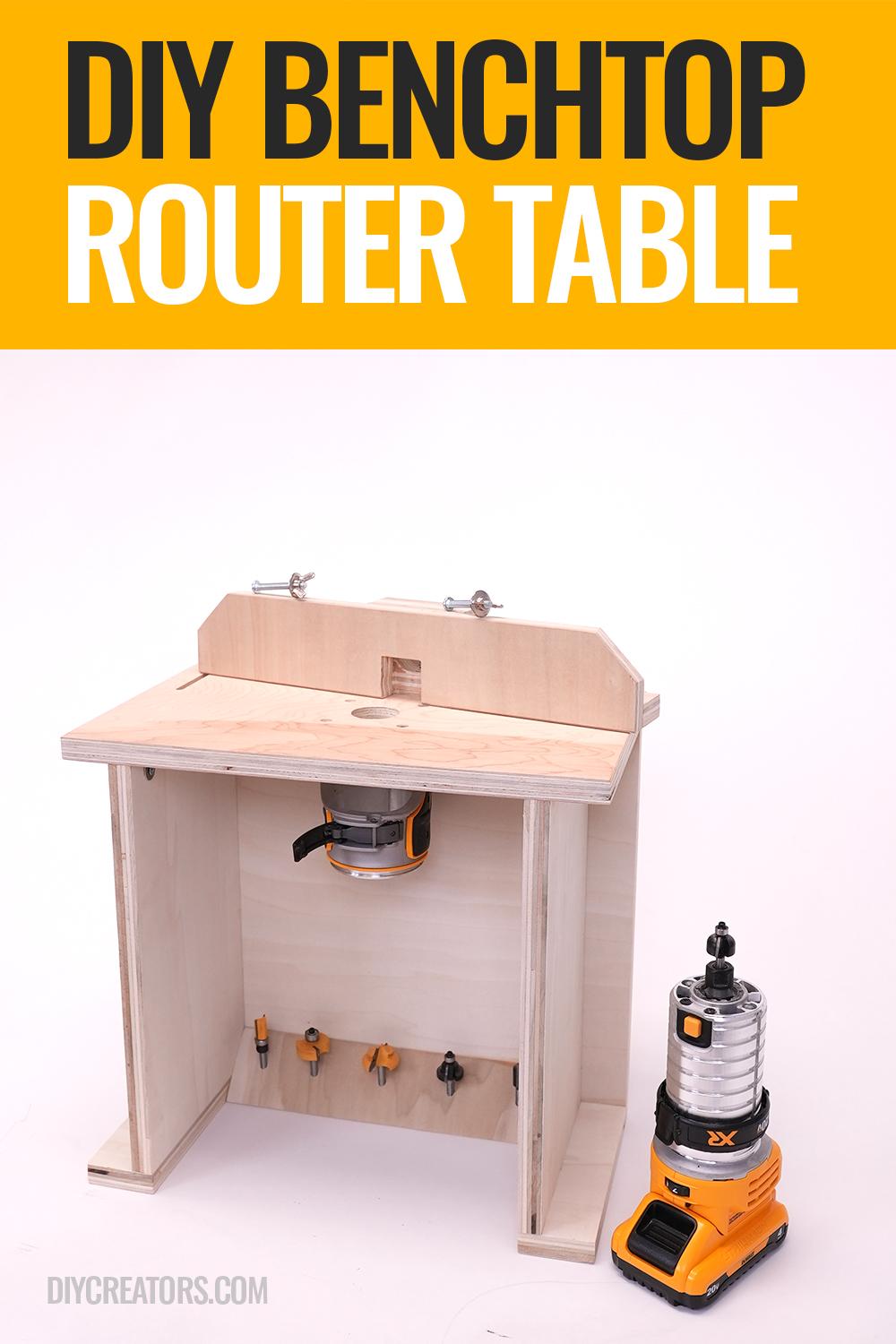

This router table is great because it's light enough to clamp to your workbench either on the top, or to the side, and you can bring it just about anywhere!
