Hello Everyone, my name is Amey and you are watching my channel “A builds”. Today I am back with another project this time it’s a Backlite White board made out of old broken LCD display
So, Let’s Make it…………!!!!!!
DESIGN
![des1.JPG](/proxy/?url=https://content.instructables.com/FJ6/G8V6/KFV47GCQ/FJ6G8V6KFV47GCQ.jpg&filename=des1.JPG)
![des2.JPG](/proxy/?url=https://content.instructables.com/F6J/VAG8/KFV47GCR/F6JVAG8KFV47GCR.jpg&filename=des2.JPG)
![des3.JPG](/proxy/?url=https://content.instructables.com/FD6/EF38/KFV47GCS/FD6EF38KFV47GCS.jpg&filename=des3.JPG)

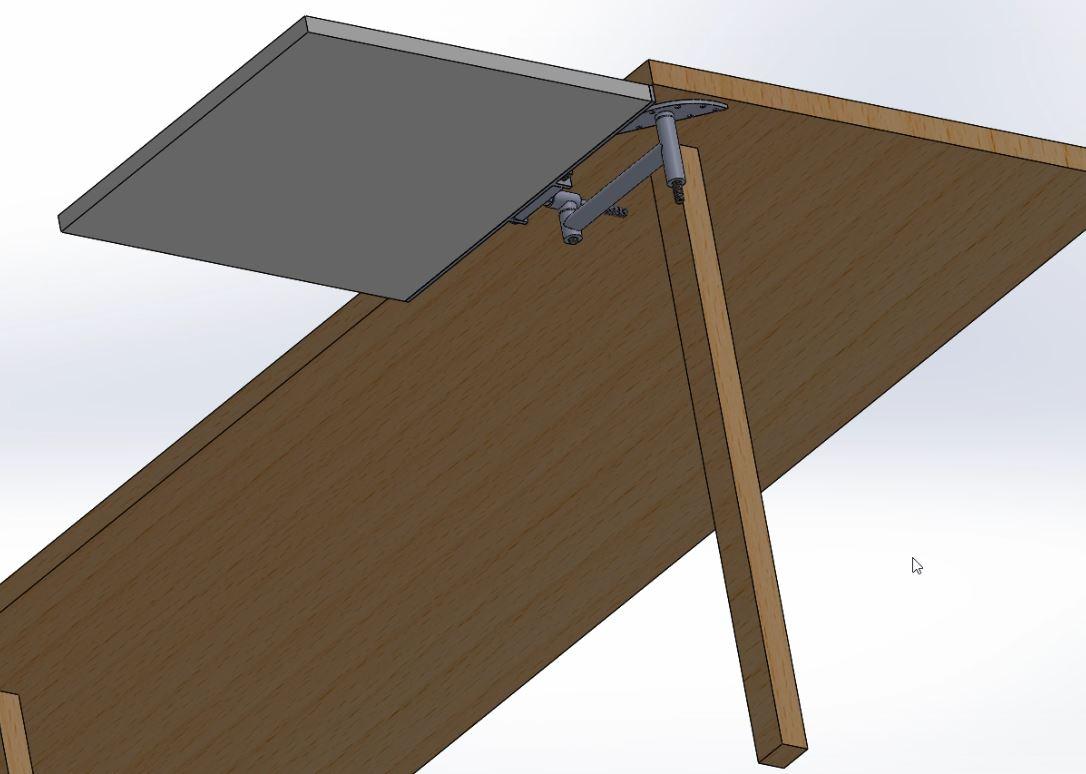

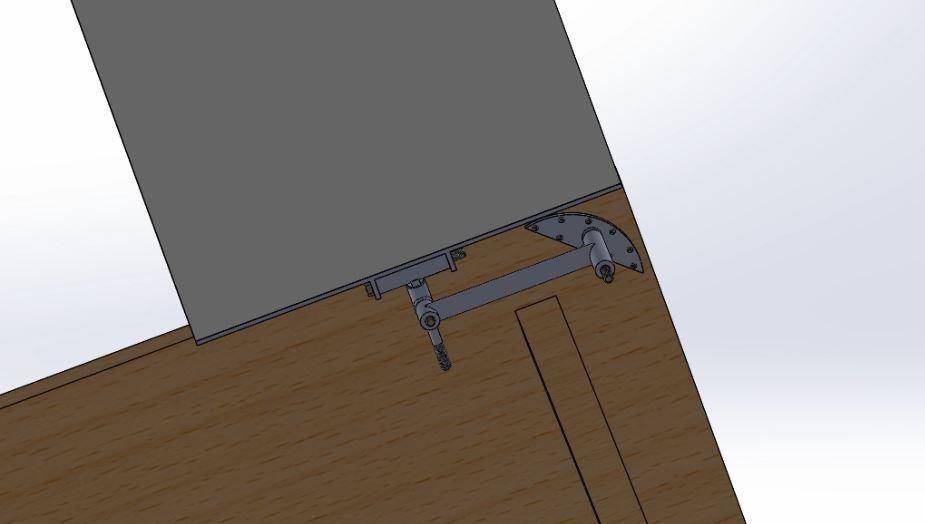

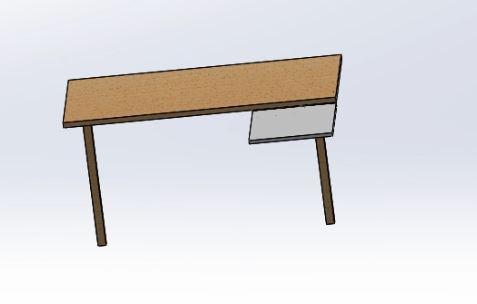

I make this project as per the design
TEARDOWN LCD
![IMG_20200927_103321.jpg](/proxy/?url=https://content.instructables.com/FG4/XQMN/KFV47GE8/FG4XQMNKFV47GE8.jpg&filename=IMG_20200927_103321.jpg)
![IMG_20200927_103056.jpg](/proxy/?url=https://content.instructables.com/FIH/2TS7/KFV47GD0/FIH2TS7KFV47GD0.jpg&filename=IMG_20200927_103056.jpg)
![IMG_20200927_103434.jpg](/proxy/?url=https://content.instructables.com/F0I/P5Z0/KFV47GF3/F0IP5Z0KFV47GF3.jpg&filename=IMG_20200927_103434.jpg)
I have OLD Samsung monitor lying around which is not in working condition, so I decide to convert it into Backlite White board.

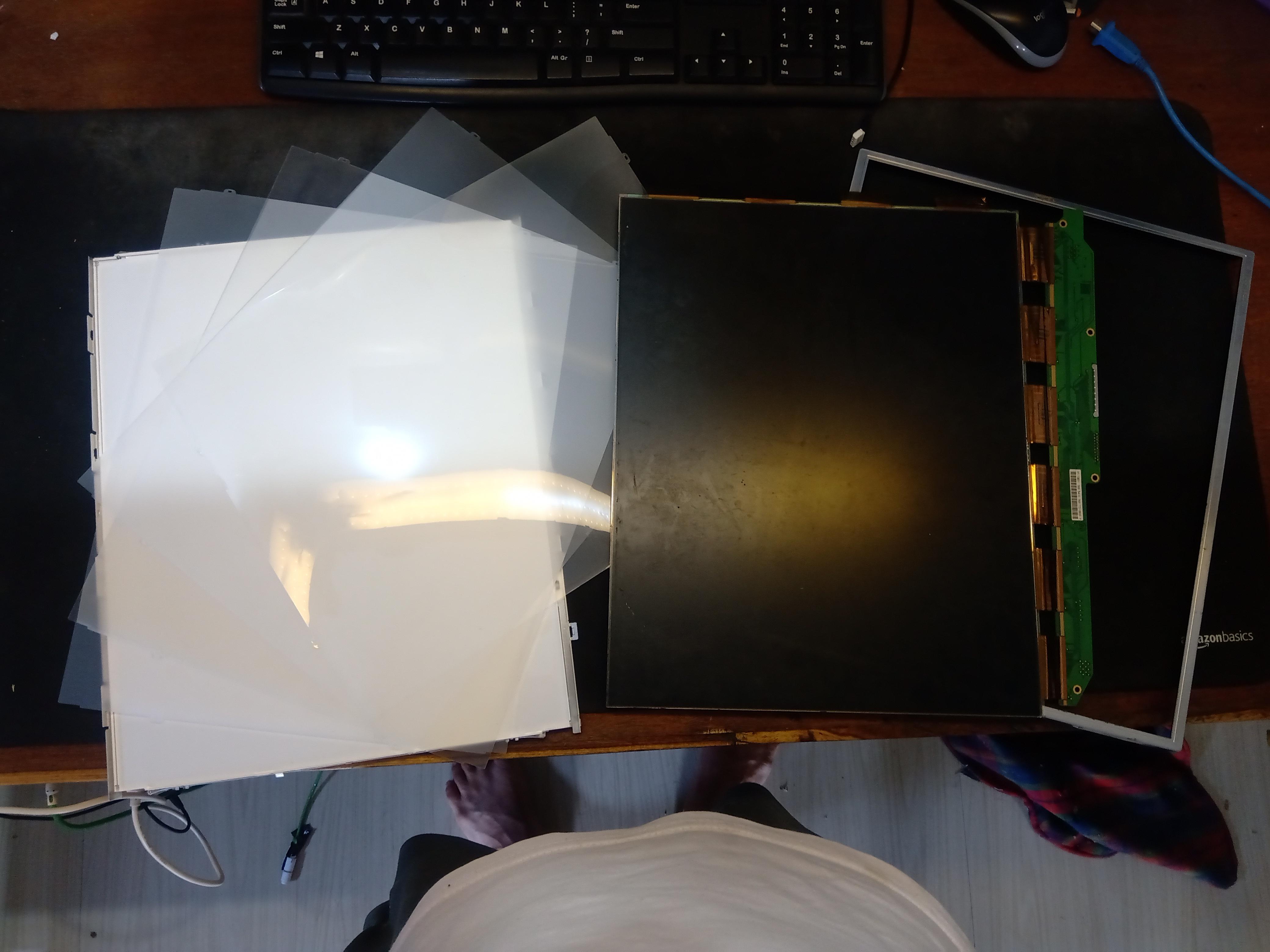

I start dissembling it. LCD panel has transparent acrylic, backlight layer of diffuser, polarize panel, Optical film and LCD module panel.
It’s a LCD panel so it having CFL light, which required inverter for turning ON, so I am replacing it with White LED Strip, it is cheap and easy to operate
WHAT YOU NEED
![IMG_20200927_103115.jpg](/proxy/?url=https://content.instructables.com/FX8/ZTO8/KFV47GDV/FX8ZTO8KFV47GDV.jpg&filename=IMG_20200927_103115.jpg)
We only need transparent acrylic and some 12-v led strip for making this project
White 12-v LED STRIP
12v power supply
Final Build

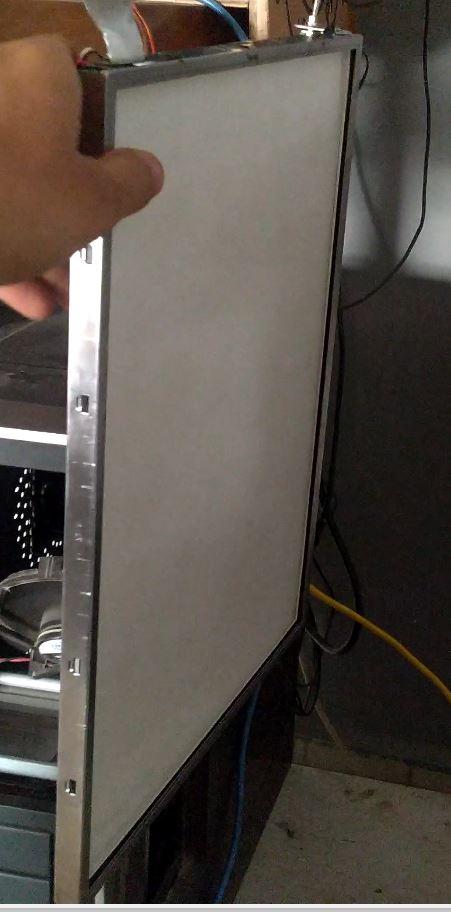

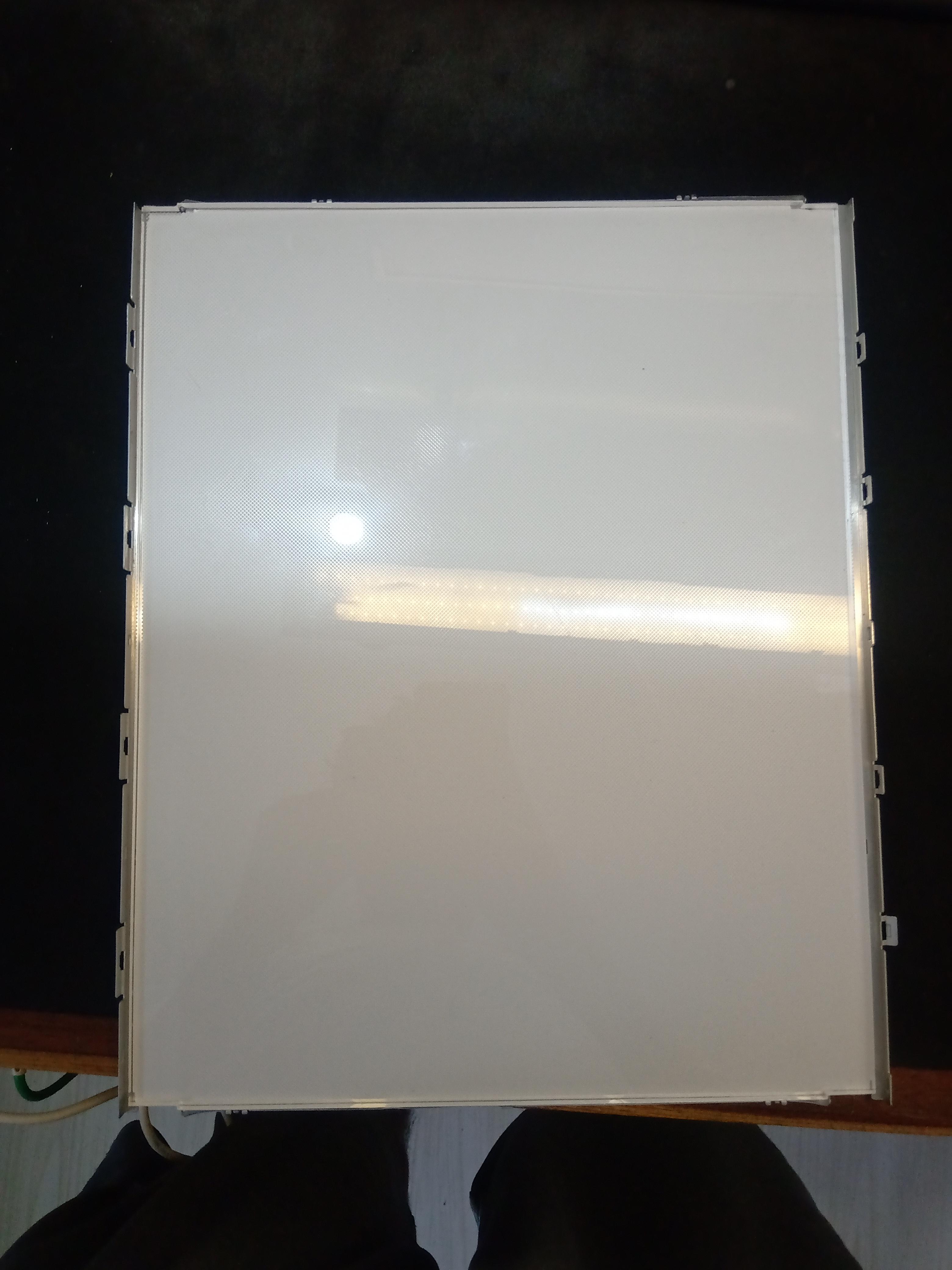

![comp1.JPG](/proxy/?url=https://content.instructables.com/F6F/VZYK/KFV47GBS/F6FVZYKKFV47GBS.jpg&filename=comp1.JPG)
![comp3.JPG](/proxy/?url=https://content.instructables.com/FFC/YZD4/KFV47GCO/FFCYZD4KFV47GCO.jpg&filename=comp3.JPG)
![comp2.JPG](/proxy/?url=https://content.instructables.com/FTB/58Y5/KFV47GCN/FTB58Y5KFV47GCN.jpg&filename=comp2.JPG)
![comp4.JPG](/proxy/?url=https://content.instructables.com/FIF/FXR8/KFV47GCP/FIFFXR8KFV47GCP.jpg&filename=comp4.JPG)
![Capture.JPG](/proxy/?url=https://content.instructables.com/F25/OU4G/KFV47GBR/F25OU4GKFV47GBR.jpg&filename=Capture.JPG)

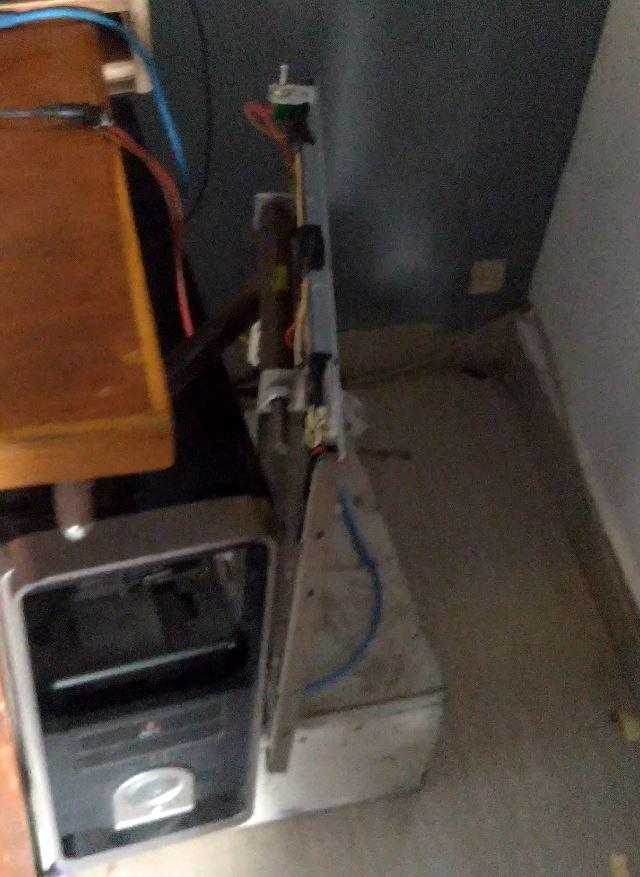

In this project I replace the backlight CFL with LED strip and also attached the panel to rotating stand
all the build details are in the video!!!!!!!!!
check the build video on the channel
