How to Bend PVC & Make Incredible Shapes

I was recently working on a project where I needed to bend pvc pipes into smooth, round shapes. After some trial and error I found an easy way to get great results.

First of all, cut your pipe to size, I used a variation of different sized pipes for this test. I found that if you heat up the pipe only with a heat gun from the outside it's hard to get a smooth curve, and you easily get kinks. Plus, you can only heat up a small section at a time. What I needed to do was find a way to heat up the pipe from the inside out.

Duck tape on the end makes a nice block and then I measured out how much sand fit inside the pipe. I used regular sand that I had on hand and then I heat it up in a pot until it was pretty hot.

I filled the pipe almost to the top, maybe with two inch empty space, and taped it shut.

Let the pipe rest for a few minutes to heat up thoroughly. Then with gloved hands you can start bending and manipulating the pipes. You can either do this freehand, or bend around something, like a jig or something round to get a precise shape.

Once I held the shape for a little while, I poured out the sand, and there you go!

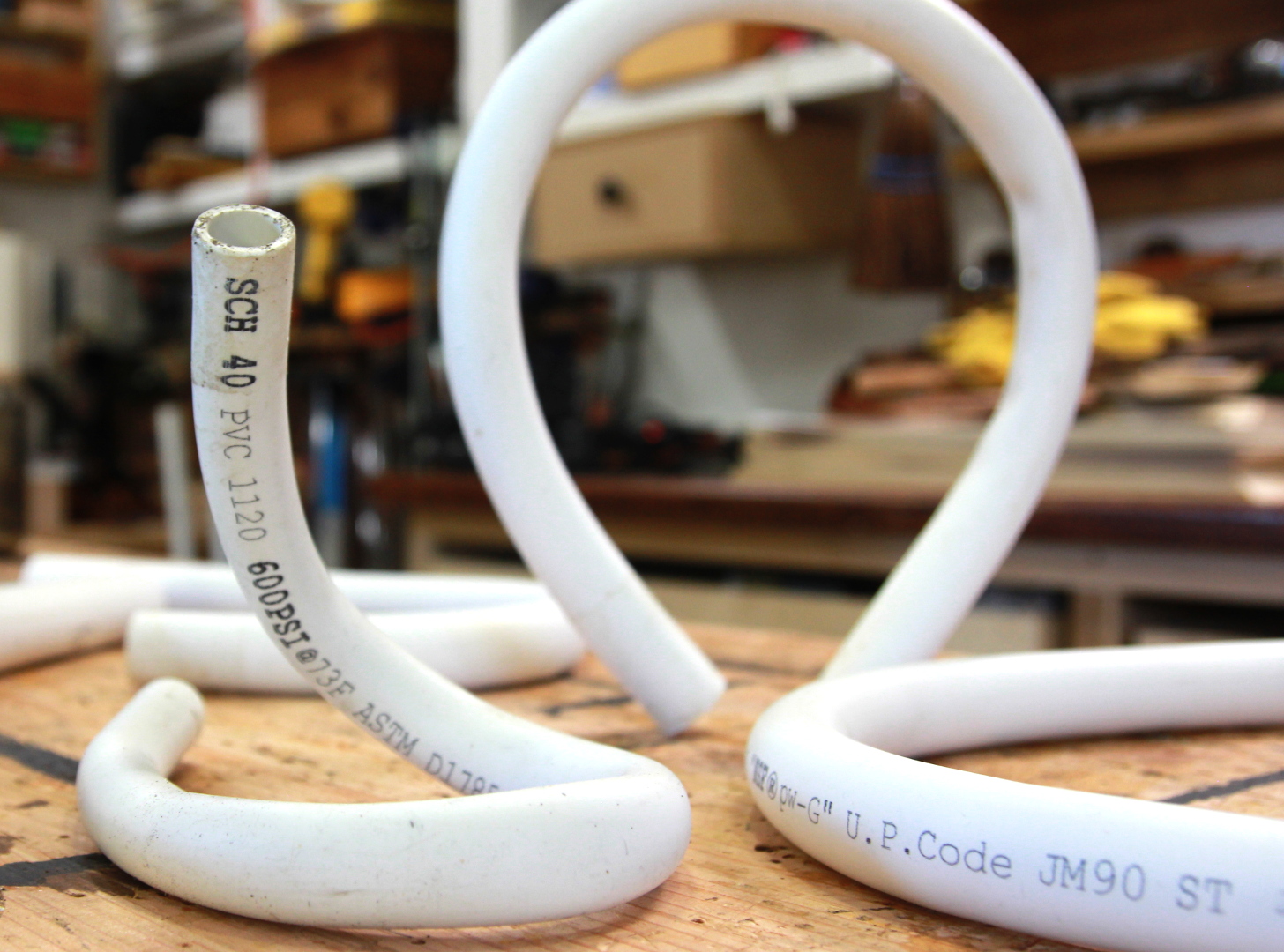

I tried this technique with a couple of different sized pipes. The larger pipes took longer to heat up and were a little harder to bend, however it's still possible to get slight curves. The thinner pipes however become very maluable and easy to bend into all sorts of crazy shapes!

For a much better perspective, make sure to watch the video that goes over the steps, and to see how easily the different pipes bend.
