How to Adjust the Tip of Roland CAMM-1 Machine
by emills05 in Workshop > Repair
369 Views, 0 Favorites, 0 Comments
How to Adjust the Tip of Roland CAMM-1 Machine
![YDXJ5299.jpg](/proxy/?url=https://content.instructables.com/F6Q/I6GS/IRXTLS0M/F6QI6GSIRXTLS0M.jpg&filename=YDXJ5299.jpg)
This is a tutorial to adjust the tip of roland machine.
Materials
![YDXJ5298.jpg](/proxy/?url=https://content.instructables.com/F8R/M4V7/IRXTLPBR/F8RM4V7IRXTLPBR.jpg&filename=YDXJ5298.jpg)
The materials are:
- Roland machine.
- Tip.
- Caliper.
- Vinyl.
Meditions
![YDXJ5302.jpg](/proxy/?url=https://content.instructables.com/FK9/WUZK/IRXTLUTO/FK9WUZKIRXTLUTO.jpg&filename=YDXJ5302.jpg)
![YDXJ5303.jpg](/proxy/?url=https://content.instructables.com/F7E/TXZB/IRXTLVBD/F7ETXZBIRXTLVBD.jpg&filename=YDXJ5303.jpg)

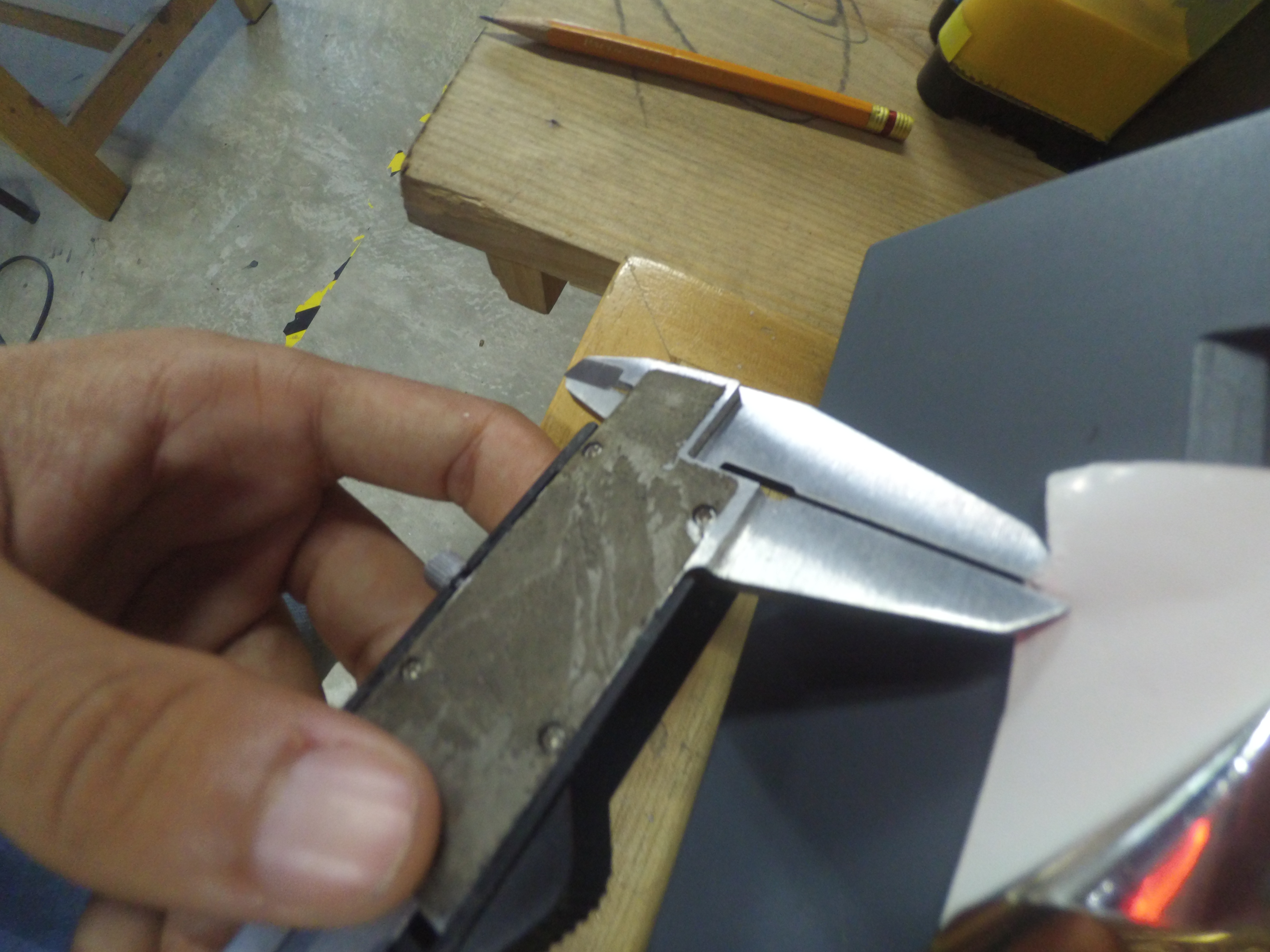

We proceed to mesure the vinyls.
Tip
![YDXJ5299.jpg](/proxy/?url=https://content.instructables.com/FSA/MIVS/IRXTML70/FSAMIVSIRXTML70.jpg&filename=YDXJ5299.jpg)
We adjut the tip agree the vinyl.
Tip 2
![YDXJ5300.jpg](/proxy/?url=https://content.instructables.com/F1T/B4H8/IRXTLSM4/F1TB4H8IRXTLSM4.jpg&filename=YDXJ5300.jpg)
![YDXJ5301.jpg](/proxy/?url=https://content.instructables.com/F2P/8G8F/IRXTLTSI/F2P8G8FIRXTLTSI.jpg&filename=YDXJ5301.jpg)
Now we put the tip in the carrier.
Test
![YDXJ5304](/proxy/?url=https://content.instructables.com/FZJ/699B/IRXTML1S/FZJ699BIRXTML1S.jpg&filename=YDXJ5304)
Finally we make the test and is all ready.
