How to 3d Print Lesion Gu Mine From Rainbow Six Siege (file at End)

lesion is a good operator in rainbow six siege and his gadget is very simple to make

you need a 3d printer to build this model

reminder this will be built upside down

1 for the first outside cylinder the dimensions are 100 by 100 units on both sides and it has a height of 52.13 units

2 the inside hole is 73 by 73 and has a height of 53 units and center it in the middle

3 to round of the bottom is a half sphere which is 100 by 100 units and has a height of 10 center it on the bottom

4 for the top circle you need to use a tube which is 76 by 76 units and has a height of 30 units and has a wall thickness of 1

5 for the emblem on the side of the top you need the shapes 2 cubes, 1 cylinder, 1 triangle (roof) and 1 skull charm

6 start the emblem with the triangle 27 units in height 32 units across and 3 units in width

7 make the cylinder a circle 12 by 12 units and 3 units tall and put it in the middle of the triangle

8 make a T shape with the cubes and make .90 by 2 units and 5 units in height and put it above the cylinder

9 make the skull charm 6 by 6 units and 3 units in height and put it in the middle of the cylinder

10 copy and paste to make a second

11 place on both sides of the cylinder

12 add a paraboloid 100 by 100 units and 10 units in height and add it under the first cylinder

finished top half

1 add a cylinder 100 by 100 units and 46.42 in height

2 add a cylinder hole 78 by 78 units and make it 46.42 in height put in the middle of the first cylinder about halfway up from the bottom of the first cylinder

3 add box hole and make them 13.30 across and 15.50 in units and tilt them up so they look like the picture

4 make 4 of the box holes and add them in a square pattern

5 round off the bottom with a paraboloid and make it 100 by 100 units and 11.05 units in height

for the legs you need 2 cubes

1 for the base you need to make it 15 by 60.88 units and 6 units in height

2 the foot is 15 by 15 units and 5 in height place it on the edge of the first leg

3 copy and paste you need 4 complete legs

the disc this is top hold the needles you will need 1 regular cylinder and 8 cylinder holes

1 for the first cylinder you need to make it 66 by 66 units and 7.5 units in height ( this will go inside of the bottom half)

2 for all 8 holes make them 9 by 9 units and 12 units in height

3 place the holes in the first cylinder in a circle they should go all the way through

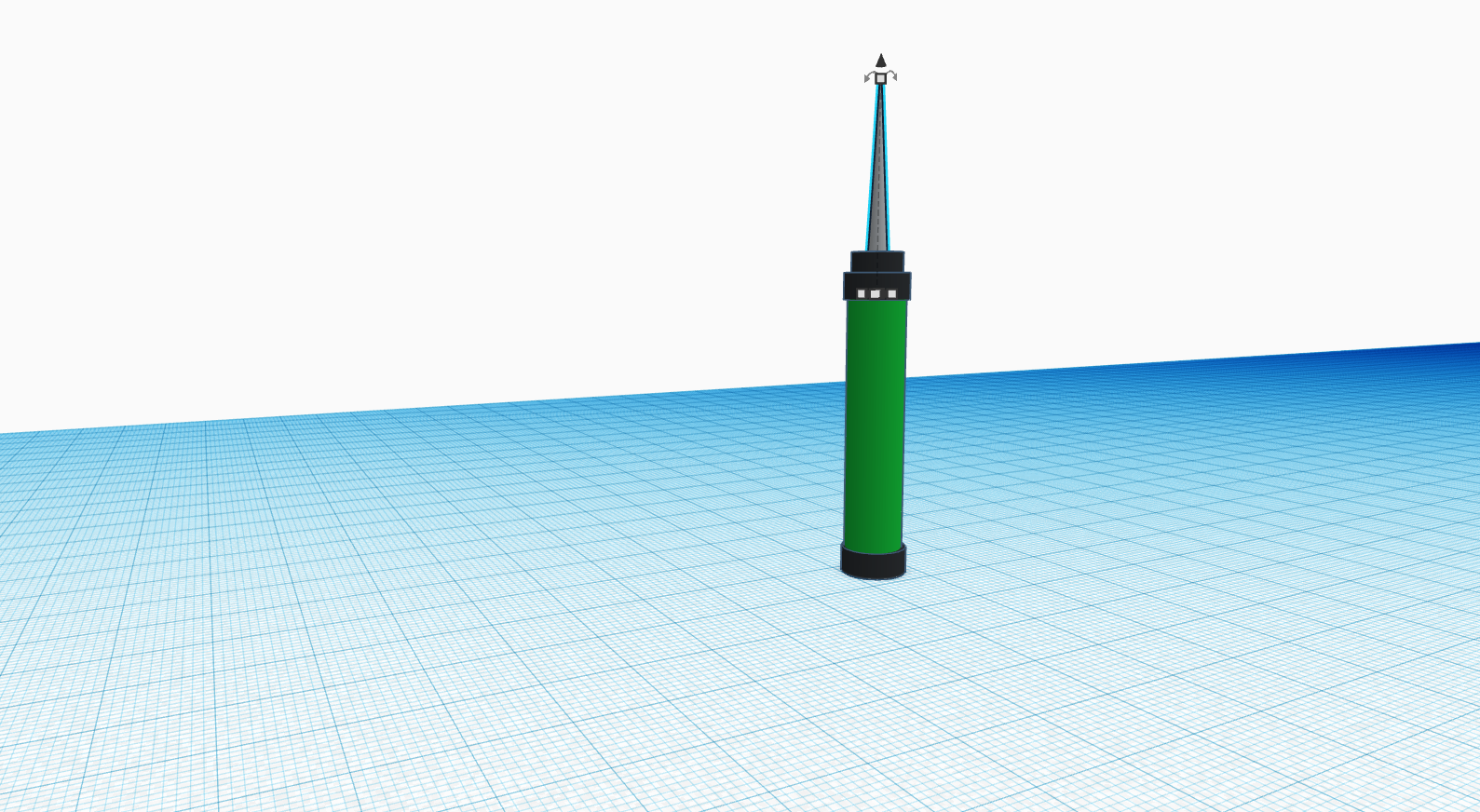

for the needles you need one cone and 4 cylinders

1 start with the base by making a cylinder 9 by 9 units and 3.56 in height

2 make the second cylinder 8 by 8 units and 37.7 units high and place it on top of the first

3 make the third cylinder 9 by 9 units and 3.56 units high and place it on the second cylinder

4 the third cylinder is 7 by 7 units and 2.8 units high and put it on top of the last

5 the cone is 3 by 3 units and 29 units high put through the the two cylinder at the top

6 copy and paste until you have 8

a file incase you don't want to follow the tutorial
