How to Make a Guitar Amp (Cheap)!!!

This cost me around 7 bucks to make this including all the materials for the box



This is very easy to make it only took me about 3 hours to put everything together.
It give a nice clear sound and also has a distortion fuzz knob for electric guitars

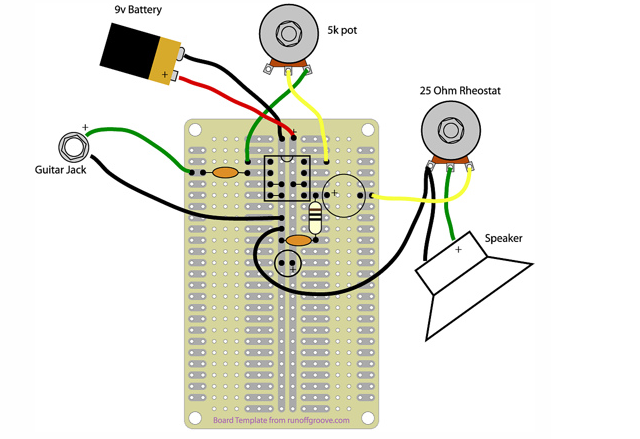

i used this schematic from Flickr user cairn_idris who has made a much
more readable circuit drawing and posted it here.If you follow this exactly then you
should have no problems.Its best to test it out on a Bread board before you start
soldering.

I bought all these parts at my local radio shack.
You can also buy them online though.This list
Was created by Aidan Collins and edited by Me.




IC chip, LM386N

220µf electrolytic capacitor

100µf electrolytic capacitor

0.047µf ceramic capacitor

0.01µf ceramic capacitor

10Ω resistor

5kΩ Audio-taper Potentiometer

25Ω Rheostat variable resistor

8Ω speaker

toggle switch

¼” mono phone jack

breadboard

circuit board

hookup wire

9-volt battery or supply

You will also need these tools

Pliers

Snippers

Wire

Switch

Solder

Soldering Iron

First you should test it out on a bread board.
After that if it all works you can move on to the

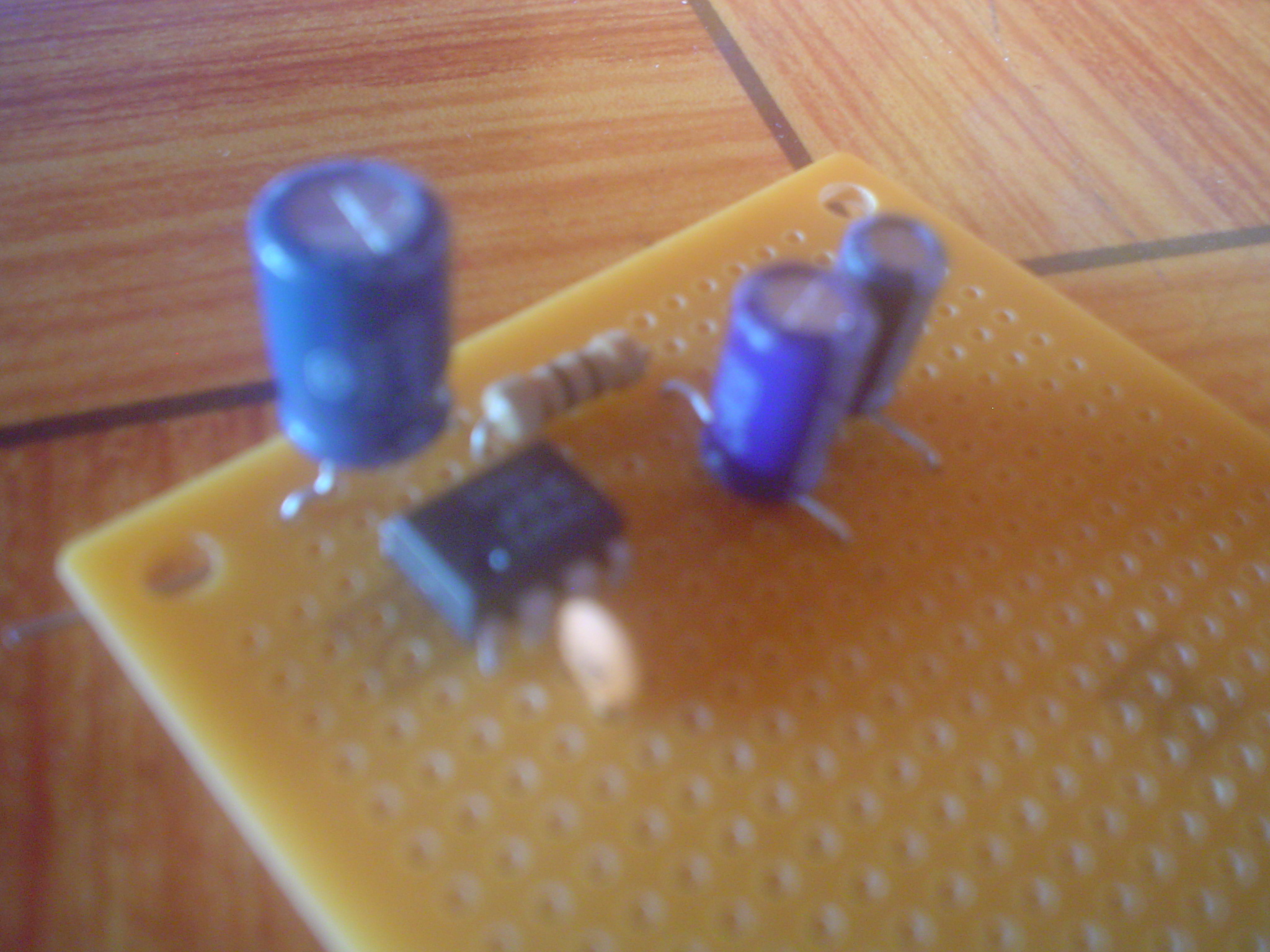

circuit board.I am using a parallel circuit board
but you can use a single cell board.Start by putting
on all the pieces and then begin soldering the pieces
to the board before moving on the the pots and speaker

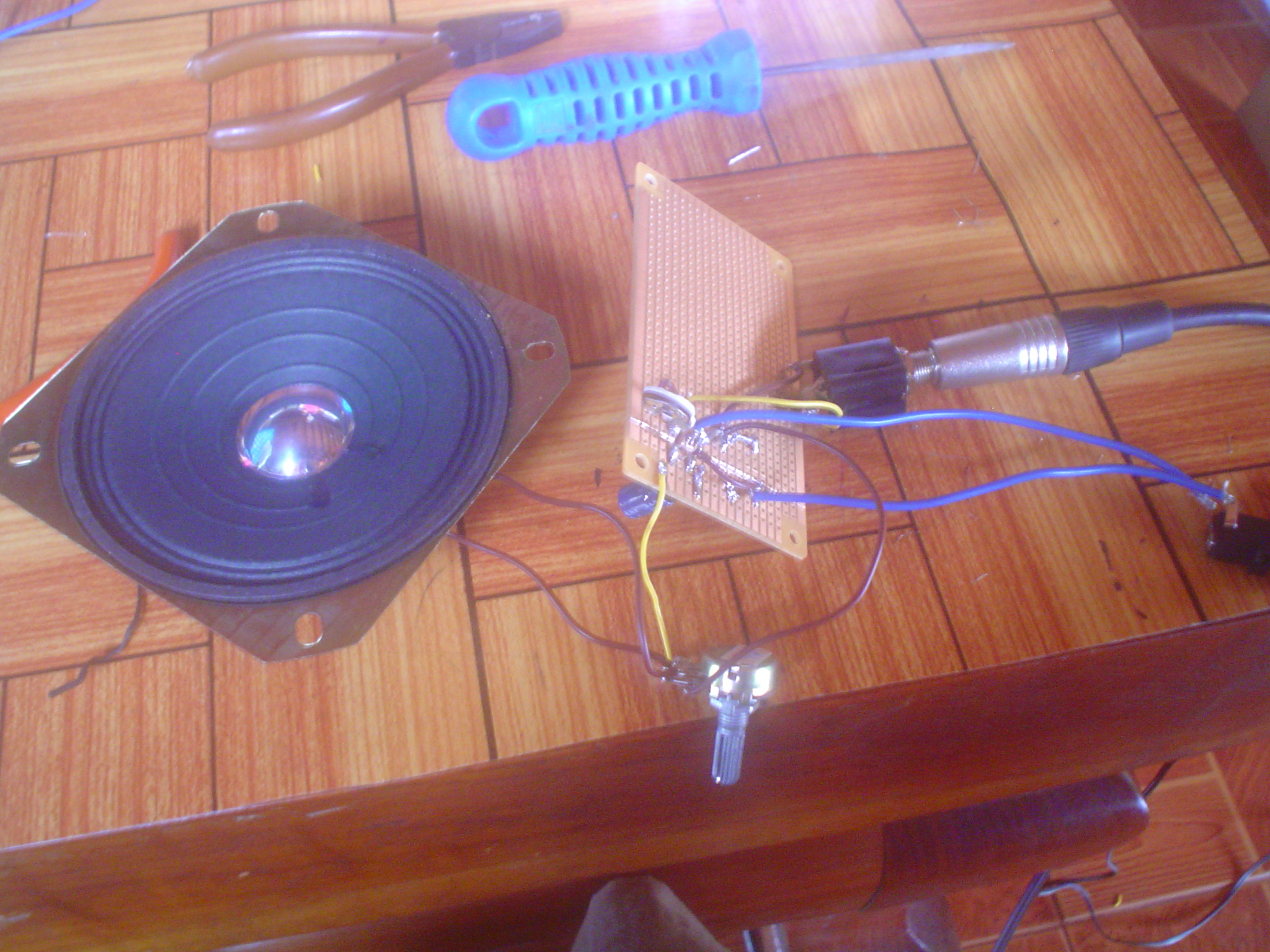

Next after soldering the components to the board you can
start adding the pots.Its best to stat with the 5k pot because
its easier to put on first.Next we can add the Variable resistance
and the speaker.Make sure you wire everything correctly according
to the schematic and test it out!

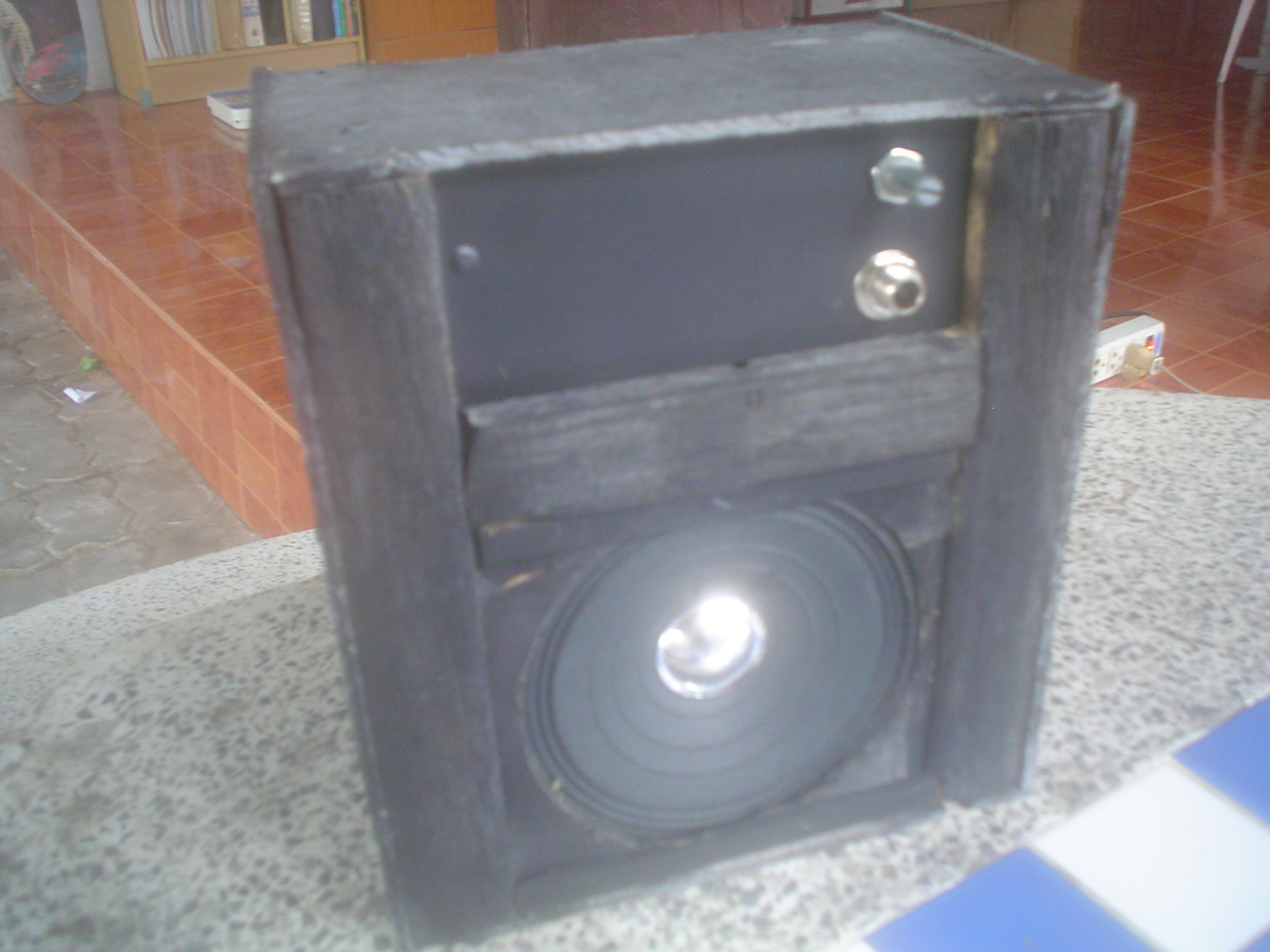

I made a quick box out of cement board and wood
and hit it with a quick(and lazy ;) coat of black spray
paint

Almost done.Just hook up everything according to you box
that you made (if you made one) and done!
