How To: Make a Premium Aquarium Light at Home for Cheap!

Hello Everbody,

Specially for those who keep Aquariums.

Almost Every Aquarists Needs an Premium looking Light, Buy you could see that all Lights which look beautiful , have Very High Price.

First of all, i am Starting a Company Named Bubbles AquaLighting, which focus mainly on Building Premium Lights with a Low Price for Our Buyer. And this is One of out First Designs, which you would love.

Website: bubbleshub.in

For International & Domestic Orders: Contact - bubbleshubcare@gmail.com

(We can make Almost any Size for your Aquarium for Low Price)

About the Design:

This Design Focuses on Preventing Water Droplets which jump from water surface due to Filter's Bubbles.

( Very Small)....

and if your Aquarium Light is Very Close to an Aquarium then , it will be prone to that Droplets....

Reason: When the Droplets will reach the Terminals of the Leds, They will Start Oxidizing due the electricity

and will make some type of slimy substance over Terminals. It also Leads to Rust and Destroy your Whole Light.

Therefore, I Made a 3 Layer Design to Make this Light Waterproof from whole sides + It is Low in Height which helps in good Penetration of Light in Water.

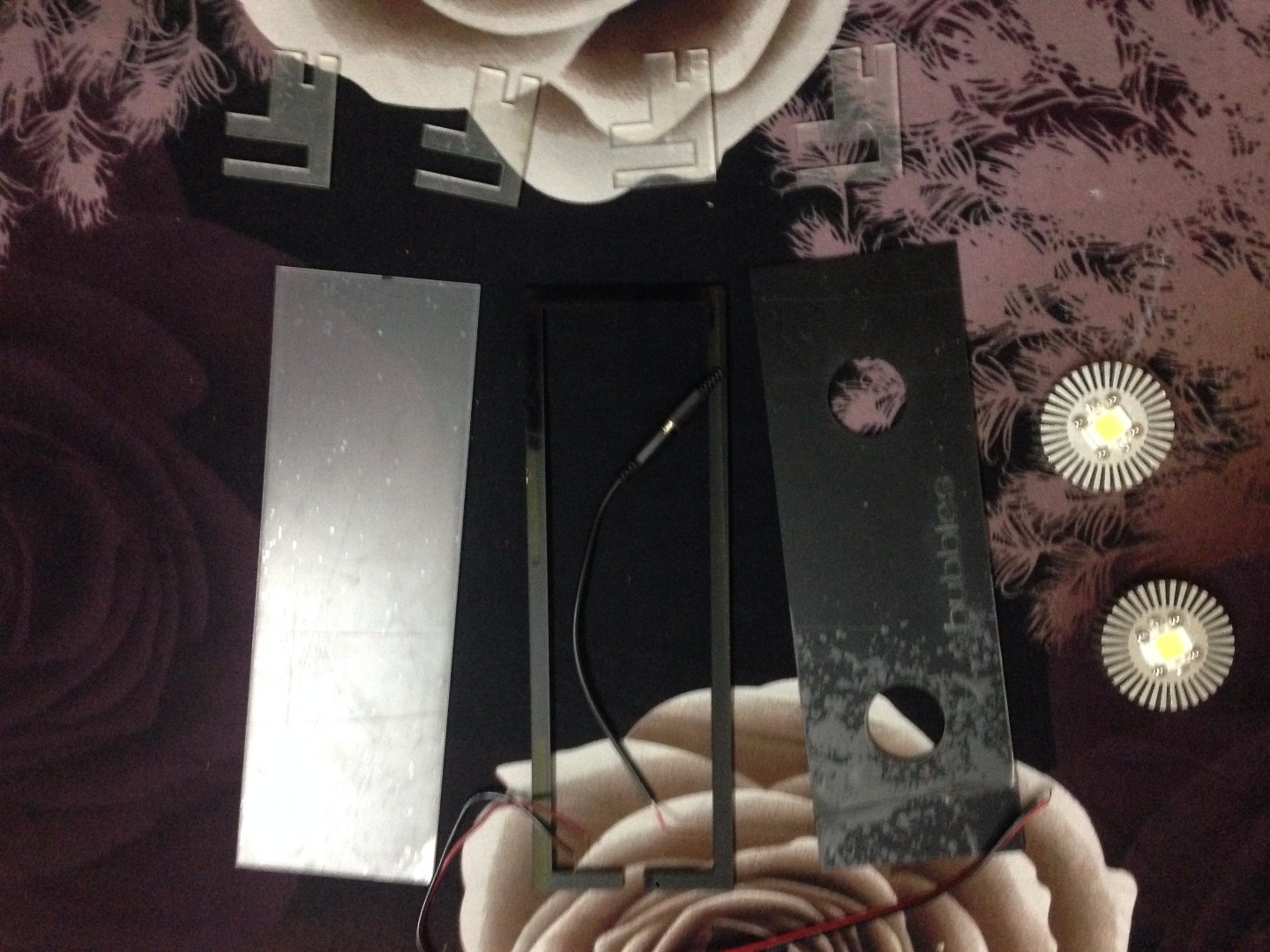

List of Materials Required.

1. Laser Cut Acrylic.

2. 2Pcs. Heavy Duty 10Watt HeatSinks

3. Silicone Transparent

5. 2Pcs. 10W Leds

6. DC Socket with Pre Attached Wir

7. And Lot's of NewsPapers

Sorry Guys, as this was my Official Design, so i could not give the Design file.

But i will give you the measurements -

The Light was Made for a Perfect 1Foot x 1Foot Aquarium.

Therefore the 2 Plates are of 30cm x 10cm & make one border of the same size just 10mm Thick.

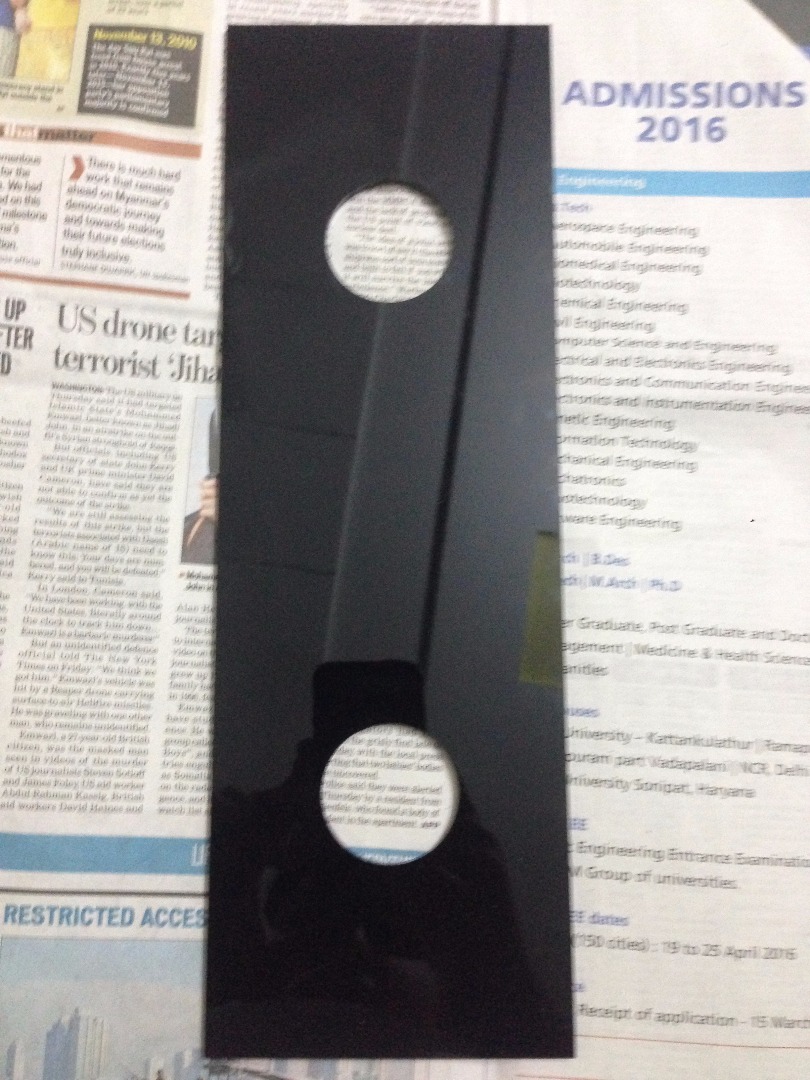

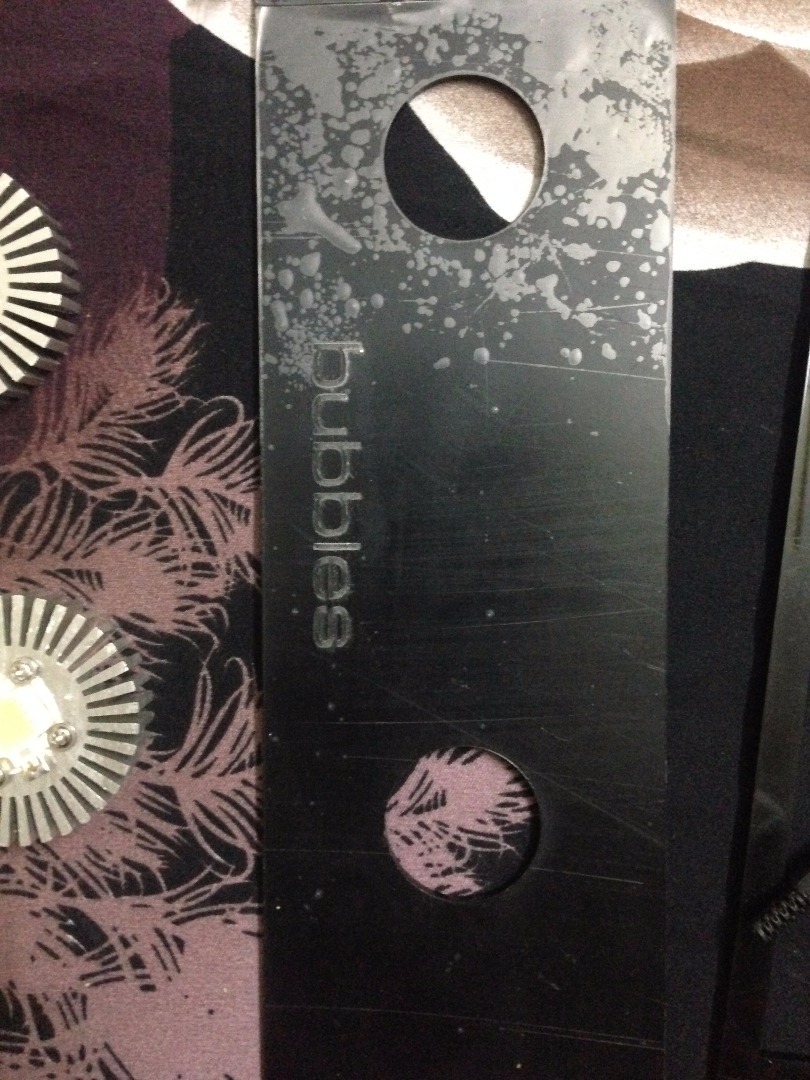

Top Plate = 3mm Black

Middle Border = 4mm Black

Bottom Border = 3mm Transparent

( Make holes according to your heatsinks.)

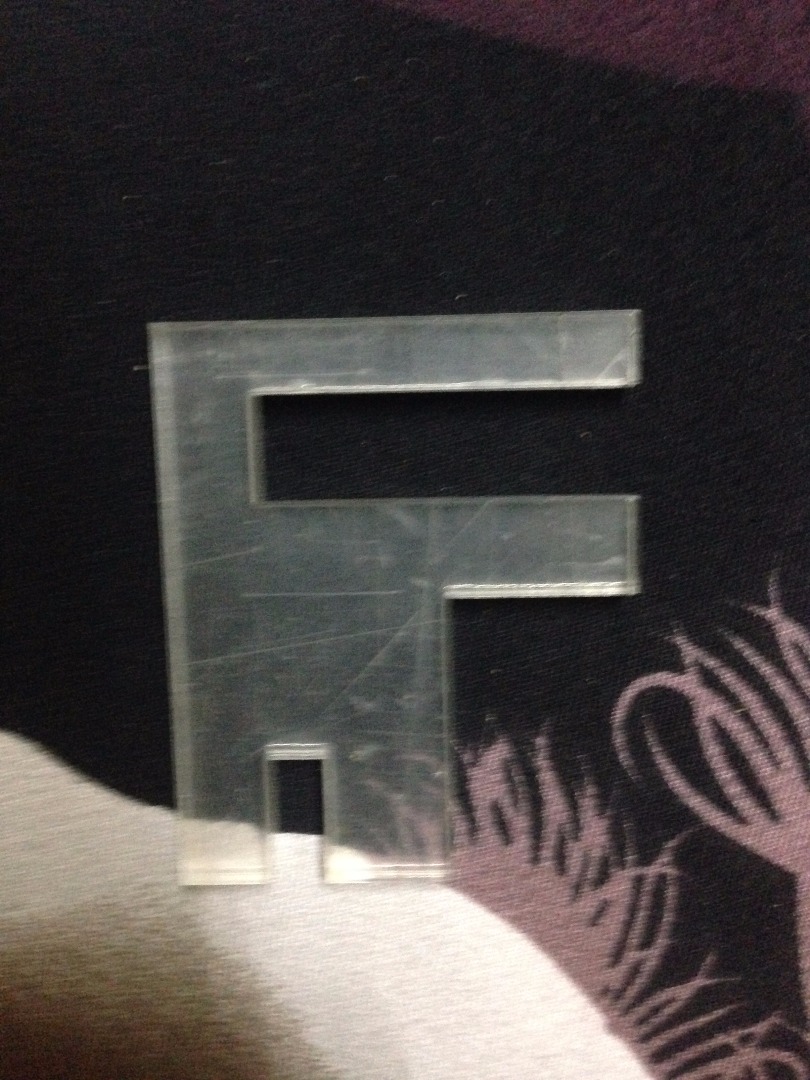

The Holder Structure were of as follows:

The Mouth of structure to hold , had an gap of 11mm

and the bottom mouth to grip the glass, had a gap of 6mm

---------------------------

All Designing was Done in FlexiSign Software.

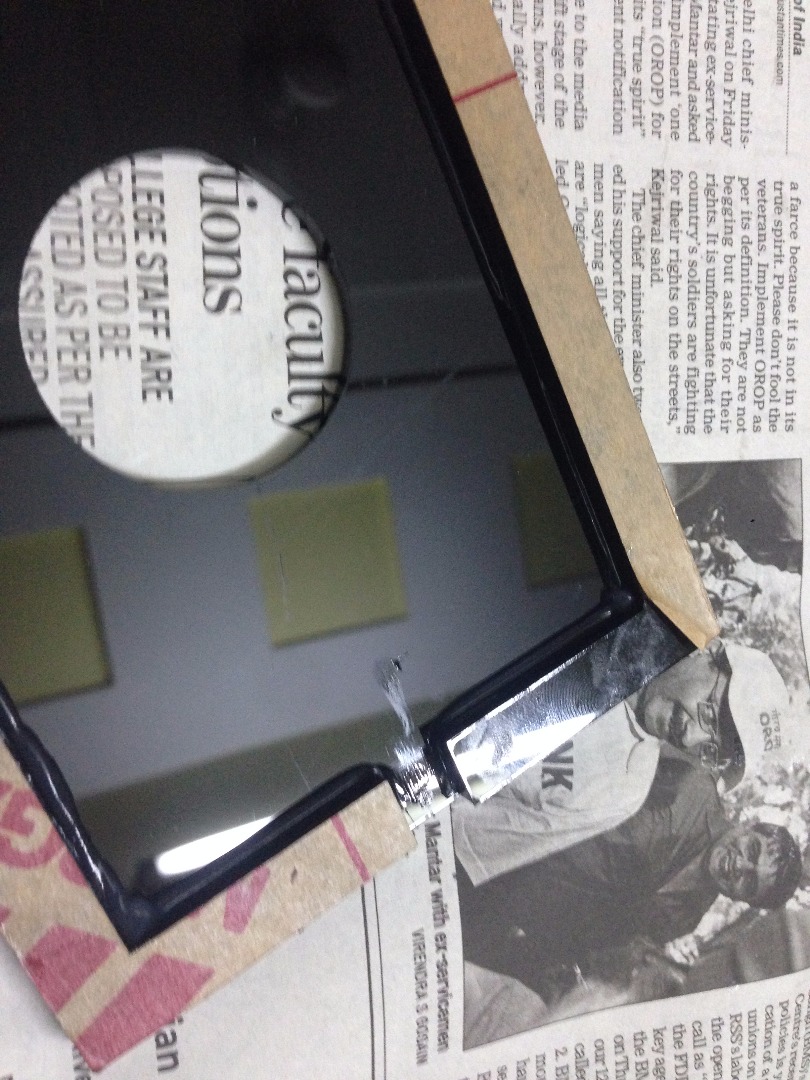

Now take the Top Plate + Bottom Plate & Apply Silicone to Them.

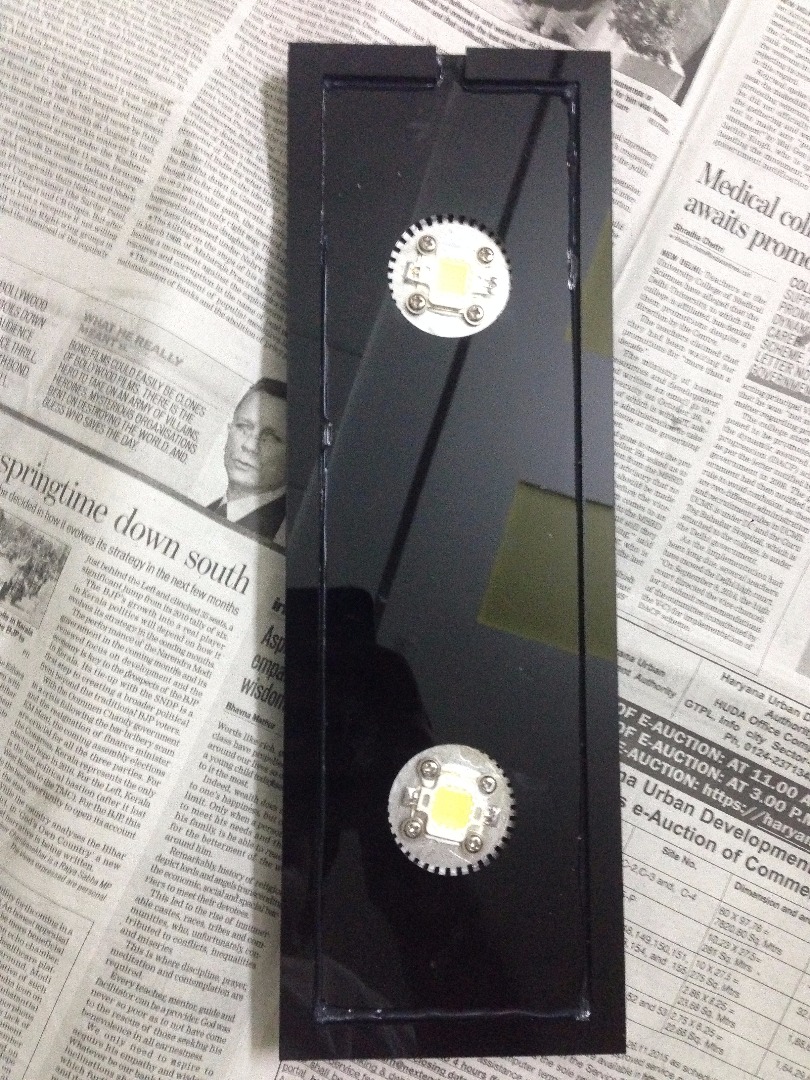

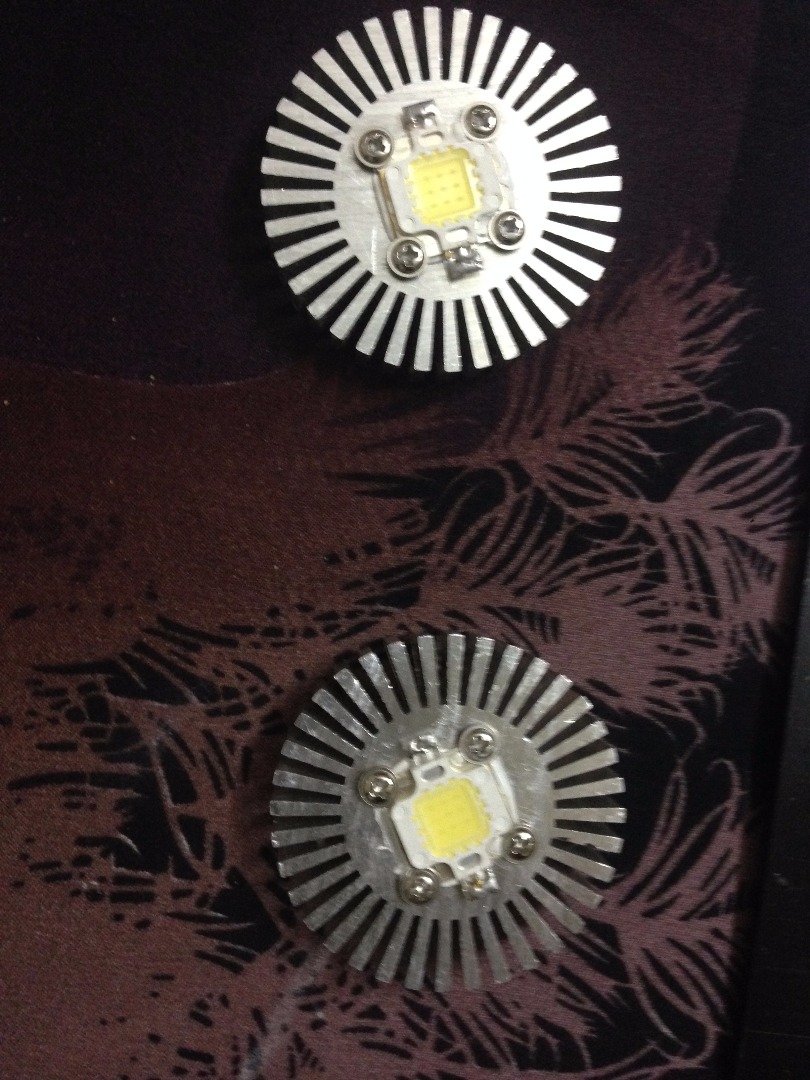

Add The 10 Watt Leds Pre Attached to Heatsinks.

To Make the Leds Stick at one Place, Add One Drop Instant Adhesive at Heatsink and Stick it at Top.

After This Take a Small Peice of Wire and Solder the Leds in Parallel.

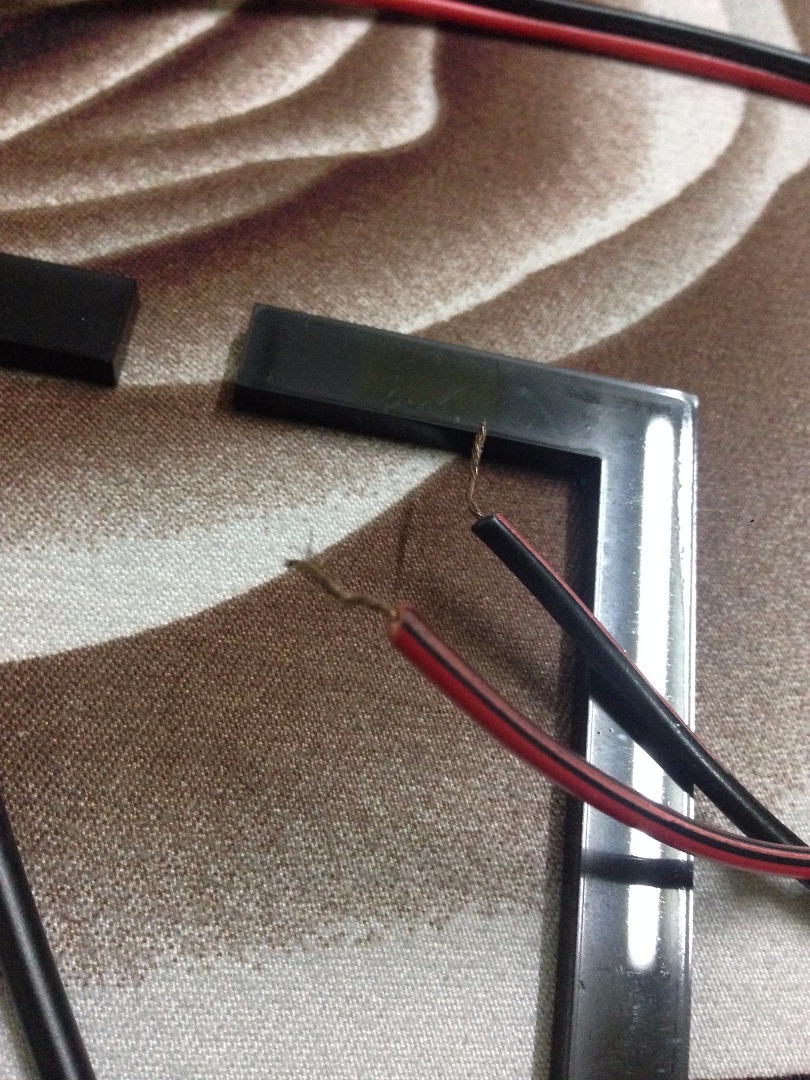

Now , Solder the DC Jack to Leds.

Remember the Positive and Negative because , Light cannot be opened again after Silicone is Applied.

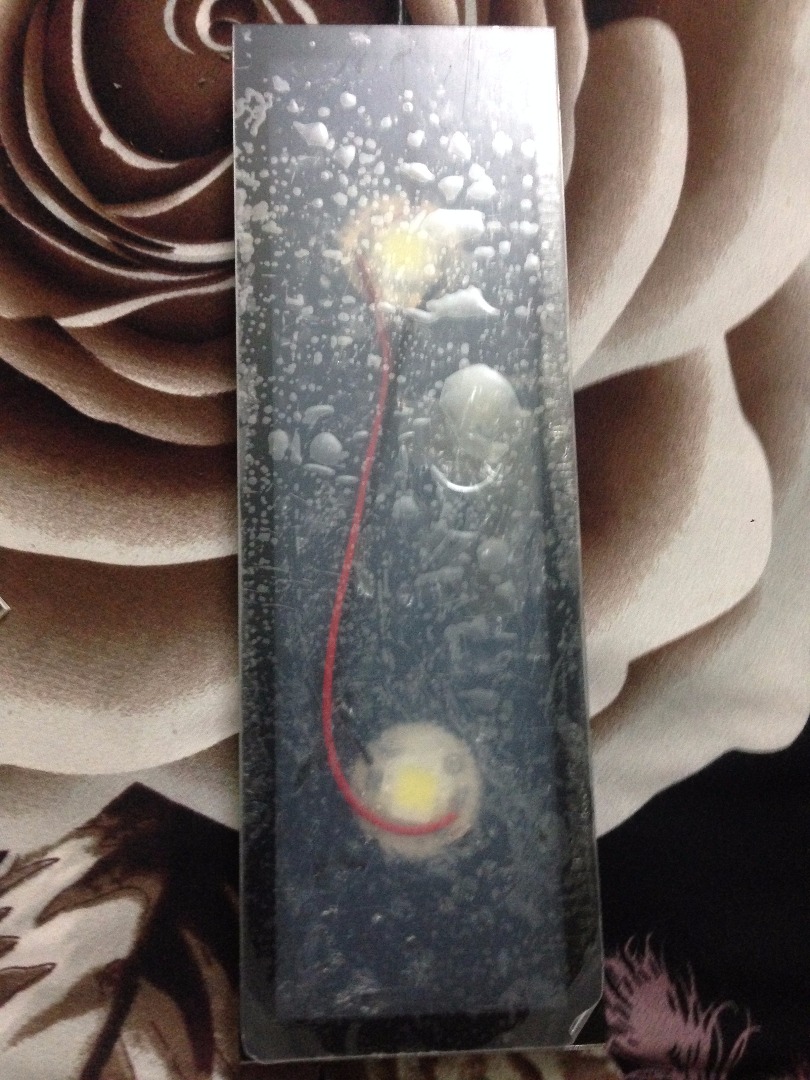

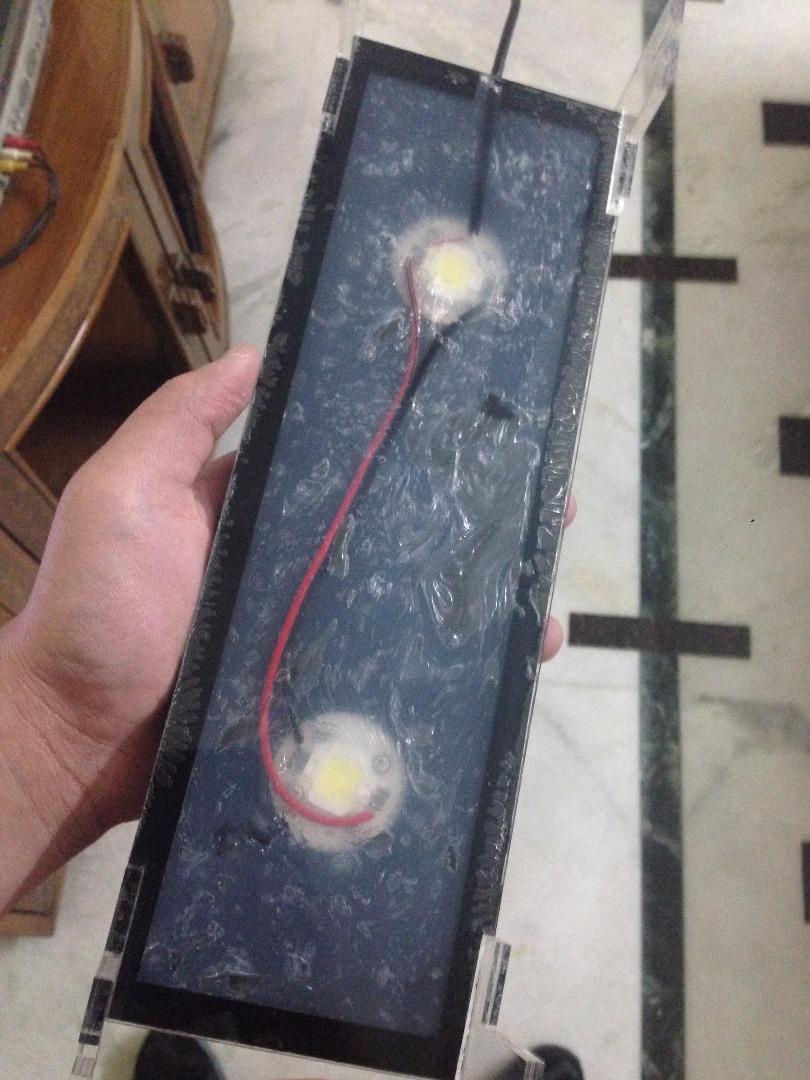

Now Fill Silicone in the whole Gap which could have been left between the top and bottom acrylic.

By this Way The Light Become 100% Waterproof with no Worries of getting Spoiled.

Now Simply Slide the Support legs at sides of light and Make them Firm by Dropping One Drop Adhesive .

And It's Finished.

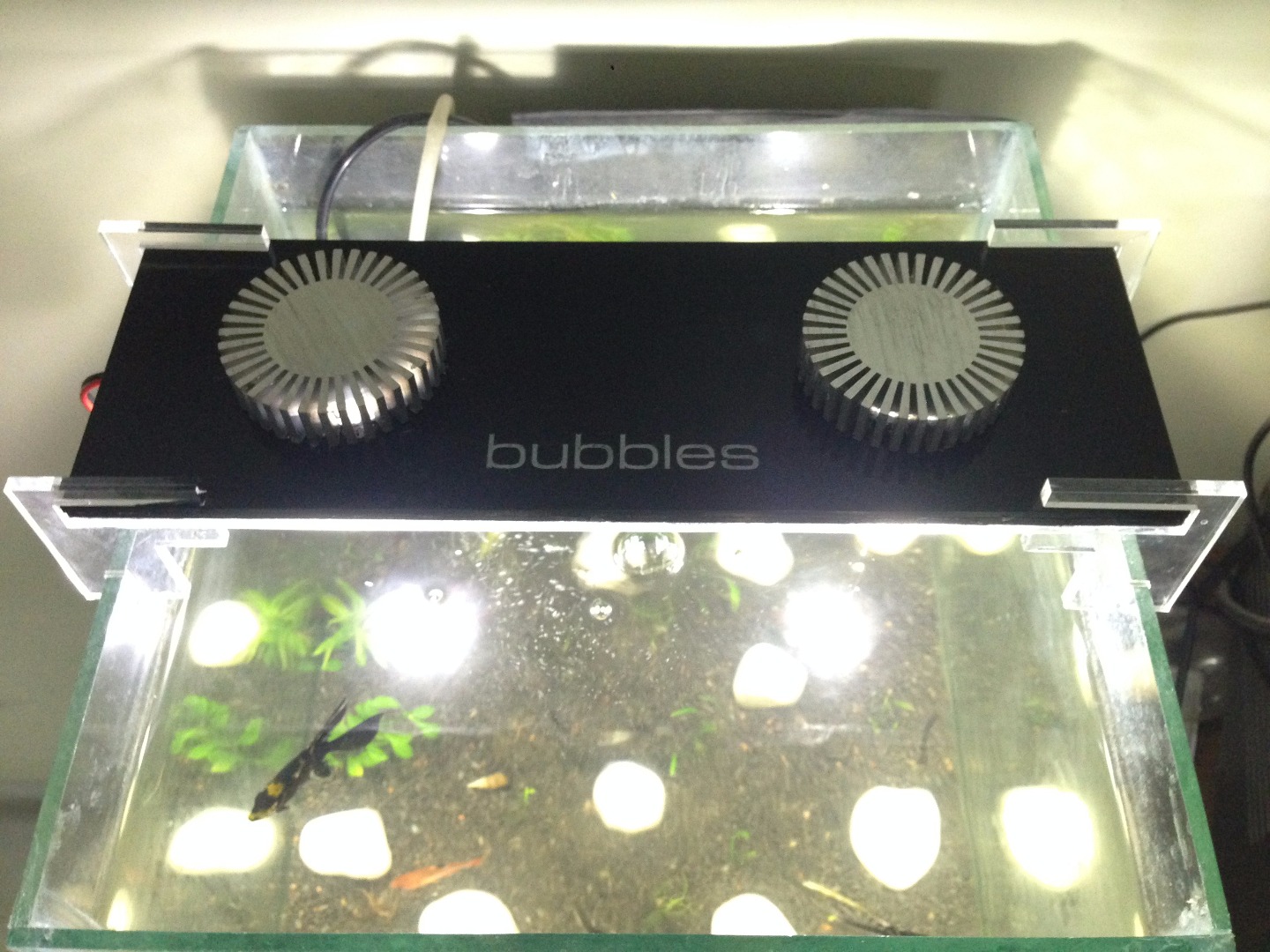

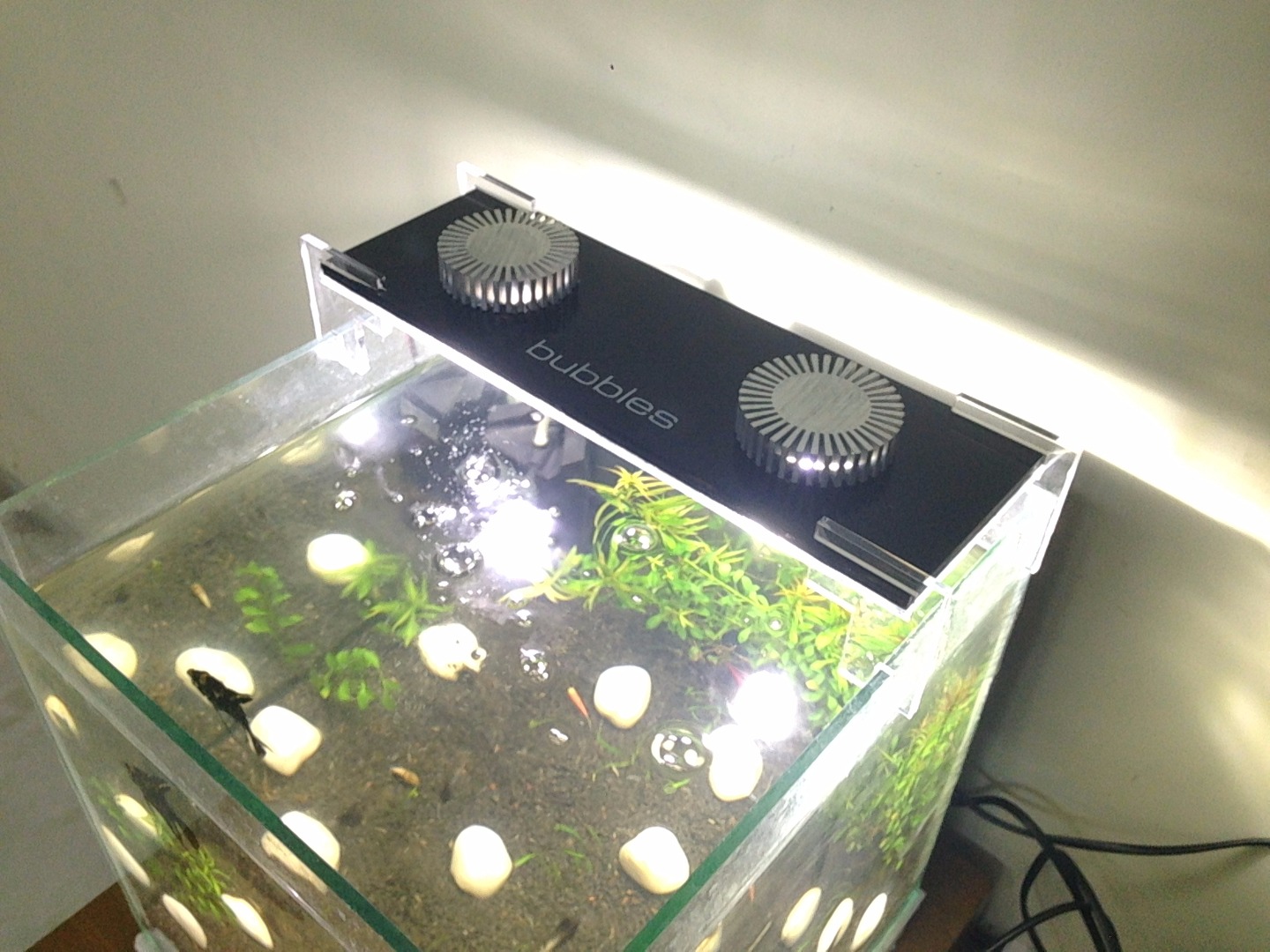

And We have made our own Premium Homemade Aquarium Light to Enhance the Beauty of Our Aquariums.
