How to Make the Turbo OmniStreak Paper Airplane

Fast, long range and stealthy, the Turbo OmniStreak is a simplified variant of the Turbo OmniScimitar, designed to use less material in its construction.

The Turbo OmniStreak was developed after its namesake as a variant of the Turbo OmniScimitar (the original OmniStreak having been based on the Turbo Omniwing). As with the original, the Turbo OmniStreak was developed to strike down increasing material requirements with a simpler design still capable of performance comparable to other variants. To preserve commonality and make construction easier to go about, I chose to base the aircraft off of existing aircraft. The bending of the airfoil folds repositions the center of gravity slightly, and so the aircraft tends to fly differently as compared with its brethren. Flight testing of the aircraft proved it to be an able design, and so it was cleared for publication.

TAA USAF Designation: F3-1E2

Required:
1 Piece of 8.5 by 11 inch Paper

Tape

Scissors

Ruler

Pencil

Fold your paper in half along its width. Once you've done this, fold the
edges of the paper back in to the crease. Then fold the corners of the paper into the crease of the outer fourths as shown. Then fold the diagonal edges back, and the folds on each side should now touch the center crease. Once you have done this, undo the last folds and fold their edges inwards as shown. Then restore the leading edge folds to cover these last folds.

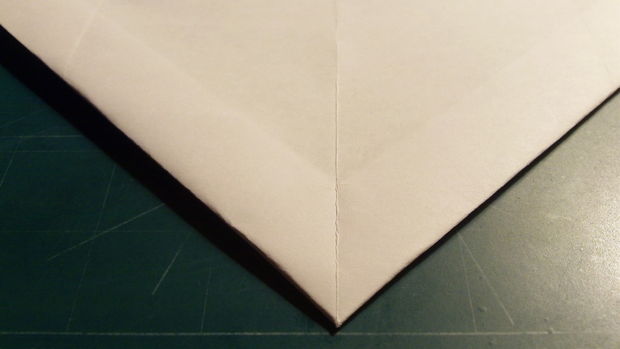

Fold the tip of the nose down to the vertex of the previous leading edge
folds. Then pull the leading edge back so that what was the blunt tip of the nose touches the center crease and repeat on the other side. Then fold the paper in half so that these folds are on the papers outside.

Measure 2.5 inches in from the trailing edge along the center crease, make a mark and then measure 2.5 inches outwards from the center crease along the trailing edge and make a mark. Then connect the two marks. Cut along this diagonal line.

After you have finished measuring and cutting what will be the counterweight, begin measuring the vertical fins. Find the point 0.75 inches ahead of the trailing edge along the wingtip and make a mark. From the wingtip measure 1 inch in and make a mark. Then from this mark, measure 1 inch inward (perpendicular to the trailing edge) toward the leading edge and make a mark. Then connect this mark to the one you just made on the wingtip. Then cut along this line.

From the 2.5 inch mark along the center of the airframe, connect a line to the trailing edge of the wing at the fins' rear root edge. Then cut the portion aft of this line off. You may then discard the associated pieces of paper.

Bend the trailing edges of the airfoils forward where shown. Then apply tape to the trailing edges of the airfoils to secure them. Once this is complete, the airframe should appear as it does in the last photograph.

Take the piece of paper you trimmed earlier and unfold it. Fold the corners inwards on each side. Then pull them backwards and make a crease. Then pull the bottom layer backwards as shown. You should now have a smaller, denser triangle. Flip the airframe inverted and tape the counterweight to the bottom of the airframe at the leading edge. This will complete your Turbo OmniStreak.

The Turbo OmniStreak is fast but remains similar to the original OmniStreak and other Omniwing variants at launch. Launch should be at moderate to high speed at a negative or neutral attitude, with the airplane being held by 3 fingers (1 over the wing, 2 beneath the wing). This type of launch will give flights the longest range and/or best speed. Test flights are recommended to find what (if any) trim is needed. Additional applicable surfaces include slats, rudders, spoilers, spoilerons, elevators, ailerons, elevons, and air brakes. Enjoy!
