How to Make Hologram Projector at Home

Introduction:- Hello Guys, In this blog i'll show you or teach you that how can you make your own Hologram Projector at your home in just 5-10 mins. it is very easy and very cheap. You can turn your smartphone into 3D holographic video viewer with this simple DIY projector. Unfortunately, this illusion is not a true 3D hologram, it is still uses 2D image/animation/videos to create or generate the effect, while a true hologram is recreates a 3D object or thing and with latest technology it requires the use of diode laser beam, glass and accurate glass position, it's very occurred and time consuming.

More More info Visit -http://goo.gl/DrsZGK

You only need couple of things for create this device:-

1.Cd Case or Acrylic glass (transparent)

2.Graph Paper

3.Pen,Pencil,Scale

4.Scissors and Glass Cutter

5.Tape and Super Glue

So, First thing you have to do is that you have to make a ruff diagram on Graph paper of pyramid side as shown in image,

here i'll make medium size of pyramid you can reduce or increase as per your requirement. Now if you want bigger then the Base=18 Cm, Height=10.5 and Top (1 Cm or 2 Cm)is as it is. And if you want small then this then the Base = 6, Height=3.5 Cm and Top =1 Cm

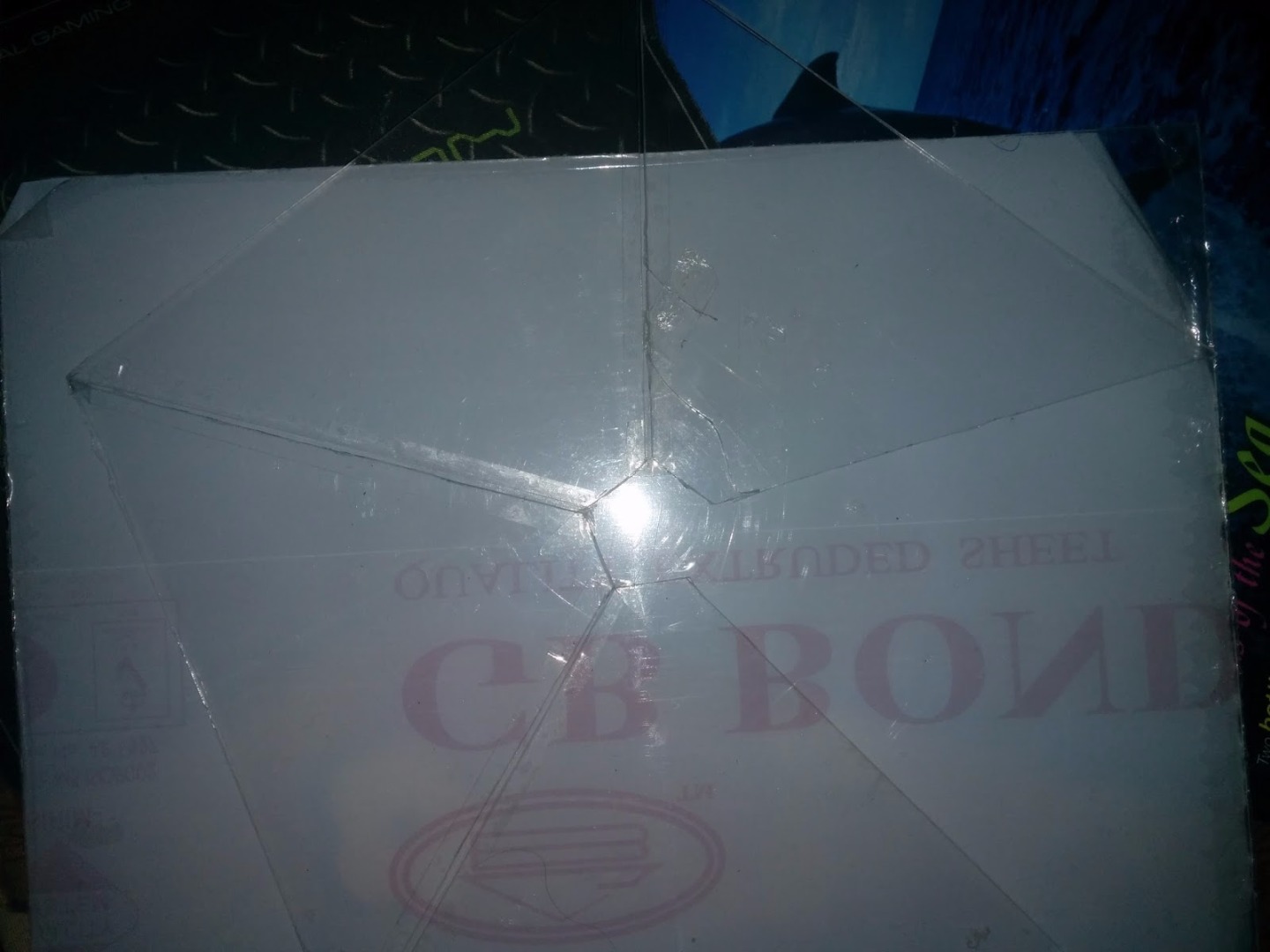

Now cut glass or Cd cover with cutter as dimension as we decide in graph paper,

cut same 4 pics of acrylic glass as shown in fig.

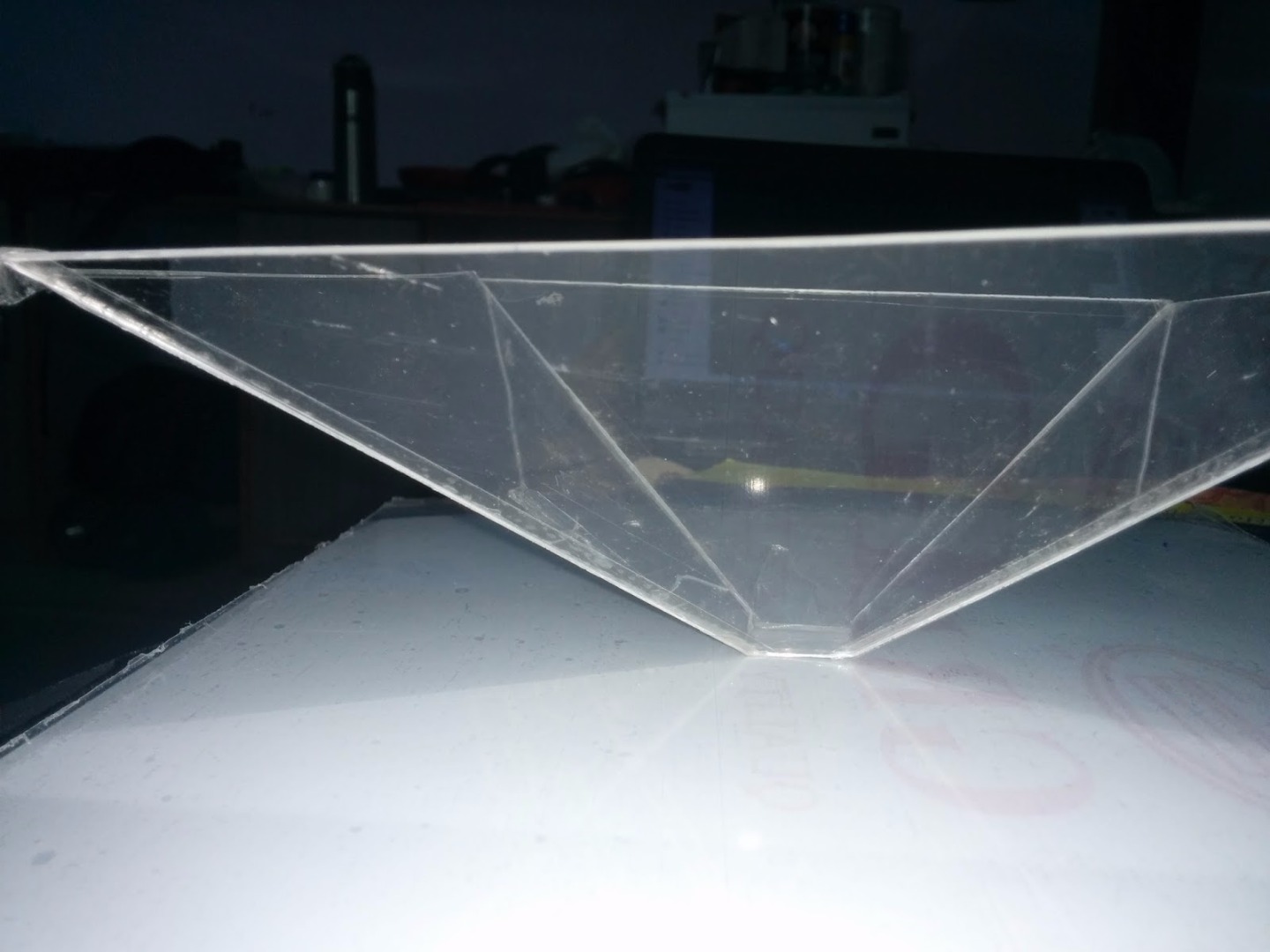

Now attach glass with each other by tape of super glue,

.

.

done, congratulation,
Now you want some videos and smartphone. so go to next step for that illusion.

Now, take your Smartphone and go to YouTube and search hologram videos. You can find lots of 4 SIDE hologram videos.Put your hologram projector on center of your smart phone and play videos and make sure to turn off your room lights for batter observation .

.

.

.

Reason behind this effect
Now Some information about how it'll work:- The video that make use of this device play the same video from four direction, and when these are reflected in the panes of your device it look like a floating 3D hologram. Thank you:):):) If you have any quires , need help and any suggestion then just comment here or mail me @ vmaharajwala@gmail.com
