How to Install Off-Road LED Light Bar
by ilovejdmtoy in Workshop > Cars
4919 Views, 14 Favorites, 0 Comments
How to Install Off-Road LED Light Bar
***CAUTION: Please check with your local and state laws prior to installing this product. iJDMTOY is not responsible for any legal issues as a result of installing this product on your vehicle***
Professional installation is highly recommended. Modifications or damage to the product while installing is not covered under warranty and will void the return/exchange/warranty of the item.
1.) Connect the LED work light bar to a 12v bench tester or directly to your vehicle's car battery to check if the product works prior to installing on your vehicle.
2.) Using the provided screws (3/4") and rubber washers attach the mounting bracket to both ends of the LED light bar and tighten with an allen wrench.

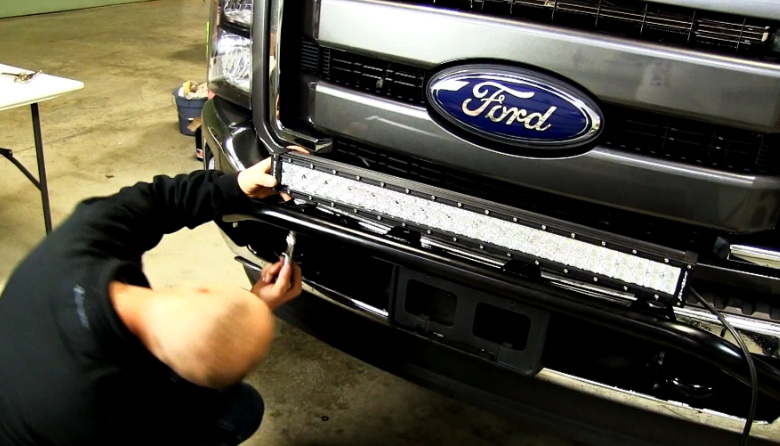

3.) Locate the position where you want to install the LED light bar and use the 1.25" screws and bolts to secure the light bar to the vehicle.
NOTE: Be advised that the product is designed to be installed on a flat surface only. If mounting the product on a curved or uneven surface, we recommend using self-tapping screws instead for a better installation.

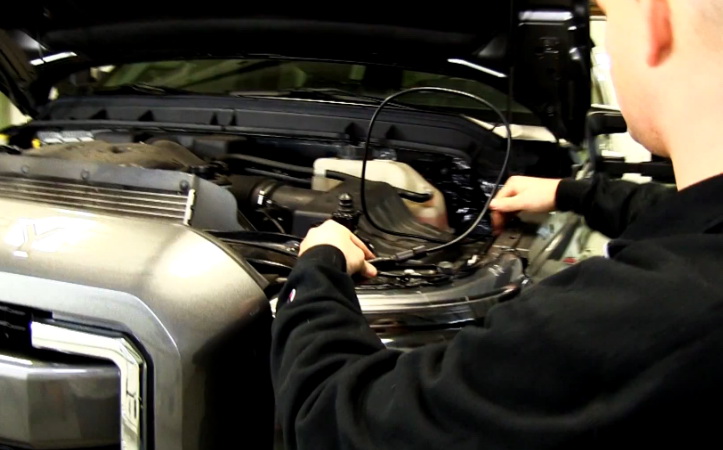

4.) Once the light bar is mounted, route the wires from the product to the relay switch. Connect the red wire to the red wire on the switch and black wire to the black wire on the switch. (We recommend soldering the connections or using butt-connectors and covering any exposed wires with electrical tape or heat shrink tubing).
5.) Route the red and black wires from the relay switch directly to the battery positive and negative (red for positive and black for negative).

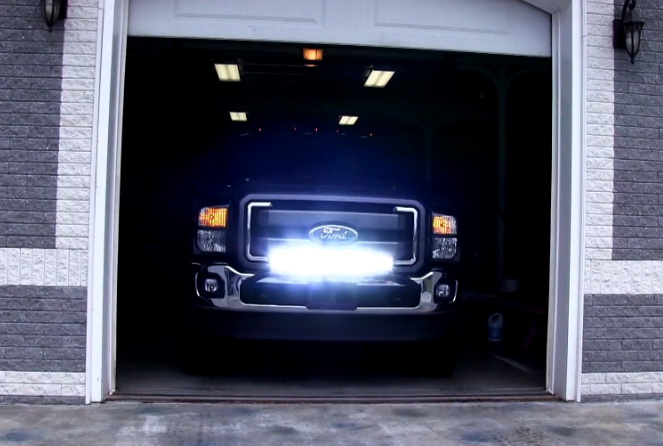

6.) Enjoy your new off road LED light!
