How to Get Wifi From 4 KM or 2.5 Miles Away!!! UPDATED FOR FASTER SPEEDS!!!!

It has been years since I put this post up and I really appreciate all of the input and interest that you all have had in this project!

After research and development we have found ways to make this work EVEN BETTER.

You know what we need? MORE POWER!
Enter: The Binford 31000 Series Unidirectional Based High Power Wireless (Tim Allen grunt here) With easy aim led indicators! (LOUDER GRUNT!) That can be placed up to 328 feet away from where you need it via ethernet cable!

OH YEA! (Kool Aide man comes through the wall)
Can you tell I was a 90's kid?

ANYWAYS ON TO THE GOODS! (it's TP-Link not Binford)
https://amzn.to/2J4nO0M
The link above goes to a really beefed up wireless receiver. Get two and you can shoot signal between them up to FOUR KILOMETERS with line of sight!!!! THAT'S 2.48 MILES! OVER 7 times better than the original satellite dish setup.

Get two, hook one up to your wireless router via ethernet cable and run it out to the adapter (it's waterproof, you can mount it to a telephone pole or flag pole you own) Hook the other one up way out where you need it and point the two at each other until all of the indicator bars light up (or as many as possible) on the side of the unit.

If you don't have access to the signal source you can still get one and use it with the dish setup to get longer ranges,

And if you get two and you still have a weak signal, you can boost it as much as twice as much with a 24db antenna that will attach to it.
https://amzn.to/2vr030T


P.S. The Satellite dish setup still works fine, I built it using stuff I had on hand. The long range high power wifi adapters have gotten considerably cheaper than when I first got them. I paid over $100 each! Now you can get TWO for $80!

This has served me well throughout the years so hopefully it will help you too. ENJOY!

Yea I know, you don't believe me. 1/4 mile? Shenanigans.

Still reading? Great.
The whole thing started when I dropped my friend off for Horse lessons and didn't want to drive all the way home only to drive back to pick her up in an hour and a half. So what did I do? Drove to the closest neighborhood and got on an open WIFI network.

[NOTE: Connecting to someone’s WIFI without their permission is illegal in some areas!!!]
The network I connected to was a local realtor’s OPEN HOUSE FREE PUBLIC WIFI network…so I didn’t break any laws.

The problem was, the signal was very weak and I had to hold the computer at odd angles just to do a simple google search.

THERE HAS TO BE ANOTHER WAY!
So after about twenty minutes of searching and finding things like “wokfi” and “parabolic asian cookware” I had the basic idea of what I needed to do; Concentrate the signal onto the antenna using a parabola. After a bit more searching I found out how to build a parabola out of a cd and a glass pot top, but I figured that it would be too weak for the distances that I am looking for [I would like to be able to connect right from the parking lot at the stables] Then there was the world record holder who had built a reflector out of a 10 foot diameter dish but that was WAY too big. So I compromised and picked up a rooftop satellite dish from a guy on Craigslist.org.

Long story short I built the thing and drove out to the stables, turned the rig on, started netstumbler, and started looking it took a little bit but I got the right angle to lock onto a signal and SHAZAM! I was connected!

So I knew that I had working signal, not just a fizzled connection from the router. The noise was at -100 and the signal was hovering around -75 or so. Not the fastest connection but based on the fact that I was ¼ of a mile away from the router I would say I was doing pretty darn good!

Ok enough with the stories, how do you build the darn thing!

You need:

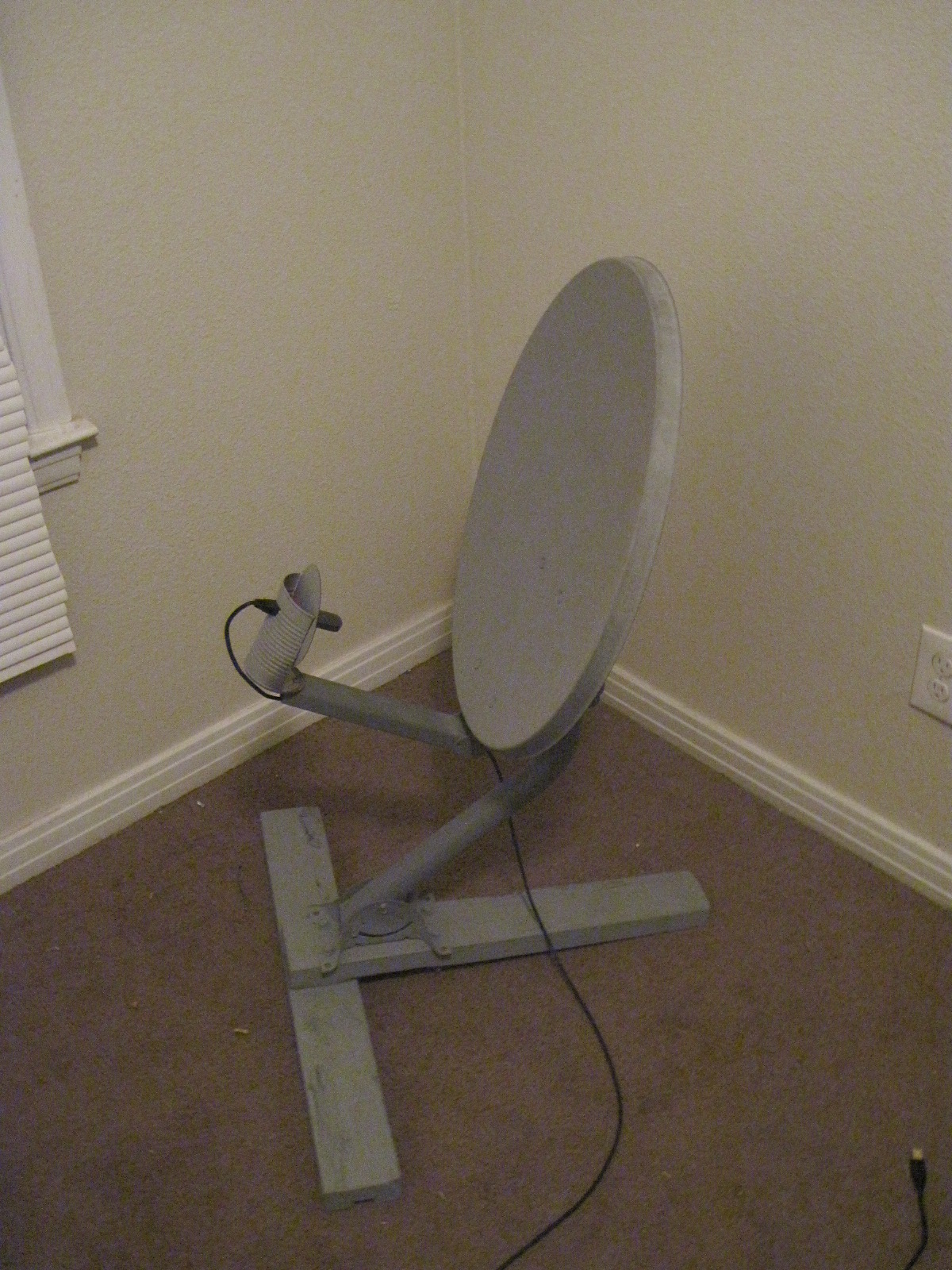

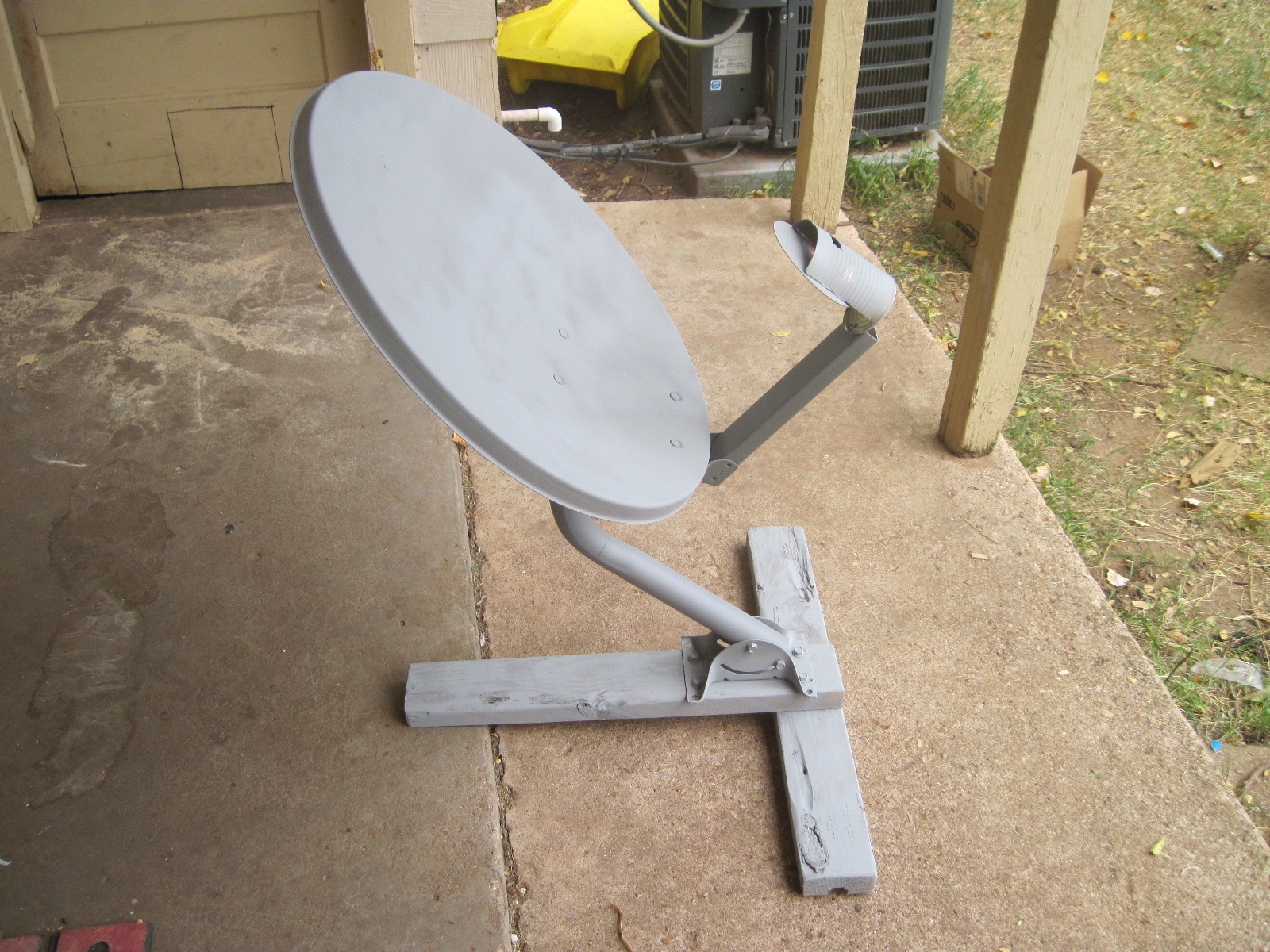

A satellite dish [and the four screws holding it to the roof [YMMV]

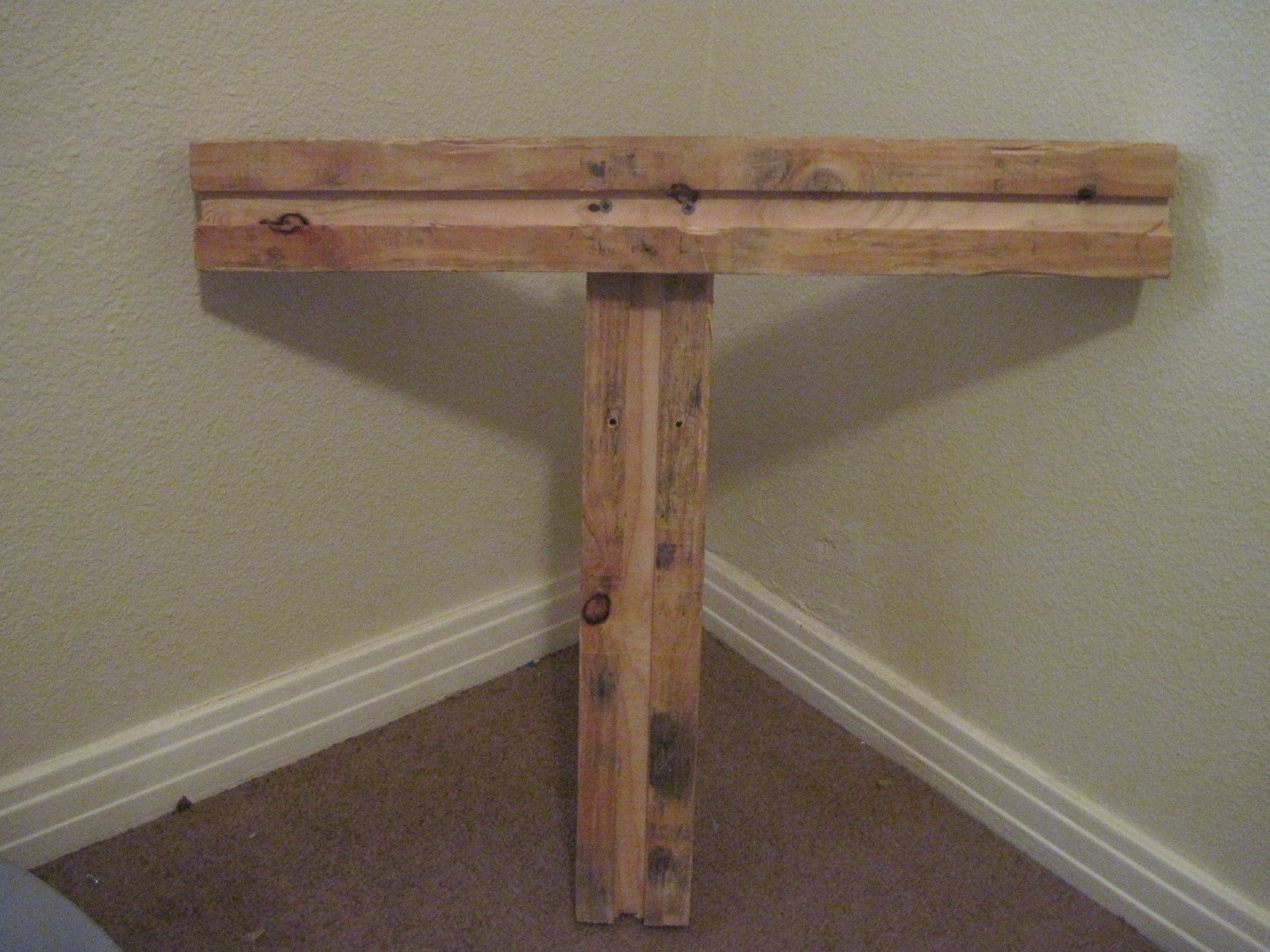

A pair of scrap 2x4’s

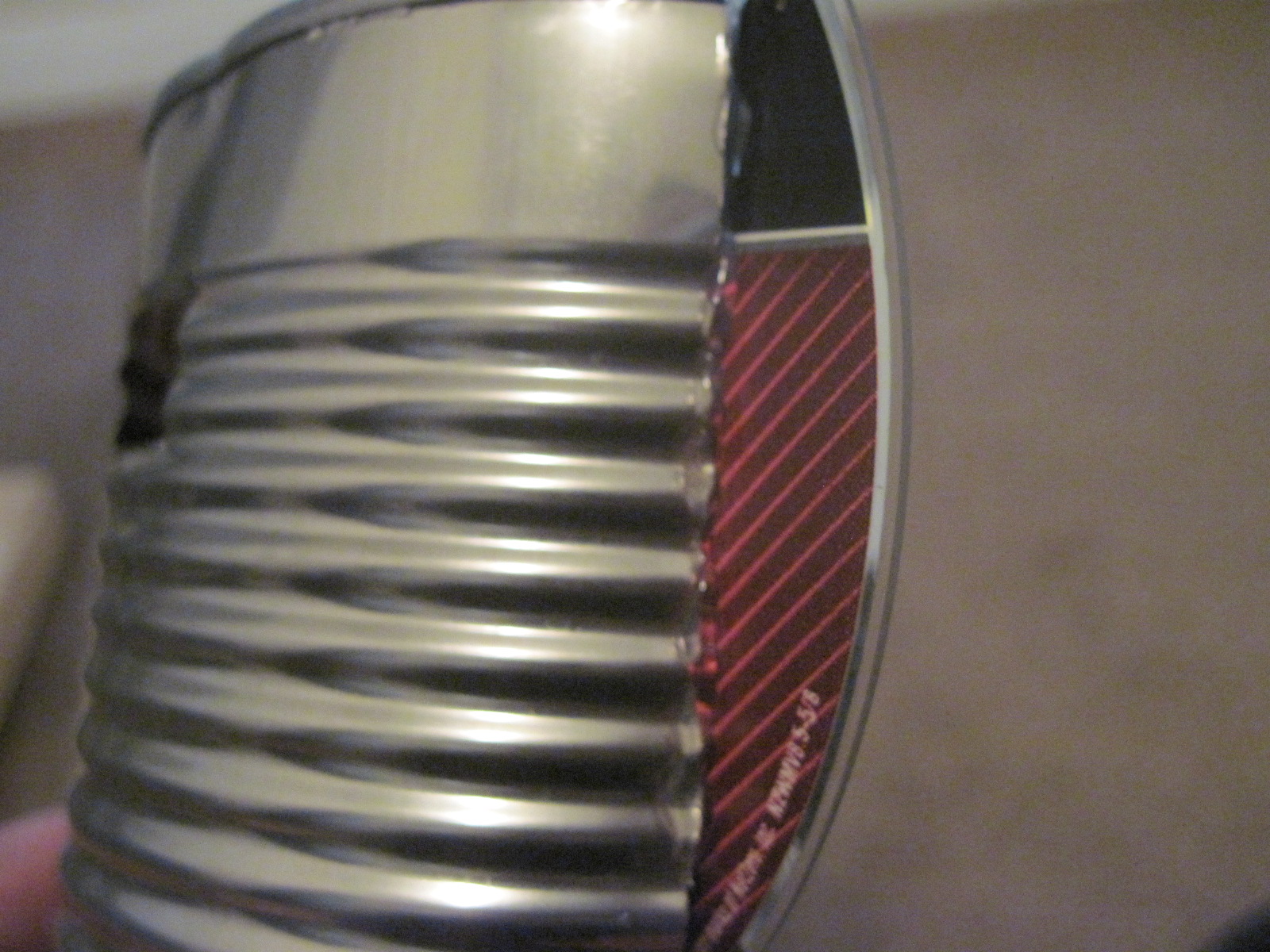

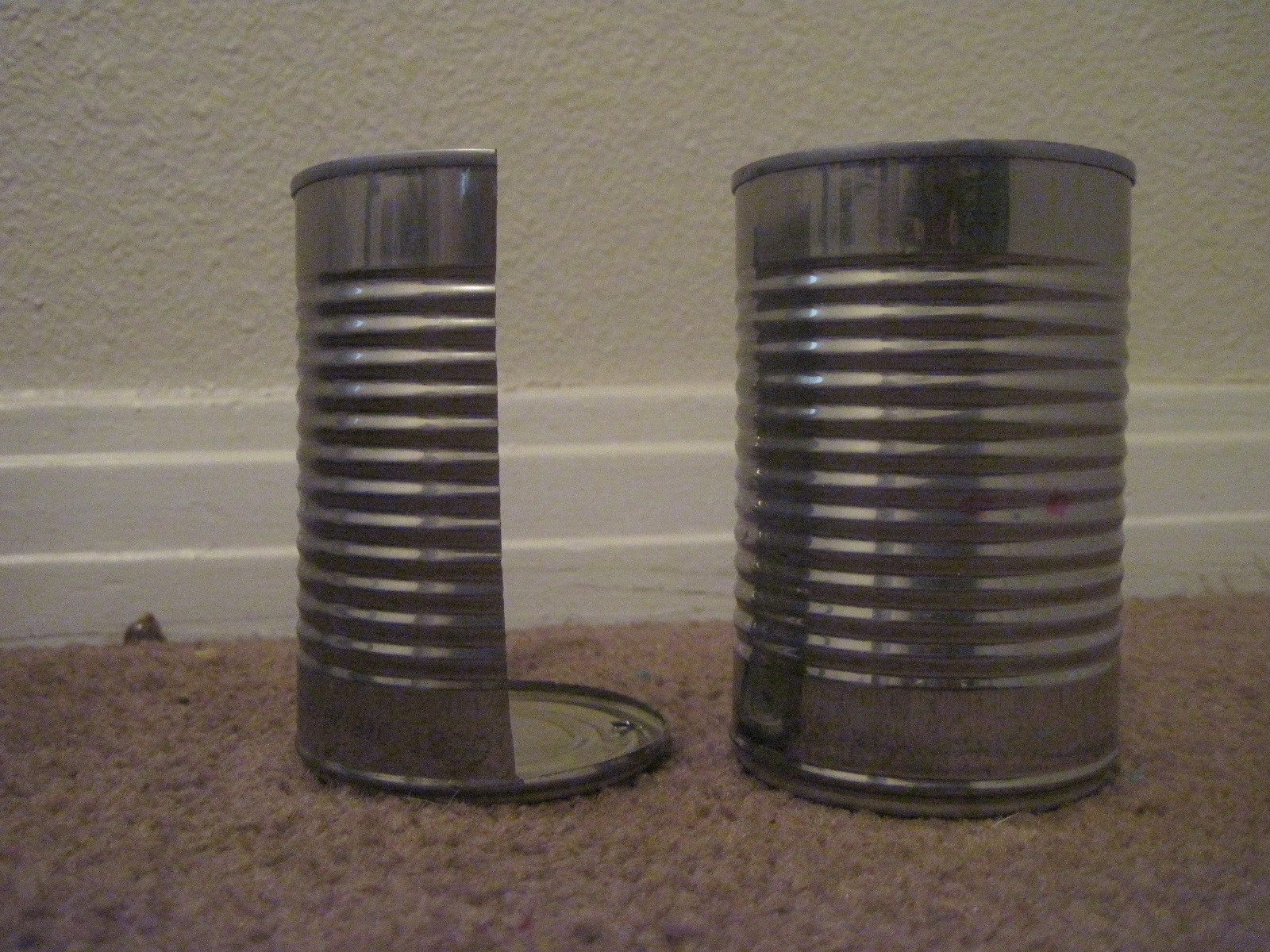

A tin can [green bean sized]
A usb extention cord like this one: https://amzn.to/2qGJmcW

A usb wireless adapter like this one: https://amzn.to/2HITlWk
Or this waterproof high power one: https://amzn.to/2HebJph

Two wood screws long enough to screw your two 2x4’s together
Some hot glue

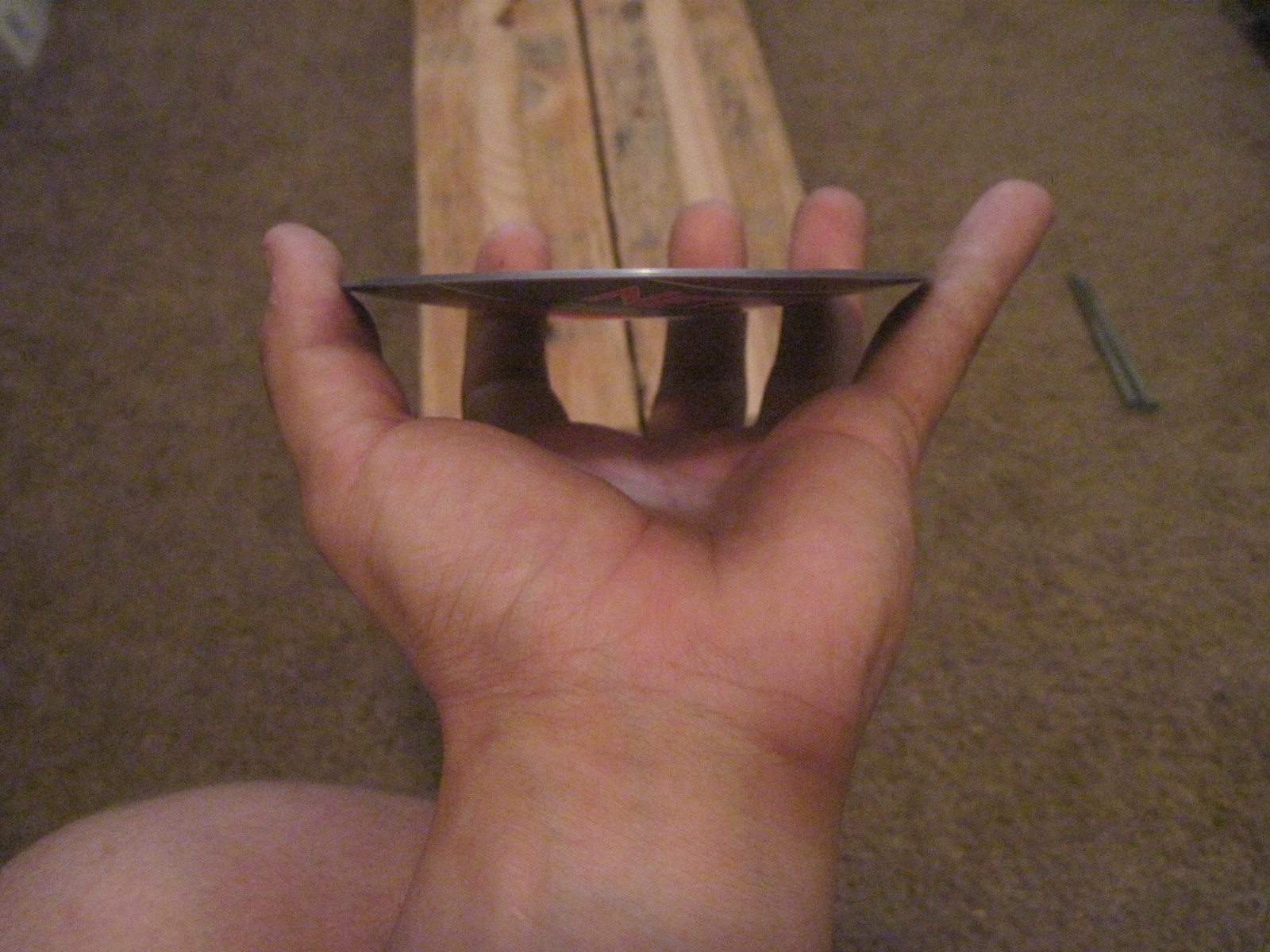

An unwanted cd [I picked up a free netzero disk at Wally’s]
A glass pot lid shaped like a parabola
Some spray paint to make it look pretty
And some carpet of you are going to be mounting it to the roof of your car so It won’t scratch it.

If you bought everything new it would cost around $60 [Not counting the dish]
Check your local craigslist or dump for dishes.

If you don't have any of the above supplies already I would recommend getting two of these high power wireless adapters: https://amzn.to/2HebJph

and pointing them at each other. As of April 2018 they cost $80 for two (you don't need a base station) and you can extend your wireless range up to 4KM or 2.48 miles with a line of sight between the two high power adapters, less if there are trees. The adapters are waterproof and can be mounted on a tree or a phone/power pole you own, and a cat5 cable can run up to 328 feet back to your house where your internet router is without signal loss.
