How to Duplicate & Prototype Your Own RC Car Parts Cheaply! UPDATED - APRIL 2017 !

Hi Folks!

As im STILL waiting for parts to arrive for my very 1st instructable, so here's another project to carry on with!

ive been out once a month ish racing my little 1/10th RC Nitro Buggy!

Slight History:

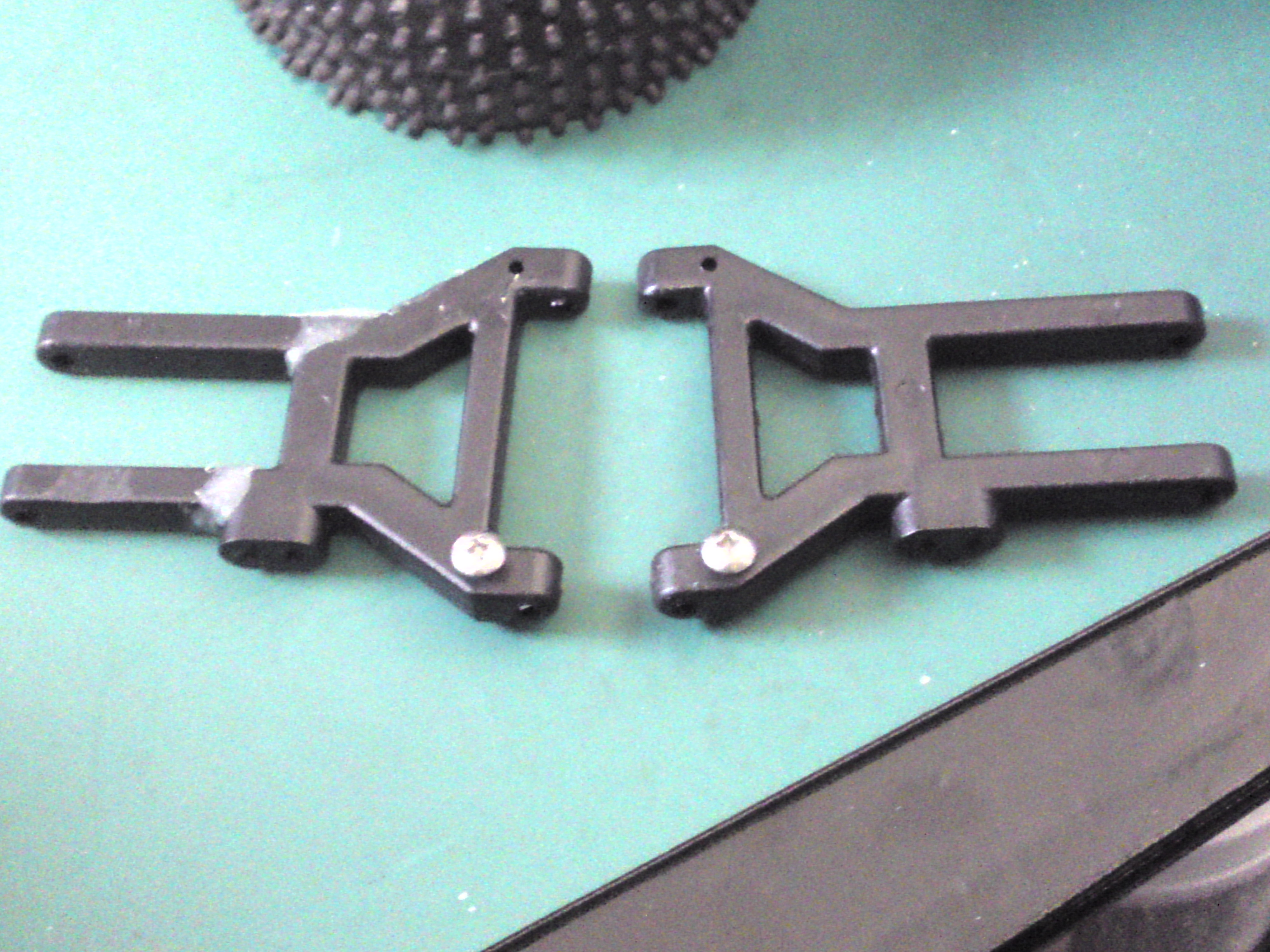

My Racing Buddy comes with me whenever he can and a few weeks ago his buggy's front suspension arm took a serious knock and broke off a major part where it connects to the rest of the car, ON A HINGE section!!!

Anyhoo, suffice to say that im a Jedi Master in the Art of Bodging, lol, and have a range of plastic glues, one of which cures very strong and becomes one with the part its fixed to & i also add extra of this stuff so that i can later shave it off so it further reinforces the repaired part...

Well, only a week later and Homer's gone and killed my beautiful repair job and not only that, i finally got my buggy working properly after a new clutch install and i'd had a MOJOR accident and totally had written-off a few parts on the front of MY car! The steering servo-saver had totally snapped-off from the servo-saver column (the bit that screws onto the servo linkage...) and the right side suspension arm had snapped in two places (See pic below) that meant i couldn't 'Bodge' a quick repair in the field and had to pack up everything only after a few hours of being out! (It was bloody-FREEEEEEEEZING by this point so wernt that fussed bout going home, lol)!

So I'd got back onto my fav RC Shopping Website, Ebay, lol, and STILL, even tho the parts were cheaper than the specialist shops, it was beginning to get expensive for just a poor mans hobby (Im very poor, lol) so i decided that im never again going to buy another plastic replaceable part for our buggies ever again, if i could help it...

So i went about dismantling my buggy and removed the irreparably damaged parts and started to make a mold for the front suspension arm.... Here's what i used and the costs, also NOTE that anything ive bought in BULK, will obviously last me ages and further aid me in the creation of different molds of a range of RC Car Parts!

--- ALWAYS REMEMBER.... WHATEVER YOU DO... SAFETY FIRST !!! ---

Ingredients:

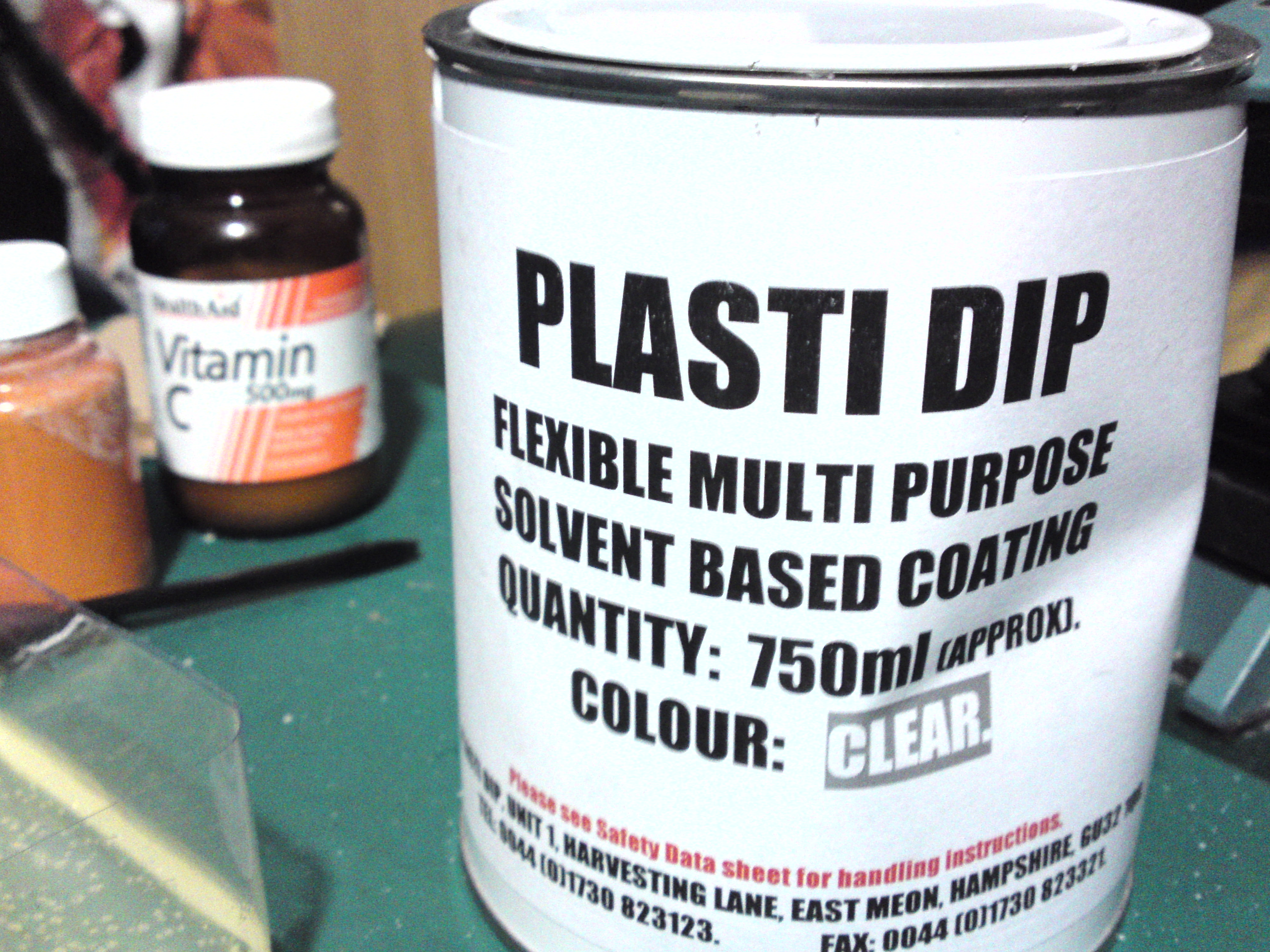

Plasti Dip Clear (750ml) (Bulk Order)
Polymorph (Bulk Order)
Single Core Wire 1/0.6mm (Bulk Order) {For Reinforcing Parts!}
Petroleum Jelly (Tiny Tin !)

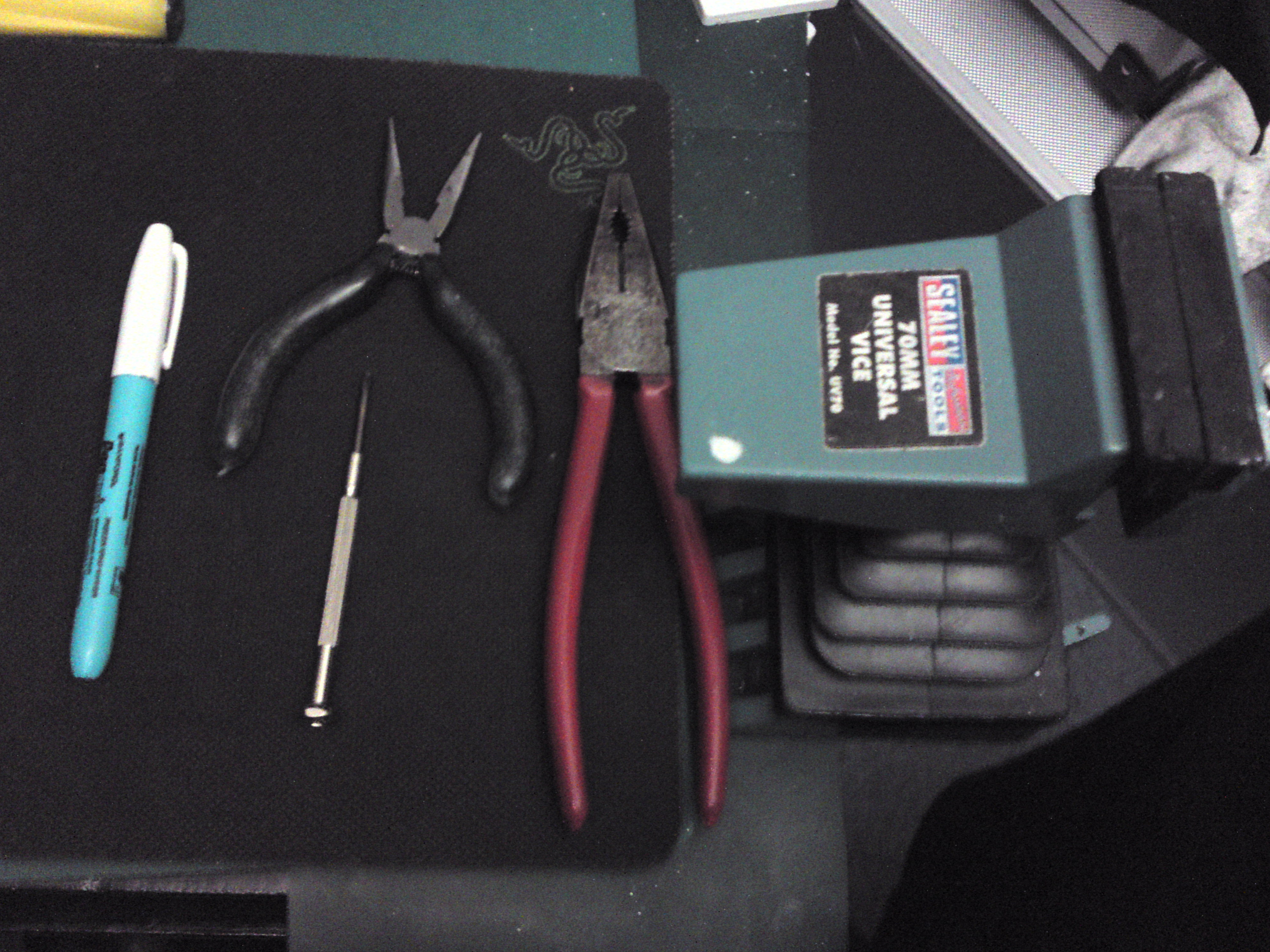

Tools:
Needle Nose Pliers (Short)
Heavy Duty Pliers (If and/or needed at-all !)
Plastic Glue Spreader (for even-coating of the parts)
Universal Vice (You dont have to use this but just buy it damn-it, its so cheap & it'll pay for itself each time you use it!)
Sharpie Marker Pen
METAL Ruler
Wire Strippers
Wire Cutters
Mini Precision Screwdriver
FlameLESS Gas Torch (Optional)
Dremel - with METAL drill bits
Small Disposable Plastic Tray (I used the plastic packaging that came with a new 13-port USB Powered Hub!)
Small Cut out piece of cardboard...

- SAFETY EQUIPMENT i USED-
EYE Safety Goggles
HEAT-Resistant Gloves (Optional - SO TAKE CARE WITH HOT THINGS)
Cutting Mat
Safety Knife
HEAT-RESISTANT GLASS DISH (Pyrex Brand if you can help-it !)
Slash-Resistant-GLOVES (I used-to work in the Security-Industry so already had these) {Optional - SO TAKE CARE}

-WARNINGS-

I AM NOT RESPONSIBLE FOR ANY INJURY CAUSED BY YOU FOR NOT SAFELY CARRYING OUT THE INSTRUCTIONS THAT CAME WITH YOUR POLYMORPH OR AS A RESULT OF POOR SAFETY PRECAUTIONS NOT TAKEN BY YOU WITH THE USE OF BOILING WATER OR ANYTHING TO DO WITH THIS INSTRUCTABLE - PLEASE HAVE AN ADULT SUPERVISING YOU IF UNDERAGE AND PLEASE USE EXTRA COMMON-SENSE, AS AND WHEN NEEDED....

1st - Make the Mould for Your RC Component (or Whatever You Need Duplicated!)

What you need to do here is 1st of all is to cut the plastic tray so that its a good size that can be easily handled as i had just used the plastic packaging from a new 13-Port USB Powered-Hub, and when you have found a suitable plastic container that you dont mind ruining:

- Get the petroleum jelly and coat the inside of the Plastic Tray that we are going to use to temporarily hold our mould... Not so much that its easy to see that you've coated it, just enough to make our job later on of removing the rubber mould a heck of a lot easier!

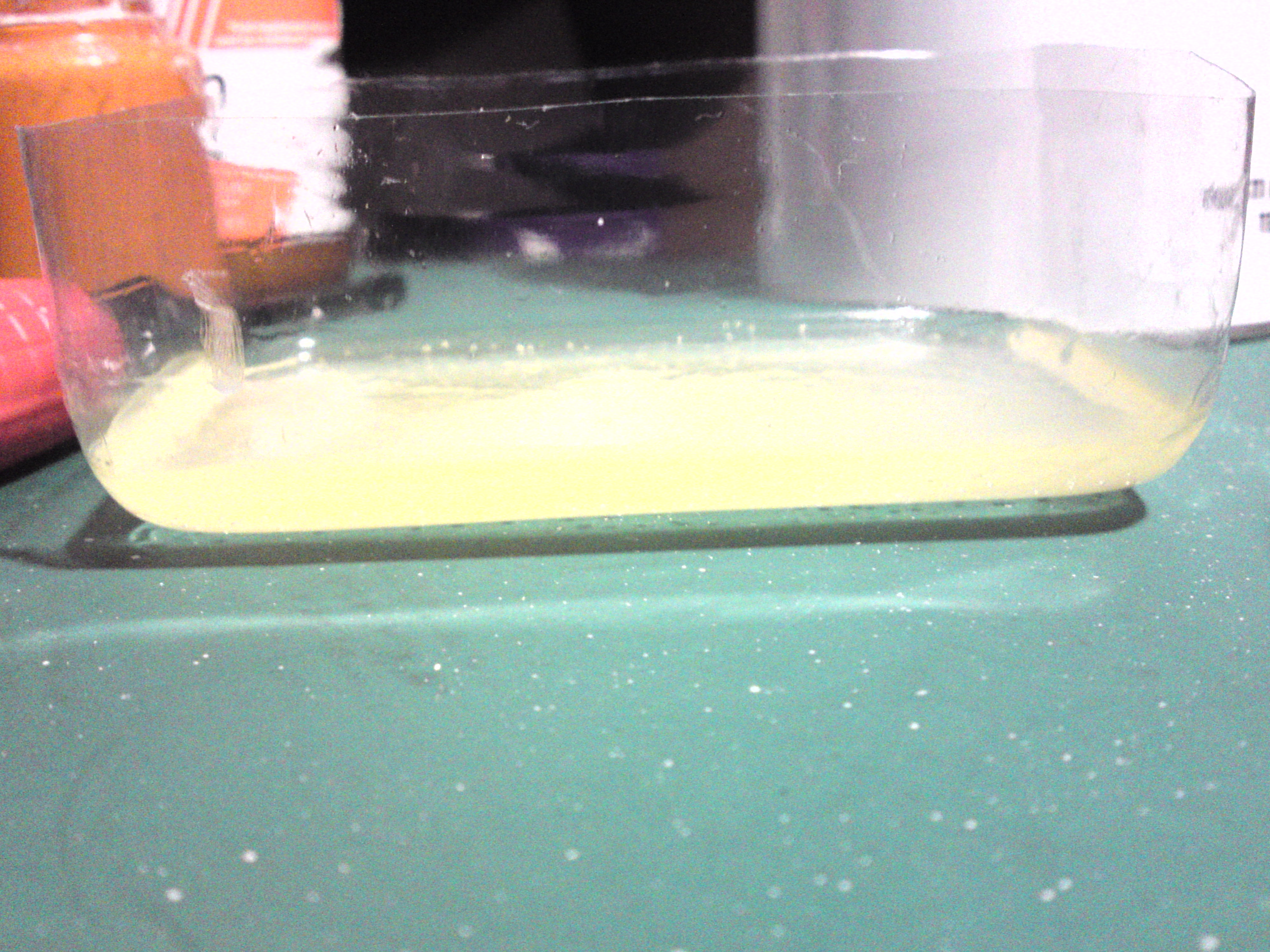

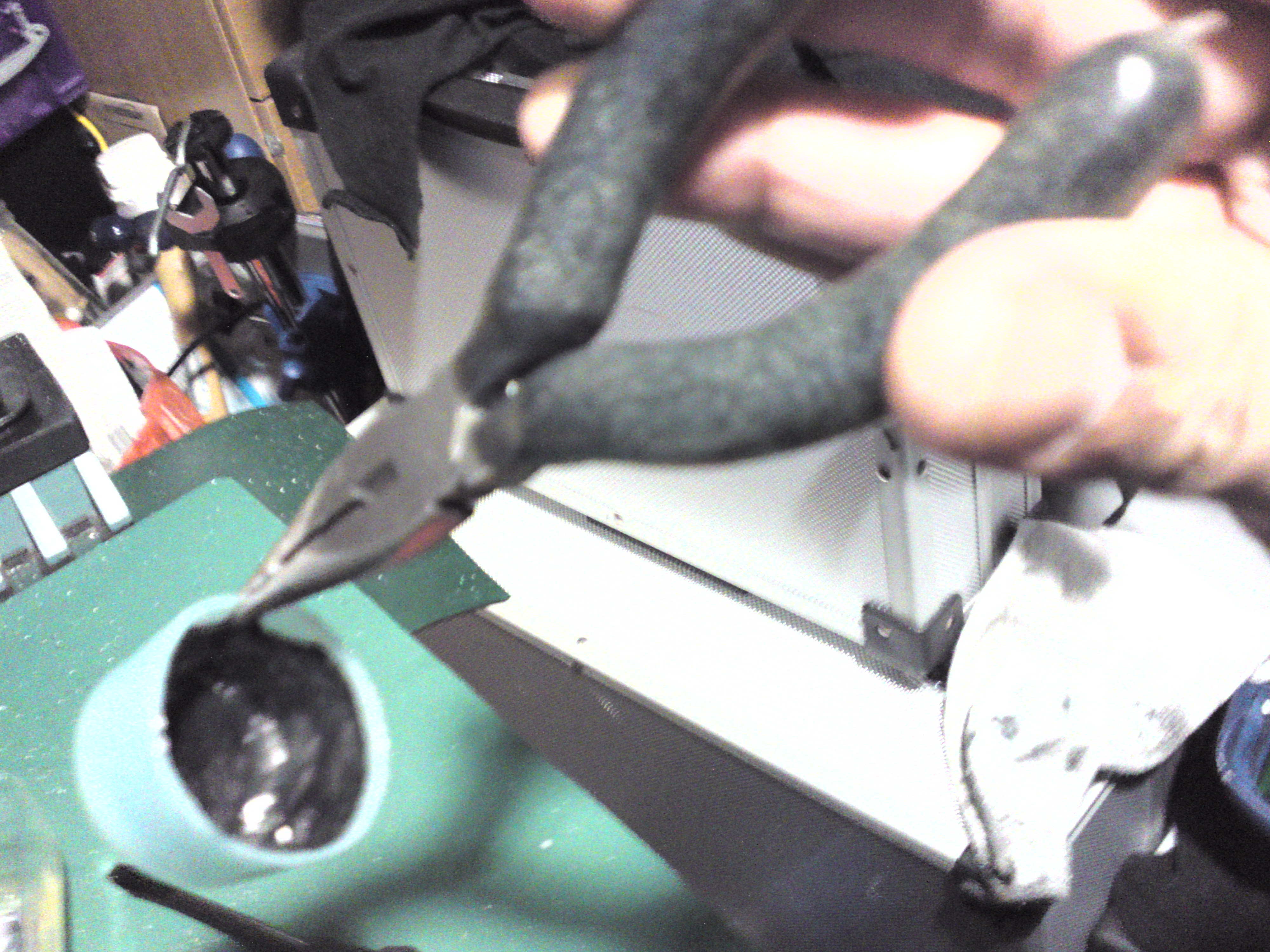

- Next, Scoop out the Plasti-Dip, i used a top from a deodorant can and a pair of needle nose pliers to scoop it out of the tin... (See pic!) And just slightly fill the base of the plastic tray so you have, say, a 5mm layer of liquid rubber in the base of the tray...

- I waited about 2 hours until this 1st layer was only-partially cured, DO NOT let this 1st layer completely dry of the next layers WONT stick...
NOTE: Also when you leave the tray to part-cure (DRY), make DOUBLY-sure that the surface is totally LEVEL or as close to level as you can get - You might want to use a spirit level and measure horizontally & vertically that the surface is totally flat because when and as the layers are drying, you do not want the liquid rubber to cure at an angle so that it all collects in one corner!

- Repeat the above step so that you add another 5mm layer of Plasti-Dip liquid rubber so that you will now have a good generous 10mm/ish of liquid rubber in the base of the tray....Wait another 1-2 hours till its Partially-Cured...

Grease the Suspension Arm More Than Liberally (OTT STYLE !)

Yaa, slight cheat here, i used coco butter, yes, my own supply because im a tart, lol, and also because i have run out of petroleum jelly!

- Make sure whatever you use, its grease-like but please, no moisturizer as i dont know what effect that'll have on the rubber as moisturizers are usually made of many hundreds of chemicals - so use something thats in its raw but pure form!

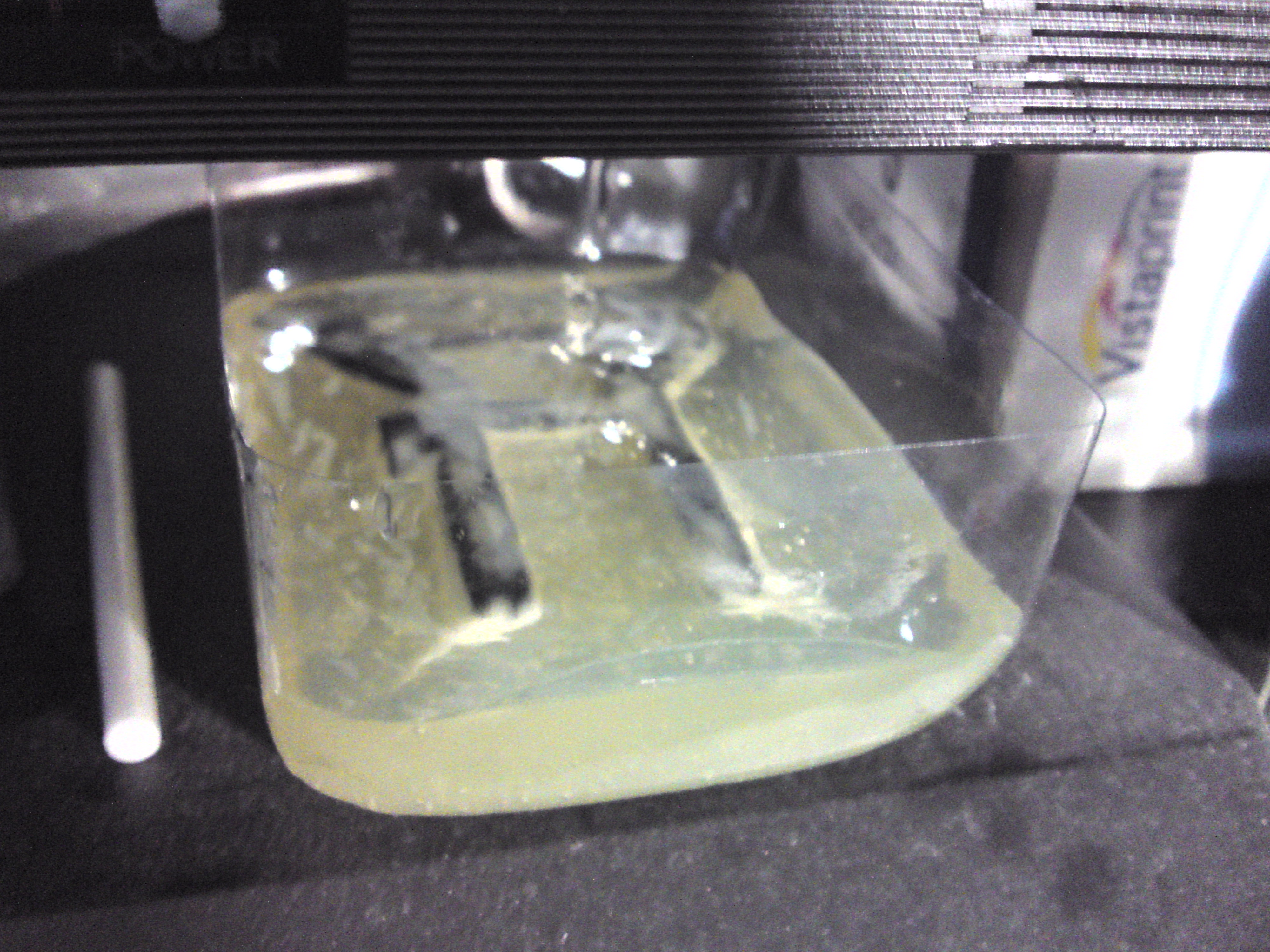

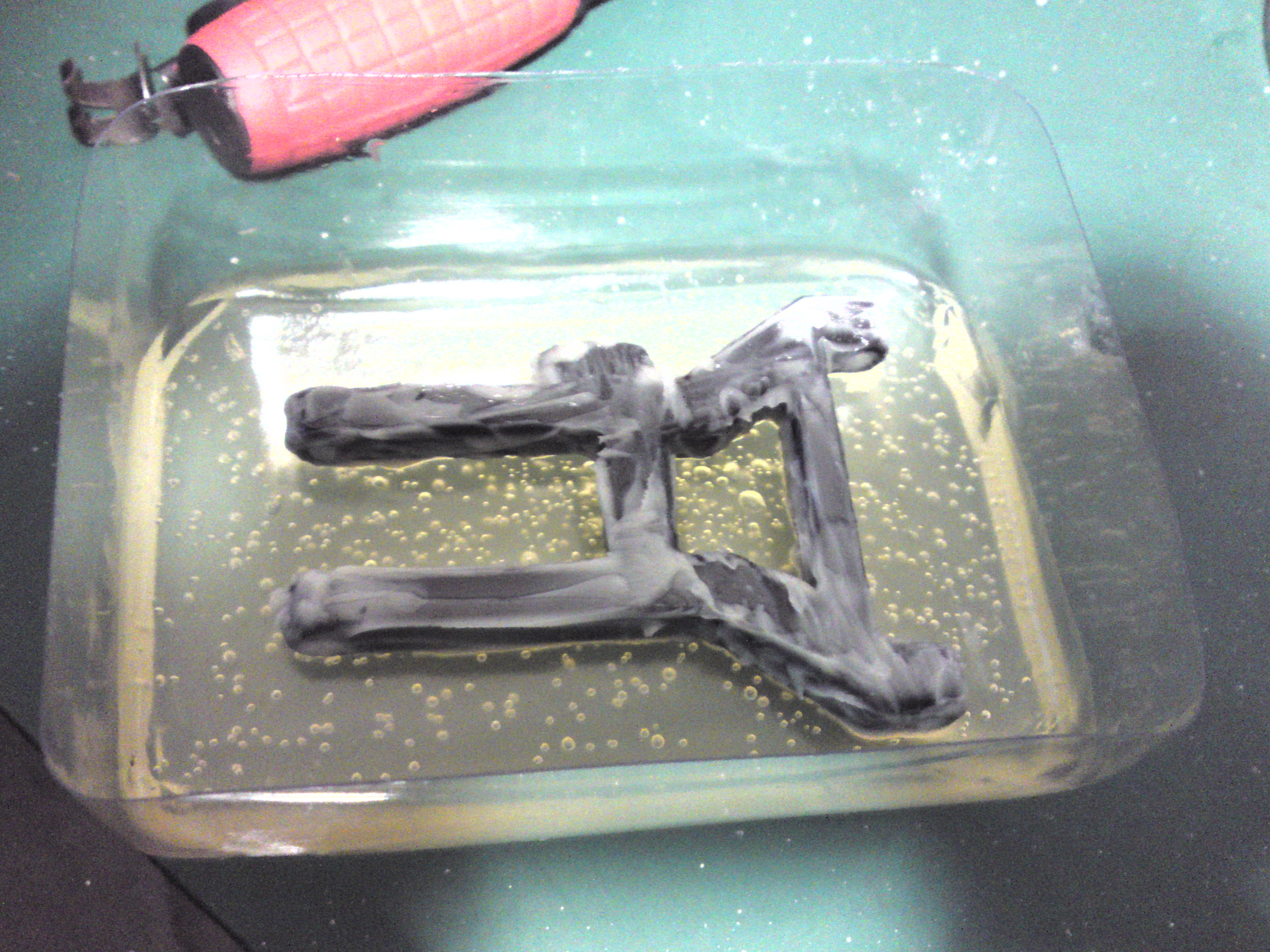

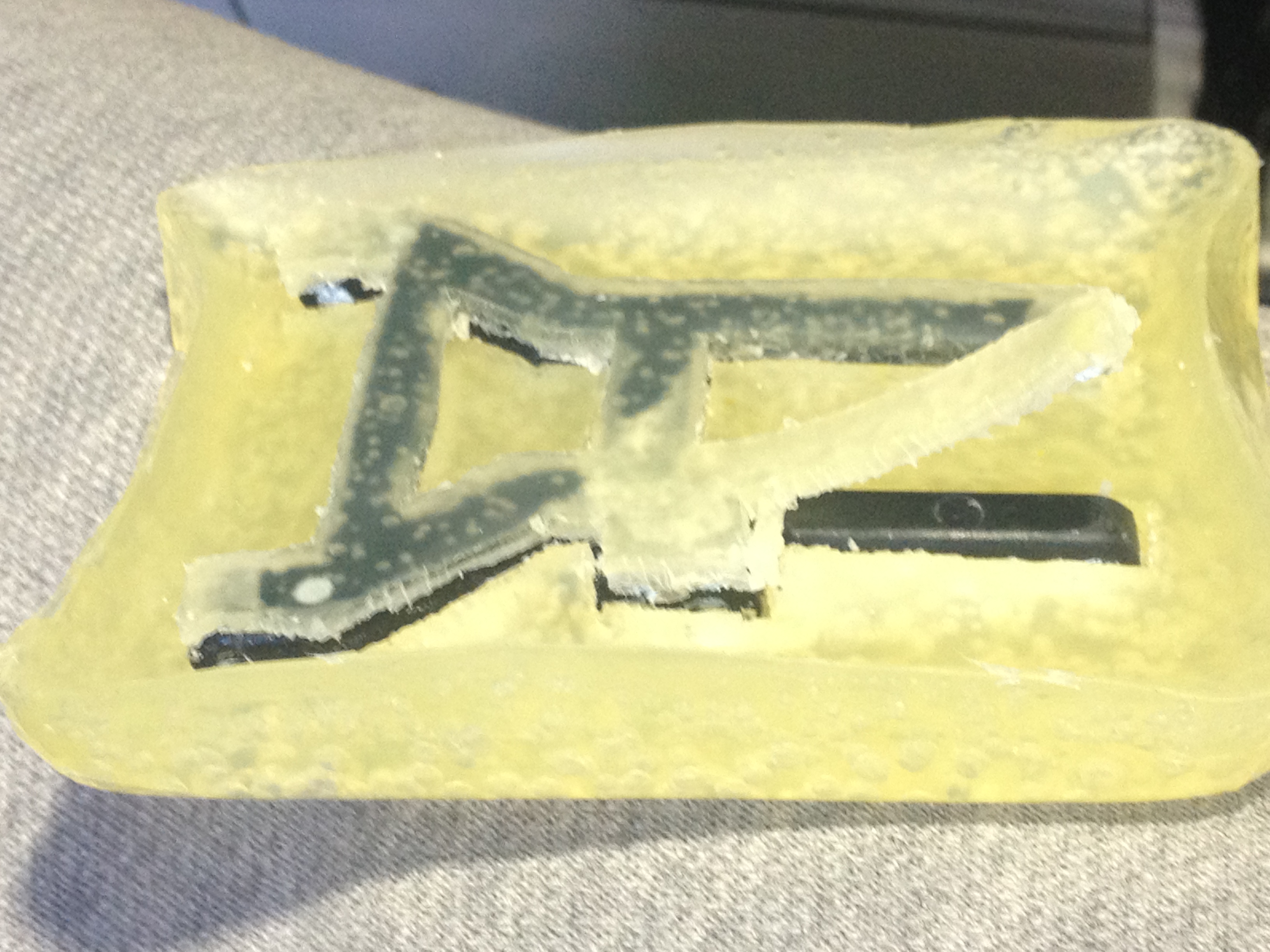

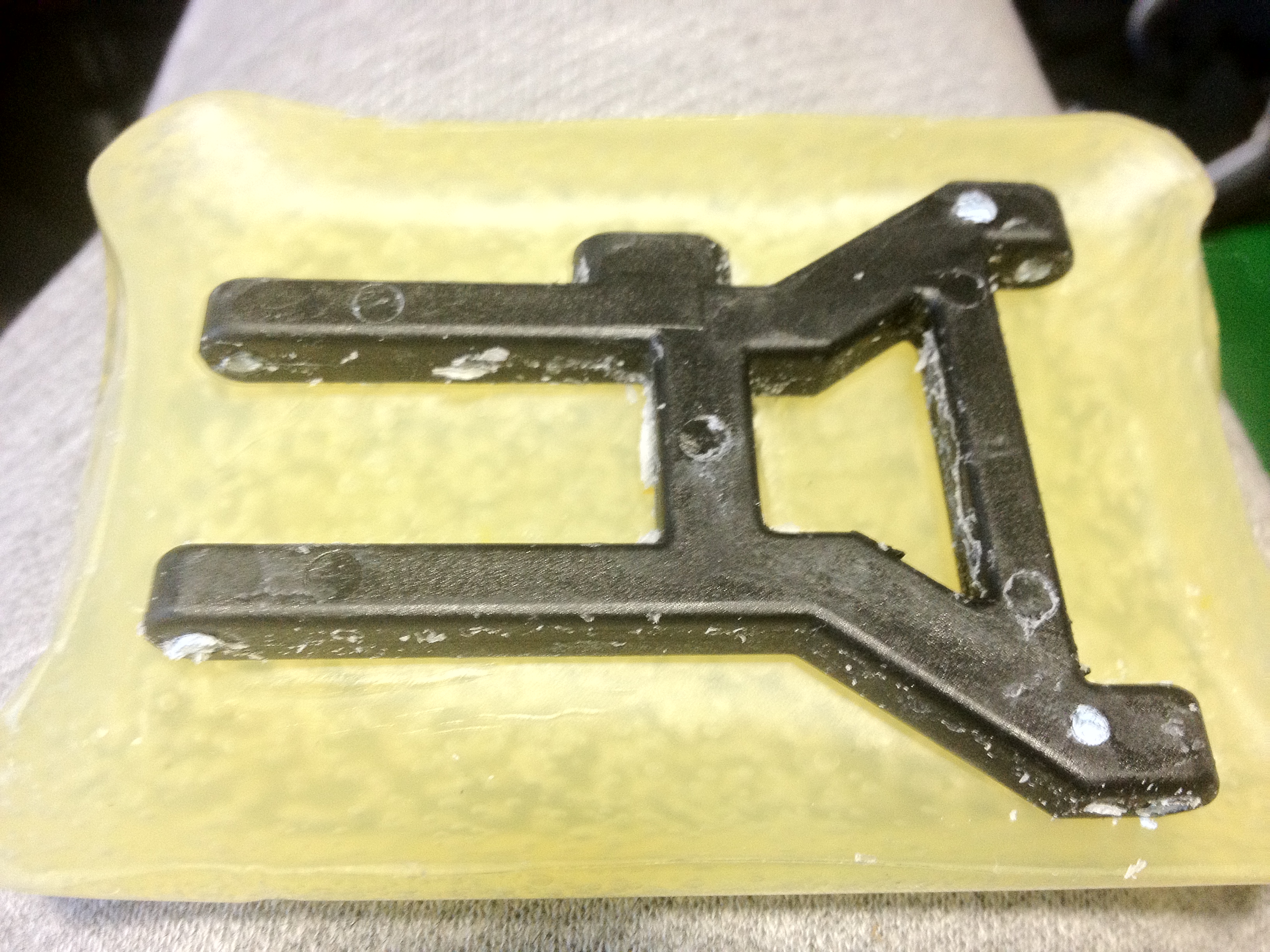

- Place the OTT (Over-The-Top) coated part into the middle of the tray (Still making sure that the 2nd layer of liquid rubber is only partly cured...) and also making sure that the last part of the piece you touched has also got a VERY generous coating of petroleum jelly on...

- Next, add enough liquid rubber all around the part NOT ON TOP OF IT, and in all the holes and gaps just enough to "just-about" reach the top of the part....

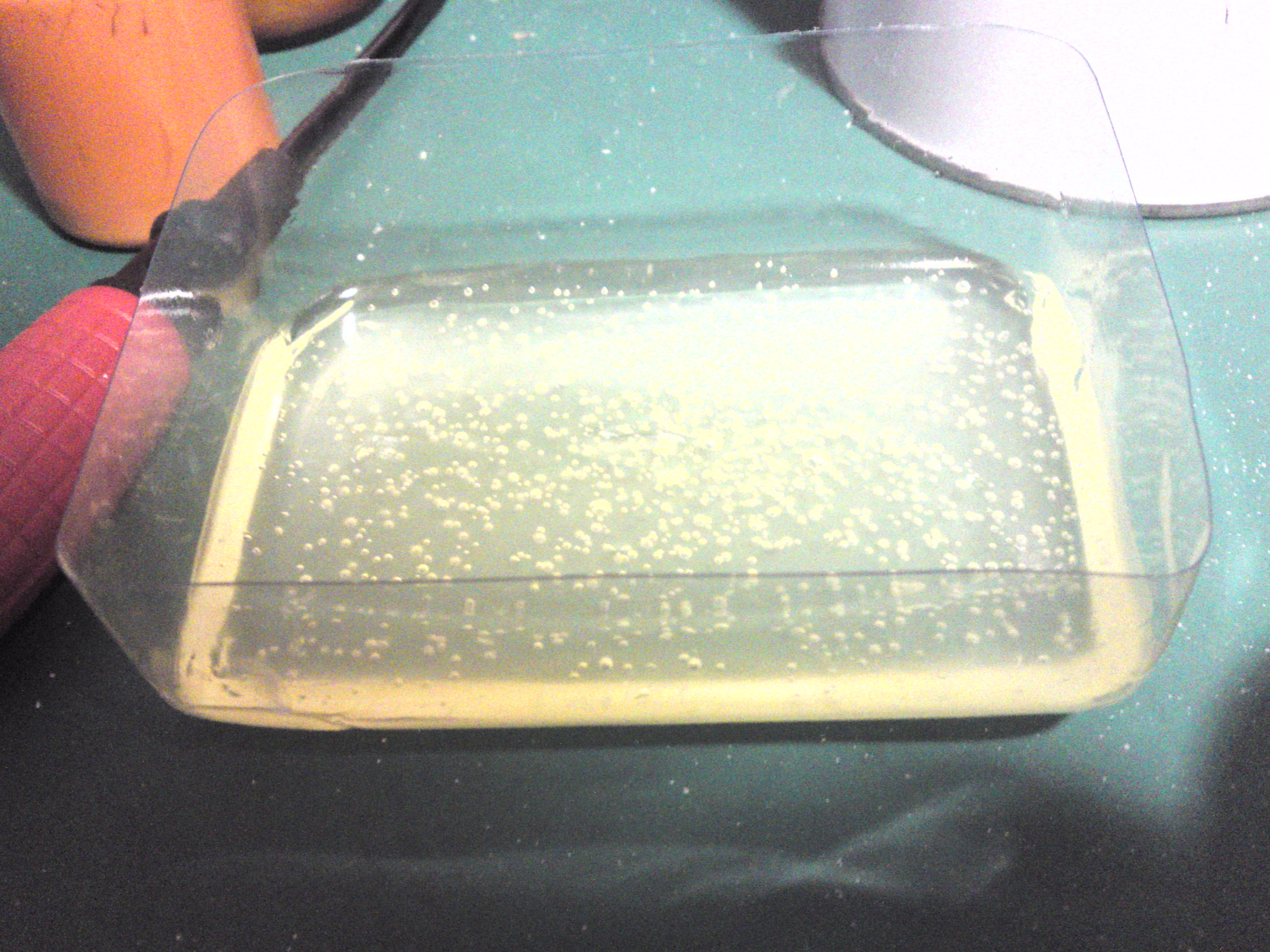

- To get most of the air bubbles out to the top, pick up the tray and only from a distance of roughly 15cm ish, GENTLY drop the tray onto your flat surface about 5-6 times, DO NOT do this too much or the petroleum jelly will become mixed in in-accurate places and your mold will not be an almost or exact copy and when its time to start using the polymorph the mold will be a very odd shape...

Reinforcement Wire...

Now, because im totally fed-up with solid plastic parts always breaking, to be fair though, we go race our 1/10th buggies in the winter as well as the summer but during the extreme cold environments that theu are constantly in, the cold plastic parts dont really have much resistance when it comes to getting sharp-knocks and crashes into solid objects, the buggies me and me pal, Homer, have only have 0.15ci (2.5cc) Nitro powered engines, the smallest engines that are available for these RC Cars, but still, the amount of force they can crash into things with can be quite severe, and especially as our buggies manufacturer boasts that these things can go upto 65mph (105km/h) ish, so they extreme cold and sheer force of impact makes the cheap plastic parts brittle (the cold make em brittle, lol) so they instantly snap or break....

Right, back to the instructable, sorry, i get side-tracked, like now, lol...!

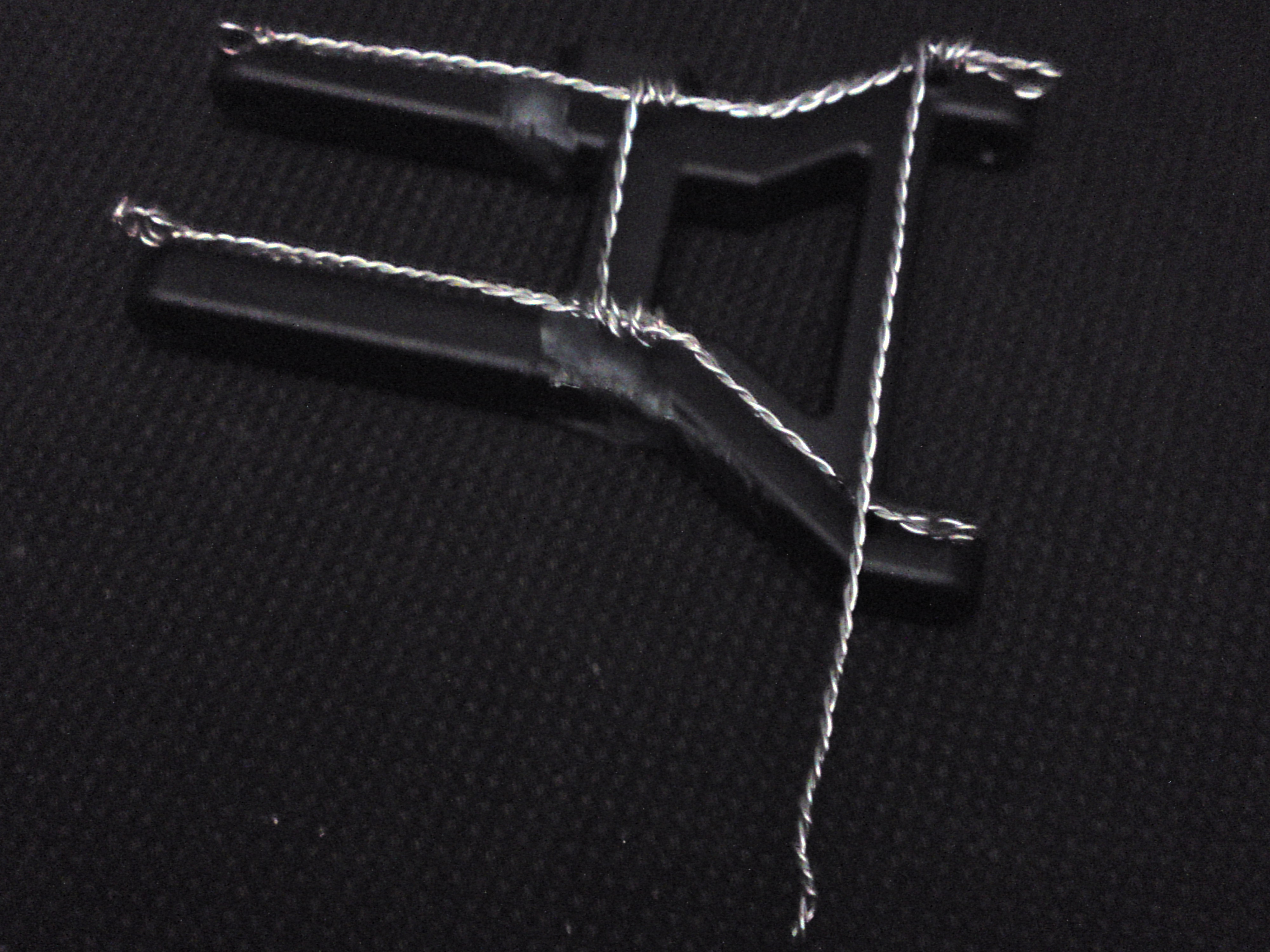

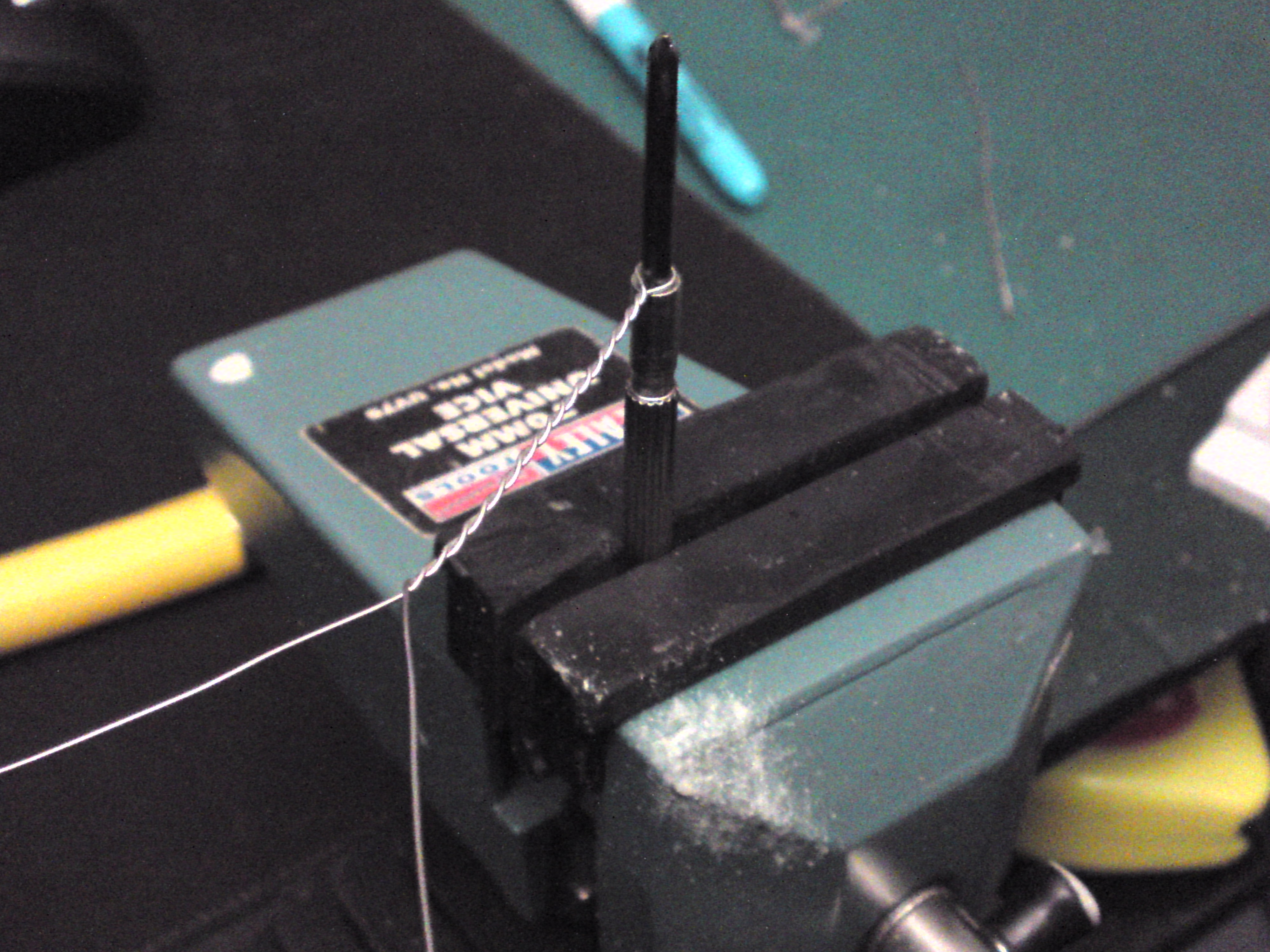

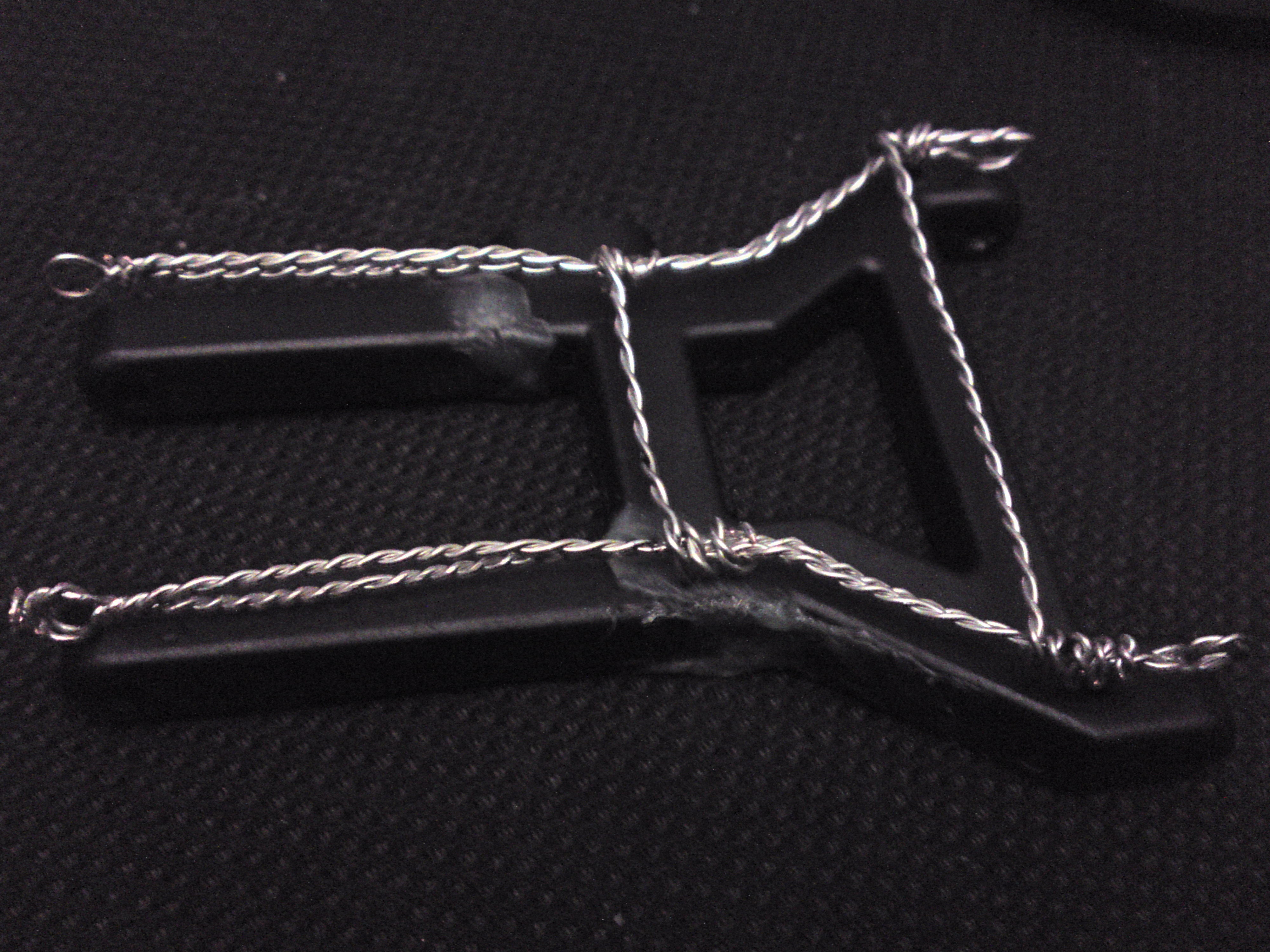

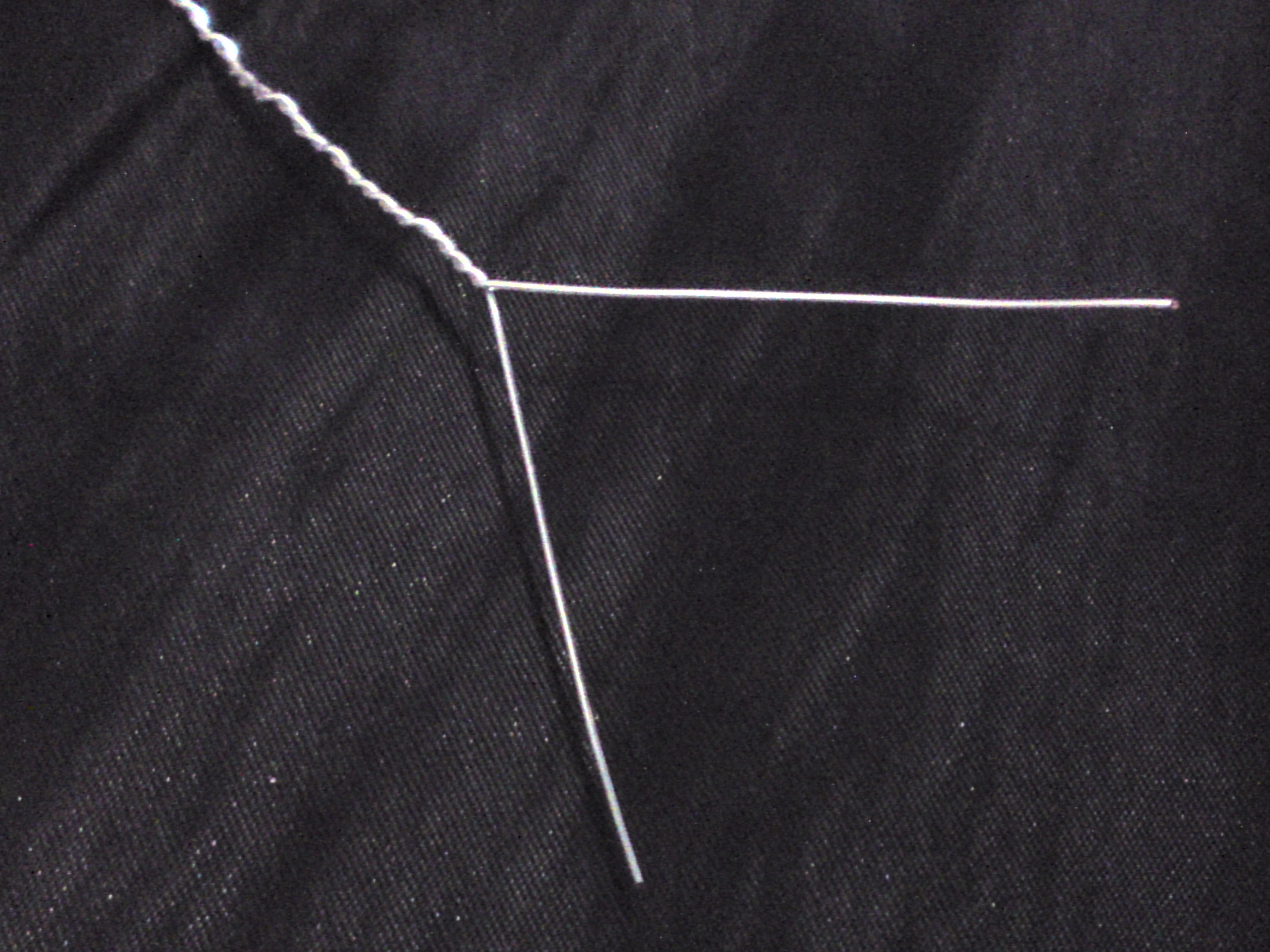

- Now, i fixed into my desktop vice a small precision screwdriver, as you can see in the pic below, ready for the wire to be twisted to add extra strength to it but 1st...

- You will need to strip the SINGLE-CORE wire, when i bought the wire, i bought them in 1 meter lengths and i just picked a colour that i dont and probably wont use in my electronics meddling... Purple it was, lol...

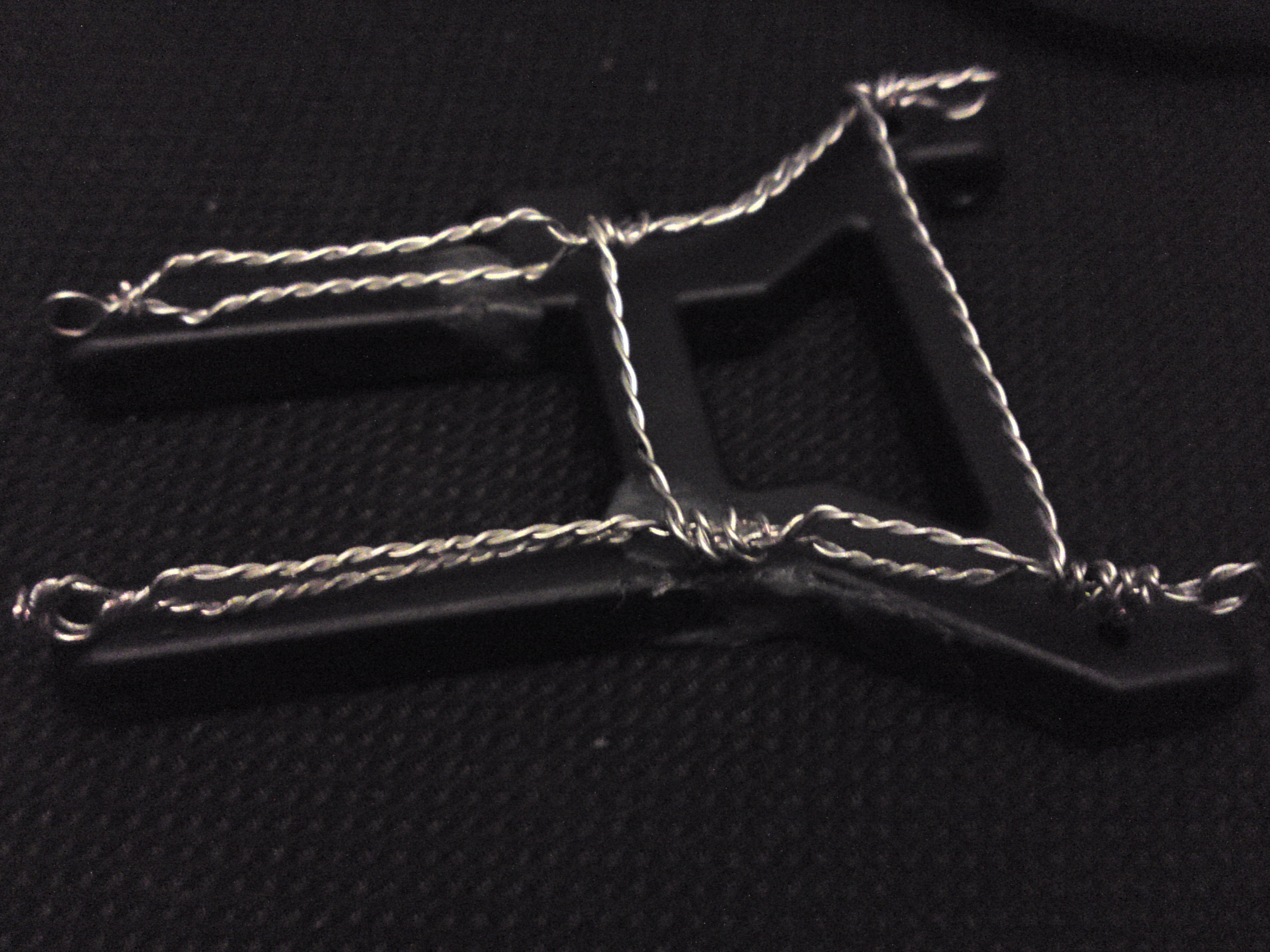

- I used a whole meter of wire to make each of the reinforcement wire-framework struts for my suspension arms, cut into two 500mm (or 50cm, whatever, lol) lengths, stripped and then i started twisting the wire together from the mid-point of each strip, one strip at a time... Check out the pics below...

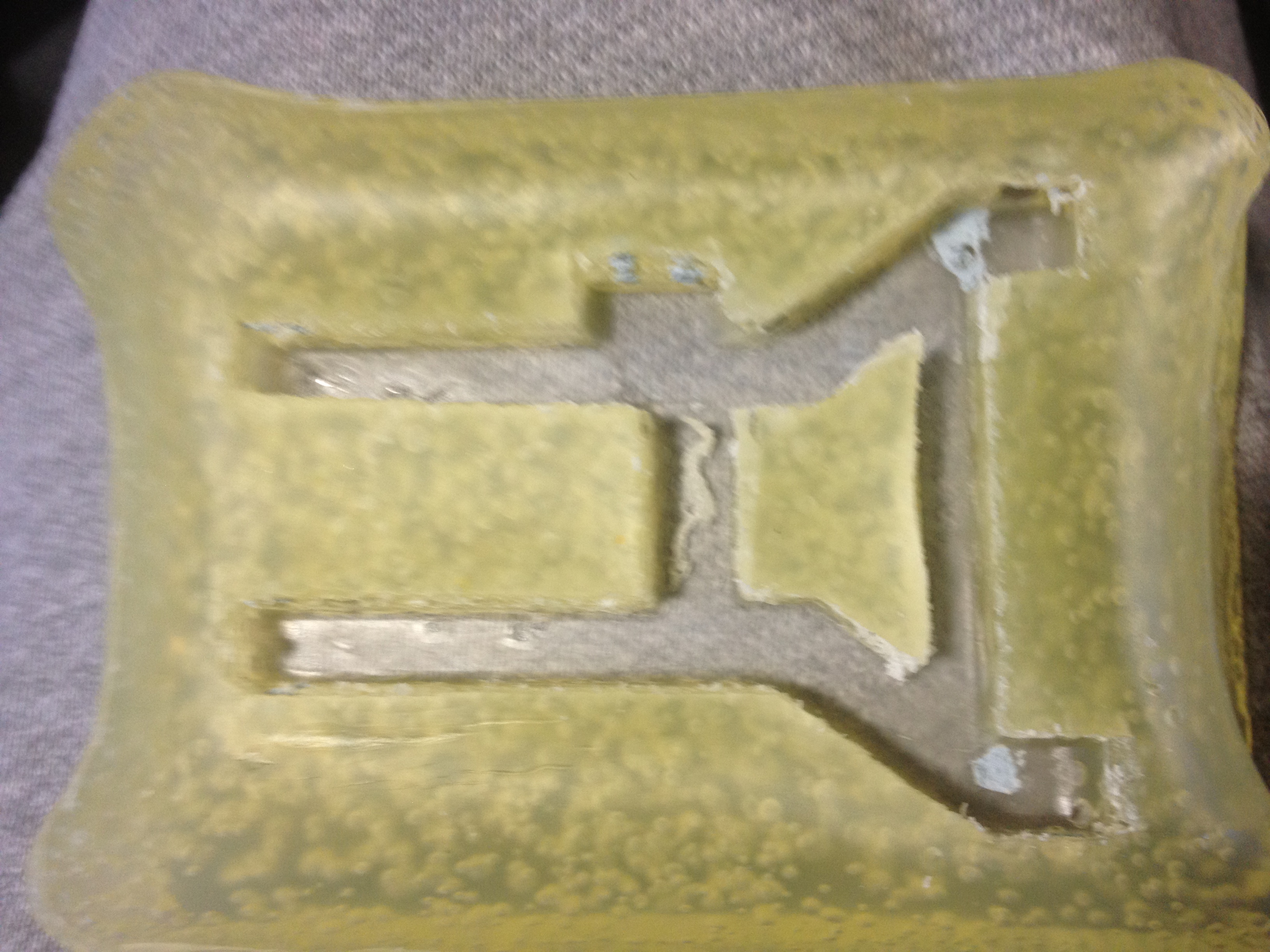

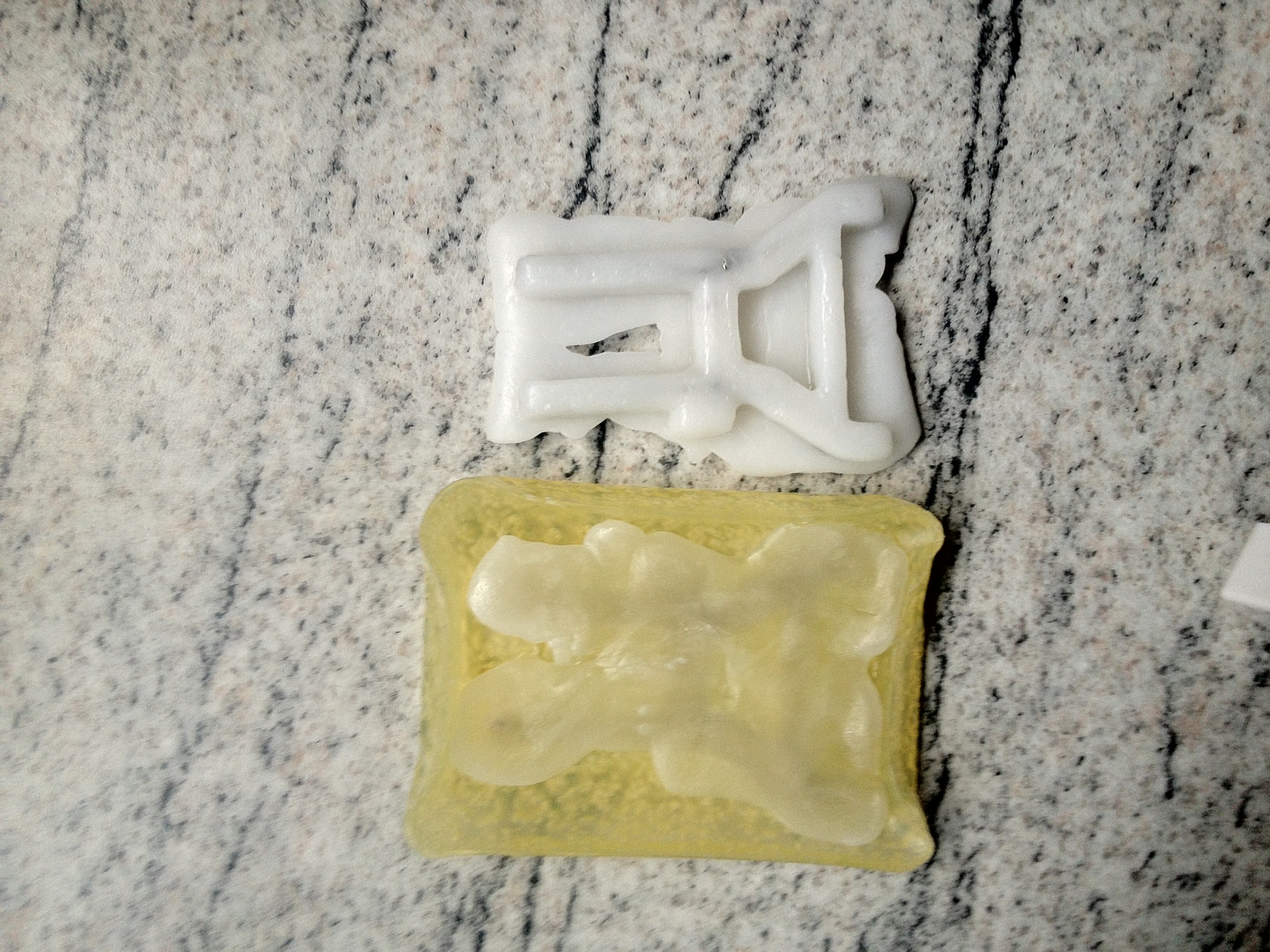

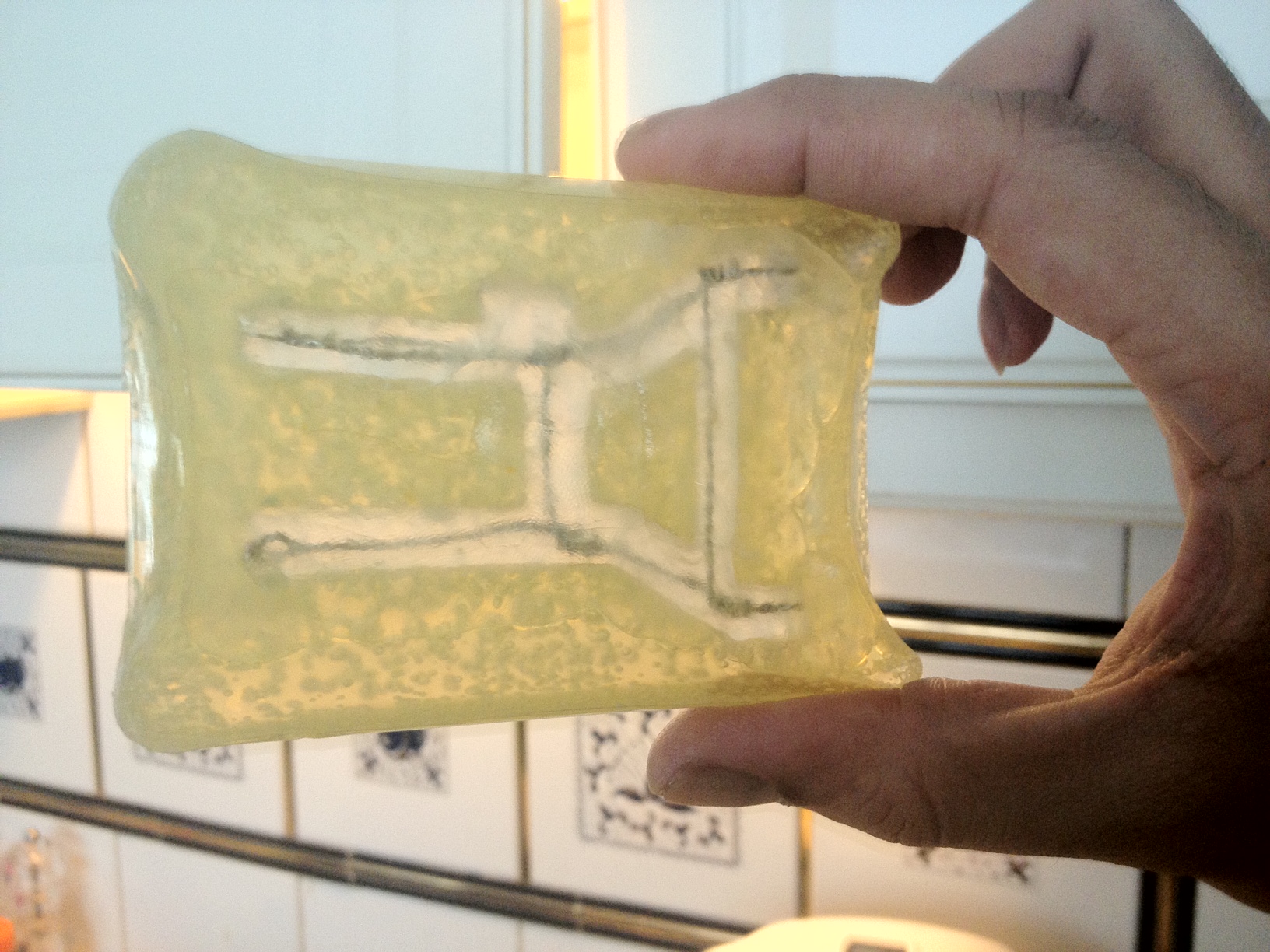

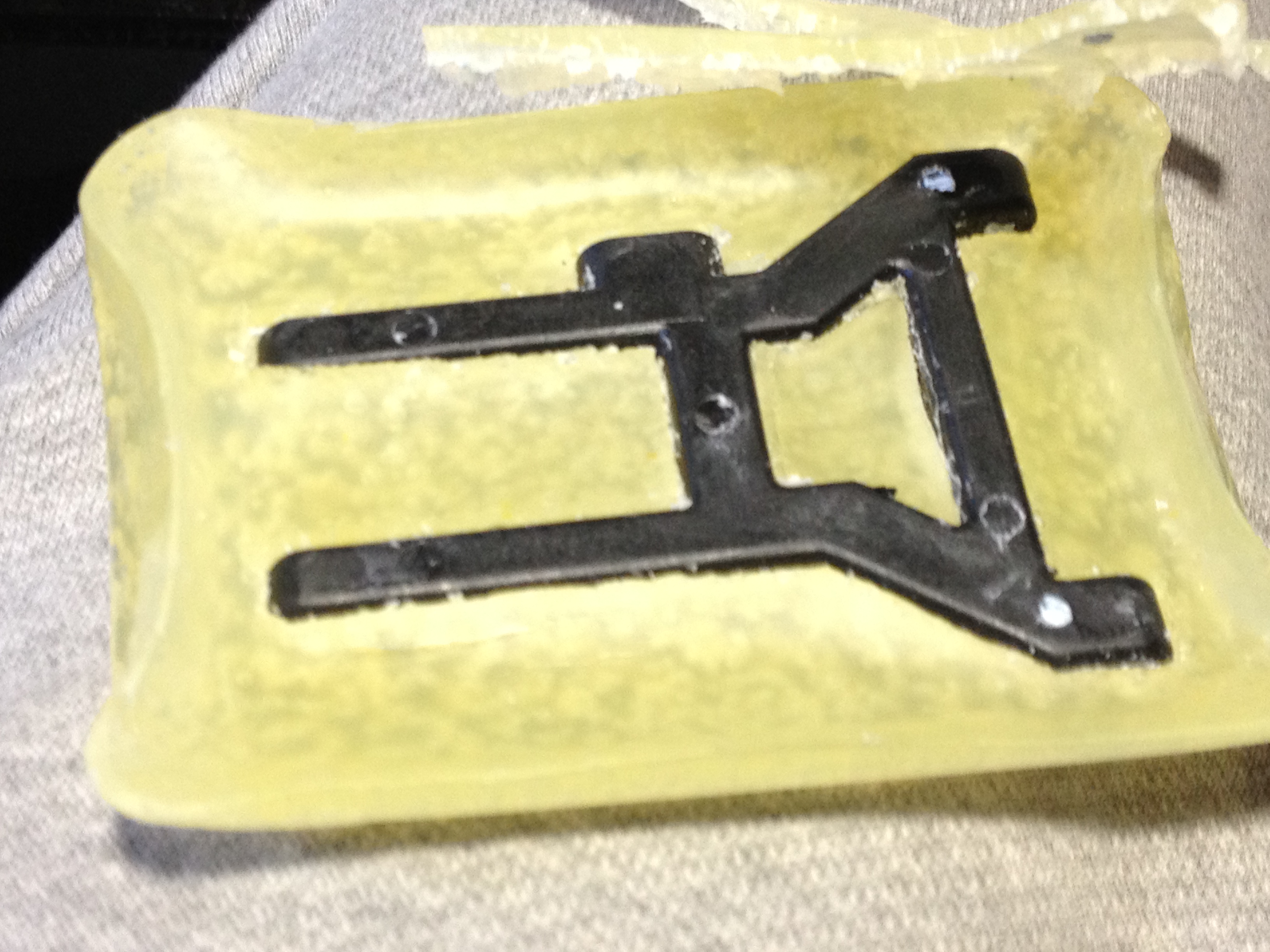

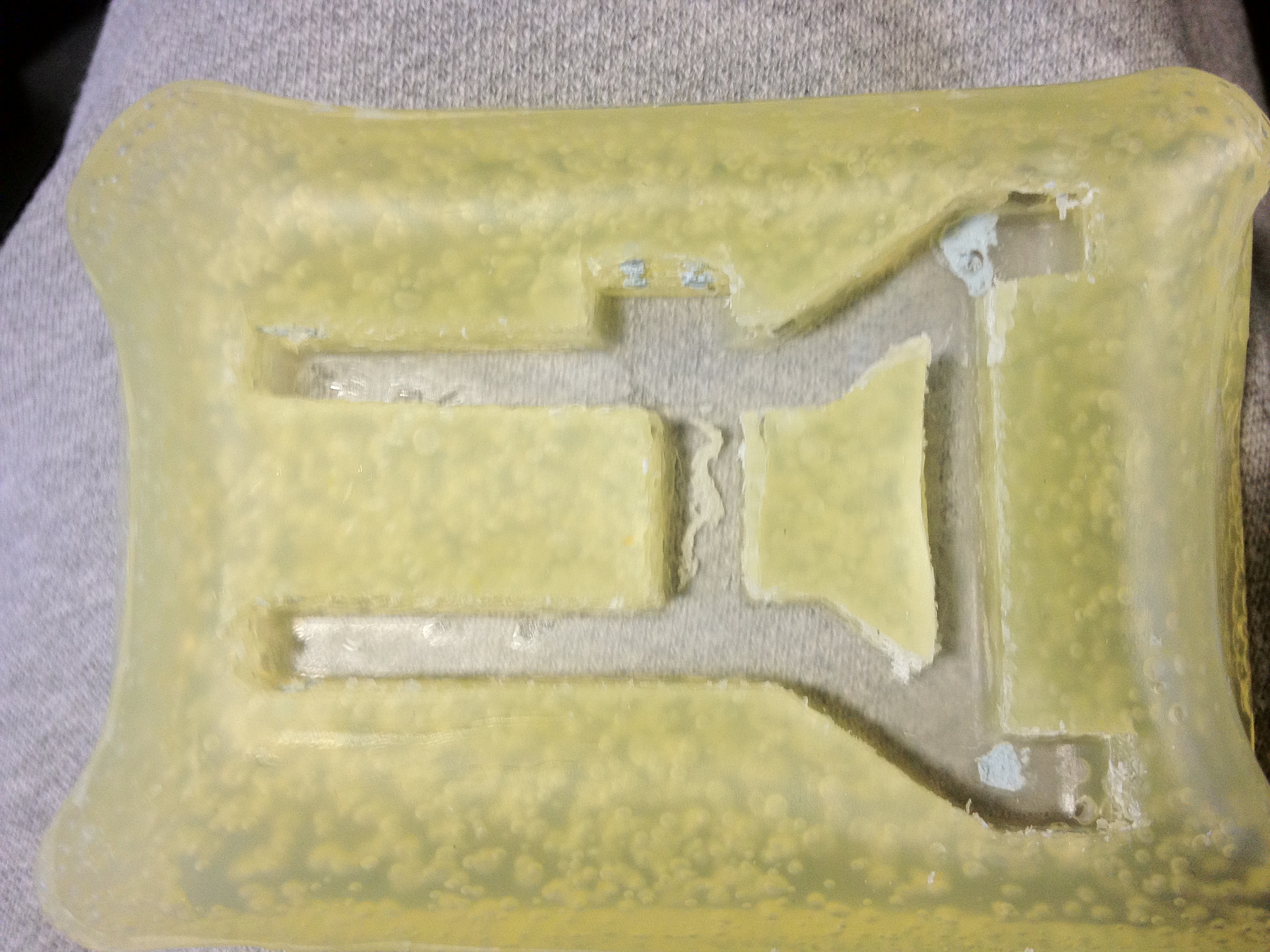

After the Mold Has Dried and Set - CAREFULLY Cut Only the TOP LAYER Off !

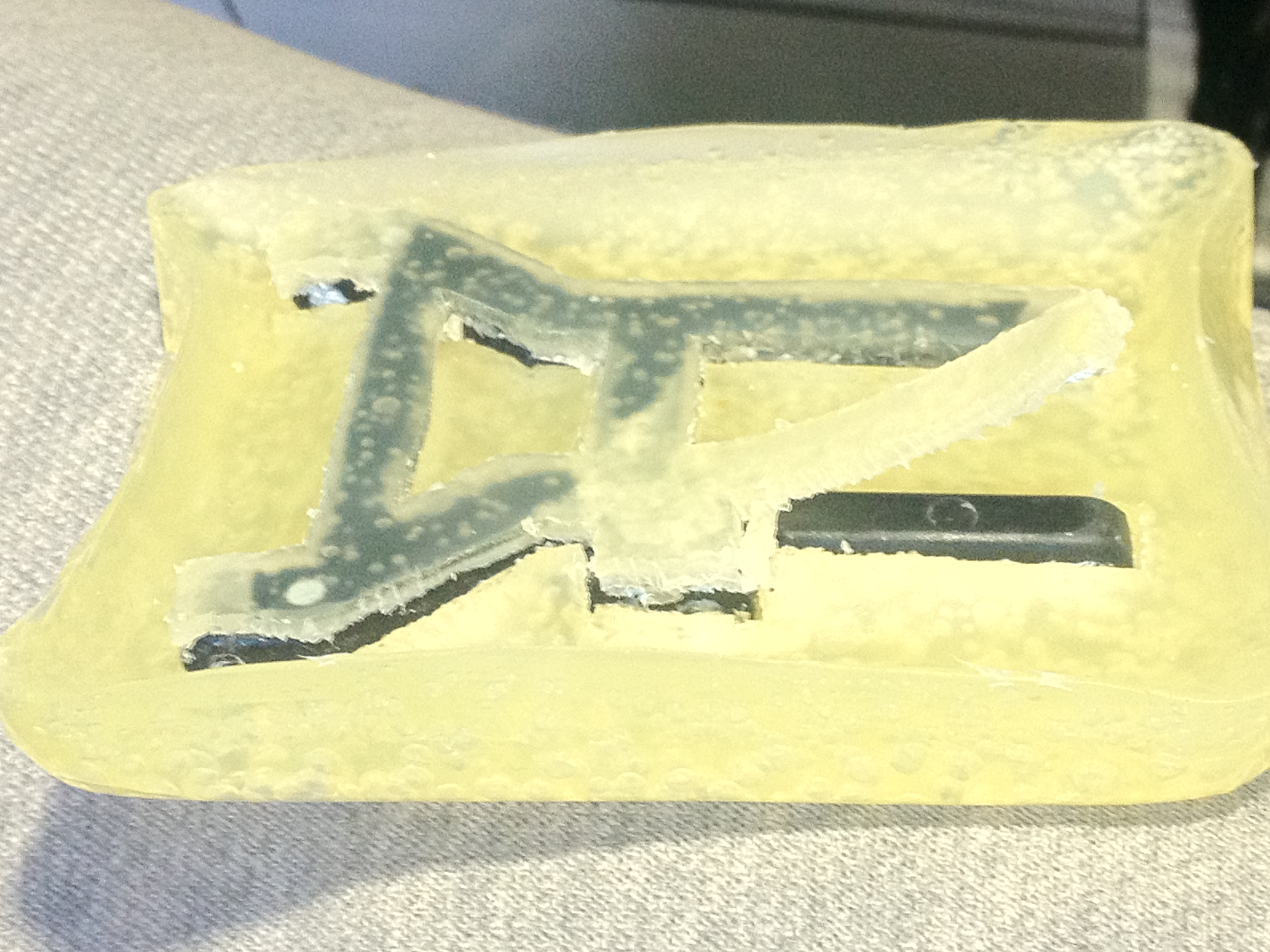

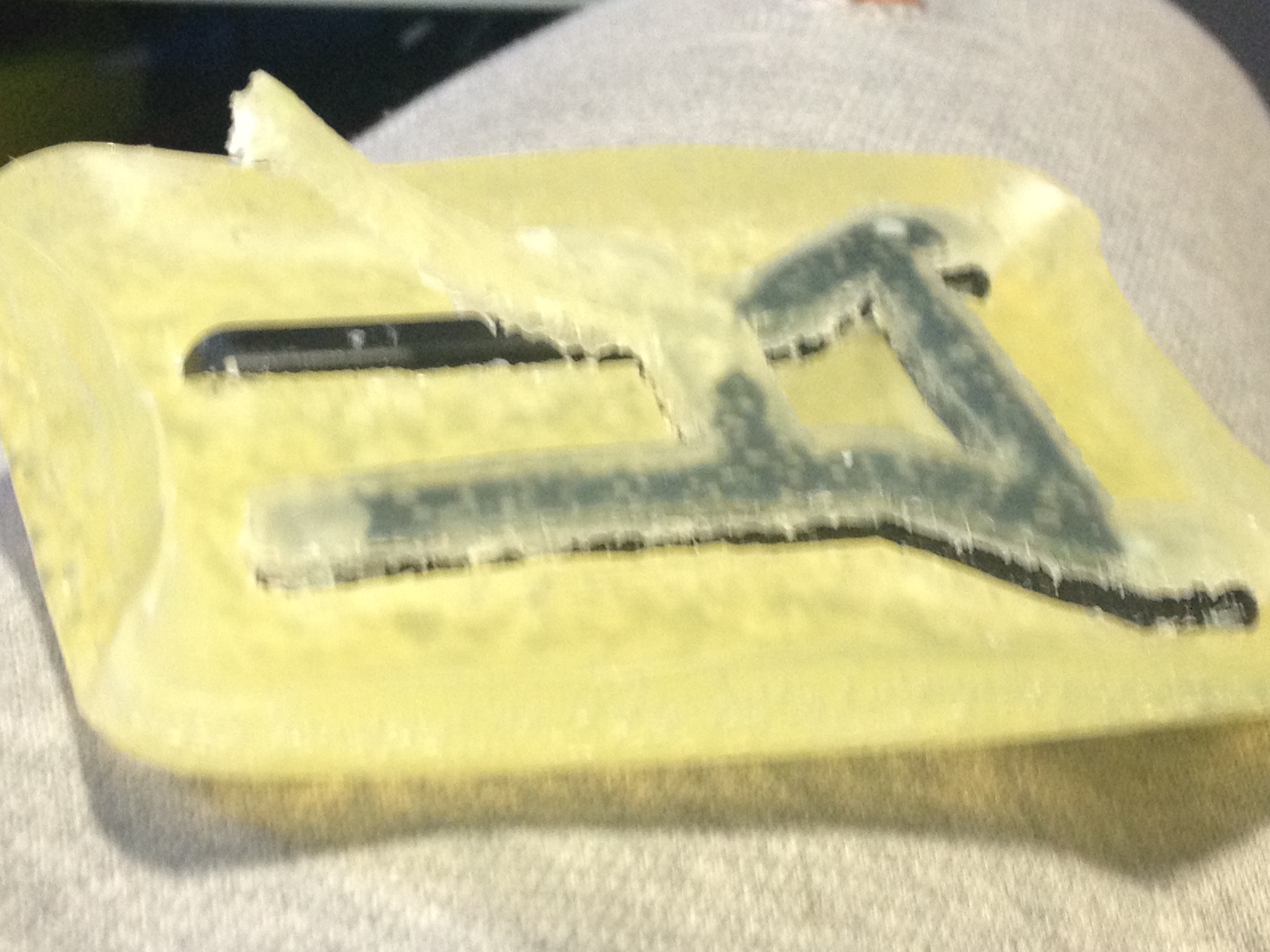

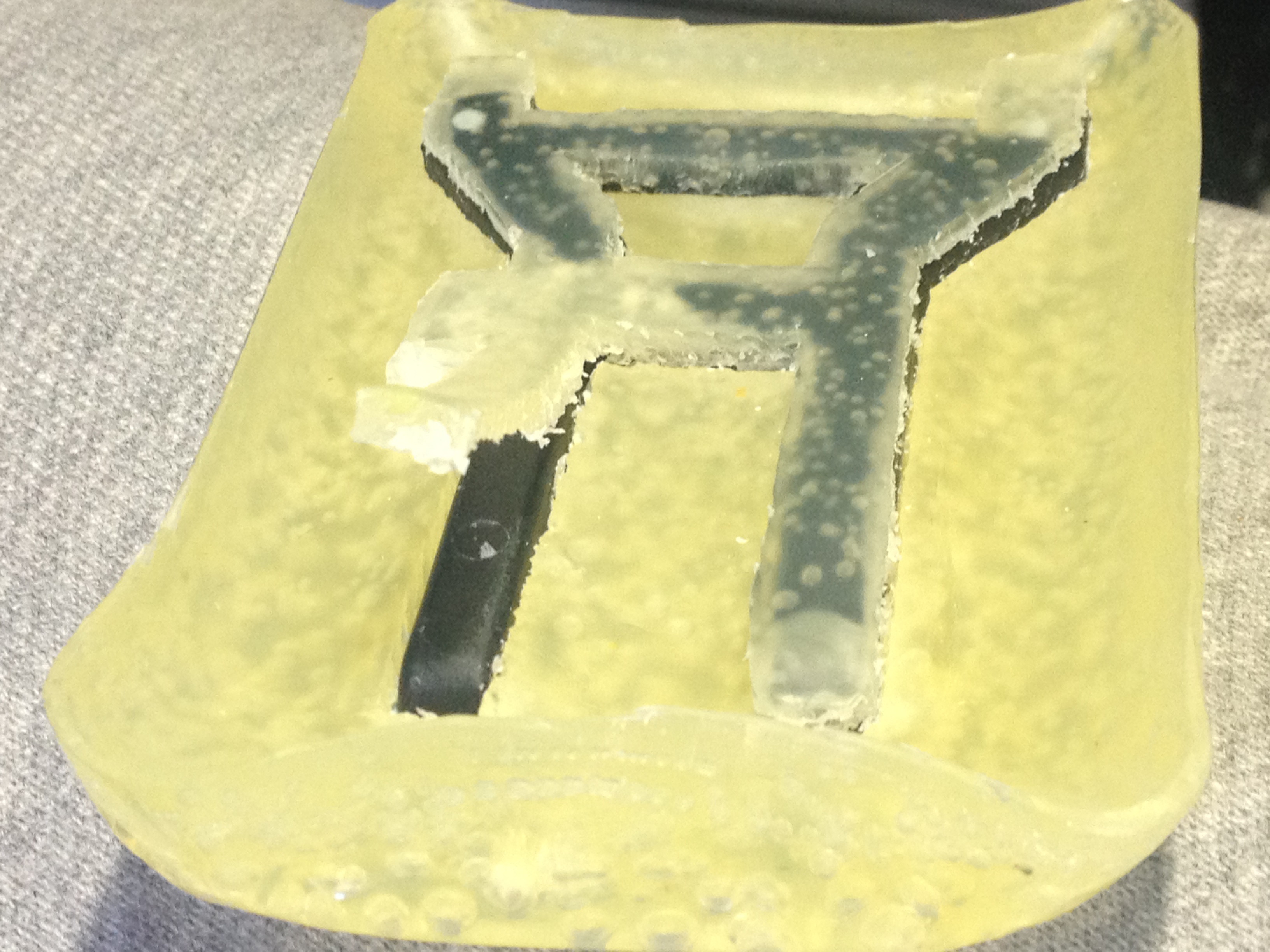

Yaa only cut the top layer of the rubber off of the mold, and because the suspension arm was greased OTT style, all you gotta do is VERY CAREFULLY cut the top layer of rubber from the mold being very careful NOT to cut into your part, YOUR FINGERS, ffs, and take your EXTREME TIME WITH THIS - EVEN IF IT TAKES YOU A WEEK, fine....

At least it will save horribly cutting yourself as the rubber is VERY TOUGH and STRONG (if the REAL Plasti-Dip was bought...) so Again, TAKE-YOUR-SWEET-TIME with this step and also use a brand-new knife... I used a stanley knife that you can break away a small sliver of the knife (disposable) in order to keep using the sharpest parts of the knife...

Melting the Polymorph... (AFTER THE MOLD Has Dried Again!)

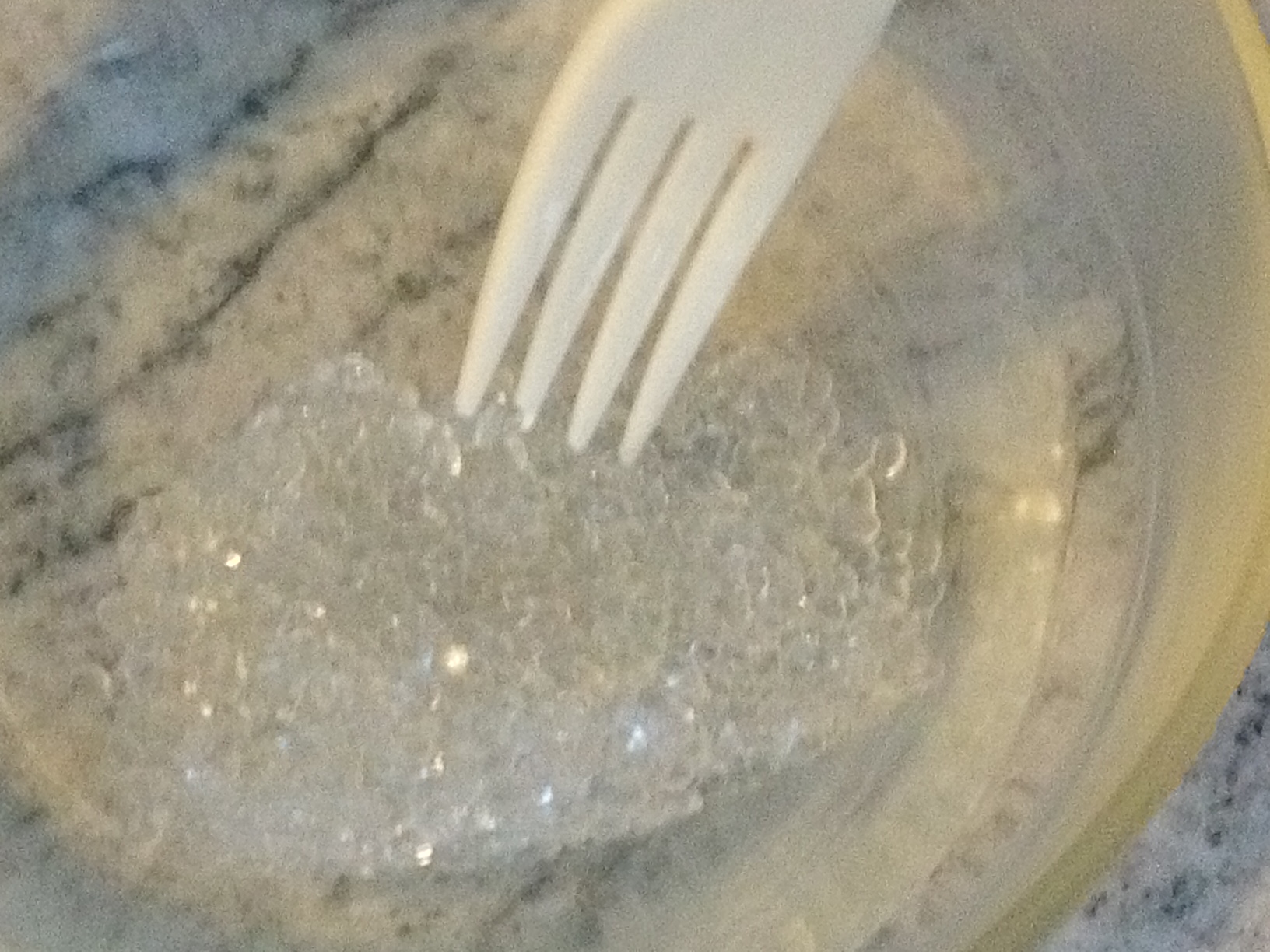

Okay, now just follow the instructions that came with your polymorph thermoplastic, but if you didnt get any decent instructions, the link below is a cool 9-page .pdf with the full & unabridged instructions for how to use it PROPERLY and here we go with yet another pesky Disclaimer...

Polymorph Instructions (.pdf) (As its so cheap from this company that made these instructions, it would be cool if you had bought the polymorph from these people!)

-WARNINGS-

I AM NOT RESPONSIBLE FOR ANY INJURY CAUSED BY YOU FOR NOT SAFELY CARRYING OUT THE INSTRUCTIONS THAT CAME WITH YOUR POLYMORPH OR AS A RESULT OF POOR SAFETY PRECAUTIONS NOT TAKEN BY YOU WITH THE USE OF BOILING WATER OR ANYTHING TO DO WITH THIS INSTRUCTABLE - PLEASE HAVE AN ADULT SUPERVISING YOU IF UNDERAGE AND PLEASE USE EXTRA COMMON-SENSE, AS AND WHEN NEEDED....

USE A PLASTIC DISH THAT CAN BE USED FOR HOT WATER OR A PYREX OR A HEAT-RESISTANT GLASS DISH....

I also have an IR Thermometer to check the temp of the water, the instructions clearly states that NO-MORE than 60-65 DEGREES CELSIUS should be used to get polymorph started to become mold-able...

I always get a headache writing them disclaimers....ffs...

Right, back to the Fun part!

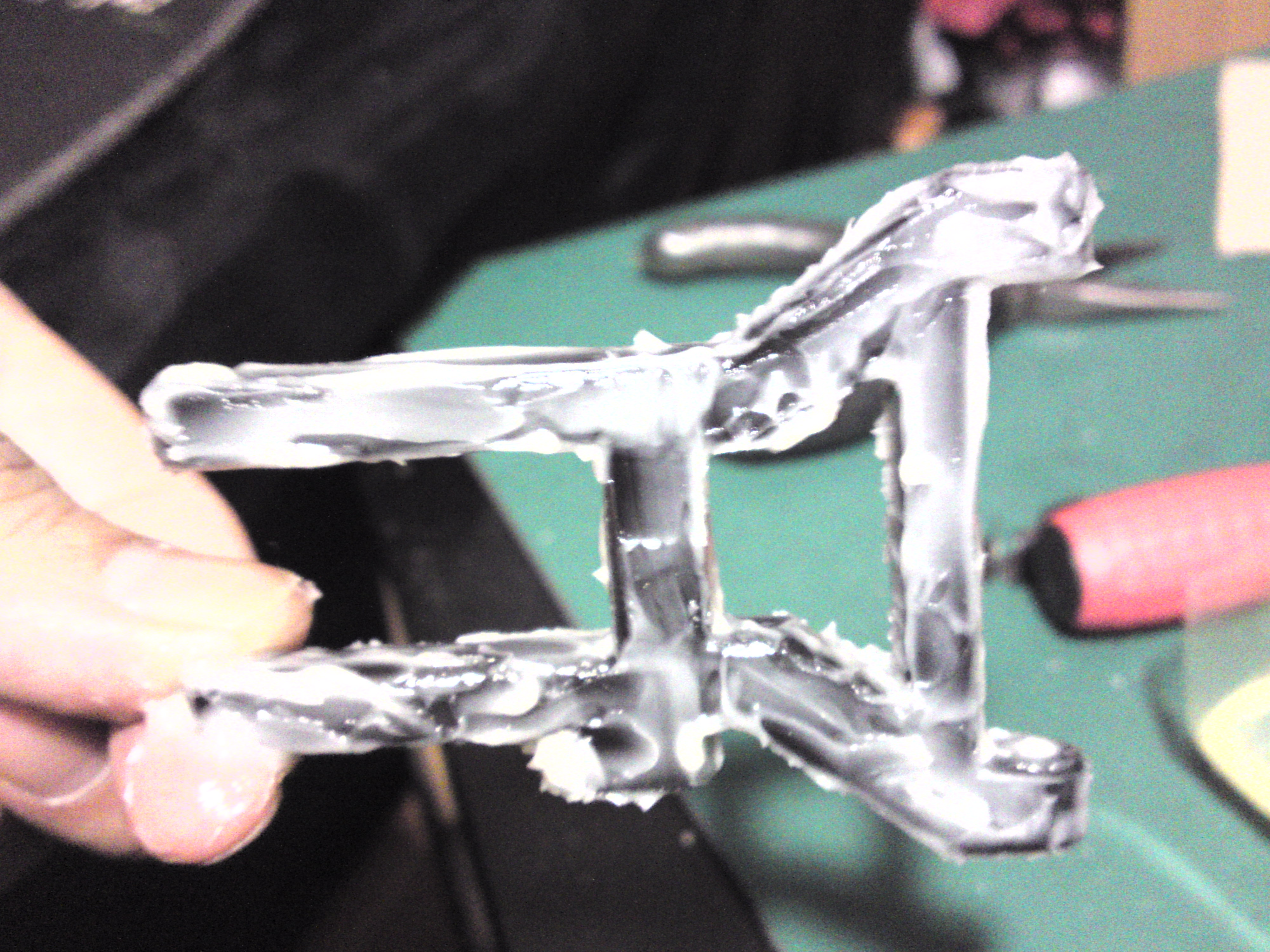

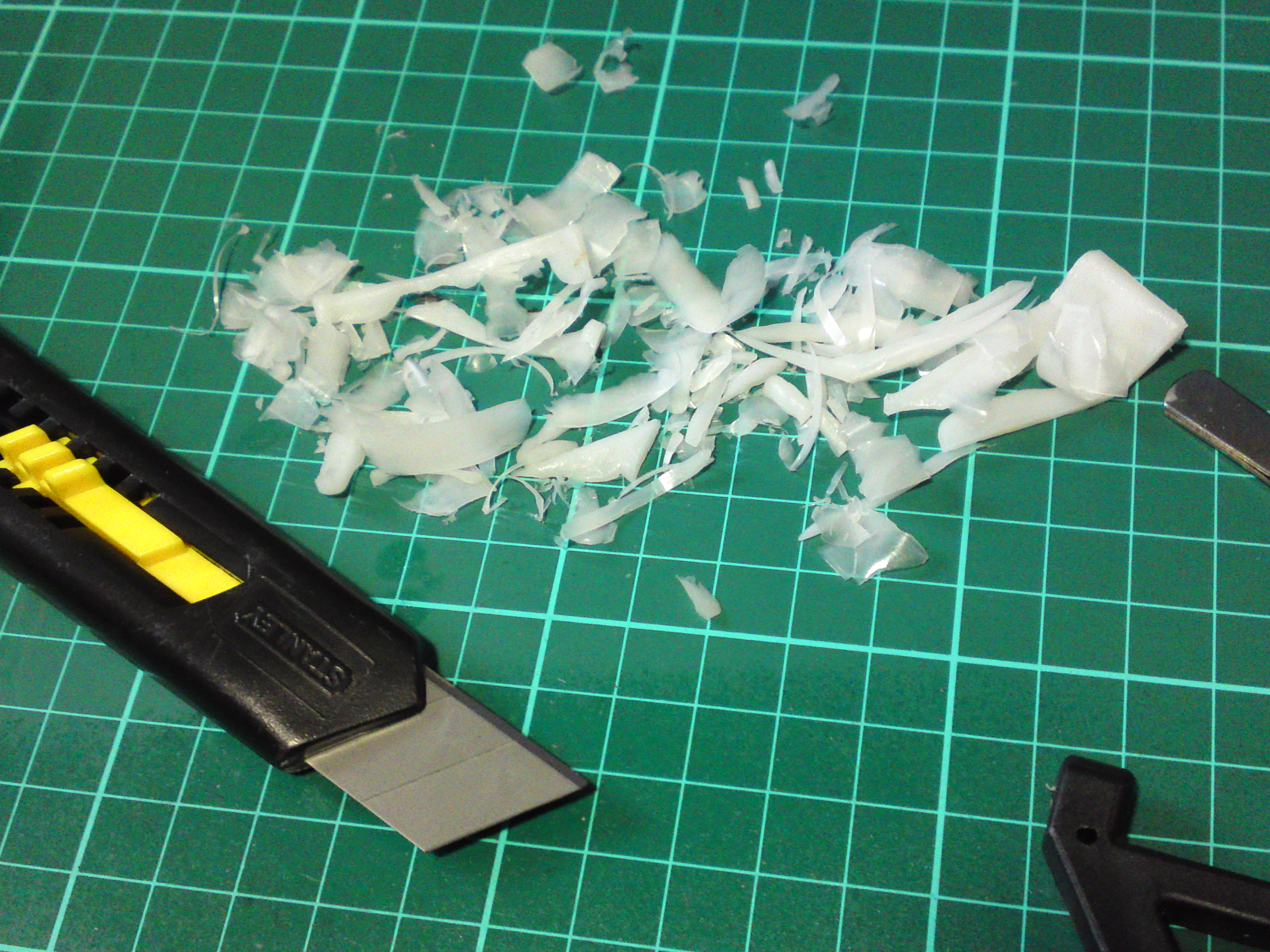

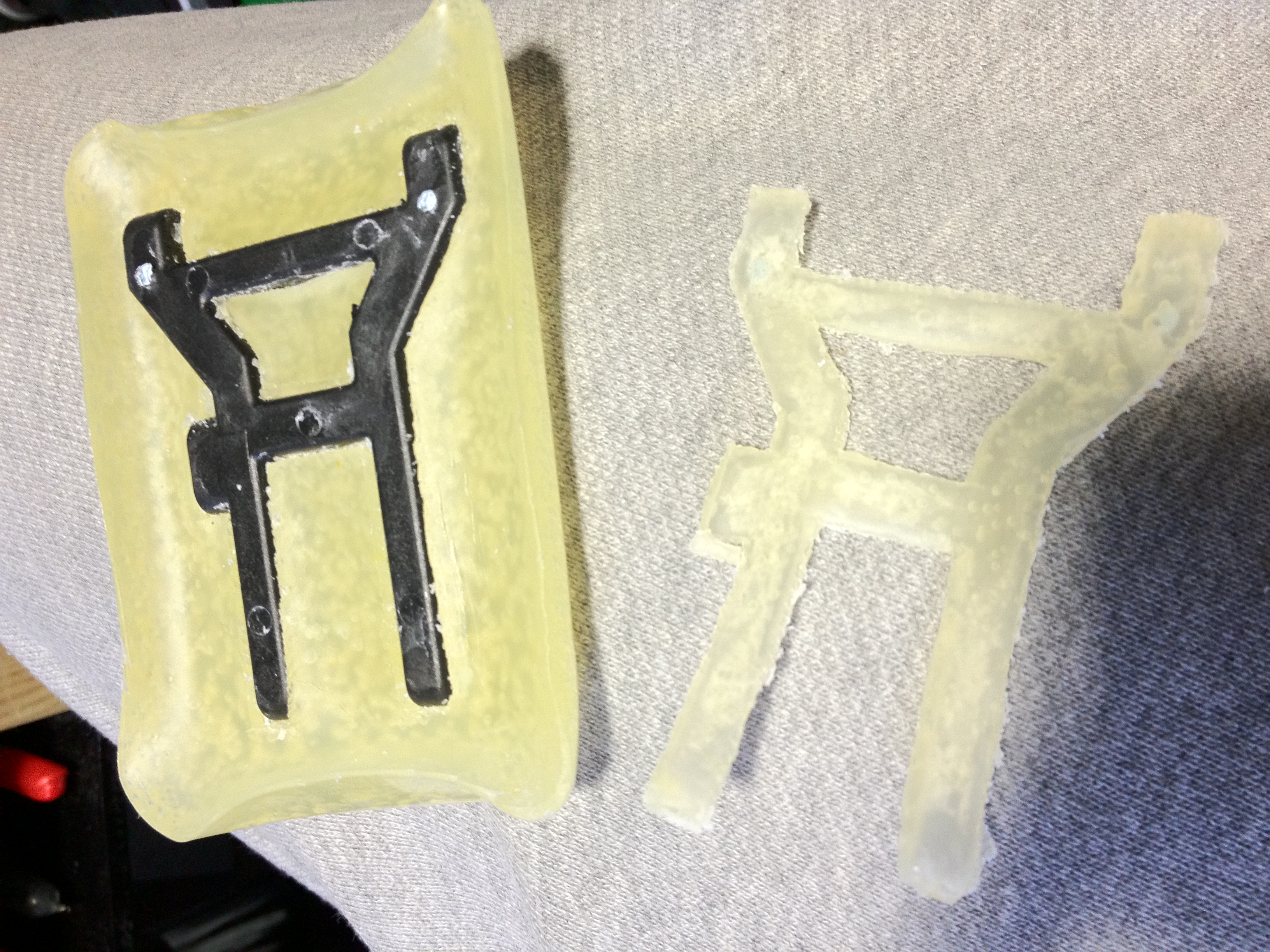

Now that you have your polymorph melted and have a small enough quantity mixed, 1st wrap little bits of it all over the wire framework that we created earlier on, gradually adding to it and keep an eye on how the part looks like that your trying to duplicate and add polymorph to as much of the wire framework as to copy the part being duplicated...

LAST PART - DRILLING !!!!!

Well, congratulations if you've made it this far in another of my insufferably LONG instructables !!! Pat on the back is an order!!!

Last bit is to drill the holes identically to "Mirror" the original part...

USE METAL DRILLING BITS because we used wire in the part, so this makes sense! lol

BUT BEFORE THE DRILLING !!!

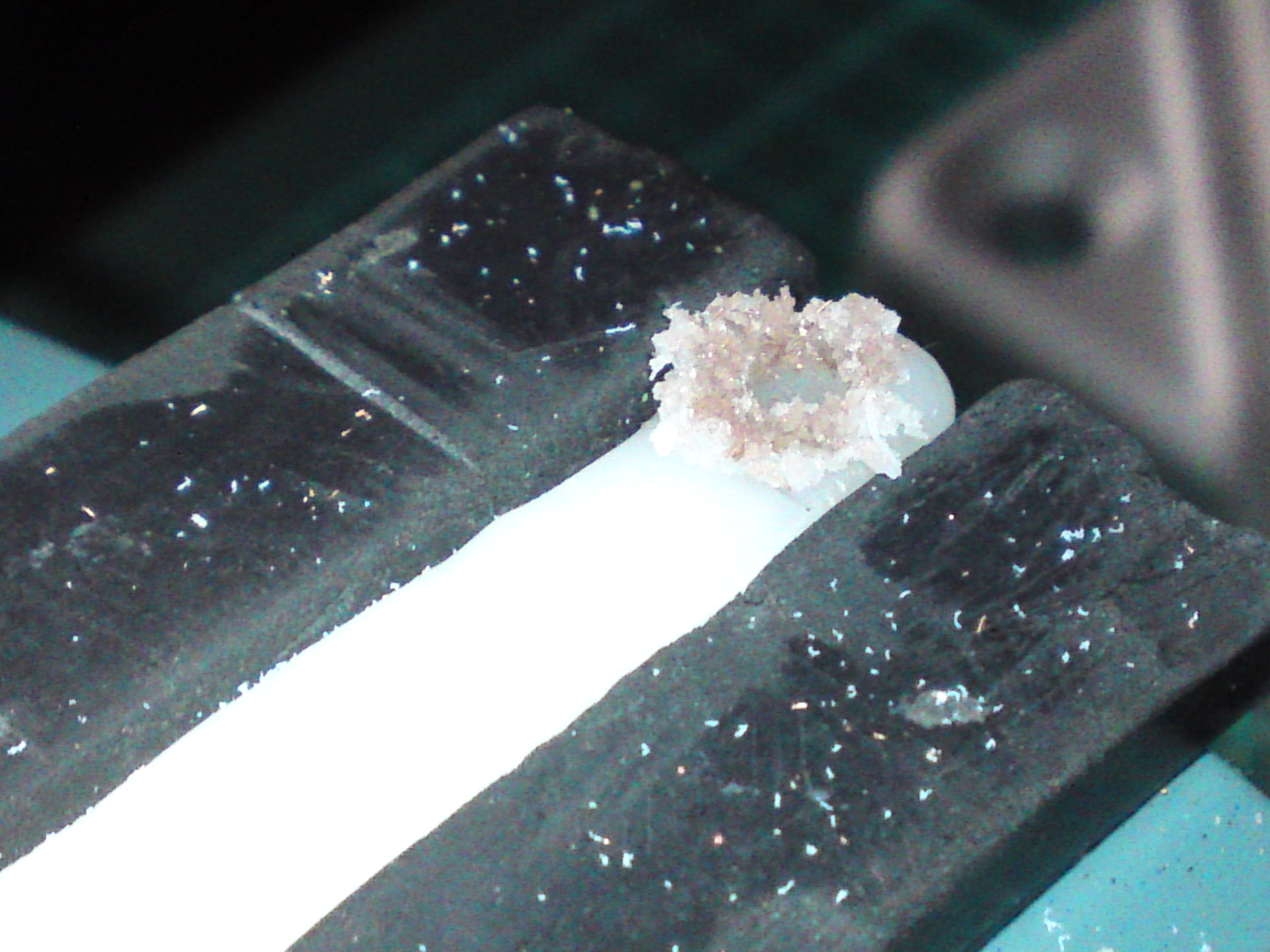

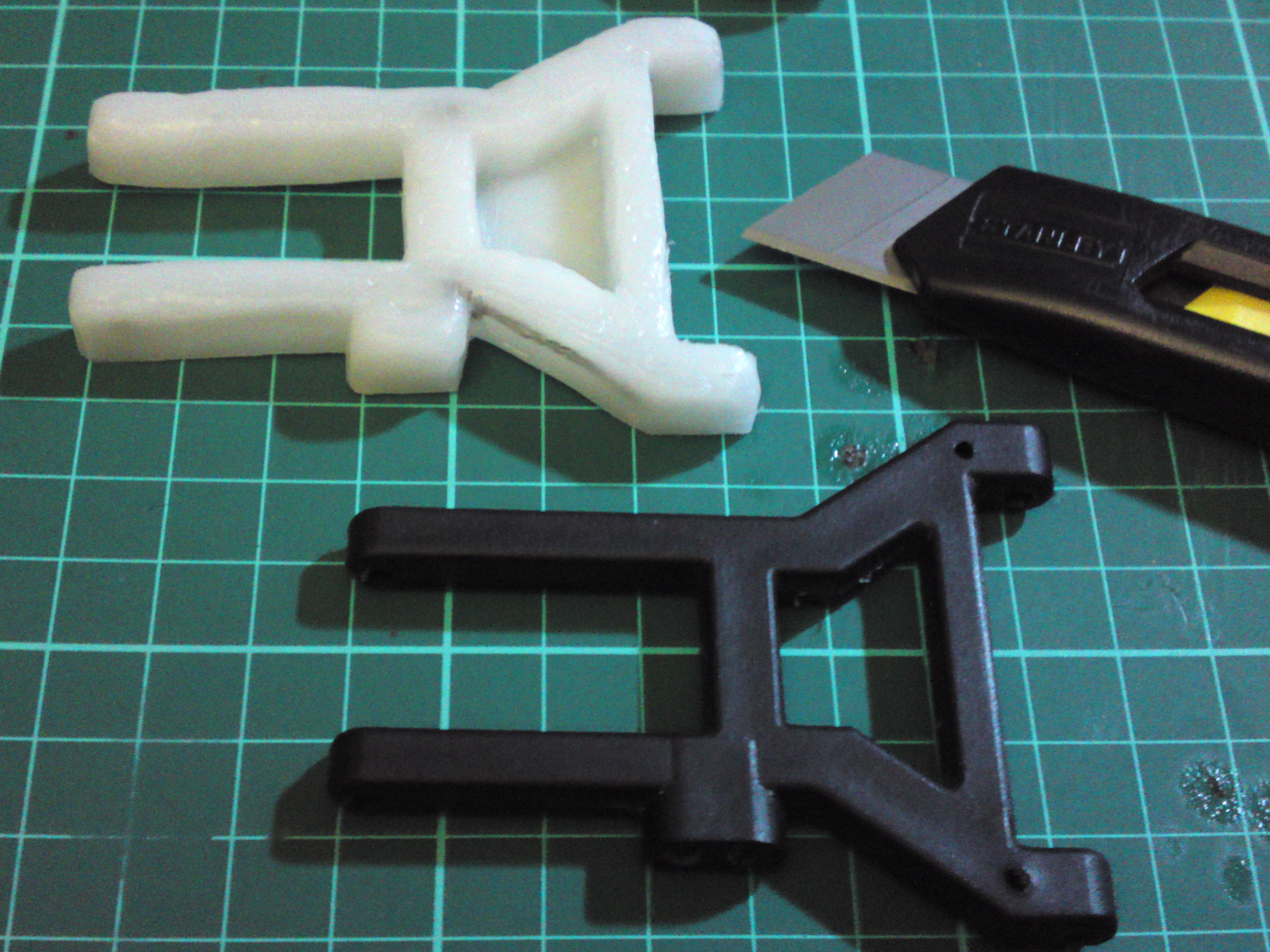

INSPECT the parts and add more polymorph as needed to any sections that need it...

I have a flameless gas torch so its easier to do these things, originally i bought it for using with heatshrink on my cables and electronics messing about but it serves this purpose nicely AND i dont have to mess around with HOT water...

--- If you do invest in one of these, it'll come in handy !!!!

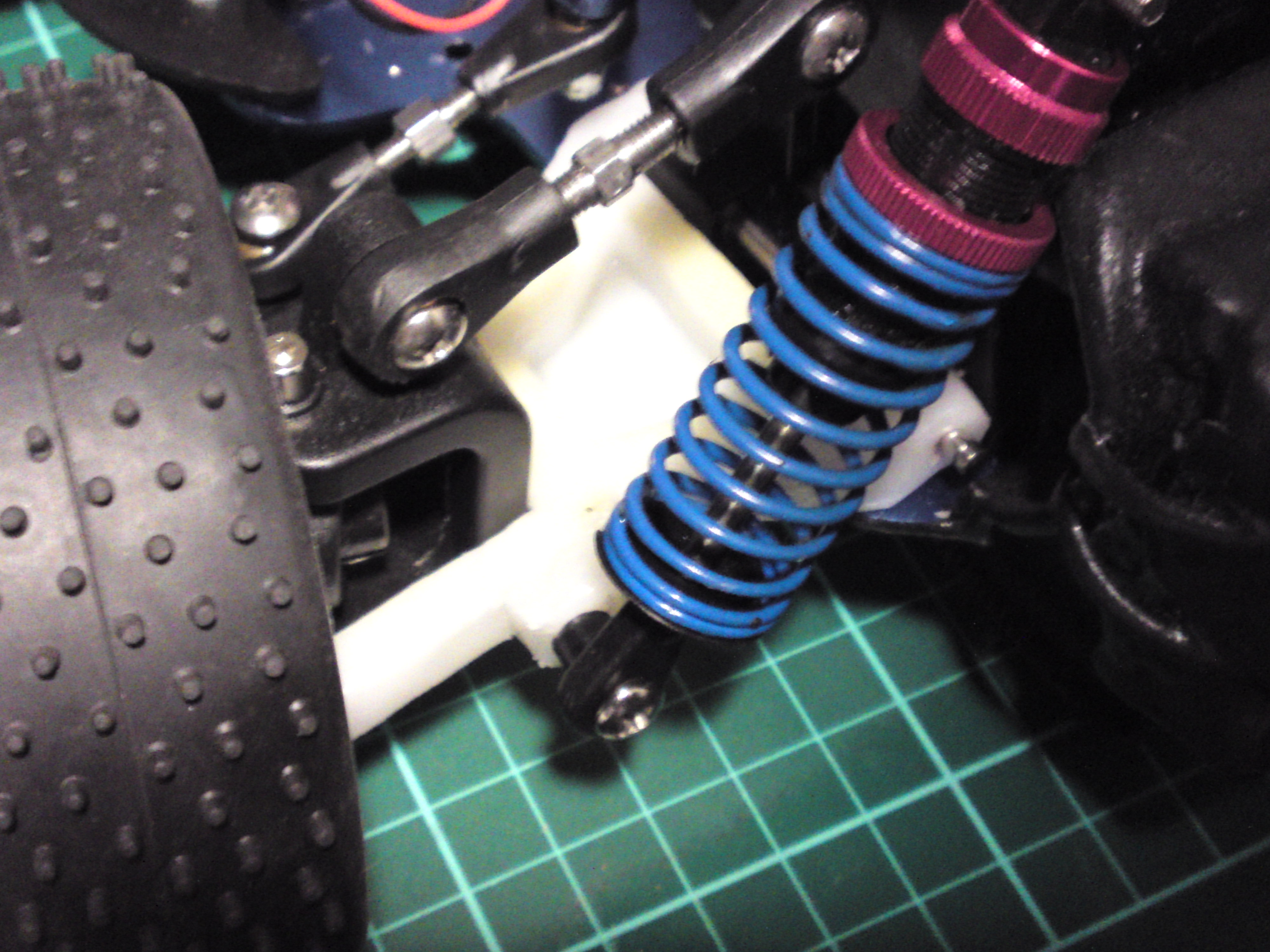

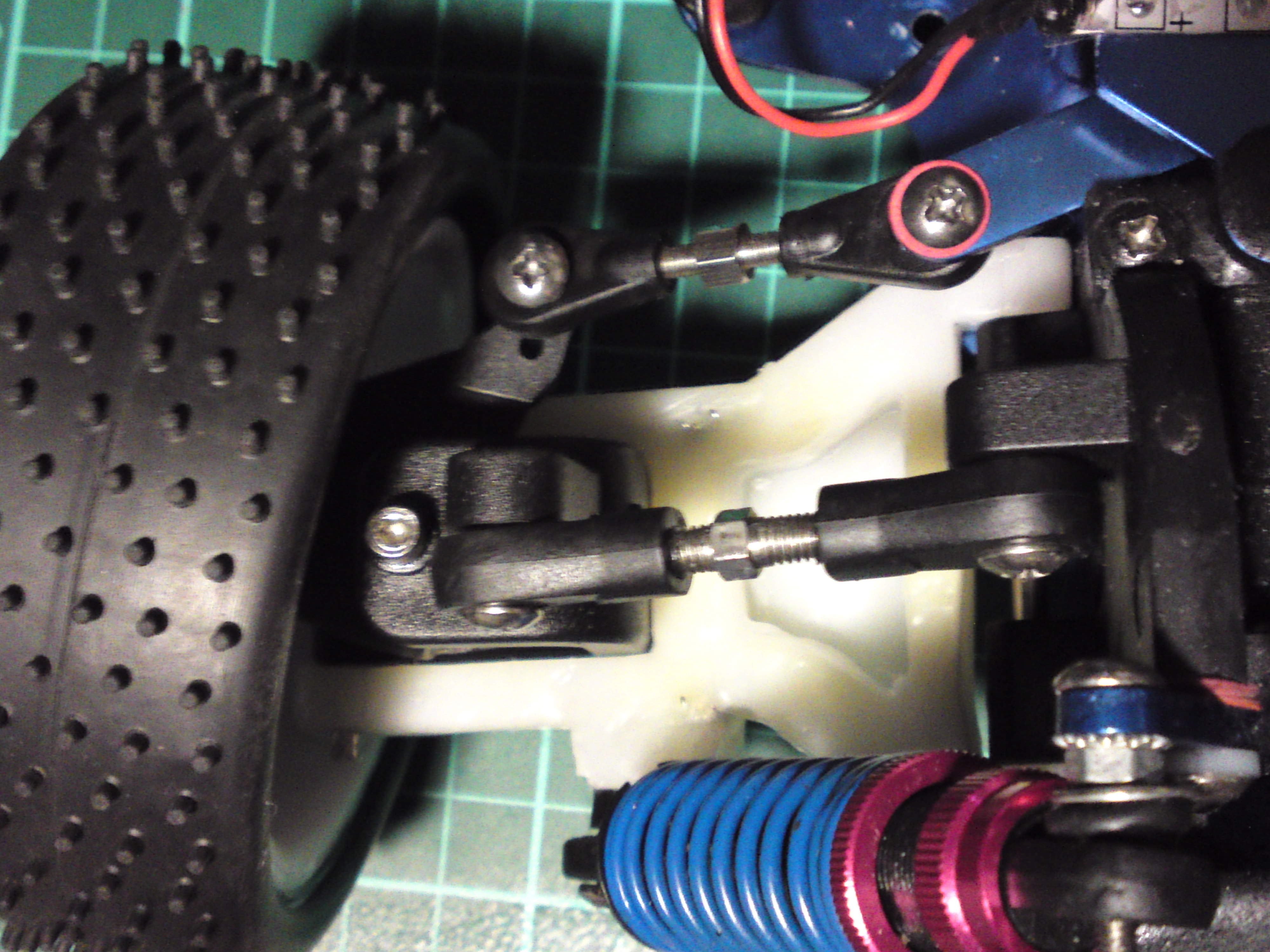

ALL DONE !!!! INSTALL YOUR NEW PART TO YOUR RC VEHICLE !

And Go crack open a few beers ! (or a cream-soda if your under-age !!!)

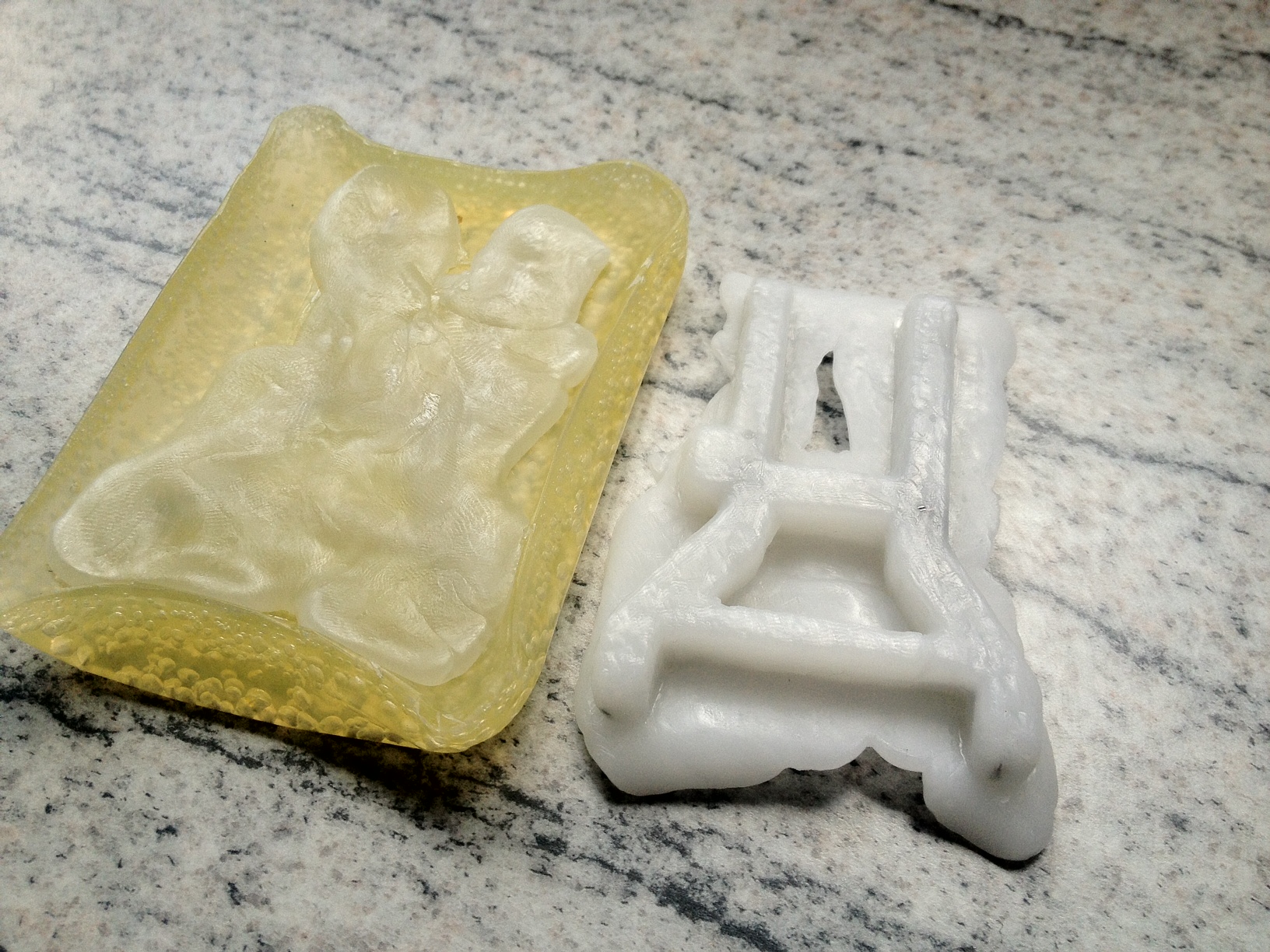

Now you can DUPLICATE ANY part you want with the method/s i have shown you here and ONLY keep buying the polymorph to use to create more parts !!!

THIS will save you so much money as your plasti-dip will last for AT-LEAST 20+ DIFFERENT molds of varying sizes so once you have the bulk stuff, you will only need to top-up the POLYMORPH !!!!

So have Fun & ALWAYS REMEMBER.... WHATEVER YOU DO... SAFETY FIRST !!!

also if you've got this far, please please be kind to rate my instructable as each one takes days if-not weeks to put together for free use for everyone - many thanks in advance !!

Polymorph here in the UK only costs £3.60 per 100 grams (£1.93 per 100g + £1.65 p&p) on ebay HERE

*** UPDATED ***

MY SUSPENSION ARM costs 6.81 USD = 4.29856 GBP from the LINK HERE but with the 100 grams of POLYMORPH bought from ebay, i can make 26-30 Suspension ARMS compared to BUYING JUST A PAIR from a specialist RC Website... I'll NEVER BUY ANOTHER PART AGAIN !!!

Bonus: Shock-Absorbing BUMPER !!!

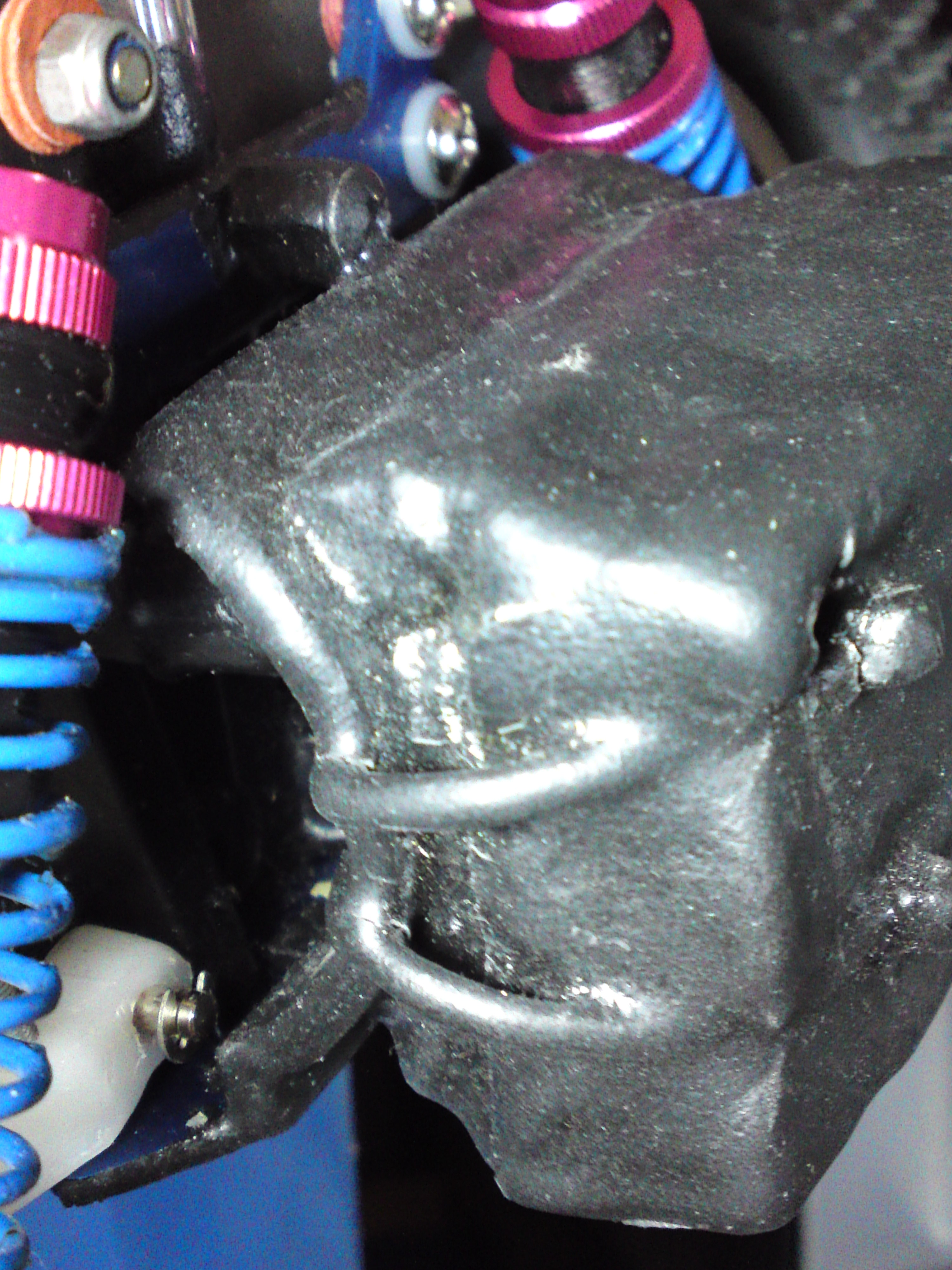

Well, whilst i'm still playing around with liquid rubber and all my gear hasn't been put away yet, here's a VERY QUICK MOD that will help PROTECT the Front-End of your RC Cars from High-Speed Impacts and more-or-less ACT like a REAL Car-Bumper !!!

You'll Need:
Polystyrene (The MOST-FIRM you can find {DENSE, lol})

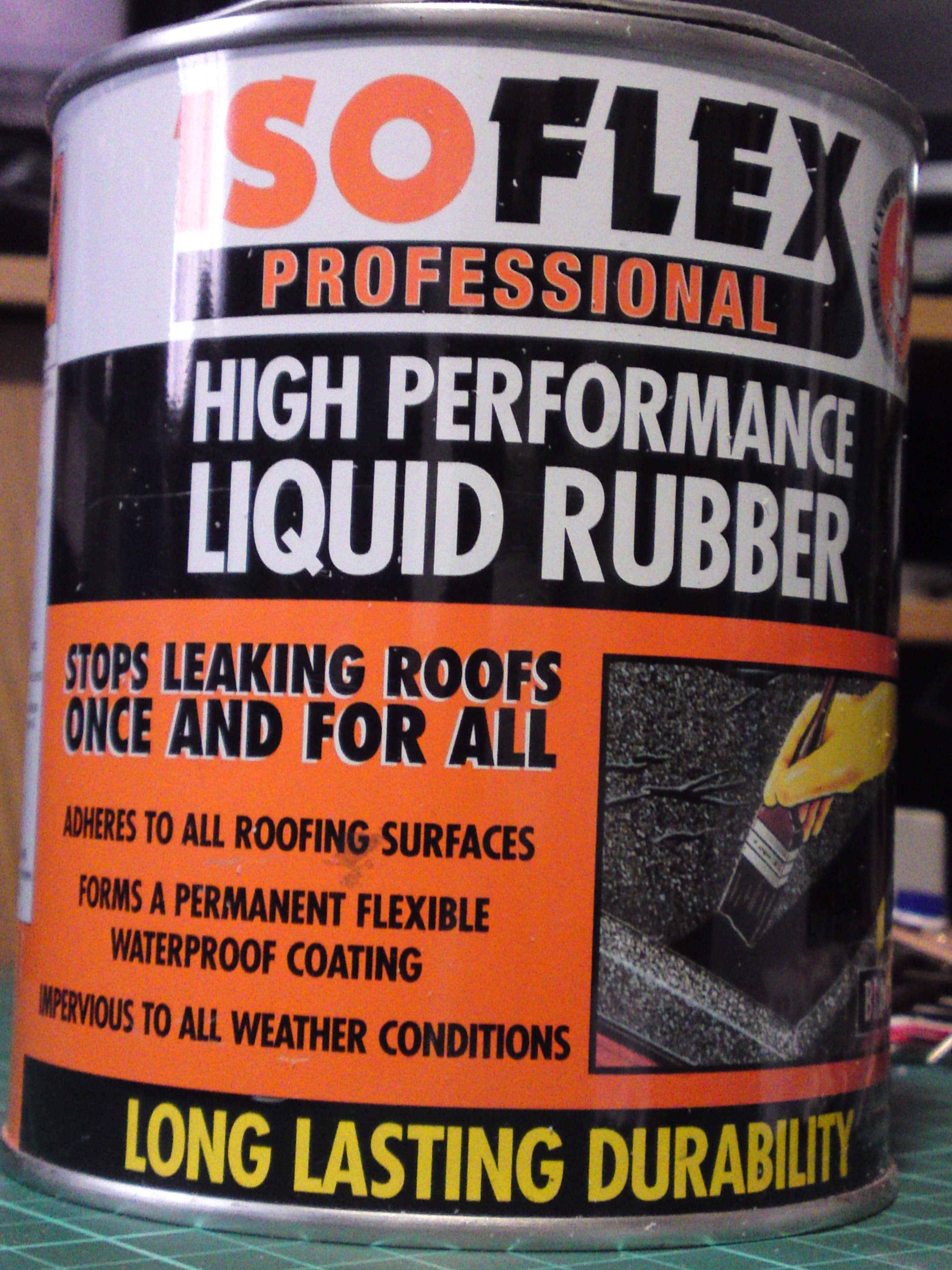

Roofing-Grade Liquid Rubber ! (Click on the 2nd Picture on the website, something went wrong on the 1st!)
2 Short Pieces of Single-Core Wire (From Before!)
Plastic Glue Spreader

For IMMEDIATE Clean-Up:
Any Alcohol-Based Hand Gel
Cotton Face Pads (NOT that you should be getting ANY Liquid Rubber ANYWHERE Near your FACE ! lol !)

And ALWAYS REMEMBER --- WHATEVER YOU DO --- SAFETY FIRST --- !!!

Ive also only realized that on certain web-browsers, IE, ffs.... Don't show ALL MY MAY INSTRUCTIONS that ive slapped on the HUNDREDS on photo's that are informing you of what to do, with what & How, i'll try to put the instructions here in the main text and only make short labels on the pictures themselves, but as ""I"" like to explain things VIA pictures and its also how ""I"" like to learn new things because i find it easier to "LOOK" at picture-instructions as in MY own humble opinion, its a better way of actually showing you whats going on with my methods!

So... If my pictures are virtually plain with no text, change your web browser! Firefox kept AUTO-CLOSING itself down on me ALL last year, IE i just dont trust as being safe, Chrome is FAR too SIMPLE for me and i have also been using Opera from which ive NEVER had any problems in the last TEN YEARS of using it !!! So, as per usual, you are your own boss when it comes to what browser you like to use!

Anyhoo, here we go! (lol)

1.

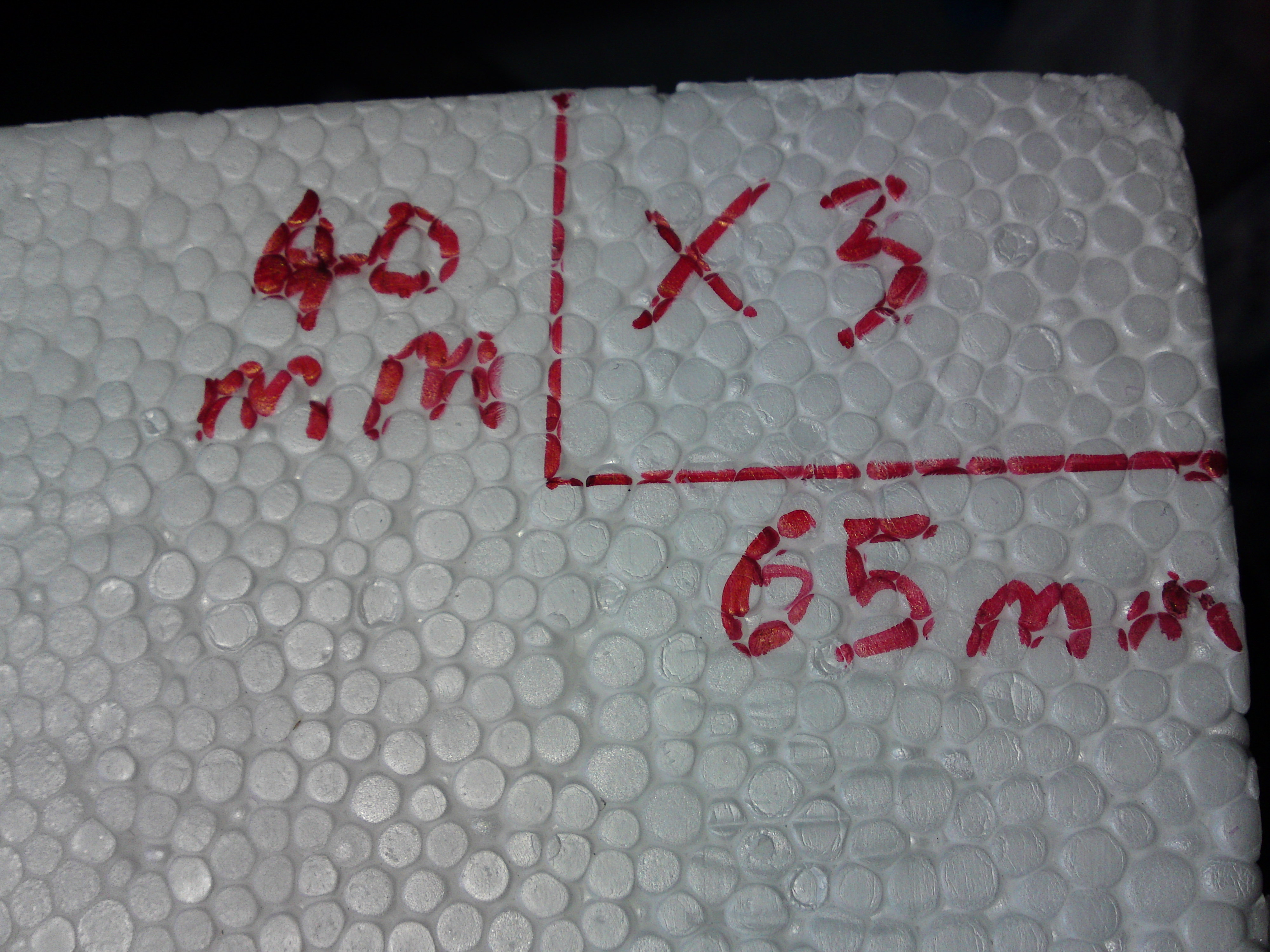

Cut 3 pieces of Polystyrene, 4mm (W) x 6.5mm (L) and mine that i found in packaging was 15mm Thick !
Check out the Pics !!!

2.
PASTE a generous layet in-between all the polystyrene blocks and SANDWICH them together....

3.
STAB the LONG piece of single-core-wire through the TOP of the block and the SHORT piece at the BOTTOM (SEE PICS !)

4.
CLAMP the sandwiched polystyrene blocks onto a pair of helping hands, but clamp the LONG piece of wire to the helping-hands and USE the SHORT bits of wire that are only sticking out a TINY amount from each side of the sandwiched block to keep the entire thing steady whilst you paste on the THICK roofing liquid rubber!!!

5.
IF you get some of this stuff on your fingers, IMMEDIATELY clean it off with some alcohol hand gel dabbed onto a face-pad then simply wipe it off your fingers, TRUST ME, its better to do this BEFORE it turns into a NIGHTMARE of stick fingers then by the time you know-it, there will be rubberized finger prints EVERYWHERE and its a right-sod to get clean afterwards !!!

6.
Let Dry for ONLY 12 HOURS, the RE-COAT..... YOU IDEALLY WANT 3 to 4 THICK coats but you have to wait 12 hours between coats so you will need to take a few days to make these bumpers BUT its SOOOOOOOOOOOOOOOOOOOOOOOOOOOOO-WORTH-IT !!

Then AFTER the final coat, you need to allow it to fully dry and it took a good 48 hours for mine to dry completely, but a FURTHER 48 hours was needed BEFORE ROUGH handling !!!

The instructions on MY Roofing Liquid Rubber Said that if i wanted to double-coat anything then the standard time to wait between coats WAS 12 HOURS, whatever roofing-grade liquid-rubber YOU obtain, check the instructions to see what it say for it and follow as directed !

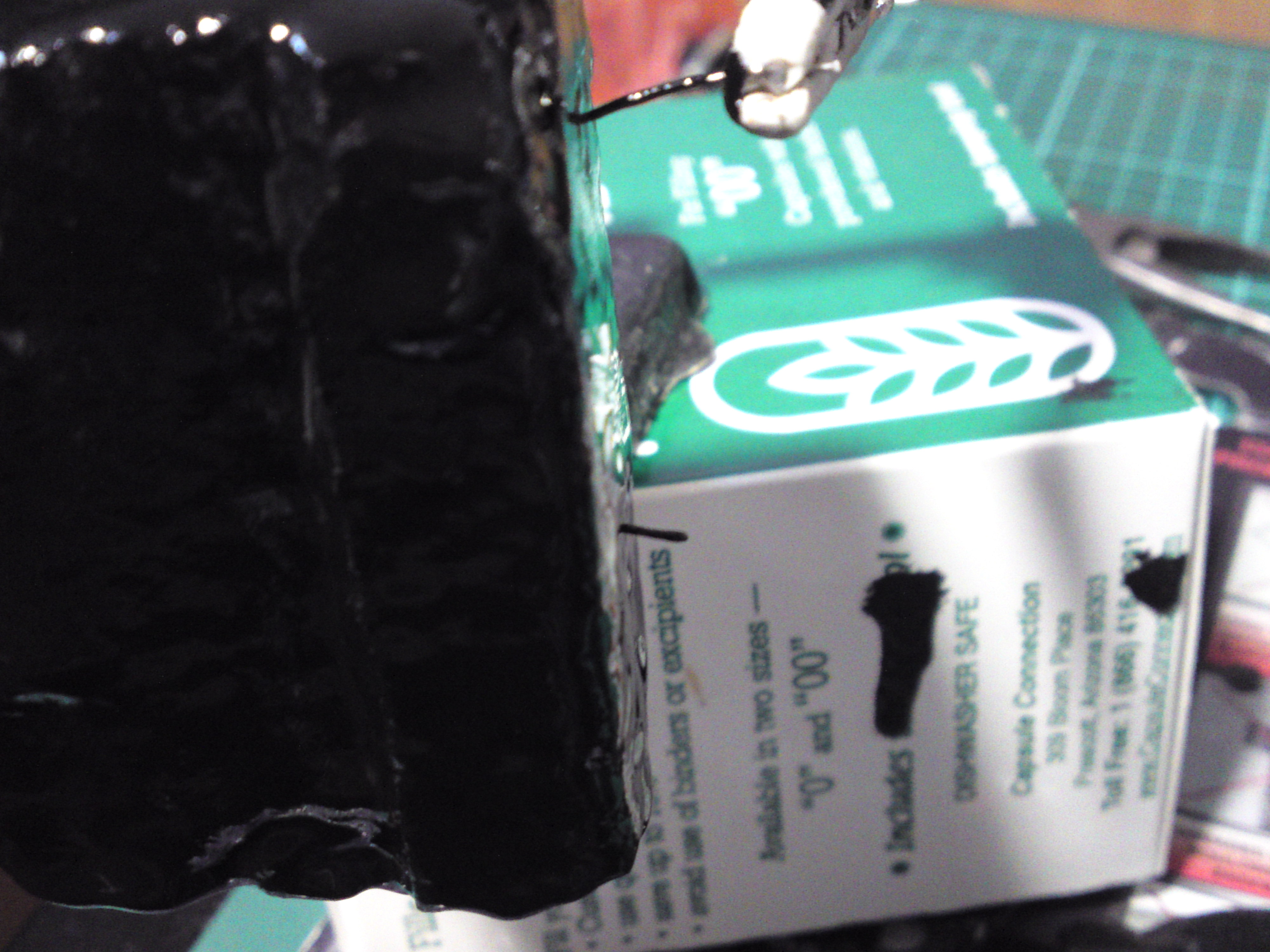

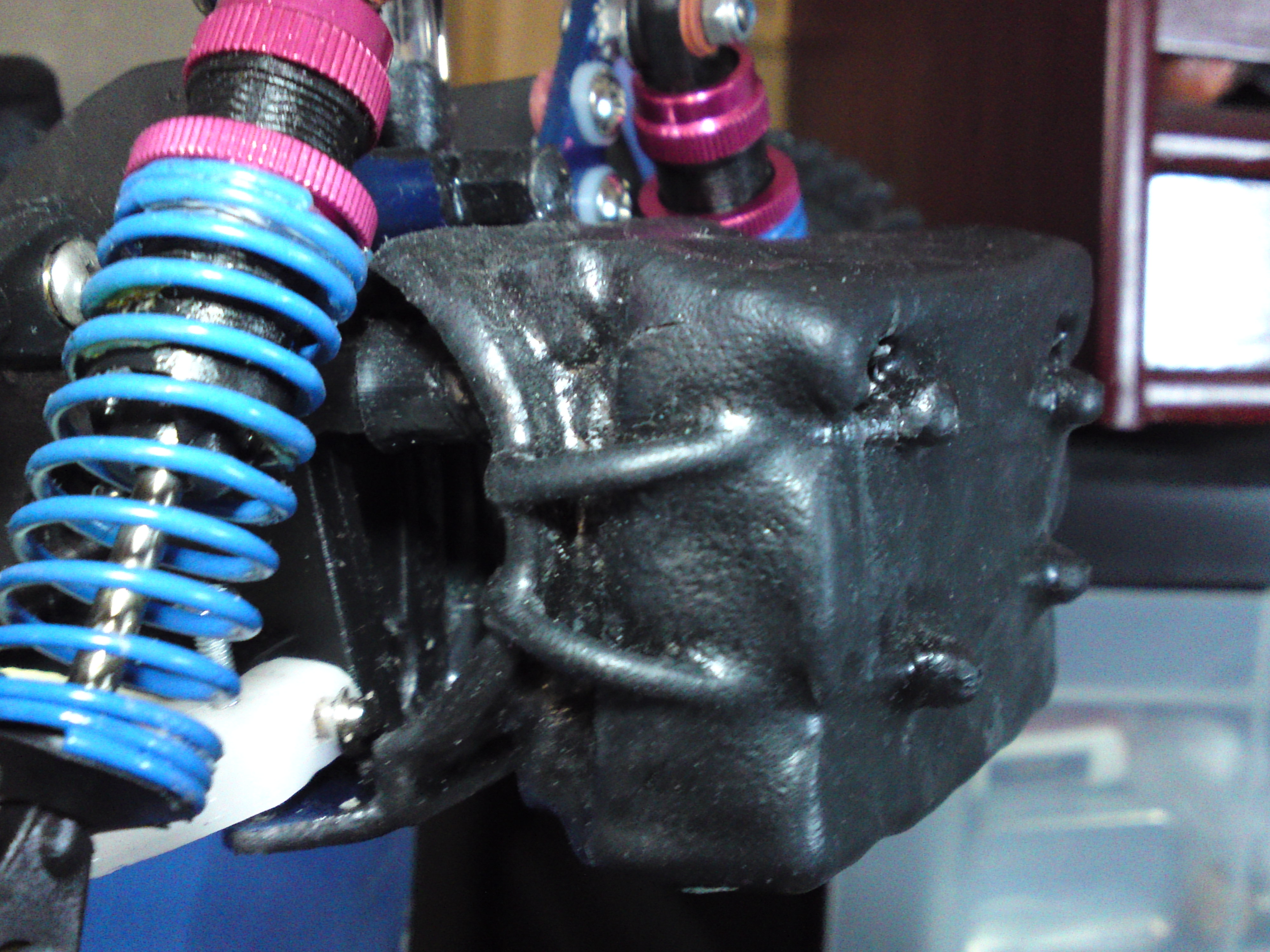

As soon as its all dry, i "Strapped" it to my Front Plastic Bumper and gave the WHOLE-ASSEMBLY a further 3 COATS, but a little thinner than before because at this point a week had gone past and i was VERY EAGER to start crashing, er, i meant driving my car again,lol !!!

Have Fun !!!

And ALWAYS REMEMBER --- WHATEVER YOU DO --- SAFETY FIRST --- !!!
