How to Build the 4th Doctor's Sonic Screwdriver

This instructable shows how to build the 4th doctor's sonic screwdriver. This is part one, which is the main part. Part two will include the electronics.

Aluminum tubing
- approximately .55 in ID 5/8 in. OD
- 5/8 in ID 3/4 in OD
- 25/32 in ID 1 in OD

Plastic tubing
- 1/4 ID. 3/8 OD
- 3/8 ID. 1/2 OD
- just under 1/4 in ID 3/8 in OD

Threaded rod
- just under 1/4 in Diameter

Spacer
- 5/16 by 9/16 in

Axle
- 1/8 in diameter

Washer
- 3/8in ID 5/8 in OD
- 7/16 in ID 1in OD

Bolt (with nut)
- 1/2 in long, 5/8 diameter

Random parts
- Practice arrow
- Rubber cap
- Aluminum coloured cone
- Spring

Thread 2 1/2 cm of the slightly les than 1/4 in tubing onto 14 cm of the threaded rod. Around that glue 2 1/2 cm of the 1/2 in OD tubing.

Cut the tubing to build it up to barely fit inside the largest aluminum tube.

Glue 1/2 in OD tubing on the top and bottom of an 8 cm section of a 10.5 cm long 3/8 in OD tube.

At on end leave a 12 mm space. Put the washer and spring on before sliding it on the rod.

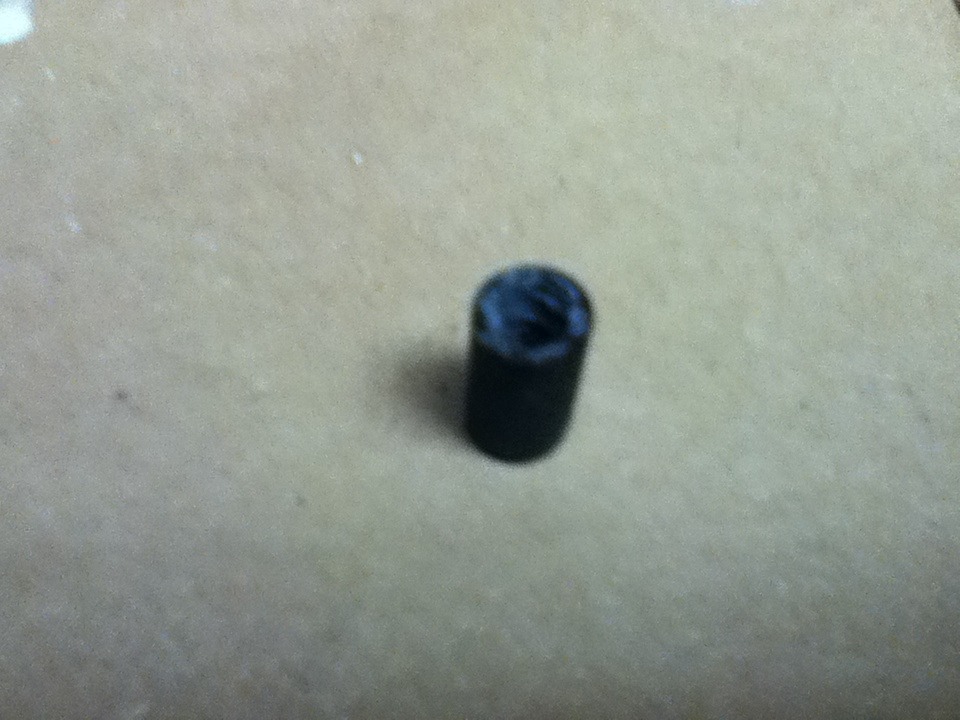

Drill the spacer to fit on the threaded rod. Glue in a 2cm axle.

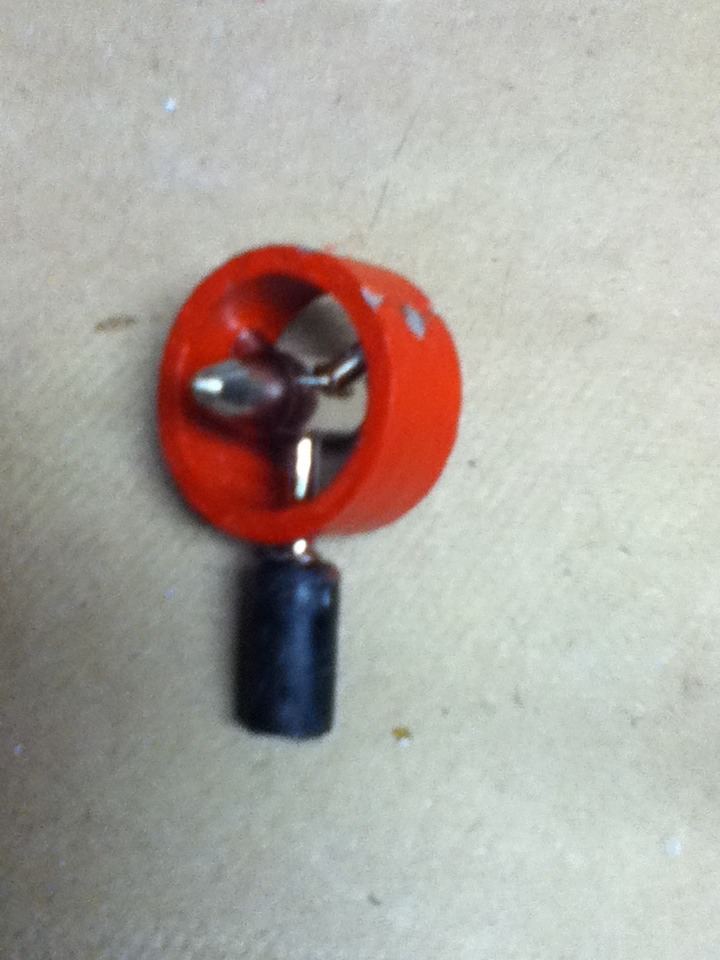

Drill three holes into the arrowhead, with three corresponding holes in a 1 cm price of 1in aluminum tubing. Glue the arrowhead and axle into place. The glue that onto the spacer.

Cut a notch into a 8 cm piece of 1in aluminum tube. Glue the threaded to piece 5 cm from the bottom.
Cut a 5.5 cm piece of3/4 in tube to fit around the plastic that was glued into the 1in tube. Connect that to a 9.5 cm piece of 5/8 in tube. Attach a 1.5 cm piece of 3/4 in tube 3.5 cm from the tip, before glueing the cone to the end

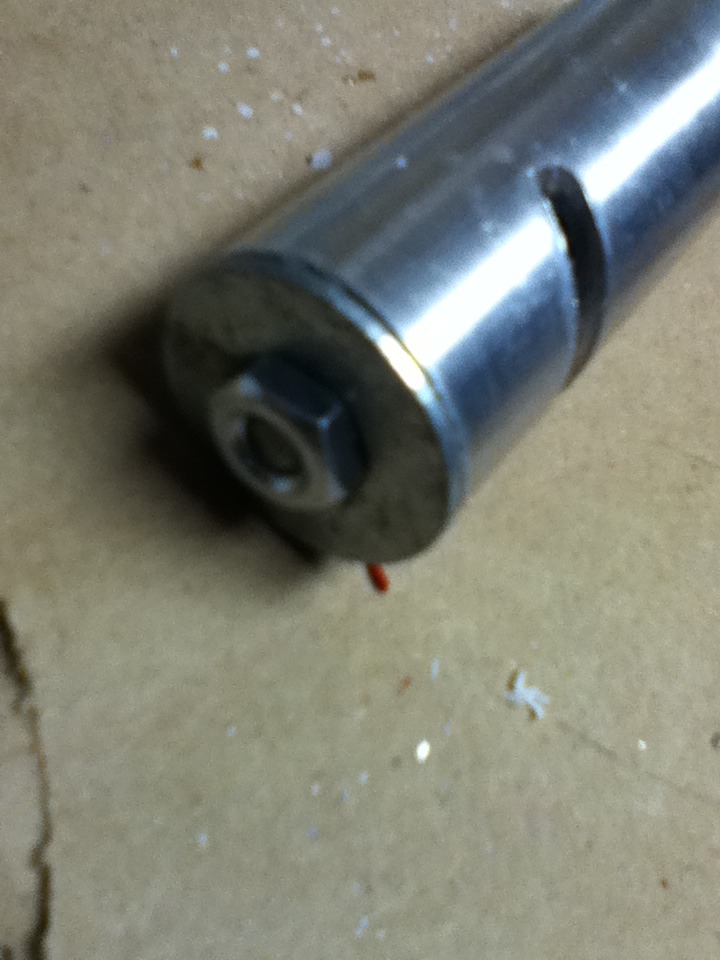

Screw together the 1in washer and rubber cap. That will plain the end of the 1in tube

Slide the aluminum tube onto the threaded rod and screw the emitter on
