How Make an Oscillator (astable Multivibrator) and Pulse Width Regulator (monostable Multivibrator) With Logic Gates

This article provide the circuit diagram and a video demo of:
- astable multivibrator (Step 1 - 2)
- monostable multivibrator (Step 3 - 4)
Supplies
Information in the brackets indicate the exact supply that I used. You can use alternatives.
- 2X NOT gates (on 1X 74HCT04 IC chip)
- 1X OR gate (on 1X 74HCT32 IC chip)
- 1X capacitor (47 uF)
- 3X resistors (1MΩ, 710kΩ, 100kΩ)
- 1X LED
- Power supply for the logic gates (I just powered them from an I/O board)

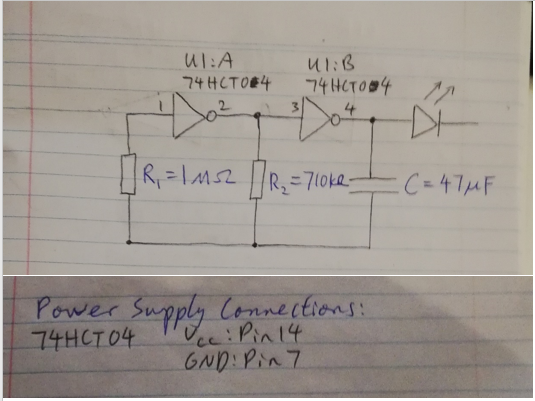

Circuit Diagram (astable Multivibrator)

The circuit diagram is the image above.
Testing Astable Multivibrator

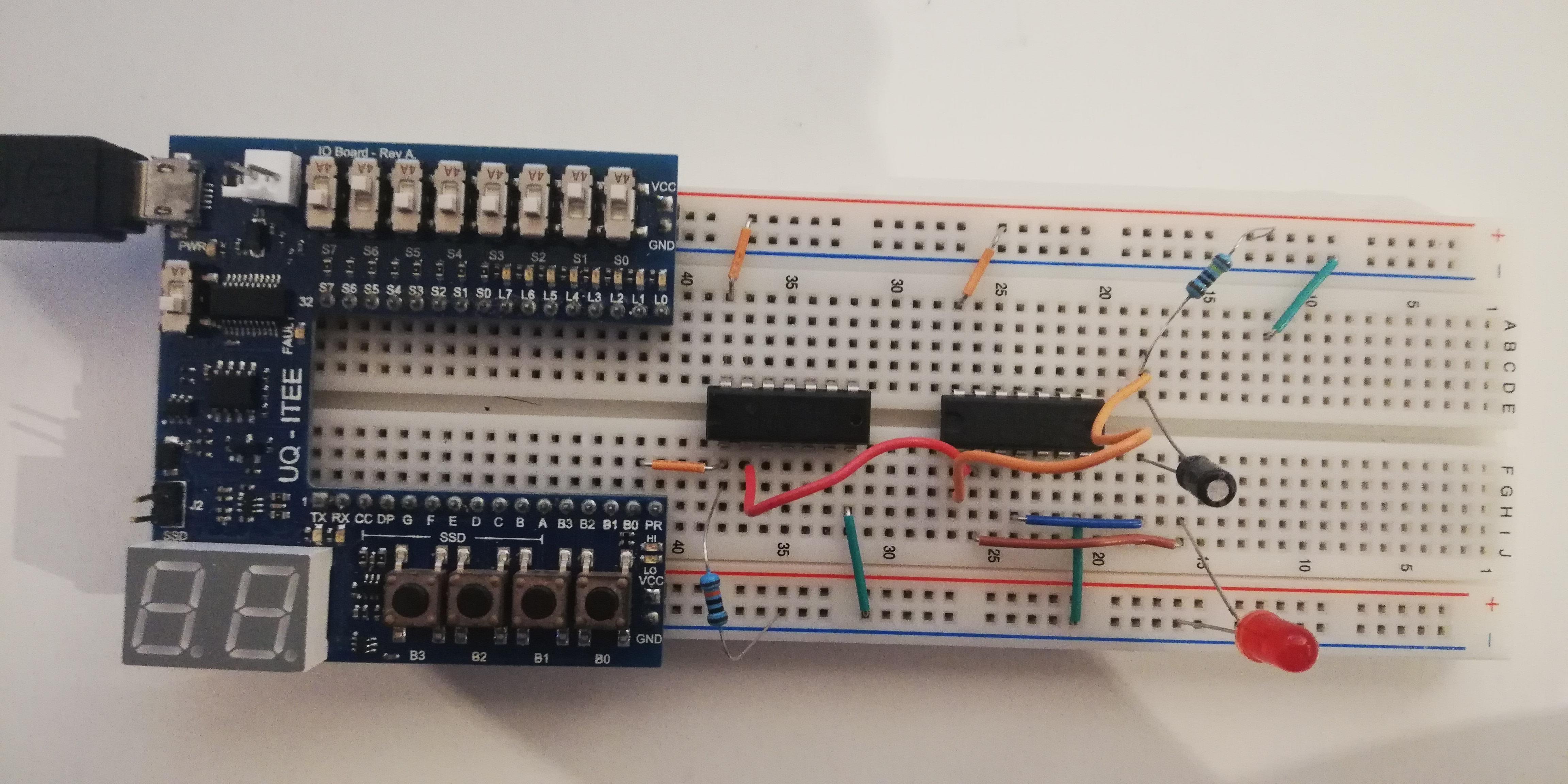

 using logic gates on a bread board)
Above is the video demo

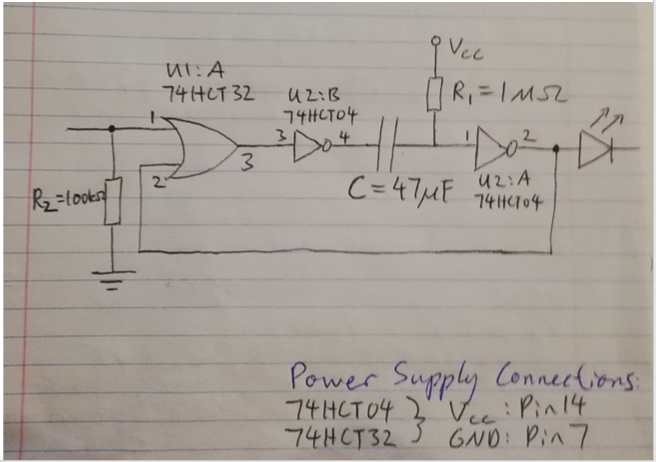

Circuit Diagram (Monostable Multivibrator)

The circuit diagram is the image above.
Testing Monostable Multivibrator
 using logic gates on a bread board)
Above is the video demo
Bistable Multivibrator

This article shows examples for monostable and astable multivibrator. This is a third type: Bistable, which is commonly referred to as a flipflop or SR latch (which is shown in the image above). There are plenty of information on flipflops on the web, so this article will not go into bistable multivibrators.
A type of bistable multivibrator is JK flipflops, on which I have an article about:
https://www.instructables.com/How-to-Build-a-Physical-JK-Flip-Flop-master-Slave-/
