How I Made the Great Game of Qwirkle Even Better!

I'll start off by saying that Qwirkle is a brilliant game, very simple rules but requires concentration to score well and win. If you enjoy a fun game that requires some thinking, this is for you 👍

1 x Qwirkle game
1 x Router, ideally mounted in a table
Appropriate sized router bit or bits in my case (more info to follow)
Wood glue, I used Gorilla
5 Minute epoxy glue, again I used Gorilla
Ohhh, don't forget the 432 magnets, I bought mine from www.first4magnets.com

The problem (as I saw it) is that the pieces when laid don't always line up correctly, they can get knocked out of alignment very easily and when you're trying to slot a piece into a gap somewhere all sorts of non-alignment carnage can ensue.
Now I do realize that I can be more than a little picky at times but this does bother me.

But I had a brainwave, 'I know, I'll just add magnets'...

I did a little working out (sketch) just to check that no matter the order of placement a North Pole would always line up with a South Pole. I'm pleased to say my thinking was correct.

One of my concerns about adding the magnets was that as you move a piece into place the other pieces would move to meet the new piece.
With this in mind I went for one of the smallest magnets I could find that would still have enough strength to hold the played pieces in place.
The Qwirkle pieces are 12 mm (0.47 inch) wide, so I went for a 4 mm (0.16 inch) round magnet as this would give plenty of space either side of the routed hole. On the website I was searching there were three different thicknesses, I went for the 1 mm (0.039 inch), there are then two different strengths, N42 or N35 I went for the slightly lower strength N35 version.

This is the exact magnet I went for 4 mm diameter x 1 mm thick N35 Neodymium Magnet, with 0.16 kg Pull
As this was a complete guess I'm very pleased to say that this strength was perfect.

For repeatability but more importantly safety I decided to make a quick jig for routing out the holes.

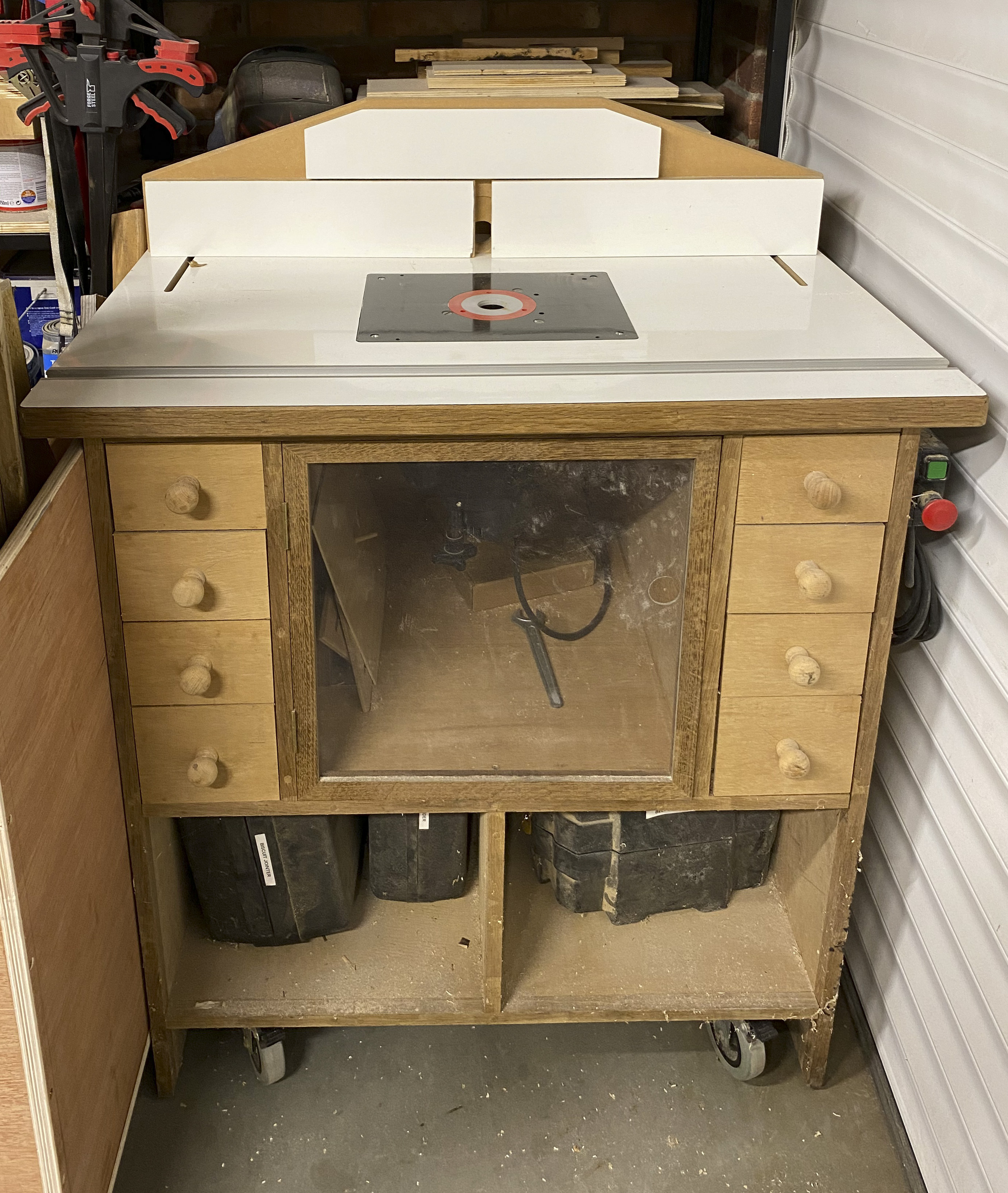

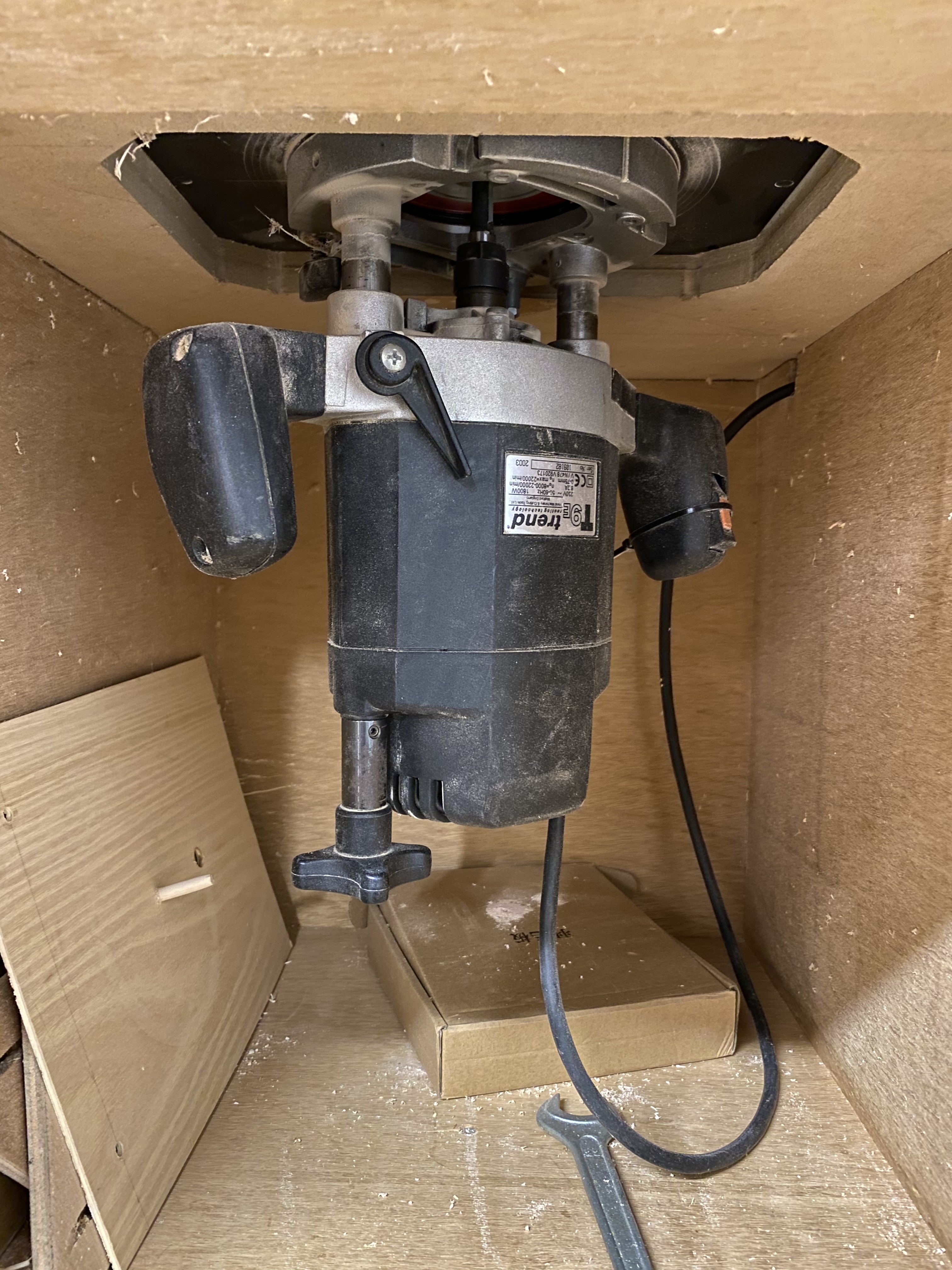

In my router table I have a T track which I used to secure a piece of 5 mm (0.2 inch) plywood over the router, to make the hole in the plywood I raised the router up through the ply while turned on. This makes sure the bit is perfectly centred.
Next was to mark up and attached the guides for the locator, this was done by measuring the pieces width and depth and marking that out on the ply.
I used some pieces of thinker ply offcuts as the surrounds, these were stuck down using Gorilla wood glue.

With 108 individual Qwirkle pieces there are 432 sides that need routing.
This is where I made my first mistake, I originally tried using an 8 mm (0.31 inch) router bit but this was way too big and allowed for too much inaccuracy in the magnet placement. Thankfully I checked this before routing out too many pieces only doing 7.

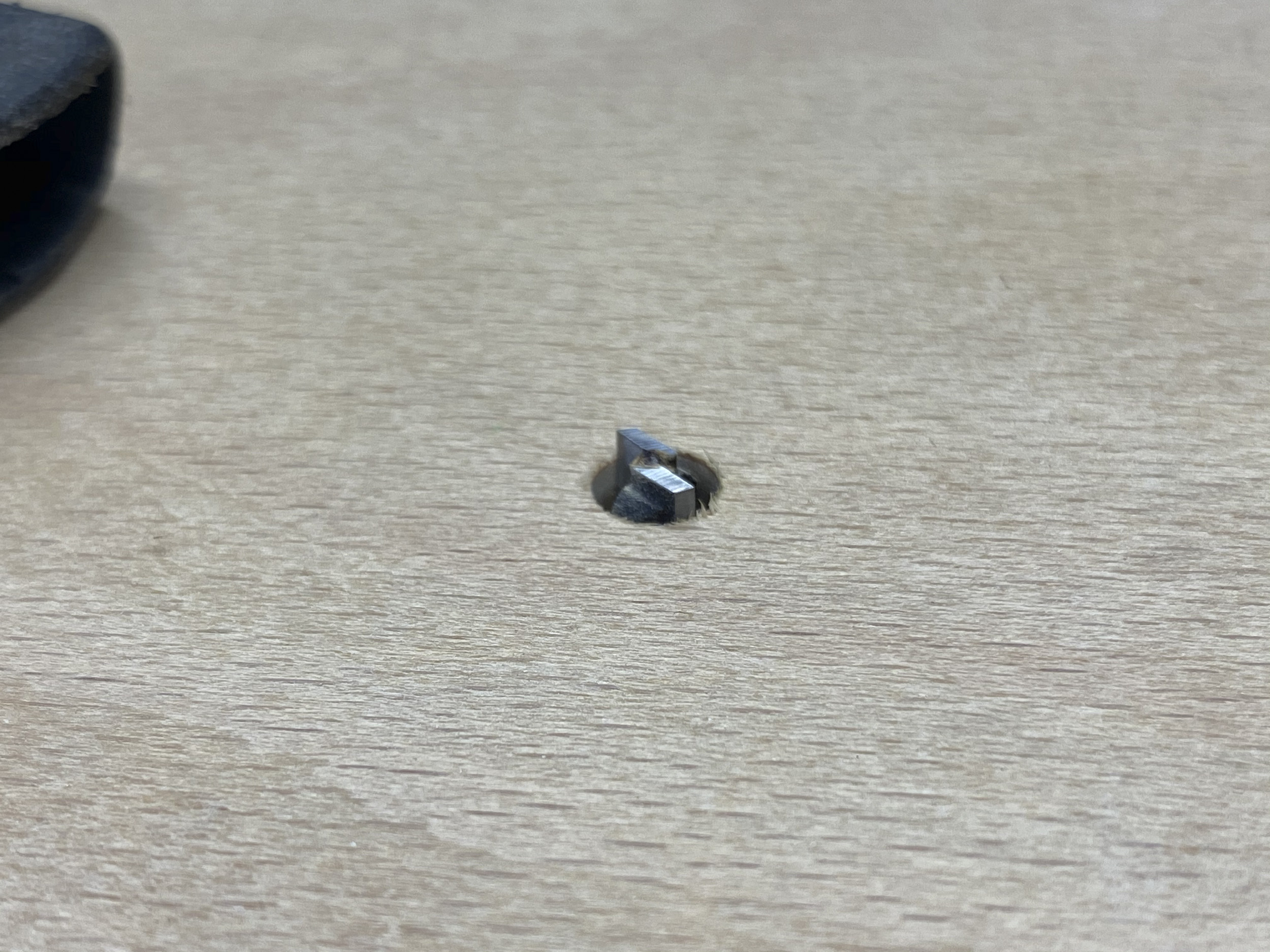

I changed the router bit out for a 6 mm (0.24 inch) one, this was much better for magnet placement accuracy but had a different issue. The cutter has a blade on each side but these don't meet in the middle, leaving a small nubbin in the centre of the hole. This meant that after routing out 432 sides I had to change out for a 3.2 mm (0.13 inch) bit and re-route all 432 side again.
The trick here was to make sure that the face of the piece was always facing towards myself, this ensured the hole was always in exactly the same place. After all, the most important part about this whole thing was making the pieces line up when played.

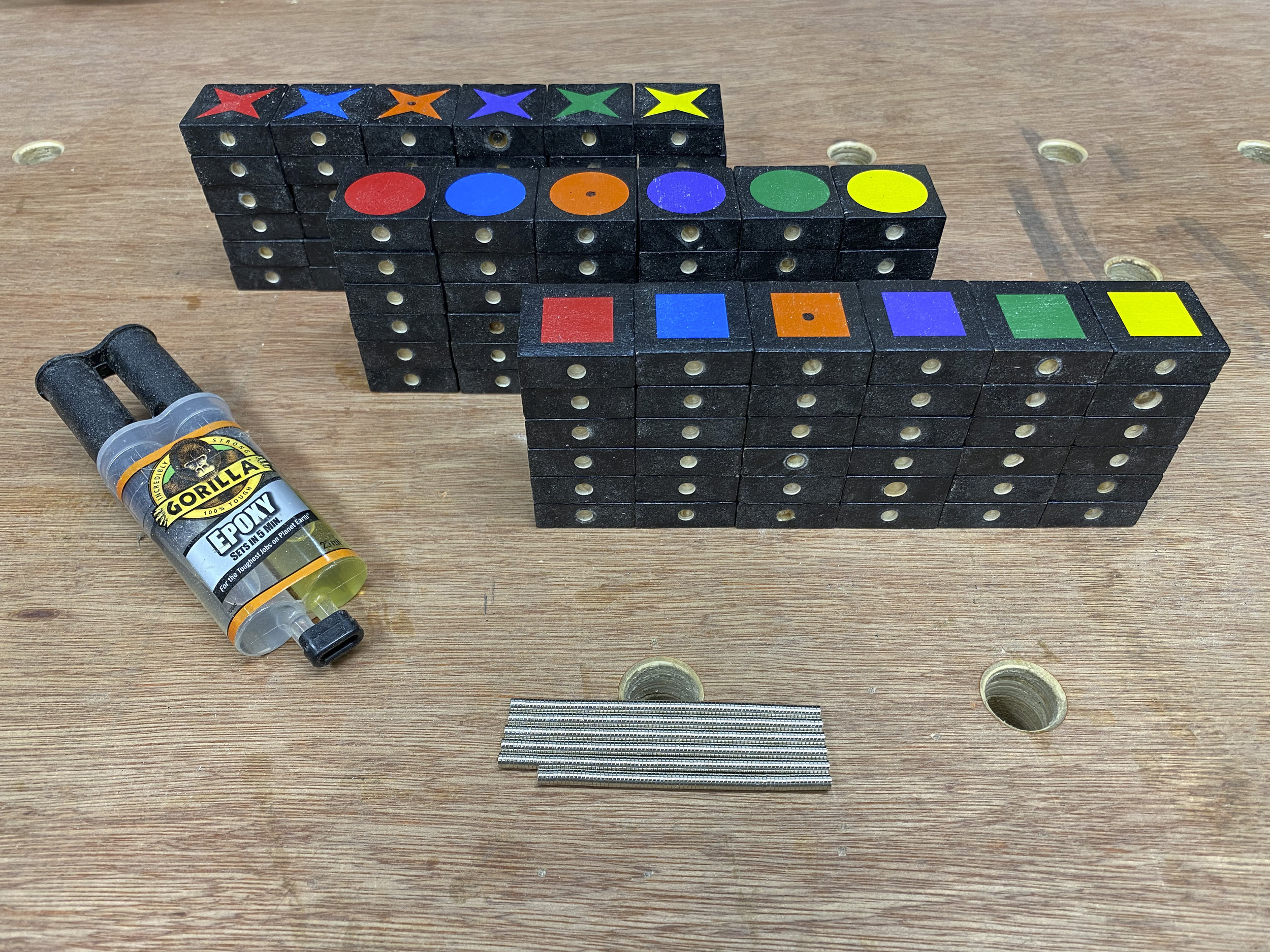

With all 864 routing passes done it was now time for the glue up.
This took more than a bit of practice but check out the video for the final process.
Firstly I aligned all the magnets so they were all north to south, this meant I was able to take one off the bottom of the stack and know it was correctly orientated.
Next mix up a blob of two part epoxy.
The procedure was then as follows...
1. Use a match to pick up a spot of epoxy and deposit it in the routed hole.
2. Slide a magnet off the bottom of the stack.
3. Maintaining the polarization of the magnet, stick it to the metal stick.
4. Smush the magnet into the glue. Keeping the angle of the stick low, quickly pull the stick away leaving the magnet in the glue.
5. Use a non-metal stick to move the magnet around to make sure it's centred in the hole. At this point I also tried to move some glue to cover the top of the magnet.

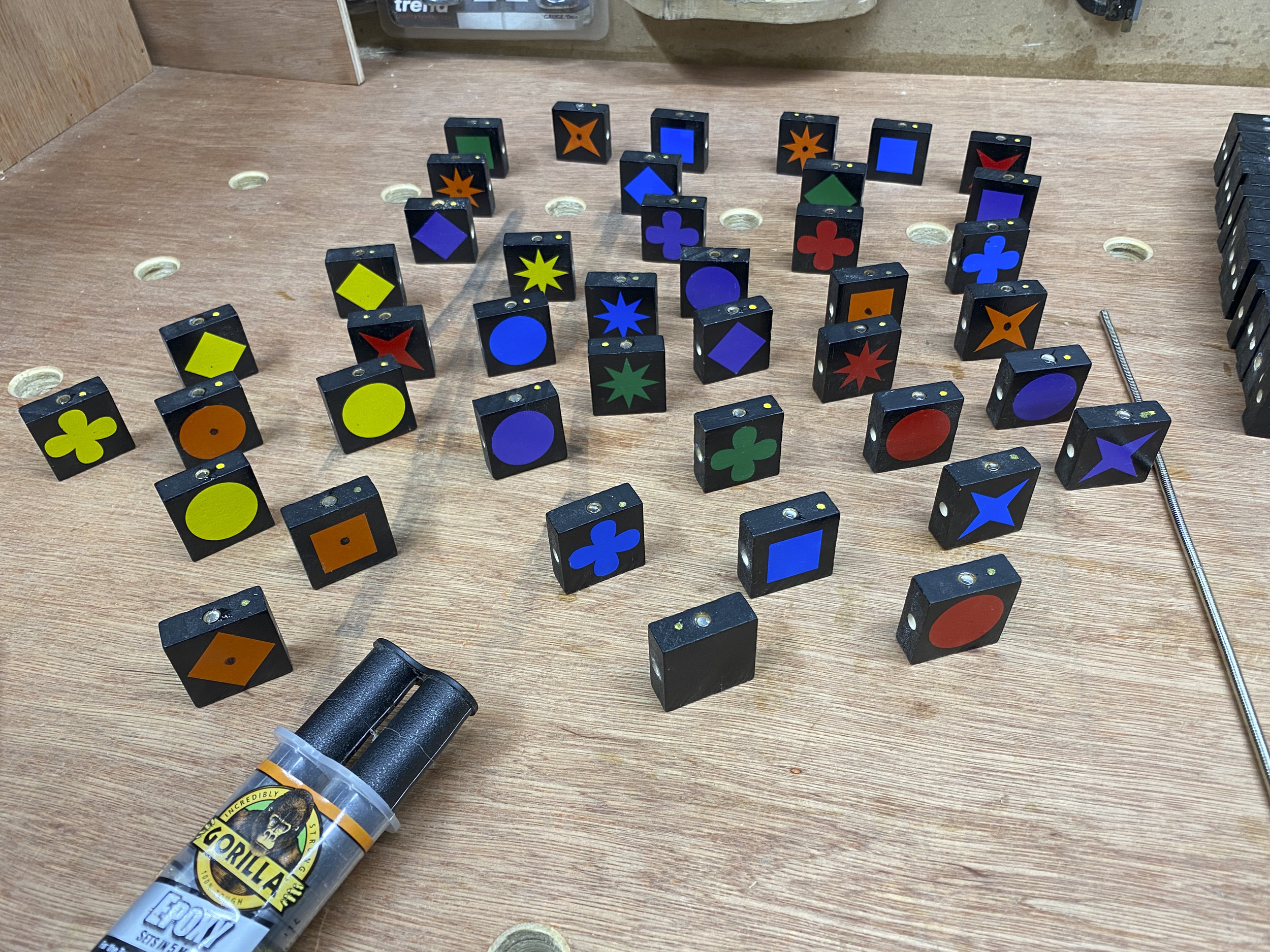

6. Set the piece to one side... Repeat...

Make sure after you've glued the magnet in place don't put the pieces too close. I failed to do this and a couple of the magnets managed to jump between the pieces before the glue had cured. Keeping them a minimum of 80 mm (3.15 inch) apart should be fine.

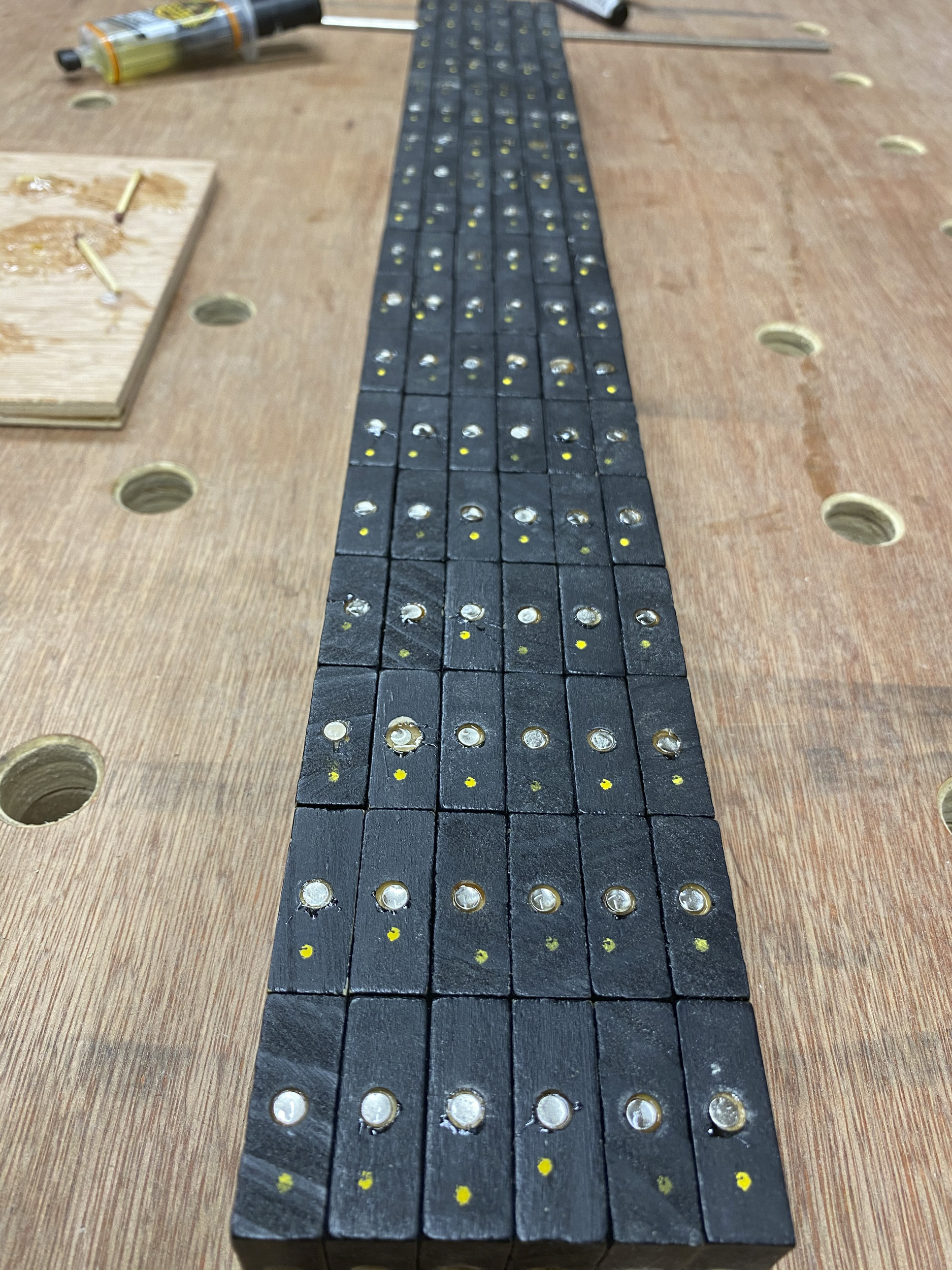

I marked one side of the piece and the opposite side with a yellow dot, both of these sides had the same polarization magnets. I then turned the magnet stack round to flip the polarization and repeated the gluing process for the other 216 magnets.

One of the issues was the adding of the magnets wasn't the quickest thing to do, as a result I was sometimes only able to do between 8 - 12 pieces before the epoxy cured.

With the amount of pieces, glueing and full curing time this whole process took a couple of days, on and off.

After all the glue had fully cured there were a few (more than a few) pieces that had a bit of glue overspill. As the whole reason for doing this was to neatly align all the pieces during play this needed cleaning off. It was actually quite easy to do, using a sharp chisel to pick off the excess glue.

Once all the pieces were cleaned up I then checked the polarity of all the magnet placements. To do this I drilled a couple of holes in a scrap of wood and inserted one north up and one south up magnets. I then passed all sides of every piece over each scrap wood magnet.
Video 1 (green star) shows what should happen, two opposing side stick to one magnet and the other two sides stick to the other.
Video 2 (orange circle) shows what happens when I got one of the magnets wrong. Thankfully of all the 432 magnets I only got 4 flipped over, 1% error... I'll take it.

The final and best stage... Getting to play 'Magnet Qwirkle'...

The first feedback was from my darling wife... "I don't like it, it's stupid, why did you ruin our game..." I don't think she was pleased.

We were playing one of our regular games with my mum and dad, their feedback was more positive.
After playing three games thankfully my wife had changed her mind, her final comment was a little more positive "OK, I quite like it".
