How DC Motor Works? Simple DC Motor

A simple project to show how a DC motor works using easily available materials. This project demonstrates both the working principle of permanent magnet and the electro magnet.

- Round permanent Magnet

- Enameled Copper Wire

- Battery Holder

- Plastic stand or a small wooden plank

- Metal clamps (to hold copper wire)

- Few bolt and nuts (to fix the metal clamp with the plastic stand)

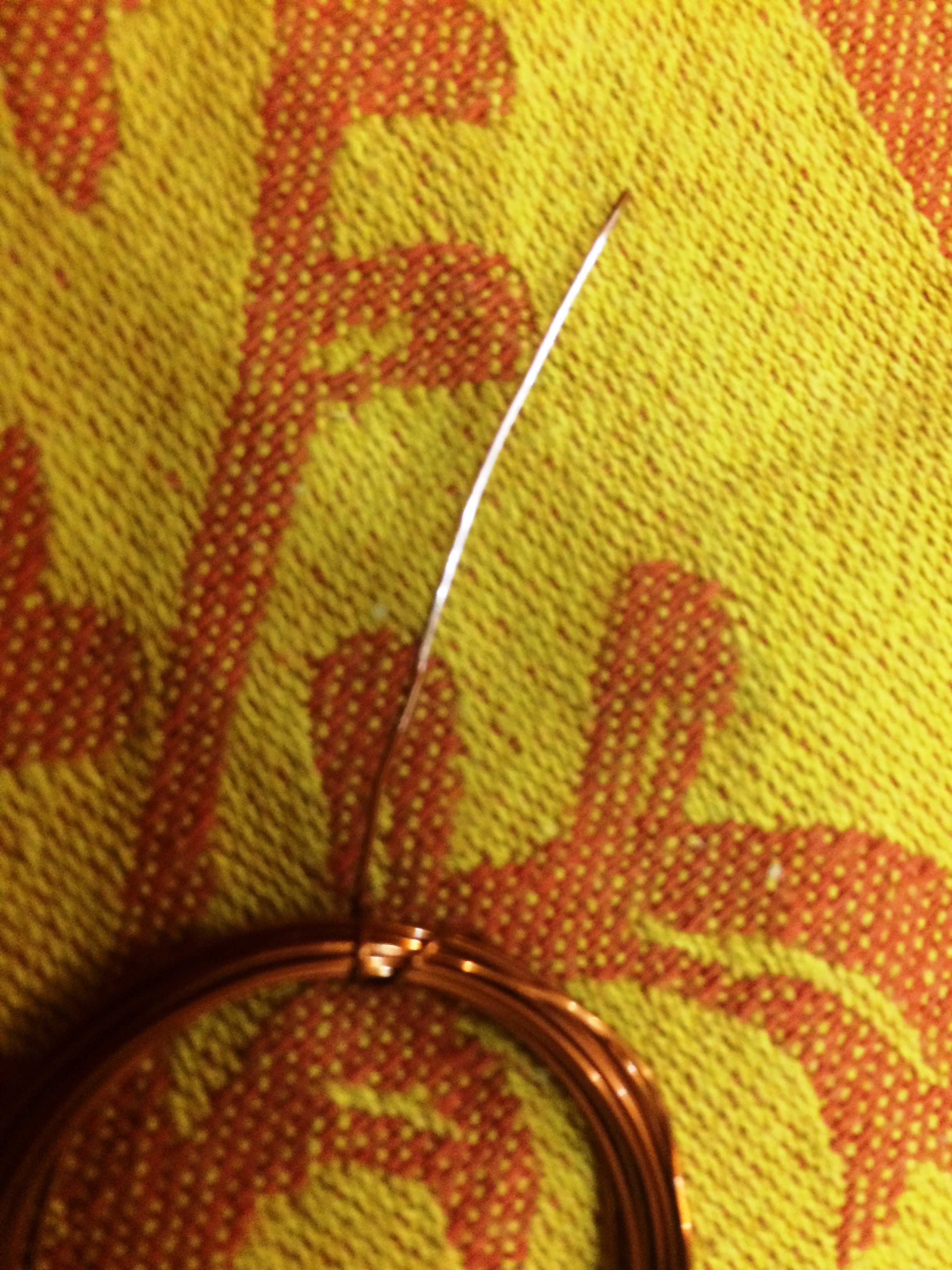

Take the enameled copper wire and use a small container or a half inch pipe to wind the copper wire firmly

Remove the coiled copper wire and keep both ends of the copper wire open - about 4-5 cm

Give 2 turns of the wire at both end around the coil. This will stop unwinding of the coiled copper wire

Make the copper wire straight (as shown in the photo)

Remove the enamel coating from both ends (you can use any sharp object to remove the enamel coating)

Fix the metal brackets - leave enough space between the bracket to keep the permanent magnet

The space between two brackets should be slightly less than the total length of the coiled copper wire (end to end)

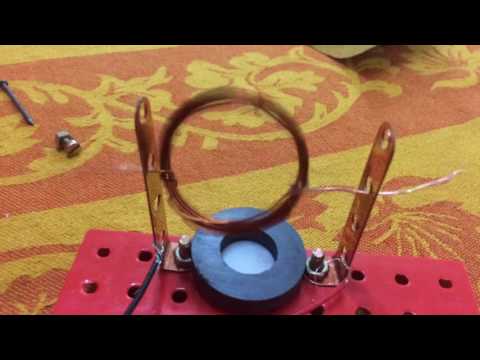

Now place the copper coil (enamel coating removed from both ends) between both metal brackets

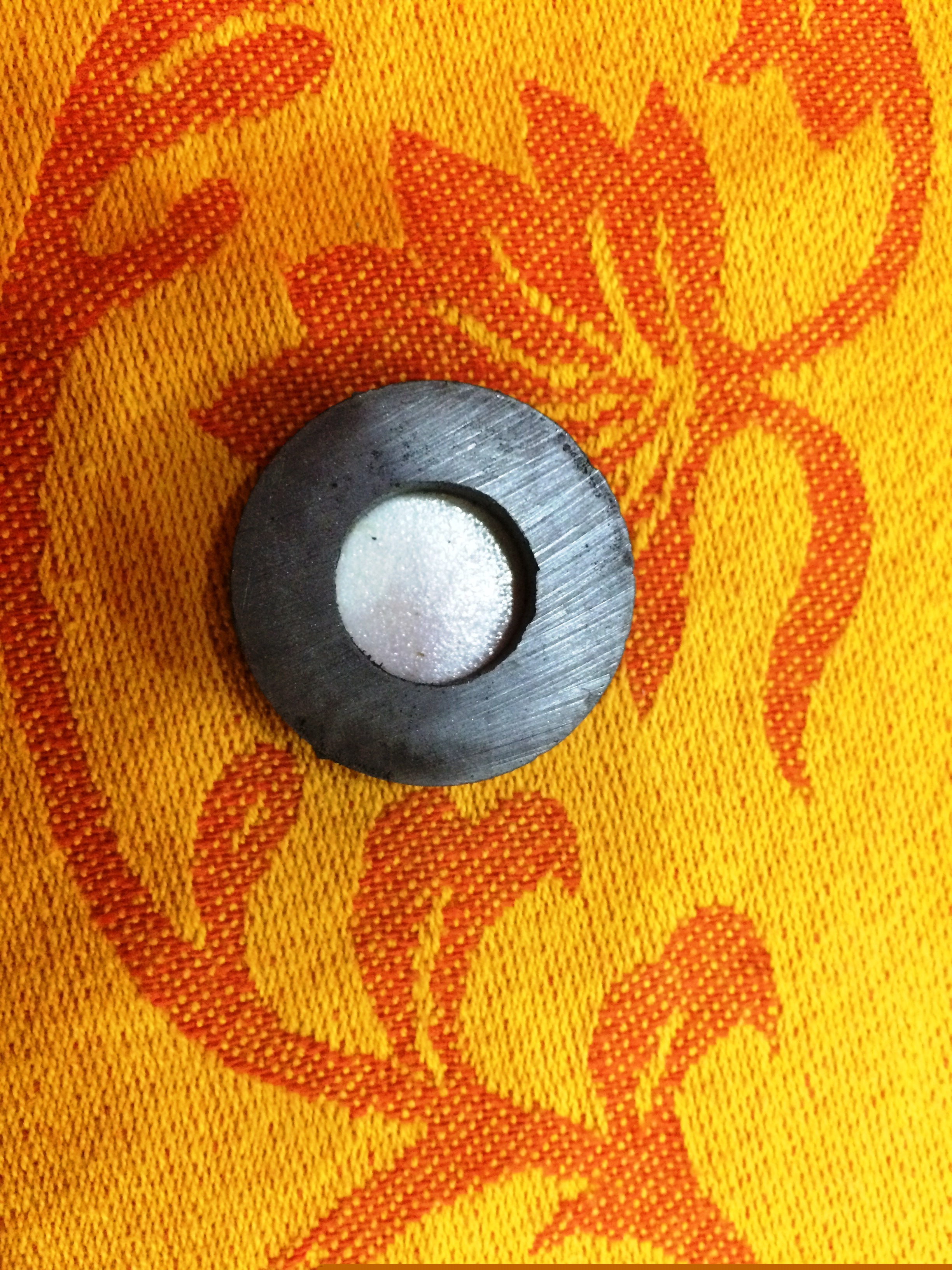

Keep the permanent magnet beneath the copper coil

connect two 1.5 v batteries to the metal holder (positive and negative)

Once power is provided from the batteries, copper coil becomes electro magnet

Now permanent magnet's north or south will oppose electro magnet's north and south

Due to the above, it experiences a force which converts it into rotational energy.
