How to Make a Homemade Pocket Knife Sharpener #2

by coolbeansbaby68 in Circuits > Tools

34482 Views, 92 Favorites, 0 Comments

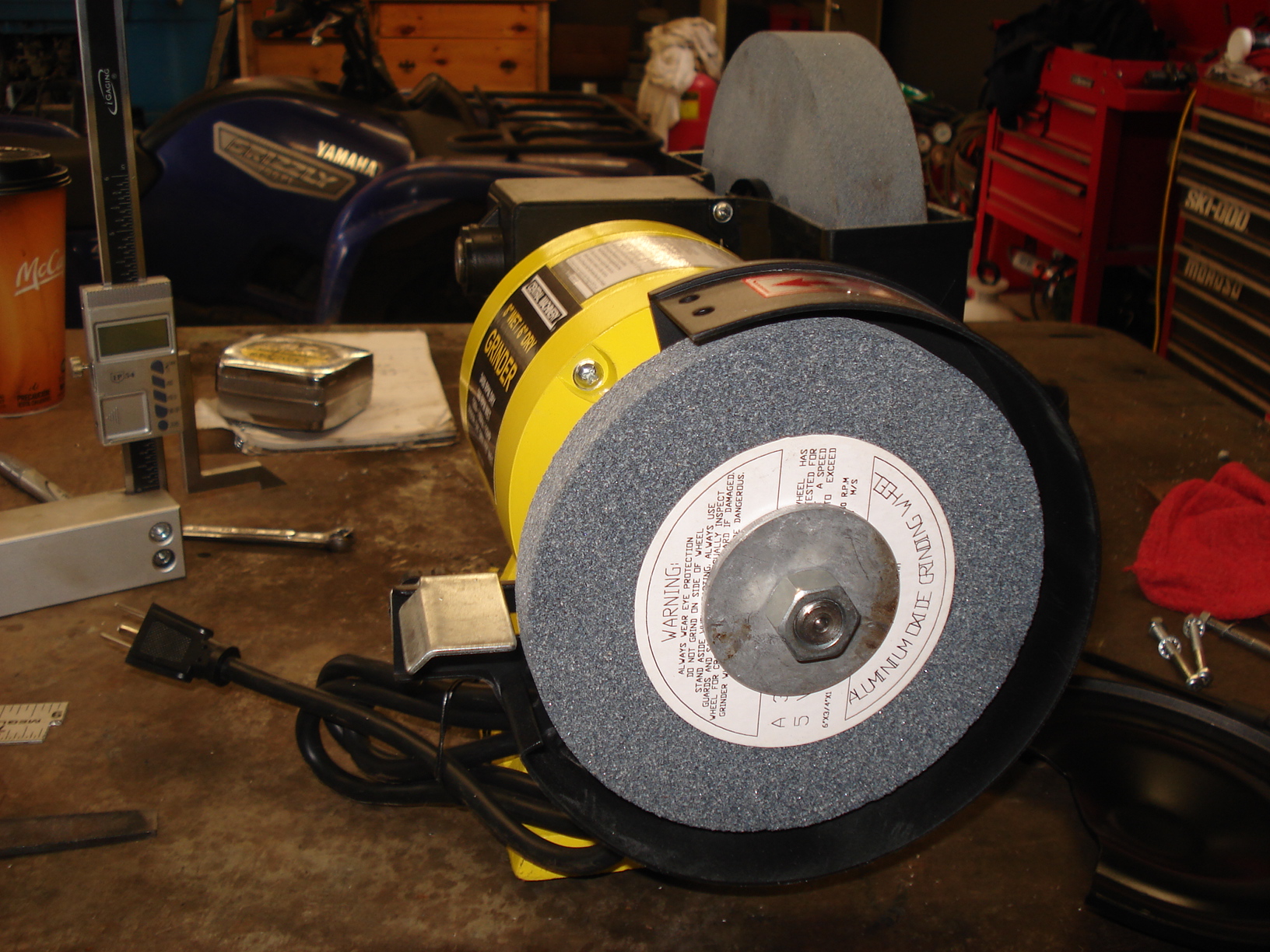

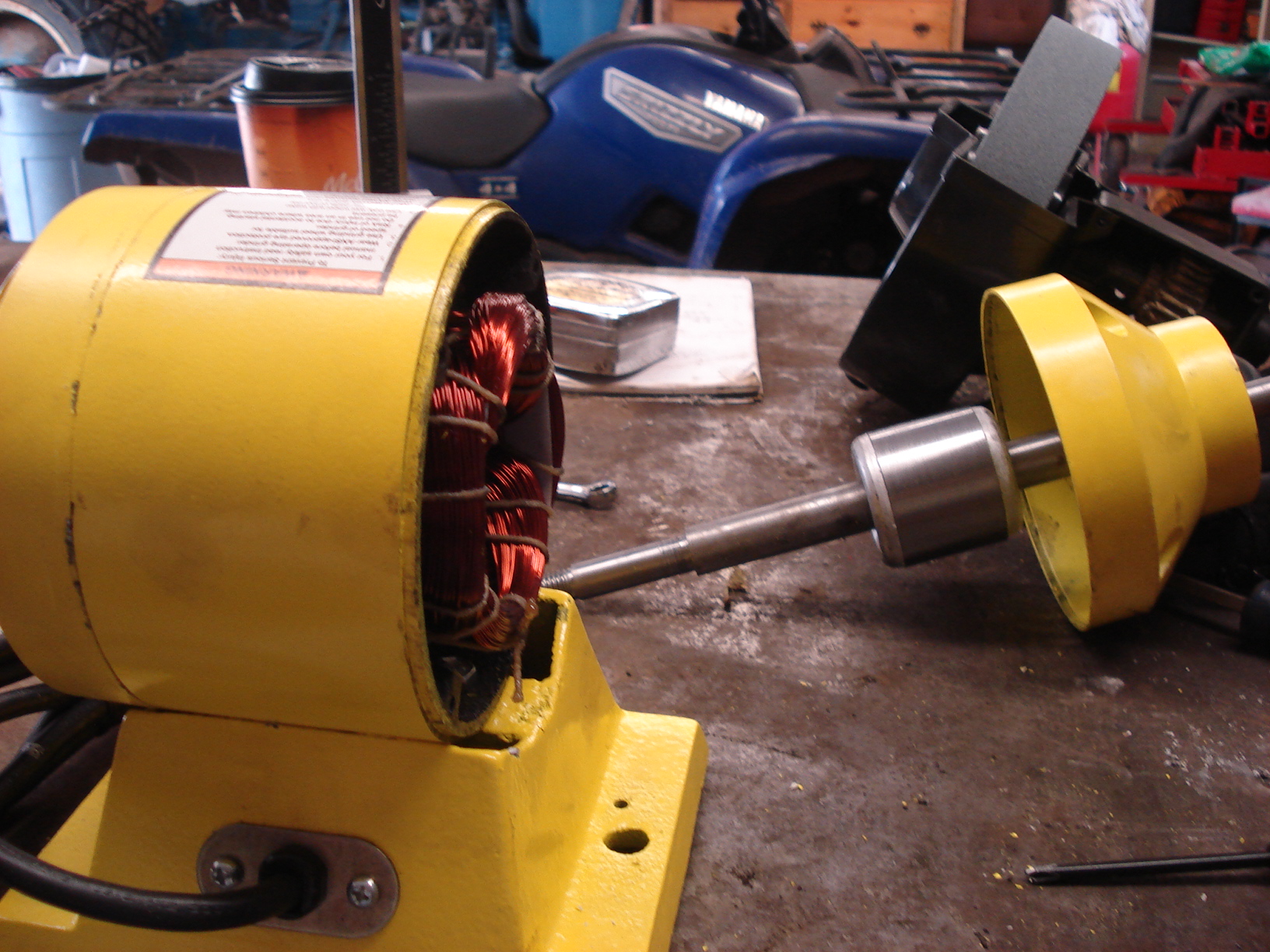

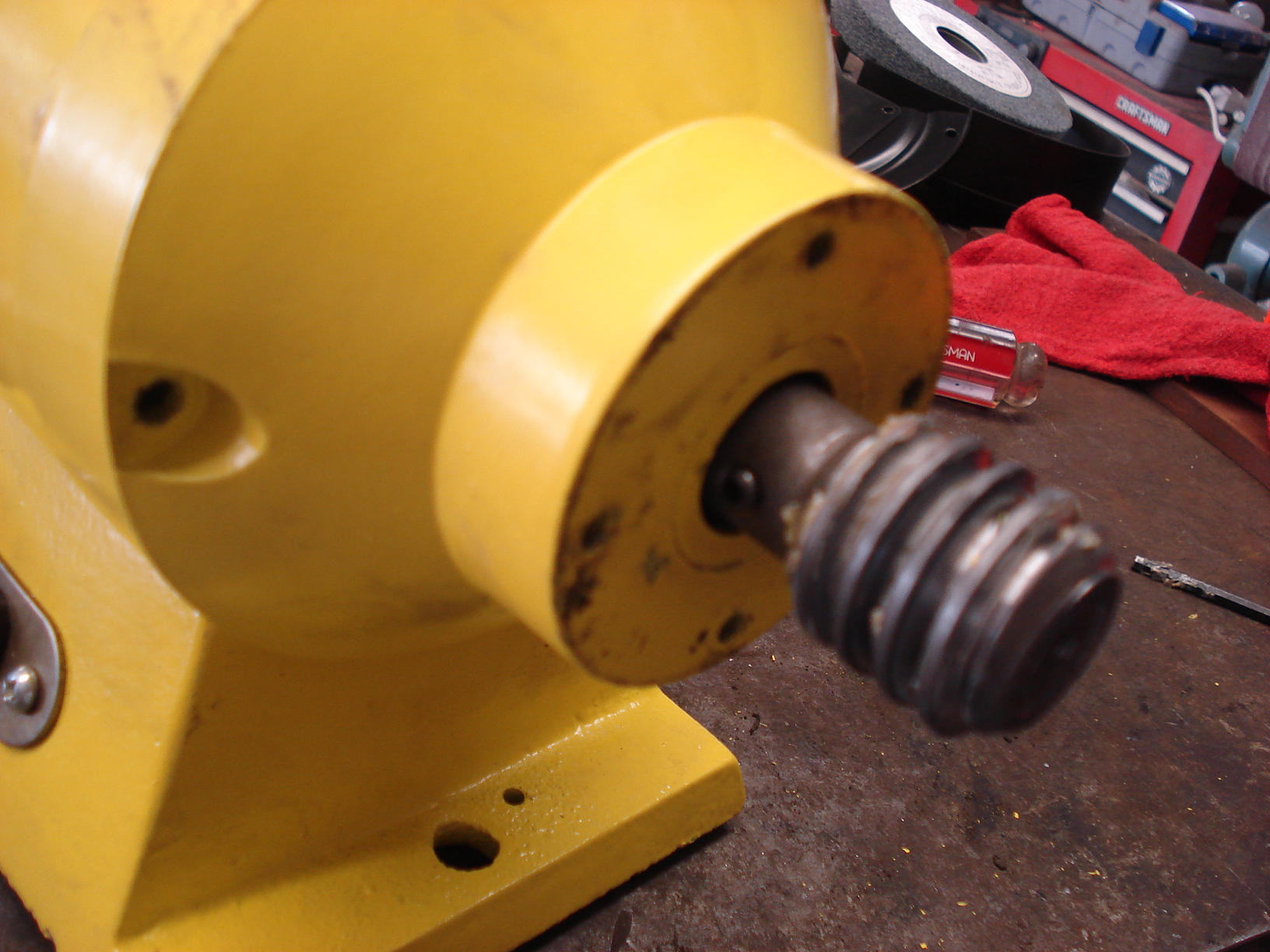

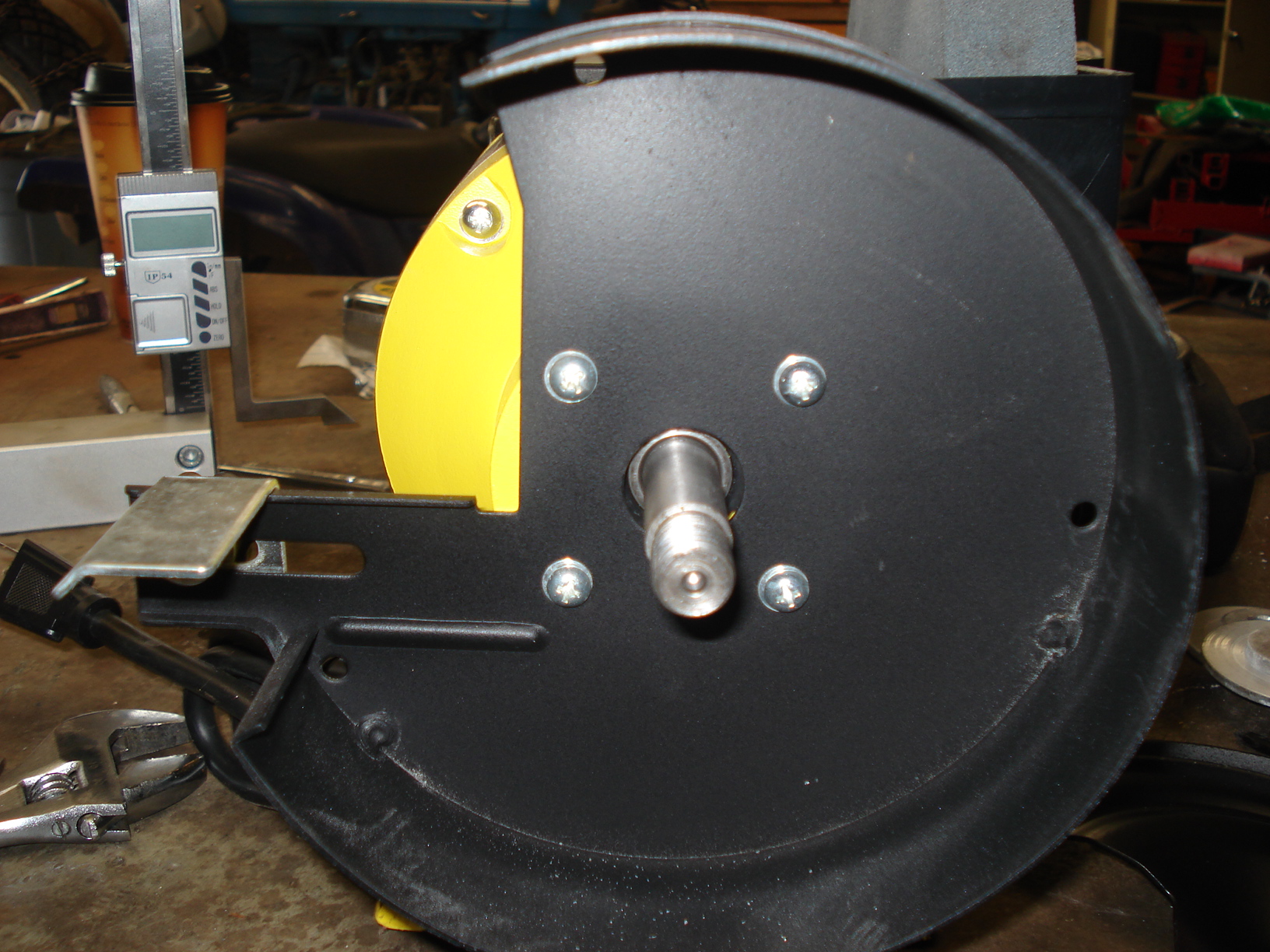

How to Make a Homemade Pocket Knife Sharpener #2

knife sharpener2 016.JPG
knife sharpener 005.JPG
knife sharpener 006.JPG
knife sharpener 007.JPG
knife sharpener 017.JPG
knife sharpener 009.JPG
knife sharpener 010.JPG
knife sharpener 008.JPG
knife sharpener2 001.JPG
knife sharpener2 002.JPG
knife sharpener2 003.JPG
knife sharpener2 004.JPG
knife sharpener2 005.JPG
knife sharpener2 006.JPG
knife sharpener2 007.JPG
knife sharpener2 008.JPG
knife sharpener2 009.JPG
knife sharpener2 013.JPG
knife sharpener2 014.JPG
knife sharpener2 015.JPG
knife holder.png
main bracket supports.jpg
slider knife bracket.jpg

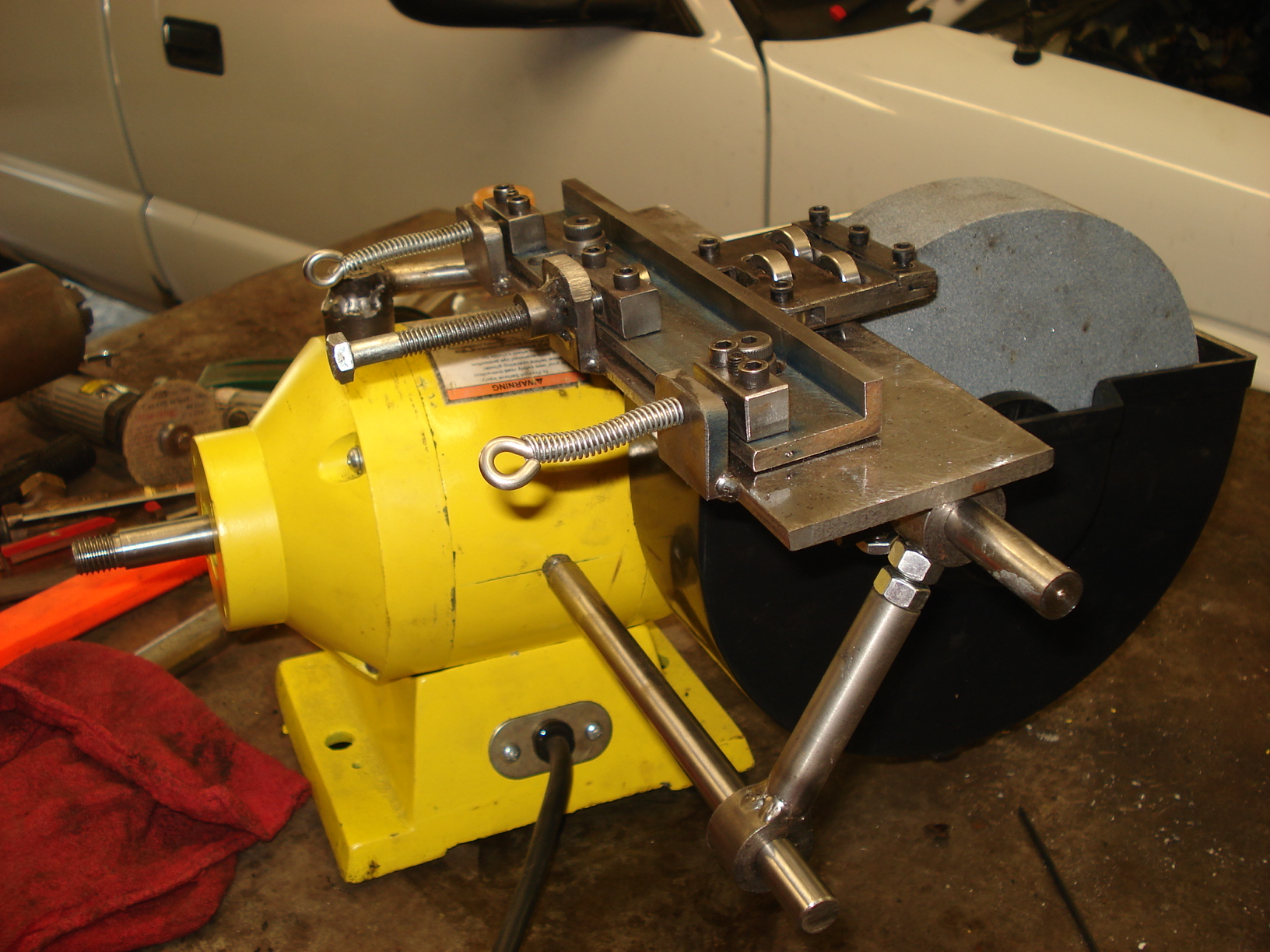

Here is a picture of the finished sharpener ready to start sharpening small knives..

Knife Holder Plans

knife holder.png
Here is the illustration  plan i drew  for making the knife blade holder.

Pocket Knive Blade Holder Fabrication

knife sharpener 001.JPG
knife sharpener 002.JPG
knife sharpener 004.JPG
knife sharpener2 007.JPG
knife sharpener 003.JPG
knife sharpener2 001.JPG
knife sharpener2 002.JPG
knife sharpener2 006.JPG

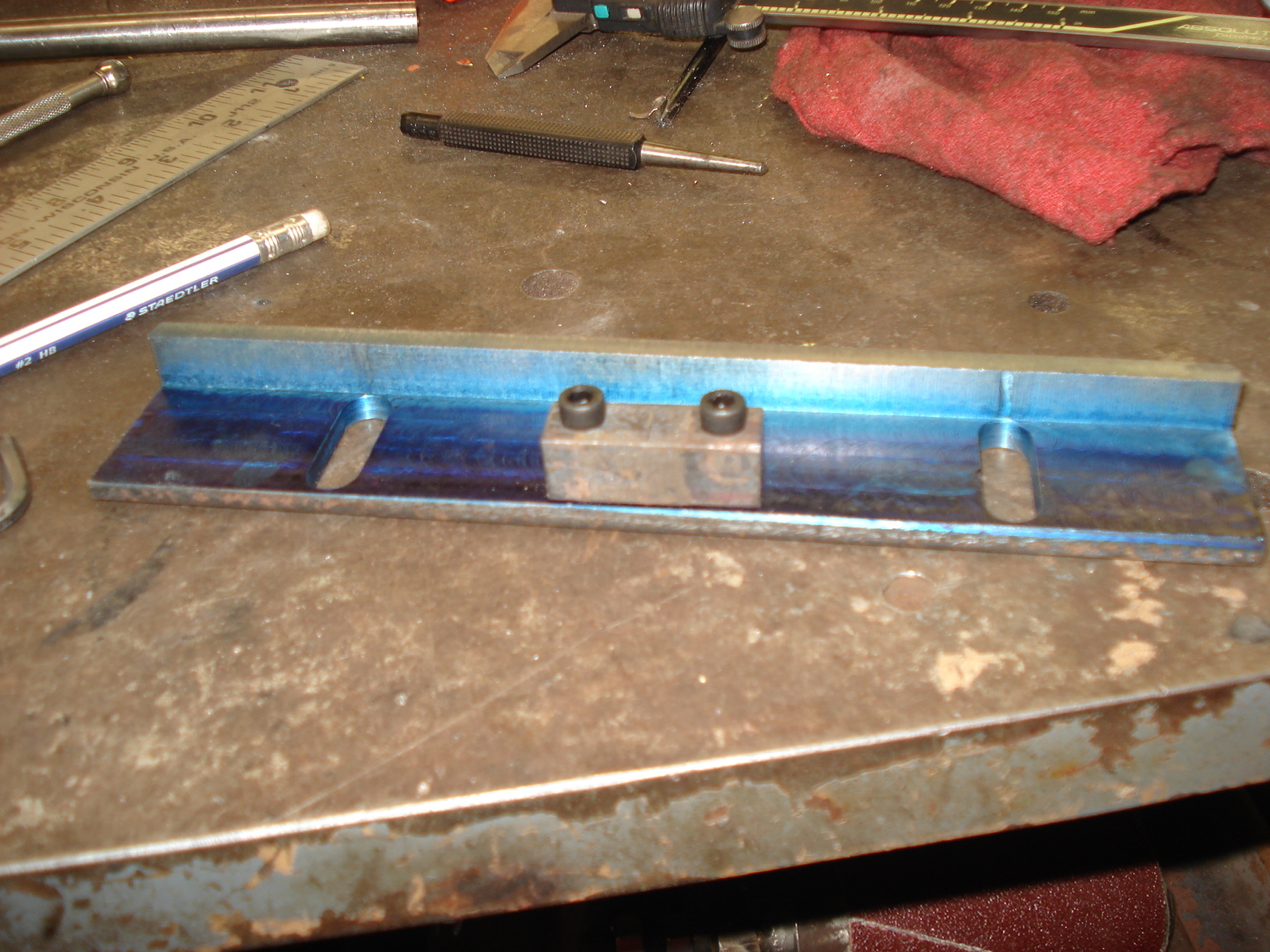

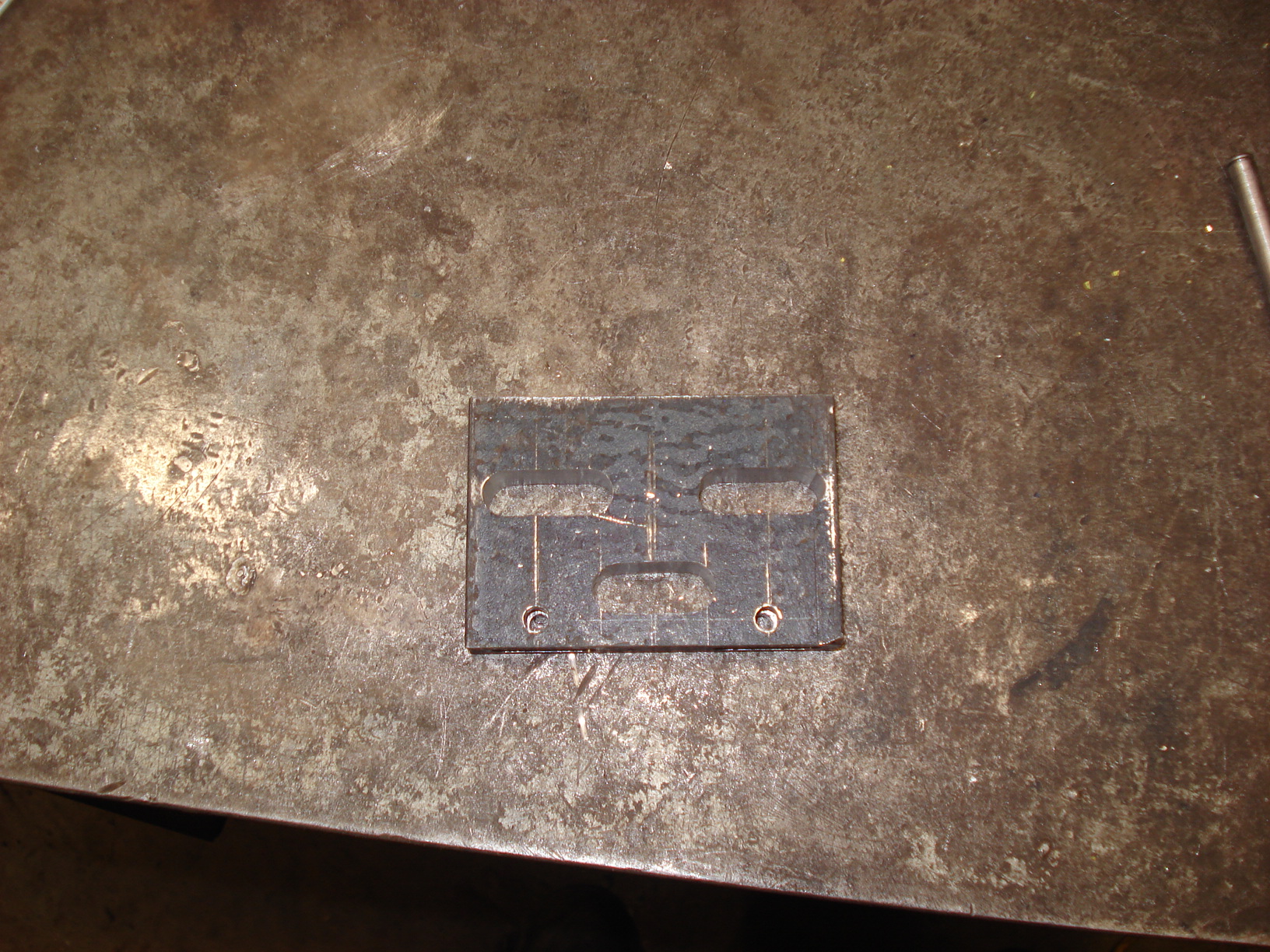

Pic#1  Shows  me milling   the 3/8 wide slots by  3/4 of a inch long.

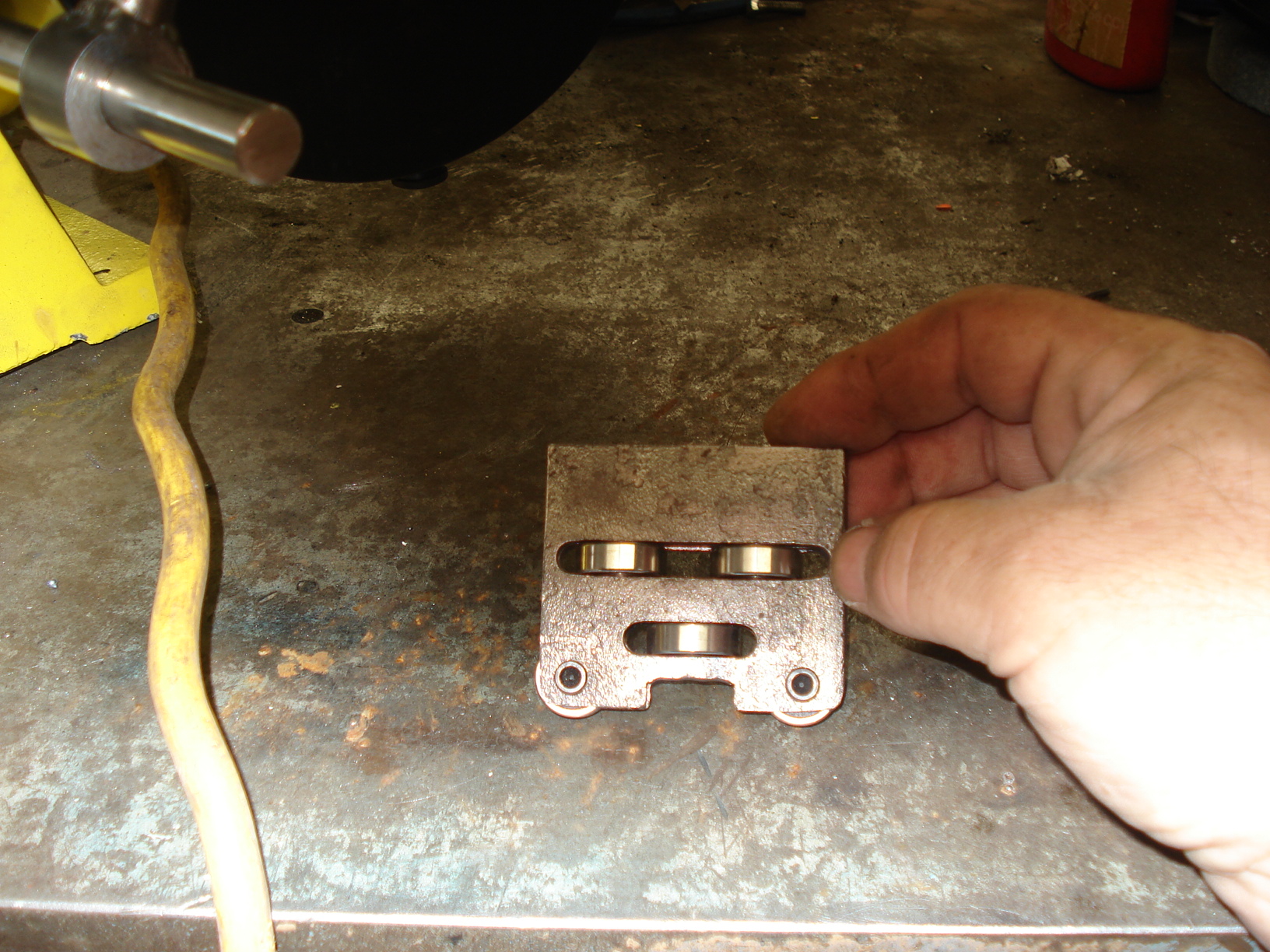

pic #1,2,3   show the end slots  for  the 2 bearings  that  will roll on the end guide to keep the blade straight as it is rolled across the grinding wheel.

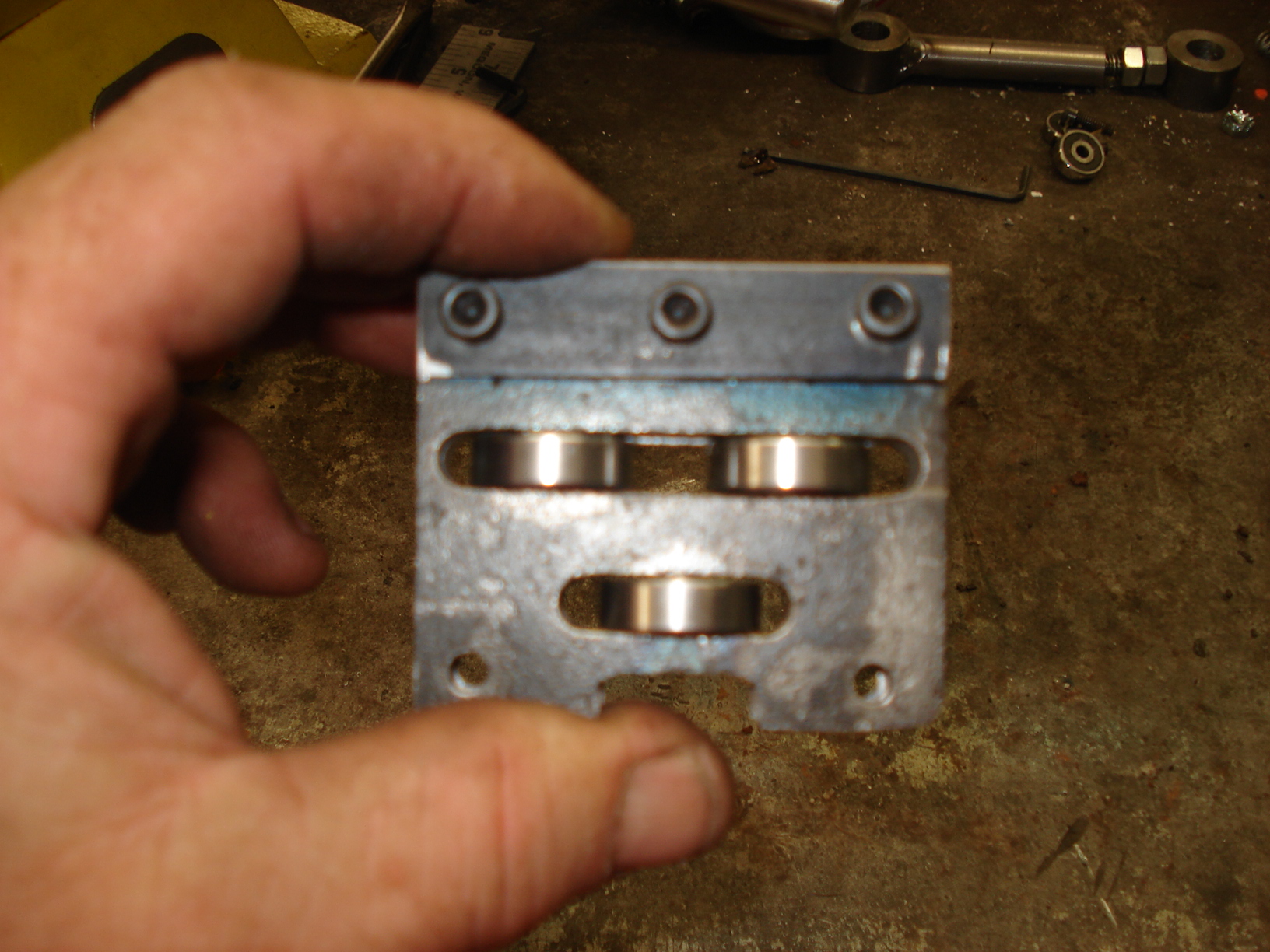

Pic#5,6,7  Show the 3 center bearing slots for the leveling of the blade holder as it passes down the  the guide.

Pic#8  Shows the clamp attached  to the holder with 3  8 x 32 x 1/2 in  screws

Main Brackets and Supports Plan

main bracket supports.jpg

Main Bracket Fabrication

knife sharpener 011.JPG
knife sharpener 018.JPG
knife sharpener 014.JPG
knife sharpener 015.JPG
knife sharpener 016.JPG
knife sharpener2 004.JPG

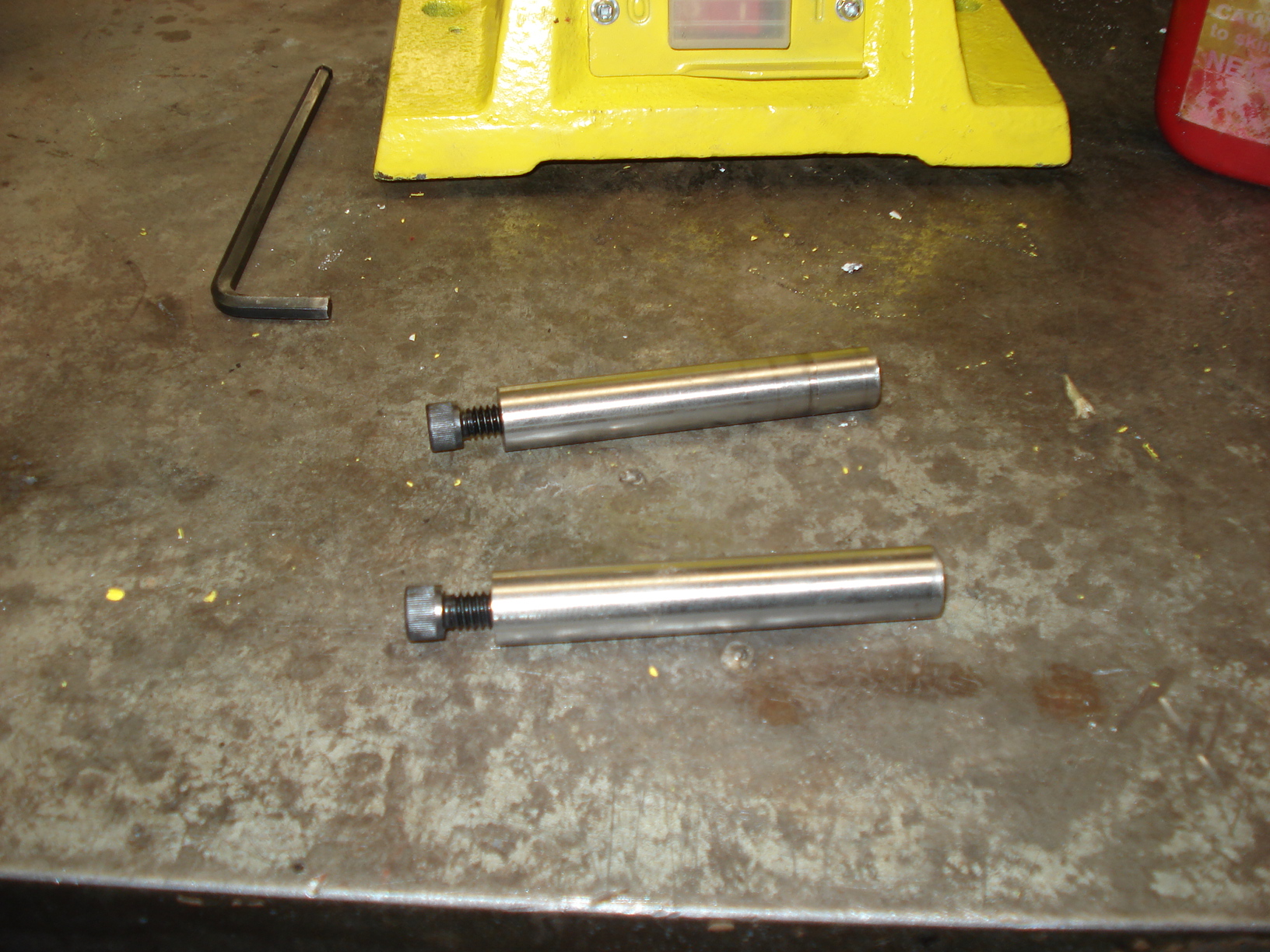

pic#1   Shows the (2) 1/2 inch diameter rods i drilled and tapped 1/4 x 20 x 1''  that will later be cut down to  1 1/2 inch long.

pic #2  & 3 show the drilling and cutting off of the (2)  height and support spacers

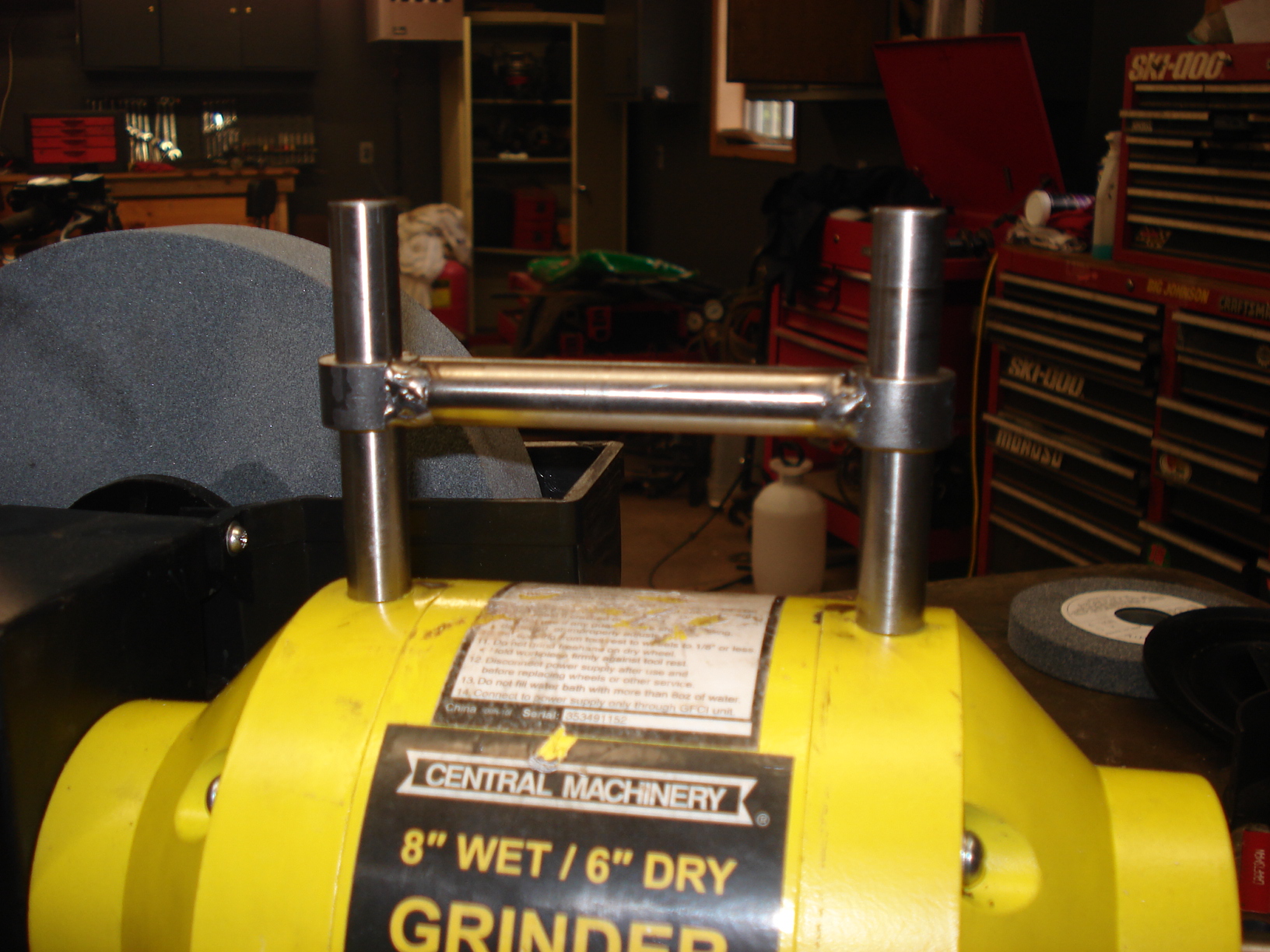

pic#4  Shows the (2) spacers installed and the support bracket welded between them.

pic #5 Shows the 14'' long  support rod for the slider bracket welded into place.

pic #6   shows the jack  support rod  for leveling the  14'' long support rod.

Knife Slider Bracket Plan

slider knife bracket.jpg

Slider Bracket Fabrication

knife sharpener 023.JPG
knife sharpener 024.JPG
knife sharpener2 008.JPG
knife sharpener2 015.JPG
knife sharpener2 003.JPG
knife sharpener2 014.JPG
knife sharpener2 016.JPG
Pic #1 &2  shows the milling of  all the surfaces  and the (2) slots so the bracket can slide towards the wheel for adjustments.

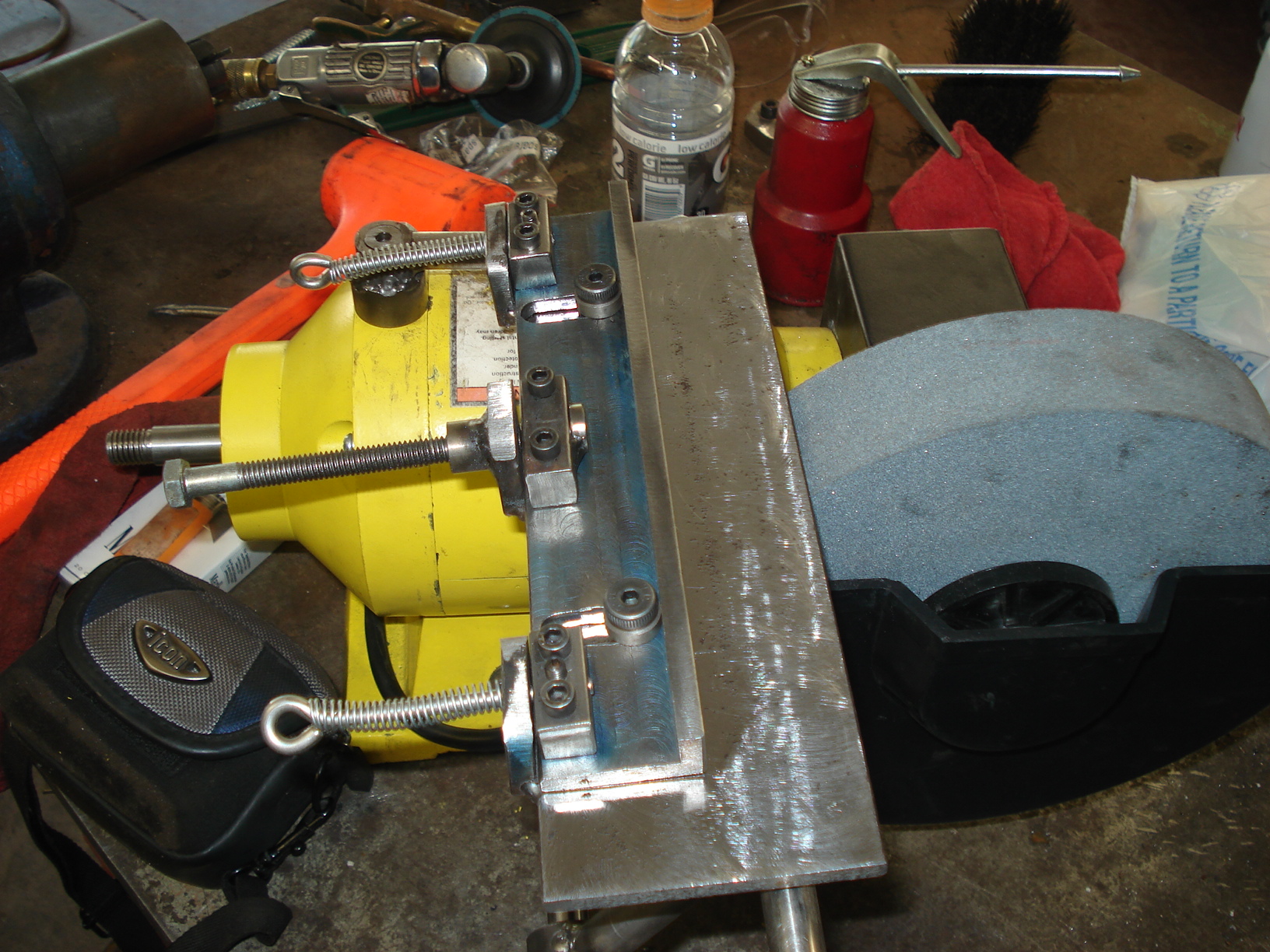

pic# 3 thru 7   Shows the slider bracket mounted in place ,  The adjustment bolt attached , The (2)  Spring assisted pins to hold tension on the slider bracket at all times, And the jack bolt attached and  leveled.

Finding the Right Angle.

knife sharpener 022.JPG
knife sharpener2 008.JPG
knife sharpener2 013.JPG
knife sharpener2 009.JPG

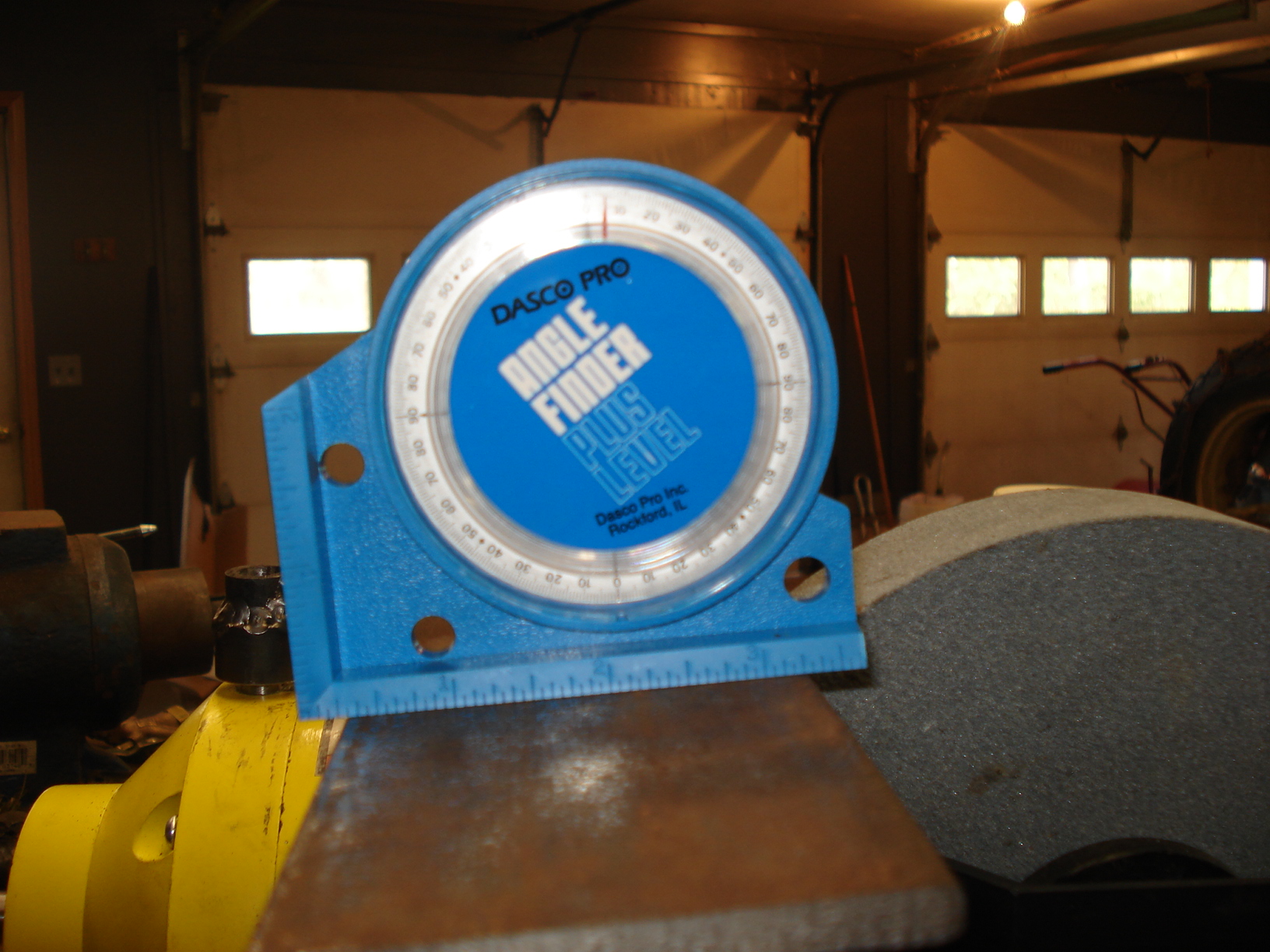

pic #1&2 Shows how i used a angle finder to get the  5 degrees i wanted for my pocket knife edge.

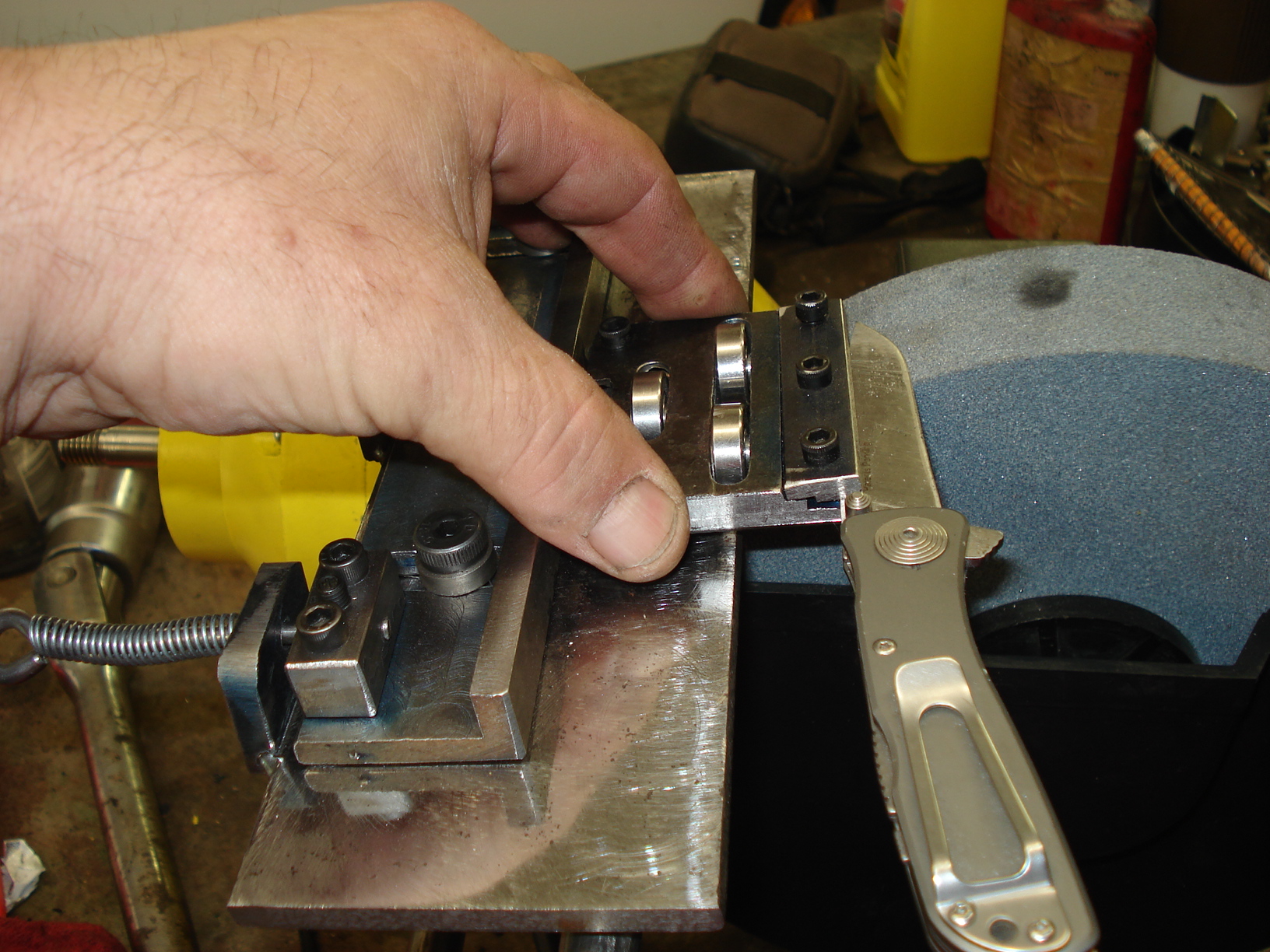

pic# 3&4  Shows the knife blade attached to the holder for both edges of the  blade to be sharpened..
